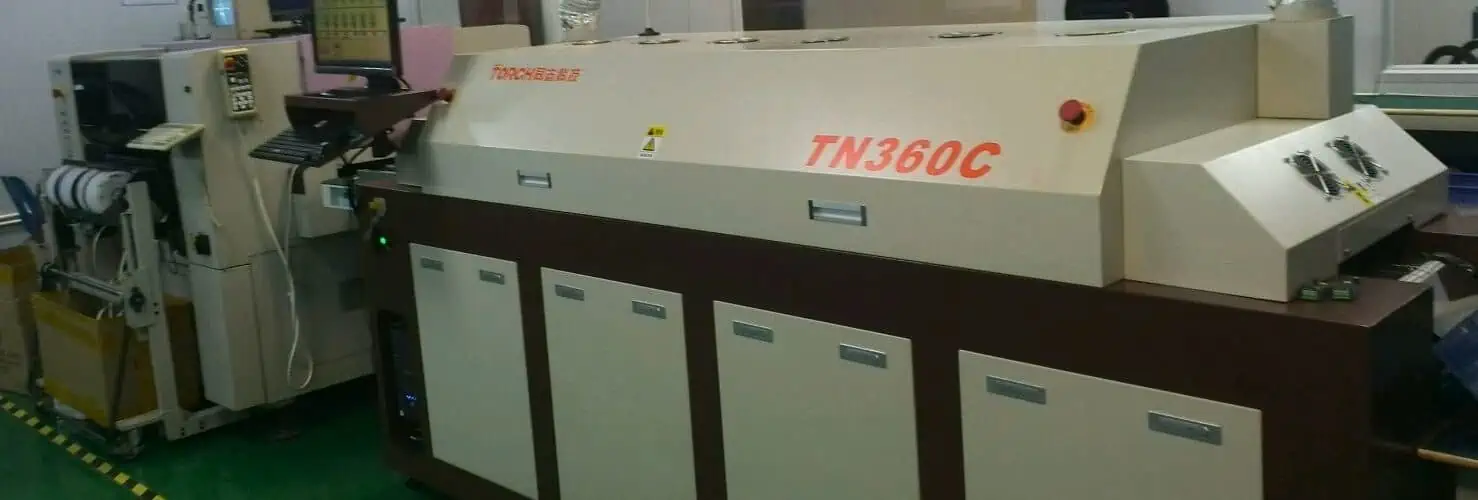

In a hot reflow oven, solder is thermally processed for use in the production of electronic components. For extremely tiny lab-size operations, a led reflow burner can use as a small packet or box-type oven. A conveyor or inline belt reflow furnace is the best option for larger enterprises.

The infrared or IR heating technique is going to use throughout the early stages of electronics production. Subsequently, the market shifted to convection thermal transmission, pioneered by businesses such as BTU International. One of the numerous benefits of convection hot reflow ovens was the significant improvement in thermal uniformity. Closed-loop convection uses in the most recent reflow ovens.

How Does Solder Reflow Oven Configure?

The configuration of inline hot reflow ovens consists of a variety of heating sections and a cooling portion. There must be a few zones—eight or fewer—or many zones—twelve or more—based on the size, throughput, and length of the reflow oven. The areas configure with a heat transfer set point that will use throughout the reflow soldering procedure. The PCB must expose to this very set point’s temperature when it travels through that area.

The software called “the recipe” contains all of the region temperatures and the speed of the belt. “The profile” signifies the temperature that the circuit “sees” as it passes through the reflow oven.

The software recipe is customized to produce the solder paste profile that the maker of the soldering reflow machine has defined for the circuit. The soldering reflow oven’s maximum and lowest peak temperatures, as well as employ other characteristics like Flux Duration (FAT), Time Over Liquids (TAL), and cooling and heating ramp rates.

PCBs process in a reflow oven in air, in a supervised forming gas or nitrogen environment, or both. Forming gas or nitrogen uses to lessen or completely prevent oxidation of PCB assembly while the heating process.

In certain less crucial operations, the oxygen concentration in a nitrogen soldering reflow process may be more than 500ppm or as low as just 10ppm. SMT reflow ovens that can handle nitrogen frequently come with an oxygen monitor and an automated gas sampling device.

Working of a Modern Solder Reflow Oven

It is necessary to apply heat to the solder paste until it reaches a point of molten point which is 217°C for lead-free solder SAC305. To effectively solder surface-mounted electronic components to the PCB. The molten alloy will combine with the pads of copper on the PCB to form a eutectic mixture. Once it starts to cool to a melting point, a firm solder junction will develop.

In three different methods, heat can transfer from a source of heat to heated items.

· Conduction

When there is a temperature differential between adjacent locations, thermal conduction transfers across a substance without the material moving; when two items with very different surface temperatures come in touch with each other, it happens up until they reach the equalized temperature, heat moves from the hotter to the colder item.

· Radiation

Heat transmission by radiation takes to happen in electromagnetic waves form, mostly in the IR or infrared area. The mode of thermal transfer known as radiation doesn’t require any physical connection between the source of heat and the warmer object. Since black bodies absorb greater heat energy than white bodies, radiation has this constraint.

· Convection

Heat transfers from one location to another through a process called convection, which involves the flow of fluids like air or gas vapor. Moreover, it provides a contactless way of transferring heat.

The term “responsible” refers to a person who is responsible for the action. Ceramic heat elements emit heat by infrared radiation, but they do not immediately transport that heat to a Circuit. To ensure uniform heat production, the heat energy will first move to a heat adjuster. The heated air will force into an inner compartment by a convection blower or fan. Any location on the target Circuit board will experience consistent heat.

Working Principle Of the Solder Reflow Oven

By liquefying the solder that has already been spread on the PCBs, reflow soldering achieves the electrical and mechanical connections between the pins or ends of Surface-mounted electrical components and the PCB pads. There are four temperature levels overall in the reflow oven: preheating, heating, melting, soldering, and cooling. Let’s discuss the operation of all these four zones using the Lyra soldering reflow oven just as a reference.

1. Lyra SMT Reflow Oven

The purpose of preheating is really to ignite or activate the soldering paste and prevent the quick, high-temperature overheating that occurs when components are submerged in the tin. The Lyra Soldering Reflow Oven’s objective is to warm the Circuit board to room temperature as quickly as feasible. However, the heating level needs to be kept within a reasonable range. If it moves too quickly, heat shock will happen, potentially damaging the PCB and its components. The solvent won’t evaporate quickly enough if it moves too slowly. Impact the Lyra Soldering Reflow Oven’s soldering performance. The temperature differential in the reflow oven at the rear phase of the Lyra Soldering Reflow Oven heating zone is rather considered a result of the quicker heating rate.

2. The Lyra SMT Reflow Oven Insulation Zone

The main goal of the Lyra Soldering Reflow Oven thermal resistant phase is to minimize heating temperature differences and maintain the heating temperature of every component in the oven. Give sufficient time in the region to guarantee that the fluxes inside the Lyra Soldering Reflow Oven soldering paste are properly volatilized and that the heating temperature of a bigger component catches up to the heating temperature of a smaller component.

The oxides or residue on the circuits, component pin, and solder balls are clean with flux at the outcome of the heat-resistant stage. Also, the entire PCB temperature is now balanced. After this part, it must emphasize that the temperatures of all electronic components also on SMA ought to correspond.

Otherwise, because of the unequal temperature of every part, reaching the reflow phase will result in a variety of poor soldering occurrences.

3. Lyra SMT Reflow Oven Soldering Zone

The temperature increases quickly as the Board moves into the reflow phase, causing the soldering paste to melt. The temperature of the oven is set higher in this section, causing the component’s temperature to increase quickly to its maximum temperature. When the Lyra Soldering Reflow Oven’s peak temperature is too low, it is simple to create cold solder junctions and inadequate wetting. When it is too much high, the epoxy glue material and the polythene part are more likely to experience delamination and coking. While excessive eutectic alloy compounds form and lead to brittleness. The soldering site influences the soldering intensity.

Pay close attention to the time of reflow in the Lyra Soldering Reflow Oven area of soldering to make sure it doesn’t get too long. If it does, the heater in a Lyra Soldering Reflow Oven can damage, the components may well not work as well, the PCB may burn, and other negative things may happen.

4. Lyra SMT Reflow Oven Cooling Zone

To harden the solder junctions at this point, the Lyra Soldering Reflow Oven’s temperature lowers underneath the solid-state temperature. The cooling rate impacts the integrity of solder junctions. An excessive amount of eutectic alloy compounds may be formed if the rate of cooling is too sluggish. The soldering spot is susceptible to creating a big grain structure, which reduces the soldering point’s strength. It just has to cool down to 75°C because the cooling phase typically cools at a rate of 4°C/S.

The Role Of SMT Reflow Oven In The Soldering Process

The most important step in the entire reflow soldering procedure is the reflow oven. The reflow soldering process for Surface-Mounted components typically employs infrared or convection ovens. These ovens provide a variety of zones with adjustable temperatures. In a conveyor-like line, the zones permit different stages of cooling and heating.

The size of the oven must be appropriate for the load factor and production rate. They will decide both the oven’s minimum production line speed and the process’s repeatability. The oven’s size depends on whether the production processing speed limit is higher than the speed of the line. Often, a bigger soldering reflow furnace will be required for a greater-scale operation.

The Parts & Stages of SMT Reflow Oven

Along their manufacturing line, reflow soldering ovens solder employing a variety of steps and procedures. The PCB moves along the conveyor line or belts the entire time. One-sided woven conveyor straps or belts use in certain reflow ovens. A double-sided, edged conveyor line, however, guarantees greater precision and efficiency for bigger tasks. The oven can operate on both surfaces of a PCB thanks to a double-edged strap or belt.

1. Preheating Stage

The slow stepping up of a PCB to a certain temperature where the solder can reflow is a crucial component of soldering reflow.

Careful observation requires throughout the pre-heating. The PCB and electrical components may damage if the process of pre-heating carries out too quickly. The PCB is protected from harm by gradually boosting the temperature during the pre-heating step. Moreover, it guarantees that all components and parts are correctly and uniformly heated.

The temperature in IR ovens should rise by 2-3 degrees each second.

2. The Thermal Soak

During pre-heating, the PCB goes through a process of thermal soak. The Circuit board keeps at a certain temperature it attains, which was before throughout this stage. Before starting the reflow soldering process, a thermal soak raises the temperature of all elements to a comparable level.

Depending on the PCB and its components, the thermal soak takes a different amount of time. A soak period of an oven needs to complete in less time if it is more effective. Yet, it is important to watch out for an excessively high soaking temperature. Otherwise, flux exhaustion may occur.

3. The Reflow Stage

The procedure moves on to the reflow step after a process of thermal soak. The temperature of the oven has now risen over the melting level of a solder paste. The paste melts and turns into a liquid as a result of the temperature. The solder joints on the PCB will form from this liquid. The flux inside the solder is what drives the process. At the joints, it lowers surface tension and promotes metallurgical bonding.

The ideal temperature must maintain during the soldering reflow phase. This will result in soldering that is efficient and of good quality. Also, it is essential to confirm that the soldering reflow duration is accurate. Ineffective joints may result from insufficient heat. The PCB and its electronic components may become damaged as a result of excessive heat.

Typically, the reflow stage lasts between 30 and 60 seconds. Once more, it’s crucial to avoid having an excessively short or extended reflow time. If the length is too short, the solder cannot stay beyond its melting temperature long enough just to create strong connections. Too much time might cause the joints to deteriorate.

4. Cooling Stage

The PCB has to go through a cooling process after the soldering paste has cooled to produce the joints. This will give the molten solder time to solidify and secure the components. Similar to pre-heating, cooling must also be done gradually to protect the PCB from tension and damage. The PCB should typically cool at a melting temperature of 30 to 100 degrees, with a rate of cooling approx 3 degrees each second.

It is impossible to overstate the significance of progressive cooling. Proper execution of this technique will guarantee the production of connections that are safe and sound mechanically.

The through hole technology is crucial in printed circuit board designs. These holes offer connections between components and conductors on various board layers. The through hole technology gained popularity during the construction of the second-generation computers. Through hole can b e plated or non-plated. Both plated through hole and non plated through hole both refer to drilled hole on a board.

Plated through hole vs non-plated through hole seem like a straightforward and simple topic to discuss. However, there are some important details you need to know about these two different technologies. Therefore, some clarity would help you understand how these technologies operate, their similarities and differences.

Plated through holes have metal layer coating in their inside. These holes connect various layers on the circuit board. Basically, plated through holes are integrated for cases where components need a perfect electrical connection like connectors, switches, and ICs. Electroplating creates the plated through holes. The electroplating process involves the use of chemical to create plated through holes.

Non-plated through holes don’t feature any metal coating on their inside. These holes also connect various layers of the printed circuit board. However, they don’t offer a perfect electrical connection. Non-plated through holes are ideal for components that doesn’t need a high level of electrical reliability. They are ideal for passive components like capacitors and resistors. A mechanical drilling process is used in creating these holes in a board.

What is a Plated Through Hole?

A plated through hole is a hole drilled inside with conductive metal. The technician attaches a circular pad on the hole’s top and underside during a through hole assembly. The circular pad creates a connection between the hole and the circuit board’s traces. The inside of the hole which links the pads plated with a conductive metal links the two sides.

Plated through holes enable the flow of current through components on the side of the PCB, via the PCB’s non-conductive substrate, and to the other side of the board. Also, plated through holes ensure that circuit boards hold components firmly on the two sides. With this, designers can maximize the space they have more efficiently.

A circuit board will need to be bigger if it will be accommodating more components. Circuit boards used in large machine or device will need a bigger size circuit. However, smaller devices integrate smaller printed circuits. The integration of plated through hole requires you to vertically stack the circuit boards. Hence, thus helps to minimize the overall size of the circuit board. This allows the circuit to accommodate more components.

Plated through hole is designed in such a way that it goes through a circuit board entirely. Some PCB designs integrate heat sinks to suck heat from components and discharge to conductive layers. Designers have to make use of vias instead of PTH in order to access the inner layers without the need to go through.  While PTH goes through the circuit entirely, vias only go through one surface. Vias create connection between the top layer and inner layer. When using vias, designers don’t need to breach the other side of the circuit board.  A hole is considered through hole when it goes entirely through the board.

Importance of Plated Through Hole

PCB manufacturers plate through holes to enable components to connect with the conductive layers. Plated through holes offer exceptional electrical conductivity and desired functionality in a circuit board. There are several benefits of plated through holes. A few of these benefits includes faster prototyping. PTH makes it easy for manufacturers to solder components on the circuit board.

Furthermore, plated through holes, guarantees manufacturers high power tolerances and component durability. These holes help in achieving excellent connections. Plated through hole is highly preferred among PCB manufacturers because of the benefits it offers.

What are Non-plated Through Holes?

The major difference between these holes is that the inside of non-plated through holes doesn’t have conductive plating. This means that the inside of these holes don’t feature any conductive plating. A non-plated through hole (NPTH) can’t allow the flow of current through it. Therefore, this hole doesn’t offer the same function as a plated through hole. The design specification of a board will determine if a plated through hole or a non plated through hole is required.

A non plated hole may have pads on any side in some scenarios. However, this doesn’t mean there is a connection. Designers use pads for placing NPTH while some don’t use them at all. In fact, the majority of non-plated through holes don’t use pads. Regardless of the method of through hole assembly, it is crucial for designers to define n NPTH. Mistaking an NPTH for a PTH can result in problems. Issues can arise in the PCB’s pathing.

If a PTH is placed where an NPTH is required, this will make the charge to spread and as such, weakening the charge. This might as well cause bridging those results in short circuits. A non-plated through hole offers a channel where screws or bolts can secure the circuit board. In some scenarios, pins or wires go through this hole.

Plated Through Hole Process

Circuit boards have different sizes of holes for vias. Also, these boards feature different through-hole component pins. Here, we will be taking a look at the process of plating a through hole in a circuit board during fabrication.

• Plating commences after pressure and heat has composited the circuit board and all the through holes are drilled.
• The technician cleans the through holes in order to remove any residue. Debris can leave a residual resin in the holes or there might be other contaminants. Therefore, abrasive processes and chemical agents are used for cleaning.
• A copper layer is chemically coated on the surface of the circuit board and via the holes. The deposition of Electroless copper offers a strong base in the holes for the copper plating.
• The PCB fabricator can micro-etch the inside of the holes. This helps in improving the base for the copper to hold during plating.
• On the external layers, a circuitry is created. This is done through the exposure of an image on a photoresist. The inner layer also uses this same process, except that a reversed image is integrated.
• Chemical is used in removing the unexposed material and as such, this reveals the copper circuitry while a hardened resist protects the remaining part of the board.
• Copper is used in plating the exposed copper circuitry in order to increase the metal weight. After this, the plated through hole is achieved.

Challenges of Plated Through Holes

There are challenges associated with plated through holes. Let’s consider these challenges and possible solutions to them.

Lack of copper in PTH

Lack of enough copper in plated through holes is a big challenge. If the copper isn’t adequate in the PTH, there will be plating voids. These voids can affect the flow of current. This problem can be solved by ensuring there is adequate copper in the PTH. Also, ensure the copper isn’t too much as this may block the plated through holes.

Furthermore, too much acceleration may cause little copper in the plated hole. You need to reduce the accelerated treatment conditions.

Plughole

Plughole is crucial for functioning of a printed circuit board. It prevents a board from short circuits and flux residue from reaching the vias. When plugholes are not properly done, the whole PTH circuit board can damage. Copper may not liquidate well if copper particles remain in the plated through hole cylinder. Therefore, it is necessary to check the filtering system for any fault to prevent such.

Lamination and blistering on a board

Lamination and blistering on a printed circuit is a major concern for PCB manufacturers. Blistering happens due to a chemical reaction of copper and the copper base. You can avoid this problem by maintaining cleanliness in your work. Furthermore, select a conformal coating that is appropriate with your board. Match the conformal coating to the solder of the circuit board to achieve good bonding.

There are other reasons blistering and lamination on a circuit board will occur. The inability to get rid of oil stains and adhesive can result in lamination on the circuit board. You can solve this problem by pressing and drilling. This will assist you in getting rid of oil stains and adhesive.

Considerations for Through-hole Parts Design

In the past, through hole parts were the components available for PCB layout. Things have different presently with the presence of surface mount parts. The SMT parts are popularly integrated when in printed circuit board design. These parts have a lot of benefits. They are much better than their large through hole counterparts. SMT parts offer improved signal performance, take less space on a circuit board, and greater availability. Also, these parts are cost-efficient, they are cheaper than through hole parts.

However, all these benefits offered by SMT parts doesn’t mean through hole parts aren’t useful in some cases too. Through hole components are still being used in some cases. Below are considerations for through hole parts design

Power

It can be very complex to appropriately solder large SMT parts since a larger amount of metal needs to go through heat. Also, large through-hole connection ensures thermal and mechanical stability which is beneficial to power components.

Strength

The mounting of robust through hole pins is beneficial to interfacing parts like switches and connectors. Furthermore, you can rip off SMT connectors from their pads if their mating connector is unplugged with the use of force.

Heat

Plated through hole pin is better for high-temperature parts as it offers better conductor. The majority of these parts will be bolted to the PCB.

Design Guidelines for Through Hole

Regardless of the popularity of SMT components, through hole components will still be in use for a while, therefore, it is important to take note of some design guidelines.

Soldering

A wave soldering system is often used to assemble through-hole components on the printed circuit board. Wave soldering involves passing the circuit board over a molten solder  which is forced in the holes. Also, the molten wave of solder is force around the component leads to offer strong solder joint.

It isn’t ideal to place SMT parts on the back of the PCB during this process. The PCB assembler needs to block off SMT parts from the wave. Alternatively, you can solder the through hole parts manually. Manual soldering is another soldering option aside from wave soldering. It is crucial to ask the manufacturer about parts placement to prevent any assembly issues.

Footprints

Ensure you go with the footprint dimensions recommended by your part manufacturer. This helps in ensuring the circuit board is easily assembled. While some components such as through hole resistors can make use of differently spaded holes, most components can’t.

Spacing

Spacing is crucial when soldering the through hole parts. When you space components properly, this enhances automated soldering systems. Sometimes, larger through-hole parts can overshadow SMT parts and as such, preventing them form being soldered properly. Therefore, allowing enough space between parts is important for manual rework.

Hole size

Ensure you use the hole size recommended for the part’s lead diameter. Very large through holes won’t accommodate the molten solder. Therefore, this would eventually lead to poor solder joint. Also, too small holes won’t allow you to insert the lead of the part.

Plated Through Hole Vs Non Plated Through Hole – What is the difference?

A lot of issues arise during the PCB design process. One of such is the possible problem from PTH and NPTH. It is necessary to comprehend the differences found between these through hole technologies in order to achieve a functional circuit board. Knowing the difference between these two will help you know the function they serve and the right applications for each of the technologies.

The significant difference between NPTH and PTH is the plated copper in the base material of the PCB. A plated through holes features a conductive material known as copper inside. The presence of this conductive material has an effect on mechanical stability and electrical performance.

When the PCB manufacturer solders component leads via plated holes, there is improved mechanical stability and the electrical resistance becomes less. However, this is different for non plated through holes. Therefore, PTH offers more benefit than NPTH.

Another difference between PTH and NPTH is in terms of area and cost. It is more expensive to design plated through holes circuit boards. Plated through holes take less space compared to non-plated through holes.

In terms of applications, plated through holes are integrated for cases where components need a perfect electrical connection like connectors, switches, and ICs. Non-plated through holes are ideal for components that doesn’t need a high level of electrical reliability. They are ideal for passive components like capacitors and resistors. Also, these holes don’t offer a perfect electrical connection.

A plated through hole is designed in such a way that it goes through a circuit board entirely. A non-plated through hole offers a channel where screws or bolts can secure the circuit board.

How to Reduce the Cost of Through Hole PCB

The cost of a through hole circuit board will depend on factors like hole density, annular rings, and how the holes are designed. With careful consideration, you can easily reduce the cost of the through hole circuit. Below are some ways to reduce the cost of your through hole board.

Use larger holes

You can make use of larger holes and annular rings if possible. This is because small holes are more expensive to drill. The manufacturing of small holes requires the use of high precision machines. Since these machines are very expensive, some PCB manufacturers charge more for holes diameter that ranges between 0.15mm and 0.33mm. Therefore, you have to make enquiry from your manufacturer to know the additional charges for small holes.

Large annular rings

Annular rings refer to the border of the hole and the minimum distance of the pad. Minimum annual ring determines the cost of through hole boards. If your manufacturer’s standard requirements are more than the minimum annular ring, the board will cost more. Integrating larger annular rings is a way to save cost.

Benefits of Through Hole Technology

Before the advent of surface mount technology, the through hole technology was the popular method of mounting electronic components on boards. Regardless of some limitations of through hole technology, it offers its own benefits.

Through hole components offer better reliability in products that need stronger connections between layers. The leads of these components can tolerate environmental stress since these leads can run via the board while the solder of the PCB surface secure SMT components. Due to this advantage, through hole technology is a suitable option for printed circuit boards used in military and aerospace devices. These devices are usually exposed to extreme accelerations, collisions, and high temperatures and as such, their circuit boards need stronger connections.

Furthermore, through hole technology is widely integrated in applications that need prototyping and testing due to its adjustment capabilities and manual replacement. Through hole PCBs are more expensive due to their capability to offer stronger boards. This is why THT is now commonly reserved for bulkier or heavier components like electrolytic capacitors or semiconductors used in bigger packages.

Also, through hole technology is widely integrated for elements such as plug connectors that require reinforcement. THT is highly preferred among designers and manufacturers for prototyping. This is because through hole is ideal for use in breadboard sockets. However, THT isn’t ideal for high-speed or high-frequency boards that need low inductance and stray capacitance in wire leads. Also, through hole isn’t a good option for very compact designs.

Plated Through Hole Decomposition Process

Alkaline cleaning

Alkaline cleaning involves removing the board oil and fingerprinting. After this, you can dust the hole carefully. The negative charge will need adjustment for the entire wall. This helps the colloid palladium to absorb. During this period, be sure you maintain cleaning.

Micro etching

This involves removing the oxide on the circuit board and roughening it. Micro etching is crucial as it helps to ensure strong bonding between the PTH layer and the base copper. You need to understand that the new copper is active and performs well in the absorption of colloid palladium.

Prepreg

This step protects the palladium slot. Prepreg helps in extending a circuit’s shelf life. The main ingredients in this step is similar to the palladium slot. Prepreg is crucial for wetting the hole wall. The layers of the board won’t hold without, therefore, prepreg helps to fuse etched cores.

Activation

This is an essential step in the plated through hole. There is a positive charge on the hole wall which helps in the absorption of the colloidal palladium particle. Negative control helps in achieving this. With this, plated through hole becomes compact. Activation plays a significant role in ensuring the copper sinks’ quality.

Decontamination

The colloidal palladium particle comprises stannous ion. The decontamination process helps to get rid of the stannous ion. This helps to expose the palladium nucleus. Fluoroboric acid is the most suitable chemical to use for this process. Most manufacturers use this acid because of its debonding capability. Although there are other chemicals to use, the fluoroboric acid seems to perform better than others.

Conclusion

Plated through hole and non plated through hole have their benefits and limitations. While plated through hole is commonly integrated by most PCB manufacturers, some manufacturers still use non-plated through hole. When discussing plated through hole vs non plated through hole, we realized there are notable differences between these holes.

The path difference between these holes differentiates them. The vast applicability of plated through hole makes it relevant in today’s PCB manufacturing. Non plated hole is not as applicable as plated through hole as it is only suitable for single layer PCBs. The relevance of these holes is another factor that differentiates them.

The use of hazardous materials in printed circuit boards and electronic devices is a cause for concern. These materials pose environmental threats and risks to human health. Their negative environmental impact is a growing concern in the electrical and electronics industry. To combat this problem, the government has sought for the best ways to stop the use of these materials in electronic and electrical product.

Regulations that restrict the use of these materials are being imposed on PCB companies and electronics companies. It is crucial to design and manufacture safer electronic boards since these boards are used in several applications including the medical field. The RoHS is one of such regulations designed to restrict the use of hazardous substances and materials in electronic boards.

What is RoHS Compliant?

The European Union Parliament passed a law that influenced the electronic industry. The first legislation which was the Waste Electrical & Electronic Equipment (WEEE) addressed the need for manufacturers to dispose their finished goods while the second legislation was the Restriction of Hazardous Substances (RoHS).

This regulation states that it is illegal for electronic or electrical products to include restricted materials. These materials that are restricted are harmful to our environment as well as the human health. On July 1, 2006, this legislation took its effect. Also, RoHS focuses on the smallest component or material that can be removed from an assembly.

According to the RoHS directive, any electronic or electrical product must not include substances such as mercury, polybrominated biphenyls (PBB), mercury, hexavalent chromium, Octa PBDE, Cadmium, and lead. This directive must be applied in all electronic or electrical products manufactured and sold in the European Union countries.

Therefore, any Original Equipment Manufacturer (OEM) that manufactures and supplies electronic products like PCBs must comply with this directive. The RoHS compliance specifies the highest levels of these restricted materials in circuit boards and electronic products. For example Mercury must be less than 100 ppm, Cadmium must be less than 100 ppm and lead must be less than 1000 ppm.

RoHS compliance refers to the adherence to the RoHS regulations. A PCB manufacturer or electronic manufacturer is RoHS compliant when they ensure there are products are completely free of the above named materials.

The RoHS directive states that:

• Mercury (Hg) < 100 ppm
• Dibutyl phthalate < 1000 ppm
• Lead (Pb): < 1000 ppm
• Diisobutyl phthalate  < 1000 ppm
• Polybrominated Diphenyl Ethers < 1000 ppm
• Cadmium (Cd): < 100 ppm
• Hexavalent Chromium < 1000 ppm
• Bis(2-Ethylhexyl) phthalate < 1000 ppm

What is a RoHS Compliant PCB Assembly?

The RoHS directive is also applicable in the manufacturing of printed circuit boards. This is because printed circuit boards are usually integrated in the production of electronic devices. Also, these boards are the building blocks of most electrical or electronic equipment.

A RoHS compliant PCB assembly is a fully assembled board that features none of the substances mentioned above. This PCBA has no lead, mercury or any harmful substance. It is completely free of these hazardous substances. Hence, such a board is referred to as a RoHS compliant PCB assembly.

RoHS compliant PCB assembly is also known as a lead-free PCB. Tin-lead solder was commonly used in circuit boards before the RoHS directive was implemented. This type of solder was used because it offered perfect bonding. Also, it was applied as a surface finish to prevent the copper on the PCB from any corrosion.

However, the implementation of the RoHS directives made PCB assemblers to use another material and component approved by RoHS for their PCBs. The electronic industry now integrates lead free solder alloys. These materials comply with the RoHS directive. Also, the implementation of the RoHS directive made PCB manufacturer integrate lead-free PCB surface finishes and components.

These days, most manufacturers are producing RoHS compliant PCB assembly, although some customers still request for tin-lead PCB assembly. In general, the implementation of the RoHs directives has helped to minimize ground water’s contamination. When PCBs that comprises harmful substances are disposed, the substances in these boards end up contaminating the environment.

Benefits of RoHS Compliant PCB Assembly

RoHS compliant PCB assembly offers a lot of benefits. Since the implementation of the RoHS directives, the environmental impact has been positive. Ground water is no longer contaminated with harmful substances. Also, electronic consumers feel safe when using electronic products.

Reduction of metal poisoning

A RoHS compliant PCBA helps to minimize any form of metal poison. Heavy metals such as mercury and lead have a negative effect on humans and can damage their nervous system. Also, these metals affect the reproductive system, and kidney. Consumption of lead via contaminated water will minimize the functioning of body organs like ankles and fingers.

As more electronic manufacturers comply with the RoHS directives, many electronic consumers are now purchasing lead-free electronic products. In the past, consumers dispose obsolete electronic products in landfills. This could be very poisonous to ground water. The RoHS directives forced electronic manufacturers to restrict the use of harmful substances and as such, this reduced metal poisoning in the environment.

Enhanced product safety

The implementation of RoHS directives improved the safety of electronic products. Electronic consumers are now guaranteed of the safety of their product. Since these products are free of harmful materials, this gives users more peace.  Therefore, the sales of RoHS compliant PCB assembly have increased and this board is now widely integrated in electronics manufacturing.

Increased thermal properties

Research has proved that a RoHS compliant PCB assembly features better thermal properties compared to their leaded PCBA. Also, this RoHS PCBA can tolerate temperatures which range from -45 degrees Celsius to 145 degrees Celsius. These days, circuit board manufacturers are integrating advanced halogen-free laminates. These laminates have increased the thermal stability of circuit boards to about 300 degrees Celsius.

How do you Check if a Material is RoHS compliant?

According to the RoHS directives, the PCB manufacturer needs to tender a certificate of compliance. You can check if a material complies with the RoHS directive by using he X-ray fluorescence measurement instruments. These instruments offer material analysis. This test is very important as regards RoHS regulations. Also, it is a simple and fast way to evaluate elemental concentrations in a PCB material.

Electronic manufacturers can tender a Declaration of Conformity to prove their compliance with the RoHs directives. This declaration indicates that a manufacturer meets all the requirements of RoHS directives. Claiming this declaration means the organization is assuming the responsibility for RoHS compliance.

The Declaration of Conformity will indentify information about your organization and the product. This document needs to be signed by you. Also, some third-part companies can perform tests for the product of the company to confirm compliance with the RoHS directives.

The RoHS compliance testing is crucial for electronic manufacturers and distributors who need to sell or export their electronic or electrical products to the European Union. This test will verify the amounts of the hazardous chemicals restricted by RoHS.

Therefore, electronic companies and PCB companies hire third-party services to test. After testing, these results are then recorded in a test report in order to declare your product complies with RoHS.

How RoHS is Impacting PCB Manufacturing Process

The RoHS directives implementation is crucial in PCB manufacturing. A large number of PCB manufacturers must comply with these directives. Therefore, these manufacturers need to ensure that their solder masks, substrate materials, surface finishes, and inks must be free of lead and other chemicals.

Furthermore, PCB manufacturers and assemblers must be sure heat sinks, discrete components, and solder joints are free of lead. The RoHS listed 10 hazardous materials. However, lead is a major concern for PCB manufacturers in terms of its replacement. These manufacturers are concerned about the greater processing temperatures related to lead-free metals. To have a clear understanding of this, let us have a brief look at the following.

Laminate preparation

Lead-free FR4 material poses some limitations during assembly. Manufacturers can opt for advanced materials like Isola FR415 since they can tolerate higher temperatures and enable electrical performance.

Other crucial properties of lead-free PCB materials used for making prepreg and laminates include CTE, T-260 & T-288, Td, and CTE. Also, the glass transition temperature determines the choice of material based on the application. The manufacturing processes of lead-free laminates are usually performed at greater temperatures than that of leaded materials.

During assembly processes, RoHS compliant PCB materials must be handle greater reflow temperatures. But, the application requirements still determines the selection of this material. Lead-free materials need to guarantee excellent electrical performance with low signal losses.

Soldermask and legend inks application

The legend inks and solder mask integrated in RoHS compliant PCB assembly have to be free of harmful materials. Also, the ink and soldermask must be able to restrict higher temperatures. There is a likelihood of discoloration at higher temperatures.

Stencil application

Here, the initial step for the process of PCB assembly is applying the stencil. Lead-free solder alloy is commonly integrated for surface mount technology, wire soldering, and wave soldering.

Application of RoHS surface finishes

Not all surface finishes are RoHS compliant. However, the availability of RoHS compliant surface finishes like electroless nickel immersion gold, palladium, plated nickel gold, and immersion silver will get rid of the need for surface finishes with lead.

RoHS Directives for Flame Retardants

In PCB manufacturing, flame retardants, also known as FR-4 are commonly used. flame retardants minimize heat concentration and get rid of or delay flashovers. The RoHS directive impacts flame retardants integrated in resin system. This directive prohibits some particular type of flame retardants. These are brominated flame retardants. They comprise polybrominated biphenyl oxices and polybrominated biphenyls.

Using tetrabromobisphhenol A to Brominate the epoxy resin is the best way to achieve flame retardancy. Bromine releases when tetrabromobisphhenol A reacts in the epoxy resin. The RoHS directive doesn’t prohibit the use of tetrabromobisphhenol A. However, it doesn’t permit these substances from being released in the environment.

Frequently Asked Questions

What is a CE RoHS marking?

According to the Restriction of Hazardous Substances (RoHS) directives, all new electrical and electronic equipment available on the EU market must have the CE mark. The CE RoHS marking is a self-certification designed to indicate conformity. This mark doesn’t only indicate compliance with RoHS, but it also indicates compliance with all EU legislation. Having the CE mark means an electronic manufacturer is responsible for compliance with EU legislations applicable to its product.

What are products need RoHS testing?

Some products need RoHS testing before they can become available in the EU market. The categories of these products are automatic dispensers, small household appliances, monitoring devices, consumer equipment, IT and telecommunications equipment, medical devices, sport equipment, electrical and electronic tools, and other electronic devices.

What are the exemptions of RoHS?

Some exemptions were published by the European Commission. The restriction of lead, Cadmium, Hexavalent chromium, Mercury, and more isn’t applicable to toys. This is because toys are subjected to some other restrictions. For instance, the REACH deals with toys. REACH and RoHS can be quite confusing, but they have their differences.

What Does Waste of Electronic and Electrical Equipment Mean?

WEEE means Waste from Electrical and Electronic Equipment. The WEEE directives regulate how electronics products are discarded. All electronic products for the European Union (EU) market must comply with WEEE. These products must have the “Wheelie Bin” mark.

Conclusion

When it comes to environmental protection, Europe is fully involved. The European Union has been the leading country that makes effort towards the achievement of environmental safety. The RoHS directive has been updated a lot of times. It is crucial for electronic and PCB companies to comply with this directive in order to stay relevant in the market.

According to the RoHS directive, any electronic or electrical product must not include substances such as mercury, polybrominated biphenyls (PBB), mercury, hexavalent chromium, Octa PBDE, Cadmium, and lead. This directive must be applied in all electronic or electrical products manufactured and sold in the European Union countries.

As more and more devices connect to the internet, edge computing has grown in popularity in recent years. In contrast to transmitting data to a centralized data center, edge computing involves processing data closer to the source. Many advantages of this strategy include decreased latency, enhanced security, and reduced bandwidth needs. Yet, edge computing also comes with some particular difficulties, like low processing speed and memory. Xilinx has created a brand-new platform called Kria to manage AI for edge applications to overcome these difficulties.

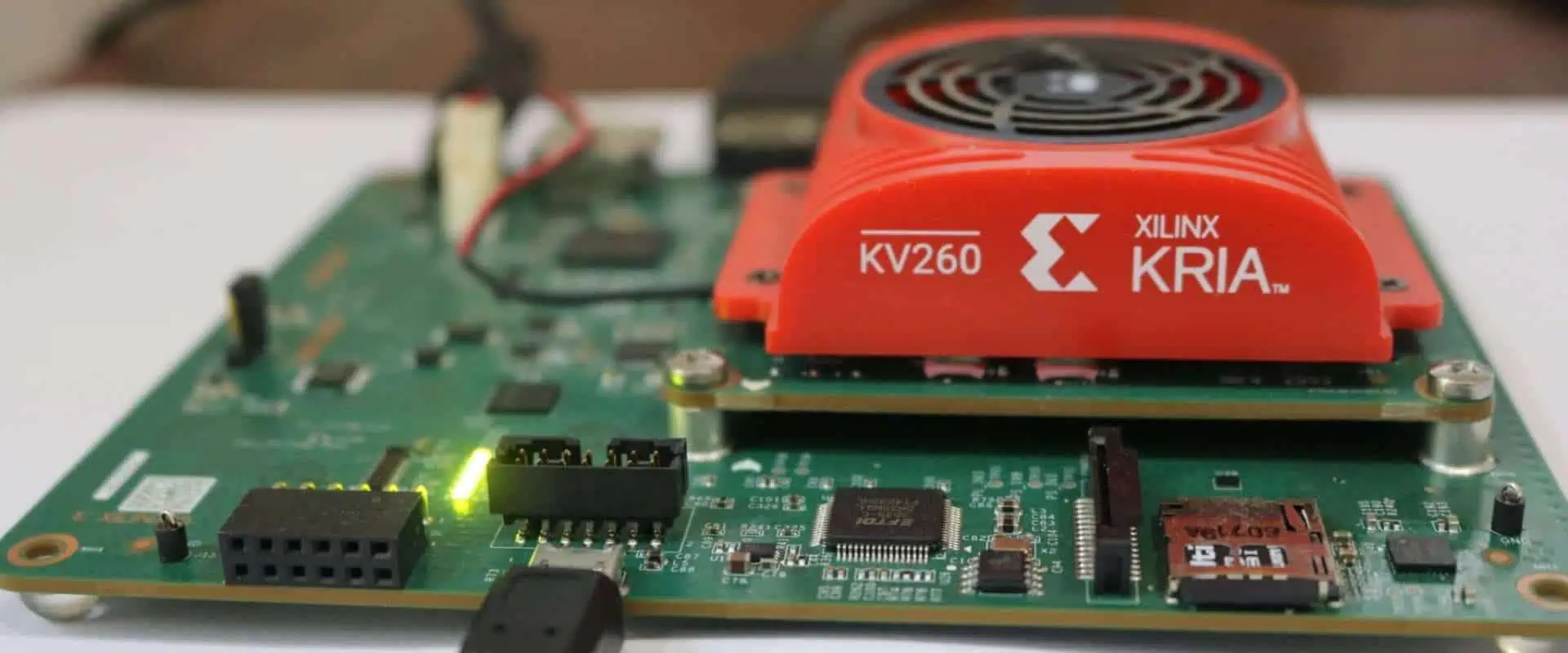

What is Xilinx Kria?

A series of adaptive system-on-modules (SOMs) called Xilinx Kria can speed up AI at the edge. These SOMs are compact, production-ready cards that are simple to incorporate into various edge technologies. Examples include robots, embedded vision systems, and smart cameras. The Zynq UltraScale+ MPSoC, which combines an FPGA and a potent Arm CPU, is the foundation upon which we build the Kria SOMs. Thanks to this hardware configuration, the Kria SOMs can handle both conventional software processing and hardware acceleration for AI workloads.

There are two versions of the Kria SOMs: commercial and industrial. The industrial version is essential in hostile settings and demands ruggedized hardware. On the other hand, the commercial version is ideal for applications requiring high performance and low power consumption. In addition, both Kria SOM variants offer a choice of Yocto or Ubuntu Linux infrastructure, giving software programmers a comfortable working environment.

Benefits of Xilinx Kria

The versatility of Xilinx Kria is one of its key advantages. Developers may add AI capabilities to their products since the Kria SOMs are simple to connect to various edge devices. Also, various AI frameworks, such as TensorFlow, PyTorch, and Caffe, are supported by the Kria SOMs, making it simple for developers to use their chosen work methods and tools.

The performance of Xilinx Kria is an additional advantage. The Kria SOMs can perform well using less power than conventional CPUs or GPUs. They can handle traditional software processing and hardware acceleration for AI applications. As a result, the Kria SOMs are perfect for usage in battery-operated devices or other situations where power consumption is an issue.

Last but not least, Xilinx Kria is made simple to use. Developers may easily start using AI at the edge thanks to various software tools and frameworks in the Kria SOMs. Moreover, Xilinx offers a variety of reference designs and application notes that can assist designers in building and deploying AI-enabled edge devices fast.

How developers can get started with Xilinx Kria

Xilinx Kria developers can start by utilizing the software resources and tools. One choice is using Vivado, the beginning point for any unique FPGA design on a Xilinx processor. Another collection of software tools called PetaLinux is available for creating an embedded Linux image for Xilinx FPGAs. It is simpler to use Xilinx platforms when developers can take advantage of the Python language and libraries through the PYNQ framework. To assist developers in getting started with Kria, Xilinx also offers a variety of reference designs, application notes, and tutorials. Moreover, the Xilinx App Store offers Kria Accelerated Applications, which allow novice and seasoned Xilinx designers to avoid undertaking any FPGA design.

Minimum hardware requirements for developing with Xilinx Kria

The Kria System-on-Module (SOM) and a carrier card are the two pieces of hardware required at the absolute minimum for development with Xilinx Kria. The XCK26 Zynq MPSoC chip, which houses both the Processor Subsystem (PS) and Programmable Logic, is used by the Kria SOM (PL). The carrier card may be a KV260 from Xilinx or a special carrier card. To create the application software that runs on the APU and RPU PS targets, developers require a machine with software tools like Vivado, PetaLinux, or other open-source tools (like Yocto).

Vitis, PetaLinux, or other open-source software development tools may create the application software. Developers can also use the AMD-Xilinx PYNQ framework, an open-source project that simplifies the use of AMD-Xilinx platforms using Python and resources. Canonical’s Ubuntu Linux with AMD-adaptive Xilinx’s SoCs now has enterprise-grade Linux, accelerating the creation of Vision AI Edge Systems, Industrial and Healthcare IoT embedded devices, and other products.

Use cases of Xilinx Kria

A family of adaptive system-on-modules (SOMs) called Xilinx Kria takes advantage of AMD programmable technology’s strength, speed, and adaptability. These SOMs are production-deployable, adaptive modules that offer a complete board-level solution with a pre-built software stack, enabling speedy deployment. As a result, the Kria SOMs can hasten industrial-grade robotic solution development, upkeep, and commercialization. In this post, we’ll examine Xilinx Kria’s use cases and how it helps hasten the creation of AI edge applications.

Kria Robotics Stack (KRS)

An integrated collection of robot libraries and utilities called the Kria Robotics Stack (KRS) uses hardware to hasten the creation, upkeep, and commercialization of industrial-grade robotic solutions. It suggests a development strategy that is ROS 2-centric and utilizes ROS 2 as the Software Development Kit (SDK). In addition, a collection of pre-made software components from the KRS may help to create robotic applications. These elements include simulation and visualization tools, perception and control algorithms, and sensors and actuator drivers.

The Kria SOMs, which offer the hardware acceleration required to execute sophisticated robotic algorithms, are intended to be utilized with the KRS. The Xilinx Zynq UltraScale+ MPSoC, which combines a quad-core ARM Cortex-A53 CPU with a programmable logic fabric, is the foundation upon which we build the Kria SOMs. With this programmable logic fabric, we may execute algorithms for image processing and machine learning more quickly.

A collection of pre-made software components from the KRS may help to create robotic applications. These elements include simulation and visualization tools, perception and control algorithms, and sensors and actuator drivers. In addition, a collection of tools for developing and deploying robotic applications are also available through the KRS. These tools include a build system, a package manager, and a deployment tool.

Machine Vision AI

Systems-on-modules (SOMs) for Xilinx Kria for AI edge applications offer a cost-effective, production-ready FPGA chip with ample IO to speed up robotics and vision operations. As a result, the Kria SOMs can hasten the creation of AI-edge applications like robotics and machine vision.

The Xilinx Zynq UltraScale+ MPSoC is the foundation for building the Kria SOMs. It combines a quad-core ARM Cortex-A53 CPU with a programmable logic fabric. Moreover, the Kria SOMs include a selection of IO ports like Ethernet, USB, and HDMI that can connect to sensors and actuators.

The Kria Vision AI Starting Kit works well with the Kria SOMs. It offers a full development environment for machine vision and robotics applications. A carrier board, a collection of pre-built software components, and a Kria SOM are all included in the Kria Vision AI Starting Kit. These pre-built software components include tools for simulation and visualization, image processing and machine learning algorithms, and drivers for sensors and actuators.

An additional tool for developing and deploying robotics and machine vision applications is the Kria Vision AI Starting Kit. These tools include a build system, a package manager, and a deployment tool. In addition, the Xilinx Vitis AI development environment, which offers a collection of tools for creating and deploying machine learning models on the Kria SOMs, is helpful with the Kria Vision AI Starting Kit.

Accelerated Applications

Many applications, including robotics, machine learning, and image processing, can be accelerated using Xilinx Kria. The Xilinx Zynq UltraScale+ MPSoC, which combines a quad-core ARM Cortex-A53 CPU with a programmable logic fabric, is the foundation upon which we build the Kria SOMs. With this programmable logic fabric, algorithms for image processing and machine learning may execute more quickly. Moreover, the Kria SOMs include a selection of IO ports like Ethernet, USB, and HDMI that can connect to sensors and actuators.

Applications like smart cameras, embedded vision, security, retail analytics, smart cities, and machine vision can all be accelerated using Kria SOMs. A development platform that is ready to use right out of the box for AI-embedded SW and HW developers is the Kria KV260 Vision AI Starting Kit. It is ideal for Visual AI applications. Additionally, it is the quickest approach to creating distinctive deployment solutions in production volumes. With the Kria Robotics Stack, the Kria SOMs can also quicken the creation, upkeep, and commercialization of industrial-grade robotic solutions (KRS).

Healthcare

Medical imaging, patient monitoring, and drug development are just a few applications. They can accelerate in the healthcare industry with Xilinx Kria. Also, the sensors and actuators commonly helpful in patient monitoring can interface with using the Kria SOMs.

The Kria KV260 Vision AI Starting Kit can help to create healthcare applications focusing on vision. With a non-production K26 SOM put into a carrier board, the Starting Kit offers general-purpose development interfaces, flexible I/O connectivity via Ethernet and USB, and other features. In addition, the Xilinx App Store’s expanding ecosystem of accelerated applications enables developers of all stripes to launch applications in under an hour without prior FPGA knowledge. From there, preferred design environments can create personalization and uniqueness at every level.

Retail

Retail can speed up various applications, including smart cities, AI/ML computing, security, and future retail, using Xilinx Kria. In addition, the Kria SOMs can speed up the execution of algorithms frequently used in retail analytics. Examples include image processing and machine learning. In the Xilinx Kria product line, the Kria KV260 Vision AI Starting Kit is an evaluation/development platform ready to use immediately.

The Starting Kit is the preferred platform for creating vision-specific target apps in retail. It consists of a non-production K26 SOM on a carrier board. The board offers general-purpose development interfaces, expandability via Pmod connectors, and other features. In addition, the Xilinx App Store’s expanding ecosystem of accelerated applications enables developers of all stripes to launch applications in under an hour without prior FPGA knowledge. From there, preferred design environments can create personalization and uniqueness at every level.

The difference between the Kria K26 and KV260

For AI edge applications, Xilinx developed the Kria K26 and KV260 system-on-modules (SOMs). The Kria K26 SOM includes a customized, specially created XCK26 SoC tailored for better visual AI application acceleration and based on the Zynq UltraScale+ MPSoC architecture. In addition, it has a customizable logic fabric and a quad-core ARM Cortex-A53 Processor, which can speed up algorithm execution.

The Kria KV260 Vision AI Starting Kit can create sophisticated vision applications without the need for in-depth hardware design expertise. It features a carrier board and pre-built software components based on the Kria K26 SOM. As a result, the KV260 simplifies the deployment of FPGAs and offers fundamental capabilities. These are the capabilities needed to create platforms for vision applications using cameras and the K26. The Kria KV260 is a development kit that comprises a carrier board and pre-built software components, whereas the Kria K26 is a standalone SOM. This is the primary distinction between the two models.

The features of Xilinx kria

A portfolio of System-On-Modules (SOMs) called Xilinx Kria is ideal for edge applications in various use cases and production environments. For example, the Kria K26 SOM is suitable for edge vision applications that need adaptability to change conditions. Furthermore, given that it is available in Commercial and Industrial grades, it is the best choice for application production deployment. Examples include Smart Camera, Embedded Vision, and others in the fields of security, retail analytics, smart city, and machine vision.

Adaptability

The adaptability of the Kria K26 SOM is one of its primary characteristics. Since requirements can quickly change in edge applications, we can easily reprogram them to respond to changing requirements. This adaptability is possible via Xilinx’s programmable logic, which enables users to modify the SOM to suit their unique requirements.

SOM Starting Kit

The SOM Starting Kit is another option Xilinx provides in addition to the Kria K26 SOM. It is a platform for evaluation and early development for the Kria SOMs. The SOM Starting Kit comes with a carrier board, a Kria SOM, and all the software and documentation required to begin developing.

The Kria Robotics Stack (KRS), a ROS 2 superset for business, is another product from Xilinx. KRS allows roboticists to safeguard and profit from their accelerated ROS 2 packages. It provides robot libraries and tools for building software-defined robotics systems. It streamlines the creation of robotics applications by bridging the gap between roboticists and Xilinx.

The Xilinx Kria K26 SOM is a strong and adaptable System-On-Module for applications requiring edge vision. It is perfect for various applications, from Smart Cameras and Embedded Vision to Security, Retail Analytics, and Machine Vision. We can attribute this to its high-performance processing capabilities, versatility, and range of connectivity options. In addition, the Kria K26 SOM is a complete solution for creating and deploying AI and robotics applications. It supports Xilinx’s VitisTM AI development environment and the Kria Robotics Stack.

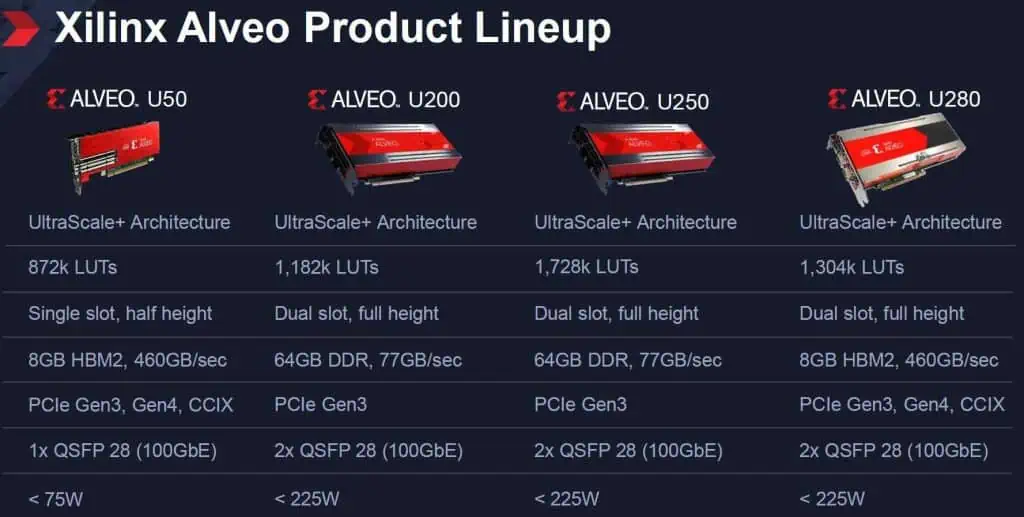

High-performance acceleration cards from the Xilinx Alveo family are suitable for data center and cloud computing applications. The Field Programmable Gate Array (FPGA) technology used in constructing these cards enables the hardware acceleration of various workloads.

Customers can select the ideal Alveo card from various form factors and performance levels for their application needs. For example, compute-intensive tasks like artificial intelligence (AI) inference, machine learning (ML), data analytics, and video processing offer low-latency, high-throughput performance.

C, C++, OpenCL, Python, and TensorFlow are just a few of the languages and frameworks that can help to program Alveo cards. Thanks to this flexibility, customers can select the programming environment that best suits their needs and level of expertise.

Overall, Xilinx Alveo provides a strong and adaptable platform for accelerating workloads that require a lot of computing power in cloud and data center settings.

Importance of Xilinx Alveo in the field of data processing and artificial intelligence

New technologies and methods are constantly emerging in data processing and artificial intelligence (AI). The use of field-programmable gate arrays (FPGAs), like the Xilinx Alveo, is one of the key technologies that is becoming increasingly significant in this field.

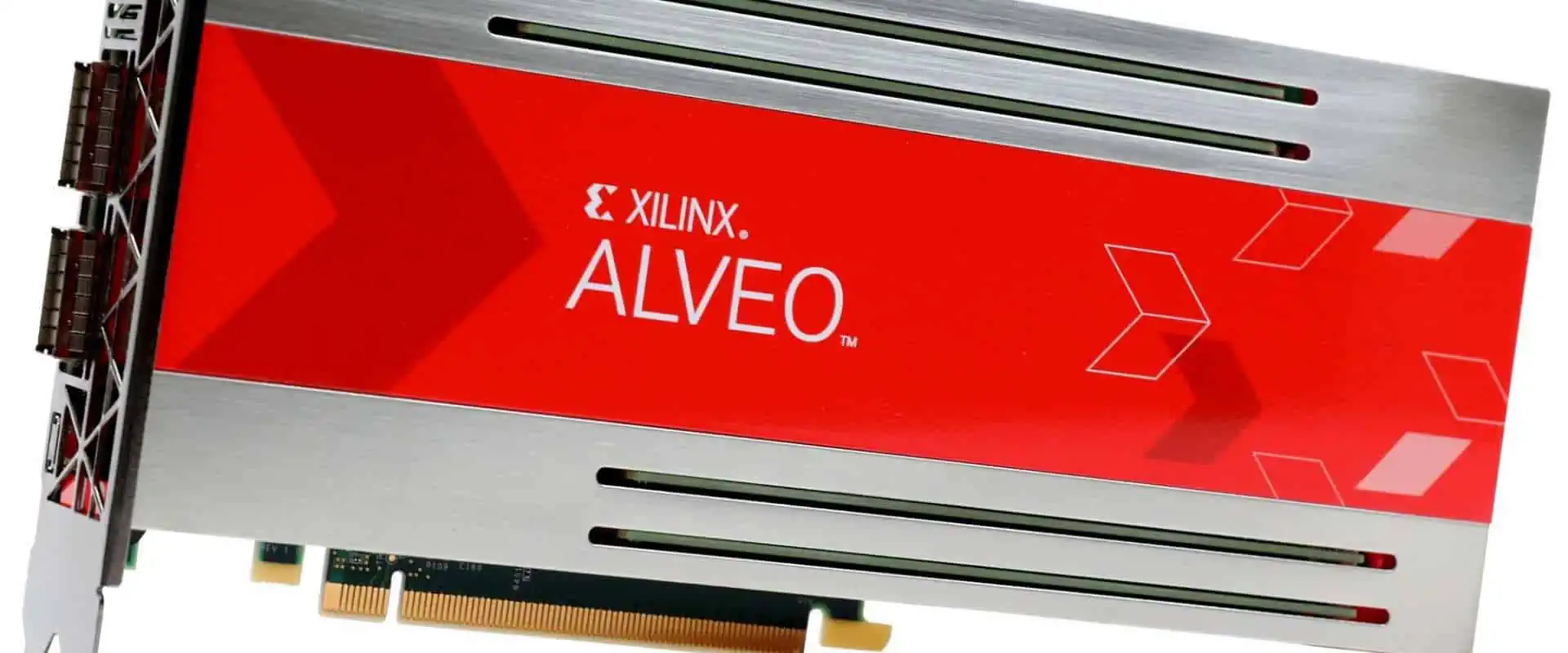

The Xilinx Alveo, at its most basic level, is a programmable acceleration card that we can plug into a server or other computing device to offer hardware acceleration for applications that require a lot of computational power. Large amounts of data that we must quickly process are typically involved in these workloads, including financial analysis, speech or image recognition, or natural language processing. We can handle these workloads more quickly and effectively by offloading some of the computation to the Alveo card instead of running them entirely on the server’s general-purpose CPUs.

Flexible

The Alveo card’s flexibility is one of its main benefits. Thanks to its programmability, it may be configured to handle a variety of workloads, from video processing to machine learning to database acceleration. This adaptability is crucial in artificial intelligence because various applications call for computational architectures and algorithms. With Alveo, programmers can test various architectures and algorithms to determine which best fits their application.

Performance

Performance is another benefit of Alveo. It can process data much faster than a general-purpose CPU because it is made expressly for acceleration. A single Alveo card, for instance, can recognize images more than ten times faster than a typical CPU. This performance advantage can be particularly significant in real-time applications like self-driving cars or medical imaging, where delays or errors may have detrimental effects.

Customizability:

FPGAs are programmable chips tailored to carry out particular tasks effectively. For example, Xilinx Alveo uses FPGAs to let users customize the hardware and software to meet specific performance requirements, leading to quicker and more effective processing than alternative technologies.

Versatility:

A variety of workloads, including artificial intelligence, machine learning, data analytics, video processing, and networking, can be accelerated by Xilinx Alveo. Moreover, because of its adaptability, it can be helpful for a wide range of tasks, including enterprise-level data processing and scientific research.

Energy Efficiency:

FPGAs are ideal for Xilinx Alveo, which uses less power overall than competing technologies like Central Processor Units (CPUs) or Graphics Processing Units (GPUs) (CPUs). As a result, cost savings and a lessening of the environmental impact result from this.

Ease of Use:

Users of Xilinx Alveo can deploy and manage accelerated applications quickly and easily, thanks to a variety of pre-built libraries and tools. Compared to other technologies, this can lessen the complexity and time needed to develop and deploy applications.

So how is the Alveo being used in practice?

There are numerous instances of businesses and organizations using Alveo to speed up their AI and data processing workloads. One of China’s biggest search engine companies, Baidu, for instance, uses the Alveo to speed up its deep learning algorithms for speech and image recognition. As a result, Baidu has been able to significantly speed up its algorithms, enabling it to process more data more quickly by offloading some of the computation to the Alveo.

The employment of Alveo in financial services is another illustration. Businesses in this sector frequently need to quickly process large amounts of data to make real-time decisions about trading, investing, or risk management. Financial services businesses can use the Alveo to speed up these computations and rapidly make better-informed judgments.

Architecture and Features of Xilinx Alveo

The Field Programmable Gate Arrays (FPGAs) are at the center of the Xilinx Alveo platform. They depend on software tools, libraries, and hardware parts that enable high-performance acceleration of various workloads. Following are some main features and components of the Xilinx Alveo platform:

FPGA and PCIe interface

High-performance computing systems consist of a combination of PCIe and FPGA, two separate technologies. FPGA stands for Field Programmable Gate Array.

After manufacturing it, we can reprogram a type of integrated circuit called an FPGA to carry out various tasks according to the application’s demands. It has programmable interconnects. It enables these logic circuits to couple and programmable logic blocks in various ways. We may set it to construct unique logic circuits. Digital signal processing, image processing, network processing, and cryptography are just a few of the many uses for FPGA.

Memory capacity and bandwidth

The Alveo U280 contains 64 GB of HBM2 memory and 460 GB/s bandwidth. Moreover, it has 64 GB of DDR4 SDRAM with a 57 GB/s speed.

The Alveo U250 contains 32 GB of HBM2 memory with a 460 GB/s bandwidth. Moreover, it has 64 GB of DDR4 SDRAM with a 57 GB/s speed.

Alveo U200: The U200 has 32 GB of HBM2 memory with a bandwidth of 460 GB/s. Moreover, it has 64 GB of DDR4 SDRAM with a 57 GB/s speed.

The Alveo U50: The 8 GB of high-bandwidth memory (HBM2) in the U50 has a 460 GB/s bandwidth. Additionally, it has 32 GB of DDR4 SDRAM with a 34 GB/s bandwidth.

It’s crucial to remember that an Alveo card’s memory and bandwidth might also vary depending on the precise configuration that the user selects.

Power consumption

Xilinx Alveo card power consumption varies based on the model and the workload executing on the card. Higher-end models will generally use more power than lower-end versions with fewer resources because they have faster memory and more FPGA resources.

According to Xilinx’s documentation, the power consumption of Alveo cards ranges from about 25 watts for the Alveo U50 to more than 300 watts for the Alveo U280. The actual power consumption, however, will depend on variables like workload severities, input/output configurations, and system-level power management settings.

It’s important to note that Xilinx used cutting-edge power management capabilities like dynamic voltage and frequency scaling (DVFS) and adaptive clocking to develop the Alveo cards to be power-efficient. As a result, the cards can automatically change their power usage to fit the task’s demands, which can help cut down on overall power consumption and running expenses.

FPGA-based Architecture:

Xilinx Alveo depends on FPGAs, programmable devices that can carry out particular jobs effectively. Using FPGAs enables the development of highly optimized hardware and software designs to speed up workloads across various industries.

PCIe Interface:

Xilinx Alveo uses PCIe Gen3 or Gen4 interfaces to connect to host systems. This allows for high-bandwidth, low-latency communication between the host CPU and the FPGA-based accelerator.

High Memory Bandwidth:

Data processing can be accelerated with the help of Xilinx Alveo’s high-bandwidth memory (HBM) or DDR4 memory. It offers high-speed data transport and quick memory access.

FPGA DSP Blocks:

Digital signal processing (DSP) blocks are available in Xilinx Alveo that can help to swiftly. Additionally, it accurately carries out sophisticated mathematical operations like convolution or matrix multiplication.

Host Control Software:

Users can set up and administer the accelerator from the host system with the help of host control software, part of Xilinx Alveo.

Pre-built Libraries and Tools:

Various pre-built libraries and tools are included with Xilinx Alveo to help customers create. They also deploy accelerated applications quickly and easily.

Multiple Models and Form Factors:

Users can select the optimal Xilinx Alveo model and form factor for their particular use case because it comes in various models and sizes, from low-profile PCIe cards to full-height, full-length accelerator cards.

Applications

Machine learning and AI

A set of high-performance, reconfigurable accelerator cards called Xilinx Alveo is made for speeding up various workloads, such as machine learning and AI. Following are a few typical uses for Xilinx Alveo in machine learning and artificial intelligence:

Convolutional neural networks (CNNs) and recurrent neural networks training and inference are two deep learning workloads that can speed up using Xilinx Alveo cards (RNNs). The training time of big models can drastically decrease using these cards, which is crucial for many AI applications.

Natural Language Processing (NLP): Xilinx Alveo cards can speed up NLP workloads like sentiment analysis, speech recognition, and language translation. Moreover, these cards can help to speed up language model training like XLNet, GPT-2, and BERT.

Computer vision: Workloads including object detection, image segmentation, and facial recognition can speed up with Xilinx Alveo cards. By processing a lot of data in real-time, these cards can considerably boost the performance of computer vision algorithms.

Genomic workloads like DNA sequencing and analysis can speed up with Xilinx Alveo cards. These devices provide more rapid and precise genomic analysis by processing enormous volumes of genetic data in real time.

Financial Services: Applications for financial services, such as risk management, fraud detection, and algorithmic trading, can be accelerated using Xilinx Alveo cards. These cards enable quicker and more accurate decision-making by processing massive real-time financial data sets.

Xilinx Alveo cards provide a high-performance, adaptable, and affordable solution for speeding up various machine learning and AI applications.

Video transcoding and streaming

Video transcoding: By outsourcing compute-intensive processes like video encoding and decoding to the FPGA, Xilinx Alveo can be used to speed up the video transcoding process. As a result, transcoding takes place more quickly, and throughput goes up. It allows video service providers to process more video content faster.

Live to stream: By outsourcing processes like video encoding and transcoding to the FPGA, Xilinx Alveo can be used to speed up the live streaming process. This enables video service providers to offer viewers a better streaming experience by reducing latency and improving video quality.

We can do real-time video analytics on streaming video footage using Xilinx Alveo. This can involve sentiment analysis, object detection, and facial recognition. Video service providers can increase the precision and speed of their video analytics algorithms by shifting these duties to the FPGA.

Real-time video processing activities, including image stabilization, color correction, and noise reduction, can be carried out with Xilinx Alveo. As a result, video service providers can boost the caliber of their video material. Additionally, it gives their viewers a better watching experience by shifting these responsibilities to the FPGA.

Xilinx Alveo provides a strong foundation for accelerating video transcoding and streaming applications. It allows video service providers to deliver high-quality video content to their viewers with quicker transcoding times, lower latency, and better video quality.

Financial services and high-performance computing

Various data center applications can be accelerated using the Xilinx Alveo line of high-performance computing cards. These are a few potential uses for Xilinx Alveo in specific industries:

Financial services:

Real-time risk management in financial services: Xilinx Alveo can help to speed up the intricate computations required for real-time risk management. This covers computationally demanding operations needing high performance and low latency, such as Monte Carlo simulations, scenario analysis, etc.

Trading algorithms: High-frequency trading algorithms need quick decision-making skills and low-latency access to market data. By transferring compute-intensive operations from the CPU to the FPGA card, Xilinx Alveo can assist in speeding up these algorithms, producing faster processing and more precise results.

Fraud detection in financial services necessitates the real-time processing of massive volumes of data. By outsourcing specific activities from the CPU to the FPGA card, Xilinx Alveo can speed up this process. It results in quicker processing and higher detection rates.

High-performance computing:

Xilinx Alveo uses Field-Programmable Gate Arrays (FPGAs) to enable high-performance computation. As a result, many tasks, such as machine learning, data analytics, video processing, and financial modeling, can be sped up with these cards.

Using Xilinx Alveo for high-performance computing involves the following essential factors:

Choose the appropriate Alveo card: A variety of Alveo cards with various FPGA sizes and configurations are available from Xilinx. Choose the card that best fits the demands of your workload.

Getting ready for work: You must prepare your task on an FPGA before running it on the Alveo card. Usually, this entails mapping the code to the FPGA hardware and parallelizing it for execution.

Creating FPGA kernels: You must create FPGA kernels that implement the task on the FPGA hardware to run a workload on the Alveo card. Xilinx offers tools and libraries to assist with this task.

Data must move between the host CPU and the FPGA because it is a separate hardware accelerator. Considering your particular workload, optimizing data transfer is crucial because this could become a bottleneck.

Performance monitoring: Xilinx offers tools for tracking Alveo card performance and detecting performance bottlenecks. To fine-tune your system for optimum performance, use these tools.

Overall, Xilinx Alveo can significantly accelerate tasks that require high-performance computation. However, it necessitates knowledge of FPGA programming and optimization, so be ready to spend time and money learning these abilities.

Tab Routing (Tab Route PCB) because automated equipment for circuit board assembly frequently struggles to work with the smaller boards, assembly errors occur more frequently.

Several businesses employ a technique called panelization, which produces a Circuit board panel, to reduce these flaws and increase manufacturing process efficiency.

What Does Tab Routing Mean?

PCB panelization can also be known as tab route, as well as tab routing, and it involves arranging many boards of the same and various designs into a panel. This common technique for PCB panelizing makes use of tabs without or with holes.

During the tab route PCB construction process for panelized boards, single boards can be detached by severing or cutting those tabs which are located between the boards or between its array rails and boards.

Several circuit boards can be fabricated and assembled in one go using a panelized Circuit board array with tab-routing. As a consequence, the project’s expenses are reduced, and the Circuit board order is completed more quickly. Choose the perforated kind if you want to manually separate the panelized Boards. Use a specific depaneling tool, such as depaneling carriers to avoid board damage when you believe that removing the PCB from this assembly array will put an undue amount of stress on a tab route PCB.

The ability to create non-rectangular boards is one benefit. Tab-routing, on the other hand, has the drawback of using more board material that might raise your prices. The board around the tab may also be put under extra strain as a result. Avoid putting PCB components extremely close to the tabs to reduce board tensions. Although there isn’t a set distance for positioning parts close to tabs, speaking generally, 100 mils seems to be the recommended distance. With larger or thicker Circuit boards, you might also need to space components apart by upwards of 100 mils.

Circuit boards in panels could be taken out either after or before assembly. The most popular method is to disconnect the PCBs once the panel gets put together since the PCB panels usually make assembly simpler.

Tab Routing Design Considerations

In situations whereby components are situated extremely close to as well as over the edge, tab routing is typically recommended. It is also preferred for PCBs with non-rectangular geometry, such as circles. To guarantee the strength as well as operation of such arrays, particularly during this breakout process, numerous design decisions must be taken since the tabs serve as the arrays’ breaking points. These factors include, among others:

Clearance

Keep traces and parts at minimum 1/8 inches from the tabs due to the tension put on its breakaway points as well as the risk for splintering.

To guarantee minimum interference, the surface-mounted ceramic multilayer chip capacitors should be maintained farther away, a minimum of 14 inches from its tabs.

Knock-Outs

To avoid problems during the wave-soldering process, the placeholder, also known as a knockout, could be necessary if the PCB design has holes that exceed 0.6 inches. Knockouts are especially crucial in the centre of the array, when PCB arrays become more inclined to droop. While bigger, more atypically shaped knockouts might need numerous three-hole tabs that are perforated, rectangular and smaller knockouts may include a broad, perforated tab (5 hole) on one edge.

Tab Positioning

Maintaining the PCB array design’s integrity is crucial. Perforated tabs (Five-hole) must be spaced per 2-3 inches across the edge of a board, as well as perforated tabs (three-hole) must be spaced each 1.5 inches. To prevent a board’s edge from curving, tabs must be positioned as near to it as feasible. Nevertheless, tabs shouldn’t be put under any overhanging components. Your designer should also make sure these tabs are adequate for supporting the boards without obstructing the breakout procedure.

Placement of Perforations

If you wish to prevent protrusions from your board’s sides, never run tab perforations along a tab’s center; rather, run them near the PCB’s edge, or on every side of that tab if positioned between two printed circuit boards.

Array Arrangement

To ensure uniform break-lines across the array, place PCBs such that all tabs that are broken at once are collinear. If break-lines here are not consistent, certain tabs could break whereas others are merely pushed perpendicular to such board surface that will damage the lamination.

Your design must meet few problems throughout the manufacturing as well as breakout processes if these factors are taken into account.

V-Score vs. Tab Routing

Whatever PCB design you’re dealing with will play a significant role in your decision to employ tab routing or v-score methods in the PCB panel. Before deciding, take these things into account:

Board Shapes: The panelization process heavily depends on the PCB’s shapes that make up an array. For rectangles or square board types, the V-scoring will work well.

When dealing with odd forms, tab routing seems to be more suited.

Edge Components: Tab-routing or a version of it may be preferable to V-scoring if your PCB needs the availability of the edge-hanging components as well as components positioned close to the edge. Just make sure the tabs aren’t close to such edge components.

Edge Quality: Tab-routing might well be preferred than V-scoring if the edge quality is a consideration. Despite the fact that the method leaves behind a few tiny, rough laminate nubs, these may be readily removed with sandpaper, and the rest edges remain smooth due to the routing. On the contrary side, V-scoring produces rough edges around, which might also need additional sanding if clean edges are required.

Time Expense: Since tab routing needs a great deal of time upon that router, it often requires more effort and time to set up. On the contrary, V-scoring, takes substantially less time on the computers.

Waste: V-scoring provides the most advantage when material waste seems to be an issue. The process wastes a lot less material compared to tab-routing, which results in a lower cost for every board overall.

Defaults for Tab Routing

If there are no panelization remarks from customers, our CAM experts will put up the panelized tab-routed array using the specifications shown below. Verify the specifics of our journey and keep panelization.

• Position the tabs so that they are at a minimum of 9 mm from each board corner.
• Place tabs on center or at minimum 9mm away from datum holes.
• Use the 2mm router. Boards must be spaced apart by at least 2mm.
• Where feasible, make sure these tabs are positioned in one straight line having an X-Y axis.
• Don’t tab the traces or part holes that are close to the edge of the board. This is to prevent breaking traces or holes.
• The tab’s width is between 3mm +/- 0.25mm.
• The tab position tolerance has a dimension of +/-0.5mm.
• On the 0.5mm grid, tabs must be dimensioned into the center.
• Place tabs on the outer edge of the board at minimum +/-6mm from every radius.

PCB Panelization Benefits

PCB panelization has advantages beyond only making smaller circuit boards fit into common production procedures; it also improves production efficiency. Additional benefits of Circuit board panelization are discussed below:

The ideal method for producing circuit boards in large quantities is PCB panelization, which saves time and money.

Handling a huge sheet as a collection of smaller boards is a quicker and more effective approach. The cost-effectiveness of employing the standard size of the fabricator for the boards allows for the fabrication of more boards in a shorter amount of time.

Furthermore, PCB panelization gives designers a way to incorporate distinctive designs in prototypes that are more affordable and effective.

Circuit boards are shielded from shocks as well as vibrations. These come from the occasionally harsh environment of a production line via PCB panelization. Hence, via manufacture, it ensures the security of the boards.

PCB Boards Breakout Instructions

Even with excellent PCB array design, issues can still arise when handling the breakout. A board can be completely destroyed by the breakout if done incorrectly, resulting in component damage, splintering, and ripping. Because of this, using effective board breakout techniques is crucial to minimizing expenses. To prevent any such problems, keep these rules in mind as you work through the process of breakout:

Hand Tab Breaking: With the right hand tools, a correctly constructed tab routed Circuit board panel is frequently breakable. Employ wide-nose pliers for bending every tab inside a break-line. This is done till it loudly fractures for the greatest results when using hand tools. Bend these tabs into the other direction so that they fully split along its break-line.

Breaking Tabs with Machine: The board might occasionally become too thick enough to completely break by hand. It could be preferable in this situation to use a cutting instrument. As was the case with solid tab type of panelization, a depaneling router could be a wise choice.

Cutting V-Grooves: A certain kind of a depaneling machine is needed to release panels with V-Scores. This machine employs a pizza-cutter-style blade, which is reasonably priced and needs no upkeep. The edges are going to be somewhat harsher than choices with routes, but that is the only downside.

Conclusion

In situations whereby components are situated extremely close to as well as over the edge, tab routing is typically recommended. It is also preferred for PCBs with non-rectangular geometry, such as circles.

In order to carry current as well as electronic signals out of the nose to the tail, the aircraft wire harness assembly plays a crucial role as the aircraft’s nervous system. From the fuselage harness to the power distribution assembly, wire harness makers create extremely intricate electrical harnesses as well as harness assemblies enabling the operating as well as controlling of practically every component of the aircraft. Such assemblies are frequently used in applications which require intricate electronics and dense wiring.

High-performance cables and wiring that are flame-resistant or resistant to the majority of fuels, solvents, or lubricants are used in the construction of the aircraft wire harness assembly. Cobra helicopters, trainers, fighter jets, and other aircrafts, use aircraft wire harness assemblies because they are built to deliver dependable, high performance even under the most challenging environmental conditions.

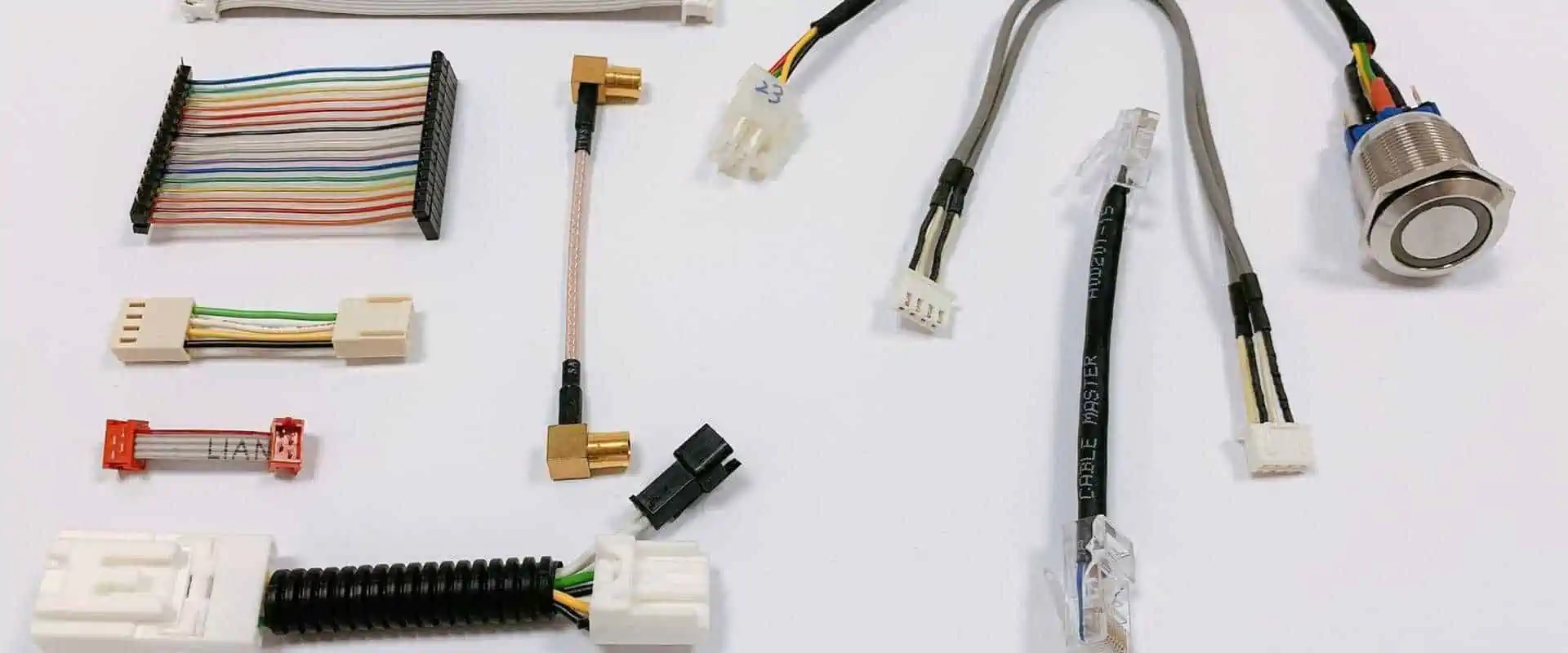

What is Aircraft Wiring Harness?

The most typical part of aircraft engines is the wire harness. It is a collection of electrical cables enclosed in an insulating substance. This insulated substance is primarily thermoplastic, that is noted because of its versatility. This thermoplastic offers electrical insulation towards the application while being able to handle hard conditions and high temperatures.

It is crucial that such materials utilized to house these wires be robust and capable of withstanding the movement as well as vibrations of aerospace applications in conditions where tear and wear are particularly likely. Such harnesses are sometimes mistaken with the cable harnesses, however they are two different parts.

Why Is the Wire Harness Crucial for the Aerospace Industry?

Wire harnesses can be customized for a particular application. It is essential to utilize components which can survive harsh environments in aircraft applications. Because of their extraordinary flexibility, wires are perfect for confined, compact places. For some purposes, they are preferred over wires.

Also, because they are significantly lighter than cable, the wire harnesses seem to be preferable. Weight plays a significant role in the process of manufacturing for aerospace applications since the aircraft must be able to securely transport big loads of passengers or cargo for, in certain cases, extended periods.

Manufacturing of Electrical Cables and Wiring Harnesses for Aircraft

Conductor wires enclosed in insulated covers make up the wiring harness. Such jacketed cables could be singles, triplets, twisted pairs, etc.

Copper and Aluminum are the two conductors that are most frequently utilized, with each having unique properties. There is a lot of use for aluminum because of its light weight, which allows for long spans as well as its comparatively large diameter meant for a specific conductivity, which lessens the release of electricity out from wires. Copper is easier to solder, has a better conductivity, and a comparatively high tensile strength.

Inside the aerospace sector, an aircraft’s wiring harnesses might extend for miles. Uses include those for the wing, engine, fuselage, and landing gear.

Advancement of the Aircraft Wire Harness Assembly

Advances in Aircraft Technology

In the high-tech world of today, flying could appear like a routine activity that the majority of us have already done. Nonetheless, because of its lengthy history, aviation technology has advanced significantly. Aerodynamics has been the secret to traveling from one location to another when airplanes initially flew. The earliest aircraft to transport people were thermal airships, sometimes known as hot air balloons.

But, developments in aerodynamics as well as motor technology throughout the beginning of the twentieth century increased the prevalence of powered-controlled flights. These early versions, which resemble modern aircraft, were created by 1909. Since aircraft engines have become more powerful and aircraft wiring harnesses have undergone new developments, aerospace engineering has progressed over time.

Without technological advancements, aircraft as well as the aviation industry would not operate as it does today without the breakthroughs experienced technologically.

Nonetheless, despite the advancements it has introduced to the aerospace sector, an aviation wire harness performs the same basic purpose like other wiring systems.

Why Do Wiring Harnesses Exist in Aircraft?

Early on in the creation of airplanes, there wasn’t anything like wiring harness because there were no electrical systems. They were limited to utilize structural components, ropes, including pulleys for moving its flying control surfaces.

Soon, these metal cables took the place of such ropes; today, numerous planes still use pulleys and cables rather to “fly by wire.” A battery, switch, as well as light bulb were eventually added by an aviation designer after he finally chose to wire inside a light. By using cables to connect these components, he built the first-ever electrical lighting systems for the airplane.

As this system simply needed a few wires, its harness manufacturers placed each one in a secure area.

Other architects then followed suit and added additional electrical infrastructures. Although groups of wiring flowed from one section to another, the aircraft mechanics ultimately recognized they have been installing the cables one after the other. Moreover, they required additional wires for every such device.

The setup procedure took a long time. To boost productivity, mechanics started bundling cables together as well as routing them. The aviation sector took notice & thought this was an important development. They connected the wire bundles there after conceiving them as one unit. They did this to produce the first-ever wire harness. These wire harnesses for aircrafts serve this function.

The Functions of the Aircraft Wiring Harness Assembly

The wire harness of an airplane controls electrical impulses for the entire aircraft, just like the harness of a car does. Among the things it controls are the landing gear, engine, wings, as well as fuselage. There is frequently a lot going on within the wire harnesses. An aviation wiring harness is made up of miles of wires, cables, as well as tens of thousands of components. Also, they must all work together to maintain the plane’s smooth flight.

The quickly evolving technology and updated aircraft electrical connections that may accommodate cutting-edge upgrades must also be kept up with by today’s aircraft makers. An aviation wire harness not only increases manufacturing and production efficiency but also makes it simpler for mechanics in repairing and identifying plans that are experiencing some technical difficulties.

The requirement to install a massive plane’s electronic equipment separately is removed by wire harnesses. The afflicted component must be identified by mechanics in order to be repaired when issues emerge and maintenance is necessary.

Aircraft Wiring Harness Assembly Components

When building a plane which complies with military requirements, there are several factors you’ll need to consider, including the aircraft that it will be utilized in. This will influence the precise features as well as the wiring harness components. These include the three different categories of airplane parts.

Standard Components

The military frequently has the ultimate say about MIL-SPEC components in the electrical system of a plane. Nevertheless, before you think of certain firms as approved suppliers, the government should certify them.

Non-Standard Components

Variants of commercially accessible components that adhere to a marginally different military standards commonly make up non-standard components. Original equipment producers may set their own standards for the non-standard components.

Original Equipment Manufacturers can also choose which of their suppliers they want to allow to manufacture the non-standard components. The non-standard component for an aviation harness, however, usually costs more because there aren’t many of them.

Commercially available and off the shell components

Manufacturers develop off-the-shell components in large quantities in accordance with customer demand and market research. Without the approval of the government and the military, the manufacturer can improve its component designs. Any manufacturer can make their own parts and give each one a special part number.

Similar to the remaining two components, these alternatives are available from manufacturers for a lower price. Yet, manufacturers have sole control about how the components are distributed, giving them the ability to set the prices as well as decide on the market share. Also, they are free to change or adjust any requirements.

However, it can become problematic if new wiring harness components are required because the supply is running low.

Aircraft Connection and Wiring

Wiring in the aircraft wire harnesses can be miles long. As a result, careful planning and structuring are required to avoid issues after as well as during construction. Creating a schematic within the CAD software seems to be the initial stage in the design process. This acts as a blueprint for further construction.

There was once a single type of insulating material that could be utilized to fulfill all needs, however today there are many possibilities. Which cables are used depends on the signal that you send as well as the electricity of the system. With these factors, wire insulation will also shift.

It would also be beneficial to label the wires enough so assembly as well as repairs don’t confuse them. However, keep such three things in mind when choosing a connector. The connector’s maximum connections must come first. ach wire’s thickness comes in second, followed by the kind of wire that goes into the aircraft connectors.

Aircraft Wire Harness Assembly Wire Selection

A system level is the place to start when designing the electrical system of an aircraft. The system diagram displays the bigger parts and their connections. The specification as well as size of these wire are not specified; they are merely joined together using a line in the system schematic.

Moreover, the wire splits are absent from this system schematic, such as whenever it goes through the bulkhead using two connectors. Despite its simple construction, the schematic would specify the kinds of signals which the wire would carry. The graphic also indicates the locations where shielded cables, twisted pairs, quads, and triplets are required.

The kind of signal the wire will broadcast as well as the current carried should guide your choice of wire. Usually speaking, you should choose the wire with its smallest gauge which has the ability to carry the needed current.

Also, reliable CAD software would figure out each gauge size’s current-carrying capacity automatically.

Testing of aircraft wire harness

Wiring analyzers are automated pieces of equipment used to assess aircraft wire harnesses. Wiring analyzers are made by many companies. Special programs instruct the analyzer on the tests to be performed, the voltage and current to be used, and the duration of applying current. Utilizing adapter cables, the technician joins this wiring analyzer onto that wire harness.

Insulation resistance and continuity are the two most often used tests. However, wiring analyzers are also capable of doing other tests, such as checking the functionality of diodes and conducting tests on the AC dielectric and empty contact cavities. They can also turn on lights and relays and measure capacitance and resistance.

Testing for continuity makes ensuring that every wire gets connected in line with the specific design. Continuous testing are run at 0.5 amps with constant voltage as well as a 0.2 second minimal dwell time.

The megohm test, commonly known as an insulation resistance test, looks for any short circuit. For instance, this insulation resistance testing will reveal a short circuit if there are two wires adjacent each other and both have nicks present in the insulation. This test on insulation resistance will also reveal a short circuit when a connector is improperly made and there isn’t sufficient material to divide two contacts.

Tests on insulation resistance are conducted with a continuous current at a value of 1,500 VDC and a 0.15 second minimum dwell period.

The test on insulation resistance performs exactly what its name implies: it guarantees there was enough resistance in-between 2 as well as more conductors to prevent short circuits. If this resistance is larger than one hundred megohms, then the test is passed.

Most OEMs prescribe how wire harnesses should be tested. MIL-STD-202 is the most popular military test specification.

Conclusion

Aircraft wire harness comprises several cables and connectors. Furthermore, other standard, non-standard, as well as commercial-off-the-shelf (COTS) parts complete and function the harness. You must consider your requirements before selecting the elements. The schematic will then be designed utilizing CAD software.

Printed circuit boards are core components of all electronic devices. They serve an important role in revealing the functioning and performance of an electronic device. On these boards are electronic components mounted on. These boards create electrical connections between components and offer mechanical support. PCBs are usually fabricated to meet the requirements of the applications for which they would be used.

Some particular kinds of printed circuit boards can be more complex and challenging to fabricate compared to others. These kinds of PCBs would need more steps in their manufacturing process. A good example of such boards is high tech PCB. High technology PCBs are more complex to fabricate. This is because these boards can feature high layer counts, can be made out of exotic materials, and may need additional fabrication and design processes with tighter tolerances.

What is a High Tech PCB?

A high tech PCB is a type of circuit board that requires complex fabrication process. A circuit board is classified as a high tech PCB based on some factors. These could be the number of layers, the material used in fabricating them, the feature they offer, the technology used in fabricating these boards, and more.

There are good examples of a high tech PCB. Examples include ceramic PCB, multilayer PCB, High density interconnect PCB, flexible PCB, and rigid-flex PCB. A high tech PCB requires technical experts to manufacture since there are fabrication processes require strict attention. Also, it is important to note that this kind of PCB is usually fabricated with high demands.

It is only possible to fabricate a high technology printed circuit board if it is made of industry standard materials. Furthermore, the design and fabrication processes are usually well-defined. It is important to check every process is for the expiry of the treatment period.

It is ideal to check the quality of the material, mechanical features, and the shape of the holes of a high tech PCB. The design and manufacturing process of a high tech PCB is very complex and as such PCB manufacturers need to pay attention to these boards.

Characteristics of High Tech PCB

A high tech PCB has some characteristics which differentiate them from a regular circuit board. Some of their characteristics are explained below

High quality base material

The capacity of a high tech circuit board to conduct electrons is one of the characteristics of a high-tech PCB. The base material of this circuit board must be made of advanced quality. This is because high tech PCBs are often used in applications that are quite demanding. Therefore, this board must be able to withstand whatever it will go through in it’s operational environment.

Also, a high tech board with good quality PCB base material prevents problems such as delamination, open circuit, and more. Therefore, the base material must undergo appropriate testing before it is being used.

Impeccably clean PCB

 High tech printed circuit boards should never have a speck of dust or any dirt on their surface. This PCB should be absolutely free of dust and any solder resistant material. Poor connection or bad solder joints may occur If the material is not properly clean and free of dirt.

Positional Tolerance on PCB

 A high tech printed PCB should have well-defined vias, tolerance of drill holes, tracks, and other physical and mechanical features. This makes this board distinct and scores high in terms of performance and appearance. The hole size and some other features are very crucial and it is important to define their tolerances. As regards this, the purpose is not to subject the printed circuit boards to stress test. However, the purpose is to be sure these specifications are well integrated exactly as per the limitations defined.

Tolerant copper clad made based on international Standards

A high tech PCB should feature a copper cladding that meets the tolerance standards established under quality criteria. This is very crucial in this circuit board as ensures more control on the dielectric layer thickness.

A thick dielectric layer minimizes the deviation in expected value of performance. Furthermore, it is important to pay attention to quality of components since the copper cladding alone can’t perform as expected.

High-quality PCB Treatment

 The treatments performed on circuit boards during fabrication don’t last forever. Therefore, it is very crucial to be sure there is no change in the surface treatment at the time of employing the high tech printed circuit board.

It is crucial for high tech printed circuit boards to undergo a series of quality tests before they are being integrated. Furthermore, when a PCB surface treatment goes beyond its shelf life, there is a tendency for the circuit board to suck moisture and as such makes soldering a much more difficult process. Furthermore, this will increase the risk of circuit break and de-lamination.

Thick solder resist layer

While there are no exact provisions for the thickness of solder resistance defined in IPC, the solder resist layer need to have a good level of tolerance needed to support electrical insulation. A tolerant thick solder resist layer helps to minimize the chances of peeling and as such makes the high tech PCB develop more tolerance towards any mechanical impact.

The solder resist layer may peel off of it is not thick enough and this may expose the copper in the high tech PCB to corrosive agents around. In the long run, this results in poor insulation. Therefore, a high technology PCB must have a thick solder resist layer.

Types of High Tech PCBs

There are various types of high tech PCBs. As it was earlier explained, these circuit boards have unique characteristics.

High density interconnect (HDI) PCBs

HDI circuit board features greater circuitry density for each unit. The circuitry density for this board is higher than that of conventional boards. Also, HDI PCB integrates both blind and buried vias. This board also integrates microvias which are 0.006″ or less in diameter.

High-density circuit board is classified as a high tech PCB. This board has buried and through vias. Also, HDI board features substrate constructions without electrical connection.

HDI printed circuit boards played a crucial role in the manufacturing of many of today’s electronic devices, particularly those that have smaller size and less weight. This board is responsible for the decrease in the size and weight of some devices. A smaller device is more likely to integrate a HDI PCB.

HDI boards have tight tolerances and as such the fabrication process of these boards must be handled by an experienced manufacturer. The slightest defect or layout errors can result in significant problems.

RF/Microwave PCB

RF/microwave PCB is a tech PCB. This board comprises components that transmit RF or microwave signals. The signals transmitted by this PCB signals vary in terms of frequency. Their frequency ranges from 50MHz to more than 2 GHz.

The frequency at which RF or Microwave PCB operates differentiates them. While a microwave PCB operates in a frequency more than 2Ghz, a radio frequency RF PCB operates in a frequency above 100MHz.

RF/Microwave PCBs are more complex to design compared to conventional PCB layouts. This is because of the challenges being faced with when receiving or transferring radio signals. Tighter impedance tolerances and noise sensitivity are some of the main problems with this board.

RF/microwave PCBs are more sensitive to noise and as such require tighter impedance tolerances. When designing a RF/microwave PCB, the best solution is to integrate ground planes. Also, you can make use of a bend radius on traces that have impedance control. With this, the RF/microwave board can perform better.

The material selection of RF/microwave boards is crucial in determining their performance. This is because these boards are specially designed to function at certain frequencies. Advanced composites are used in building RF/microwave PCBs. These composites feature particular properties for coefficient of thermal expansion, dielectric constant and loss tangent.

Rigid PCBs

A rigid board is a type of printed circuit board which has a solid substrate for its base material. This board is a good example of high tech PCB. The solid substrate material prevents the distortion of the PCB. A rigid circuit contains several layers combined with the used of heat and adhesive. The substrate layer of this board is usually made of fiberglass.

FR4 is the most common material used as the substrate of this board. This is because of the sturdiness and rigidity of these materials. In some cases, epoxies and phenolics are used as the base materials. These materials aren’t as efficient as FR4, but, they are less costly.

A rigid PCB can’t be folded or twisted to form any shape due to the FR4 reinforcement in this circuit board. A good example of rigid circuit board is the computer motherboard. Rigid circuit boards are resistance to aggressive oils, chemicals, and even radiation. Therefore, these boards are ideal for use in hostile environments.

The properties of these boards can be enhanced to resist shocks, stresses, and vibrations. Rigid boards are widely integrated in applications that require high performance. For instance, they are ideal for use in industrial applications. However, the manufacturing process of these boards is very complex.

High speed PCB digital

High speed circuit boards comprise microprocessors and other components that manage billions of operations every second. These boards need to be properly designed and manufactured to minimize errors. The integrity of signals can affect the physical characteristics of high speed PCB. Designing a high speed PCB is complex due to some issues that arise. In a simple circuit design, manufacturers might pay attentions to simple issues like routing and component placement.

The design process of a high speed board requires considering some factors like the width of the PCB, placement of traces, how close it is to signals, and what type of components they are connected to. a high speed circuit board is commonly used in applications like network communications, medical equipment, consumer-facing installed electronics.

High speed PCBs require high speed routing. Routing traces with impedance control is crucial in high speed designs. Antennae and differential pairs are impedance characteristics for high speed PCBs. PCB designers need to understand how layer stack and trace width are calculated for impedance values. There may a negative impact on the signal of high speed PCB, if the impedance values are incorrect.

Applications of High Tech PCBs

High tech PCBs are used in high frequency and high performance applications. These boards find their use in devices that are usually subjected to shock, vibration, and high temperature.

Safety and security equipment

There are several aspects of security systems that depend on a high tech PCB. These systems are crucial for the safety and security of human lives and properties. Some safety and security device such as electronic door locks, security cameras, and smoke detectors integrate high technology boards. Modern safety equipment make use of high technology boards.

Military and defense applications

Printed circuit boards used in military devices are usually subjected to a high level of shock, vibration, and extreme temperature. Therefore, the circuit boards integrated in this application need to be extremely durable and reliable. The military make use of high tech PCBs since these boards comprise high-temperature laminates, copper, and other materials. Control systems and communication equipment used in the military comprise high tech PCBs.

Aerospace components

Aerospace devices need high tech PCBs. They need PCBs that comprise materials that can tolerate vibration and other harsh conditions. Also, some aerospace device function in the outer space and as such, they must be very durable.

Industrial equipment

Another use case of high tech PCB is in the industrial equipment. The circuit boards integrated in industrial machines and devices need to high-powered. Also, they must have the ability to withstand some harsh conditions. These boards must have resistance to extreme temperatures, harsh chemicals, and rough handling. To meet these needs, the industrial sector needs to make use of high tech printed circuit boards.

Conclusion

High technology PCBs are more complex to fabricate. This is because these boards can feature high layer counts, can be made out of exotic materials, and may need additional fabrication and design processes with tighter tolerances.

In the rapidly evolving world of electric vehicles (EVs) and renewable energy storage, the importance of efficient and reliable battery systems cannot be overstated. At the heart of these advancements lies a crucial component: the Battery Thermal Management System (BTMS). This comprehensive guide delves into the principles, technologies, and implementation of BTMS, providing valuable insights for engineers, researchers, and enthusiasts alike.

What Is a Battery Thermal Management System (BTMS)?

A Battery Thermal Management System (BTMS) is a sophisticated system designed to regulate and maintain the optimal temperature of battery packs in various applications, particularly in electric vehicles and large-scale energy storage systems. The primary goal of a BTMS is to ensure that batteries operate within their ideal temperature range, thereby maximizing performance, extending lifespan, and enhancing safety.

BTMS plays a critical role in:

1. Maintaining uniform temperature distribution across battery cells
2. Preventing overheating during charge and discharge cycles
3. Protecting batteries from extreme environmental conditions
4. Optimizing battery performance and efficiency
5. Extending the overall lifespan of battery systems

As we delve deeper into the world of BTMS, it becomes clear that these systems are not just accessories but essential components in the future of sustainable energy and transportation.

Understanding Battery Thermal Management

To fully grasp the importance and functionality of BTMS, it’s crucial to understand the underlying principles of battery thermal management.

Where Does Heat Come From?

Heat generation in batteries is an inevitable byproduct of their operation. The primary sources of heat in a battery system include:

1. Internal Resistance: As current flows through the battery, it encounters resistance within the cells, which generates heat. This is often referred to as Joule heating or I²R losses.
2. Electrochemical Reactions: The chemical reactions that occur during charging and discharging processes can be exothermic, releasing heat.
3. Entropy Changes: Changes in the entropy of the battery system during operation can lead to heat generation or absorption.
4. Ambient Conditions: External temperature and environmental factors can contribute to heat buildup in battery systems.

Understanding these heat sources is crucial for designing effective thermal management strategies.

Why Are Batteries Affected by Temperature?

Temperature plays a significant role in battery performance and longevity for several reasons:

1. Chemical Reaction Rates: Battery operations rely on electrochemical reactions, which are temperature-dependent. Higher temperatures generally accelerate these reactions, while lower temperatures slow them down.
2. Internal Resistance: The internal resistance of a battery varies with temperature. At very low temperatures, the internal resistance increases, reducing the battery’s ability to deliver power.
3. Capacity and Efficiency: Extreme temperatures can lead to reduced capacity and efficiency. High temperatures can cause unwanted side reactions and accelerated degradation, while low temperatures can limit the battery’s ability to deliver its full capacity.
4. Safety Concerns: Overheating can lead to thermal runaway, a potentially dangerous situation where the battery enters an uncontrollable, self-heating state.
5. Lifespan: Consistent exposure to high temperatures can significantly reduce a battery’s lifespan by accelerating aging processes and degradation of internal components.

What is the Optimal Temperature?

The optimal operating temperature for most lithium-ion batteries, which are commonly used in EVs and energy storage systems, typically falls within the range of 15°C to 35°C (59°F to 95°F). However, the exact optimal temperature can vary depending on the specific chemistry and design of the battery.

Operating outside this range can have significant consequences:

• Below 15°C: Reduced power output and capacity, increased internal resistance.
• Above 35°C: Accelerated degradation, potential safety risks, and reduced lifespan.

It’s worth noting that while brief excursions outside this range may not cause immediate damage, prolonged exposure to non-optimal temperatures can have cumulative negative effects on battery performance and longevity.

Read more about:

• PCB thermal management
• PCB Heat Dissipation
• Thermal Design
• PCB Thermal Conductivity

The Advantages of Battery Thermal Management Systems

Implementing a well-designed BTMS offers numerous benefits that significantly enhance battery performance, safety, and longevity. Let’s explore these advantages in detail:

1. Extended Battery Life: By maintaining optimal temperature conditions, BTMS helps prevent premature aging and degradation of battery cells, potentially doubling or even tripling the lifespan of a battery pack.
2. Improved Performance: BTMS ensures that batteries operate within their ideal temperature range, maximizing power output, charging efficiency, and overall performance.
3. Enhanced Safety: By preventing overheating and maintaining uniform temperature distribution, BTMS significantly reduces the risk of thermal runaway and other temperature-related safety hazards.
4. Increased Range in EVs: For electric vehicles, efficient thermal management can lead to increased driving range by optimizing battery performance and reducing energy losses.
5. Fast Charging Capability: BTMS allows for faster and more efficient charging by managing the heat generated during rapid charge cycles.
6. Cost Savings: While implementing a BTMS requires initial investment, the long-term savings from extended battery life and improved efficiency often outweigh the costs.
7. Improved Reliability: BTMS helps maintain consistent performance across various environmental conditions, enhancing the reliability of battery-powered systems.

Battery Thermal Management System OEM Case

To illustrate the real-world impact of BTMS, let’s consider a case study from a leading electric vehicle manufacturer:

Company X, a prominent EV manufacturer, implemented an advanced liquid cooling BTMS in their latest model. The results were significant:

• 20% increase in battery lifespan compared to previous models
• 15% improvement in charging efficiency
• 10% increase in driving range under extreme weather conditions
• 50% reduction in thermal-related warranty claims

This case demonstrates the tangible benefits that a well-designed BTMS can bring to EV performance and customer satisfaction.

Battery Thermal Management System Specification Sheet

When evaluating or designing a BTMS, several key specifications need to be considered. A typical specification sheet might include:

1. Cooling Capacity: The amount of heat the system can remove, usually measured in kW.
2. Operating Temperature Range: The range of temperatures the BTMS can effectively manage.
3. Flow Rate: For liquid cooling systems, the rate at which coolant circulates.
4. Power Consumption: The energy required to operate the BTMS.
5. Weight and Dimensions: The physical characteristics of the system.
6. Compatibility: The types of battery chemistries and configurations the BTMS is designed for.
7. Control System: Specifications of the sensors and control algorithms used.
8. Safety Features: Built-in safeguards and fail-safe mechanisms.

Battery Thermal Management System Test Report

A comprehensive BTMS test report typically includes results from various performance and safety tests. Key elements often include:

1. Temperature Uniformity Test: Measures how well the BTMS maintains consistent temperature across all cells.
2. Thermal Response Test: Evaluates how quickly the system responds to temperature changes.
3. Extreme Condition Test: Assesses performance in very hot or cold environments.
4. Efficiency Test: Measures the energy consumption of the BTMS relative to its cooling/heating capacity.
5. Durability Test: Evaluates long-term performance and reliability.
6. Safety Test: Includes thermal runaway prevention and other safety-related assessments.

These tests provide crucial data for validating the effectiveness and reliability of a BTMS design.

Types of Battery Thermal Management Systems

BTMS can be broadly categorized into three main types: active cooling, passive cooling, and hybrid systems. Each type has its own set of technologies and approaches, suitable for different applications and requirements.

Active Cooling

Active cooling systems use external power to operate and typically provide more precise temperature control. They are particularly effective in high-performance applications or extreme environments.

Force Air Cooling

Force air cooling systems use fans or blowers to circulate air around the battery pack. This method is relatively simple and cost-effective but may have limitations in high-heat situations.

Advantages:

• Simple design and implementation
• Cost-effective
• Low maintenance requirements

Disadvantages:

• Limited cooling capacity
• May be less effective in extreme temperatures
• Can introduce dust and contaminants if not properly filtered

Liquid Cooling

Liquid cooling systems circulate a coolant (often a water-glycol mixture) through channels or plates in contact with the battery cells. This method offers superior cooling efficiency compared to air cooling.

Advantages:

• High cooling capacity
• Uniform temperature distribution
• Effective in high-performance applications

Disadvantages:

• More complex design
• Higher cost
• Potential for leaks

Thermoelectric Cooling

Thermoelectric cooling uses the Peltier effect to create a temperature differential, allowing for both cooling and heating. While less common, it offers unique advantages in certain applications.

Advantages:

• Can both cool and heat
• No moving parts, increasing reliability
• Precise temperature control

Disadvantages:

• Lower efficiency compared to other active cooling methods
• Higher power consumption
• Limited cooling capacity for large systems

Passive Cooling

Passive cooling systems rely on natural heat transfer mechanisms without requiring external power for operation. They are often simpler and more reliable but may have limitations in high-heat scenarios.

Passive Cooling by Phase Change Material (PCM)

PCM systems use materials that absorb or release heat as they change phase (usually from solid to liquid and vice versa). This helps in maintaining a stable temperature around the battery cells.

Advantages:

• No power consumption during operation
• Effective temperature stabilization
• Silent operation

Disadvantages:

• Limited heat absorption capacity
• May add significant weight to the system
• Performance can degrade over time

Passive Cooling by Heat Pipe

Heat pipes are sealed tubes containing a working fluid that efficiently transfers heat from one end to the other through evaporation and condensation cycles.

Advantages:

• High thermal conductivity
• No moving parts or power requirement
• Can transport heat over relatively long distances

Disadvantages:

• Limited heat dissipation capacity
• Performance can be affected by orientation
• May require integration with other cooling methods for optimal performance

Hybrid BTMS Cooling

Hybrid systems combine elements of both active and passive cooling to leverage the advantages of each approach. For example, a system might use PCM for primary temperature stabilization with a liquid cooling backup for high-heat situations.

Advantages:

• Combines benefits of multiple cooling methods
• Can provide robust performance across various conditions
• Potential for improved energy efficiency

Disadvantages:

• Increased system complexity
• Higher initial cost
• May require more sophisticated control systems

How to Choose a Battery Thermal Management System (BTMS)?

Selecting the right BTMS for a specific application involves careful consideration of various factors. Here’s a guide to help in the decision-making process:

1. Application Requirements: Consider the specific needs of your application. Is it for an electric vehicle, stationary energy storage, or another use case? Each application has unique demands in terms of performance, size, and environmental conditions.
2. Battery Chemistry and Configuration: Different battery chemistries have varying thermal characteristics. The physical configuration of the battery pack also influences thermal management needs.
3. Environmental Conditions: Consider the range of ambient temperatures and environmental factors the battery system will be exposed to.
4. Performance Requirements: Evaluate the required cooling/heating capacity, temperature uniformity, and response time needed for your application.
5. Space and Weight Constraints: Especially critical in mobile applications like EVs, where every gram and cubic centimeter counts.
6. Energy Efficiency: Consider the power consumption of the BTMS itself, as it can impact the overall system efficiency.
7. Cost Considerations: Balance the initial cost of the BTMS against long-term benefits like extended battery life and improved performance.
8. Maintenance and Reliability: Consider the maintenance requirements and expected reliability of different BTMS options.
9. Safety Features: Ensure the chosen BTMS includes necessary safety features and fail-safes.
10. Scalability and Future-Proofing: Consider whether the BTMS can be scaled or adapted for future needs or improvements in battery technology.

By carefully evaluating these factors, you can select a BTMS that best meets your specific needs and constraints.

Design Controls for Battery Thermal Management

Effective design controls are crucial for optimizing BTMS performance and ensuring battery safety. Key aspects to consider include:

Thermal Interface Materials

Thermal interface materials (TIMs) play a critical role in BTMS design by enhancing heat transfer between battery cells and cooling elements. Proper selection and application of TIMs can significantly improve overall system efficiency.

Key Considerations for TIMs:

• Thermal conductivity
• Electrical insulation properties
• Durability and long-term stability
• Ease of application and replacement

Common TIMs include thermal greases, pads, and gap fillers. The choice depends on factors such as the required thermal performance, manufacturing process, and maintenance considerations.

Battery Thermal Issues during Fast Charging

Fast charging is a desirable feature in many battery applications, particularly in EVs. However, it presents significant thermal management challenges:

1. Increased Heat Generation: Fast charging significantly increases the rate of heat generation within battery cells.
2. Temperature Gradients: Rapid charging can lead to uneven temperature distribution within the battery pack.
3. Potential for Thermal Runaway: Without proper thermal management, fast charging can increase the risk of thermal runaway.
4. Accelerated Degradation: Repeated fast charging cycles without adequate cooling can lead to faster battery degradation.

To address these issues, BTMS designs for fast-charging applications often incorporate:

• High-capacity cooling systems
• Advanced temperature monitoring and control algorithms
• Strategic placement of cooling elements to target hotspots
• Integration of pre-cooling or pre-heating functions

By addressing these thermal challenges, well-designed BTMS can enable safe and efficient fast charging while maintaining battery health and longevity.

Conclusion

Battery Thermal Management Systems are integral to the performance, safety, and longevity of modern battery technologies. As we’ve explored in this comprehensive guide, BTMS encompasses a wide range of technologies and approaches, each with its own strengths and applications.

From understanding the fundamental principles of battery thermal behavior to exploring various cooling technologies and design considerations, it’s clear that effective thermal management is a complex but crucial aspect of battery system design.

As battery technologies continue to evolve and find new applications in electric vehicles, renewable energy storage, and beyond, the role of BTMS will only grow in importance. Innovation in this field, such as the development of more efficient cooling technologies, smart control systems, and integration with battery management systems, will be key to unlocking the full potential of next-generation battery systems.

By carefully considering the principles, technologies, and implementation strategies discussed in this guide, engineers and designers can create BTMS solutions that not only meet current needs but also pave the way for future advancements in sustainable energy and transportation.

A PCB antenna transforms current in high frequency into electromagnetic waves that end up propagating into the air. A high frequency circuit board has two different PCB antennas which are embedded in the circuit board. One of the antenna functions as the transmitted radio frequency signal while the other one functions as the RG signal receiver.

The base materials of the circuit board transfer the signals to the antenna when the high-frequency PCB produces radio frequency waves. High frequency circuit and PCB antennas make up the RF system of the high-frequency circuit board.  There are different types of PCB antennas. We have the loop antenna, patch antenna, slot antenna, and more.

However, our main focus here is the loop antenna. We will be giving some detailed explanations about PCB loop antenna.

What is a PCB Loop Antenna?

Antennas are used in developing a high-frequency PCB. These antennas are embedded in the circuit board. To have a clear understanding of how PCB loop antennas, one must read more about them.

The loop antenna is a type of PCB antenna whose simple closed loop is linked with transmitter or receiver terminals. This type of PCB antenna has round shape. The copper materials used in the antenna design and the size of the loop determine the efficiency of PCB loop antenna.

PCB loop antennas are inefficient when you compare them with the wavelength. Therefore, they are not ideal for transmitting signals but can serve as receptors.

The PCB loop antenna comes with a directional pattern which makes it very easy to locate the transmitter also known as radio direction finding (RDF). You need to fix a capacitor in parallel with a PCB antenna. To achieve maximum efficiency, there is a need for an impedance matching network.

This antenna is usually created by bending a uniform wire in a loop form. The RF coil is usually bent to different shapes like eclipse, circle, square, and rectangle. Therefore, a loop antenna is simply a current-carrying coil bent in the form of loops. These loops can have different shapes. Also, PCB loop antennas are inexpensive, versatile, and simple. Therefore, these antennas have different applications.

The antenna can form various types of loops by bending the wires into various shapes forms.  This loop can be rectangular, elliptical, circular, triangular, etc. Circular PCB loop antenna is commonly used. This is because circular PCB loop antennas provide a level of simplicity in construction and also analysis.

Learn More about:

• PCB Trace Antenna
• GSM PCB Antenna
• 2.4 GHz Patch Antenna
• 2.4 GHz PCB Antenna
• BLE PCB Antenna
• Dipole Antenna
• Inverted-F Antenna
• Monopole antenna

What are the Types of a PCB Loop Antenna?

A PCB loop antenna forms a conducting path between a two-wire transmission line. This antenna is in three different categories which are small, medium, and large. A loop antenna is said to be small if its circumference is below one forth of a wavelength.

Furthermore, the majority of directional receiving loops are about 10% of a wavelength.

Small loop antenna

A small loop antenna is more sensitive to the magnetic components of an electromagnetic wave. This is one reason why it is called the magnetic loop. However, this loop antenna has less sensitivity to electric noise that is close.  It is possible to increase the received voltage of a small loop when it is brought into resonance.

When a signal gets to the axis of the loop,  it will induce an equal voltage in each limb in order to account for symmetry. The loop’s output should be zero since it is the difference in voltage between the two limbs.

Medium loop

A loop antenna is categorized as a medium loop antenna for two reasons. The first reason is when you mount a half-wavelength loop on a horizontal plane. This results on an antenna that evenly emits power in the horizontal plane.

The second reason occurs when a full-wavelength loop emits on its axis. These medium loops are often considered as elements of the quad antennas. Also, they are polarized based on the feed point’s position.

Large loop antenna

The third type of loop antenna is the large loop antenna. This type of antenna is a dipole antenna linked at the ends to create a triangle, circle, or a square. Loop antenna formed in the shape of a triangle is a delta loop antenna.

The loops formed into a circle have almost 10% higher gain than any of the other shapes. However, these loops can be very difficult to support due to their shape. Therefore, the square and triangle loops more common than the circular loop. Furthermore, large loops always better signal in the plane of the loop. This is very true as long as the loop maintains a good shape and size.

How to Design a PCB antenna

Generally, antennas are sensitive to their environment and as such, when installed into a circuit board, it is crucial to consider the layout and design as regards the requirements. This is because these factors may affect the functioning of the wireless device.  Simple factors such as layer thickness, material, and layer count can even affect the performance of a PCB loop antenna.

Therefore, there are different steps to take when designing a circuit board antenna. These steps will help you to achieve a functioning PCB antenna.

Antenna positioning

There are different operation modes for antennas. Therefore, the antenna’s radiation level will determine their placements. For instance, they can be positioned in a PCB’s corner, along the short side or the long side of a board. The PCB corner is one of the most suitable places to place an antenna. This position enables the PCB antenna to experience clearance in about five spatial directions

There are different types of antenna designs that are ideal for various positions. Therefore, PCB designers need to understand the principles of antenna positioning. Also, they need to choose the appropriate antenna based on their layout and application.

Keep-out area

It is crucial for PCB designers to avoid placing components in the near field close to the antenna. Otherwise, this may cause signal interference, which will have a negative impact on the circuit’s functionality. Furthermore, they should ensure spacing between the area around the antenna and the metallic objects.

Furthermore, a PCB antenna usually emits signal against a ground plane. This ground plane works with the operational frequency of the antenna. Therefore, proper spacing and size is crucial for the ground plane of the antenna. While many designers ignore the keep-out area, this can cause problems during the design process.

Size of the ground plane

The PCB ground plane size is crucial when designing a PCB antenna. This is because wires integrated for communicating with various batteries and devices may alter. Therefore, designers need to ensure that the size of the ground planes is appropriate as it helps the connection of the batteries and cables to that device would have lesser effects on that antenna.

Some PCB antennas depend on ground planes. This means the circuit board serves as the ground area of the antenna in order to strike a balance between the lower PCB layers and antenna currents. In the long run, this may make the antenna to perform poorly. In cases like this, PCB designers need to avoid placing battery close to the antenna.

Distance from other PCB components

When designing a circuit board, it is important to keep the antenna far from other components that may disrupt the radiation of the antenna. This will help in avoiding any further problem with the components.

The width and height of the PCB components determine the distance between the antenna and other components. Furthermore, components such as LCDs and batteries, different connectors such as Ethernet cables feature switching speeds. This could increase the likelihood of signal interference when the device is in operation.

Designing the transmission line

PCB antennas have a transmission line. The transmission line is the radio frequency trace that transmits the radiofrequency energy which transfers the signal to the reception. Designers need to design the transmission line at 50 Ω. Otherwise; these lines may reflect signals to the reception which may result in a degraded signal-to-noise ratio (SNR).

Therefore, designers must pay attention when designing the transmission line. They must ensure this line is straight since there is a chance for increase in signal loss if there are any bends or corners. To achieve reduction in signal losses, the designer must place vias along the two sides of the trace. This will help to isolate noise that travels along nearby traces and as such improving performance.

How to Achieve Better Performance

There are different ways you can enhance the efficiency of an antenna and have better results. Some useful ways for achieving this include:

• Tuning the antenna with matching networks will help to compensate for any factor that may have an effect on the performance of the antenna.
• Ensuring the selected the ground plane is appropriate. This will result in crosstalk between the signals otherwise. In such a case, the antenna will have to be placed in the edge of the circuit board.
• Avoid doing the antenna’s external casing since the antenna signals don’t pass through metal.
• The antenna shouldn’t be placed near plastic surface as this can affect the performance of the antenna. This is because plastic features a high dielectric constant which dampens the radio frequency signal and as well creates losses. This will increase the antenna’s electrical length of the antenna and minimize the radiating frequency of the antenna.
• A high-quality FR4 is a great option. You can make use of this laminate in order to achieve excellent RF performance.

Other Types of PCB Antennas

Apart from the PCB loop antenna, there are other types of PCB antennas.

Patch antenna

Patch antenna has a rectangular or circular shape. The patch antenna’s span is almost one-half of the wavelength of radio waves. Since it has short wavelengths, the patch antenna is usually integrated in microwave frequencies. Most portable devices integrate patch antennas because of its ease of design. Patch antennas are ideal for portable devices with wireless functionality.

There is another variant of the patch antenna known as the planar inverted type. Phased arrays and WLAN antennas integrate this variant in order to achieve maximum gain.

The planar inverted type has a bandwidth problem. However, the use of a thicker dielectric between ground and patch plane can increase the antenna’s bandwidth.

Meander Line Antenna

The construction process of this type of antenna involves folding the conductors to make the antenna shorter. This construction leads to a smaller compact size. However, the loss of resistance, radiation, and efficiency contribute to the size. Several experiments are usually carried out to choose the perfect combination for a particular application. To achieve impedance matching, external components are crucial.

Inverted-F antenna

The WLAN hardware on cell phones integrates the Inverted-F PCB antenna. This antenna is omnidirectional and as such features a large ground plane for optimal efficiency. Copper isn’t used in some part of F antenna. However, it is a plane surface that increases the antenna’s bandwidth.

Slot Antenna

Due to the construction of this antenna, it is called slot. Its construction comprises a metal plate with several cuts or slots or in it.  Just like dipole, slot antenna has opposite magnetic and electric fields. Due to the features of slot antennas, they are commonly used in phased arrays and aircraft radars.

Conclusion

The PCB loop antenna comes with a directional pattern which makes it very easy to locate the transmitter also known as radio direction finding (RDF). You need to fix a capacitor in parallel with a PCB antenna. To achieve maximum efficiency, there is a need for an impedance matching network.

A PCB loop antenna forms a conducting path between a two-wire transmission line. The loop antenna plays a significant role when integrated in a PCB. It offers more benefits than other types of PCB antennas. However, it is crucial that a PCB designer considers the applications and requirements of a PCB antenna before to determine the best PCB antenna.
