Introduction

In today’s rapidly evolving world of technology, Radio Frequency Identification (RFID) has emerged as a cornerstone of modern tracking and identification systems. At the heart of every RFID system lies a crucial component: the RFID antenna. These antennas play a pivotal role in determining the overall performance, efficiency, and reliability of RFID systems across various applications.

RFID antennas are the unsung heroes that enable seamless communication between RFID readers and tags, facilitating the transfer of data that powers everything from supply chain management to access control systems. As we delve into the world of RFID antennas, we’ll explore their types, design considerations, and applications spanning from Ultra High Frequency (UHF) to Low Frequency (LF) at 125kHz.

Whether you’re a seasoned RFID engineer or a curious newcomer to the field, this comprehensive guide will equip you with the knowledge to understand, select, and even design RFID antennas for optimal performance in diverse scenarios.

1. What Is an RFID Antenna?

Definition and Purpose

An RFID antenna is a specialized component designed to transmit and receive radio frequency signals in an RFID system. Its primary purpose is to facilitate communication between RFID readers and tags, enabling the wireless exchange of data without direct line-of-sight.

RFID Antenna Interaction

RFID antennas work in tandem with RFID readers and tags to create a functional RFID system. Here’s how they interact:

1. The reader’s antenna emits radio waves at a specific frequency.
2. These waves energize the RFID tag’s antenna.
3. The tag’s antenna reflects the signal back to the reader, modulating it with its unique identification data.
4. The reader’s antenna receives this modulated signal and decodes the information.

Key Performance Metrics

To understand RFID antennas better, it’s essential to familiarize yourself with these critical performance metrics:

1. Gain: Measured in dBi (decibels relative to an isotropic radiator), gain indicates how well the antenna concentrates radio waves in a particular direction.
2. Bandwidth: This refers to the range of frequencies over which the antenna can operate effectively.
3. Polarization: Describes the orientation of the electromagnetic waves emitted by the antenna. It can be linear (vertical or horizontal) or circular.
4. Reading Distance: The maximum distance at which the antenna can reliably communicate with RFID tags.

Read more about:

• PCB Loop Antenna
• BLE Antenna
• How to Design PCB Antenna
• 2.4 GHz PCB Antenna
• Rogers PCB

2. Types of RFID Antennas

RFID antennas come in various types, each designed for specific frequency bands and form factors to suit different applications.

Based on Frequency Bands

Low Frequency (LF) 125kHz RFID Antennas

• Characteristics: Short range, high tolerance to liquids and metals
• Applications: Animal tracking, access control systems
• Pros: Excellent penetration through materials, less susceptible to interference
• Cons: Limited data transfer rate, shorter read range

High Frequency (HF) 13.56 MHz RFID Antennas

• Characteristics: Moderate range, suitable for smart cards and Near Field Communication (NFC)
• Applications: Payment systems, library book management, electronic ticketing
• Pros: Good balance of range and data transfer rate, widely adopted in consumer applications
• Cons: Still limited range compared to UHF, susceptible to some metallic interference

Ultra High Frequency (UHF) 860-960 MHz RFID Antennas

• Characteristics: Long range, high-speed reading capabilities
• Applications: Supply chain management, logistics, asset tracking, inventory control
• Pros: Long read range, high data transfer rates, small tag size
• Cons: More susceptible to interference from liquids and metals, varying regulations across regions

Based on Form Factors

1. Patch Antennas:
   • Flat, low-profile design
   • Directional radiation pattern
   • Ideal for fixed reader applications
2. Dipole and Folded Dipole Antennas:
   • Omnidirectional radiation pattern
   • Commonly used in RFID tags
   • Suitable for applications requiring 360-degree coverage
3. Loop Antennas:
   • Circular or rectangular design
   • Excellent for near-field communication
   • Often used in LF and HF RFID systems
4. PCB-integrated Antennas:
   • Compact and cost-effective
   • Directly integrated into the circuit board
   • Ideal for space-constrained applications
5. Flexible and Wearable RFID Antennas:
   • Conform to non-planar surfaces
   • Used in smart clothing and wearable technology
   • Challenges in maintaining consistent performance when flexed

3. Key Components of RFID Antenna Design

Designing an effective RFID antenna requires careful consideration of several key components:

Antenna Impedance Matching

Impedance matching is crucial for maximizing power transfer between the antenna and the RFID chip. Proper matching ensures that the maximum amount of energy is transferred from the reader to the tag and vice versa, improving overall system efficiency.

Polarization

RFID antennas can be designed with either linear or circular polarization:

• Linear Polarization: Offers longer read range but requires careful alignment between reader and tag antennas.
• Circular Polarization: Provides more flexibility in tag orientation but at the cost of some read range.

Radiation Pattern and Directivity

The radiation pattern describes how the antenna distributes energy in space. Directivity measures the antenna’s ability to focus energy in a specific direction. High directivity can increase read range but may reduce coverage area.

Size vs Performance Trade-offs

Generally, larger antennas offer better performance in terms of gain and efficiency. However, many applications require compact designs, necessitating careful trade-offs between size and performance.

Environmental Considerations

RFID antennas must be designed with their operating environment in mind:

• Metallic Surfaces: Can cause detuning and reduced performance
• Liquids: Can absorb RF energy, particularly at higher frequencies
• Temperature Variations: May affect antenna tuning and performance

4. How to Design an RFID Antenna

Designing an RFID antenna involves a systematic approach to ensure optimal performance. Here’s a step-by-step process:

1. Select the Right Frequency and Application Needs

• Consider the required read range, data transfer rate, and environmental factors
• Choose between LF, HF, or UHF based on your specific application requirements

2. Calculate Antenna Dimensions

• Use the wavelength of the chosen frequency to determine initial antenna dimensions
• For example, a half-wave dipole antenna length is calculated as: L = 0.5 * (c / f), where c is the speed of light and f is the frequency

3. Material Selection

• Choose appropriate substrate materials (e.g., FR-4, Rogers, flexible substrates)
• Select suitable conductors (e.g., copper, silver, aluminum)
• Consider environmental factors like temperature range and humidity

4. Impedance Tuning

• Design matching networks to ensure maximum power transfer
• Use techniques like stub matching or lumped element matching
• Aim for a 50-ohm impedance match in most cases

5. Simulation and Optimization

• Utilize electromagnetic simulation tools like ANSYS HFSS, CST Microwave Studio, or Keysight ADS
• Simulate antenna performance and optimize parameters iteratively
• Analyze radiation patterns, gain, and efficiency

6. Prototyping and Testing

• Create physical prototypes of the designed antenna
• Conduct real-world testing to verify simulation results
• Measure key parameters like VSWR, gain, and read range

7. Refinement and Final Design

• Make necessary adjustments based on test results
• Optimize for manufacturability and cost-effectiveness
• Finalize the antenna design for production

5. Special Considerations for UHF RFID Antennas

UHF RFID antennas operate in the 860-960 MHz range and require special attention due to their unique characteristics:

Why UHF RFID Antennas Require Special Tuning

• Higher frequency means shorter wavelengths, making antennas more sensitive to environmental factors
• Regional variations in UHF frequency allocations necessitate careful tuning
• Proximity to materials like metals and liquids can significantly affect performance

Techniques to Maximize UHF RFID Read Range

1. Antenna Gain Optimization: Design antennas with higher gain to increase read range
2. Power Output Adjustment: Maximize reader power output within regulatory limits
3. Tag Antenna Design: Collaborate with tag manufacturers to optimize tag antennas for your specific application
4. Environment Compensation: Design antennas to mitigate environmental effects like metal proximity

Dealing with Multipath and Signal Reflections

• Implement diversity techniques (spatial, polarization, or frequency diversity)
• Use phased array antennas to steer the beam and reduce multipath effects
• Employ signal processing algorithms in readers to mitigate multipath interference

Regulatory Considerations for Different Regions

• FCC (United States): 902-928 MHz, maximum 4W EIRP
• ETSI (Europe): 865-868 MHz, maximum 2W ERP
• China: 920-925 MHz
• Ensure compliance with local regulations regarding frequency, power output, and modulation schemes

6. Designing Low Frequency (125kHz) RFID Antennas

Low Frequency RFID systems operating at 125kHz have unique characteristics and design considerations:

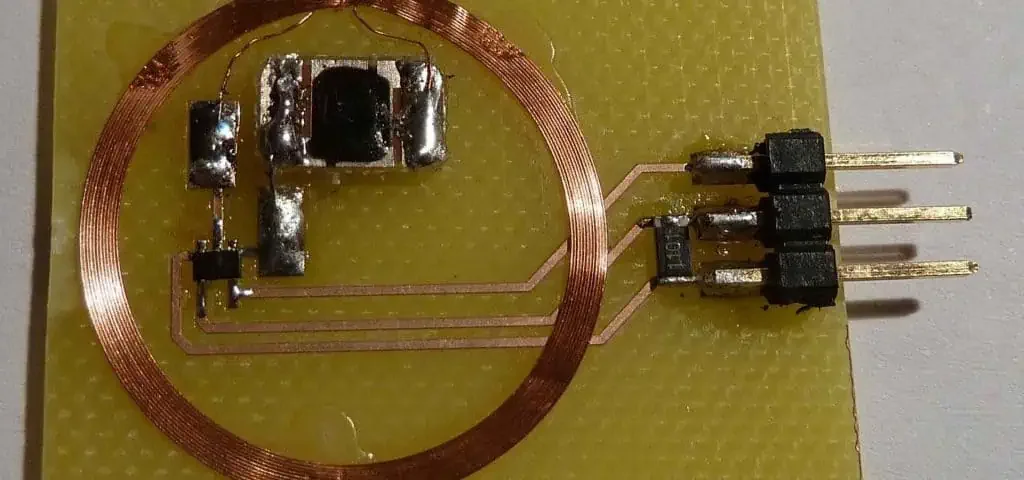

Coil Antenna Basics

• LF RFID antennas are typically coil-based designs
• Consist of multiple turns of wire wrapped around a core or air-core design
• Operate on the principle of magnetic induction rather than far-field propagation

Importance of Inductance, Capacitance, and Resonance

• The antenna’s inductance and capacitance form a resonant circuit
• Resonant frequency should match the 125kHz operating frequency
• Quality factor (Q) affects bandwidth and read range

Applications Where LF RFID Shines

1. Car Immobilizers: Resistant to interference from metal car bodies
2. Livestock Tracking: Excellent penetration through organic matter
3. Access Control: Short range provides inherent security
4. Industrial environments: Less affected by metals and liquids compared to higher frequencies

7. Applications of RFID Antennas Across Industries

RFID antennas find diverse applications across various industries:

Retail and Inventory Management

• Item-level tracking for improved inventory accuracy
• Anti-theft systems using RFID-enabled security tags
• Smart shelves for real-time stock monitoring

Supply Chain and Logistics

• Pallet and container tracking in warehouses
• Real-time visibility of goods in transit
• Automated sorting and routing in distribution centers

Healthcare and Medical Tracking

• Patient identification and tracking
• Medication authentication and inventory management
• Equipment tracking and utilization monitoring

Security and Access Control

• RFID-enabled ID cards for building access
• Vehicle access control in parking facilities
• Time and attendance tracking systems

Automotive Industry

• Vehicle immobilizers and keyless entry systems
• Tire pressure monitoring systems
• Assembly line part tracking and quality control

Smart Libraries and Event Management

• Automated book check-out and inventory management
• RFID-enabled tickets for large-scale events
• Attendee tracking and crowd flow analysis

8. Challenges and Troubleshooting in RFID Antenna Design

Designing and implementing RFID antennas can present several challenges:

Detuning Due to Nearby Objects

• Problem: Metallic objects or liquids near the antenna can shift its resonant frequency
• Solution: Design antennas with wider bandwidth or implement adaptive tuning mechanisms

Limited Read Range Issues

• Problem: Insufficient read range for the application requirements
• Solution: Optimize antenna gain, increase reader power (within regulations), or consider using multiple antennas

Interference from Other Wireless Systems

• Problem: Other RF systems can interfere with RFID communication
• Solution: Implement frequency hopping, use shielding, or carefully plan antenna placement

Testing for Real-World Environmental Effects

• Challenge: Simulations may not capture all real-world variables
• Solution: Conduct extensive field testing in the actual deployment environment, considering factors like temperature variations, humidity, and nearby materials

9. Trends and Innovations in RFID Antenna Technology

The field of RFID antenna technology is constantly evolving. Here are some exciting trends and innovations:

Miniaturized and Flexible Antennas

• Development of ultra-thin, flexible RFID antennas for seamless integration into various products
• Exploration of nanomaterials for creating microscopic RFID antennas

Embedded Antennas for Smart Devices

• Integration of RFID antennas directly into smart devices and IoT sensors
• Development of multi-functional antennas that serve both RFID and other wireless communication needs

Printable RFID Antennas

• Advancements in conductive ink technology for printing RFID antennas
• Potential for mass production of low-cost, disposable RFID tags

Energy Harvesting Through RFID Antennas

• Design of RFID antennas that can harvest RF energy to power small sensors or devices
• Exploration of hybrid systems combining RFID with other energy harvesting technologies

Future Potential with 5G and IoT Integration

• Integration of RFID technology with 5G networks for enhanced data transmission and coverage
• Development of RFID antennas optimized for the Internet of Things (IoT) ecosystem

Conclusion

The world of RFID antennas is vast and ever-evolving, playing a crucial role in the success of RFID systems across numerous industries. From the long-range capabilities of UHF RFID antennas to the robust performance of 125kHz LF antennas in challenging environments, each type of RFID antenna offers unique advantages for specific applications.

As we’ve explored in this comprehensive guide, choosing the right RFID antenna involves careful consideration of factors such as frequency, form factor, environmental conditions, and application requirements. Whether you’re designing a custom RFID antenna or selecting one for your project, understanding these fundamental principles is key to achieving optimal performance.

The future of RFID antenna technology looks bright, with ongoing innovations in materials, design techniques, and integration with other emerging technologies. As RFID continues to penetrate new industries and applications, the demand for more sophisticated, efficient, and versatile RFID antennas will only grow.

We encourage you to stay curious, experiment with new designs, and push the boundaries of what’s possible with RFID antenna technology. The next breakthrough in RFID could be just around the corner, waiting for innovative minds to bring it to life.

Frequently Asked Questions (FAQ)

Q1: What is an RFID antenna?

A: An RFID antenna is a component that transmits and receives radio frequency signals in an RFID system, enabling communication between RFID readers and tags.

Q2: How far can an RFID antenna read?

A: The read range of an RFID antenna varies depending on the frequency band, antenna design, and environmental factors. UHF RFID antennas can read up to 10 meters or more, while LF (125kHz) antennas typically have a range of a few centimeters.

Q3: What factors affect RFID antenna performance?

A: Key factors include frequency, antenna gain, polarization, environmental conditions (like nearby metals or liquids), and the quality of impedance matching between the antenna and the RFID chip.

Q4: Can RFID antennas work through metal?

A: RFID antennas, especially at higher frequencies, struggle to work through metal. However, specially designed antennas and low-frequency systems (like 125kHz) can perform better in metallic environments.

Q5: How do I choose the right RFID antenna for my application?

A: Consider factors such as required read range, operating environment, frequency regulations in your region, and specific application needs (e.g., item-level tracking vs. pallet tracking) when selecting an RFID antenna.
