In the ever-evolving world of wireless communication, the 2.4 GHz PCB antenna has become a crucial component in many modern devices. From smartphones and laptops to IoT devices and wireless routers, these compact antennas play a vital role in enabling seamless connectivity. In this comprehensive guide, we’ll explore the intricacies of 2.4 GHz PCB antennas, their types, materials, design considerations, and much more.

1. Introduction to 2.4 GHz PCB Antennas

1.1 Understanding PCB Antennas

Before diving into the specifics of 2.4 GHz PCB antennas, it’s essential to understand what PCB antennas are. PCB stands for Printed Circuit Board, and a PCB antenna is an antenna that is etched directly onto the circuit board of a device. This integration offers several advantages, including:

• Compact size
• Low cost
• Ease of manufacturing
• Consistency in performance

1.2 The Significance of 2.4 GHz

The 2.4 GHz frequency band is widely used in various wireless communication technologies, including:

• Wi-Fi (IEEE 802.11b/g/n)
• Bluetooth
• Zigbee
• Many IoT protocols

This frequency offers a good balance between range and data rate, making it ideal for many consumer and industrial applications.

1.3 Key Characteristics of 2.4 GHz PCB Antennas

2.4 GHz PCB antennas have several unique characteristics:

1. Wavelength: Approximately 12.5 cm in free space
2. Compact size: Typically a fraction of the wavelength
3. Omnidirectional radiation pattern: Suitable for mobile devices
4. Bandwidth: Usually sufficient for most 2.4 GHz applications
5. Gain: Generally lower than external antennas but adequate for many uses

1.4 Applications of 2.4 GHz PCB Antennas

These antennas find applications in a wide range of devices and industries:

• Consumer electronics (smartphones, laptops, tablets)
• Smart home devices (thermostats, security cameras, smart speakers)
• Industrial IoT sensors and controllers
• Wireless networking equipment (routers, access points)
• Automotive wireless systems (Bluetooth hands-free, tire pressure monitoring)

Learn More about:

• PCB Trace Antenna
• GSM PCB Antenna
• 2.4 GHz Patch Antenna
• BLE PCB Antenna

2. Types of 2.4 GHz PCB Antennas

While there are numerous designs for 2.4 GHz PCB antennas, they can generally be categorized into a few main types:

2.1 Inverted-F Antenna (IFA)

The Inverted-F Antenna is one of the most common types of PCB antennas for 2.4 GHz applications.

Characteristics:

• Compact design
• Good performance in limited space
• Suitable for devices with ground planes

Applications:

• Mobile phones
• Wireless modules
• IoT devices

2.2 Meander Line Antenna (MLA)

Meander Line Antennas use a folded conductor path to achieve a compact size.

Characteristics:

• Very compact
• Flexible design options
• Lower efficiency compared to larger antennas

Applications:

• Wearable devices
• RFID tags
• Compact IoT sensors

2.3 Planar Inverted-F Antenna (PIFA)

The Planar Inverted-F Antenna is an evolution of the IFA with improved bandwidth.

Characteristics:

• Wider bandwidth than IFA
• Good performance with ground planes
• Compact size

Applications:

• Smartphones
• Tablets
• Laptop computers

2.4 Chip Antenna

Chip antennas are pre-fabricated components that can be soldered onto a PCB.

Characteristics:

• Extremely compact
• Consistent performance
• Easy to implement

Applications:

• Bluetooth headsets
• USB dongles
• Compact IoT devices

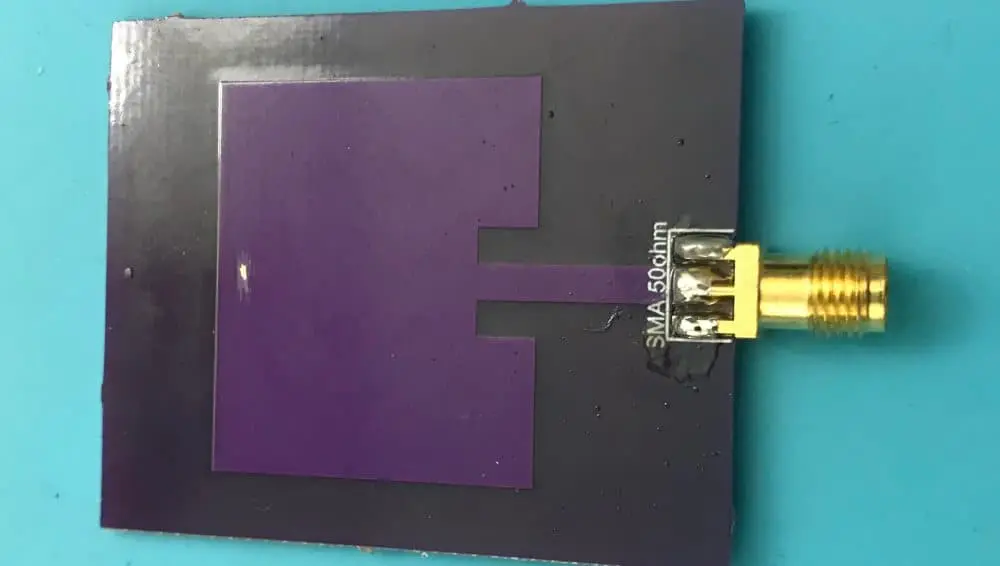

2.5 Patch Antenna

Patch antennas consist of a flat rectangular sheet or “patch” of metal mounted over a larger sheet of metal called a ground plane.

Characteristics:

• Directional radiation pattern
• Higher gain than other PCB antennas
• Larger size compared to other types

Applications:

• Access points
• Directional Wi-Fi antennas
• Industrial sensors

3. Materials of 2.4 GHz PCB Antennas

The choice of materials plays a crucial role in the performance and efficiency of 2.4 GHz PCB antennas. Let’s explore the common materials used:

3.1 Substrate Materials

The substrate is the base material of the PCB on which the antenna is etched. Common substrate materials include:

1. FR-4 (Flame Retardant 4)
   • Most common and cost-effective
   • Suitable for many applications
   • Higher losses at 2.4 GHz compared to specialized materials
2. Rogers RO4350B
   • Low loss at high frequencies
   • More expensive than FR-4
   • Used in high-performance applications
3. Taconic RF-35
   • Designed for RF and microwave applications
   • Low loss tangent
   • Good dimensional stability

3.2 Conductor Materials

The conductor forms the actual antenna element. Common conductor materials include:

1. Copper
   • Most commonly used
   • Excellent conductivity
   • Cost-effective
2. Silver
   • Higher conductivity than copper
   • More expensive
   • Used in high-performance applications
3. Aluminum
   • Lightweight
   • Lower conductivity than copper
   • Used in weight-sensitive applications

3.3 Surface Finish

The surface finish protects the copper and affects the antenna’s performance:

1. ENIG (Electroless Nickel Immersion Gold)
   • Good protection against oxidation
   • Maintains solderability
   • Slightly lower conductivity than bare copper
2. Immersion Tin
   • Cost-effective
   • Good solderability
   • May form whiskers over time
3. HASL (Hot Air Solder Leveling)
   • Traditional finish
   • Not suitable for fine-pitch components
   • Can affect antenna performance due to uneven surface

4. How Long is a 2.4 GHz PCB Antenna?

The length of a 2.4 GHz PCB antenna is a crucial factor in its design and performance. Let’s explore this aspect in detail:

4.1 Theoretical Length

In theory, the optimal length of a half-wave dipole antenna at 2.4 GHz would be:

Length = λ/2 = c / (2 * f) = (3 * 10^8 m/s) / (2 * 2.4 * 10^9 Hz) ≈ 6.25 cm

Where:

• λ is the wavelength
• c is the speed of light
• f is the frequency

4.2 Practical Considerations

In practice, the actual length of a 2.4 GHz PCB antenna is often shorter than the theoretical half-wavelength due to several factors:

1. Effect of PCB substrate: The effective wavelength in the PCB material is shorter than in free space.
2. Antenna type: Different antenna designs have different optimal lengths.
3. Size constraints: Many devices require more compact antennas.
4. Matching networks: Additional circuitry can help match shorter antennas to the desired frequency.

4.3 Typical Lengths for Different Antenna Types

1. Inverted-F Antenna (IFA): Typically 1/4 wavelength or less (around 3 cm or shorter)
2. Meander Line Antenna (MLA): Can be less than 1/10 wavelength (1 cm or less)
3. Planar Inverted-F Antenna (PIFA): Often around 1/4 wavelength (3 cm)
4. Chip Antenna: Extremely compact, often less than 1 cm in length
5. Patch Antenna: Typically 1/2 wavelength in each dimension (around 6 cm x 6 cm)

4.4 Miniaturization Techniques

To achieve shorter antenna lengths while maintaining performance, designers use various techniques:

1. Meandering: Folding the antenna trace to increase electrical length
2. Loading: Adding reactive components to electrically lengthen the antenna
3. Using high-permittivity substrates: Shortens the effective wavelength
4. Ground plane manipulation: Altering the ground plane can affect antenna performance

5. How to Design 2.4 GHz PCB Antennas

Designing an effective 2.4 GHz PCB antenna requires careful consideration of various factors. Here’s a step-by-step guide to the design process:

5.1 Define Requirements

Before starting the design, clearly define the requirements:

1. Performance specifications (gain, bandwidth, efficiency)
2. Size constraints
3. Cost limitations
4. Environmental considerations (temperature, humidity, etc.)
5. Regulatory compliance needs

5.2 Choose Antenna Type

Based on your requirements, select the appropriate antenna type:

• Inverted-F Antenna (IFA)
• Meander Line Antenna (MLA)
• Planar Inverted-F Antenna (PIFA)
• Chip Antenna
• Patch Antenna

Consider the pros and cons of each type in relation to your specific needs.

5.3 Select Materials

Choose appropriate materials for your antenna:

1. Substrate: Consider factors like loss tangent, dielectric constant, and cost
2. Conductor: Usually copper, but consider alternatives if necessary
3. Surface finish: Choose based on environmental and performance requirements

5.4 Initial Design

Create an initial design based on theoretical calculations:

1. Calculate the ideal antenna length
2. Adjust for the chosen antenna type and substrate material
3. Consider size constraints and apply miniaturization techniques if necessary

5.5 Simulate and Optimize

Use electromagnetic simulation software to model your antenna design:

1. Popular tools include CST Microwave Studio, ANSYS HFSS, and ADS
2. Simulate key parameters:
   • Return loss (S11)
   • Radiation pattern
   • Gain
   • Efficiency
3. Optimize the design by adjusting:
   • Antenna dimensions
   • Feed point location
   • Ground plane size and shape
   • Matching network components

5.6 Prototype and Test

Once you’re satisfied with the simulated results:

1. Create a physical prototype of your antenna
2. Test the prototype using a vector network analyzer (VNA) to measure:
   • Return loss
   • VSWR (Voltage Standing Wave Ratio)
   • Impedance
3. Perform over-the-air (OTA) tests to verify:
   • Radiation pattern
   • Gain
   • Range in real-world conditions

5.7 Iterate and Refine

Based on the test results:

1. Identify areas for improvement
2. Make necessary adjustments to the design
3. Repeat the simulation, prototyping, and testing process until desired performance is achieved

5.8 Design for Manufacturing

Ensure your final design is suitable for mass production:

1. Consider PCB manufacturing tolerances
2. Design for automated assembly if applicable
3. Ensure compliance with relevant standards (e.g., FCC, CE)

5.9 Document the Design

Create comprehensive documentation of your antenna design, including:

1. Detailed PCB layout files
2. Bill of Materials (BOM)
3. Assembly instructions
4. Test procedures and results
5. Compliance certificates

Conclusion

2.4 GHz PCB antennas are essential components in modern wireless devices, offering a compact and cost-effective solution for enabling connectivity. By understanding the types, materials, design considerations, and best practices outlined in this guide, engineers and designers can create efficient and effective antennas for a wide range of applications.

As wireless technology continues to evolve, the demand for smaller, more efficient, and more versatile antennas will only grow. Staying informed about the latest developments in PCB antenna design and materials will be crucial for creating the next generation of wireless devices.

Whether you’re designing a new IoT sensor, improving the Wi-Fi capabilities of a smartphone, or developing a cutting-edge wireless system, mastering the intricacies of 2.4 GHz PCB antennas will be key to your success. With careful planning, simulation, and testing, you can create antennas that meet the demanding requirements of today’s wireless world while paving the way for the innovations of tomorrow.
