Isola PCB Manufacturing ( Get Isola PCB Price,Pls send mail to Sales@raypcb.com )
Isola PCB A global material sciences company focused on designing, developing, manufacturing and marketing copper-clad laminates and dielectric prepregs used to fabricate advanced multilayer printed circuit boards. Isola high-performance materials are used in a diverse range of electronic end-markets including applications in computers, networking and communications equipment, high-end consumer electronics, as well as products designed for use in the advanced automotive, aerospace, military and medical markets.
The company invests in research and development to create industry-leading products formulated to meet the most demanding performance requirements of its customers, the printed circuit board fabricators, and the designers and original equipment manufacturers (OEMs) they serve. The global footprint includes ten manufacturing facilities and three research centers located in Asia, Europe and the United States.
Rayming provide following Isola Materials’ manufacturing service:
If you want to find other high frequency PCB material , Then you come to right place, Dupont PCB, Arlon PCB , Rogers PCB,Teflon PCB , Normally we have material on stock , If special Part number, We can buy material for you . Donot wait , Send inquiry to firstname.lastname@example.org , RayMing will be your good PCB Manufacturer.
Have you been hoping to learn about Isola PCB? Here we will be revealing to you everything possible about Isola PCB. These include its uses, properties, features, quality testing, laminate material, quality certification, and more.
Please continue reading to become an Isola PCB expert.
What does Isola PCB Mean?
This printed circuit board is complex and fabricated making use of high-performance laminate materials. It integrates resin constituents that are engineered in order to meet performance requirements that are demanding.
This PCB type is used in the majority of electronic equipment such as aerospace equipment and high-grade consumer electronics.
Types of Materials Used in Isola PCB
There are materials used in making Isola PCB. Some of them include
This term is associated with the PCB industry. It is referred to as “previously impregnated.” This is a dielectric material that offers electrical insulation, as well as other great features. It is manufactured via fiberglass fabric infusion with resins that are uniquely formulated.
The resin incorporates distinct thermal, electrical, and physical features to the prepreg. It is important in correcting the operation of the Isola PCB.
Copper Clad Laminates
This is made up of a prepreg laminated layer found on the two ends that have a thin layer of copper foil. This lamination is achieved by compressing one or more copper and prepreg plies together under extreme heat, pressure, and vacuum conditions.

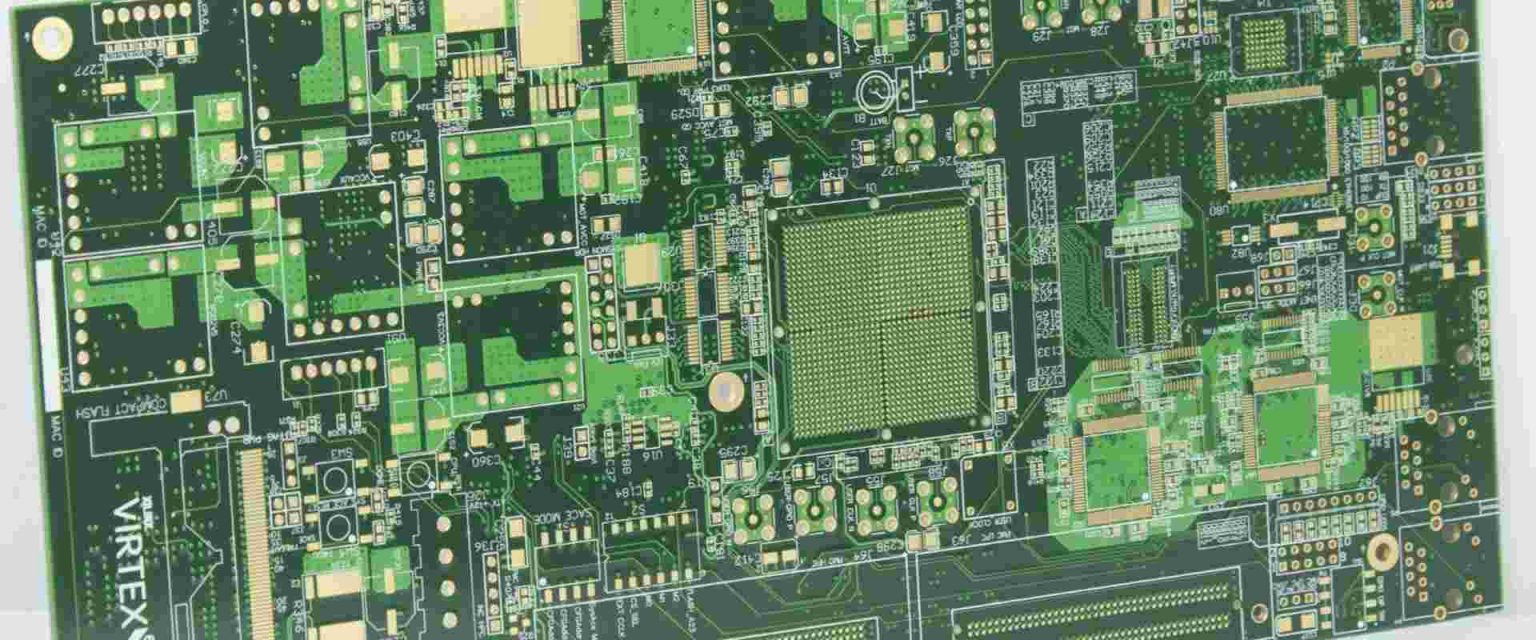

Constructing the Multilayer Isola PCB
Prepreg and CCL are utilized in fabricating multilayered Isola PCBs via complex operations that involve multiple processes that are usually repeated.
The copper surfaces of the laminate are etched. This is to produce electronic circuits. Going forwards, assemble the laminates to form a multilayer structure via inserting one or more prepreg plies between each etched laminate.
Plating and holes drilling then follows the creation of electrical interconnections among PCB layers. The Isola PCB that results is an interconnection gadget, where semiconductors and other parts are mounted.
Isola PCB Applications
The laminate and prepreg materials of Isola PCB can be applied in different equipment and advanced electronic which includes:
- Aerospace applications
- Military electronic applications
- Industrial equipment applications
- High-end consumer electronics
- Network and other communications devices
- Automotive applications
- Medical equipment applications
What Material is used in Making Isola PCB’s Resin System?
Isola PCB makes use of no-flow prepregs, which are polyimide-based for PCB applications requiring high temperatures.
They make use of a polyimide, retardant resin system, which is great for applications requiring superior performance and thermal properties. The prepreg materials of the Isola apply a polyimide blend and thermoplastic resin, which are fully cured without making use of Methylenedianiline (MDA).
This then leads to polymers that have a high Tg, which lacks the problems of brittleness and low initial bond strength. Therefore the resin system of Isola PCB is much better compared to the resin structure of conventional thermoset polyimide.
Features of the Isola Prepreg Materials
Below are some of the major features of the materials of Isola PCB:
- Sustains the strength of the bond at an elevated temperature
- Halogen-free options present
- Higher thermal performance
- Reduced delamination as a result of machining
- Enhanced processing as a result of less brittleness
- Resin system lasts long
What Laminate Materials are Utilized in Isola PCB
Now, let’s consider some common laminate materials that can be used when manufacturing Isola PCBs:
This laminate material of Isola PCB has great electrical features that are steady over a wide range of frequency and temperature.
It has a steady dielectric constant that falls within the range of -40 degrees Celsius and +140 degrees Celsius. In addition Isola Astra MT77 offers a dissipation factor of 0.0017, which is very low. This is why it is a less expensive alternative to PTFE, as well as other commercial microwave laminate materials for PCB.
This laminate material is great for a good number of today’s RF/microwave PCB designs.
The DE104 offers a great thermal resistance due to a low CTE and a great unique resin system in the Z-axis. DE104 also comes with a decomposition and glass temperature of 315 and 135 degrees Celsius respectively.
The laminate time for it to delaminate at a temperature of 260 degrees is 12 minutes. This material may be processed using ordinary parameters and is usually catalogued as FR-4.
The epoxy laminate of ED130UV allows you to meet the specifications necessary for PCB construction making use of UV blocking materials. These Isola PCB laminates utilize an epoxy resin base that has advanced epoxy face plies.
The ED130UV goes a long way in UV fluorescence and blocking if making use of Automated Optical Inspection.
This is made up of tetrafunctional epoxy resin, which is made for applications requiring multilayer Isola PCB, which requires performance properties that surpass difunctional epoxies.
The FR402 formulation came to be to improve accuracy, as well as throughput AOI devices that are laser-based. Asides from this, it offers great resistance to chemical and thermal degradation.
This Isola PCB laminate forms the benchmark of the industry for high performance materials of epoxy PCBs. This is designed to meet the multilayer PCB specifications, while ensuring that the conventional FR-4 processing is retained.
The FR406 offers great chemical and thermal performance, product consistency, and enhanced dimensional control.
The Isola FR408 is a type of high-performance epoxy PCB laminate and prepreg, which is designed to ensure improved PCB applications. It features a low dielectric constant and dissipation factor. This is why they are great for broadband PCB designs that require faster signal speeds or enhanced signal integrity.
This Isola PCB material works fine with most FR-4 processes. With this property, you’ll be able to utilize FR408 minus integrating complexity to the fabrication methods used today.
This Isola material is a high-performance one with a temperature of 230 degrees Celsius. This FR-4 system is great for multilayer PCB applications requiring optimal thermal performance and reliability. The Isola FR408HR laminate materials and prepreg are fabricated making use of the copyrighted multifunctional resin complex, which are strengthened using E-glass fabric.
With its great resistance to moisture during reflow, as well as other great features, this forms a product, which closes the void from the thermal and electrical perspective. This Isola PCB material also offers UV blocking and laser fluorescing to ensure maximal compatibility with:
- Optical positioning systems
- Optical inspection systems that are automated and
- Solder mask imaging
Another material used is Isola tachyon material.
What are the Quality Certifications for Isola PCB?
The major quality standards where the best Isola PCB materials ought to work with include:
Which is Better: Isola PCB vs. Nelco PCB?
When it comes to performance, Nelco PCB is better. This is because Nelco PCB offers both superior thermal and mechanical performance.
Asides from this, all the materials of Nelco PCB comply with the RoHS standards, and majority of them offer high thermal dependability. This makes them work with lead-free assembly. Asides from this, Nelco PCB materials come in several types.
What Differentiates the Isola 185HR and 370HR?
The laminate and prepreg materials of the 185HR Isola PCB are made using the copyrighted technology of Isola, and strengthened with the use of E-glass (electrical grade glass) fabric. This system provides a lesser Z-axis expansion, 340 degree Celsius decomposition temperature and reduced loss when comparing it with competitors. Moreover, the system of the Isola 185HR is laser fluorescence and UV blocking. This ensures maximum feasibility with:
- Systems for optical positioning
- Solder mask imaging (photoimageable)
- Optical inspection systems (automated)
The laminates and prepregs of 370HR Isola PCB, on the other hand are produced utilizing the high performance FR-4 epoxy resin complex. The Isola 370HR material was put together for multilayer PCB and its glass transition temperature is 180 degree Celsius. This temperature is great for applications that require optimal thermal performance and spectacular CAF resistance.
This system offers moisture, mechanical, and chemical resistance, which are equivalent to do better than the performance of normal FR-4 materials.
Asides from this, in serial lamination designs, the 370HR has proved its ease of processing and great performance.
What is the Rheology in Isola PCB Fabrication?
When manufacturing printed circuit boards, the study of the flow of material when it is subjected to heat and pressure is referred to as Rheology. This allows users to characterize the viscosity of a material as a function of temperature, heat rise rate, applied shear, and other factors.
This lets users obtain press lamination-related data. The standard model used in describing PCB materials’ Rheology deals with two parallel plates that have material to be designated placed in the middle. From the pattern, one of the plates drifts to the other in a parallel way.
By now, you should have gained wide knowledge about Isola PCB. This printed circuit board is a complex one, which is fabricated making use of high-performance laminate materials. This PCB type is used in the majority of electronic equipment such as aerospace equipment and high-grade consumer electronics.
