Introduction

In today’s rapidly evolving electronics landscape, the demand for smaller, faster, and more powerful devices continues to drive innovation in printed circuit board (PCB) technology. High Density Interconnect (HDI) PCB design has emerged as a critical solution to meet these ever-increasing requirements. As electronic devices shrink in size while simultaneously growing in functionality, HDI PCBs have become the backbone of modern electronics manufacturing.

HDI PCB technology enables engineers to pack more components and connections into significantly smaller spaces without compromising performance or reliability. From the smartphone in your pocket to lifesaving medical devices and advanced automotive systems, HDI PCBs are powering the electronics revolution across virtually every industry.

This comprehensive guide explores the fundamental principles, design considerations, and best practices for HDI PCB design. Whether you’re an experienced PCB designer looking to refine your HDI techniques or an engineer exploring high-density solutions for the first time, this article will provide valuable insights to help you optimize your designs for performance, manufacturability, and cost-effectiveness.

What is HDI PCB (High Density Interconnect PCB)?

Definition and Core Characteristics

High Density Interconnect (HDI) PCBs are advanced printed circuit boards characterized by higher wiring density per unit area than conventional PCBs. This increased density is achieved through finer lines and spaces, smaller vias, and more sophisticated build-up layer structures. The Institute for Printed Circuits (IPC) defines HDI as a PCB with a higher routing density than conventional PCBs, typically featuring:

  • Microvias with diameters less than or equal to 150 microns
  • Capture pads with diameters less than or equal to 400 microns
  • Conductor line width/spacing of 100 microns or less
  • High connection pad density (>20 pads per square centimeter)

Evolution of HDI Technology

HDI technology represents the natural evolution of PCB design, driven by the miniaturization trends in electronics. While traditional PCBs have served the industry well for decades, they reached practical limitations as component densities increased and signal integrity requirements became more demanding.

The development of laser drilling technology in the 1990s was a pivotal moment for HDI, enabling the creation of much smaller vias than was possible with mechanical drilling. This technological breakthrough, combined with advances in laminate materials and manufacturing processes, paved the way for today’s sophisticated HDI designs.

Importance of HDI Design in Modern Electronics

HDI PCB technology has become indispensable across numerous industries:

  • Consumer Electronics: Smartphones, tablets, and wearables rely on HDI to achieve their compact form factors while accommodating increasingly powerful processors and more features.
  • Medical Devices: Implantable and portable medical equipment benefits from the size reduction and reliability improvements HDI offers.
  • Automotive Electronics: Advanced driver assistance systems (ADAS), infotainment, and vehicle control modules leverage HDI to meet strict space constraints and reliability requirements.
  • Aerospace and Defense: Mission-critical systems utilize HDI for its superior signal integrity and robustness in harsh environments.
  • Telecommunications: 5G infrastructure and networking equipment depend on HDI to handle high-frequency signals and thermal challenges.

What Makes an HDI PCB Different from Standard PCBs?

Key Technological Differences

HDI PCBs differ from standard PCBs in several fundamental ways:

Microvias

Perhaps the most distinctive feature of HDI technology is the use of microvias—small holes typically less than 150 microns in diameter that create connections between adjacent layers. Unlike conventional through-holes that span the entire board, microvias connect only specific layers, allowing for more efficient use of routing space. These microvias are typically created using laser drilling rather than mechanical methods, enabling much higher precision.

Blind and Buried Vias

HDI designs make extensive use of specialized via structures:

  • Blind vias: Connect an outer layer to one or more inner layers without passing through the entire board
  • Buried vias: Connect internal layers without extending to either outer surface

These structures allow designers to create more efficient interconnections while preserving valuable routing space on critical layers.

Finer Lines and Spaces

HDI PCBs feature significantly narrower conductor traces and smaller spacing between them—often 100 microns or less compared to 150-200 microns in standard PCBs. This increased density allows for more signal traces in the same area, supporting higher component densities.

More Complex Layer Stacks

HDI boards typically employ build-up construction methods with multiple lamination cycles, creating sophisticated layer structures that optimize signal routing while minimizing the overall board thickness.

Advantages of HDI PCBs

The technological differences of HDI translate into several significant advantages:

Reduced Size and Weight

The most obvious benefit of HDI is the dramatic reduction in PCB size and weight. By utilizing finer traces, smaller vias, and more efficient routing strategies, HDI designs can achieve the same functionality in a fraction of the space required by conventional PCBs—often reducing board area by 40-60%.

Enhanced Electrical Performance

HDI designs offer superior electrical performance through:

  • Shorter signal paths that reduce propagation delays
  • Reduced parasitic inductance and capacitance
  • Better control of impedance for high-speed signals
  • Improved power distribution with lower DC resistance
  • Reduced electromagnetic interference (EMI)

These electrical benefits are particularly valuable for high-frequency applications where signal integrity is critical.

Improved Reliability

Despite their complexity, properly designed HDI PCBs often demonstrate superior reliability:

  • Fewer drilled holes result in better board structural integrity
  • Smaller vias are less susceptible to thermal stress failures
  • More efficient thermal management reduces component temperatures
  • Better power distribution minimizes voltage fluctuations

Design Flexibility

HDI technology gives designers unprecedented flexibility to:

  • Place components on both sides of the board with optimized connections
  • Route high-density BGAs and fine-pitch components more efficiently
  • Integrate multiple functions into a single board
  • Optimize critical signal paths for performance

Read more about:

Core Concepts of HDI Board Design

Layer Stacking Strategies

The layer stack is the foundation of any HDI design. Several common approaches exist, each offering different trade-offs between complexity, performance, and cost:

1+N+1 Structure

This basic HDI configuration features a conventional core with one build-up layer on each side. It supports blind vias from outer layers to the adjacent inner layers but does not include buried vias. This approach offers moderate density improvements while keeping manufacturing costs reasonable.

2+N+2 Structure

With two build-up layers on each side of the core, this structure allows for more sophisticated interconnection strategies, including stacked and staggered vias between the build-up layers. This approach provides greater routing density but requires additional lamination cycles.

Any-Layer Structure

The most advanced HDI designs employ “any-layer” technology, where microvias can connect any two adjacent layers throughout the board. This approach offers maximum design flexibility but increases manufacturing complexity and cost.

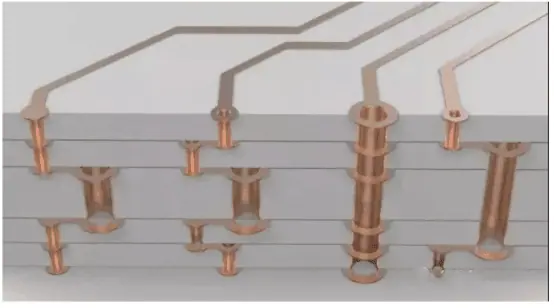

Via Types and Structures

Understanding via options is crucial for effective HDI design:

Laser-Drilled Microvias

These small-diameter vias (typically 50-150 microns) are formed using laser drilling, which offers greater precision than mechanical methods. Laser drilling is particularly effective for creating blind vias in thin dielectric layers.

Stacked vs. Staggered Vias

  • Stacked vias: Align directly on top of each other, creating a vertical connection through multiple layers. While space-efficient, stacked vias can create reliability challenges due to stress concentration.
  • Staggered vias: Offset horizontally from each other, distributing stress more evenly. Though they require more horizontal space, staggered vias generally offer better reliability.

Via-in-Pad

This technique places vias directly within component pads, eliminating the need for fan-out traces and significantly reducing the PCB footprint. Via-in-pad designs require filled and plated-over vias to create a flat surface for component mounting.

Material Considerations

HDI designs impose specific requirements on PCB materials:

High-Tg Laminates

Glass transition temperature (Tg) indicates when a material transitions from rigid to more pliable. HDI PCBs typically utilize high-Tg materials (170°C or higher) to withstand multiple lamination cycles and provide dimensional stability.

Resin-Coated Copper (RCC)

RCC consists of a thin layer of copper foil coated with partially cured resin. It’s commonly used in build-up layers for HDI PCBs because it eliminates the need for copper plating within microvias.

Low-Loss Materials

For high-frequency applications, low-loss dielectric materials such as modified FR-4, PTFE, or ceramic-filled hydrocarbon resins help maintain signal integrity by reducing dielectric losses.

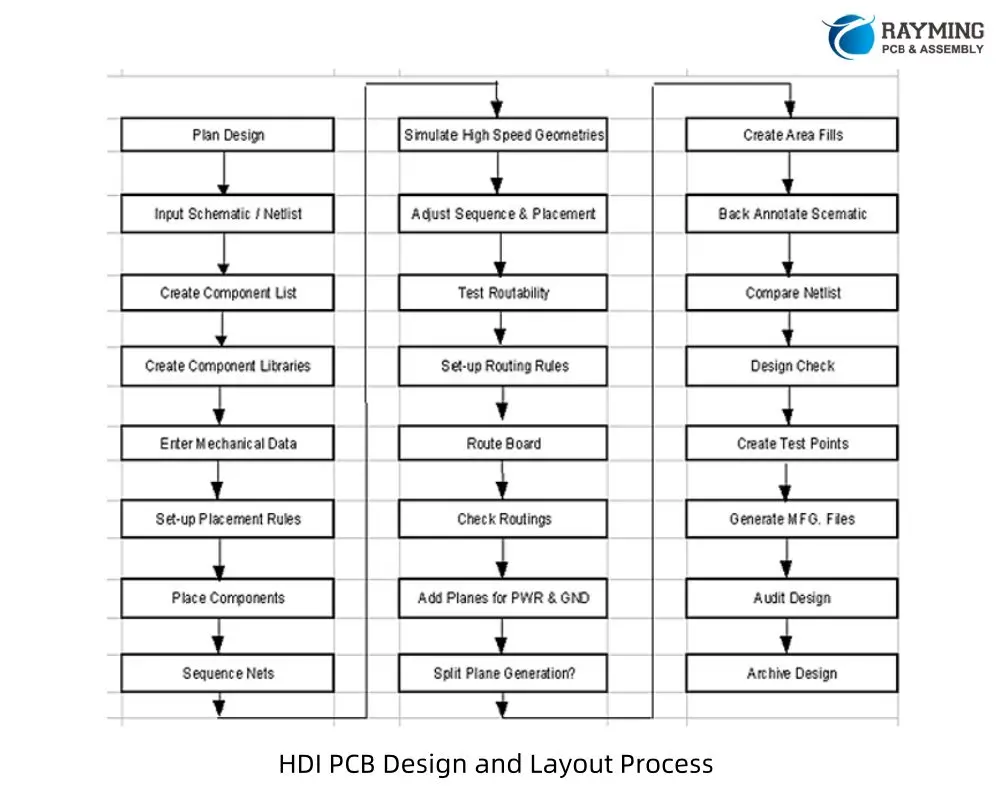

HDI PCB Design Guidelines

Trace Width and Spacing Recommendations

Effective HDI designs carefully balance trace parameters:

Minimum Trace Width

While HDI technology can support traces as narrow as 50 microns or less, most commercial designs typically use:

  • 75-100 microns for signal traces
  • Wider traces (125-200 microns) for power distribution

Always consider the manufacturer’s capabilities and yield expectations when specifying minimum trace widths.

Spacing Requirements

Minimum spacing between traces depends on several factors:

  • Manufacturing capabilities (typically 75-100 microns minimum)
  • Voltage requirements (higher voltages require greater spacing)
  • Signal integrity considerations (to minimize crosstalk)

Controlled Impedance

For high-speed signals, maintaining precise impedance control is essential:

  • Single-ended traces typically target 50Ω impedance
  • Differential pairs commonly use 85-100Ω differential impedance
  • Account for manufacturing tolerances in impedance calculations

Via-in-Pad Techniques

Via-in-pad design is often essential for routing high-density components like fine-pitch BGAs:

Filling Methods

Vias must be filled to create a flat surface for component mounting:

  • Conductive epoxy filling provides electrical continuity through the via
  • Non-conductive epoxy is more cost-effective but requires plating through
  • Copper filling offers the best electrical and thermal performance but at higher cost

Design Considerations

When implementing via-in-pad:

  • Ensure the manufacturer can reliably fill and plate over the vias
  • Consider thermal requirements, as filled vias conduct heat differently
  • Account for potential outgassing during reflow soldering

Managing Signal Integrity in Dense Layouts

HDI’s compact nature makes signal integrity management critical:

Return Path Control

Every signal needs a well-defined return path:

  • Keep signal traces close to their reference planes
  • Avoid crossing splits in reference planes
  • Use stitching vias to connect ground planes and reduce loop area

Crosstalk Mitigation

In densely routed boards, crosstalk becomes a significant concern:

  • Maintain adequate spacing between critical signals
  • Use orthogonal routing on adjacent layers
  • Insert ground traces between parallel high-speed signals when necessary

Electromagnetic Interference (EMI) Control

HDI designs must still meet electromagnetic compatibility requirements:

  • Implement proper grounding and shielding techniques
  • Consider edge effects and guard traces for sensitive signals
  • Use embedded capacitance planes to reduce power distribution noise

Power Distribution Strategies

Effective power delivery is essential for HDI performance:

Power/Ground Plane Pairs

Closely coupled power and ground planes offer several benefits:

  • Lower power distribution impedance
  • Reduced electromagnetic emissions
  • Inherent decoupling capacitance

Embedded Capacitance

Ultra-thin dielectric layers between power and ground create distributed capacitance that:

  • Reduces the need for discrete decoupling capacitors
  • Improves high-frequency power delivery
  • Lowers electromagnetic emissions

Dedicated Power Vias

For high-current applications:

  • Allocate sufficient vias for power connections
  • Calculate current capacity based on via size and quantity
  • Position power vias to minimize voltage drop at critical components

Best Practices for High Density PCB Layout

hdi technology in pcb
hdi technology in pcb

Component Placement for High-Density Designs

Strategic component placement lays the foundation for successful HDI routing:

Critical Component Identification

Begin by identifying components with the most demanding routing requirements:

  • Fine-pitch BGAs and QFNs
  • High-speed connectors
  • Clock generators and PLLs
  • Power management ICs

Place these components first, optimizing their locations for signal integrity and routability.

Placement Optimization

Consider these factors when arranging components:

  • Group functionally related components to minimize trace lengths
  • Orient components to facilitate efficient escape routing
  • Allow adequate spacing for thermal management
  • Consider assembly requirements and test accessibility

Fanout Strategy: Managing Escape Routing

Escaping high-density components requires careful planning:

BGA Fanout Techniques

Several approaches exist for routing BGAs:

  • Dog-bone fanout using via-in-pad for highest density
  • Via-near-pad for more cost-sensitive designs
  • Layer-by-layer assignment to manage routing congestion

Signal Layer Assignment

Plan signal layer allocation based on:

  • Signal speed and sensitivity
  • Trace length requirements
  • Impedance control needs
  • Available routing channels

Grounding and Shielding Techniques

Proper grounding is particularly critical in dense designs:

Ground Plane Integrity

Maintain solid ground planes by:

  • Minimizing splits and gaps
  • Using stitching vias around board perimeter
  • Creating isolation regions only when absolutely necessary

Shield Routing

For sensitive signals:

  • Route differential pairs with consistent spacing
  • Provide ground guard traces for critical single-ended signals
  • Use ground vias to create shielding “fences” around sensitive areas

Design for Manufacturability (DFM) Tips

Ensuring manufacturability is essential for cost-effective HDI:

Via Aspect Ratio Control

Maintain appropriate via aspect ratios:

  • Typical limit is 10:1 (depth) for mechanical drilling
  • 1:1 to 0.8:1 for laser-drilled microvias

Registration Tolerance

Account for layer-to-layer registration tolerances:

  • Provide adequate annular rings (typically minimum 50μm)
  • Consider teardrops at via-trace intersections
  • Allow for manufacturing tolerances in impedance calculations

Test Point Access

Plan for electrical testing:

  • Allocate test points for critical nets
  • Consider using via-in-pad for test access
  • Design for flying probe or bed-of-nails testing as appropriate

Common Challenges in HDI Layout and How to Solve Them

Dealing with Warpage

HDI boards are susceptible to warpage due to their complex structure:

Symmetrical Layer Stacking

Create balanced layer stacks with:

  • Similar copper distribution on corresponding layers
  • Symmetrical arrangement of prepreg and core materials
  • Balanced dielectric thicknesses

Material Selection

Choose materials with compatible thermal expansion characteristics:

  • Match CTE between different laminate materials
  • Consider the impact of copper density on thermal behavior
  • Use stress-relieving adhesives between dissimilar materials

Cost Management with Multiple Lamination Cycles

HDI manufacturing costs increase significantly with lamination cycles:

Layer Count Optimization

Balance performance and cost:

  • Use the minimum number of layers necessary
  • Consider 1+N+1 structures for moderate density requirements
  • Reserve 2+N+2 or more complex structures for the most demanding designs

Via Structure Efficiency

Minimize manufacturing complexity:

  • Use staggered rather than stacked vias where possible
  • Combine multiple connections into shared vias
  • Consider microvia diameter standardization to reduce drilling costs

Ensuring Reliability in Stacked Via Designs

Stacked vias present particular reliability challenges:

Thermal Stress Management

Mitigate thermal stress factors:

  • Limit the number of stacked microvias (typically to 3 or fewer)
  • Use staggered vias for less critical connections
  • Ensure adequate copper plating thickness in via barrels

Material Selection for Reliability

Choose materials that enhance reliability:

  • High Tg laminates (>170°C) resist deformation during thermal cycling
  • Materials with low z-axis expansion reduce stress on plated vias
  • Consider laser-ablatable materials for consistent microvia formation

HDI PCB Fabrication Considerations

Choosing the Right PCB Manufacturer

Not all PCB manufacturers have equal HDI capabilities:

Technical Capability Assessment

Evaluate manufacturers based on:

  • Minimum line width and spacing capabilities
  • Laser drilling precision and via diameter range
  • Layer registration accuracy
  • Available base materials and prepregs

Quality Control Systems

Look for manufacturers with:

  • ISO 9001 certification at minimum
  • Industry-specific certifications (ISO 13485 for medical, etc.)
  • Statistical process control for critical parameters
  • Documented reliability testing protocols

Inspection Methods

Thorough inspection is essential for HDI quality assurance:

X-ray Inspection

X-ray systems allow verification of:

  • Buried via alignment and quality
  • Stacked via integrity
  • Internal layer registration
  • Void detection in via filling

Automated Optical Inspection (AOI)

AOI systems check for:

  • Conductor width and spacing violations
  • Exposed copper or insufficient solder mask
  • Surface defects and contamination
  • Component placement accuracy

Testing Reliability

HDI boards require comprehensive reliability testing:

Thermal Cycling

Temperature cycling tests verify:

  • Via barrel integrity under thermal stress
  • Lamination bond strength
  • Plating adhesion reliability
  • Interconnection stability

Impedance Testing

For high-speed designs, verify:

  • Controlled impedance within specified tolerances
  • Insertion loss performance
  • Return loss characteristics
  • Crosstalk levels

Future Trends in High Density PCB Design

mSAP (Modified Semi-Additive Process) Manufacturing

Traditional subtractive PCB manufacturing has limitations for ultra-fine lines. Modified semi-additive process (mSAP) offers superior capabilities:

  • Achievable line width/spacing down to 30/30 microns or finer
  • Better copper trace profile with vertical sidewalls
  • Improved impedance control and signal integrity
  • Enhanced reliability for fine-line applications

Evolution Towards Even Finer Pitches and Higher Layers

The density progression continues:

  • Component pitches decreasing to 0.3mm and below
  • HDI designs regularly exceeding 20 total layers
  • Line width/spacing pushing below 50/50 microns
  • Embedded components reducing surface mounting requirements

Integration with 5G and AI Hardware

Emerging applications drive HDI innovation:

  • 5G requiring materials with extremely low losses at millimeter-wave frequencies
  • AI accelerators demanding unprecedented power delivery and thermal management
  • Edge computing necessitating complex mixed-signal designs in compact formats
  • Automotive electronics requiring HDI solutions that meet rigorous reliability standards

Conclusion

High Density Interconnect PCB technology has transformed electronic product design, enabling the remarkable miniaturization and performance improvements we see in modern devices. By understanding the fundamental principles, design considerations, and best practices outlined in this article, engineers can harness HDI’s capabilities to create more competitive and innovative products.

As with any advanced technology, successful HDI implementation requires balancing multiple factors—technical requirements, manufacturing capabilities, reliability considerations, and cost constraints. Close collaboration with your PCB manufacturer throughout the design process is essential for optimizing this balance.

The HDI landscape continues to evolve rapidly, with new materials, manufacturing processes, and design tools regularly emerging. Staying informed about these developments and continuously refining your HDI design skills will be crucial for addressing tomorrow’s electronic design challenges.

FAQs Section

What are the major advantages of using HDI PCBs?

HDI PCBs offer smaller form factors, higher speed signal performance, and better overall reliability compared to traditional PCBs. They enable more functionality in less space, improved thermal management, and enhanced signal integrity for high-frequency applications.

How do microvias improve HDI PCB performance?

Microvias shorten the path of high-speed signals, reduce parasitic inductance, and enable higher routing density. Their smaller size and more precise placement allow for more efficient interconnections between layers, particularly when routing fine-pitch components.

What is the difference between stacked and staggered vias in HDI design?

Stacked vias align directly over one another, useful for very tight layouts but are more costly and potentially less reliable due to concentrated stress points. Staggered vias are offset from each other, distributing thermal and mechanical stress more evenly while requiring more horizontal space.

How do I choose the right stackup for an HDI board?

The optimal stackup depends on your design’s complexity, signal integrity requirements, component density, and manufacturing capabilities. Begin with the minimum layer count needed, ensure symmetrical construction to prevent warpage, and select appropriate materials for your application’s electrical and thermal requirements.

What factors affect the cost of an HDI PCB?

The primary cost drivers include the number of layers, number of lamination cycles, via structure (stacked vs. staggered), materials used, and manufacturing tolerances. More complex designs with multiple lamination cycles and tighter tolerances will significantly increase costs compared to simpler HDI structures.
