What is Digital Signals ?


Digital signals are a fundamental concept in electronics and communications. In contrast to analog signals which can vary continuously, digital signals have discrete stepped levels representing binary logic states. Understanding the nature of digital signals is key to working with digital circuits and systems. This article provides a comprehensive overview of digital signals, covering digital signal fundamentals, bit representations, timing parameters, transmission methods, noise effects, and applications.

Digital Signal Basics

A digital signal represents information using discrete voltage or current levels. The two main properties of digital signals are:

  • Discrete levels – A finite number of defined states (not continuous)
  • Binary representation – Each level encodes one or more binary bits

This contrasts with analog signals which have continuous variation over a range. Digital signals provide advantages such as noise immunity, precision, and compatibility with digital processing.

Binary Levels

The most common type of digital signaling uses two discrete levels to represent binary 1s and 0s. Some examples are:

  • Logic voltage levels – 0V and 5V for TTL logic
  • CMOS levels – 0V and VDD like 3.3V or 5V
  • ECL levels – -1.75V and -0.9V

Using only two distinct levels minimizes errors and enables simple digital logic functions. Multi-level signaling is possible but is less common.

Waveform Shapes

Digital waveforms can take on different shapes depending on the transmission method:

  • Square waves – Fast switching between levels
  • Rectangular pulses – Defined high and low duration
  • Triangular pulses – Linear slope transitions

The important aspect is distinguishable levels, not necessarily the slope between transitions. Noise margin defines the minimum separation.

Binary Encoding

Groupings of binary 1s and 0s can encode alphanumeric characters, control signals, multimedia data, and any other information in digital form. Common encodings include:

  • ASCII – 7-bit alphanumeric characters
  • Unicode – Expanded multilingual encoding
  • Ethernet – Network packet framing
  • JPEG – Image compression encoding
  • MPEG – Video and audio compression
  • Manchester – Synchronized clock encoding

Digital Signal Characteristics

digital circuit

Key characteristics help define a digital signal:

Amplitude – Voltage or current level for each state

Timing – Duration of each high/low state

Transition speed – Rise/fall time between states

Waveform – Shape and allowable overshoot/undershoot

Noise margin – Minimum separation between levels

Bit rate – Bits transmitted per second

Encoding – Definition of each pattern of bits

These interdependent parameters determine the quality and integrity of digital signal transmission and reception.

Digital Bit Representation

A bit is the fundamental unit of a digital system, representing a binary 0 or 1. Bits are combined into groupings called bytes or words for convenience:


  • A single 0 or 1 value
  • Smallest unit of data
  • Transmitted as a discrete signal level


  • Group of 8 bits
  • Represents a character or data unit
  • Used for memory addressing and data organization


  • Larger groups like 16 or 32 bits
  • Match data types like integers
  • Improve transmission efficiency

In serial transmission, bits are sent one after the other. In parallel transmission, multiple bits simultaneously travel on separate lines.

Digital Signal Timing Parameters

Key timing parameters define digital signal behavior:

Bit Time (T) – Duration of a single bit

Bit Rate (R) – Number of bits per second (1/T)

Rise/Fall Time (Tr/Tf) – Transition duration between levels

Pulse Width – Width of high or low level durations

Duty Cycle – Ratio of pulse width to period

Propagation Delay – Delay through a logic gate

Clock Period – Time between clock edges

These interdependent timings must meet specifications for proper generation, transmission, and reception of digital signals. Violating the timing margins will result in errors.

Digital Signal Transmission

Digital signals can be conveyed from source to destination by various methods:

Wired Connections

Twisted pair cabling, coaxial cable, stripline traces, and other guided media provide point-to-point connections for digital signals. Common standards define signal characteristics.

Optical Fiber

Pulses of light convey binary 1s and 0s through total internal reflection in glass fibers. Provides noise immunity and isolation.


Digital modulation allows encoding data on radio waves for transmission over the air through space. Used in WiFi, cellular, Bluetooth and other wireless technologies.


Shared parallel wired buses convey multiple digital signals between components like a processor, memory, and peripherals in a system.

Digital Signal Integrity

Maintaining signal integrity from source to destination is critical for error-free transmission. Key factors impacting integrity include:

Noise Immunity

Noise margin defines the minimum separation between signal levels to prevent errors. Wider margins provide better noise immunity.


Degradation of rise/fall times and amplitude from dispersion and nonlinearities must be minimized through shaping and equalization.


Cross-talk coupling from nearby signals can cause interference exceeding the noise margin and corrupting data.


Timing variations of signal transitions from noise, interference or drift can cause synchronization issues.


Amplitude attenuation from skin effect, reflections, or media losses should be compensated with gain.

Careful engineering of margins, filtering, shielding, termination, and repeaters ensures robust digital signal transmission.

Applications of Digital Signals

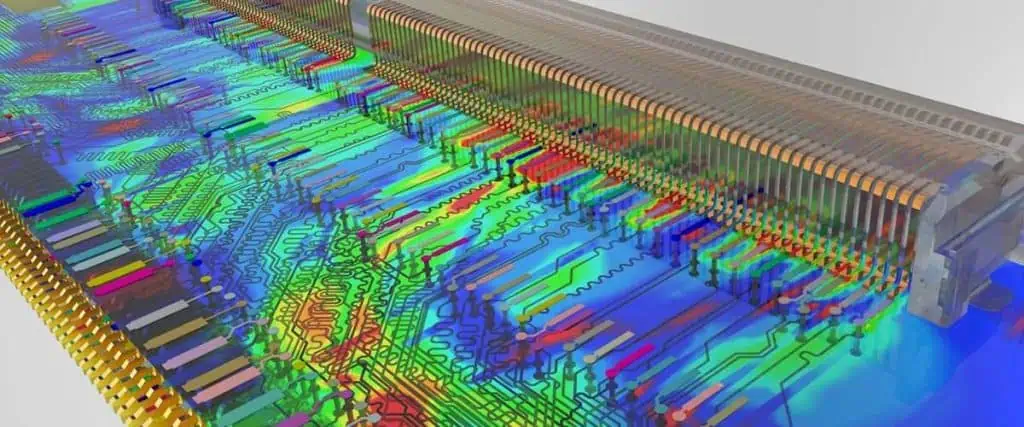

signal integrity PCB
signal integrity PCB

Digital signaling is utilized across practically all modern electrical engineering disciplines:

  • Computing – CPUs, memory, peripherals, interconnects
  • Communications – Digital radio, telephony, streaming media
  • Control Systems – Logic control, relays, sensors, actuators
  • Instrumentation – Digital oscilloscopes, logic analyzers, spectrum analyzers
  • Consumer Electronics – Phones, media, IoT, gaming, VR
  • Transportation – Automotive, aviation, rail, navigation systems
  • Power Systems – Smart grid, converters, protection relays

The proliferation of digital electronics drives the need for disciplined digital signal design, analysis, and debugging across nearly every industry.


In summary, digital signals represent information using discrete logic levels in contrast to continuous analog signals. Key parameters like amplitude, timing, rise/fall times, noise margin, and encoding define signal characteristics critical for reliable generation and transmission. Careful engineering ensures digital signal integrity across wired, optical, wireless, and bus-based interconnects. Digital signaling enables the complex systems underlying modern computing, communications, instrumentation, consumer products, transportation, and infrastructure. Understanding digital signals is therefore essential for any electrical engineering role interfacing with digital electronics or networks.

Frequently Asked Questions

How are digital signals different from analog signals?

Digital signals have discrete stepped logic levels vs continuous variation over a range for analog signals. Digital can precisely represent binary data while analog has noise susceptibility.

What are the two main levels used in standard binary digital signaling?

Most common binary digital signals use two levels like 0V and 5V, 0V and 3.3V, or -1.75V and -0.9V to distinctly represent logic 0 and logic 1 values.

What digital signal timing parameters are important for proper transmission?

Critical timings are bit time, bit rate, pulse width, rise/fall time, duty cycle, clock period, and propagation delay. Maintaining margins between these interdependent timings prevents errors.

What are three common methods for transmitting digital signals?

Digital signals can be conveyed over guided media like wire or fiber optic cabling, or wirelessly through modulation on carrier waves, or over shared parallel buses between internal computer components.

What factors can degrade digital signal integrity?

Key concerns are noise, distortion, interference, jitter, and amplitude loss. Careful engineering of margins, filtering, shielding, termination, and repeaters is needed to ensure robust transmission.
