In the world of printed circuit board (PCB) manufacturing, precision is paramount. One crucial tool that ensures accuracy in the assembly process is the PCB stencil. This article delves into the intricacies of PCB stencils, exploring their composition, types, manufacturing processes, and how to choose and use them effectively.

What is a PCB Stencil?

A PCB stencil is a thin sheet of material with precisely cut openings that allow for the accurate application of solder paste onto specific areas of a printed circuit board. This tool is essential in the surface mount technology (SMT) assembly process, where components are soldered directly onto the surface of the PCB.

Key functions of a PCB stencil include:

• Ensuring precise solder paste deposition
• Controlling the volume of solder paste applied
• Maintaining consistency across multiple boards
• Improving the efficiency of the PCB assembly process

The use of high-quality PCB stencils is crucial for achieving reliable solder joints, reducing defects, and enhancing the overall quality of electronic products.

Learn more about:

• Prototype PCB assembly
• Turnkey PCB Assembly
• Multilayer PCB
• Laser stencil Vs. Etching Stencil

What is a PCB Stencil Made Of?

A PCB stencil consists of several components, each playing a vital role in its functionality and durability. Let’s examine the main elements:

1. Frame

The frame provides structural support for the stencil and helps maintain its shape during use. Frames can be:

• Aluminum: Lightweight and cost-effective
• Stainless Steel: Durable and resistant to warping
• Tubular: Offers enhanced stability for larger stencils

2. Steel Sheet

The steel sheet is the primary component of the stencil, containing the precisely cut apertures for solder paste application. Common materials include:

• Stainless Steel: Most widely used due to its durability and resistance to corrosion
• Nickel: Offers excellent release properties and is suitable for fine-pitch applications
• Brass: Used in some specialized applications

The thickness of the steel sheet typically ranges from 0.1mm to 0.2mm, depending on the specific requirements of the PCB design.

3. Mesh

Some stencils incorporate a mesh material to provide additional support and prevent sagging. The mesh is typically made of:

• Polyester: Offers good tension and durability
• Stainless Steel: Provides excellent strength and heat resistance

4. Glue

Adhesive is used to attach the steel sheet to the frame and, if present, the mesh. The glue must be:

• Strong enough to withstand repeated use
• Resistant to cleaning solvents used in the PCB assembly process
• Able to maintain its properties under varying temperature conditions

Types of PCB Stencils

PCB stencils come in various types, each suited for different applications and production requirements. Let’s explore the main categories:

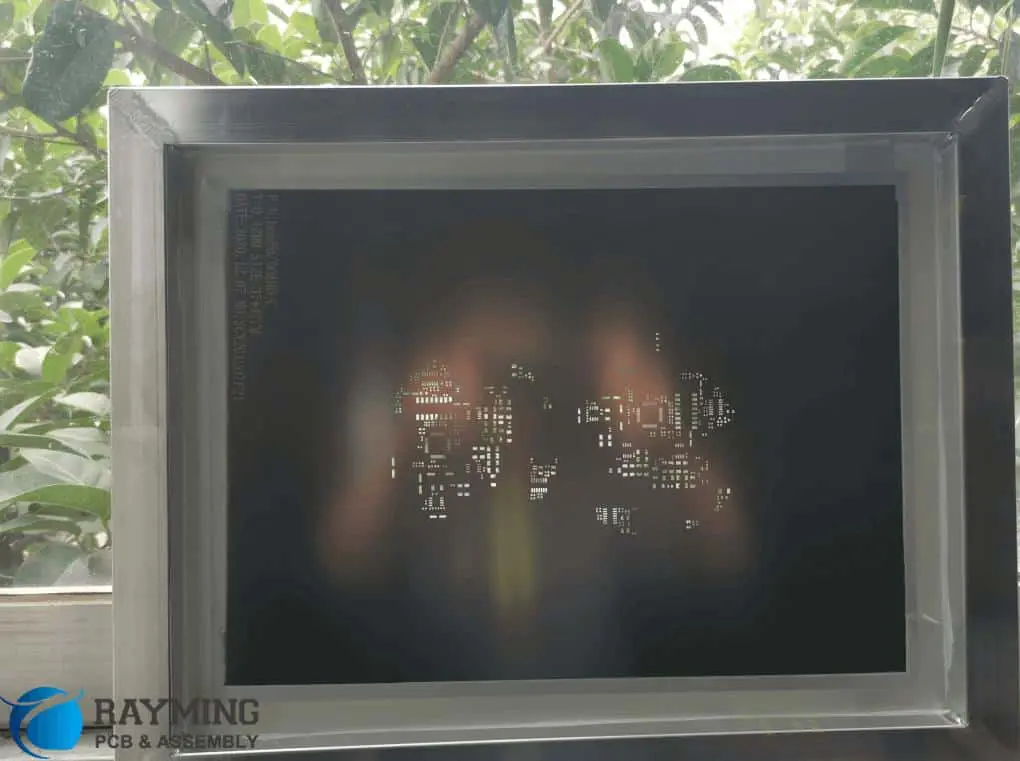

1. Framed SMT/PCB Stencil

Framed stencils are the most common type used in PCB assembly. They consist of a steel sheet mounted on a rigid frame.

Advantages:

• Excellent stability during printing
• Easy to handle and store
• Suitable for high-volume production

Disadvantages:

• Higher cost compared to frameless options
• Requires more storage space

2. Frameless SMT Stencil

Also known as foil stencils, these are flexible sheets without a permanent frame.

Advantages:

• Cost-effective for low-volume production
• Easy to store and transport
• Can be used with adjustable tension frames

Disadvantages:

• Requires careful handling to prevent damage
• May not be as stable as framed stencils during printing

3. Electroformed SMT Stencil

Electroformed stencils are created through an electroplating process, resulting in extremely precise apertures.

Advantages:

• Ideal for ultra-fine pitch applications
• Excellent release properties
• Smooth aperture walls for consistent solder paste release

Disadvantages:

• Higher cost compared to other types
• Limited thickness options

How are Stencils Manufactured?

The manufacturing process of PCB stencils plays a crucial role in their quality and performance. There are three main methods used to create stencils:

1. Chemical Etching

Chemical etching is a traditional method that involves using chemicals to dissolve away unwanted material from the stencil sheet.

Process:

1. Apply a protective mask to the stencil material
2. Expose the mask to UV light through a photographic negative of the stencil design
3. Remove the unexposed areas of the mask
4. Immerse the sheet in an etching solution to remove exposed metal
5. Clean and inspect the finished stencil

Advantages:

• Cost-effective for simple designs
• Suitable for prototype and low-volume production

Disadvantages:

• Limited precision for very fine pitch applications
• Can result in slightly tapered aperture walls

2. Laser Cutting

Laser cutting is the most widely used method for PCB stencil manufacturing due to its precision and versatility.

Process:

1. Load the stencil material into the laser cutting machine
2. Input the stencil design data
3. The laser beam cuts the apertures with high precision
4. Clean and inspect the finished stencil

Advantages:

• High accuracy and repeatability
• Suitable for fine-pitch and complex designs
• Fast turnaround time

Disadvantages:

• Higher initial equipment cost
• Potential for heat-affected zones around apertures

3. Electroforming

Electroforming is a specialized process that creates stencils by growing metal around a mandrel.

Process:

1. Create a mandrel with the inverse of the desired stencil pattern
2. Immerse the mandrel in an electroplating bath
3. Apply an electric current to deposit metal onto the mandrel
4. Remove the formed stencil from the mandrel
5. Clean and inspect the finished stencil

Advantages:

• Extremely precise apertures with smooth walls
• Ideal for ultra-fine pitch applications
• Excellent solder paste release properties

Disadvantages:

• Higher cost compared to other methods
• Limited to thinner stencil options

How to Choose the Correct PCB Stencil?

Selecting the right PCB stencil is crucial for achieving optimal solder paste deposition. Consider the following factors when choosing a stencil:

1. Stencil Thickness

The thickness of the stencil determines the volume of solder paste deposited. Common thicknesses include:

• 0.1mm (4 mil): For ultra-fine pitch components
• 0.12mm (5 mil): Suitable for most SMT applications
• 0.15mm (6 mil): For larger components or high-power applications

Factors influencing thickness choice:

• Component lead pitch
• Pad size and shape
• Required solder volume

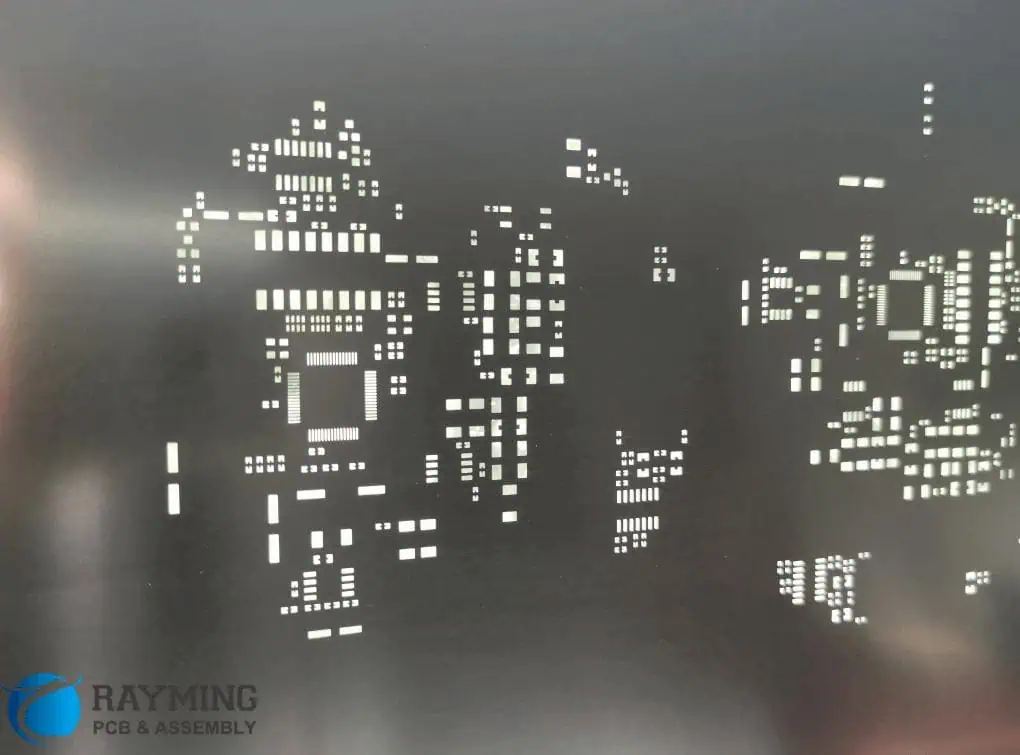

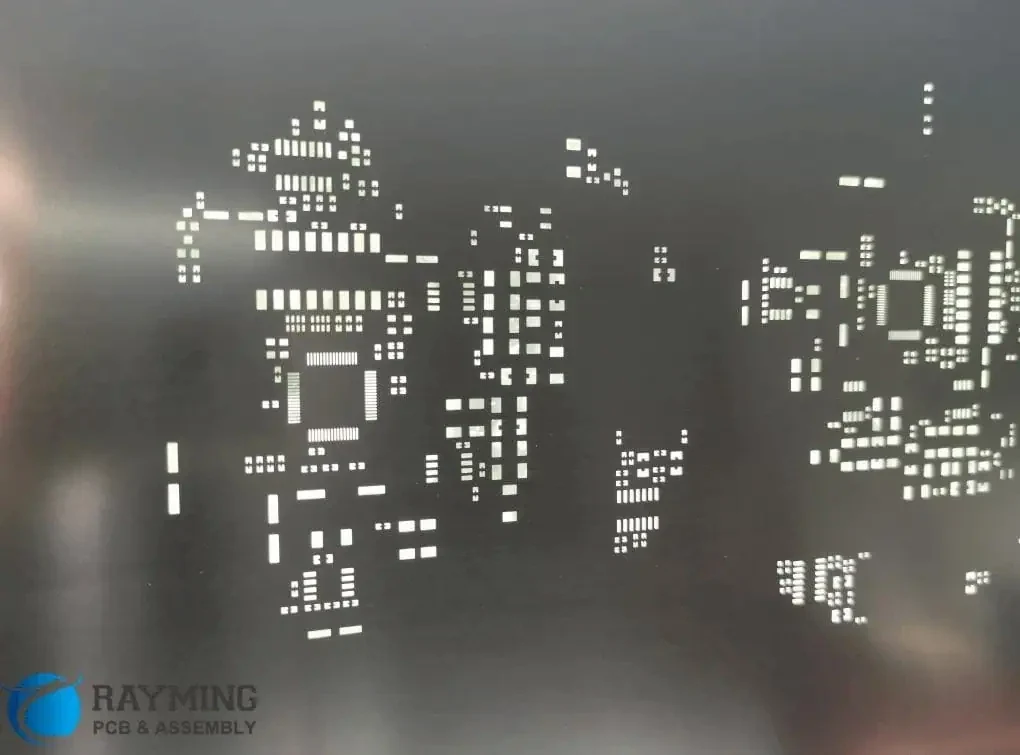

2. Aperture Size of the Created Opening

The size and shape of the apertures affect solder paste release and deposit accuracy.

Considerations:

• Aspect ratio (aperture width to stencil thickness)
• Area ratio (aperture area to aperture wall area)
• Minimum aperture size based on manufacturing method

3. Stencil Material

The choice of material impacts the stencil’s durability and performance.

Options:

• Stainless Steel: Most common, suitable for most applications
• Nickel: Excellent for fine-pitch and step stencils
• Polyimide: Used for flexible stencils in prototype applications

4. Stencil Alignment

Proper alignment ensures accurate solder paste deposition.

Alignment methods:

• Fiducial marks: For automated alignment systems
• Tooling holes: For manual alignment fixtures
• Stencil borders: For visual alignment in prototype applications

How to Use a PCB Stencil

Using a PCB stencil effectively requires attention to detail and proper technique. Follow these steps for optimal results:

1. Prepare the PCB: Ensure the board is clean and properly secured.

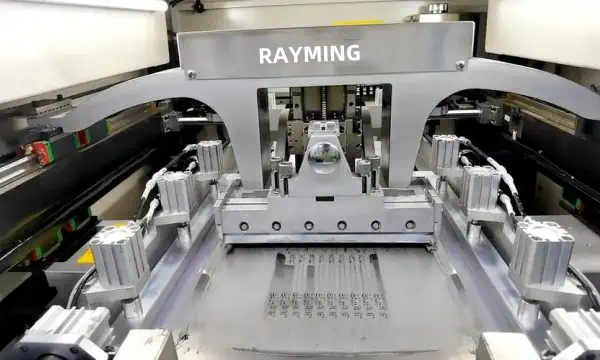

2. Set up the stencil printer:
   • Adjust the printer’s parameters (speed, pressure, separation speed)
   • Align the stencil with the PCB using fiducials or tooling holes

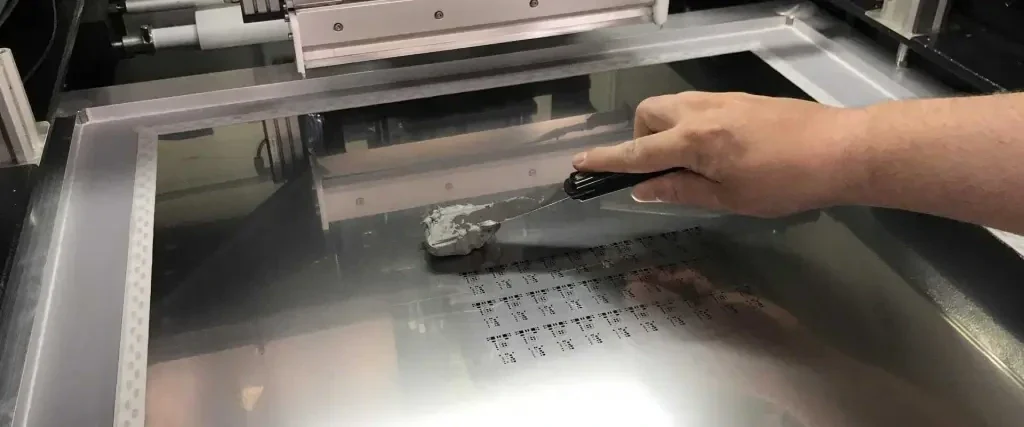

3. Apply solder paste:
   • Place an appropriate amount of solder paste on the stencil
   • Use the squeegee to spread the paste across the stencil surface
4. Perform the print stroke:
   • Move the squeegee across the stencil at a consistent speed and pressure
   • Ensure complete filling of all apertures
5. Separate the stencil:
   • Lift the stencil from the PCB at a controlled speed
   • Avoid smearing or disturbing the deposited solder paste
6. Inspect the result:
   • Visually check for consistent solder paste deposits
   • Use automated inspection systems for high-volume production
7. Clean the stencil:
   • Remove excess solder paste after each use
   • Use appropriate cleaning solutions and methods

Tips for optimal stencil use:

• Maintain consistent room temperature and humidity
• Regularly inspect the stencil for damage or wear
• Follow manufacturer recommendations for stencil care and storage

Prices of PCB Stencils

The cost of PCB stencils can vary widely depending on several factors:

1. Stencil Type:
   • Framed stencils: 100−100−300
   • Frameless stencils: 50−50−150
   • Electroformed stencils: 200−200−500+
2. Size:
   • Small (up to 10″ x 10″): 75−75−150
   • Medium (10″ x 10″ to 20″ x 20″): 150−150−300
   • Large (over 20″ x 20″): 300−300−500+
3. Material:
   • Stainless Steel: Standard pricing
   • Nickel: 10-20% premium over stainless steel
   • Polyimide: Variable, often used for prototyping
4. Manufacturing Method:
   • Laser-cut: Standard pricing
   • Chemical etched: Often lower cost for simple designs
   • Electroformed: Premium pricing for high-precision requirements
5. Turnaround Time:
   • Standard (3-5 business days): Base price
   • Rush (1-2 business days): 25-50% premium
   • Same-day: 50-100% premium (where available)
6. Design Complexity:
   • Simple designs: Base price
   • Complex designs with many small apertures: 10-30% premium
7. Quantity:
   • Single stencil: Base price
   • Multiple stencils of the same design: Discounts often available
8. Additional Features:
   • Nano-coating for improved release: 20−20−50 premium
   • Step stencils: 20-40% premium over standard stencils

When requesting quotes for PCB stencils, provide detailed specifications to ensure accurate pricing. Many manufacturers offer online quoting tools for instant estimates based on your specific requirements.

Conclusion

High-quality PCB stencils are essential for achieving accurate and consistent solder paste application in PCB assembly. By understanding the types of stencils available, their manufacturing processes, and how to choose and use them effectively, you can significantly improve the quality and reliability of your electronic products.

When selecting a PCB stencil supplier, consider factors such as manufacturing capabilities, quality control processes, and customer support. Look for providers who offer design assistance and can accommodate your specific requirements, whether you’re working on prototypes or high-volume production runs.

Investing in the right PCB stencil can lead to:

• Improved solder joint quality
• Reduced defect rates
• Enhanced production efficiency
• Consistent results across multiple boards

By carefully considering your PCB design, production requirements, and budget, you can choose the optimal stencil solution for your project. Remember that while the initial cost of a high-quality stencil may be higher, the long-term benefits in terms of improved product quality and reduced rework often outweigh the investment.

As PCB designs continue to evolve with finer pitches and more complex layouts, the role of precision stencils in the assembly process becomes increasingly critical. Stay informed about the latest developments in stencil technology and manufacturing techniques to ensure your PCB assembly process remains at the cutting edge of quality and efficiency.
