In the rapidly evolving world of electronics, the demand for components that can withstand extreme conditions is ever-increasing. High Tg PCBs (Printed Circuit Boards) have emerged as a crucial solution for applications requiring superior performance in high-temperature and high-frequency environments. This article delves into the world of High Tg PCBs, exploring their properties, advantages, and essential applications in modern electronics.

What Is High TG PCB?

High Tg PCB refers to a printed circuit board manufactured using materials with a high glass transition temperature (Tg). The glass transition temperature is a critical parameter that indicates the point at which a material transitions from a rigid, glassy state to a more flexible, rubbery state.

In the context of PCBs, a high Tg material maintains its structural integrity and electrical properties at elevated temperatures, making it ideal for applications where standard PCB materials would fail. These boards are engineered to withstand higher operating temperatures without compromising performance or reliability.

Properties of High Tg PCB

High Tg PCBs possess several unique properties that set them apart from standard PCB materials:

1. Thermal Stability: High Tg PCBs maintain their mechanical and electrical properties at elevated temperatures, resisting deformation and degradation.
2. Low Thermal Expansion: These materials typically have a lower coefficient of thermal expansion (CTE), reducing stress on components and solder joints during temperature fluctuations.
3. Improved Dimensional Stability: High Tg materials exhibit less warpage and shrinkage, crucial for maintaining precise tolerances in complex multi-layer boards.
4. Enhanced Electrical Properties: Many High Tg materials offer superior electrical characteristics, including lower dielectric constants and loss tangents, beneficial for high-frequency applications.
5. Moisture Resistance: High Tg PCBs often demonstrate better resistance to moisture absorption, reducing the risk of delamination and electrical failures in humid environments.

Advantages of High Tg PCB

The unique properties of High Tg PCBs translate into several significant advantages:

1. Increased Reliability: By maintaining stability at higher temperatures, High Tg PCBs offer improved long-term reliability, especially in harsh environments.
2. Enhanced Performance: The superior electrical properties of High Tg materials contribute to better signal integrity and reduced signal loss, particularly at high frequencies.
3. Wider Operating Temperature Range: High Tg PCBs can function effectively in environments where standard PCBs would fail, expanding the potential applications for electronic devices.
4. Improved Manufacturability: The dimensional stability of High Tg materials allows for more precise manufacturing processes, potentially improving yields in complex PCB designs.
5. Longer Lifespan: The resistance to thermal degradation and moisture absorption contributes to a longer operational life for electronic devices using High Tg PCBs.

Read more about:

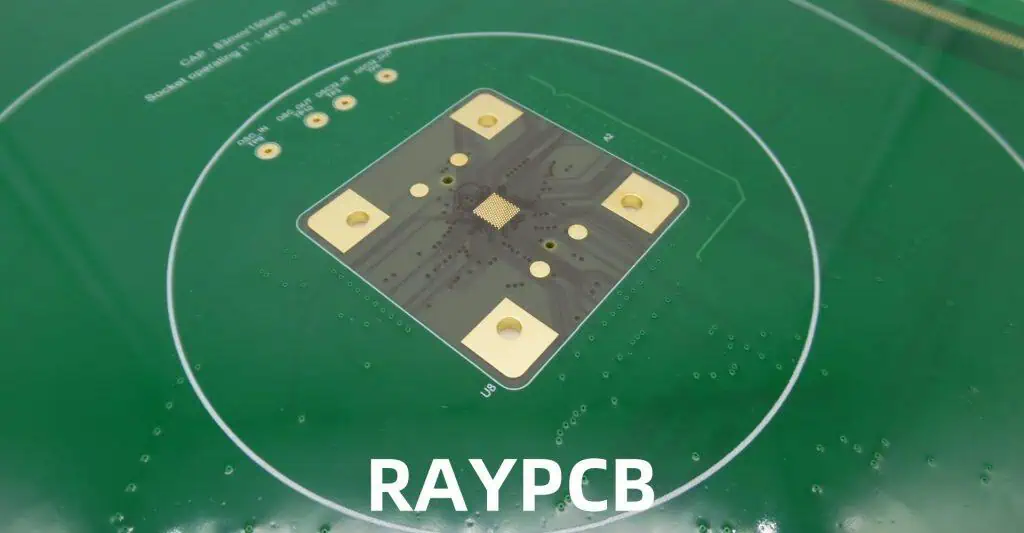

• TG 150 PCB Vs TG 180 PCB Vs TG 140 PCB Vs TG 170 PCB Vs TG 130 PCB
• Rogers PCB
• Multilayer PCB
• Rigid Flex PCB
• PCB Materials


Typical Tg Values for Standard FR-4

Before delving into High Tg materials, it’s important to understand the baseline. Standard FR-4, the most common PCB material, typically has a Tg value ranging from 130°C to 140°C. This serves as a reference point for categorizing higher Tg materials.

Types of Tg Temperature

PCB materials are often categorized based on their Tg values. Here’s a breakdown of common Tg classifications:

1. General Tg (Tg135℃)

This category includes standard FR-4 materials, suitable for most consumer electronics and general-purpose applications.

2. Medium Tg (Tg150℃)

Slightly higher than standard FR-4, these materials offer improved thermal performance for more demanding applications.

3. High Tg:

The High Tg category encompasses several sub-categories, each offering progressively higher temperature resistance:

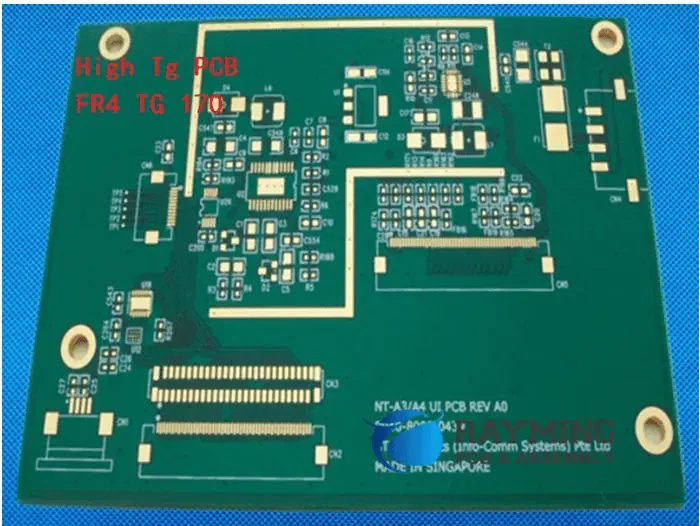

3.1 Tg 170

Materials in this range provide a significant step up from standard FR-4, suitable for automotive and industrial applications.

3.2 TG180

Offering even greater thermal stability, TG180 materials are often used in telecommunications and high-reliability consumer electronics.

3.3 Tg200

These materials provide excellent thermal performance, making them suitable for aerospace and advanced industrial applications.

3.4 TG260

With exceptionally high thermal resistance, TG260 materials are used in extreme environments and high-power electronics.

3.5 TG300

At the top end of commercially available PCB materials, TG300 offers unparalleled thermal stability for the most demanding applications.

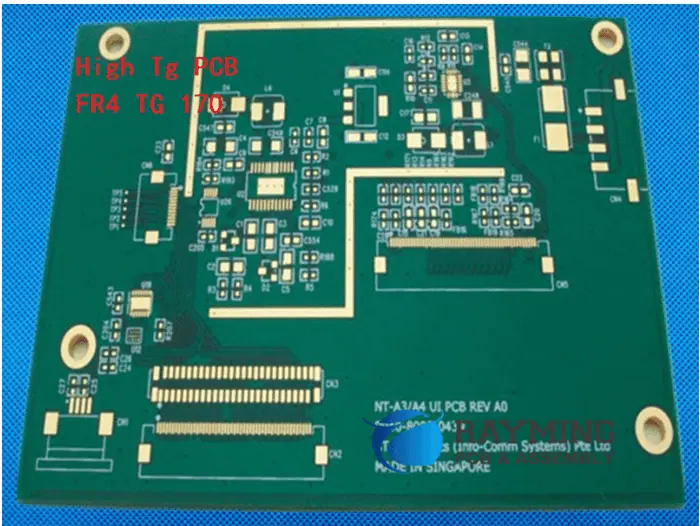

Material Classification of High Tg

Several types of materials are used to achieve high Tg values in PCBs. Each has its unique properties and advantages:

1. Polyimide (PI)

• Properties: Extremely high Tg (>250°C), excellent chemical resistance, low outgassing
• Applications: Aerospace, military, high-temperature industrial environments

2. BT (Bismaleimide Triazine) Epoxy

• Properties: High Tg (180-220°C), low dielectric constant, low moisture absorption
• Applications: Telecommunications, high-speed digital circuits

3. PPO (Polyphenylene Oxide)

• Properties: High Tg (175-220°C), excellent dimensional stability, low dielectric constant
• Applications: High-frequency RF applications, aerospace

4. LCP (Liquid Crystal Polymer)

• Properties: Very high Tg (>280°C), extremely low moisture absorption, excellent chemical resistance
• Applications: High-frequency applications, harsh environment electronics

5. PTFE (Teflon)

• Properties: High Tg (>250°C), extremely low dielectric constant and loss tangent
• Applications: High-frequency and microwave circuits, space applications

6. Ceramic Filled PTFE

• Properties: High Tg (>250°C), improved dimensional stability over pure PTFE, low dielectric constant
• Applications: High-frequency RF and microwave applications requiring improved thermal management

7. Hydrocarbon Ceramic

• Properties: High Tg (>200°C), low dielectric constant, excellent dimensional stability
• Applications: High-speed digital circuits, RF and microwave applications

The Materials RayMing Use for High Temperature PCBs

RayMing, a prominent PCB manufacturer, offers a range of High Tg materials to meet diverse application needs:

1. S1141 (FR4)

• Tg: 150°C
• Applications: General-purpose high-temperature applications

2. S1000-2M (FR4)

• Tg: 170°C
• Applications: Automotive, industrial control systems

3. S1170G

• Tg: 180°C
• Applications: Telecommunications, high-reliability consumer electronics

4. IT180A

• Tg: 180°C
• Applications: Automotive, aerospace, high-performance computing

5. Rogers 4350B

• Tg: 280°C
• Applications: High-frequency RF and microwave circuits

6. RO4003C

• Tg: >280°C
• Applications: High-frequency and high-speed digital applications

7. Isola 370HR

• Tg: 180°C
• Applications: Multilayer PCBs for high-reliability applications

8. Isola 406

• Tg: 170°C
• Applications: High-layer count PCBs for telecommunications and networking

9. Ventec VT47

• Tg: 200°C
• Applications: High-temperature industrial and automotive applications

10. Panasonic R1755V/R1650V

• Tg: 180°C
• Applications: High-speed digital circuits, server and network equipment

11. Kingboard KB6167

• Tg: 170°C
• Applications: Automotive electronics, industrial control systems

12. Nelco: N4000-6

• Tg: 170°C
• Applications: High-speed digital and RF applications

When Do You Need a High Temperature Circuit Board?

High Temperature PCBs become essential in several scenarios:

1. Extreme Environmental Conditions: Applications exposed to high ambient temperatures, such as automotive under-hood electronics or industrial furnace controls.
2. High-Power Applications: Circuits dealing with high current or power dissipation, where self-heating is a concern.
3. Aerospace and Defense: Applications in aircraft, satellites, or military equipment where reliability under extreme conditions is critical.
4. Telecommunications Infrastructure: Base stations and network equipment operating in varying environmental conditions.
5. Oil and Gas Industry: Downhole tools and surface equipment exposed to high temperatures.
6. LED Lighting: High-power LED applications where thermal management is crucial.
7. Medical Devices: Certain medical equipment, especially those requiring sterilization at high temperatures.
8. High-Frequency RF and Microwave Circuits: Applications where maintaining stable electrical properties at high frequencies is essential.

What Is the Difference Between Tg and Td PCB?

While Tg (Glass Transition Temperature) and Td (Decomposition Temperature) are both important thermal parameters for PCB materials, they refer to different aspects of thermal behavior:

• Tg (Glass Transition Temperature): The temperature at which the material transitions from a rigid, glassy state to a more flexible, rubbery state. This is typically the point where the material begins to soften and lose its dimensional stability.
• Td (Decomposition Temperature): The temperature at which the material begins to break down chemically, often releasing gases and degrading irreversibly. Td is typically much higher than Tg.

Understanding both Tg and Td is crucial for selecting the appropriate PCB material for a given application:

• Tg is more relevant for maintaining dimensional stability and mechanical properties during normal operation and manufacturing processes.
• Td becomes important in extreme conditions or during brief excursions to very high temperatures, such as during soldering or in fault conditions.

Industrial Use of High-Tg PCBs

High-Tg PCBs find applications across a wide range of industries, each leveraging the unique properties of these materials:

1. Automotive Industry
   • Engine control units
   • Transmission control modules
   • Battery management systems in electric vehicles
2. Aerospace and Defense
   • Avionics systems
   • Satellite communications equipment
   • Radar and electronic warfare systems
3. Telecommunications
   • 5G infrastructure equipment
   • High-speed routers and switches
   • Base station amplifiers
4. Industrial Automation
   • Programmable logic controllers (PLCs)
   • Motor drives and controls
   • Industrial sensors and data acquisition systems
5. Medical Electronics
   • MRI and CT scan equipment
   • Surgical robots
   • Sterilizable medical devices
6. Consumer Electronics
   • High-performance gaming consoles
   • 4K and 8K television circuitry
   • High-end audio equipment
7. Energy Sector
   • Solar inverters
   • Wind turbine control systems
   • Power distribution equipment
8. Research and Development
   • Particle accelerators
   • High-energy physics experiments
   • Advanced computing and data centers

Conclusion

High Tg PCBs represent a critical advancement in printed circuit board technology, enabling electronic devices to operate reliably in increasingly demanding environments. From the scorching temperatures under a car hood to the unforgiving vacuum of space, High Tg PCBs are pushing the boundaries of what’s possible in electronic design.

As technology continues to evolve, with devices becoming more powerful and operating in more extreme conditions, the importance of High Tg PCBs is only set to grow. Engineers and designers must carefully consider the thermal requirements of their applications and choose the appropriate High Tg material to ensure optimal performance, reliability, and longevity of their electronic systems.

By understanding the properties, advantages, and applications of High Tg PCBs, professionals in the electronics industry can make informed decisions, driving innovation and enabling the next generation of high-performance electronic devices. Whether it’s in the pursuit of faster telecommunications, more efficient energy systems, or groundbreaking medical technologies, High Tg PCBs will continue to play a crucial role in shaping our technological future.
