RF PCB: A Complete Guide to Radio Frequency Circuit Design
Fabrication and manufacturing of radio frequency (RF) and microwave PCB, We provide a variety of material options to fulfill your RF PCB design needs

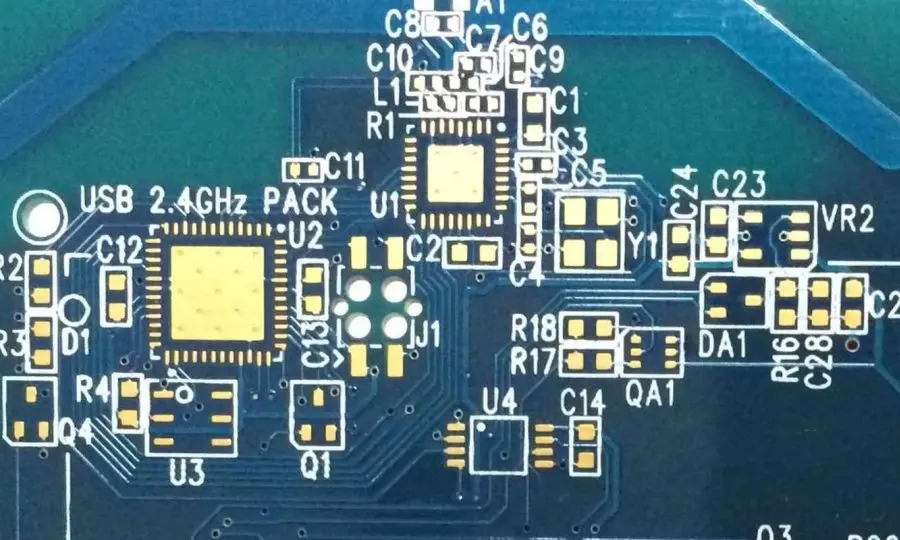

What is RF PCB
An RF PCB, or Radio Frequency Printed Circuit Board, is a specialized type of PCB designed to handle high-frequency signals, typically ranging from 500 MHz to 100 GHz or higher. These PCBs are engineered to maintain signal integrity, minimize electromagnetic interference (EMI), and optimize performance in wireless communication systems, radar equipment, and other high-frequency applications.
RF PCBs differ from standard PCBs in several key aspects:
- Material selection: RF PCBs use specialized substrate materials with low dielectric loss and controlled impedance characteristics.
- Layout considerations: RF PCB design requires careful attention to transmission line impedance, signal routing, and component placement to minimize signal loss and interference.
- Shielding and isolation: RF PCBs often incorporate advanced shielding techniques to prevent unwanted signal coupling and interference.
- Precise impedance control: Maintaining consistent impedance throughout the board is critical for RF performance.
Why use RF printed circuit board technology?
The adoption of RF PCB technology offers several significant advantages in high-frequency applications:
Improved Signal Integrity: RF PCBs are designed to maintain signal quality at high frequencies, reducing signal distortion and loss.
Enhanced Electromagnetic Compatibility (EMC): Proper RF PCB design helps minimize electromagnetic interference and improve overall system performance.
Miniaturization: RF PCB technology allows for the creation of compact, high-performance wireless devices.
Consistent Performance: Well-designed RF PCBs provide reliable and repeatable performance across production runs.
Cost-Effective: Despite the specialized materials and design techniques, RF PCBs can be a cost-effective solution for high-frequency applications compared to discrete component designs.
Flexibility: RF PCB technology supports a wide range of applications, from consumer electronics to aerospace and defense systems.
Integration: RF PCBs facilitate the integration of multiple RF functions on a single board, reducing overall system complexity.
RF PCB Material Substrate Manufacturers in the market
Selecting the right substrate material is crucial for RF PCB performance. Several manufacturers specialize in producing high-quality RF PCB substrates:
1. Rogers Corporation
Rogers is a leading manufacturer of high-performance RF laminates. Their popular product lines include:
- RO4000® series: Excellent electrical performance and ease of fabrication
- RT/duroid® series: Low loss and stable electrical properties
- CLTE-XT™: High-frequency material with excellent dimensional stability

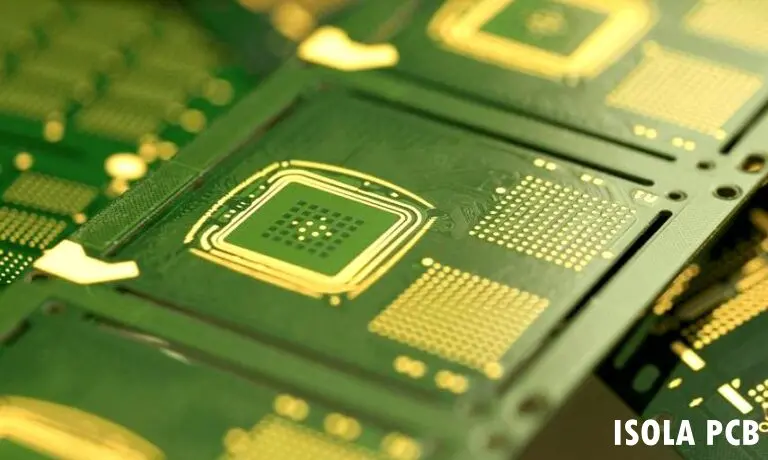

2. Isola Group
Isola offers a range of RF and microwave materials, including:
- Astra® MT: High-speed digital and RF/microwave applications
- I-Tera® MT: Low loss material for high-layer count PCBs
- TerraGreen®: Environmentally friendly, halogen-free RF material
3. Arlon Electronic Materials
Arlon specializes in high-performance materials for the PCB industry, offering:
- CLTE-XT: Low loss tangent material for high-frequency applications

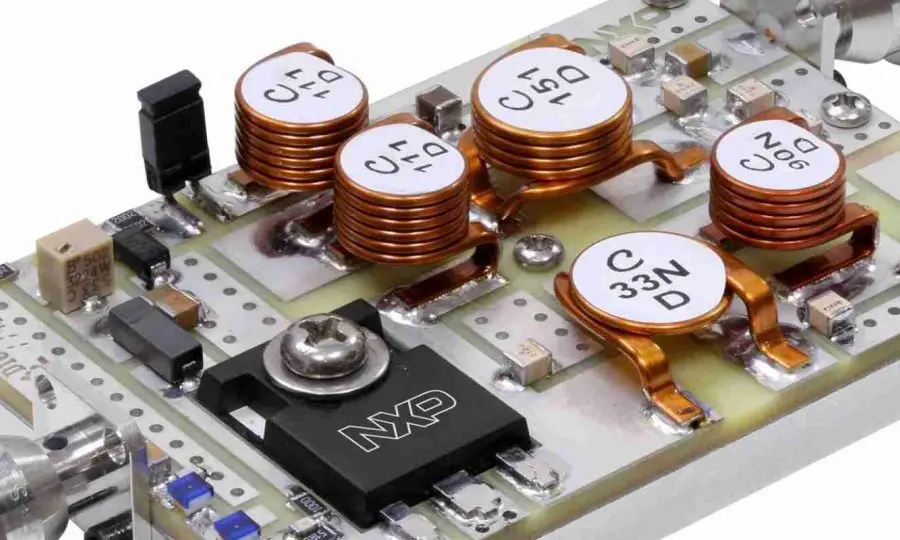

- TC350: High thermal conductivity substrate for power amplifiers
- 85N: Cost-effective material for commercial RF applications
4. Panasonic
Panasonic produces a variety of RF and microwave materials under their MEGTRON brand:
- MEGTRON 6: Low loss material for high-speed digital and RF applications

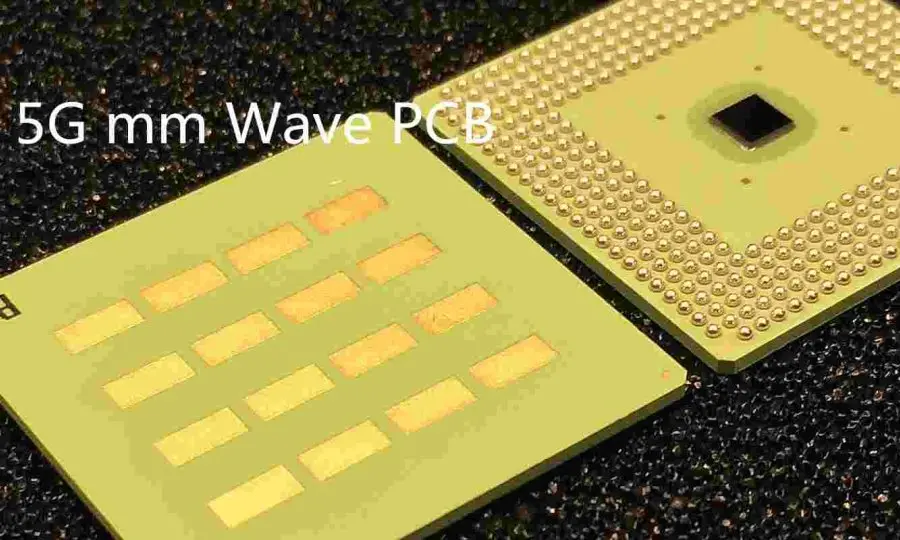

- MEGTRON 7: Ultra-low loss material for 5G and high-frequency designs

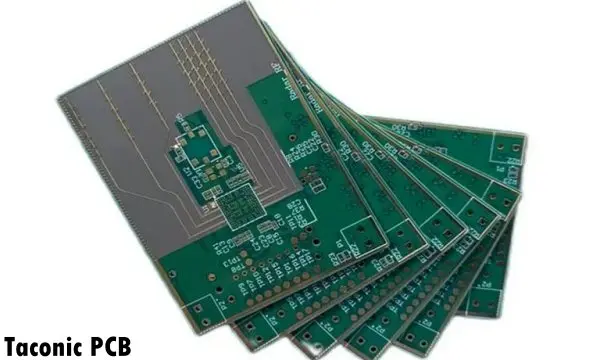

6. Teflon (DuPont)

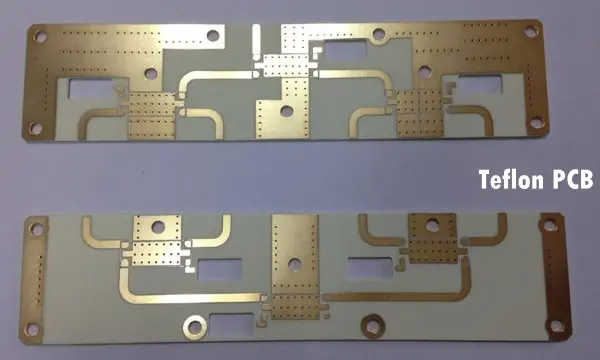

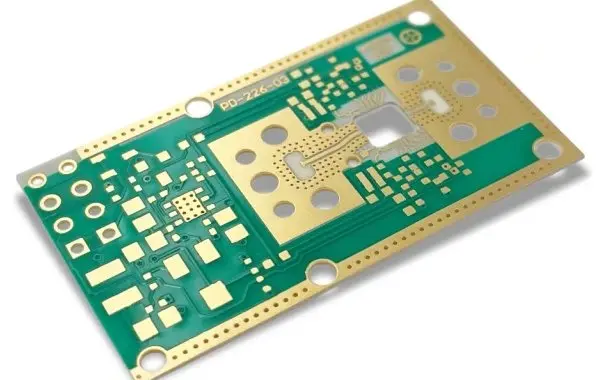

While not a PCB manufacturer itself, DuPont’s Teflon (PTFE) is widely used in RF PCB substrates due to its excellent electrical properties:
- Low dielectric constant
- Low loss tangent
- Excellent temperature stability
How to determine substrate materials?
Selecting the appropriate substrate material for an RF PCB is crucial for achieving optimal performance. Several key factors should be considered:
1. Relative Permittivity (Dielectric Constant)
The relative permittivity (εr) of a material affects the propagation of electromagnetic waves:
- Lower εr values generally result in faster signal propagation
- Higher εr values can lead to smaller circuit dimensions
- Typical εr values for RF materials range from 2.2 to 10.2
2. Loss Tangent
The loss tangent (tan δ) represents the dielectric loss in the material:
- Lower loss tangent values result in less signal attenuation
- Critical for high-frequency and low-loss applications
- RF materials typically have loss tangents ranging from 0.0001 to 0.01
3. Thickness
Substrate thickness affects various aspects of RF PCB performance:
a. Trace width
- Thicker substrates generally require wider traces for a given impedance
- Affects the overall size of the PCB
b. Mechanical Performance
- Thicker substrates provide better mechanical stability
- Important for applications subject to vibration or mechanical stress
c. Size Stability
- Thinner substrates may be more prone to warpage and dimensional changes
d. Cost
- Thicker substrates generally cost more
- Balance between performance requirements and budget constraints
e. Conformability
- Thinner substrates offer better conformability for flexible or rigid-flex designs
f. Dielectric Breakdown
- Thicker substrates typically have higher dielectric breakdown voltages
g. Power Handling Capability
- Thicker substrates can generally handle higher power levels due to improved heat dissipation
4. Environment
Environmental factors play a crucial role in substrate selection:
a. Temperature Stability
- Consider the coefficient of thermal expansion (CTE)
- Look for materials with stable dielectric properties over the operating temperature range
b. Humidity Resistance and Chemical Compatibility
- Choose materials that can withstand the expected environmental conditions
- Consider resistance to chemicals used in the manufacturing process
c. Anti-Radiation Performance
- For space and military applications, consider materials with radiation resistance properties
RF PCB design guidelines and design process of RF boards
Designing RF PCBs requires a systematic approach to ensure optimal performance:
Define Requirements: Clearly specify frequency range, power levels, and performance criteria.
Material Selection: Choose appropriate substrate material based on electrical and environmental requirements.
Stack-up Design: Determine the layer stack-up, considering signal integrity and EMI/EMC requirements.
Schematic Capture: Create a detailed schematic, including all RF components and connections.
Component Selection: Choose RF-specific components with appropriate specifications and packaging.
Layout Planning: Plan the PCB layout, considering critical RF paths and component placement.
Transmission Line Design: Calculate and implement proper transmission line geometries for controlled impedance.
Signal Routing: Route RF signals with attention to impedance control, signal integrity, and EMI/EMC considerations.
Ground Plane Design: Implement solid ground planes and proper grounding techniques.
EMI/EMC Considerations: Apply shielding, filtering, and isolation techniques as needed.
Thermal Management: Address thermal concerns for high-power RF circuits.
Design Rule Checking: Perform comprehensive DRC to ensure manufacturability.
Simulation and Analysis: Use electromagnetic simulation tools to verify design performance.
Prototyping and Testing: Fabricate prototypes and conduct thorough RF testing and characterization.
Design Iteration: Refine the design based on test results and performance analysis.
RayMing's Routing guidelines for RF PCBs
RayMing Technology, a leader in PCB manufacturing, offers the following routing guidelines for RF PCBs:
9 best hints for RF PCB design
1. Material selection
- Choose low-loss, high-frequency materials appropriate for the application
- Consider thermal and mechanical properties in addition to electrical characteristics
2. Transmission lines
- Use appropriate transmission line structures (microstrip, stripline, coplanar waveguide)
- Maintain consistent impedance throughout signal paths
3. Impedance and inductance
- Calculate and control trace impedances for optimal signal transfer
- Minimize parasitic inductances in component connections and vias
4. Routing
- Keep RF traces short and direct
- Avoid right-angle bends in RF traces; use curved or 45-degree traces instead
- Separate RF traces from digital and power signals
5. Insulation
- Provide adequate spacing between RF traces and other signals
- Use guard traces or ground planes for isolation when necessary
6. Ground planes
- Implement solid, uninterrupted ground planes
- Use stitching vias to connect ground planes on different layers
7. Bypass capacitor
- Place bypass capacitors close to RF components
- Use multiple capacitors in parallel for broadband decoupling
8. Components ground planes
- Provide local ground planes for RF components
- Ensure proper grounding of component shields and cases
9. Poor shielding increases RF interference
- Implement proper shielding techniques to minimize EMI/RFI
8 strategies to prevent unwanted RF interference
- Use shield cans or compartments for sensitive RF circuits
- Implement ground stitching between layers to create a Faraday cage effect
- Use absorptive materials to attenuate unwanted RF energy
- Properly terminate unused traces and ports to prevent radiation
- Implement filtered connectors and feedthrough capacitors at board interfaces
- Use buried stripline for critical RF traces to minimize radiation
- Implement proper stack-up design to isolate RF layers
- Use ferrite beads or common-mode chokes on power and I/O lines
Applications of RF printed circuit boards
RF PCBs find use in a wide range of applications across various industries:
Telecommunications
- Mobile phone base stations
- Satellite communications systems
- Wireless routers and access points
Aerospace and Defense
- Radar systems
- Electronic warfare equipment
- Satellite navigation systems
Consumer Electronics
- Smartphones and tablets
- Bluetooth devices

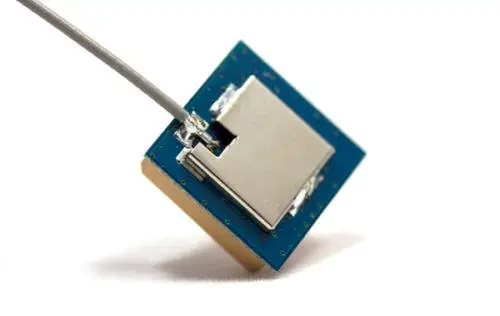

- GPS receivers
Automotive
- Keyless entry systems
- Tire pressure monitoring systems
- Collision avoidance radar
Medical Devices
- Wireless patient monitoring systems
- MRI equipment
- Implantable medical devices
Industrial Applications
- Wireless sensor networks
- RFID systems
- Industrial automation and control
Broadcast and Entertainment
- TV and radio transmitters
- Wireless microphones
- Satellite TV receivers
Internet of Things (IoT)
- Smart home devices
- Wearable technology
- Industrial IoT sensors and gateways
Why partner with RAYMING for RF PCB manufacturing?
RayMing Technology offers several advantages for RF PCB manufacturing:
Expertise: Years of experience in manufacturing high-frequency PCBs for various industries.
Advanced Equipment: State-of-the-art manufacturing and testing equipment for precise RF PCB production.
Material Selection: Access to a wide range of high-quality RF substrate materials from leading manufacturers.
Quality Control: Rigorous quality control processes to ensure consistent RF performance.
Design Support: Expert guidance on RF PCB design and manufacturability.
Prototyping Services: Rapid prototyping capabilities for quick design iteration and validation.
Advanced Manufacturing Techniques: Capability to handle complex RF PCB designs, including multilayer and high-density interconnect (HDI) boards.
Testing and Verification: Comprehensive RF testing and characterization services.
Competitive Pricing: Cost-effective solutions without compromising on quality.
Global Support: Worldwide shipping and customer support for international clients.
Conclusion
RF PCB design and manufacturing require a deep understanding of high-frequency circuit behavior, material properties, and advanced design techniques. By following best practices in material selection, layout design, and manufacturing processes, engineers can create high-performance RF PCBs that meet the demanding requirements of modern wireless applications.
As the demand for faster and more reliable wireless communication continues to grow, the importance of well-designed RF PCBs will only increase. Whether you’re working on next-generation 5G equipment, IoT devices, or advanced radar systems, partnering with an experienced RF PCB manufacturer like RayMing Technology can help ensure the success of your high-frequency projects.
By staying informed about the latest developments in RF PCB materials, design techniques, and manufacturing processes, engineers and designers can continue to push the boundaries of wireless technology, enabling new and innovative applications across a wide range of industries.
