Why SPI Testing is Crucial in PCB Assembly and Manufacturing

SPI is an abbreviation for Solder Paste Inspection. SPI testing is a crucial part of the PCB assembly and manufacturing process. During PCB assembly, solder paste is usually added on the surface of a PCB in order to enable the components to stay intact. The solder paste application on the PCB is usually carried out by a solder paste machine.

However, it is crucial to inspect the quality of the solder paste and how it is applied. There can be errors during the application of solder paste and this can result in the malfunctioning of the circuit. Also, a board can have excess paste or lack enough. All of these are important to check out for after solder paste has been applied.

What is SPI Testing?

Solder paste application is a crucial process in PCB production. The SPI testing is a specialized process that involves the inspection or evaluation of the quality of solder paste on circuit boards. This testing helps to verify the correct application of solder paste on a circuit board. Also, it checks if there is too much solder paste or not enough solder paste.

In some cases, a printed circuit board can malfunction due to misapplication of solder paste. Therefore, SPI testing is considered a crucial technique that helps to save cost by detecting errors or faults in the application of solder paste. During the solder paste printing stage errors are likely to occur.

The deposition of solder paste is a task that helps in mounting components to a PCB. Solder paste helps in ensuring a proper electrical connection. SPI testing is crucial because it helps to evaluate the deposition of the solder paste and as well the quality of the solder paste. SPI testing is an integral aspect of PCB assembly and manufacturing.

Inadequate solder paste or excess solder paste can cause malfunction in a circuit board. Therefore, the application of solder paste on a circuit board must be thoroughly inspected to avoid further defects. When it comes to SPI testing, it is crucial to pay attention to the quality, application, and quantity of the solder paste.

Why is SPI Testing Important?

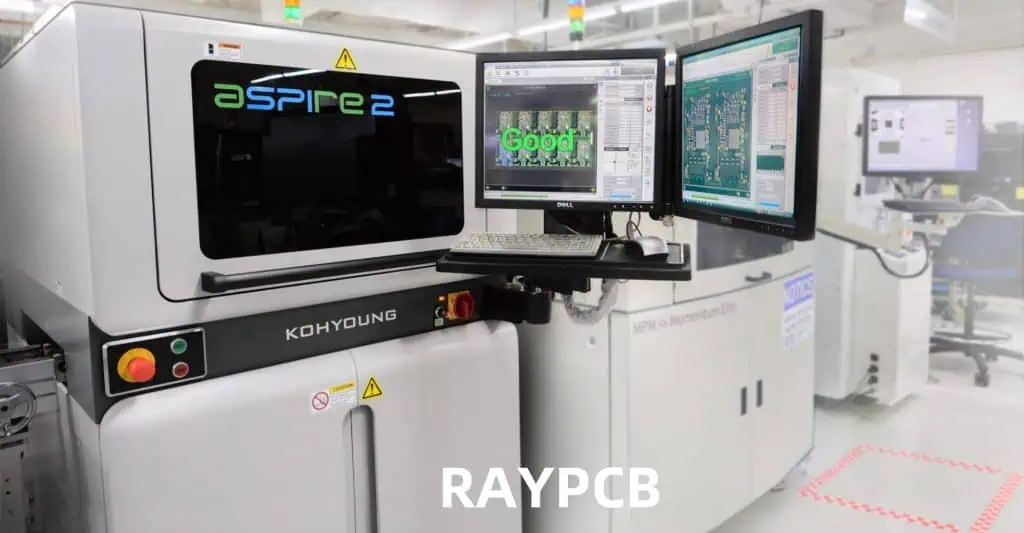

SPI Test
SPI Test

The SPI testing is an important test that should never be ignored during PCB production. This test plays a significant role in the production of a circuit board. In several cases, we have heard of a board malfunction due to the misapplication of solder paste. To avoid these errors, an SPI testing is recommended. So, what is the importance of SPI Testing in PCB manufacturing?

Reduction of errors

SPI testing helps to detect any defects or errors where solder paste is too little or too much. Also, SPI testing can help you detect other mistakes which results in overall improved production efficiency. When the cause of a defect in a PCB is known, a PCB manufacturer can easily correct the defect. Also, they can avoid such errors in the future.

The goal of PCB manufacturing is to produce functioning and high-quality circuit boards. Solder paste inspection helps manufacturers to use the appropriate amount of solder paste when producing circuit boards. In the long run, this helps to save cost and as well hasten delivery time. SPI testing is an important process when producing error-free circuit boards.

It is crucial to apply enough solder paste in the right location to ensure the parts and joints are well solders. SPI also detects errors in solder paste application early. Early detection can help in preventing further damage to the circuit board.

Quality Improvement

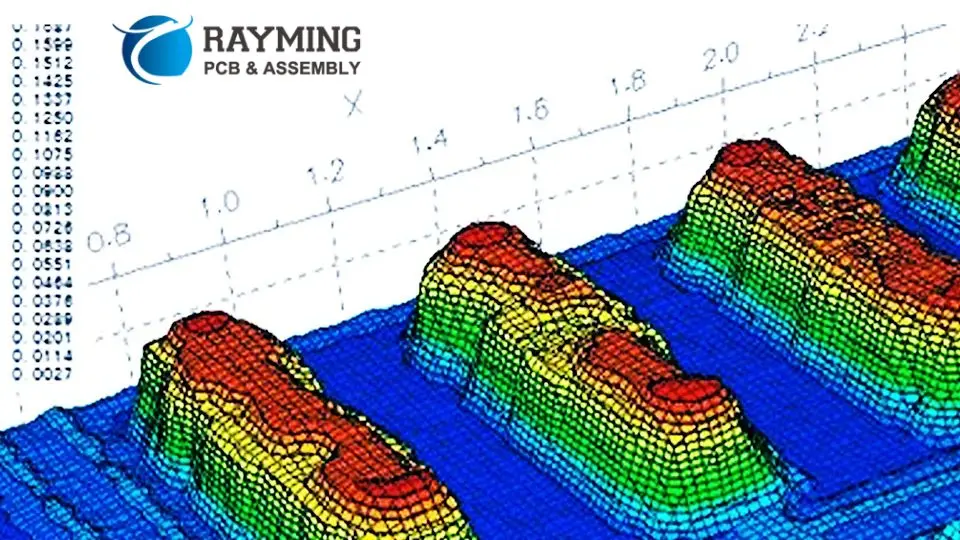

One of the importance of solder paste inspection is that it helps in improving the performance and quality of circuit boards. During SPI testing, a 3D angle camera is used in capturing pictures that measure the alignment and amount of solder paste. With this, the manufacturer will be able to detect if there is too little or too much solder paste in the circuit board.

It is crucial to use the appropriate amount of solder paste on a board. This will help a circuit board function as it should. Also, this camera can produce data that offers accurate volume. This is because the inspection can take the measurement of the solder paste height. Furthermore, manufacturers can make use of this information to regulate the process of solder paste printing and placement of components.

Cost saving

Since errors are easily detected and corrections are made on time, PCB manufacturers can easily save cost. Failure to inspect the solder paste printing on your board can result in further problems. SPI testing is a process that gives you the go ahead that your board is great for manufacturing.

What are the Basics of Solder Paste Inspection?

SPI systems integrate visual methods to regulate the solder paste printing for any defects. These systems can detect various defects like stains, nodules, and scratches. Also, the SPI practice test can help in measuring the volume, height, area, and shape of solder paste. Therefore, this test can carry out the visual checks previously carried out by manual operators.

SPI practice test integrates a system that visually scans the surface of the printed circuit board. During this process, several light sources light the board. Also, this system integrates high definition cameras. Therefore, the SPI machine can capture an image of the solder paste on the circuit board.

SPI system integrates the processed image it captures and then makes comparison. It compares the image with what the board is expected to look like. The comparison helps in detecting any defects. Also, the SPI practice test make use of some techniques to offer analysis. The analysis explains if a board is defective or functional as regards solder paste application. These techniques include:

Pattern matching

The SPI system obtains information of bad and good PCB assemblies and matches the captured image with these.

Template matching

This involves comparing the obtained image with pictures from a “golden board.”

Statistical pattern matching

The statistical pattern matching is similar to pattern matching. However, this matching technique makes use of a statistical method to address issues. Therefore, this technique stores the results of many boards and different types of failure to accommodate some acceptable deviations.

The SPI systems have improved that they can predict defects accurately. Therefore, the SPI systems play a significant role in an advanced manufacturing environment of solder paste printing.

The Analysis of SPI Image Capture

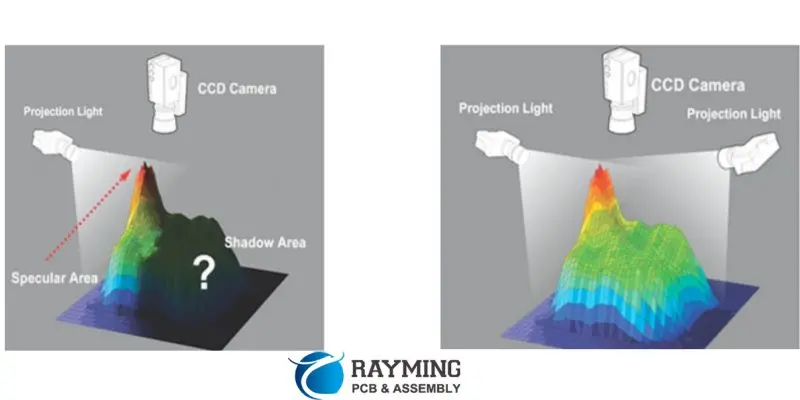

The image capture system is one of the important elements of SPI system. This system takes a picture of a PCB, then the processing software in this system analyzes PCB assembly. There are various types of capture system. The application and cost of an SPI system determines the type of image capture system.

These imaging system feature improved imaging with 3D capability. Also, these cameras can move under software control. With this, they can move to an optimum position for a particular PCB assembly. Type of camera used in SPI

Still image camera system

This camera system is positioned very close to the target PCB and as such it needs a good lighting system. Also, you may need to move this camera.

Streaming video

This camera takes streaming video where complete frames are captured. The already captured frame allows the generation of a still image where signal processing is being performed. This type of image system is not as accurate as other systems . However, it has very high speed.

The SPI system checks for different features like height, shift, area, shape, and volume when analyzing a board image. Also, the SPI system checks the soldered joints to confirm if the joints are okay. This is a crucial part of the task of the SPI system.

Light Source of SPI

Lighting is very important in the SPI system. Therefore, it is important you choose the right lighting source as it makes highlighting various defects easily. Recently, there has been great advances in lighting technology and as such, lighting has helped in enhancing the available images. This has made it easy to highlight defects with a resultant decrease in processing required.

The majority of SPI systems feature a defined lighting set. However, this depends on the required operation and the type of products you are testing. These are usually optimized for expected conditions. However, this may require some customizations. Also, you need to understand the various lighting types.

Types of lighting for SPI Systems

LED lighting

LED lighting is integrated in SPI systems. This type of lighting is stable since it is easy to control the level of lighting. Therefore, LEDs are better than incandescent lights or fluorescent lights.

Fluorescent lighting

Fluorescent lighting is commonly integrated in SPI testing. This form of lighting helps you view defects on circuit boards. However, the use of fluorescent lighting in SPI testing has its drawbacks. One of its drawbacks is that lamps degrade with time.

Ultra-violet or infra-red

Ultra-violet or infra-red lighting are sometimes used as a form of lighting in SPI systems. This form of lighting can enhance some particular defects. Also, these form of lighting makes it easy to carry out automated optical inspection.

The positioning of lighting is also crucial for SPI testing. Regardless of the form of lighting being used, proper positioning is important. This is needed to light the areas properly and as well to highlight any defects. You may need careful adjustments for various assemblies.

What is the Importance of 3D SPI?

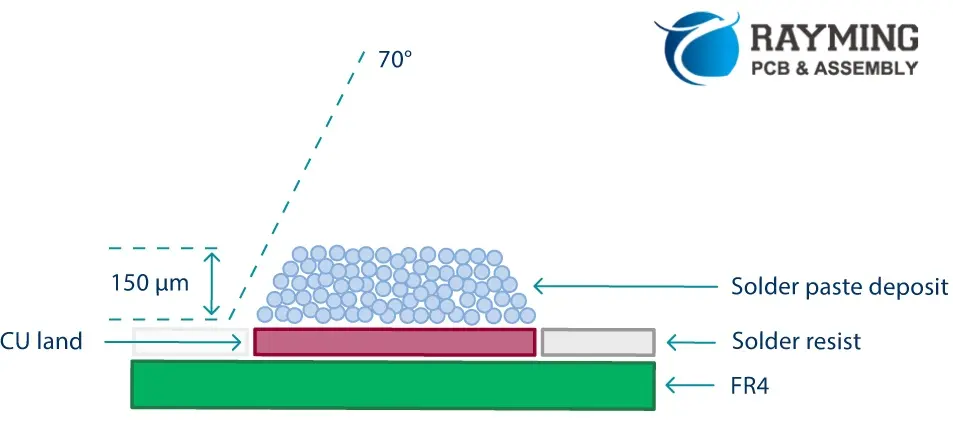

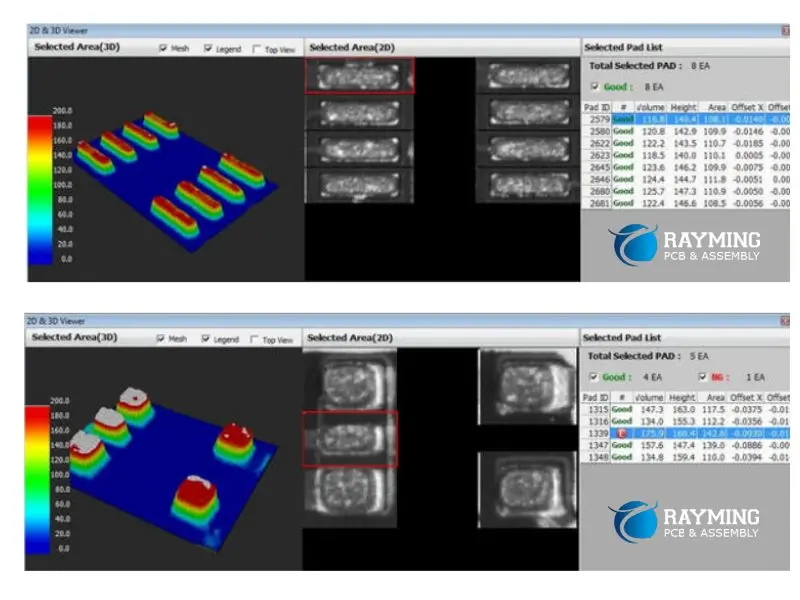

3D is commonly integrated in SPI. The 3D SPI is a technique used in testing the printing on circuit boards. This SPI method monitors PCBs visually for any defects in the solder paste. 3D SPI integrates 3D imaging to detect problems such as nodules, scratches, and stains. Also, it measures dimensional features like area, shape, shift, overflow, bridge, and height.

In 3D SPI, 3D imaging is used in scanning the surface area. The scanned image is then compared to the measurements for the particular board. 3D SPI is a great method for detecting defects accurately. Accurate detection of defects is crucial since any detect can make a PCB to malfunction. The integration of 3D SPI machine can help to produce quality PCBs.

Features of 3D SPI Machine

SPI vs I2C vs UART

You need an up-to-date software to carry out a 3D SPI. The software will be more accurate if it is more current. If the amount of solder paste is just a bit more than what is expected it will reduce the functionality of the PCB. Therefore, it is crucial to use the most accurate software.

Furthermore, the SPI machine must have a good speed and cycle time. This machine has to be able to work with the largest PCB. Ensure the lighting and sensor technology must work well. With improved lighting, the SPI machine will perform better and offer more accuracy. Therefore, more projectors will improve your results.

The 3D SPI machine should be very easy to read and understand. The machine’s goal is to detect any defects before the PCB is printed. 3D SPI machine is capable of measuring the particular amount of solder paste needed for a PCB.

3D SPI systems can inspect each solder paste accurately to offer corrective actions that help you go ahead with your printing process. There are several benefits of using a 3D SPI machine. A 3D SPI machine offers improved efficiencies in your printing process and helps you build quality PCBs from the scratch.

What is the ARDMS SPI Practice Test?

The ARDMS SPI practice test carries out SPI examination. In this examination, the knowledge, abilities, and skills of a candidate are tested. Also, the abilities of a candidate in physical principles and instrumentation are evaluated. The SPI board exam is crucial for testing sonography skills.


The SPI testing is an important test that should never be ignored during PCB production. This test plays a significant role in the production of a circuit board. In several cases, we have heard of a board malfunction due to the misapplication of solder paste. SPI ultrasound can also help in detecting errors in solder paste application. The SPI testing is an important test that should never be ignored during PCB production. This test plays a significant role in the production of a circuit board.
