High-speed digital design has a materials problem. Standard FR-4 starts to fall apart above 1 GHz — dielectric loss climbs, impedance control suffers, and your carefully modeled stackup no longer matches what comes off the fab line. That’s where Nelco PCB laminates enter the picture. Nelco materials from Park Electrochemical (now Isola Group) were engineered specifically for the signal integrity demands of RF, microwave, and high-speed digital boards where FR-4 simply can’t keep up.

This guide gives you the full picture: what Nelco laminates actually are, which grades suit which applications, real design rules, cost factors, and how to choose a manufacturer who can process them correctly.

Quick Answer: Nelco PCBs use advanced thermoset laminates (N4000, N4350, N7000 series) with low dielectric constants (Dk 3.2–3.9) and low dissipation factors (Df 0.002–0.009), making them suitable for high-frequency boards operating above 1 GHz where standard FR-4 causes unacceptable signal loss.

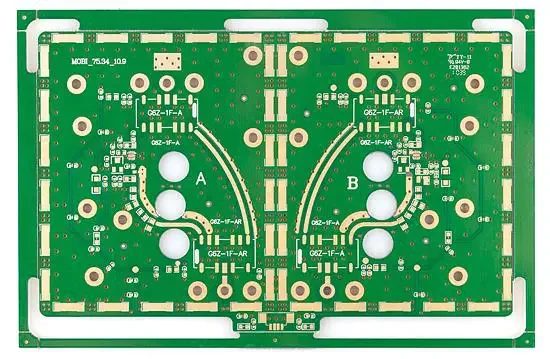

 What Is a Nelco PCB?

Nelco is a brand name for a family of high-performance PCB laminates originally developed by Park Electrochemical Corporation. The product line was subsequently absorbed into Isola Group, but the Nelco designation remains widely used in procurement specs and fab notes — you’ll still see “Nelco N4000-13” or “Nelco N4350-13 RF” on stackup drawings across the industry.

A Nelco PCB is any printed circuit board fabricated using one of these Nelco-branded laminate systems as the dielectric core or prepreg material. The boards themselves go through standard multilayer fabrication — drilling, plating, etching, lamination — but the laminate’s superior electrical properties are what distinguish the finished board from an FR-4 equivalent.

[IMAGE: Cross-section diagram of a 10-layer Nelco N4000-13 stackup with copper weights labeled — alt text: “Nelco PCB multilayer stackup cross-section diagram”]

Why Not Just Use FR-4?

FR-4's dielectric constant (Dk) sits around 4.2–4.5 at 1 GHz, and it rises unpredictably with frequency. Its dissipation factor (Df) of 0.02 means significant insertion loss on long trace runs. For a 10 Gbps SerDes channel running 30 inches across a backplane, FR-4 can eat 8–12 dB of your loss budget before you've accounted for connectors or vias. Nelco laminates cut that loss in half or better.

---

Nelco Laminate Grades Compared

The Nelco family spans several distinct product lines. Here's how the main grades break down:

Grade	Dk (@ 10 GHz)	Df (@ 10 GHz)	Tg (°C)	Primary Use Case
N4000-13	3.7	0.009	210	High-speed digital, DDR, PCIe
N4000-13 SI	3.65	0.008	210	Signal-integrity-optimized digital
N4350-13 RF	3.48	0.004	200	RF/microwave up to 20 GHz
N4380-13 RF	3.2	0.003	185	Antenna, phased array, mm-wave
N7000-1	4.0	0.013	175	Halogen-free high-Tg general use
N7000-2 HT	4.1	0.012	200	Lead-free assembly, automotive

Engineer's Note: Dk and Df values shift with frequency and temperature. Always request the laminate manufacturer's datasheet for the specific test frequency matching your application. A Nelco datasheet spec at 1 GHz is not the same as at 10 GHz — the Dk typically drops 5–8% as frequency rises.

---

Key Electrical & Thermal Properties

Understanding these properties lets you make an intelligent material decision rather than defaulting to "whatever the fab recommends."

Dielectric Constant (Dk)

Dk controls propagation velocity and, therefore, trace impedance. Lower Dk means faster signal propagation and shorter electrical wavelengths — important in RF design where trace length correlates directly to frequency. Nelco RF grades achieve Dk as low as 3.2, compared to FR-4's 4.2–4.5.

Dissipation Factor (Df)

Df (also called loss tangent, tan δ) is the primary driver of frequency-dependent signal attenuation. Nelco's N4350-13 RF achieves Df of 0.004 at 10 GHz — roughly 5× lower than standard FR-4. On a 20-inch trace at 10 GHz, that difference translates to approximately 3–5 dB of saved insertion loss, which can be the difference between a passing and failing channel in a high-speed serial link.

Glass Transition Temperature (Tg)

Nelco N4000 series boards carry Tg values of 200–210°C, well above the 150–175°C range of standard FR-4. This matters during lead-free reflow assembly (peak temperatures of 260°C) and for boards operating in elevated ambient environments. Boards that don't delaminate during assembly are not a nice-to-have — they're a qualification requirement under IPC-6012 Class 3.

Coefficient of Thermal Expansion (CTE)

The Z-axis CTE of N4000-13 is approximately 40–55 ppm/°C below Tg. Via barrel cracking in dense multilayer boards (18+ layers) correlates directly to Z-axis CTE, so specifying a low-CTE laminate alongside controlled aspect-ratio drilling is not optional for aerospace or automotive applications targeting IPC-6012 Class 3.

[IMAGE: Graph showing insertion loss vs. frequency comparing FR-4, N4000-13, and N4350-13 RF — alt text: "Nelco PCB insertion loss comparison chart FR-4 vs N4000 vs N4350"]

---

Nelco PCB Design Rules

Nelco laminates are not dramatically harder to design for than FR-4, but a few rules shift.

Impedance Control

• Target ±5% impedance tolerance for standard Nelco designs; ±3% is achievable with controlled-depth routing and tighter laminate thickness tolerances.
• Use the actual Dk from the production lot datasheet, not a nominal value, when running your 2D field solver (Polar Si9000, Ansys SIwave, or equivalent).
• Dk spread across a production lot can be ±0.05–0.10, which translates to ±1–2 Ω on a 50Ω trace. Build tolerance stack-up into your design.

Trace Geometry

• Minimum trace/space for Nelco multilayers follows IPC-2221 Table 6-1. Standard production capability is 3 mil/3 mil; advanced fabs push to 2 mil/2 mil.
• For RF boards using N4350 or N4380, keep ground plane copper pours continuous under RF traces — discontinuities in the reference plane create local Dk variation that shifts resonant frequency.

Via Design

• Aspect ratio should stay below 10:1 for through-hole vias; 8:1 is safer for Class 3 boards.
• Back-drill stubs on high-speed serdes channels if the board is 2.0 mm or thicker with traces running above 6 Gbps. Via stub resonance at these speeds is not theoretical — it's measurable in the time domain.

Pro Tip: If you're running 25 Gbps+ PAM-4 links, use a 3D EM solver to model via transitions, not just a 2D transmission line calculator. The transition discontinuity at those data rates contributes more to channel loss than the trace itself on short segments.

Thermal Relief

Thermal reliefs on inner-layer power pads are often omitted in RF sections to maintain ground plane continuity. If your fab uses standard thermal relief on all inner-layer connections by default, call it out explicitly in your fab notes — this is a common source of RF performance degradation that doesn't show up until board test.

---

Stackup Considerations

Mixed dielectric stackups — Nelco cores with standard FR-4 prepreg, or Nelco cores with Rogers prepreg — are technically possible but add fabrication complexity and cost. Here's the practical guidance:

Option 1: All-Nelco stackup. Use N4000-13 cores and compatible N4000-13 prepreg throughout. Most consistent Dk across all layers. Best choice when you have multiple RF or high-speed layers.

Option 2: Hybrid Nelco + FR-4. Nelco core layers for critical RF/signal layers; FR-4 prepreg elsewhere. Can reduce cost by 15–30% on a 12-layer board where only 4 layers carry high-frequency signals. Requires the fab to manage different resin flow and lamination cure profiles simultaneously — not every shop can do this reliably.

Option 3: Nelco outer layers only. Rarely appropriate. Most signal integrity benefit comes from the core dielectric, not the outer layers.

[IMAGE: Side-by-side stackup diagrams showing all-Nelco vs. hybrid Nelco/FR-4 configurations — alt text: "Nelco PCB hybrid stackup diagram multilayer"]

Engineer's Note: When you specify a hybrid stackup, require your fab to provide post-lamination impedance coupons from the actual production panel — not a pre-calculated estimate. Laminate mixing changes the effective dielectric, and simulations alone are insufficient for qualification.

---

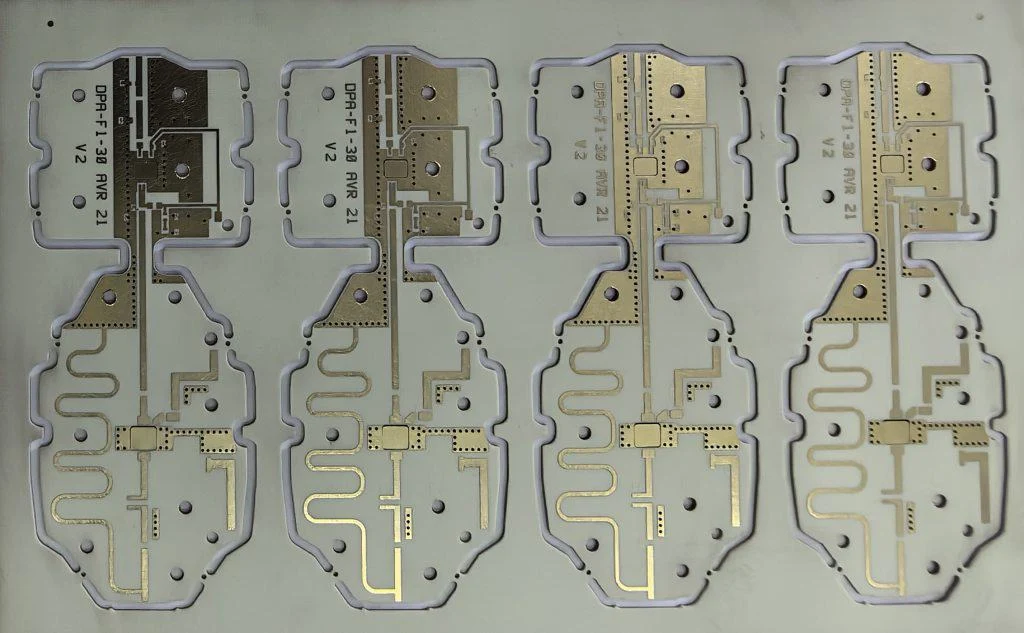

Manufacturing Process for Nelco Boards

Fabricating Nelco PCBs follows the same general flow as FR-4, but several steps require adjusted parameters.

Step-by-Step Nelco Fabrication Process

1. Material incoming inspection — Verify lot-specific Dk/Df data from laminate supplier; confirm Tg and CTE match design spec.
2. Inner layer imaging — Standard dry film or liquid photoresist; Nelco surface requires clean room handling to avoid contamination that degrades adhesion.
3. Oxide treatment / adhesion promotion — Critical step. Brown or black oxide process parameters need adjustment for Nelco's resin system — improper adhesion prep causes delamination at reflow.
4. Layup and lamination — Temperature, pressure, and cure profile must match the specific Nelco grade. N4000-13 and N4350-13 RF have different cure cycles. Mixing them without updated press recipes is a common shop-floor failure mode.
5. Drilling — Nelco's harder resin system increases drill bit wear. Fabs should reduce stack height and replace drill bits at shorter intervals than FR-4 to prevent hole wall roughness that degrades plating adhesion.
6. Electroless copper and electrolytic plating — Hole wall plating to IPC-6012 Class 2 minimum 0.8 mil average; Class 3 minimum 1.0 mil. Nelco's higher Tg means the plated copper must withstand more thermal stress — plating ductility per IPC-A-600 is a pass/fail criterion.
7. Outer layer imaging and etching — Standard process; tighter registration control needed for fine-pitch designs.
8. Solder mask — ENIG or ENEPIG surface finish recommended for high-reliability Nelco boards; OSP acceptable for cost-sensitive applications with short shelf life.
9. Electrical test — 100% continuity and isolation test per IPC-ET-652.
10. Impedance coupon test — TDR measurement of production coupons; report must include actual measured values, not nominal.

[IMAGE: Photo of TDR test being performed on a PCB impedance coupon — alt text: "Nelco PCB impedance coupon TDR testing"]

---

Real-World Application: 10 GbE Switch Backplane

Consider a 16-slot chassis switch backplane carrying 10 Gigabit Ethernet across 36-inch signal paths. This is a board where material selection is the difference between a shipping product and a lab paperweight.

The design uses 16 layers. Eight layers carry 10GbE XAUI channels — four differential pairs each, routed 50Ω single-ended (100Ω differential). The remaining layers handle power distribution and low-speed control signals.

The original design used FR-4 with Dk 4.3. At 3.125 GHz (the fundamental frequency of XAUI's 8b/10b encoding), insertion loss across 36 inches measured 18 dB. The system's loss budget allowed 14 dB, including connector and via transitions. Every channel failed.

The redesign moved the eight signal layers to N4000-13 SI (Dk 3.65, Df 0.008) while retaining FR-4 on the power and low-speed layers — a hybrid stackup. Post-lamination TDR confirmed 50Ω ±4% on all channels. Re-measurement of insertion loss across 36 inches at 3.125 GHz: 11.3 dB average. All 16 slots passed first-pass compliance testing.

The delta in laminate cost was approximately $140 per panel for a board that was already a $600 bare board. The alternative — a complete board spin on FR-4 with trace length reduction (requiring connector repositioning and chassis redesign) — would have cost six figures and six weeks. Material selection was the cheapest engineering decision on the program.

RAYPCB's engineering team regularly supports hybrid stackup designs like this, with in-house impedance coupon testing and laminate sourcing from certified Isola distributors.

---

Common Mistakes When Specifying Nelco

1. Using nominal Dk in impedance calculations. Production Dk can vary by ±0.1 from the datasheet nominal. Run your impedance calculation at the ±tolerance extremes and confirm your design still passes at both ends.

2. Not specifying the exact Nelco grade. Writing "Nelco laminate" on a fab note is not a specification. N4000-13 and N4350-13 RF have different electrical properties, different prepreg options, and different lamination requirements. Your fab will make a choice — and it may not match your simulation.

3. Assuming any fab can run Nelco. Nelco requires adjusted lamination press recipes, different drill parameters, and familiarity with the resin system. A fab that has never processed N4350-13 RF will likely produce your first run through trial and error — on your schedule and your budget.

4. Skipping post-lamination Dk verification. Dk shifts slightly after lamination due to resin flow and cure. For RF designs with tight frequency targets, require your fab to test a witness sample from each lamination cycle.

5. Ignoring moisture absorption. Nelco laminates absorb moisture, which shifts Dk upward. Boards destined for high-humidity environments should be baked per IPC-1601 before testing and assembly. This is a step many engineers skip and then blame the laminate when field performance differs from lab results.

6. Thermal relief on RF ground planes. Covered above under design rules — but it bears repeating because this mistake shows up in otherwise well-designed boards. Disable automatic thermal relief in your CAD tool for RF ground plane connections on Nelco RF boards.

---

Nelco PCB Cost Factors

Nelco PCB cost is higher than FR-4 — that's a given. Understanding what drives the cost helps you make informed trade-offs.

Cost Driver	Typical Impact vs. FR-4 Equivalent
Laminate material cost	+30–80% depending on grade
Adjusted fab process (drill wear, press recipes)	+10–20%
Impedance coupon testing and reporting	+5–10%
Yield loss on first production runs	+0–15% (new fab relationship)
ENIG vs. OSP surface finish	+5–8%
Hybrid stackup vs. all-Nelco	−15–30% vs. all-Nelco

For a representative 10-layer, 14×18-inch board:

• FR-4 equivalent: ~$200–350/board at low volume (5–25 pieces)
• N4000-13: ~$320–550/board
• N4350-13 RF: ~$400–700/board

Volume drives cost down significantly. At 100+ pieces, laminate cost per panel is amortized across more boards, and fab yields improve as the process matures.

Pro Tip: If you're cost-constrained, ask your fab about hybrid stackups before assuming the whole board must be Nelco. In many designs, 2–4 critical layers justify the premium; the other layers are standard FR-4, and the savings are real.

[IMAGE: Cost breakdown pie chart for Nelco PCB manufacturing — alt text: "Nelco PCB cost breakdown manufacturing factors"]

---

How to Choose a Nelco PCB Manufacturer

Not all PCB manufacturers are equally equipped to handle Nelco materials. Use this checklist when evaluating vendors.

Manufacturer Qualification Checklist

• Confirmed experience with your specific Nelco grade (ask for reference boards, not just a "yes")
• In-house impedance testing with TDR equipment and calibrated coupons
• Documented lamination press recipes for Nelco grades
• Ability to procure Isola/Nelco laminates from certified distributors with lot traceability
• IPC-6012 Class 2 or Class 3 certification relevant to your application
• Hybrid stackup capability (if needed)
• DFM review process — do they flag issues before cutting material?
• Lead time commitment with laminate availability confirmation
• Engineering support for stackup review, not just order processing
• Ability to provide post-production test reports (impedance, cross-section microscopy if required)

RAYPCB processes Nelco N4000 and N4350 series laminates with in-house TDR impedance testing and supports both all-Nelco and hybrid stackup designs. Engineering reviews are standard, not an upsell.

---

FAQ

What is a Nelco PCB used for? Nelco PCBs are used in high-speed digital and RF/microwave applications where FR-4's higher dielectric loss causes signal integrity failures. Common applications include network switch backplanes, radar front-ends, phased array antennas, test and measurement equipment, and 5G base station hardware operating above 1 GHz.

Is Nelco the same as Rogers? No. Both are high-performance laminate families, but they're different products. Nelco (Isola brand) uses thermoset resin systems similar in processing to FR-4. Rogers laminates use PTFE-based or hydrocarbon ceramic systems with generally lower Dk and Df, but more demanding fabrication requirements and higher cost. Nelco is often preferred when you need better-than-FR-4 performance but want FR-4-like fab compatibility.

What Nelco grade should I use for 5G RF boards? For sub-6 GHz 5G applications, N4350-13 RF (Dk 3.48, Df 0.004) is typically appropriate. For millimeter-wave (24–40 GHz) work, N4380-13 RF offers lower Dk (3.2) and Df (0.003), though Rogers or Taconic PTFE laminates may be preferable at the extreme end of the mm-wave band.

How does Nelco PCB cost compare to FR-4? Nelco laminate material costs 30–80% more than FR-4 depending on grade, plus additional fab process costs. A typical 10-layer Nelco N4000-13 board might cost 50–70% more than an equivalent FR-4 board at low volume. The cost gap narrows at higher volumes and is usually justified by avoiding expensive board respins caused by signal integrity failures.

Can standard FR-4 fabs process Nelco? Technically yes, but not reliably without Nelco-specific process adjustments. Lamination cure profiles, drill parameters, and oxide treatment steps all require modification. A fab unfamiliar with Nelco will likely produce boards with yield issues on the first run. Always verify specific experience with your target Nelco grade before committing production.

What IPC standards apply to Nelco PCBs? IPC-6012 (Qualification and Performance Specification for Rigid Printed Boards) applies to finished board quality. IPC-2221 (Generic Standard on Printed Board Design) governs design rules. IPC-A-600 (Acceptability of Printed Boards) is used for visual acceptance criteria. IPC-1601 covers handling and storage — relevant for moisture management of Nelco laminates before assembly.

How do I specify Nelco on a fabrication drawing? Include the full grade designation (e.g., "Isola N4000-13 SI, 0.5 mm core"), target Dk and Df values with test frequency, impedance requirements with tolerance, IPC class, surface finish, and any hybrid stackup instructions. Vague specs like "high-frequency laminate" or "low-loss material" will result in a call from your fab asking for clarification — or worse, a substitution you didn't approve.

Does Nelco support lead-free assembly? Yes. Nelco N4000 and N7000 series grades with Tg of 200°C and above are compatible with lead-free reflow at peak temperatures of 260°C. Verify Tg and thermal stress performance (T288 test per IPC TM-650 2.4.24.1) for your specific grade before committing to lead-free assembly qualification.

---

Conclusion

Nelco PCBs fill a specific and important gap in the materials spectrum — better signal integrity than FR-4, more fab-compatible than PTFE laminates, and available in grades from general-purpose high-speed digital to dedicated RF/microwave. Picking the right Nelco grade, specifying it correctly on your fab drawing, and partnering with a manufacturer who genuinely knows the material are the three things that determine whether you get the performance your design simulated.

If you're evaluating Nelco for your next board, RAYPCB's engineering team can review your stackup, confirm laminate availability, and provide a detailed quote. Upload your Gerbers and stackup specification at RAYPCB's RFQ page and get a response within 24 hours.
