I. Introduction

In today’s world, the demand for reliable and effective security systems has never been higher. From residential alarm systems to sophisticated surveillance cameras in corporate environments, security equipment plays a crucial role in protecting people, property, and information. At the heart of these devices lies the printed circuit board (PCB), the foundation upon which all electronic functionality is built.

In this guide, we’ll explore best practices in security equipment PCB design, with a focus on alarm systems, surveillance cameras, and various types of sensors. The design of these PCBs is not just about functionality; it’s about creating robust, long-lasting, and tamper-resistant electronic systems that can withstand various environmental challenges while maintaining their integrity and performance.

The role of PCB design in security equipment cannot be overstated. It directly influences the reliability, durability, and effectiveness of the entire security system. A well-designed PCB can mean the difference between a security system that functions flawlessly for years and one that fails at a critical moment.

II. Understanding the Requirements of Security Devices

Before delving into specific design practices, it’s essential to understand the unique requirements of security equipment PCBs.

Key Design Considerations

1. Long-term reliability and durability:
   • Security systems often operate continuously for years.
   • Components must be selected for longevity and stable performance.
2. Environmental factors:
   • Temperature extremes (both outdoor and indoor installations).
   • Moisture resistance, especially for outdoor equipment.
   • Dust and particulate protection.
   • Tamper resistance to prevent physical interference.
3. Power efficiency:
   • Critical for battery-operated systems like wireless sensors.
   • Important for reducing heat generation in always-on devices.
4. Compact and discreet design:
   • Many security devices need to be unobtrusive.
   • Miniaturization without compromising functionality.

Common PCB-based Components in Security Systems

1. Microcontrollers:
   • Heart of most modern security devices.
   • Manage sensor inputs, decision-making, and communication.
2. Wireless modules:
   • Wi-Fi, Zigbee, or proprietary RF for communication.
   • Bluetooth for setup and maintenance.
3. Cameras:
   • Image sensors and related processing chips.
   • Low-light and infrared capabilities.
4. Motion detectors:
   • PIR (Passive Infrared) sensors.
   • Microwave or ultrasonic sensors for advanced systems.
5. Environmental sensors:
   • Temperature, humidity, smoke, and gas detectors.
6. Power management:
   • Voltage regulators and battery charging circuits.

Understanding these components and requirements sets the foundation for effective security equipment PCB design.

III. Alarm System PCB Design

Alarm systems are the frontline of many security setups, requiring a balance of reliability, sensitivity, and user-friendliness in their PCB design.

Core Elements of an Alarm System PCB

1. Input interfaces:
   • PIR sensor connections for motion detection.
   • Door/window contact inputs for perimeter security.
   • Integration points for glass break detectors.
2. Audio/visual outputs:
   • High-current drivers for sirens and strobes.
   • LED indicators for system status.
3. Communication modules:

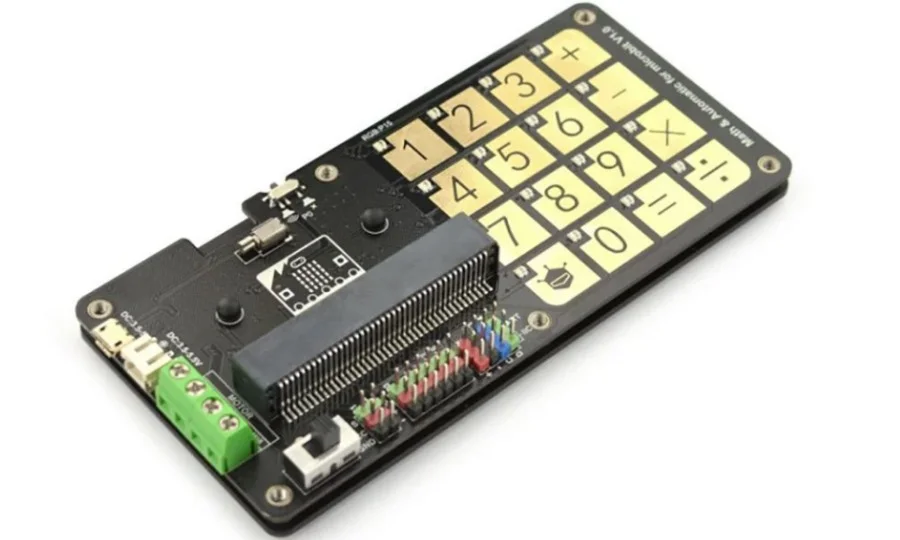

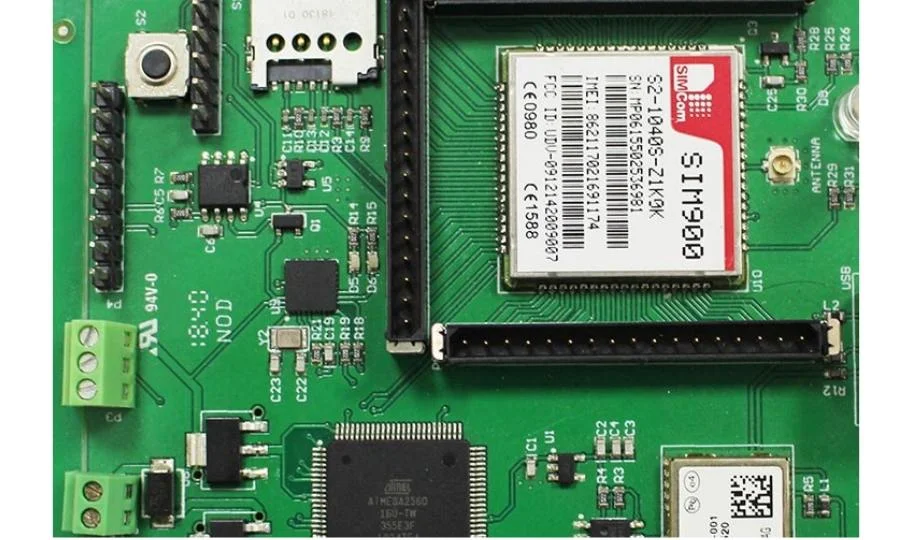

   • GSM modem for cellular connectivity.
   • Wi-Fi module for smart home integration.
   • Zigbee or Z-Wave for wireless sensor networks.
4. Backup power circuitry:
   • Battery charging management.
   • UPS (Uninterruptible Power Supply) integration.
   • Low-battery detection and reporting.

Anti-tamper Design Strategies

1. Enclosure switches:
   • Micro-switches to detect case opening.
   • Optically isolated tamper detection circuits.
2. PCB-level anti-tamper measures:
   • Conductive traces that break when tampered with.
   • Epoxy encapsulation of critical components.

EMI/EMC Considerations

1. Proper grounding and shielding:
   • Separate ground planes for digital and analog sections.
   • Use of EMI shields over sensitive RF components.
2. Signal integrity:
   • Controlled impedance traces for high-speed signals.
   • Proper use of bypass capacitors near ICs.
3. Regulatory compliance:
   • Design with FCC and CE EMC standards in mind.
   • Incorporate ferrite beads and common-mode chokes as needed.

IV. PCB Design for Security Cameras

Security cameras require careful PCB design to ensure high-quality video capture, efficient processing, and reliable transmission.

Key Components of a Security Camera PCB

1. Image sensor and DSP integration:
   • Careful placement to minimize noise and interference.
   • High-speed traces for data lines.
2. Power supply considerations:
   • PoE (Power over Ethernet) circuitry design.
   • Efficient DC-DC conversion for various voltage requirements.
3. Video encoder or System-on-Chip (SoC):
   • Thermal management for heat-generating components.
   • Proper decoupling and power plane design.
4. Connectivity options:
   • Ethernet PHY and magnetics layout.
   • Wi-Fi module integration for wireless cameras.

High-speed Signal Routing

1. HDMI and USB considerations:
   • Differential pair routing with controlled impedance.
   • Length matching for high-speed data lines.
2. Ethernet layout best practices:
   • Adherence to Ethernet design guidelines.
   • Proper placement of termination resistors.

Thermal Management in Enclosed Spaces

1. Component placement for heat dissipation:
   • Strategic use of thermal vias.
   • Consideration of airflow in the enclosure design.
2. Use of thermally conductive materials:
   • Integration with the camera housing for heat sinking.

Compact, Multilayer PCB Design

1. Layer stack-up optimization:
   • Use of buried and blind vias for dense routing.
   • Proper signal-power-ground layer arrangement.
2. Flex-rigid PCB considerations:
   • For cameras with articulating or motorized mounts.

Read more about:

• Medical PCB
• Aerospace PCB
• Military PCB
• Radar PCB
• Contract Manufacturing

V. Sensor PCB Design in Security Systems

Sensors are the eyes and ears of any security system, and their PCB design is critical for accurate and reliable operation.

Types of Sensors Used in Security Systems

1. Passive Infrared (PIR) sensors:
   • Requires careful thermal and electrical isolation.
2. Ultrasonic sensors:
   • High-frequency circuit design considerations.
3. Gas and smoke detectors:
   • Integration of sensitive analog front-ends.
4. Magnetic sensors (reed switches):
   • EMI protection for reliable operation.
5. Vibration and shock sensors:
   • Mechanical considerations in PCB mounting.

Analog Signal Conditioning and ADC Integration

1. Low-noise amplifier design:
   • Proper component selection and layout for low-noise performance.
2. ADC considerations:
   • Placement of ADC close to the sensor.
   • Proper grounding and reference voltage design.

Power Management for Ultra-Low-Power Operation

1. Sleep mode design:
   • Efficient wake-up circuitry for battery-operated sensors.
2. Voltage regulation:
   • Use of low quiescent current regulators.

PCB Layout Tips for Noise-Sensitive Analog Signals

1. Guard rings and ground planes:
   • To isolate sensitive analog sections.
2. Component placement:
   • Keep analog and digital sections separated.
3. Trace routing:
   • Minimize loop areas in analog signal paths.

Design for Calibration and Reliability

1. Test points:
   • Include calibration points for final assembly.
2. Temperature compensation:
   • Design considerations for sensors affected by temperature variations.

By focusing on these aspects of sensor PCB design, engineers can create more reliable and accurate security systems.

VI. Best Practices for Security Equipment PCB Layout

Regardless of the specific type of security equipment, certain PCB layout practices are universally beneficial for creating robust and reliable designs.

Ground Plane Design for Noise Immunity

1. Solid ground planes:
   • Use uninterrupted ground planes to minimize ground loops.
   • Separate analog and digital grounds, connecting at a single point.
2. Star grounding:
   • Implement for sensitive analog circuits.
3. Ground pour techniques:
   • Use on all layers to improve shielding and current return paths.

Segregation of Analog, Digital, and RF Sections

1. Physical separation:
   • Place analog, digital, and RF sections in different areas of the PCB.
2. Partitioned ground planes:
   • Use split ground planes with careful interfacing between sections.
3. Stackup considerations:
   • Dedicate layers for sensitive signals or power distribution.

Proper Decoupling and Filtering

1. Decoupling capacitor placement:
   • Place close to IC power pins, using short, wide traces.
2. Use of ferrite beads:
   • For additional high-frequency noise filtering on power lines.
3. Power supply filtering:
   • Implement LC filters for sensitive analog power supplies.

PCB Shielding Techniques for Secure Environments

1. Board-level shielding:
   • Design for easy integration of EMI shields.
2. Component-level shielding:
   • Use shielded inductors and other components where necessary.
3. Faraday cage principles:
   • Implement in the PCB design and enclosure together.

Use of Conformal Coating and Protective Enclosures

1. Conformal coating selection:
   • Choose appropriate coating for environmental protection.
2. Design for coating application:
   • Consider masking areas that shouldn’t be coated (connectors, test points).
3. Enclosure integration:
   • Design PCB mounting and connectors with the final enclosure in mind.

By adhering to these best practices, designers can create security equipment PCBs that are not only functional but also robust against environmental and electromagnetic challenges.

VII. Prototyping, Testing & Compliance

The journey from design to a reliable security product involves rigorous prototyping and testing phases, as well as ensuring compliance with relevant standards.

Rapid Prototyping and In-Field Testing Strategies

1. Iterative prototyping:
   • Use of quick-turn PCB services for faster design cycles.
   • 3D printing for enclosure prototypes and fit checks.
2. In-field testing considerations:
   • Design for easy firmware updates during testing.
   • Include debug interfaces and test points.
3. Performance validation:
   • Develop test fixtures for automated testing of production boards.

Environmental and Durability Testing

1. Temperature testing:
   • Use environmental chambers to test across the operating temperature range.
   • Thermal cycling for reliability assessment.
2. Vibration and shock testing:
   • Especially important for outdoor and vehicle-mounted security equipment.
3. Water and dust ingress testing:
   • Validate IP ratings for outdoor equipment.

Regulatory Compliance

1. Electromagnetic Compatibility (EMC):
   • Design with CE and FCC compliance in mind.
   • Conduct pre-compliance testing early in the development cycle.
2. Safety standards:
   • UL certification for security products.
   • IEC 62368-1 for electronic equipment safety.
3. Specific security standards:
   • EN 50131 for intrusion alarm systems in Europe.
   • UL 681 for installation and classification of burglar alarm systems.

Designing Test Points and Programming/Debug Interfaces

1. Test point strategy:
   • Include test points for critical signals and power rails.
   • Consider using test pads instead of through-hole pins for space-saving.
2. Programming interfaces:
   • Design for in-circuit programming and debugging.
   • Consider security implications of leaving debug interfaces accessible.
3. Production testing:
   • Design for flying probe or bed-of-nails testing in production.

By thoroughly addressing these aspects of prototyping, testing, and compliance, manufacturers can ensure their security equipment meets the high standards required for reliable operation in critical applications.

VIII. Power Supply and Battery Management

Reliable power management is crucial for security equipment, especially for systems that must operate during power outages or in remote locations.

Choosing Efficient Voltage Regulators

1. Linear vs. switching regulators:
   • Use Low Dropout (LDO) regulators for noise-sensitive circuits.
   • Implement switching regulators for higher efficiency in higher current applications.
2. Power budget analysis:
   • Carefully calculate power requirements for all system components.
   • Include margin for peak loads and future expansions.

Battery Protection and Charging Circuits

1. Overcharge and over-discharge protection:
   • Implement battery management ICs for Li-ion batteries.
   • Use thermistors for temperature monitoring during charging.
2. Charging circuit design:
   • Consider constant current/constant voltage (CC/CV) charging for Li-ion batteries.
   • Implement trickle charging for lead-acid batteries in UPS applications.
3. Battery fuel gauging:
   • Integrate fuel gauge ICs for accurate battery level reporting.

Low-Power Design Techniques for Always-On Security Devices

1. Use of microcontroller sleep modes:
   • Implement efficient wake-up sources (RTC, watchdog timers).
2. Power gating:
   • Use MOSFETs to completely shut off power to unused subsystems.
3. Dynamic frequency scaling:
   • Adjust clock speeds based on processing requirements.
4. Careful component selection:
   • Choose ICs with low quiescent current for always-on circuits.

By focusing on efficient power management and battery operation, security equipment can maintain reliable operation even in challenging power environments.

IX. Security Features at the Hardware Level

In addition to the physical security provided by alarm systems and cameras, it’s crucial to implement security measures within the PCB design itself to protect against tampering and unauthorized access.

Secure Boot and Encryption Support via Hardware

1. Trusted Platform Module (TPM) integration:
   • Include a hardware TPM for secure key storage and boot validation.
2. Secure element incorporation:
   • Use secure elements for storing encryption keys and performing cryptographic operations.
3. Hardware-accelerated encryption:
   • Utilize microcontrollers with built-in encryption engines for efficient secure communication.

Tamper Detection on the PCB

1. Mesh sensors:
   • Implement fine traces on outer layers to detect physical tampering.
2. Light sensors:
   • Use to detect unauthorized enclosure opening.
3. Temperature and voltage monitors:
   • Detect abnormal operating conditions that might indicate tampering attempts.

Secure Memory Storage Design

1. EEPROM/Flash layout:
   • Implement secure boot sectors to prevent unauthorized firmware modifications.
2. Memory encryption:
   • Use hardware encryption for storing sensitive data in external memory.
3. Anti-rollback protection:
   • Implement version checking to prevent downgrade attacks.

Preventing Hardware Backdoors

1. Careful vendor selection:
   • Source components from reputable suppliers to minimize supply chain risks.
2. Design

reviews:

• Conduct thorough reviews to ensure no unintended functionalities are present.

3. Disabling unused interfaces:
   • Physically remove or permanently disable unnecessary debug ports.

By implementing these hardware-level security features, PCB designers can significantly enhance the overall security posture of their equipment.

X. Tools and Resources

To effectively design PCBs for security equipment, engineers need access to the right tools and resources.

Recommended EDA Tools

1. Altium Designer:
   • Professional-grade PCB design software with advanced security-focused features.
2. KiCad:
   • Open-source EDA tool with a growing feature set and community support.
3. Eagle:
   • Popular among hobbyists and small teams, now part of the Autodesk suite.
4. Cadence Allegro:
   • Enterprise-level PCB design tool used in many large organizations.

Reference Designs from Manufacturers

1. STMicroelectronics:
   • Offers reference designs for security cameras and alarm systems.
2. Microchip:
   • Provides example projects for secure element integration and cryptographic modules.
3. Texas Instruments:
   • Offers system-level reference designs for video doorbells and smart locks.

PCB Fabrication Services for Security Products

1. PCB manufacturers with security clearances:
   • For projects requiring high levels of confidentiality.
2. Turnkey PCB assembly services:
   • One-stop solutions for prototyping and small to medium production runs.
3. Specialized coating and encapsulation services:
   • For boards requiring extra environmental or tamper protection.
