Ensuring the stable and consistent functionality and reliability of Printed Circuit Boards (PCBs) is essential. PCB electronic testing is a critical component of the manufacturing process, as it helps identify potential issues and prevents costly failures. In this comprehensive guide, we will examine the various methods used to test and characterize PCBs, offering valuable insights for engineers, manufacturers, and electronics enthusiasts alike.

What is PCB Electrical Testing?

PCB electrical testing is a critical quality control measure in the manufacturing of printed circuit boards. It involves a series of tests designed to verify the electrical integrity and functionality of a PCB before it is integrated into a final product. The primary goal of PCB electrical testing is to identify any defects, shorts, opens, or other electrical issues that could compromise the performance or reliability of the circuit board.

Electrical testing is typically performed after the PCB has been fabricated and before components are mounted. This stage is crucial as it allows manufacturers to detect and rectify any issues early in the production process, saving time, resources, and potential headaches down the line.

The importance of PCB electrical testing cannot be overstated. It ensures that each board meets the specified electrical requirements and functions as intended. By identifying and eliminating defective boards early, manufacturers can:

1. Improve overall product quality
2. Reduce production costs associated with rework and repairs
3. Enhance customer satisfaction by delivering reliable products
4. Meet industry standards and regulatory requirements

Now that we understand the basics of PCB electrical testing, let’s explore the various types of tests that are commonly performed.

PCB Electrical Testing Types

There are numerous types of electrical tests that can be conducted on PCBs, each designed to evaluate different aspects of the board’s electrical characteristics. Here are some of the most common types of PCB electrical testing:

1. Capacitance Testing

Capacitance testing is essential for evaluating the ability of a PCB to store electrical charge. This test measures the capacitance between different points on the board, ensuring that it falls within the specified range. Proper capacitance is crucial for timing circuits, filtering, and other applications where charge storage is important.

Key points of capacitance testing include:

• Verifying capacitor values and tolerances
• Identifying parasitic capacitance issues
• Ensuring proper impedance control in high-speed circuits

2. Resistance Testing

Resistance testing is fundamental in PCB electrical testing. It measures the resistance between various points on the board to ensure that connections are properly made and that there are no unwanted shorts or opens. This test is crucial for verifying the integrity of traces, vias, and other conductive elements on the PCB.

Resistance testing helps in:

• Detecting manufacturing defects such as broken traces or incomplete vias
• Verifying the correct resistance values of embedded resistors
• Identifying potential issues with solder mask or other insulating materials

3. Comparative Testing

Comparative testing involves comparing the electrical characteristics of a PCB under test with those of a known good board. This method is particularly useful when dealing with complex or custom designs where absolute measurements may be difficult to interpret.

Benefits of comparative testing include:

• Quick identification of deviations from expected performance
• Reduced need for extensive test programming
• Ability to catch subtle issues that might be missed by other testing methods

4. Continuity Testing

Continuity testing is a fundamental PCB electrical test that checks for the presence of a complete electrical path between two points. This test is crucial for ensuring that all intended connections are properly made and that there are no open circuits.

Continuity testing helps in:

• Verifying proper connections between components and layers
• Identifying manufacturing defects such as broken traces or incomplete plated-through holes
• Ensuring the integrity of ground and power planes

5. Flip Test

The flip test is a specialized PCB electrical test used to verify the proper orientation of components on double-sided boards. It involves testing the board in both orientations to ensure that components are correctly placed and that there are no issues with mirrored layouts.

Key aspects of the flip test include:

• Detecting reversed component placements
• Verifying proper connections on both sides of the board
• Identifying potential issues with through-hole components

6. Clamshell Testing

Clamshell testing is a method of PCB electrical testing that uses a fixture with two halves that close around the board like a clamshell. This technique allows for simultaneous testing of both sides of the PCB, improving efficiency and reducing test time.

Advantages of clamshell testing include:

• Faster testing of double-sided boards
• Improved contact reliability due to even pressure distribution
• Ability to test boards with components on both sides

7. Adjacency Testing

Adjacency testing focuses on verifying that there are no unintended electrical connections between adjacent traces or pads on a PCB. This test is particularly important for high-density boards where the risk of shorts due to manufacturing defects is higher.

Adjacency testing helps in:

• Detecting potential short circuits between closely spaced traces
• Identifying issues with solder mask or other insulating materials
• Ensuring proper isolation between different circuit sections

8. Flying Probe Testing

Flying probe testing is a flexible PCB electrical testing method that uses movable probes to make contact with specific points on the board. This technique is particularly useful for testing prototype or low-volume PCBs where the cost of a dedicated test fixture may not be justified.

Key features of flying probe testing include:

• Ability to test complex boards with minimal setup time
• Flexibility to accommodate design changes without modifying test fixtures
• High precision and ability to test fine-pitch components

9. PCB Stress Testing

PCB stress testing involves subjecting the board to various environmental and electrical stresses to evaluate its performance under extreme conditions. This type of testing helps ensure that the PCB can withstand the rigors of its intended operating environment.

Common PCB stress tests include:

• Thermal cycling to simulate temperature variations
• Vibration testing to assess mechanical durability
• Power cycling to evaluate the board’s response to repeated on/off cycles

10. In-Circuit Testing

In-circuit testing (ICT) is a comprehensive PCB electrical testing method that evaluates individual components on a populated board. This test uses a bed-of-nails fixture to make contact with numerous test points simultaneously, allowing for rapid and thorough testing of complex assemblies.

Benefits of in-circuit testing include:

• Ability to test both passive and active components
• Detection of manufacturing defects such as solder bridges or missing components
• Verification of component values and basic functionality

11. Functional Testing

Functional testing is the final stage of PCB electrical testing, where the assembled board is evaluated under conditions that simulate its intended use. This test verifies that the PCB performs all its required functions correctly and meets the specified performance criteria.

Key aspects of functional testing include:

• Verifying proper operation of all circuit functions
• Testing board performance under various input conditions
• Evaluating the interaction between different subsystems on the PCB

12. Burn-In Testing

Burn-in testing is a reliability test that involves operating the PCB under elevated stress conditions (such as high temperature or voltage) for an extended period. This test is designed to identify any early-life failures or “infant mortality” issues before the product is shipped to customers.

Burn-in testing helps in:

• Identifying weak components or manufacturing defects that might lead to premature failure
• Improving overall product reliability
• Reducing the likelihood of field failures during the product’s early life

Methods of PCB Electrical Testing

Now that we’ve explored the various types of PCB electrical testing, let’s delve into the methods used to perform these tests. There are several approaches to PCB electrical testing, each with its own advantages and applications.

1. E-test Method 1: Flying Probe Testing (FPT)

Flying Probe Testing, also known as FPT, is a versatile and widely used method for PCB electrical testing. This technique employs movable probes that can be positioned anywhere on the board’s surface to make electrical contact with test points.

Key features of Flying Probe Testing include:

• Flexibility: FPT can easily adapt to different board designs without the need for custom fixtures.
• Cost-effectiveness: Ideal for low-volume production or prototype testing where dedicated fixtures may not be economical.
• Precision: Capable of testing fine-pitch components and densely populated boards.
• Minimal setup time: New boards can be programmed and tested quickly.

The FPT process typically involves the following steps:

1. Board alignment and registration
2. Probe movement and contact with test points
3. Electrical measurements and data collection
4. Analysis and reporting of test results

While FPT is slower than fixture-based testing for high-volume production, its flexibility and low setup costs make it an excellent choice for many PCB manufacturers.

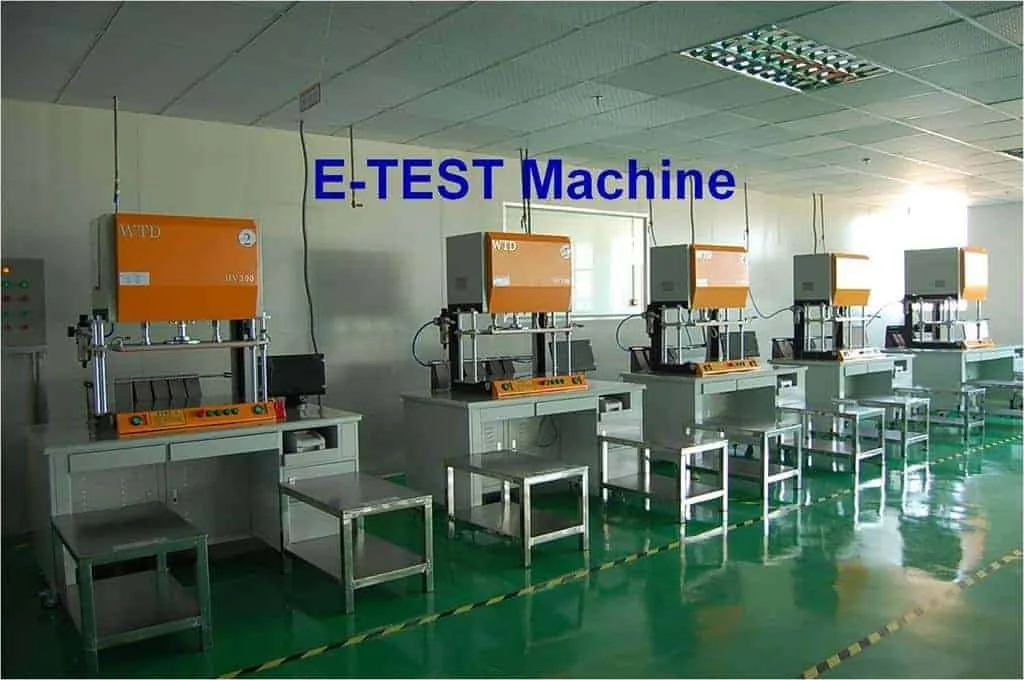

2. E-test Method 2: Fixture Method

The fixture method, also known as bed-of-nails testing, is a high-speed PCB electrical testing technique that uses a custom-designed test fixture with numerous spring-loaded pins (the “nails”) to make contact with specific points on the board simultaneously.

Advantages of the fixture method include:

• High-speed testing: Ideal for high-volume production
• Comprehensive coverage: Can test hundreds or thousands of points simultaneously
• Repeatability: Consistent results due to fixed probe locations
• Durability: Fixtures can withstand thousands of test cycles

The fixture method process typically involves:

1. Designing and manufacturing a custom test fixture for the specific PCB
2. Loading the PCB into the fixture
3. Applying pressure to ensure good contact between the board and test pins
4. Performing a series of electrical tests
5. Analyzing and reporting the results

While the initial cost of creating a custom fixture can be high, this method becomes very cost-effective for large production runs where the setup cost is amortized over many boards.

3. PCB Testing During Manufacturing

PCB electrical testing is not a single-step process but rather an integral part of the entire manufacturing workflow. Testing occurs at various stages to ensure quality and catch defects as early as possible.

Key testing stages during PCB manufacturing include:

1. Bare board testing: Performed after PCB fabrication but before component assembly
2. In-circuit testing: Conducted after components are mounted but before final assembly
3. Functional testing: Performed on the fully assembled PCB

Each stage of testing serves a specific purpose and helps to maintain high quality standards throughout the production process.

4. Mechanical PCB Testing and Inspection

While not strictly part of electrical testing, mechanical testing and inspection are crucial components of overall PCB quality assurance. These processes ensure that the physical characteristics of the board meet specifications and that there are no visible defects.

Mechanical PCB testing and inspection may include:

• Dimensional verification: Checking board size, hole diameters, and component placement
• Visual inspection: Looking for visible defects such as scratches, dents, or misaligned layers
• X-ray inspection: Examining internal layers and hidden solder joints
• Microsectioning: Analyzing the internal structure of the PCB

These mechanical tests complement electrical testing to provide a comprehensive quality assessment of the PCB.

5. Electrical PCB Testing During Manufacturing

Electrical testing during the PCB manufacturing process is a multi-stage approach that ensures the quality and functionality of the board at each critical step. Here’s a closer look at how electrical testing is integrated into the manufacturing workflow:

1. Bare Board Testing:
   • Performed after PCB fabrication but before component assembly
   • Checks for opens, shorts, and correct impedance on traces
   • Verifies the integrity of plated-through holes and vias
   • Ensures proper isolation between layers
2. Component Placement Verification:
   • Conducted immediately after component placement but before soldering
   • Uses optical or X-ray inspection to verify correct component orientation and placement
   • Helps prevent issues caused by misplaced or missing components
3. Post-Reflow Testing:
   • Performed after components are soldered to the board
   • Checks for solder bridges, cold joints, and other soldering defects
   • May include thermal imaging to identify potential hot spots
4. In-Circuit Testing (ICT):
   • Conducted on the assembled board
   • Tests individual components for proper values and basic functionality
   • Identifies manufacturing defects such as shorts, opens, or incorrect components
5. Functional Testing:
   • Performed on the fully assembled PCB
   • Verifies that the board functions as intended under various operating conditions
   • May include power-on testing, signal integrity analysis, and performance benchmarking
6. Final Quality Assurance:
   • Combines results from all previous tests
   • May include additional environmental stress testing or burn-in procedures
   • Ensures that only fully functional and reliable PCBs are shipped to customers

By incorporating electrical testing throughout the manufacturing process, PCB producers can identify and address issues at the earliest possible stage, minimizing rework costs and improving overall product quality.

Why Electrical Testing Is Crucial and How It Matters to You

PCB electrical testing is not just a technical requirement—it has far-reaching implications for manufacturers, customers, and end-users alike. Understanding the importance of thorough electrical testing can help you make informed decisions about your PCB projects and ensure the success of your electronic products.

1. Quality Assurance

Electrical testing is the backbone of PCB quality assurance. It provides objective data on the performance and reliability of each board, ensuring that only high-quality products reach the market. For manufacturers, this means:

• Reduced warranty claims and returns
• Enhanced reputation for reliability
• Improved customer satisfaction and loyalty

For customers and end-users, rigorous electrical testing translates to:

• More reliable electronic products
• Longer product lifespans
• Reduced frustration from malfunctioning devices

2. Cost Savings

While electrical testing does add to the initial production cost, it ultimately leads to significant cost savings:

• Early detection of defects reduces costly rework and scrap
• Fewer field failures mean lower warranty and support costs
• Improved yield rates lead to more efficient production

These savings can be passed on to customers in the form of more competitive pricing or reinvested in product development and innovation.

3. Regulatory Compliance

Many industries have strict regulatory requirements for electronic products. Comprehensive electrical testing helps ensure that PCBs meet these standards, which is crucial for:

• Obtaining necessary certifications (e.g., UL, CE, FCC)
• Entering regulated markets (e.g., medical devices, aerospace)
• Avoiding legal issues and potential recalls

4. Product Performance and Reliability

Thorough electrical testing contributes to improved product performance and reliability:

• Identifies potential weak points before they become field failures
• Ensures consistent performance across production batches
• Helps in fine-tuning designs for optimal performance

For end-users, this means products that work as expected and continue to perform reliably over time.

5. Time-to-Market

While it might seem counterintuitive, investing in comprehensive electrical testing can actually speed up time-to-market:

• Catches design issues early in the development process
• Reduces the likelihood of last-minute design changes
• Streamlines the certification process

This can give manufacturers a competitive edge in fast-paced markets where being first to market is crucial.

6. Continuous Improvement

The data gathered from electrical testing is invaluable for continuous improvement efforts:

• Identifies trends in manufacturing defects
• Provides insights for refining design guidelines
• Helps in optimizing production processes

For customers, this ongoing improvement translates to ever-increasing product quality and reliability.

PCB Electrical Testing at RAYMING PCB

At RAYMING PCB, we understand the critical importance of thorough and accurate electrical testing in the PCB manufacturing process. Our state-of-the-art testing facilities and experienced technicians ensure that every board we produce meets the highest standards of quality and reliability.

Our Comprehensive Testing Approach

1. Advanced Testing Equipment:
   • We utilize cutting-edge flying probe testers for flexible, high-precision testing
   • Our bed-of-nails fixtures provide rapid, comprehensive testing for high-volume production
   • Thermal imaging and X-ray inspection systems complement our electrical testing capabilities
2. Customized Testing Solutions:
   • We develop tailored testing protocols based on your specific PCB design and requirements
   • Our engineers work closely with you to identify critical test points and parameters
3. Multi-Stage Testing:
   • We perform electrical tests at every crucial stage of the PCB manufacturing process
   • From bare board testing to final functional verification, we ensure quality at every step
4. Data-Driven Quality Assurance:
   • Our advanced data analytics help identify trends and potential issues before they become problems
   • We provide detailed test reports with each order, giving you complete visibility into the quality of your PCBs
5. Continuous Improvement:
   • We regularly review and update our testing procedures to stay ahead of industry standards
   • Our team undergoes ongoing training to maintain expertise in the latest testing methodologies
