Introduction

A 10-layer PCB stack-up offers a balance between complexity and performance for advanced electronic applications. This guide provides key information on composition, advantages, considerations, and common configurations for 10-layer PCBs.

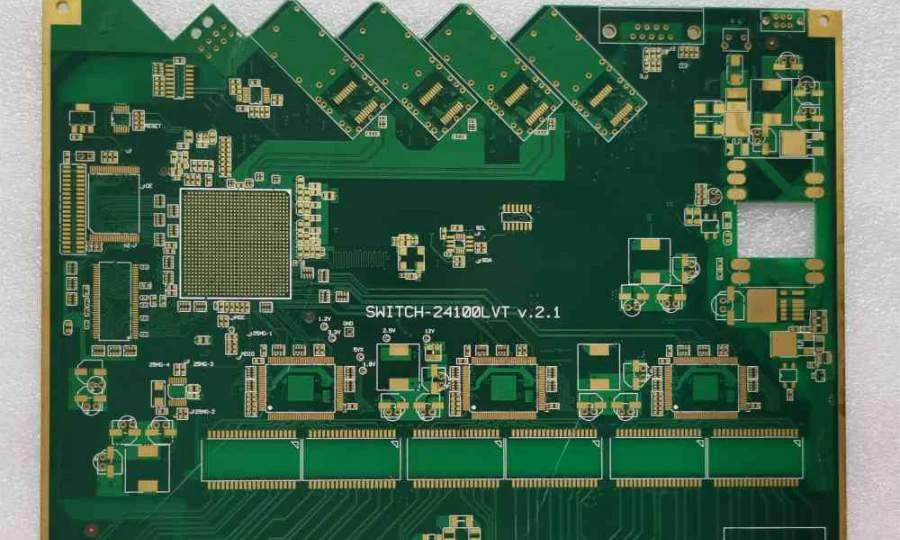

Basic Structure

Typical arrangement of layers in a 10-layer stack-up PCB:

1. Top Layer (Signal)
2. Prepreg
3. Signal Layer 1
4. Core
5. Internal Power/Ground Plane 1
6. Prepreg
7. Signal Layer 2
8. Core
9. Internal Power/Ground Plane 2
10. Prepreg
11. Signal Layer 3
12. Core
13. Internal Power/Ground Plane 3
14. Prepreg
15. Signal Layer 4
16. Core
17. Internal Power/Ground Plane 4
18. Prepreg
19. Bottom Layer (Signal)

• Read more about: 4 Layer PCB Stackup
• Read more about: 6 Layer PCB Stackup
• Read more about: 8 Layer PCB Stackup

Advantages of 10-Layer Stack-Ups

• Enhanced design flexibility
• Improved signal integrity
• Enhanced power distribution
• Suitable for high-density designs
• Cost-effective compared to higher-layer configurations

Design Considerations

• Signal integrity management
• Controlled impedance requirements
• Complex routing paths
• Manufacturing and fabrication costs
• Proper trace widths and layer ordering

Common 10-Layer PCB Stack-up Configurations

1 Standard Stack-Up

• Alternating signal and power/ground layers
• Balanced design for general-purpose applications

2 Mixed Signal Stack-Up

• Separation of analog and digital signals
• Improved isolation between different signal types

3 High-Speed Signal Stack-Up

• Dedicated layers for high-speed signals
• Enhanced signal integrity for critical paths

4 Power Integrity Stack-Up

• Multiple power planes for improved power distribution
• Reduced voltage drops and noise

5 Buried Capacitance Stack-Up

• Embedded capacitance layers
• Improved power delivery and reduced EMI

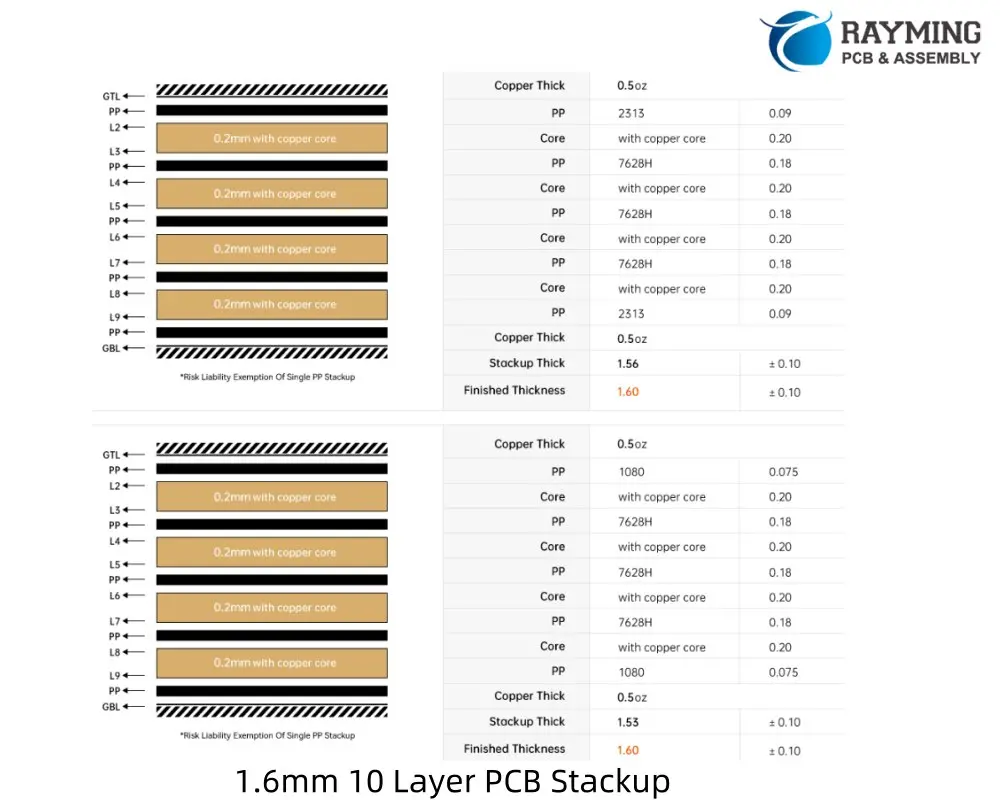

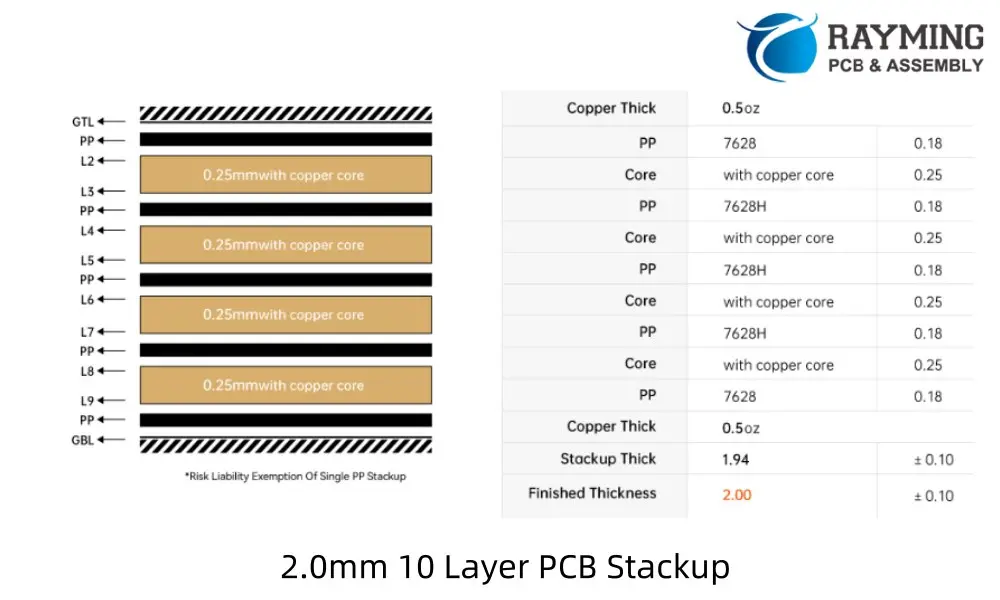

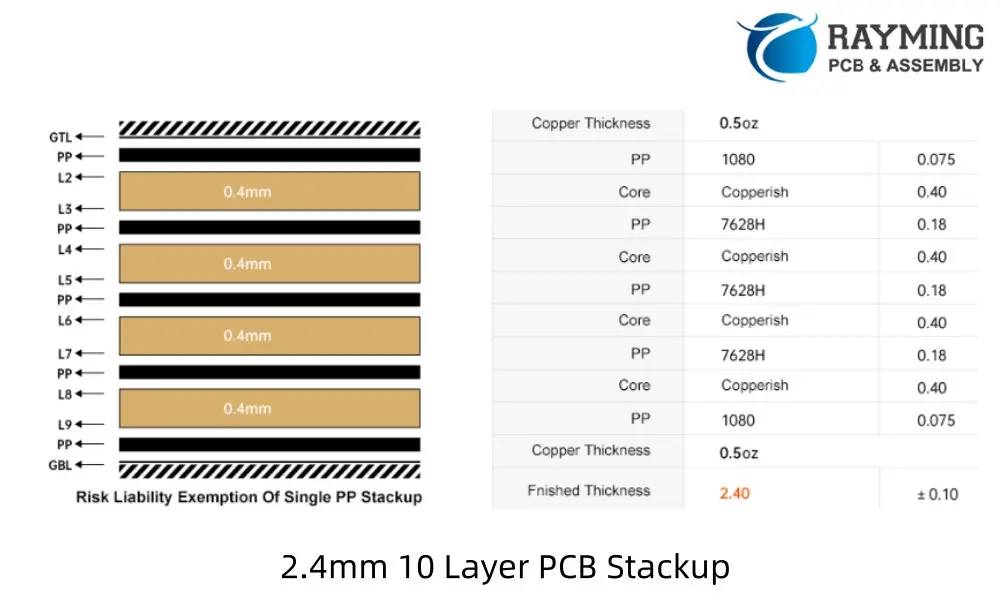

10 Layer PCB Stackup reference for different thickness:

Design Guidelines

1. Separate high-speed signals from noise-sensitive circuits
2. Use ground planes adjacent to critical signal layers
3. Implement proper via management for layer transitions
4. Maintain consistent impedance across layers
5. Consider crosstalk between adjacent signal layers
6. Optimize power distribution network (PDN) design
7. Implement proper EMI/EMC shielding techniques

Impedance Control

• Use impedance calculation tools for accurate trace dimensions
• Consider dielectric constant and thickness of materials
• Maintain consistent trace widths for controlled impedance

Manufacturing Considerations

• Verify manufacturer capabilities for 10-layer production
• Discuss special requirements (e.g., buried vias, impedance control)
• Consider cost implications of complex designs

Conclusion

A well-designed 10-layer PCB stack-up offers enhanced performance and flexibility for complex electronic designs. Careful consideration of signal integrity, power distribution, and EMC requirements is crucial for successful implementation. Use this guide as a starting point, and consult with PCB design experts and manufacturers for specific project requirements.

If you need stackup suggestion for your 10 layer PCB design, welcome to send email to Sales@raypcb.com .
