As consumer electronics demand increasingly compact, lightweight designs, PCBs must adapt to support high-density interconnects (HDI) and complex layouts. This miniaturization trend drives semiconductor manufacturers to develop finer-pitch packages like QFNs, BGAs, and flip-chip arrays. To maintain routability and signal integrity in these constrained designs, PCB engineers now strategically combine VIPPO (Via-in-Pad Plated Over) technology with traditional approaches – including dog-bone fanouts, microvias, skip vias, and routed solder pads. This hybrid methodology enables robust PCB layouts that meet modern performance requirements while accommodating shrinking form factors

Understanding Via Types: The Foundation of PCB Interconnects

Before we dive into the specifics of Via in Pad technology, it’s essential to understand the various types of vias used in PCB design. Vias are crucial components in multilayer PCBs, providing electrical connections between different layers of the board.

Through-hole Via

The most common and traditional type of via is the through-hole via. These vias extend through all layers of the PCB, connecting components on the top layer to traces on inner layers or the bottom layer. While simple and reliable, through-hole vias consume significant board space and limit the potential for high-density designs.

Blind Via

Blind vias connect the outer layer of a PCB to one or more inner layers but do not extend through the entire board. These vias are visible on one side of the PCB but not the other, hence the term “blind.” Blind vias allow for higher component density and improved signal integrity compared to through-hole vias.

Buried Via

Buried vias are internal connections between inner layers of a multilayer PCB. They are not visible from either the top or bottom of the board. Buried vias offer excellent signal integrity and allow for even higher component density than blind vias, but they increase manufacturing complexity and cost.

Microvia

Microvias are small-diameter vias, typically less than 150 micrometers, used in high-density interconnect (HDI) PCBs. They can be either blind or buried and are essential for ultra-compact electronic devices like smartphones and wearables.

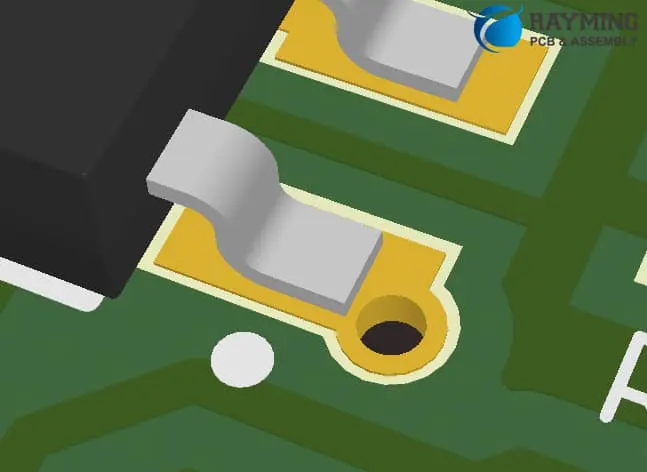

What is a Via in Pad?

Via in Pad (VIP) technology, also known as Via in Pad Plated Over (VIPPO), is an advanced PCB manufacturing technique where vias are placed directly within the surface mount pads of components. This approach differs from traditional designs where vias are typically placed adjacent to the pads.

In VIP designs, the vias are filled with a conductive or non-conductive material and then plated over, creating a flat surface for component placement. This technique allows for direct connections between the component leads and inner PCB layers without requiring additional routing space around the pad.

Benefits of PCB Via in Pad Technology

The adoption of Via in Pad technology offers several significant advantages:

1. Increased Routing Density: By placing vias directly in the pads, designers can dramatically increase the available routing space on the PCB. This is particularly beneficial for complex, high-density designs.
2. Improved Signal Integrity: Shorter trace lengths between components and inner layers reduce signal degradation, leading to better overall performance, especially in high-speed designs.
3. Enhanced Thermal Management: VIP can improve heat dissipation by providing a more direct path for thermal energy to travel from components to inner layers or heat sinks.
4. Reduced PCB Size: The space-saving nature of VIP allows for smaller overall PCB dimensions, crucial for compact electronic devices.
5. Better EMI Performance: Shorter trace lengths and reduced loop areas contribute to improved electromagnetic interference (EMI) performance.
6. Increased Reliability: Properly implemented VIP can enhance the mechanical strength of solder joints, potentially improving the overall reliability of the PCB.

When to Use Via-in-Pad in Design?

While Via in Pad technology offers numerous benefits, it’s not always the best choice for every PCB design. Here are some scenarios where VIP is particularly advantageous:

1. High-Density Designs: For PCBs with a high component density or complex routing requirements, VIP can provide the necessary space savings and routing flexibility.
2. High-Speed Applications: In designs where signal integrity is critical, such as high-frequency circuits or high-speed digital interfaces, VIP can help maintain signal quality.
3. Ball Grid Array (BGA) Components: VIP is especially useful for routing connections from BGA packages, where space under the component is at a premium.
4. Size-Constrained Designs: When miniaturization is a primary goal, such as in wearable devices or compact consumer electronics, VIP can help achieve the desired form factor.
5. Thermal Management Challenges: In designs where heat dissipation is a concern, VIP can provide improved thermal paths for critical components.

Read more about:

•  BGA Via in Pad
• Via filling
• Annular Ring
• Blind vias
• Half Hole PCB

Design Considerations for Via-in-Pad

Implementing Via in Pad technology requires careful consideration of several factors to ensure successful manufacturing and reliable performance.

Size and Spacing

The size of the via and its placement within the pad are critical considerations. Designers must balance the via size with the pad size to ensure sufficient copper remains for soldering. Additionally, the spacing between vias and pad edges must be carefully controlled to prevent solder wicking and ensure reliable connections.

Material Compatibility

The choice of via fill material is crucial in VIP designs. Conductive and non-conductive materials each have their advantages and challenges. Designers must consider factors such as thermal expansion, adhesion to copper, and compatibility with the soldering process when selecting fill materials.

Drilling Precision

VIP requires extremely precise drilling to ensure vias are correctly positioned within pads. High-quality drilling equipment and processes are essential to maintain the necessary accuracy and consistency across the PCB.

Soldering and Plating

The plating process for VIP is more complex than traditional vias. The via must be filled, planarized, and then plated over to create a flat surface for component placement. This process requires careful control to ensure a smooth, void-free surface that’s suitable for reliable soldering.

Cost Considerations

While VIP technology offers significant benefits, it also comes with increased manufacturing costs. The additional processing steps, specialized materials, and tighter tolerances all contribute to higher production expenses. Designers must weigh these costs against the benefits to determine if VIP is the most cost-effective solution for their specific application.

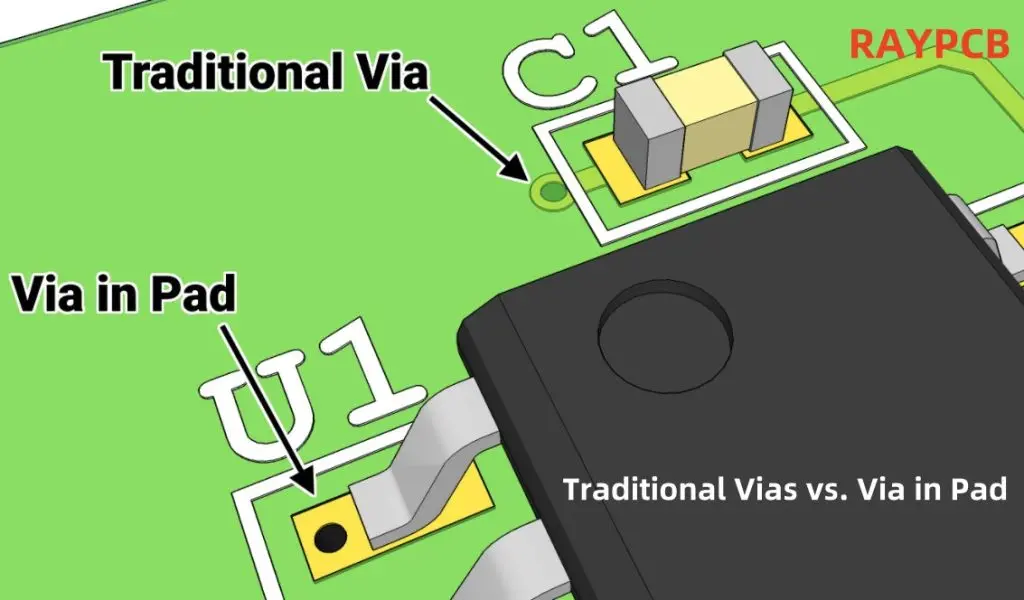

Traditional Vias vs. Via in Pad: A Comparative Analysis

To fully appreciate the advantages and trade-offs of Via in Pad technology, it’s helpful to compare it directly with traditional via techniques.

Non-conductive Epoxy Via Fill

Traditional vias are often left unfilled or filled with a non-conductive epoxy for structural support. This approach is simpler and less expensive than VIP but has several limitations:

• Requires additional space for via placement adjacent to pads
• Can lead to longer trace lengths and potential signal integrity issues
• May result in larger overall PCB dimensions

In contrast, VIP addresses these issues but requires more complex manufacturing processes.

Via-in-Pad Generation

The process of creating VIP differs significantly from traditional via generation:

1. Traditional Vias:
   • Drilled during the initial PCB fabrication process
   • May be plated or unplated
   • Often left unfilled or filled with non-conductive material
2. Via in Pad:
   • Requires precise drilling within component pads
   • Must be filled with conductive or non-conductive material
   • Requires planarization to ensure a flat surface
   • Plated over to create a solderable surface

The VIP process is more complex and time-consuming but results in a more compact and potentially higher-performing PCB.

Guidelines for Via-in-Pad Routing

Routing guidelines for VIP differ from those for traditional vias:

1. Traditional Vias:
   • Typically placed adjacent to pads
   • Require fanout traces to connect to inner layers
   • May use teardrops for improved mechanical strength
2. Via in Pad:
   • Placed directly within component pads
   • Allow for direct connections to inner layers without fanout
   • Require careful consideration of via size and placement within the pad

VIP routing can significantly simplify PCB layout, especially for complex, high-density designs.

Challenges of PCB Via in Pad Technology

While Via in Pad technology offers numerous benefits, it also presents several challenges that designers and manufacturers must address:

1. Manufacturing Complexity: VIP requires more sophisticated manufacturing processes, including precise drilling, via filling, planarization, and plating. This complexity can lead to longer production times and higher costs.
2. Potential for Voids: If not properly filled and plated, VIP can develop voids or air pockets that may compromise reliability. These voids can lead to issues such as solder joint failures or moisture ingress.
3. Thermal Management: While VIP can improve thermal performance in some cases, the filled vias may not conduct heat as effectively as solid copper. Designers must carefully consider thermal requirements when implementing VIP.
4. Rework Challenges: Reworking components on VIP can be more difficult than with traditional designs. The filled and plated vias may complicate component removal and replacement processes.
5. Increased Inspection Requirements: The complex nature of VIP necessitates more rigorous inspection processes to ensure quality and reliability, potentially increasing production time and costs.
6. Material Selection: Choosing the right via fill and plating materials is crucial for VIP success. Incompatible materials can lead to reliability issues or manufacturing defects.
7. Design Tool Limitations: Some PCB design software may not fully support VIP technology, requiring workarounds or manual adjustments in the design process.

Manufacturing Process for Via-In-Pad

The manufacturing process for Via-In-Pad PCBs involves several specialized steps:

1. Drilling: Precision drilling of via holes within component pads.
2. Plating: Initial plating of the via holes to create an electrically conductive surface.
3. Filling: Filling the vias with conductive or non-conductive material, depending on the design requirements.
4. Planarization: Smoothing the filled vias to create a flat surface flush with the pad.
5. Over-plating: Applying an additional layer of copper over the filled and planarized vias.
6. Surface Finishing: Applying the final surface finish (e.g., ENIG, HASL) to prepare the pads for soldering.

Each of these steps requires careful control and specialized equipment to ensure high-quality results. The complexity of this process contributes to the higher cost of VIP PCBs compared to traditional designs.

Applications of PCB Via in Pad

Via in Pad technology finds applications in various industries and product types, particularly where high performance and compact design are critical:

1. Mobile Devices: Smartphones, tablets, and wearables benefit from the space-saving and signal integrity improvements of VIP.
2. Aerospace and Defense: High-reliability electronics for aerospace applications often utilize VIP for its performance and durability benefits.
3. Medical Devices: Compact medical devices, such as hearing aids or implantable devices, can leverage VIP to achieve miniaturization without compromising functionality.
4. High-Performance Computing: Servers and high-end computing systems use VIP to manage high-speed signals and dense component placement.
5. Automotive Electronics: Advanced driver assistance systems (ADAS) and infotainment systems in modern vehicles often incorporate VIP technology.
6. Telecommunications: 5G infrastructure equipment and high-speed networking devices benefit from the signal integrity improvements offered by VIP.
7. Consumer Electronics: High-end audio/video equipment and gaming consoles use VIP to manage complex routing in compact form factors.

Conclusion: The Future of Via in Pad Technology

As electronic devices continue to demand higher performance in smaller form factors, Via in Pad technology is likely to become increasingly prevalent in PCB design and manufacturing. While it presents certain challenges in terms of manufacturing complexity and cost, the benefits of increased routing density, improved signal integrity, and enhanced thermal management make it an attractive option for many applications.

The future of VIP technology will likely see advancements in materials and manufacturing processes to address current limitations. Innovations in via fill materials, plating techniques, and inspection methods will contribute to improved reliability and potentially lower production costs.

For PCB designers and manufacturers, staying abreast of developments in Via in Pad technology and building expertise in its implementation will be crucial for remaining competitive in the rapidly evolving electronics industry. As with any advanced technology, successful adoption of VIP requires a thorough understanding of its benefits, limitations, and best practices to ensure optimal performance and reliability in the final product.

By carefully considering the trade-offs and applying VIP technology where it offers the most significant advantages, designers can create more compact, higher-performing electronic devices that meet the demanding requirements of modern applications.
