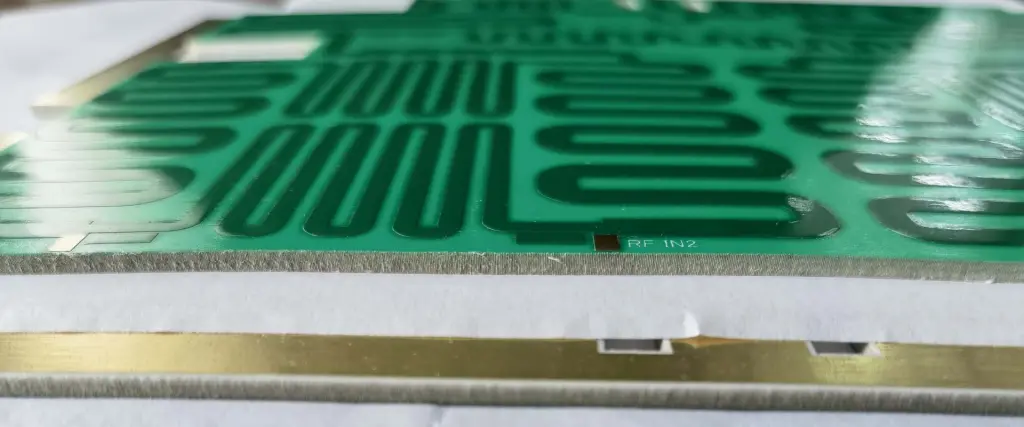

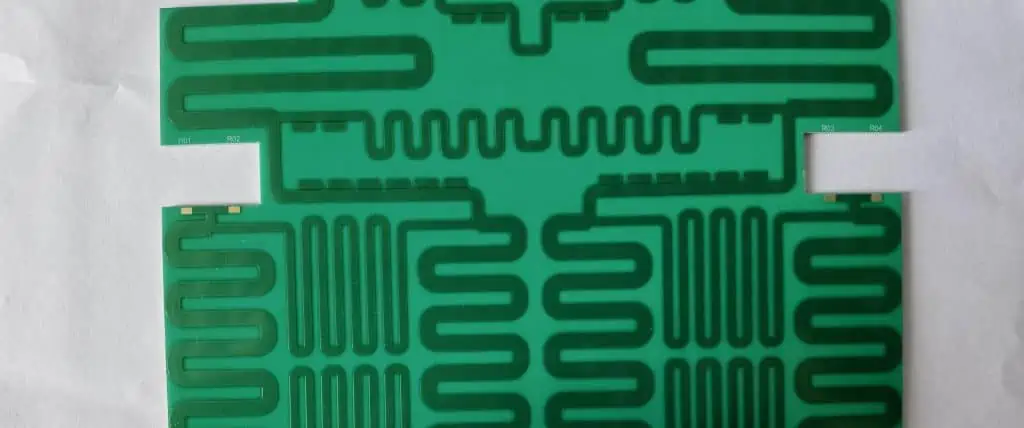

What is Aluminum Nitride PCB (AlN PCB)?


Aluminum nitride (AlN) PCBs refer to ceramic printed circuit boards made using aluminum nitride ceramic substrates instead of the standard FR-4 laminates. Aluminum nitride ceramics have excellent thermal conductivity, electrical insulation, and thermal expansion properties making them highly suited for demanding electronic applications.

This article provides an overview of AlN PCB technology including its benefits versus FR-4 boards, manufacturing processes, layout considerations, and applications where AlN PCBs provide the best performance and reliability.

Benefits of AlN PCBs

Aluminum nitride PCBs offer several advantages compared to conventional FR-4 boards:

  • Extremely high thermal conductivity (~170 W/mK) for superior heat spreading and dissipation
  • Thermal expansion matches silicon allowing direct chip attach methods
  • Electrically insulating with high dielectric strength and volume resistivity
  • Withstands very high temperatures (>1000°C) with minimal mechanical distortion
  • Excellent dimensional stability and resistance to thermal shock
  • Low dielectric loss for high frequency operation
  • Compatible with common metallization techniques and soldering
  • Hermetic sealing possible for high reliability requirements
  • Resists moisture absorption and chemical corrosion
  • High strength provides resistance to mechanical stresses
  • Electrically isolates circuits and components on single board
  • Lightweight compared to most other ceramic substrates

These benefits make AlN PCBs ideal for power circuits, RF designs, and extreme environment applications.

Manufacturing AlN PCBs

Aluminum nitride PCBs are fabricated using the following general process steps:

Substrate Manufacturing

  • AlN powder is formed into a billet through cold isostatic pressing
  • Binder materials are added to facilitate handling of the material
  • The shaped billet is sintered at temperatures above 1800°C in a nitrogen atmosphere
  • Sintering fuses the AlN powder into a fully dense ceramic
  • The AlN board is precisely ground and polished down to specified thickness


  • Thick film pastes with tungsten or molybdenum are screen printed to form circuit traces
  • Thin film metals like copper or gold can also be deposited via sputtering or plating
  • High temperature firing bonds the metallization to the AlN substrate

Multilayer Buildup

  • Double sided boards are stacked and laminated with adhesive films
  • Vias and through holes are laser drilled and filled with conductive pastes
  • Blind and buried vias can connect between inner layers

Housing Integration

  • AlN substrates allow direct bonding into hermetic packages
  • Sealants like epoxy, braze or glass can be used

AlN PCBs fabrication leverages many of the same processes used for alumina ceramic boards but enables even higher performance thanks to the unmatched thermal conductivity.

AlN PCB Design Considerations

Here are some key design guidelines for aluminum nitride PCBs:

  • Traces should be 10 mils or thicker to ensure adequate conductor cross-section
  • Clearances of at least 8-10 mils required between adjacent traces
  • Via pads should be a minimum of 16 mil diameter or larger
  • Pad geometries may need adjustment from FR-4 designs
  • Gold plating often used for wire bonding pads
  • Match electrical and mechanical properties of all attached components and solder
  • Hermetic seals may impose height restrictions on components
  • Model thermal expansion effects when attaching large dies
  • Leverage thermal vias underneath hot devices
  • High frequency performance further improved with ground planes

Careful accounting of material behaviors, fabrication processes, and assembly procedures allows unlocking the full potential of AlN PCBs.

AlN PCB Applications

Some of the common applications leveraging aluminum nitride PCB technology include:

  • High power density electronics such as converters and inverters
  • Electric vehicle power systems and charging stations
  • High intensity LED systems
  • RF amplifiers, filters, antennas
  • Space and satellite electronics
  • Downhole drilling tools
  • Physics research instrumentation
  • Medical lasers and thermal therapy
  • High temperature electronics and sensors
  • Nuclear instrumentation and radiation detection
  • Automotive radars and LiDAR
  • Aerospace avionics
  • Hybrid microcircuits

For applications requiring management of high temperatures and thermal loads, AlN substrates enable packing the highest power densities thanks to best-in-class thermal conductivity.

Comparison to Alumina and FR-4

Aluminum nitride differs from alumina ceramics and FR-4 laminates in several ways:

ParameterAluminum NitrideAluminaFR-4
Thermal Conductivity170-200 W/mK24-30 W/mK0.25-0.5 W/mK
Dielectric Constant8.89.2-104.2-4.6
Dielectric Strength15-25 kV/mm10-15 kV/mm15-30 kV/mm
Temperature Resistance1000-1500°C1000-1200°C130-170°C
CTE4.0 ppm/K6.5-7 ppm/K17-20 ppm/K
Flexural Strength330 MPa300 MPa180 MPa


  • Aluminum nitride PCBs provide extremely high thermal conductivity combined with electrical insulation.
  • Key manufacturing steps include sintering, metallization, lamination for multilayers, and integration into housings.
  • AlN enables high power density electronics due to unmatched heat spreading capabilities.
  • Thermal and mechanical behaviors require adjusted design rules compared to FR-4.
  • AlN PCB technology enables electronics to operate reliably in the most demanding temperature and power environments.


What are some typical AlN PCB substrate thicknesses?

AlN PCBs typically range from around 0.5mm to over 2mm in thickness. Thinner boards maximize heat transfer while thicker variants offer better mechanical rigidity.

Can AlN PCBs be manufactured with multiple layers?

Yes, multilayer AlN PCBs can be fabricated by stacking double sided boards using adhesive films and integrating vias and through holes to interconnect layers. 4-6 layers can be achieved.

Is aluminum nitride fragile like traditional ceramics?

No, while hard, AlN has relatively high fracture toughness. It resists fracturing from impacts or drops better than traditional ceramics like alumina or glass.

What metal coatings are used on AlN PCBs?

Thick-film pastes with tungsten or molybdenum are common. Thin films like sputtered copper or plated gold allow high conductivity and wire bonding. Nickel is also used as a diffusion barrier.

Can AlN PCBs be machined and drilled like FR-4?

Yes, AlN can be machined, drilled, and routed but carbide tools are required. Diamond tooling provides highest precision. Coolant helps prevent tool heating and AlN cracking.
