Introduction

Ball Grid Array (BGA) technology has become an indispensable part of creating compact, high-performance devices. However, with the increasing complexity of electronic components, BGA failures have emerged as a significant challenge in Surface Mount Technology (SMT) soldering processes. This comprehensive guide will walk you through the intricate process of BGA reballing, a crucial technique used to address SMT soldering failures and restore functionality to faulty components.

What Is BGA Reballing?

BGA reballing is a specialized repair technique used in electronics manufacturing to replace the solder balls on a BGA component. These tiny spheres of solder serve as the connection points between the BGA chip and the printed circuit board (PCB). When these connections fail due to various factors, reballing becomes necessary to restore the component’s functionality.

The process involves carefully removing the old solder balls, thoroughly cleaning the BGA component, and then precisely placing new solder balls in their correct positions. This delicate procedure requires a combination of skill, patience, and specialized equipment, particularly a BGA rework station, to ensure success.

Why Is BGA Reballing Needed?

Understanding the reasons behind BGA reballing is crucial for electronics manufacturers and repair technicians. Let’s explore the primary causes of BGA failure and the signs that indicate a need for reballing.

Causes of BGA Failure

1. Thermal stress: Repeated heating and cooling cycles can cause solder joints to crack or separate over time.
2. Manufacturing defects: Poor soldering during the initial assembly process can lead to weak or incomplete connections.
3. Physical damage: Drops, impacts, or excessive vibration can break solder connections or damage the BGA package.
4. Environmental factors: Exposure to extreme temperatures, humidity, or corrosive environments can accelerate solder joint degradation.
5. Electromigration: High current densities can cause solder material to migrate, weakening connections over time.
6. Warpage: PCB or BGA substrate warpage can lead to uneven solder connections or complete separation of joints.

Signs a BGA Needs Reballing

Identifying when a BGA component requires reballing is essential for maintaining the integrity and functionality of electronic devices. Common indicators include:

1. Intermittent device functionality or performance issues
2. No display or distorted video output in devices with graphics processors
3. Boot failures or system crashes in computing devices
4. Overheating of specific areas on the PCB near the BGA component
5. Visual inspection revealing cracked, missing, or deformed solder balls
6. X-ray analysis showing voids, bridges, or inconsistencies in solder connections
7. Failure to pass electrical continuity tests between the BGA and PCB

Tools & Supplies for BGA Reballing

To successfully perform BGA reballing, you’ll need a set of specialized tools and supplies. The cornerstone of this process is a high-quality BGA rework station, which provides precise temperature control and hot air capabilities. Here’s a comprehensive list of essential items:

Essential Tools List:

1. BGA rework station: The primary tool for the reballing process, featuring accurate temperature control and hot air functionality.
2. Reflow oven or hot air station: For controlled heating during the reballing process.
3. Solder paste flux (water-soluble preferred): Aids in the proper flow and adhesion of solder.
4. Soldering iron with a blade tip: For precise removal of old solder and cleanup.
5. Solder braid or wick: To remove excess solder during the cleaning process.
6. Preformed solder balls: Sized to match the BGA component’s specifications.
7. ESD-safe workspace: Including a wrist strap and anti-static mat to prevent electrostatic discharge.
8. Inspection tools: High-magnification microscope and X-ray machine for quality control.
9. Cleaning supplies: Isopropyl alcohol, lint-free cloths, and specialized PCB cleaners.
10. Tweezers and handling tools: For precise placement of solder balls.
11. Stencils or templates: To ensure accurate alignment of new solder balls.
12. Heat-resistant tape: For masking surrounding areas during the reballing process.
13. Thermal camera: To monitor temperature distribution during reflow.

Having these tools at your disposal, particularly a reliable BGA rework station, will significantly increase your chances of successful BGA reballing.

Read more about:

• IC reballing
• Best solder for pcb
• X-Ray Inspection
• Prototype PCB Assembly

Step-by-Step BGA Reballing Process

Now, let’s dive into the detailed process of BGA reballing, focusing on the use of a BGA rework station throughout the procedure.

Step 1: Component Removal from the PCB

The first step in the BGA reballing process is to carefully remove the faulty component from the PCB:

1. Preheat the PCB using your BGA rework station to reduce thermal shock.
2. Use the hot air nozzle of the rework station to evenly heat the BGA component.
3. Monitor the temperature using the station’s built-in sensors or a thermal camera.
4. Once the solder reaches its melting point, gently lift the component using vacuum pickup tools.
5. Place the removed component on an ESD-safe surface for further processing.

Step 2: Deballing

Deballing involves removing the old solder balls from the BGA component:

1. Apply a thin layer of flux to the solder balls to aid in removal.
2. Use your BGA rework station’s hot air to heat the component evenly.
3. Once the solder melts, carefully separate the component from the old solder balls.
4. Use solder wick and your soldering iron to remove any remaining solder from the pads.

Step 3: Inspection Post Deballing

After deballing, thorough inspection is crucial:

1. Use a high-magnification microscope to examine the BGA pads.
2. Look for any signs of damage, lifted pads, or residual solder.
3. Clean any flux residue for a clear view of the pads.
4. Document any irregularities for future reference.

Step 4: Moisture Removal-Post Deball

Moisture can significantly impact the reballing process:

1. Use your BGA rework station’s built-in oven or a separate baking oven.
2. Bake the BGA component at 125°C for 4-6 hours.
3. This step removes any absorbed moisture, preventing issues during reflow.

Step 5: Clean the Deballed Part

Proper cleaning ensures optimal adhesion of new solder balls:

1. Use isopropyl alcohol and lint-free cloths to clean the BGA pads.
2. For stubborn residues, use specialized PCB cleaners.
3. Ensure all flux and contaminants are completely removed.
4. Use your BGA rework station’s hot air at a low temperature to dry the component thoroughly.

Step 6: Drying Post Re-ball

After cleaning, it’s essential to dry the component thoroughly:

1. Use your BGA rework station’s hot plate or a separate low-temperature oven.
2. Maintain a temperature of about 80°C for 30 minutes.
3. This step evaporates any remaining cleaning solvents.

Step 7: Baking to Remove Moisture Post Re-ball

Another baking cycle helps ensure the component is completely moisture-free:

1. Use your BGA rework station’s oven feature or a separate baking oven.
2. Bake the cleaned and dried component at 125°C for 4-6 hours.
3. This step is crucial for preventing moisture-related issues during reflow.

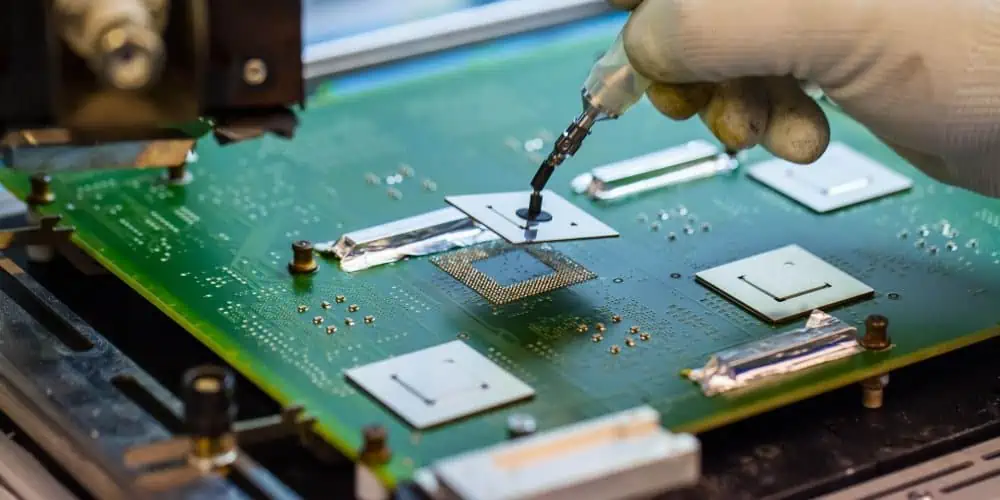

Step 8: Apply Paste Flux

Flux application is critical for proper solder ball adhesion:

1. Use a stencil or manual application method to apply a thin, even layer of flux to the BGA pads.
2. Ensure all pads are covered, but avoid excess flux that could cause bridging.
3. Your BGA rework station’s magnification feature can help ensure even application.

Step 9: Attach Pre-formed Solder Balls

This step requires precision and patience:

1. Use a ball placement stencil aligned with the BGA pads.
2. Carefully place pre-formed solder balls into each hole in the stencil.
3. Gently remove the stencil, leaving the solder balls in position on the flux.
4. Use your BGA rework station’s magnification to verify correct placement.

Step 10: BGA Component Placement

Proper placement is crucial for successful reballing:

1. Use your BGA rework station to preheat the component according to the manufacturer’s specifications.
2. Follow the machine’s specific profile for your component type.
3. Monitor the reflow process using the station’s thermal sensors or a separate thermal camera.
4. Allow the component to cool naturally to avoid thermal stress.

Step 11: Inspection

Post-reflow inspection is vital to ensure quality:

1. Use X-ray inspection to check for voids, bridges, or misaligned balls.
2. Perform a visual inspection under a microscope for any obvious defects.
3. If issues are found, the process may need to be repeated from Step 2.

Step 12: Reassembly & Testing

The final step involves reattaching the component and verifying functionality:

1. Clean the PCB area where the BGA will be attached.
2. Apply flux to the PCB pads.
3. Carefully align and place the reballed BGA component.
4. Use your BGA rework station to reflow the BGA onto the PCB, following the appropriate temperature profile.
5. After cooling, perform functional tests to ensure the repair was successful.

Advanced Techniques & Quality Control

Moisture Prevention

Moisture control is critical throughout the reballing process:

1. Use dry storage containers for components awaiting reballing.
2. Implement humidity-controlled workspaces.
3. Minimize exposure time between baking and reballing steps.
4. Consider using nitrogen purge systems in your BGA rework station for an inert environment.

Automation

For high-volume operations, consider automated solutions:

1. Automatic ball placement machines increase accuracy and speed.
2. Robotic handling systems reduce human error and contamination risks.
3. Automated optical inspection (AOI) systems for consistent quality control.
4. Advanced BGA rework stations with programmable profiles for repeatable results.

X-Ray Inspection

X-ray technology is invaluable for BGA quality assurance:

1. Use X-ray systems to inspect hidden solder joints.
2. Look for voids, bridges, and misalignments that are invisible to the naked eye.
3. Implement regular X-ray inspections as part of your quality control process.
4. Consider investing in a BGA rework station with built-in X-ray capabilities for seamless integration.

BGA Reballing Services vs. DIY

When faced with BGA failures, you have two main options: professional reballing services or doing it yourself (DIY).

Professional BGA Reballing Services

Pros:

• Access to high-end equipment and expertise
• Consistent results with high success rates
• Time-saving for businesses with limited resources
• Often comes with warranties or guarantees

Cons:

• Can be expensive, especially for low volumes
• Turnaround time may not suit urgent needs
• Less control over the process

DIY BGA Reballing

Pros:

• Cost-effective for frequent repairs
• Immediate turnaround time
• Complete control over the process
• Opportunity to develop in-house expertise

Cons:

• Requires significant investment in equipment, particularly a quality BGA rework station
• Steep learning curve and potential for errors
• Time-consuming, especially for beginners
• May void warranties on certain components

The choice between professional services and DIY depends on your specific needs, volume of repairs, available resources, and in-house expertise. If you decide to go the DIY route, investing in a high-quality BGA rework station is crucial for achieving professional-level results.

Conclusion

BGA reballing is a complex yet essential process in the world of electronics repair and manufacturing. By following this comprehensive guide and utilizing a professional-grade BGA rework station, you can navigate the intricacies of BGA reballing with confidence. Remember that practice, patience, and the right equipment are key to mastering this technique.

As technology continues to advance, the importance of skilled BGA reballing will only grow. Whether you choose to invest in developing in-house capabilities or rely on professional services, understanding the process is crucial for anyone involved in electronics manufacturing or repair.

By implementing proper techniques, investing in quality equipment like a reliable BGA rework station, and maintaining rigorous quality control, you can successfully address SMT soldering failures and extend the life of valuable electronic components. The ability to perform successful BGA reballing not only saves costs but also contributes to reducing electronic waste, aligning with global sustainability efforts.

Stay updated with the latest advancements in BGA technology, rework stations, and reballing techniques to ensure you’re always at the forefront of electronics repair and manufacturing. With the knowledge gained from this guide and the right tools at your disposal, you’re well-equipped to tackle BGA-related challenges and maintain the reliability of your electronic products.
