Electronic Manufacturing
PCB Assembly Services

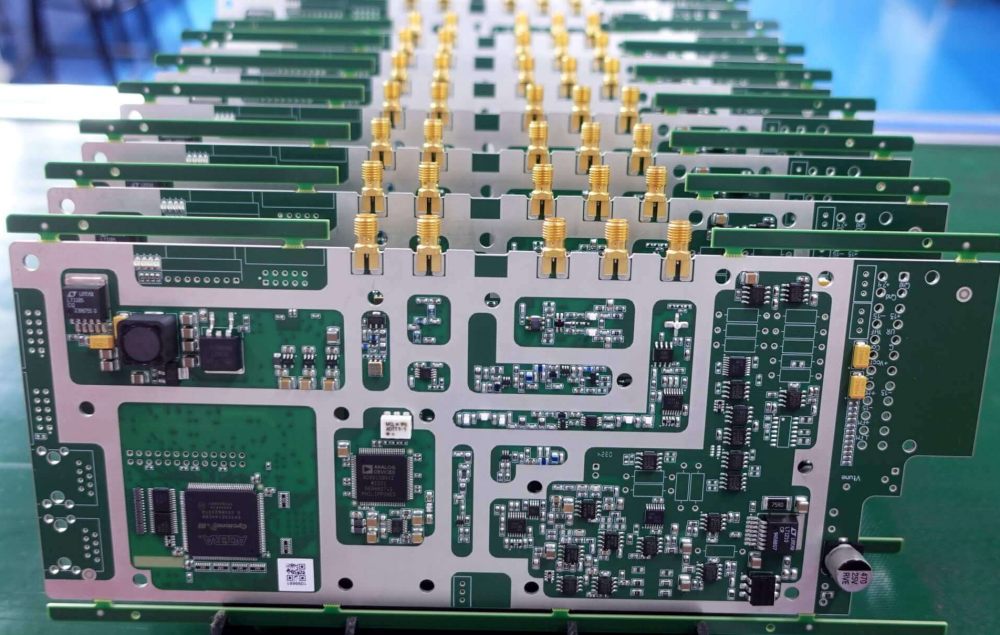

RAYMING is China PCB assembly manufacturer, who offers complete PCB assembly services in Shenzhen, RAYMING’s capable of providing turn-key and partial turn-key printed circuit board assembly services.
For full turn-key, we take care of the entire process, including manufacturing of Printed Circuit Boards, procurement of components (100% original), PCBA Testing, continuous monitoring of quality and final assembly.
Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by RAYMING.
PCB Assembly Solutions
PCB Fabrication
Up to 100 Layer PCB Manufacturing Service
PCB Stencil
Laser Cut SMT Stencils with your PCBs
Parts Sourcing
Full/Partial Electronic Components Bom List Sourcing

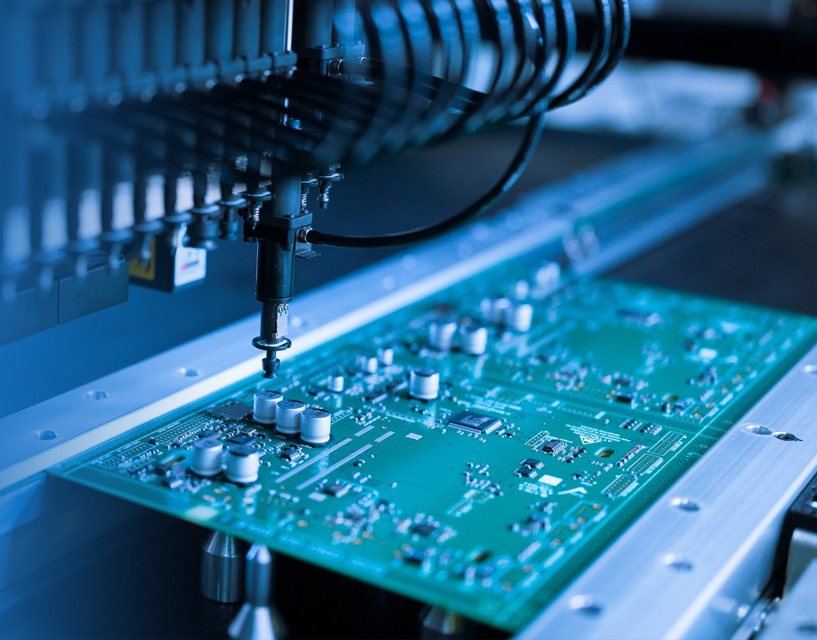

PCB Assembly
A Seamless Process from PCB to Assembly
IC Programming
Online / Offline programming Services
PCBA Testing
ICT FCT AOI X-RAY Fatigue Test, Aging Test
Prototype PCB Assembly
Small and medium runs with fast lead-times and no minimum quantity requirements
Turnkey Assembly
Full and partial Turn-key PCB Assembly Services on both rigid PCB Assembly and flex PCB assembly.
Flex PCB assembly
Same assembly process with some special operations on different technical requirement for Flexible assembly.

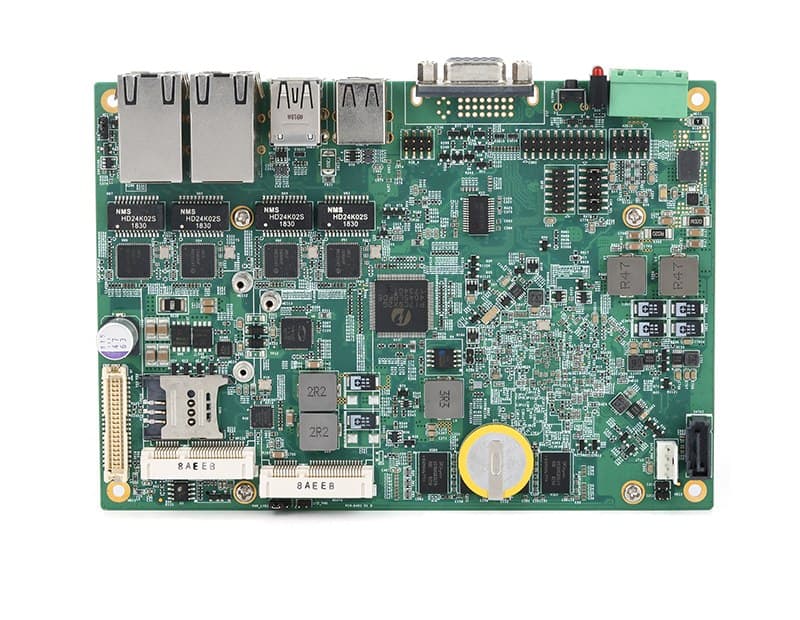

PCB Assembly Projects
Industries we served
MEDICAL INSTRUMENTATION
TEST & MEASUREMENT
LED LIGHTING
AUTOMOTIVE
CONSUMER ELECTRONICS
MARINE
INDUSTRIAL EQUIPMENT
COMMUNICATION NETWORKS
SOLVE YOUR DOUBTS
PCB Assembly FAQs
Send PCB files and Bom list to sales@raypcb.com with quantity and requirement, We will assign a sales person for one-on-one service, She will quote you in 24hours and follow rest.
Yes, We do, This called partial Turn-key. You can supply some parts, and we source the rest of the parts on your behalf. We will ask for your approval for anything that is not sure at our side. In case parts crossing or substitution is needed, we will again ask for your final approval.
We offer SMT, combined surface mount, chip on board, multi-layer quick turn prototypes and more based on custom specification and requirements!
Well, the cost depends on your requirements including design, complexity, number of layers, etc.
We cater our services in electronics, automotive, telecommunication, medical, renewable energy, and several other industries.
We need Gerber files, Centroid data and BOM for your PCBA orders. As have already placed your PCB order with us, actually you only need to send the latter two if your PCB Gerber files have included the layers of silkscreen, copper track and solder paste. If your PCB Gerber files are missing any of the above-mentioned three layers, please resend them, as this is the minimum request for PCBA. For the best possible result, please also send assembly drawings, instructions and photos to us to avoid any ambiguous and even mistaken placement of parts, though these are not required by most of the assemblers.
No, We donot, You can start from 1 pcs PCBA.
Of course, yes. We provide complete box-build services from printed circuit board design, manufacturing, assembly to end product prototyping PCB!
Our value-added services include electro-mechanical assembly, cable and wire harness assembly, box builds, panel assembly, specialized PCB rework, BGA assembly, RoHS compliant PCBs, conformal coating, potting, encapsulation, testing, and more.
Centroid is the special file for assembly used for quickly programming the assembly machines. This is also known as aka Insertion, Pick-N-Place, or XY Data. Some of the CAD tools will automatically generate this file and some not, but you may need to modify the file and then generate the Centroid file. The Centroid file describes the position and orientation of all the surface mount parts, which includes the reference designator, X and Y position, rotation and side of Board (Top or Bottom). Only surface mounting parts are listed in the Centroid.
