Hard Gold Plating PCB: Complete Guide to Applications, Cost & Design
Hard gold plating is an electroplated surface finish that deposits a durable gold alloy coating onto specific PCB areas, providing exceptional wear resistance and electrical conductivity.
Introduction
Hard gold plating PCB technology stands as a critical solution for high-performance applications. From aerospace systems operating in extreme conditions to medical devices requiring absolute reliability, hard gold plating provides the robust surface finish that engineers trust for their most challenging designs.
Hard gold plating is a surface finish applied to specific areas of a PCB, such as edge connectors or contact points, to provide exceptional durability and resistance to wear. Unlike other gold finishes, hard gold is alloyed with elements like cobalt or nickel to increase its hardness, making it ideal for high-wear applications.
This comprehensive guide explores every aspect of hard gold plating for PCBs, from fundamental concepts to advanced applications, helping you make informed decisions for your next project.
What is Hard Gold Plating PCB?
Definition and Core Properties
Hard gold finish, also known as electrolytic hard gold, is made of a layer of gold with hardeners that will maximize durability. Using an electrolytic process, it is plated over a nickel barrier coating. The term “hard” refers to the gold’s enhanced mechanical properties achieved through alloying with metals like cobalt, nickel, or iron.
Key Characteristics:
- Enhanced Hardness: Hard gold plating should consist of 5-10 percent cobalt to ensure optimum durability and stiffness of PCB contact edges
- Excellent Conductivity: Maintains superior electrical performance even after repeated use
- Corrosion Resistance: Provides long-term protection against environmental factors
- Wear Resistance: With proper hard gold plating, a gold finger PCB can typically withstand up to 1,000 insertion and removal cycles while maintaining reliable electrical connectivity
Gold Plating PCB We Served

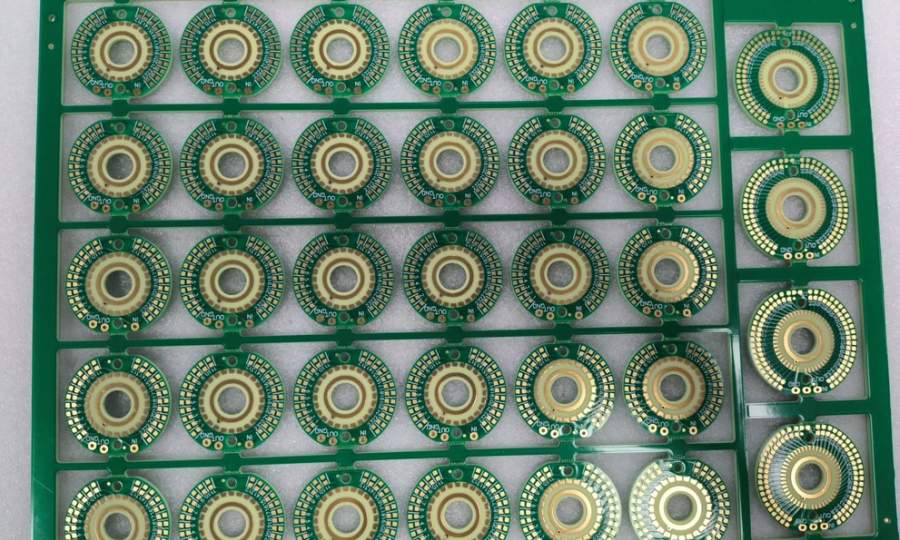

5u” Hard Gold PCB

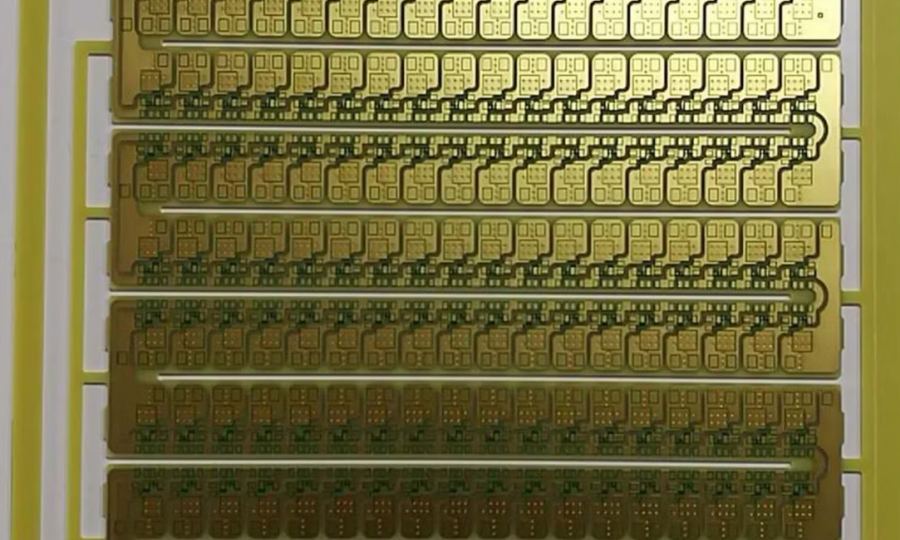

10u” Hard Gold PCB
20u” Hard Gold PCB

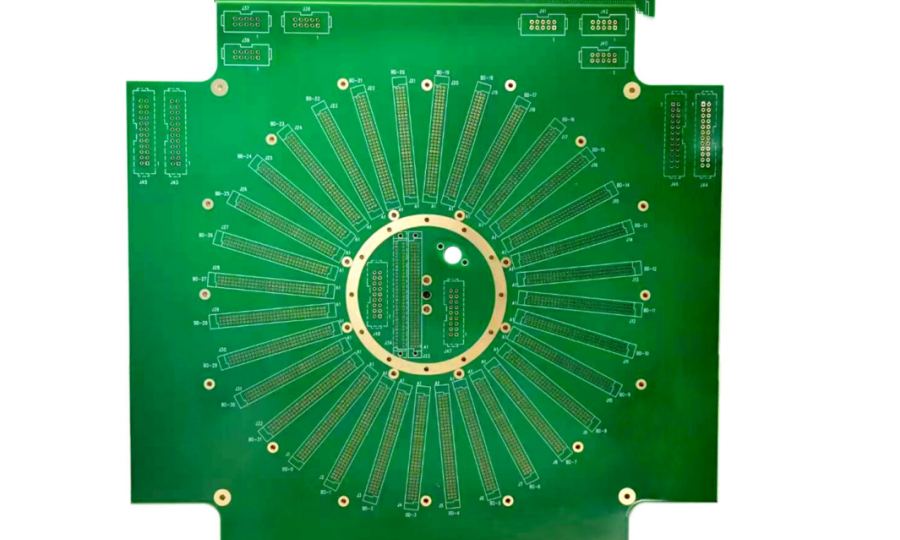

50u” Hard Gold PCB
Hard Gold vs. Soft Gold (ENIG)
Understanding the distinction between hard gold and soft gold (ENIG – Electroless Nickel Immersion Gold) is crucial for proper application selection:
Hard Gold Plating:
- Thickness: Typically ranges from 30-50 micro-inches (0.75-1.25 micrometers) for electrolytic hard gold
- Process: Electroplating with external electrical current
- Applications: High-wear areas, edge connectors, keypads
- Solderability: Limited due to hardener alloys
Soft Gold (ENIG):
- Thickness: Typically ranges from 1 to 5 microinches (25 to 127 micrometers)
- Process: Chemical deposition without external current
- Applications: Solderable pads, wire bonding areas
- Solderability: Excellent for assembly operations
ENIG: With a thinner gold layer, the overall cost is lower, making it the preferred surface finish for most standard PCBs. Hard Gold Plating: Due to the thicker and harder gold layer, the cost is higher and is typically used in specific high-end and wear-resistant applications.
Applications Across Industries
Aerospace and Defense
Aerospace, medical, and military applications often rely on hard gold plating for its corrosion resistance and ability to perform in harsh environments. In aerospace applications, hard gold plating ensures signal integrity in extreme temperature variations and radiation exposure.
Specific Applications:
- Satellite communication systems
- Avionics control panels
- Military communication equipment
- Radar systems
- Navigation instruments
The MIL-G-45204 standard controls how thick the gold plating is. This makes sure each printed circuit board is tough and conducts electricity well.
Medical Devices
The medical industry demands the highest reliability standards, making hard gold plating essential for critical applications:
- Implantable Devices: Heart pacemakers and monitoring systems
- Diagnostic Equipment: Medical imaging systems and analyzers
- Life Support Equipment: Ventilators and monitoring devices
- Surgical Instruments: Electronic surgical tools and controls
Medical devices also use hard gold plating. Heart monitors use thick gold PCB to keep patients safe. The gold surface helps with soldering and keeps signals steady.
Telecommunications and Data Centers
Gold PCBs have unique properties like high conductivity and resistance, making them ideal for telecommunications. They guarantee signal integrity and reduce data transfer interference.
Key Applications:
- Server expansion cards
- Network switching equipment
- 5G infrastructure components
- High-frequency RF circuits
- Data center interconnects
Consumer Electronics
While cost considerations limit widespread use, hard gold plating finds applications in premium consumer products:
- Computer Memory: RAM Modules: Gold Fingers ensure a reliable connection between the memory modules and the motherboard
- Gaming Systems: High-performance graphics cards
- Professional Audio: High-end audio equipment connectors
- Smartphones: SIM Card Connectors: Used in smartphones to ensure a stable and long-lasting connection between the SIM card and the phone
Automotive Electronics
Modern vehicles increasingly rely on sophisticated electronics, driving demand for reliable PCB solutions:
- Electronic Control Units (ECUs)
- Advanced Driver Assistance Systems (ADAS)
- Infotainment systems
- Battery management systems (EVs)
- Sensor interfaces
Industrial and Test Equipment
PCBs in testing and measurement devices benefit from hard gold’s durability, as they often require frequent connections and disconnections.
Applications Include:
- Automated test equipment (ATE)
- Industrial control systems
- Measurement instruments
- Process control equipment
- Quality assurance systems
Manufacturing Process and Design Considerations
Step-by-Step Manufacturing Process
The hard gold plating process for PCBs involves several meticulous steps to ensure a uniform, durable finish.
1. Surface Preparation
The PCB surface, typically copper, is thoroughly cleaned to remove contaminants like oils, oxides, or residues. This step often involves chemical cleaning or micro-etching to ensure proper adhesion of subsequent layers.
Critical Steps:
- Chemical cleaning with specialized solvents
- Micro-etching to create optimal surface texture
- Thorough rinsing to remove all contaminants
- Quality inspection before proceeding
2. Nickel Underlayer Application
First, 0.004 to 0.008 mil of nickel is plated onto the connector edges of the fingers. A Nickel underlayer is electro-plated onto the PCB with a minimum thickness of 50 microinch.
Functions of Nickel Layer:
- Provides mechanical support for gold layer
- Acts as diffusion barrier
- Prevents pore and creep corrosion
- Ensures proper adhesion
3. Hard Gold Electroplating
Later, 0.04 to 0.08 mil of hard gold is plated over the nickel. The gold is usually mixed with cobalt for increasing the surface resistance. The 24 carat hard gold, immersed in a salt medium, is then electro-plated directly onto the Nickel surface.
Process Parameters:
- Current density: 1-5 ASF (amperes per square foot)
- Bath temperature: Typically 60-70°C
- Plating time: Varies based on desired thickness
- Agitation: Essential for uniform deposition
4. Post-Processing
The connector edges are beveled at specific angles to facilitate smooth insertion into mating connectors. Available beveling angles include 20°, 30°, 45°, and 60°.
Design Rules and Guidelines
Gold Pad Specifications
Gold Pad Size: The gold pad should be larger than the corresponding component lead or contact pad to ensure proper coverage and contact reliability.
Design Requirements:
- Minimum pad size considerations
- Proper clearance from other features
- Adequate coverage for contact reliability
- Rounding Corners: It is recommended to round the corners of gold pads to enhance the durability of the gold-plated surface and minimize stress concentration
Electrical Connectivity Requirements
Since a hard gold finish is applied through an electrolytic process, additional copper tracks are needed to connect the gold-plated pads to the anode. These tracks must be removed after plating.
Key Considerations:
- Tie bar design for edge connectors
- Internal layer connections for selective plating
- Post-processing removal methods
- Design for manufacturing (DFM) optimization
Keep-Out Areas
Design the PCB layout to have keep-out areas around gold-plated pads to prevent solder mask or other materials from encroaching on the gold surface. No solder mask or silkscreening can be present in the plated area.
Design Rules:
- Maintain at least 1.0mm clearance between gold fingers and plated holes, SMD components, or pads
- No plated through holes are allowed in the plated area
- Proper isolation from other surface treatments
Thickness Standards and IPC Compliance
Industry Standards Overview
IPC standards such as IPC-4552 and IPC-6012 define minimum and recommended thickness levels for different applications, ensuring that manufacturers produce reliable, long-lasting products.
IPC Classification Standards
The most widely recognized standard is set by the Institute of Printed Circuits (IPC), specifically in the IPC-6012 specification for rigid PCBs.
Class 1 Boards (General Electronics)
Minimum gold thickness of 5-10 microinches (0.13-0.25 micrometers) over a nickel underlayer of 50-150 microinches (1.27-3.81 micrometers).
Applications:
- Consumer electronics
- Standard commercial equipment
- Non-critical applications
Class 2 Boards (Dedicated Service Electronics)
Minimum gold thickness of 30 microinches (0.76 micrometers) over nickel.
Applications:
- Professional equipment
- Communications systems
- Industrial controls
Class 3 Boards (High-Reliability Electronics)
Minimum gold thickness of 30-50 microinches (0.76-1.27 micrometers) for critical applications like aerospace or medical devices.
Applications:
- Aerospace systems
- Medical devices
- Military equipment
- Life-critical systems
Thickness Selection Guidelines
Application-Based Thickness Requirements
For high insertion cycles, a thickness of 30-50 microinches (0.76-1.27 micrometers) of gold over a nickel underlayer is often recommended to ensure durability.
Low-Wear Applications:
- 5-15 microinches (0.13-0.38 micrometers)
- Infrequent insertion/removal
- Protected environments
Medium-Wear Applications:
- 15-30 microinches (0.38-0.76 micrometers)
- Moderate contact cycles
- Standard industrial environments
High-Wear Applications:
- 30-50 microinches (0.76-1.27 micrometers)
- Some studies suggest that a gold layer of at least 30 microinches can handle up to 1,000 insertion cycles without significant degradation
Specialized Applications
Thick Coatings (>100µin): Required for high-wear environments, such as industrial and aerospace applications.
Cost Analysis and Economic Considerations
Primary Cost Factors
Material Costs
Gold pricing significantly impacts overall PCB costs, with prices fluctuating based on market conditions. A simple calculator is provided below to determine the approximate weight of gold consumed for edge connectors. Simply provide the dimensions (in inches), take the resulting weight and multiply by the current price (the London Metal Exchange is a good resource) of gold.
Cost Variables:
- Current gold market price per ounce
- Total surface area requiring plating
- Required thickness specification
- Waste factor in processing
Processing Costs
Hard Gold Plating: Due to the thicker and harder gold layer, the cost is higher and is typically used in specific high-end and wear-resistant applications.
Additional Cost Factors:
- Setup and tooling costs
- Labor for selective plating operations
- Quality control and testing
- Yield considerations
Cost Optimization Strategies
Selective vs. Full-Body Plating
Selective Gold involves using a hard gold surface finish to plate specific areas on a PCB. The application process for Selective Gold is nearly the same as Full Body Hard Gold, but the Selective method does require some masking that will accrue additional labour charges, balanced out by decreased material cost.
Optimization Approaches:
- Apply hard gold only where needed
- Use alternative finishes for non-critical areas
- Optimize pad sizes to minimize plated area
- Consider panelization effects on processing
Design for Cost (DFC) Principles
Avoid unnecessary plating to reduce costs, as gold is expensive compared to other finishes.
Best Practices:
- Specify minimum required thickness
- Combine with other surface finishes strategically
- Consider volume pricing effects
- Plan for manufacturing efficiency
Return on Investment (ROI)
Thick gold PCB costs more at first, but it saves money later by lowering downtime and repair needs for important equipment.
Long-term Benefits:
- Reduced field failures
- Extended product lifecycles
- Lower maintenance costs
- Enhanced brand reputation
Quality Control and Testing Methods
Measurement Techniques
Accurately measuring gold finger thickness is essential to ensure compliance with design specifications and industry standards.
X-Ray Fluorescence (XRF)
This non-destructive method uses X-rays to measure the thickness of gold and nickel layers. It’s highly accurate, with a precision of ±1 microinch (±0.025 micrometers), and is widely used for quality control in PCB manufacturing.
Advantages:
- Non-destructive testing
- High accuracy and precision
- Rapid measurement capability
- Suitable for production environments
Cross-Sectional Analysis
This destructive method involves cutting a sample of the PCB and examining the gold layer under a microscope. While precise, it’s typically used for validation during development rather than routine testing due to its invasive nature.
Applications:
- Process development
- Failure analysis
- Qualification studies
- Layer structure verification
Visual Inspection Requirements
Gold fingers of hard gold plated PCBs must pass a visual inspection using a magnifying lens. This test ensures that the edges possess a polished, clean surface, free from excessive gold plating or visible traces of nickel.
Inspection Criteria:
- Surface smoothness and uniformity
- Absence of contamination
- Proper coverage without voids
- Edge quality and beveling accuracy
Adhesion Testing
Tape Test: Adhesion testing using specialized tape to verify proper gold plating adhesion to the substrate. Quality control for hard gold finishes include thickness and tape adhesion tests.
Testing Procedures:
- Standardized tape application
- Controlled removal force
- Visual examination for adhesion failures
- Documentation of results
Troubleshooting Common Issues
Process-Related Problems
Even with a well-defined process, issues can arise during hard gold plating that affect the PCB’s performance.
Uneven Thickness Distribution
If the gold layer varies in thickness across the PCB, it may result from inconsistent current distribution during plating. Ensure the plating bath is properly agitated and that the current density (typically 1-5 ASF, or amperes per square foot) is optimized for uniform deposition.
Corrective Actions:
- Optimize rack design and positioning
- Adjust bath agitation parameters
- Monitor and control current density
- Regular bath analysis and maintenance
Poor Adhesion Issues
Gold peeling or flaking often indicates inadequate surface preparation or a defective nickel underlayer.
Root Causes and Solutions:
- Insufficient surface cleaning – improve pre-treatment
- Contaminated bath chemistry – maintain bath purity
- Improper nickel layer quality – optimize nickel process
- Thermal shock during processing – control temperature gradients
Design-Related Challenges
Electrical Connectivity Problems
Poor electrical connection to plating areas can result in incomplete or inconsistent plating coverage.
Prevention Strategies:
- Adequate tie bar design
- Proper electrical routing
- Consider current path resistance
- Verify connectivity before processing
Mask Adhesion Issues
Improper masking can lead to contamination of non-plated areas or incomplete coverage of intended areas.
Best Practices:
- Use appropriate mask materials
- Ensure proper surface preparation
- Monitor mask adhesion throughout process
- Regular mask inspection and replacement
Performance Issues
Contact Resistance Problems
High contact resistance can indicate insufficient thickness or contamination.
Diagnostic Approaches:
- Measure actual thickness vs. specification
- Check for surface contamination
- Verify proper alloying composition
- Assess environmental exposure effects
Premature Wear
Faster than expected wear indicates possible thickness or hardness issues.
Investigation Steps:
- Verify thickness measurements
- Check cobalt/nickel content in plating
- Assess actual vs. expected duty cycles
- Consider environmental factors
Comparison with Alternative Surface Finishes
ENIG (Electroless Nickel Immersion Gold)
Among all of the above options, ENIG is arguably the best balance of cost durability, and range of application.
When to Choose ENIG:
- Solderable surfaces required
- Lower cost priority
- Standard insertion cycles
- Mixed assembly requirements
When Hard Gold is Better:
- High insertion cycle requirements
- Extreme environmental conditions
- Maximum durability needed
- Non-solderable applications
OSP (Organic Solderability Preservative)
Advantages of OSP:
- Lowest cost option
- Excellent solderability
- Flat surface for fine pitch components
- Environmental compliance
Hard Gold Advantages:
- Superior durability
- Better corrosion resistance
- Longer shelf life
- Suitable for contact applications
HASL (Hot Air Solder Leveling)
HASL Benefits:
- Proven reliability
- Good solderability
- Lower cost than gold
- Established processes
Hard Gold Benefits:
- Flat surface topology
- Fine pitch compatibility
- Superior wear resistance
- Better high-frequency performance
Future Trends and Innovations
Advanced Alloy Development
Research continues into new gold alloy compositions that offer improved performance characteristics while potentially reducing costs.
Development Areas:
- Alternative hardening elements
- Improved deposition techniques
- Enhanced corrosion resistance
- Better high-temperature performance
Process Automation
Manufacturing advances focus on improved process control and automation to ensure consistent quality while reducing costs.
Innovation Trends:
- Real-time thickness monitoring
- Automated quality inspection
- Predictive maintenance systems
- Advanced process control algorithms
Environmental Considerations
Increasing focus on sustainable manufacturing drives development of more environmentally friendly processes and materials.
Sustainability Initiatives:
- Reduced chemical waste
- Improved bath life and recycling
- Alternative chemistry development
- Energy efficiency improvements
Market Growth Drivers
Several factors continue to drive growth in hard gold plating applications:
Key Drivers:
- 5G infrastructure deployment
- Electric vehicle adoption
- Medical device miniaturization
- Aerospace industry expansion
- IoT device proliferation
Best Practices and Recommendations
Design Optimization
To achieve optimal results with hard gold plating in PCB design, follow these best practices tailored for engineers and designers.
Specification Clarity
Specify Plating Areas Clearly: Use design files to indicate exactly where hard gold plating is needed, such as on edge connectors or specific pads.
Documentation Requirements:
- Clear fabrication drawings
- Detailed specification notes
- Thickness requirements by area
- Quality standards reference
Thickness Selection
Choose the Right Thickness: Match the gold thickness to the application’s wear and environmental requirements. For instance, use 0.8-1.3 microns for moderate wear and up to 2.5 microns for high-cycle applications.
Substrate Preparation
Ensure Proper Nickel Underlayer: A uniform nickel layer of 3-6 microns is critical for adhesion and durability. Specify this in your design requirements to avoid issues like gold peeling.
Manufacturing Partnership
Collaborate with Manufacturers Early: Work closely with your PCB fabrication partner during the design phase to confirm that your hard gold plating requirements are feasible and cost-effective.
Partnership Benefits:
- Early design feedback
- Process optimization opportunities
- Cost reduction strategies
- Quality assurance planning
Quality Assurance
Implement comprehensive quality control throughout the design and manufacturing process:
QA Checkpoints:
- Design rule verification
- Process qualification
- In-process monitoring
- Final inspection and testing
- Field performance tracking
Conclusion
Hard gold plating PCB technology represents a critical enabling solution for high-performance electronics across diverse industries. From aerospace systems requiring absolute reliability to consumer electronics demanding premium performance, hard gold plating delivers the durability and performance characteristics that engineers trust.
Success with hard gold plating requires understanding the interplay between application requirements, design considerations, manufacturing processes, and cost factors. By following established industry standards, implementing proper design practices, and working closely with experienced manufacturing partners, engineers can leverage hard gold plating to create robust, reliable electronic systems.
As technology continues to advance, hard gold plating will remain essential for applications where reliability, durability, and performance are non-negotiable. Whether designing next-generation aerospace systems, life-critical medical devices, or high-performance computing platforms, hard gold plating PCB technology provides the foundation for electronics that perform when it matters most.
The investment in hard gold plating – while higher than alternative finishes – delivers long-term value through reduced field failures, extended product lifecycles, and enhanced system reliability. For engineers and designers committed to excellence, hard gold plating represents not just a surface finish choice, but a commitment to quality that end-users depend on.
By mastering the principles, practices, and applications outlined in this guide, you’ll be equipped to make informed decisions about when and how to implement hard gold plating in your PCB designs, ensuring optimal performance for your most demanding applications.
Conclusion
ENIG (Electroless Nickel Immersion Gold) represents a mature and versatile surface finishing technology that continues to play a crucial role in modern PCB manufacturing. Its combination of excellent solderability, superior corrosion resistance, and reliable performance makes it the preferred choice for demanding electronic applications across multiple industries.
While ENIG does present certain challenges, including higher costs and potential process complexities, the benefits far outweigh the disadvantages for applications requiring high reliability and long-term performance. The key to successful ENIG implementation lies in understanding the process fundamentals, maintaining proper quality control, and working with experienced suppliers who can provide consistent, high-quality results.
As the electronics industry continues to evolve toward smaller, more complex, and higher-performance devices, ENIG technology will likely remain a cornerstone of advanced PCB manufacturing. Ongoing developments in process chemistry, equipment design, and quality control methods will further enhance its capabilities and expand its applications.
For engineers and manufacturers considering ENIG for their PCB applications, careful evaluation of requirements, costs, and benefits will ensure optimal results. The investment in ENIG technology often pays dividends through improved product reliability, reduced field failures, and enhanced customer satisfaction.
The future of ENIG looks promising, with continued innovations addressing current limitations while expanding into new application areas. As environmental regulations become more stringent and sustainability concerns grow, the industry will likely see developments in more environmentally friendly chemistries and processes that maintain the excellent performance characteristics that make ENIG such a valuable surface finishing option.
Understanding ENIG PCB technology is essential for anyone involved in modern electronics design and manufacturing. This comprehensive guide provides the foundation for making informed decisions about surface finish selection and implementation, ensuring successful outcomes in today’s competitive electronics marketplace.
