In the ever-evolving world of electronics manufacturing, maintaining consistent quality and reliability is paramount. At the heart of this pursuit lies a set of industry-wide standards known as IPC Standards for PCB Assembly. These standards, developed by the Association Connecting Electronics Industries (formerly known as the Institute for Printed Circuits), serve as the backbone for ensuring excellence in printed circuit board (PCB) design, manufacturing, and assembly processes.

This comprehensive guide will delve deep into the world of IPC Standards for PCB Assembly, exploring their significance, key components, and impact on the electronics manufacturing industry. Whether you’re a seasoned professional or new to the field, this article will provide valuable insights into the standards that shape the quality and reliability of electronic devices we use every day.

Powered By EmbedPress

Understanding IPC Standards for PCB Assembly

What Are IPC Standards?

IPC Standards are a set of guidelines and specifications developed by the IPC (Association Connecting Electronics Industries) to ensure consistency, quality, and reliability in the electronics manufacturing industry. These standards cover various aspects of PCB design, fabrication, and assembly, providing a common language and benchmarks for manufacturers, suppliers, and customers worldwide.

The Importance of IPC Standards in PCB Assembly

IPC Standards for PCB Assembly play a crucial role in maintaining quality and reliability in electronics manufacturing. Here are some key reasons why these standards are essential:

  1. Quality Assurance: By adhering to IPC Standards, manufacturers can ensure that their PCB assemblies meet industry-recognized quality benchmarks.
  2. Consistency: Standards provide a uniform approach to PCB assembly, reducing variations and inconsistencies across different manufacturers and production runs.
  3. Cost Reduction: Implementing standardized processes can lead to improved efficiency and reduced waste, ultimately lowering production costs.
  4. Customer Confidence: Products manufactured in compliance with IPC Standards instill greater confidence in customers, as they are assured of the quality and reliability of the end product.
  5. Global Compatibility: IPC Standards are recognized worldwide, facilitating international trade and collaboration in the electronics industry.

Read more about:

Key IPC Standards for PCB Assembly

IPC-A-610: Acceptability of Electronic Assemblies

IPC-A-610 is one of the most widely used standards in the electronics industry. It provides visual acceptance criteria for electronic assemblies and is often referred to as the “bible” of the industry.

Key Features of IPC-A-610:

  1. Three Classes of Products: The standard defines three classes of electronic products based on reliability requirements:
    • Class 1: General Electronic Products
    • Class 2: Dedicated Service Electronic Products
    • Class 3: High-Performance/Harsh Environment Electronic Products
  2. Visual Inspection Criteria: It provides detailed guidelines for visual inspection of various aspects of PCB assembly, including component placement, soldering, and overall board quality.
  3. Defect Classification: The standard classifies defects into three categories:
    • Accept: Meets the minimum requirements
    • Process Indicator: May require process improvement but is acceptable
    • Defect: Requires rework or repair
  4. Illustrated Examples: The standard includes numerous photographs and illustrations to help inspectors identify and classify defects accurately.

IPC-J-STD-001: Requirements for Soldered Electrical and Electronic Assemblies

IPC-J-STD-001 is a companion standard to IPC-A-610, focusing specifically on the materials and processes used in producing soldered electrical and electronic assemblies.

Key Aspects of IPC-J-STD-001:

  1. Material Requirements: It specifies the requirements for materials used in soldering, including solder alloys, fluxes, and cleaning agents.
  2. Process Control: The standard outlines procedures for controlling various aspects of the soldering process, such as temperature profiles and cleanliness.
  3. Acceptance Criteria: It provides detailed acceptance criteria for soldered connections, including through-hole and surface mount technology (SMT) assemblies.
  4. Specialized Requirements: The standard includes specific requirements for unique assembly types, such as wire and terminal connections.

IPC-7711/7721: Rework, Modification and Repair of Electronic Assemblies

This pair of standards provides guidelines for reworking, modifying, and repairing electronic assemblies. They are essential for maintaining the quality and reliability of PCBs throughout their lifecycle.

Key Features of IPC-7711/7721:

  1. Rework Procedures: The standards outline step-by-step procedures for various rework operations, such as component removal and replacement.
  2. Modification Guidelines: They provide guidance on how to modify existing PCB assemblies without compromising their integrity.
  3. Repair Techniques: The standards describe techniques for repairing damaged PCBs and components, ensuring that repaired assemblies meet the same quality standards as new ones.
  4. Tools and Equipment: They specify the appropriate tools and equipment to be used for rework, modification, and repair operations.

Implementing IPC Standards in PCB Assembly

Training and Certification

To effectively implement IPC Standards for PCB Assembly, it’s crucial to have a well-trained workforce. The IPC offers various training and certification programs to ensure that personnel involved in PCB assembly are knowledgeable about the standards and their application.

Key Training Programs:

  1. IPC-A-610 Certified IPC Specialist (CIS): This program trains individuals in the visual acceptance criteria for electronic assemblies.
  2. IPC J-STD-001 Certified IPC Specialist: This certification focuses on soldering processes and acceptance criteria.
  3. IPC-7711/7721 Certified IPC Specialist: This program trains technicians in rework, modification, and repair techniques for PCB assemblies.

Establishing Quality Control Processes

Implementing IPC Standards requires robust quality control processes throughout the PCB assembly workflow. Here are some key steps to establish effective quality control:

  1. Incoming Inspection: Implement thorough inspection procedures for incoming materials and components to ensure they meet IPC Standards before entering the assembly process.
  2. In-Process Quality Checks: Conduct regular quality checks at various stages of the assembly process to catch and correct issues early.
  3. Final Inspection: Perform comprehensive final inspections of assembled PCBs using IPC-A-610 criteria to ensure the final product meets all quality requirements.
  4. Documentation and Traceability: Maintain detailed records of all quality control activities, including inspection results, rework operations, and any deviations from standards.

Continuous Improvement

Adhering to IPC Standards for PCB Assembly is not a one-time effort but a continuous process of improvement. Here are some strategies for ongoing enhancement:

  1. Regular Audits: Conduct internal audits to assess compliance with IPC Standards and identify areas for improvement.
  2. Data Analysis: Analyze quality control data to identify trends and recurring issues, allowing for targeted process improvements.
  3. Staff Training: Provide ongoing training to keep staff up-to-date with the latest revisions to IPC Standards and best practices in PCB assembly.
  4. Supplier Management: Work closely with suppliers to ensure they adhere to IPC Standards, maintaining quality throughout the supply chain.

Advanced Topics in IPC Standards for PCB Assembly

IPC-6012: Qualification and Performance Specification for Rigid Printed Boards

While not directly related to assembly, IPC-6012 is crucial for ensuring the quality of the PCBs used in assembly processes. This standard sets the requirements for qualification and performance of rigid printed boards.

Key Aspects of IPC-6012:

  1. Performance Classes: Similar to IPC-A-610, it defines three classes of PCBs based on reliability requirements.
  2. Qualification Requirements: It outlines the tests and inspections required to qualify a PCB for use in electronic assemblies.
  3. Electrical Properties: The standard specifies requirements for electrical properties such as impedance control and dielectric withstanding voltage.
  4. Physical Properties: It defines requirements for physical properties like dimensional stability and thermal stress resistance.

IPC-2221 and IPC-2222: Generic Standard on Printed Board Design

These standards provide guidelines for PCB design, which directly impacts the assembly process. Understanding these standards can help assembly professionals work more effectively with design teams.

Key Features of IPC-2221 and IPC-2222:

  1. Design Considerations: They cover various aspects of PCB design, including layer stackup, conductor spacing, and pad design.
  2. Design for Manufacturability (DFM): The standards provide guidance on designing PCBs that are easier to manufacture and assemble.
  3. Thermal Management: They include guidelines for designing PCBs with effective thermal management, crucial for high-power applications.
  4. Signal Integrity: The standards address design considerations for maintaining signal integrity in high-speed circuits.

IPC-4101: Specification for Base Materials for Rigid and Multilayer Printed Boards

This standard is essential for understanding the properties of the base materials used in PCB manufacturing, which can impact assembly processes and final product reliability.

Key Aspects of IPC-4101:

  1. Material Classifications: It defines various types of base materials and their properties.
  2. Performance Requirements: The standard specifies performance requirements for different material types, including electrical, mechanical, and thermal properties.
  3. Testing Methods: It outlines standardized testing methods for evaluating base material properties.
  4. Environmental Considerations: The standard addresses environmental factors, such as flammability ratings and halogen content.

The Future of IPC Standards for PCB Assembly

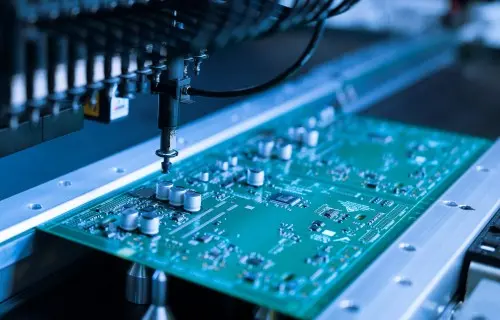

High Volume Assembly Line

As technology continues to evolve, IPC Standards for PCB Assembly must adapt to new challenges and innovations in the electronics industry. Here are some trends and developments to watch:

Miniaturization and High-Density Interconnect (HDI)

As electronic devices become smaller and more complex, PCB assemblies are moving towards higher density and finer pitch components. IPC Standards will need to evolve to address the challenges associated with assembling and inspecting these highly miniaturized boards.

Flexible and Rigid-Flex PCBs

The increasing use of flexible and rigid-flex PCBs in various applications, from wearable devices to aerospace, will require updates to existing standards and potentially new standards specifically addressing these technologies.

Advanced Materials

The development of new PCB materials, such as those designed for high-frequency applications or extreme environments, will necessitate updates to standards related to material specifications and assembly processes.

Industry 4.0 and Smart Manufacturing

As the electronics manufacturing industry embraces Industry 4.0 concepts, IPC Standards may need to incorporate guidelines for integrating smart manufacturing technologies, such as real-time process monitoring and data analytics, into PCB assembly processes.

Sustainability and Environmental Considerations

With growing emphasis on sustainability, future revisions of IPC Standards may include more comprehensive guidelines for environmentally friendly manufacturing processes, material selection, and end-of-life considerations for electronic assemblies.

Conclusion: The Enduring Importance of IPC Standards for PCB Assembly

In conclusion, IPC Standards for PCB Assembly play a vital role in ensuring the quality, reliability, and consistency of electronic products in an increasingly complex and demanding industry. From providing clear acceptance criteria for assembled PCBs to guiding the entire manufacturing process, these standards serve as the foundation for excellence in electronics manufacturing.

As we’ve explored in this comprehensive guide, adhering to IPC Standards offers numerous benefits, including improved quality assurance, cost reduction, and enhanced customer confidence. By implementing these standards through proper training, robust quality control processes, and a commitment to continuous improvement, manufacturers can position themselves at the forefront of the electronics industry.

Looking to the future, IPC Standards will continue to evolve, addressing new technologies, materials, and manufacturing processes. Staying informed about these developments and actively participating in the standards development process will be crucial for companies wanting to maintain a competitive edge in the global electronics market.

Whether you’re a PCB assembly professional, a quality control specialist, or an electronics engineer, understanding and implementing IPC Standards is essential for success in today’s high-tech manufacturing landscape. By embracing these standards and the principles they represent, we can collectively drive innovation, quality, and reliability in the electronics that shape our world.
