A Comprehensive Guide to Rogers PCB: Materials, Design, and Cost Considerations
With over 20 years of expertise, RayMing specializes in Rogers PCB manufacturing. We offer comprehensive support for the entire Rogers series, including RO4350B, RO4003C, RO3003, RT5880, RT5870, AD, and TMM series.
What is Rogers PCB ?
Rogers PCBs are specialized printed circuit boards manufactured using high-performance laminates produced by Rogers Corporation. These materials are designed to meet the demanding requirements of high-frequency and high-speed applications, offering superior electrical and mechanical properties compared to standard FR4 materials.
Rogers PCBs are characterized by their:
Low dielectric loss
Consistent electrical properties across a wide range of frequencies
Excellent thermal stability
Low moisture absorption
High reliability in extreme environments
These unique properties make Rogers PCBs ideal for applications in industries such as aerospace, defense, telecommunications, and high-speed computing.
RAYMING is a seasoned manufacturer specializing in Rogers PCBs. Whether you require boards made from pure Rogers material or hybrid lamination, we support high-frequency (HF) PCB projects from the R&D phase through to mass production. If you need design advice or a cost estimate, don’t hesitate to reach out to us! We’re here to assist with your needs.
Key Advantages of Rogers PCBs
Rogers PCBs offer several significant advantages over traditional PCB materials, making them the preferred choice for many high-performance applications:
Superior High-Frequency Performance: Rogers materials exhibit low dielectric loss and stable electrical properties at high frequencies, crucial for RF and microwave applications.
Excellent Thermal Stability: Rogers PCBs maintain their electrical and mechanical properties across a wide temperature range, ensuring consistent performance in challenging environments.
Low Moisture Absorption: Unlike some traditional PCB materials, Rogers laminates have very low moisture absorption rates, enhancing reliability in humid conditions.
Tight Thickness and Dielectric Constant Tolerances: Rogers materials offer precise control over thickness and dielectric constant, enabling accurate impedance control and signal integrity.
Improved Signal Integrity: The low loss tangent of Rogers materials results in reduced signal attenuation, particularly beneficial for high-speed digital and analog applications.
Enhanced Dimensional Stability: Rogers PCBs exhibit minimal change in size and shape with temperature variations, crucial for maintaining precise component placement and board flatness.
Compatibility with Standard PCB Processes: Despite their specialized nature, Rogers materials can be processed using conventional PCB manufacturing techniques, facilitating integration into existing production lines.
When designing with Rogers PCB materials, it’s essential to follow specific guidelines to maximize performance and reliability:
1. Impedance Control
Maintain strict control over trace widths and spacings to achieve the desired impedance. Use electromagnetic field solvers for accurate impedance calculations, considering the specific Rogers material properties.
2. Layer Stack-up Design
Carefully plan your layer stack-up, considering the dielectric constants of different Rogers materials. Symmetrical designs can help minimize warpage and improve overall board stability.
3. Thermal Management
Incorporate proper thermal management techniques, such as using thermal vias or copper coins, to dissipate heat effectively, especially in high-power applications.
4. Signal Integrity Considerations
Implement proper signal integrity techniques, including controlled impedance routing, minimizing via transitions, and using appropriate grounding strategies to maintain signal quality.
5. Material Selection
Choose the appropriate Rogers material based on your specific application requirements, considering factors such as frequency range, loss tangent, and thermal performance.
6. Manufacturing Tolerances
Account for manufacturing tolerances in your design, especially for critical high-frequency sections. Work closely with your PCB fabricator to understand their capabilities and limitations.
7. Mixed Material Designs
When combining Rogers materials with standard FR4 in hybrid designs, carefully consider the transition between different materials to avoid impedance discontinuities and potential reliability issues.
Types of Rogers PCB Material
Rogers Corporation offers a wide range of PCB materials, each tailored for specific applications and performance requirements. Here’s an overview of some popular Rogers PCB materials:

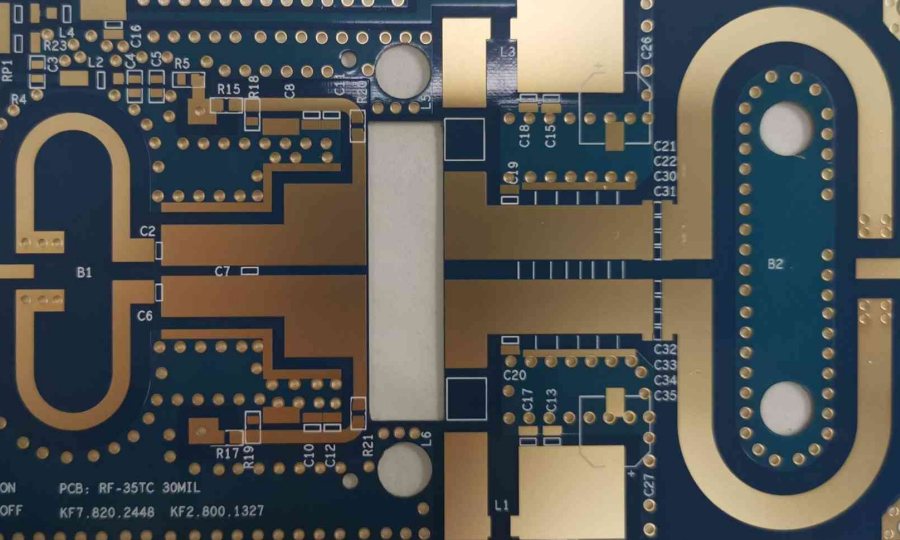

1. RO4350B
RO4350B is a high-frequency laminate designed for applications requiring excellent electrical performance and low loss. It offers a dielectric constant of 3.48 and a low dissipation factor, making it suitable for antenna arrays, power amplifiers, and other RF/microwave applications.
2. RO4350B-TX

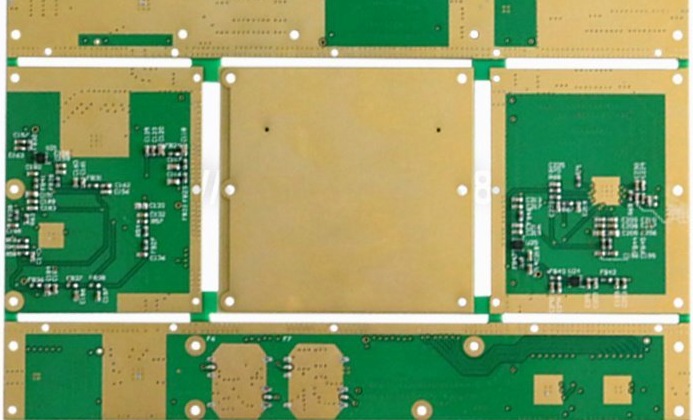

RO4350B-TX is a variant of RO4350B with improved thermal conductivity. It’s ideal for high-power RF and microwave applications where heat dissipation is critical.
RO3003 is a PTFE-based laminate with a low dielectric constant of 3.0 and extremely low loss. It’s well-suited for high-frequency, low-loss applications such as satellite communications and radar systems.

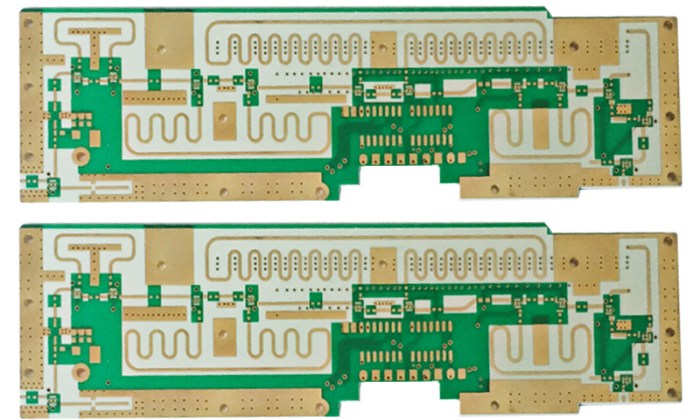

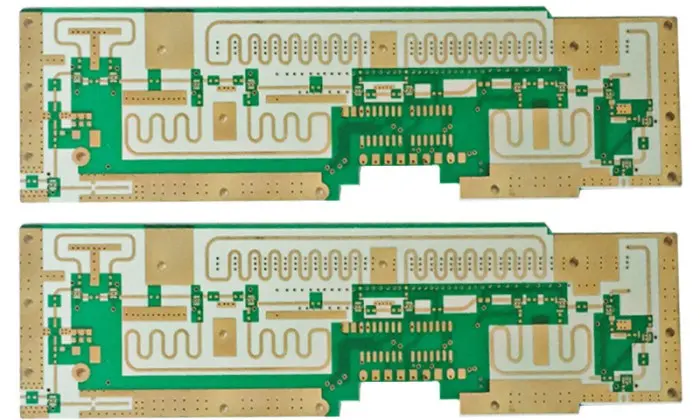

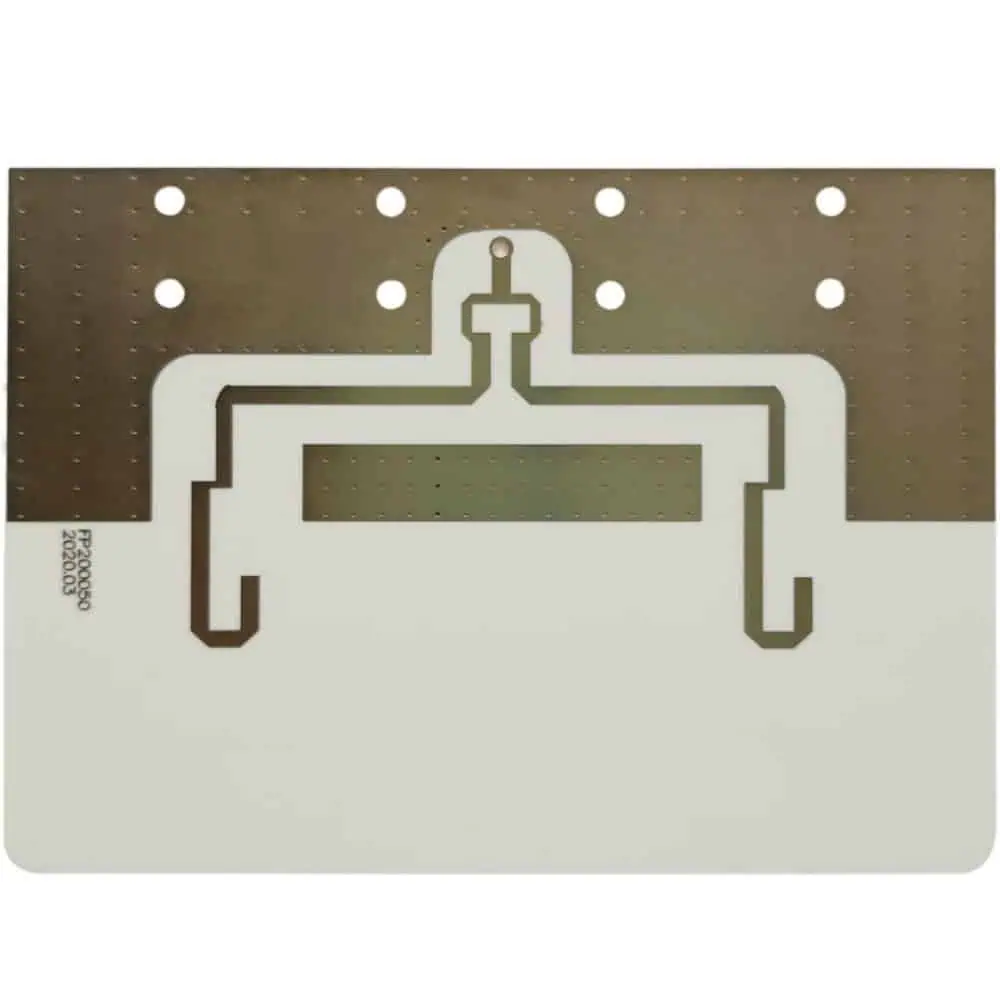

4. RO4003C
RO4003C is a popular choice for high-frequency applications requiring excellent electrical performance and ease of fabrication. With a dielectric constant of 3.38, it’s widely used in antenna arrays, RF/microwave circuits, and high-speed digital designs.
5. RO3035
RO3035 is a high-frequency laminate with a dielectric constant of 3.5, designed for applications requiring low loss and excellent dimensional stability. It’s commonly used in satellite communications and phased array antennas.

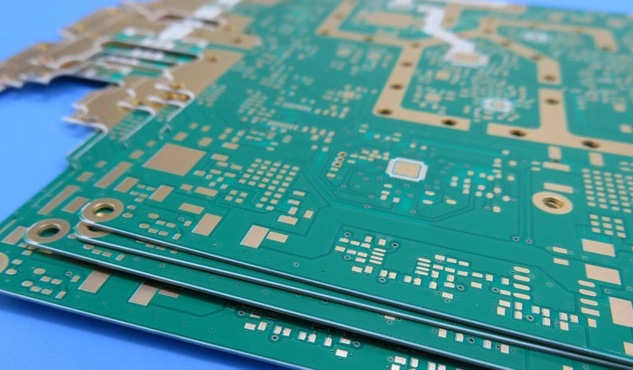

6. RO4535
RO4535 is a low-loss laminate with a dielectric constant of 3.5, offering excellent thermal stability and reliability. It’s suitable for high-layer count, mixed-signal applications in the aerospace and defense industries.
7. RO4533
RO4533 is a cost-effective alternative to PTFE-based laminates, offering good electrical performance and processability. It’s often used in commercial RF and microwave applications.

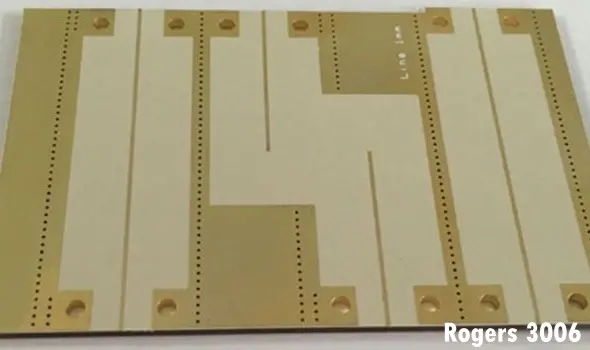

8. RO3006
RO3006 is a PTFE-based laminate with a dielectric constant of 6.15, designed for applications requiring a higher dielectric constant while maintaining low loss characteristics.
9. RO3206
RO3206 is a ceramic-filled PTFE composite with a dielectric constant of 6.15, offering excellent electrical and mechanical properties for high-frequency applications.

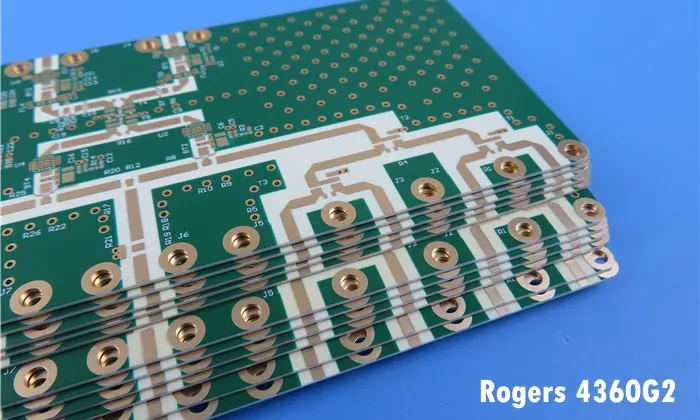

10. RO4360
RO4360 is a high-Dk laminate with a dielectric constant of 6.15, designed for applications requiring miniaturization and improved impedance matching.

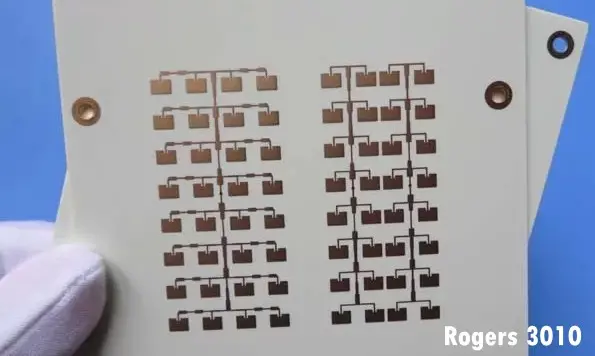

11. RO3010
RO3010 is a PTFE-based laminate with a high dielectric constant of 10.2, suitable for applications requiring significant miniaturization and high-frequency performance.
12. RO3210
RO3210 is a ceramic-filled PTFE composite with a dielectric constant of 10.2, offering excellent electrical and mechanical stability for high-frequency applications.
13. RT/Duroid 5880LZ
RT/Duroid 5880LZ is an ultralow density PTFE composite with a very low dielectric constant of 1.96, ideal for lightweight antenna applications in aerospace and defense.

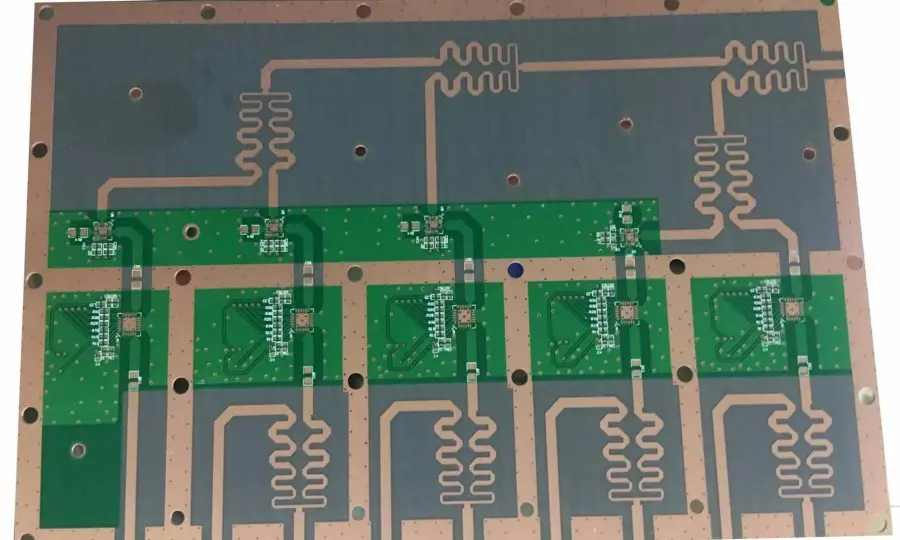

14. RT/Duroid 5880
RT/Duroid 5880 is a glass microfiber reinforced PTFE composite with a low dielectric constant of 2.20, widely used in high-frequency, low-loss applications such as millimeter-wave circuits.

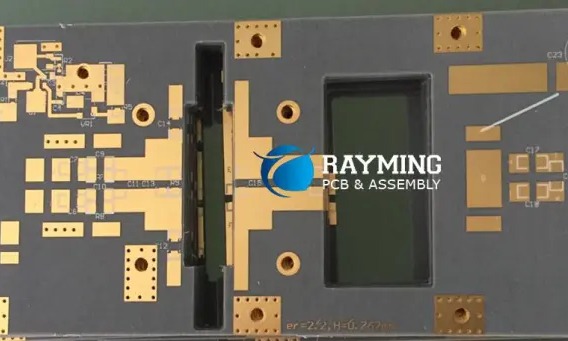

15. RT/Duroid 5870
RT/Duroid 5870 is similar to 5880 but with a slightly higher dielectric constant of 2.33, offering a balance between electrical performance and mechanical strength.

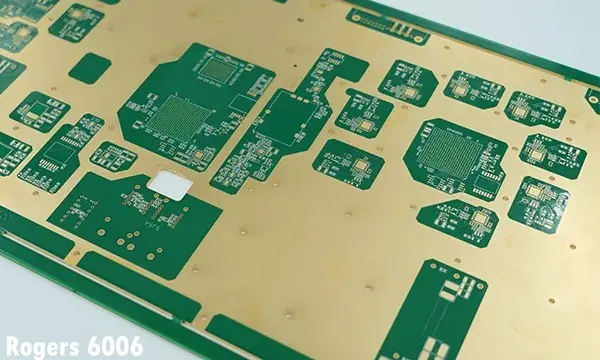

16. RT/Duroid 6006
RT/Duroid 6006 is a PTFE composite with a dielectric constant of 6.15, designed for applications requiring higher dielectric constants while maintaining low loss characteristics.
17. Ultralam 2000
Ultralam 2000 is a liquid crystal polymer (LCP) material offering excellent electrical and mechanical properties for high-frequency, high-temperature applications.
18. Ultralam 3850
Ultralam 3850 is an LCP material with a dielectric constant of 2.9, suitable for high-frequency, low-loss applications in harsh environments.

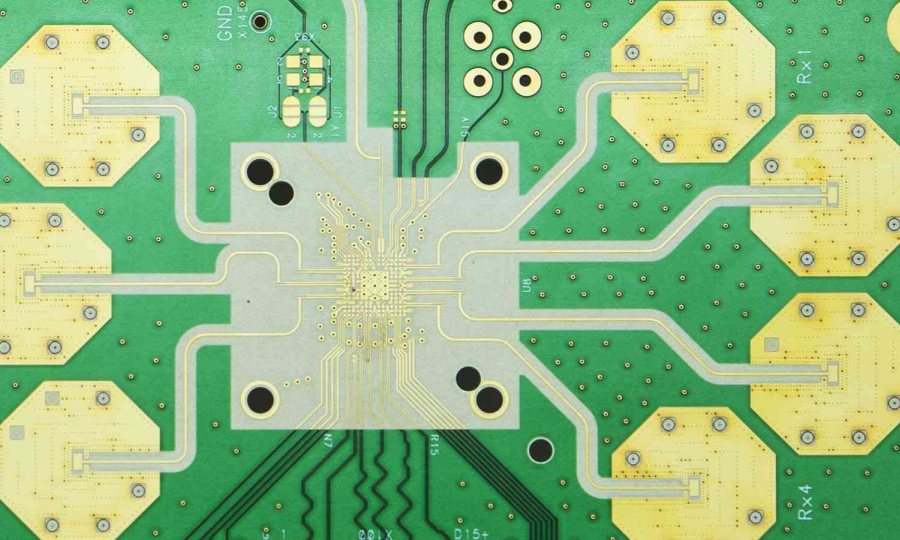

19. RT/Duroid 6202PR
RT/Duroid 6202PR is a PTFE composite with a dielectric constant of 2.94, offering excellent electrical performance and dimensional stability for precision RF/microwave applications.

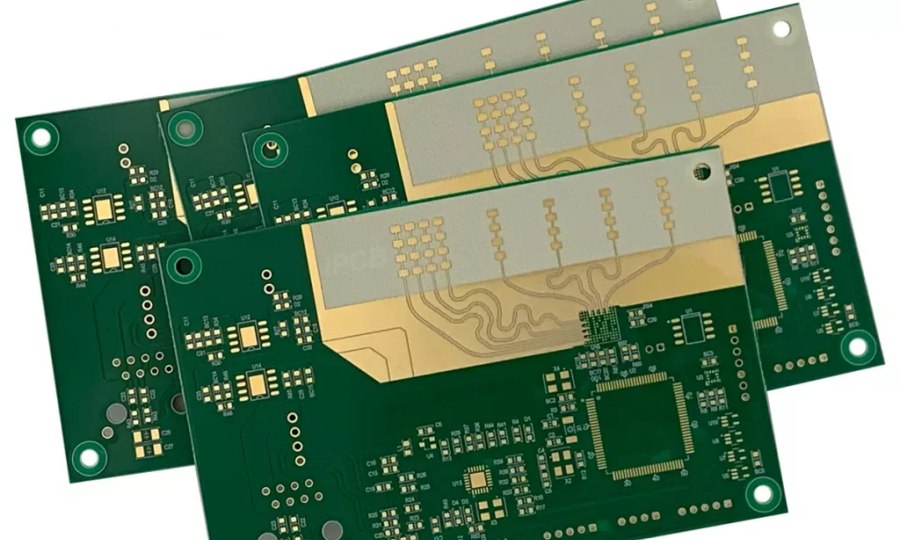

20. RT/Duroid 6002
RT/Duroid 6002 is a PTFE composite with a dielectric constant of 2.94, designed for high-frequency applications requiring low loss and excellent dimensional stability.
21. RT/Duroid 6010.2LM
RT/Duroid 6010.2LM is a ceramic-filled PTFE composite with a high dielectric constant of 10.2, suitable for applications requiring significant miniaturization.

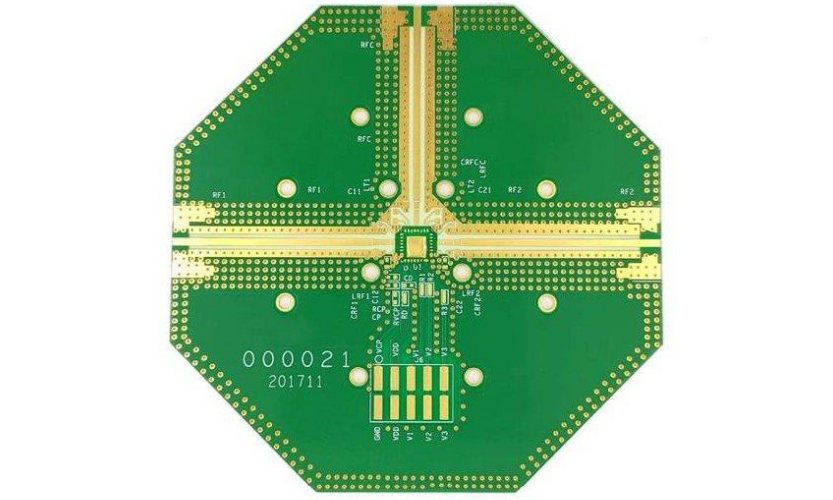

22. RO3730
RO3730 is a high-frequency laminate designed for automotive radar applications, offering stable electrical properties over a wide temperature range.

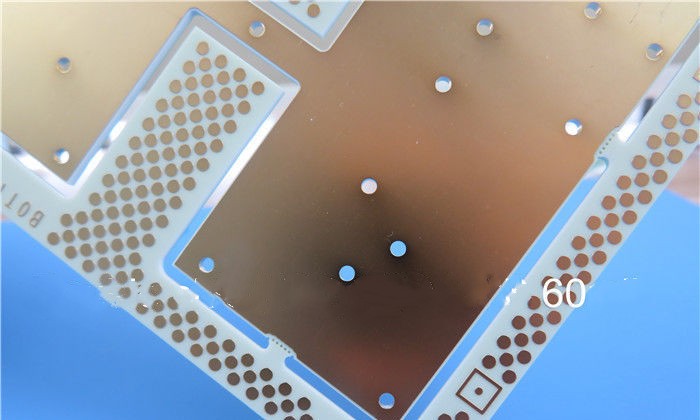

23. RO4730
RO4730 is a cost-effective alternative to PTFE-based laminates for automotive radar applications, offering good electrical performance and reliability.
24. RO3203
RO3203 is a ceramic-filled PTFE composite with a dielectric constant of 3.02, offering excellent electrical and mechanical properties for high-frequency applications.
25. RO4534
RO4534 is a low-loss laminate designed for high-layer count, mixed-signal applications in the aerospace and defense industries.
26. TMM-3
TMM-3 is a ceramic-filled thermoset polymer composite with a dielectric constant of 3.27, offering excellent dimensional stability and low loss.

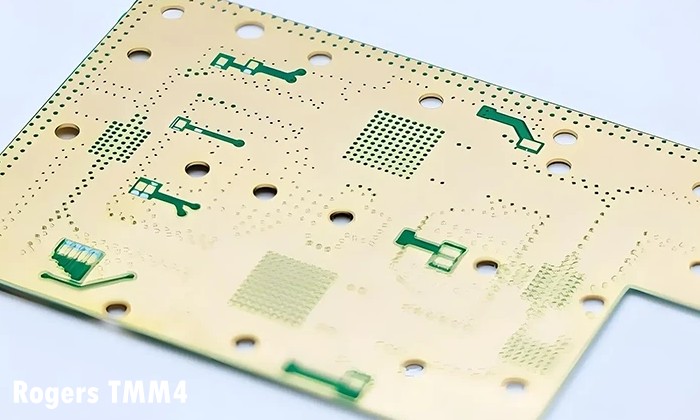

27. TMM-4
TMM-4 is similar to TMM-3 but with a higher dielectric constant of 4.5, suitable for applications requiring increased miniaturization.
28. TMM-6
TMM-6 offers a dielectric constant of 6.0, providing a balance between miniaturization and electrical performance.
29. TMM-10
TMM-10 has a high dielectric constant of 9.2, ideal for applications requiring significant size reduction.
30. TMM-10i
TMM-10i is an improved version of TMM-10, offering better thermal stability and lower loss at high frequencies.

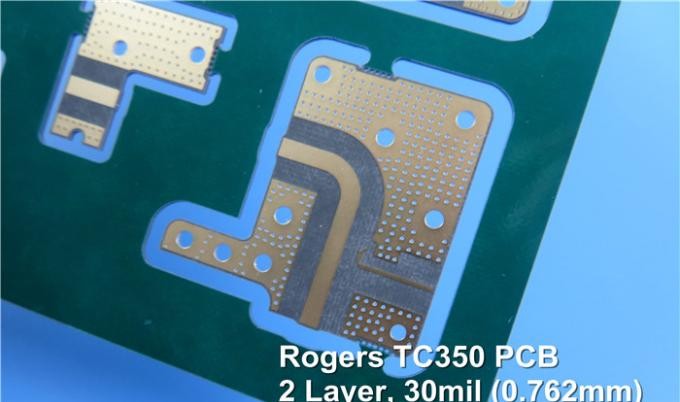

31. TC350
TC350 is a high-temperature, low-loss laminate designed for applications requiring excellent thermal stability and electrical performance.
32. XT/Duroid 8000 0.002″ Thick
XT/Duroid 8000 is an ultra-thin, low-loss laminate suitable for applications requiring minimal thickness and excellent high-frequency performance.
33. XT/Duroid 8100 0.004″ Thick
XT/Duroid 8100 is similar to XT/Duroid 8000 but with a thickness of 0.004″, offering a balance between thinness and mechanical stability.
34. SYRON 7100 0.004″ thick
SYRON 7100 is a high-performance thermoplastic laminate offering excellent electrical and mechanical properties for demanding RF/microwave applications.
35. SYRON 7000 0.002″ thick
SYRON 7000 is an ultra-thin version of SYRON 7100, suitable for applications requiring minimal thickness and high-frequency performance.
36. XT/Duroid 8100 0.002″ Thick
This is an ultra-thin version of XT/Duroid 8100, offering excellent high-frequency performance in a minimal thickness.
37. SYRON 7100 0.002″ thick
This is an ultra-thin version of SYRON 7100, providing high-performance characteristics in a minimal thickness for demanding RF/microwave applications.
How to Select Rogers PCB Material
Choosing the right Rogers PCB material for your application involves considering several factors:
Frequency Range: Select a material with appropriate dielectric properties for your operating frequency.
Loss Requirements: Consider the loss tangent of the material, especially for high-frequency or long signal path applications.
Dielectric Constant: Choose a material with a dielectric constant that allows for the desired circuit size and impedance control.
Thermal Performance: For high-power applications, select materials with good thermal conductivity and stability.
Dimensional Stability: Consider the coefficient of thermal expansion (CTE) for applications with wide temperature ranges.
Mechanical Properties: Evaluate the material’s strength, rigidity, and durability for your specific application.
Cost: Balance performance requirements with budget constraints, considering both material and processing costs.
Availability: Check the availability of the material and lead times, especially for less common or specialty laminates.

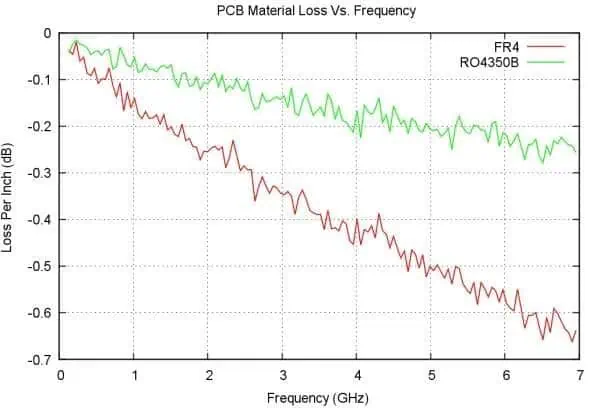

What is the difference between Rogers and FR4 materials?
While both Rogers and FR4 materials are used in PCB manufacturing, they have distinct characteristics that make them suitable for different applications:
1. Cost
FR4: Generally less expensive, making it the go-to choice for most standard PCB applications.
Rogers: More expensive due to specialized materials and manufacturing processes, but offers superior performance for high-frequency applications.
2. Controlled Impedance
FR4: Offers reasonable impedance control for most applications but may struggle with very high-frequency designs.
Rogers: Provides excellent impedance control and stability across a wide frequency range, crucial for RF and microwave applications.
3. Thermal Management
FR4: Has limited thermal conductivity and may face challenges in high-power applications.
Rogers: Many Rogers materials offer superior thermal management properties, making them suitable for high-power RF and microwave circuits.
Rogers PCB Manufacturing Considerations
When manufacturing Rogers PCBs, several factors require special attention:
Material Handling: Rogers materials may require more careful handling than FR4 to prevent damage or contamination.
Drilling and Routing: Use appropriate drill speeds and feed rates to prevent overheating and maintain hole quality.
Lamination: Follow recommended lamination profiles to ensure proper bonding without affecting material properties.
Etching: Adjust etching processes to account for the different chemical properties of Rogers materials.
Plating: Ensure proper adhesion of plating to Rogers materials, which may require special surface preparation.
Testing: Use appropriate test methods and equipment suitable for high-frequency materials.

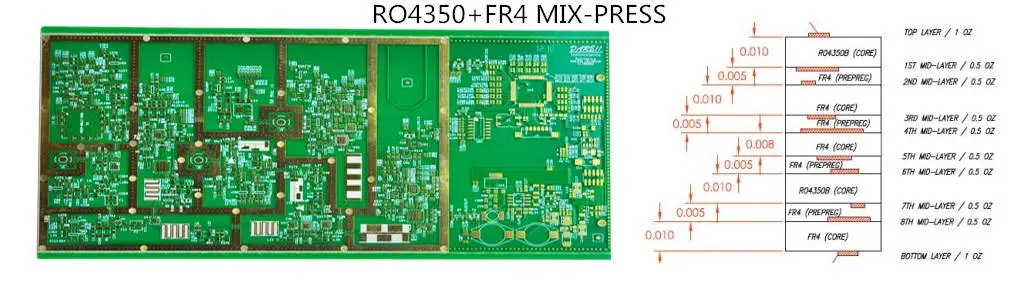

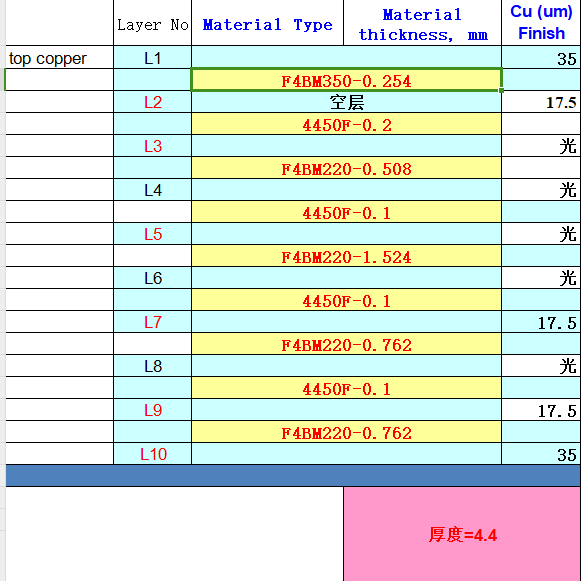

Hybrid Layer Buildup Rogers + FR4
To balance performance and cost, many designs incorporate both Rogers and FR4 materials in a hybrid stack-up:
Use Rogers materials for critical high-frequency layers.
Employ FR4 for power, ground, and low-frequency signal layers.
Carefully design transitions between Rogers and FR4 layers to maintain signal integrity.
Consider the different thermal and mechanical properties of the materials in the overall board design.
Applications of Rogers PCB
Rogers PCBs find applications in various high-performance and high-frequency domains:
Aerospace and Defense: Radar systems, satellite communications, and electronic warfare equipment.
Telecommunications: 5G infrastructure, base stations, and high-speed data transmission systems.
Automotive: Advanced driver assistance systems (ADAS) and automotive radar.
Industrial: High-frequency test and measurement equipment.
Medical: MRI machines and other high-frequency medical imaging devices.
High-Speed Computing: Server and data center applications requiring high-speed signal integrity.
In conclusion, Rogers PCBs offer superior performance for high-frequency and high-speed applications, providing engineers with the tools to push the boundaries of electronic design. By understanding the properties, design considerations, and manufacturing processes associated with Rogers materials, designers can leverage these advanced PCBs to create cutting-edge products across various industries.
RayMing PCB boasts extensive expertise in manufacturing hybrid materials, including Rogers+Fr4, Rogers A +B… We welcome you to submit your design for a cost estimate.
