If your design operates above 1 GHz and you’re still specifying FR-4, you’re already losing signal before the board leaves the fab. Taconic PCB laminates exist precisely for that boundary — where standard glass-epoxy materials turn insertion loss from an annoyance into a system-level failure. Yet most engineers encounter Taconic only when a Rogers quote comes back too expensive, and that’s exactly the wrong time to learn the material.

This guide covers every Taconic laminate series, how their specs compare against competing materials, where each grade belongs, and what drives fabrication cost — so you can make the call before layout, not after spin two.

Quick answer: Taconic PCB laminates are PTFE-based and ceramic-loaded high-frequency substrates with dielectric constants ranging from 2.17 to 10.2 and dissipation factors as low as 0.0009, designed for RF, microwave, and millimeter-wave applications where standard FR-4 (Dk ≈ 4.5, Df ≈ 0.020) causes unacceptable loss above 500 MHz. They are manufactured by Taconic Advanced Dielectric Division and are direct competitors to the Rogers Corporation laminate portfolio.

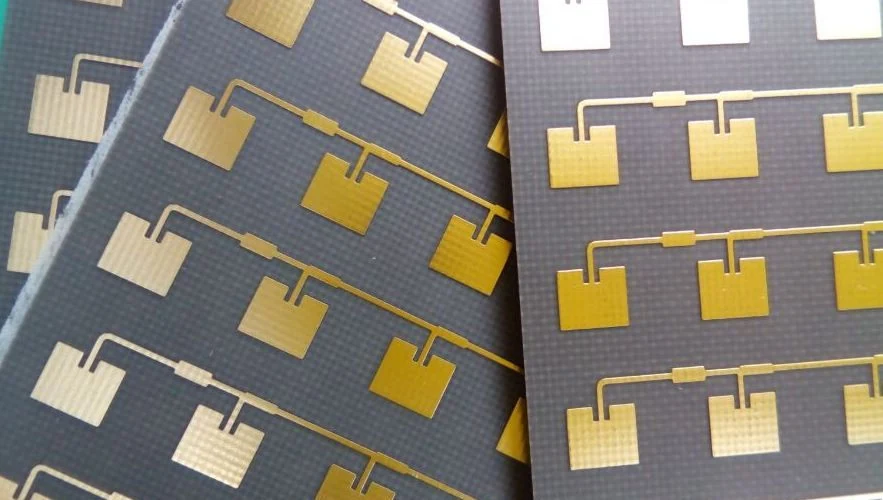

What Is a Taconic PCB Laminate?

Taconic Advanced Dielectric Division has been producing fluoropolymer-based laminates since the 1960s. The core material in most of their product lines is polytetrafluoroethylene (PTFE) — the same base polymer as Rogers RT/duroid — loaded with either woven glass, ceramic particles, or both, depending on the target Dk and mechanical stability.

PTFE itself has a Dk of approximately 2.1 and a Df near 0.0002, which is why it underpins virtually every low-loss RF laminate on the market. The fillers shift Dk upward and improve dimensional stability. The engineering challenge is maintaining low loss tangent while tuning Dk to match antenna or transmission-line impedance targets.

Taconic sells into the same end markets as Rogers: defense radar, satellite communications, 5G base station infrastructure, automotive radar (76–81 GHz), and high-speed digital backplanes. The materials are interchangeable in principle, but process compatibility, availability, and cost vary enough that the choice matters.

Taconic Laminate Series: What Each Grade Is Actually For

Taconic organizes its portfolio by application and Dk range. Understanding the series prevents you from over-specifying or under-specifying the substrate.

TLY Series — Ultra-Low-Dk PTFE/Glass

TLY (PTFE/glass woven) is Taconic’s lowest-Dk product line. TLY-5 has a nominal Dk of 2.17 at 10 GHz and a Df of 0.0009 — values that are directly competitive with Rogers RT/duroid 5880 (Dk 2.20, Df 0.0009). This is your material when impedance control is everything and you need 50 Ω microstrip lines to stay narrow for a compact antenna aperture.

The drawback is mechanical fragility. PTFE/glass boards cold-flow under clamping pressure and require sodium or plasma etching before plating to achieve acceptable peel strength. Unetched PTFE will delaminate at copper interfaces under thermal cycling, which is a root-cause failure mode — not just a cosmetic defect. More on that in the Pitfalls section.

RF-35 — The Practical Workhorse

RF-35 is a PTFE/ceramic/glass composite with a Dk of 3.5 and a Df of 0.0018. That Df is roughly 2× lower than Rogers 4350B (Df 0.0037) at comparable Dk, which translates directly to lower insertion loss per unit length on microstrip and stripline. For a 100 mm 50 Ω microstrip at 10 GHz, the difference is approximately 0.5 dB — significant when you’re designing a low-noise receiver front end.

RF-35 is more machinable than pure PTFE grades and is often used in multilayer stackups where a mix of RF-35 signal layers and FR-4 power/ground layers reduces cost. Hybrid stackups are discussed separately below.

TSM Series — High-Dk for Compact Antennas

The TSM (PTFE/ceramic) series covers Dk values from 6.0 to 10.2. Higher Dk compresses wavelength in the substrate, which reduces patch antenna dimensions proportionally to √Dk. A patch element on TSM-10 (Dk ≈ 10.2) is roughly 50% smaller than the same element on RF-35, assuming similar frequency.

The trade-off is increased surface roughness from ceramic loading, which raises conductor loss at millimeter-wave frequencies. Above 40 GHz, TSM grades become a liability unless you specifically need the size reduction.

TLC Series — Low CTE for Multilayer Registration

TLC laminates use a PTFE/ceramic system engineered primarily for Z-axis CTE control. The Z-CTE is typically 24–28 ppm/°C, versus standard PTFE grades at 150–200 ppm/°C in Z. That difference matters in thick multilayer boards where via barrel cracking under thermal cycling is a reliability concern.

TLC is commonly specified in defense hardware that undergoes military temperature cycling per MIL-STD-810. If your board sees −55°C to +125°C operational range, TLC’s tighter Z-CTE extends via reliability without requiring exotic finishes.

FastRise Series — Controlled Dk for High-Speed Digital

FastRise is not a pure RF material. It targets controlled-impedance digital backplanes and high-speed interconnects where the problem is dispersion, not insertion loss per se. Dk is stable from 1 MHz to 10 GHz, which reduces eye-diagram degradation in multi-gigabit serial links. FR-4’s Dk varies from about 4.7 at 1 MHz to 3.8 at 10 GHz — a 0.9-unit swing that causes differential group delay and pre-cursor ISI.

For 25 Gbps NRZ or 56 Gbps PAM-4, a Dk-stable substrate like FastRise can close a link budget that FR-4 cannot.

Key Specifications: Taconic vs. Competing Materials

Use this table when comparing laminate options at the shortlist stage. All Df values are measured at 10 GHz.

Material	Dk (10 GHz)	Df (10 GHz)	Tg (°C)	Z-CTE (ppm/°C)	Relative Cost vs FR-4
FR-4 (standard)	4.5	0.020	130–140	60–80	1×
Taconic TLY-5	2.17	0.0009	— (PTFE)	150–200	8–12×
Taconic RF-35	3.50	0.0018	— (PTFE)	50–80	5–8×
Taconic TSM-10	10.2	0.0020	— (PTFE)	30–50	8–12×
Taconic TLC-30	3.0	0.0023	— (PTFE)	24–28	6–9×
Rogers 4350B	3.48	0.0037	>280	32	5–8×
Rogers RT/duroid 5880	2.20	0.0009	— (PTFE)	150–200	8–12×
Nelco N4000-13EP	3.65	0.0088	210	40–55	2–3×

PTFE-based materials do not have a conventional Tg; they soften gradually above 260°C but are rated to higher operating temperatures than epoxy-based systems.

The Counter-Intuitive Trade-Off: Better Dk Stability ≠ Better System Performance

Here is the insight that gets designers in trouble. Taconic RF-35 has a Df of 0.0018 — half that of Rogers 4350B. On paper, RF-35 looks superior for low-loss designs. However, Rogers 4350B uses a thermoset hydrocarbon/ceramic system with a processability profile nearly identical to FR-4. It can be mechanically drilled, laser ablated, and laminated in a standard multilayer press without process modification.

RF-35 is PTFE-based and requires plasma or sodium naphthalenide surface activation before copper lamination. If your fab house skips this step or does it inconsistently, peel strength drops from >6 lb/in to under 2 lb/in — and you won’t see the failure until thermal cycling breaks the interface.

The counter-intuitive conclusion: for a 10-layer RF/digital hybrid where only two layers carry RF signal above 6 GHz, Rogers 4350B may be the more reliable choice — not because of its electrical specs, but because more fab shops know how to process it correctly. RF-35’s better Df is only an advantage if your manufacturer has validated PTFE process controls.

Critical Failure Mode: Copper Adhesion Loss on PTFE Substrates

PTFE is chemically inert by design. That property also makes it resist bonding with copper foil and electroless copper during the plating process. The failure mode is copper-to-laminate delamination at PTH barrel interfaces, typically triggered 50–200 thermal cycles into a product’s life — long after incoming inspection clears the board.

The root cause is not the plating itself but surface preparation. PTFE must be etched to create a micro-roughened polar surface before any metallization. Sodium naphthalenide solution (“sodium etch”) disrupts the carbon-fluorine bonds and creates hydroxyl and carbonyl groups that promote adhesion. Plasma etching (oxygen or argon) achieves a similar result without wet chemistry.

What actually happens at many contract manufacturers: they run PTFE panels through the same desmear process as FR-4, which uses potassium permanganate at temperatures and times optimized for epoxy, not fluoropolymer. Potassium permanganate does not etch PTFE surfaces. You get zero surface activation, normal-looking plated holes, and delamination failures in the field.

When you send Taconic boards out for fabrication, ask explicitly for the PTFE activation procedure in the shop’s traveler documentation. If they describe it only as “standard desmear,” escalate before the build starts. RAYPCB’s high-frequency laminate line includes process-validated PTFE handling with documented activation steps for every Taconic grade.

Real-World Application: 77 GHz Automotive Radar Frontend

Here is a specific scenario where Taconic material selection required engineering judgment across three competing constraints: electrical performance, mechanical reliability, and production cost.

The design: A 4-layer automotive radar frontend for 76–81 GHz FMCW radar, −40°C to +105°C operating range, automotive AEC-Q100 reliability grade, annual volume of 50,000 units.

Layer 1 (RF signal): Required Dk control to ±0.05 at 77 GHz for antenna array element phase uniformity. Conductor loss had to be low enough to support a 15 dBi array gain over a 10 cm aperture. Three laminates were evaluated: Taconic TLY-5 (Dk 2.17, Df 0.0009), Rogers RT/duroid 5880 (Dk 2.20, Df 0.0009), and Taconic TSM-6 (Dk 6.0, Df 0.0016).

Why TLY-5 won over RT/duroid 5880: At equivalent Dk and Df, the selection came down to Dk tolerance specification. Taconic specifies TLY-5 Dk at ±0.02 lot-to-lot, while 5880 is specified at ±0.02 but has historically shown ±0.04 variation at millimeter-wave frequencies based on published characterization data from multiple sources. For a 16-element linear array, a ±0.04 Dk variation across panels shifts element phase by roughly 4° at 77 GHz — enough to degrade array gain by 1.5 dB. TLY-5 was specified and accepted.

Why TSM-6 was rejected: TSM-6’s higher Dk (6.0) would have compressed the antenna elements to about 60% the size of TLY-5 elements at 77 GHz. The design team initially preferred this for board area reduction. The problem was ceramic surface roughness at 77 GHz. At millimeter-wave frequencies, skin depth in copper is under 0.3 µm, and conductor loss is dominated by surface roughness. TSM-6’s rougher ceramic-filled surface added approximately 1.2 dB/cm of extra conductor loss compared to TLY-5 — unacceptable for the 10 cm aperture.

Layers 2–4: These carried only DC power, digital control signals, and IF outputs below 500 MHz. Standard FR-4 (TG150) was bonded to TLY-5 using Taconic’s PTFE prepreg adhesive film. The hybrid stackup cut material cost by approximately 35% versus an all-TLY-5 board.

Thermal reliability: The XY-CTE mismatch between TLY-5 (≈17 ppm/°C) and FR-4 (≈16 ppm/°C) was low enough to avoid interface delamination over the automotive temperature range. Z-axis expansion was managed by limiting via aspect ratio to 8:1, with annular rings designed per IPC-2221 Class B.

This is the design that teaches you material selection is not a single-variable optimization. You are balancing Dk, Df, surface roughness, CTE, process compatibility, and laminate cost simultaneously — and the winner changes depending on which constraint is tightest.

Taconic PCB Design Rules and Stack-Up Considerations

Impedance Control

PTFE laminates require tighter impedance modeling than FR-4. The lower Dk means microstrip line widths are narrower for the same impedance target, which amplifies the effect of etch tolerance. A ±0.5 mil etch variation on a 50 Ω microstrip in TLY-5 at 10 GHz represents roughly ±2.5 Ω impedance variation, compared to ±1.5 Ω for the same etch variation on FR-4. Specify impedance coupons per IPC-2141 and tighten trace width tolerance to ±0.3 mil if your fab supports it.

Via Design

PTFE’s high Z-axis CTE (150–200 ppm/°C for pure grades) requires careful via design in thermal environments. Keep via aspect ratios at 8:1 or below, and use IPC-6012 Class 3 plating requirements (minimum 25 µm average copper in the barrel) for boards in any temperature-cycling environment. TLC-series boards with lower Z-CTE allow aspect ratios up to 10:1 with standard Class 2 plating.

Hybrid Stackup Bonding

When bonding PTFE signal layers to FR-4 core layers, adhesive film compatibility matters. Taconic offers fluoropolymer-based bonding films (e.g., 6002 prepreg) designed specifically for PTFE-to-PTFE or PTFE-to-ceramic laminate bonding. Using standard FR-4 prepreg between a PTFE layer and an FR-4 layer is a common DFM mistake that causes delamination at the hybrid interface during lamination press.

Some fab houses will confirm the stackup without flagging this issue, because the boards pass visual inspection immediately after press. The failure appears under thermal stress. Use only Taconic-specified bonding film for mixed-material stackups, and verify with your fab that the correct adhesive is in the BOM.

Decision Framework: Choosing the Right Taconic Grade

Work through this sequence before specifying any Taconic laminate.

Step 1: What is your highest operational frequency?

• Below 1 GHz → FR-4 is likely adequate. Stop here and justify if you need anything else.
• 1–6 GHz → Nelco N4000-13EP or Rogers 4350B may be cost-effective. Taconic RF-35 if loss budget is tight.
• 6–30 GHz → Taconic RF-35 or TLY-5 depending on Dk target.
• Above 30 GHz → TLY-5 or Rogers RT/duroid 5880 only. Avoid ceramic-loaded high-Dk grades due to surface roughness loss.

Step 2: What is your Dk target?

• Dk ≈ 2.2 → TLY-5
• Dk ≈ 3.0 → Taconic TLC-30 (if CTE control is also needed) or RF-30
• Dk ≈ 3.5 → RF-35
• Dk ≈ 6.0–10.2 → TSM series (only if frequency is below 30 GHz)

Step 3: What is your thermal environment?

• Stable indoor (0–70°C) → Standard PTFE grades acceptable
• Extended industrial (−40°C to +85°C) → Monitor via reliability; use TLC for thick multilayers
• Automotive/military (−55°C to +125°C) → TLC series for multilayer; TLY-5 with hybrid limits on aspect ratio

Step 4: What is your fabrication supply chain?

• Single-source PTFE-qualified shop → Any Taconic grade viable
• Multiple sourcing required → Specify Rogers 4350B equivalents where acceptable; PTFE dual-sourcing between Taconic and Rogers is manageable for RF-35 vs 4350B workalike

Step 5: What is your cost envelope?

• Cost-sensitive volume production → Consider hybrid PTFE/FR-4 stackup; minimize PTFE layer count
• Cost-insensitive prototype or low-volume defense/aerospace → Full PTFE stackup; don’t compromise

Taconic PCB Cost: What Actually Drives the Number

Engineers consistently underestimate Taconic laminate costs because they compare raw material price without accounting for process overhead. Here is a realistic breakdown.

Raw material for Taconic RF-35 runs approximately 5–8× the cost of mid-grade FR-4 per square foot. TLY-5 is 8–12× FR-4. But material is only part of the fabrication cost delta.

PTFE processing adds shop time. Sodium etch or plasma activation, specialized drill parameters (PTFE requires slower feed rates to avoid resin smear from heat), and yield losses from scrapped panels in shops with lower PTFE experience all inflate the final board price. A realistic PTFE multilayer board might carry a 12–18× total cost premium over an equivalent FR-4 design, even if raw material is only 8×.

What drives the cost variance within Taconic grades:

• Layer count: More RF signal layers in the stackup = more PTFE material = higher cost. A 2-layer TLY-5 board costs roughly 40–50% less than a 4-layer all-TLY-5 board of the same panel size.
• Thickness tolerance: Tight thickness tolerance (±0.001 inch) on thin laminates (≤10 mil) requires slower press cycles and higher scrap rates.
• Surface finish: ENIG or electroless silver finishes are standard on RF boards. Immersion silver (ImAg) is preferred at millimeter-wave frequencies due to lower surface roughness than ENIG; the cost difference is small but it adds up in high-volume production.
• Hybrid vs. all-PTFE: A 4-layer hybrid (2× PTFE signal + 2× FR-4 power/ground) typically costs 30–40% less than an all-PTFE 4-layer. This is almost always worth investigating before committing to full PTFE.

When premium is not justified: if your application operates below 3 GHz and your insertion loss budget is above −3 dB across the signal path, Nelco N4000-13EP at 2–3× FR-4 cost will almost certainly close the design. Spending 10× on Taconic TLY-5 for a 2.4 GHz Wi-Fi front end is over-engineering that doesn’t translate to system performance.

Common Mistakes When Specifying Taconic PCBs

Specifying PTFE without confirming fab capability. Taconic laminates are not difficult to process correctly, but they require specific steps that not all shops have validated. Ask for documented PTFE process procedures before placing a purchase order.

Using FR-4 prepreg between PTFE layers in a hybrid stackup. This is the most common DFM error in mixed-material designs. The adhesive cure profile and CTE mismatch cause interface failures. Always use Taconic-specified bonding films.

Ignoring conductor loss at millimeter-wave. Electrical simulation tools often underestimate conductor loss on high-Dk or ceramic-loaded substrates because they model surface roughness as a flat copper interface. At 77 GHz, use a Hammerstad-Jensen or Groiss roughness correction model in your 3D EM simulator. Flat copper models can underpredict insertion loss by 0.8–2 dB/cm.

Over-specifying the material grade. If only one or two layers of a multilayer board carry RF signals above 6 GHz, those layers can be TLY-5 while all other layers use FR-4. Many designs go full-PTFE by default, tripling cost without improving performance on 80% of the board.

Skipping Dk verification coupons. Taconic specifies nominal Dk values measured by clamped-stripline at IPC-TM-650 Method 2.5.5.5. Actual processed Dk on finished boards varies depending on copper treatment and surface roughness. For array antennas or tight impedance budgets, include microstrip ring resonator coupons on the panel to verify in-process Dk on your actual copper system.

Taconic PCB Manufacturer: What to Look for in a Fabrication Partner

Not every PCB shop is equipped to process Taconic laminates correctly, and the difference between a qualified shop and an unqualified one rarely shows up in a quote.

Minimum qualification questions to ask:

1. Do you stock Taconic-specified bonding film for hybrid stackups, or do you use FR-4 prepreg?
2. What PTFE surface preparation process do you use — sodium etch, plasma, or a proprietary activation?
3. Can you provide Dk and Df verification data from past PTFE panel runs?
4. What is your drill parameter procedure for PTFE (feed rate, retract speed, drill type)?
5. Do you have IPC-6012 Class 2 or Class 3 capability for PTH barrel plating?
6. What is your minimum impedance tolerance on PTFE microstrip: ±5%, ±10%?

A shop that can answer questions 1–4 without hesitation has processed PTFE boards before. A shop that says “same process as FR-4” has not — walk away from that quote.

RAYPCB fabricates Taconic laminates across the TLY, RF-35, TSM, and TLC series, with documented PTFE activation procedures and in-process Dk verification available upon request. For hybrid RF/digital stackups, RAYPCB’s engineering team will review the bonding film compatibility before the build starts.

FAQ

What is a Taconic PCB? A Taconic PCB uses a high-frequency laminate substrate manufactured by Taconic Advanced Dielectric Division. These substrates are based on PTFE and ceramic composites, offering dielectric constants from 2.17 to 10.2 and dissipation factors as low as 0.0009 — enabling low-loss RF, microwave, and millimeter-wave circuit design where standard FR-4 fails above 500 MHz.

How does Taconic compare to Rogers laminates? Taconic and Rogers are direct competitors for PTFE-based high-frequency laminates. Taconic RF-35 (Dk 3.5, Df 0.0018) has a notably lower Df than Rogers 4350B (Dk 3.48, Df 0.0037) at comparable Dk. Rogers 4350B uses a thermoset system that processes more like FR-4, making it more widely available from contract manufacturers without PTFE-specific process controls.

What frequency range do Taconic PCBs support? Taconic laminates support applications from below 1 GHz through 100+ GHz. TLY-5 and RF-35 are used in 5G mmWave and 77 GHz automotive radar. The practical upper limit depends on surface roughness and via geometry — ceramic-loaded grades like TSM are generally avoided above 40 GHz due to conductor loss from rougher surfaces.

Can Taconic laminates be used in multilayer boards? Yes. Taconic grades can be fabricated as multilayer boards, either as all-PTFE stackups or as hybrid constructions with FR-4 core layers. Hybrid stackups require Taconic-specified fluoropolymer bonding films — standard FR-4 prepreg is not compatible with PTFE interlayer bonding and will cause delamination under thermal cycling.

What is the cost of Taconic PCB vs FR-4? Raw Taconic laminate costs approximately 5–12× FR-4 depending on grade. Total fabrication cost on a finished multilayer board is typically 10–18× FR-4 equivalent, accounting for process overhead, lower yield rates, and specialized surface finish requirements. Hybrid PTFE/FR-4 stackups can reduce this premium by 30–40%.

Why would a Taconic board fail in the field? The most common root-cause failure is copper delamination from the PTFE substrate due to insufficient surface activation before plating. PTFE will not bond to copper without sodium etch or plasma pretreatment. Shops using standard FR-4 desmear (potassium permanganate) on PTFE do not activate the surface, producing boards that look fine on delivery but fail under thermal cycling.

Is Taconic better than FR-4 for all applications? No. For designs operating below 1 GHz with standard signal integrity requirements, FR-4 is appropriate and Taconic is over-engineering. The cost premium of Taconic is only justified when loss, dispersion, or Dk stability limits system performance in ways that FR-4 cannot meet. Always calculate insertion loss and dispersion requirements before specifying any advanced laminate.

What Taconic grade should I use for 5G mmWave? For 5G sub-6 GHz, Taconic RF-35 or even Nelco N4000-13EP is often sufficient. For 5G mmWave (24–39 GHz), TLY-5 is the preferred grade because its ultra-low Df (0.0009) and smooth surface minimize insertion loss at millimeter-wave frequencies. TSM grades are not recommended for mmWave due to ceramic surface roughness.

Conclusion

Taconic PCB laminates are precision materials for a specific job: carrying RF and microwave signals with minimum loss and maximum phase stability. The right grade — TLY-5 for ultra-low Dk, RF-35 for the balanced-loss workhorse, TSM for compact high-Dk elements, TLC for thermal-cycle reliability — depends on your frequency, environment, and fabrication supply chain, not just the electrical spec sheet.

The single biggest determinant of success with any PTFE-based laminate is fabrication quality, specifically the surface activation process that makes copper adhesion reliable. A technically correct material choice on a poorly processed board is worse than the wrong material done right.

If you are specifying a Taconic design for the first time, start by requesting a fabrication capability review before committing to layout. RAYPCB offers engineering pre-review for Taconic and other high-frequency laminate builds — submit your stackup and frequency range through the quote page and the RF fabrication team will respond with a process compatibility assessment before you cut a purchase order.
