Thermal conductivity refers to a material’s inherent ability to conduct heat once heat is transferred into it. Conventional PCB materials like FR4 and Polyimide possess low thermal conductivity coefficients, making them inadequate for the growing thermal requirements of high-power PCBs. To tackle this heat dissipation challenge, one effective solution is the use of Metal Core Printed Circuit Boards (MCPCBs).

Introduction to Metal Core PCB

Metal core PCBs, also known as metal-clad PCBs or insulated metal substrate (IMS) boards, are a specialized type of printed circuit board designed to manage heat more effectively than traditional FR4 boards. The key feature of a metal core PCB is its metal base layer, which acts as both a support structure and a heat sink.

Unlike standard PCBs that use a fiberglass substrate, metal core PCBs incorporate a metal base layer, typically made of aluminum, copper, or iron. This metal core is sandwiched between layers of thermally conductive dielectric material and copper foil. The result is a PCB with superior thermal management capabilities, making it ideal for high-power applications where heat dissipation is crucial.

Metal Base Substrates Used in Metal Core PCB

The choice of metal substrate in a metal core PCB plays a significant role in its thermal performance and overall characteristics. Let’s explore the three primary metal base options:

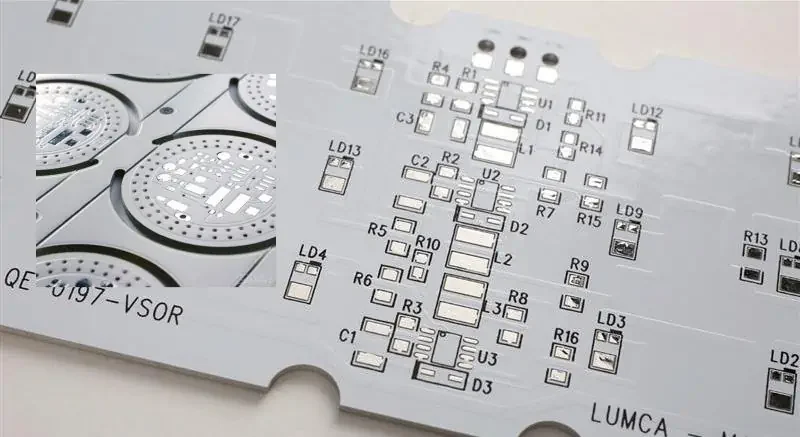

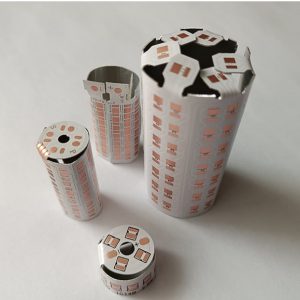

Aluminum Substrate

Aluminum is the most commonly used metal substrate in metal core PCBs due to its excellent balance of properties:

1. Thermal Conductivity: Aluminum offers good thermal conductivity (around 200 W/mK), efficiently dissipating heat from components.
2. Lightweight: Aluminum is significantly lighter than copper or iron, making it ideal for applications where weight is a concern.
3. Cost-effective: Aluminum is relatively inexpensive compared to copper, making it a cost-effective choice for many applications.
4. Corrosion Resistance: Aluminum naturally forms a protective oxide layer, providing good corrosion resistance.

Aluminum-based metal core PCBs are widely used in LED lighting, automotive electronics, and power supplies.

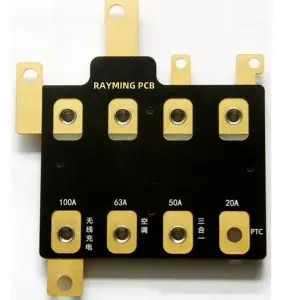

Copper Base (Copper Core or Heavy Copper)

Copper offers the highest thermal conductivity among the common metal substrates:

1. Superior Thermal Conductivity: Copper’s thermal conductivity (around 400 W/mK) is about twice that of aluminum, making it excellent for high-power applications.
2. Electrical Conductivity: Copper’s high electrical conductivity can be advantageous in certain designs.
3. Durability: Copper is more resistant to thermal fatigue than aluminum, potentially extending the lifespan of the PCB.
4. Higher Cost: The main drawback of copper is its higher cost compared to aluminum.

Copper-based metal core PCBs are often used in high-power LED applications, military and aerospace electronics, and industrial equipment where maximum heat dissipation is required.

Iron Base

Iron (or steel) is less commonly used but offers some unique properties:

1. Magnetic Properties: Iron’s magnetic properties can be beneficial in certain applications, such as motor controls or inductors.
2. Strength: Iron provides excellent mechanical strength, making it suitable for rugged applications.
3. Lower Thermal Conductivity: Iron’s thermal conductivity (around 80 W/mK) is lower than aluminum or copper, limiting its use in high-heat applications.
4. Cost: Iron is generally less expensive than copper but more expensive than aluminum.

Iron-based metal core PCBs find applications in automotive systems, particularly in engine control units and other high-vibration environments.

Types By Layers

Metal core PCBs come in various configurations based on the number and arrangement of layers. Each type has its own set of characteristics and applications:

Single Layer Metal Core PCB

Single layer metal core PCBs are the simplest and most cost-effective option:

• Structure: Consists of a metal base, dielectric layer, and a single copper foil layer.
• Applications: Commonly used in LED lighting, simple power supplies, and basic thermal management solutions.
• Advantages: Low cost, easy to manufacture, good heat dissipation for simple circuits.
• Limitations: Limited to simple circuit designs due to the single conductive layer.

COB (Chip-on-Board) Metal Core PCB

COB metal core PCBs are designed for direct chip attachment:

• Structure: Similar to single layer, but with provisions for direct chip mounting.
• Applications: High-power LED modules, automotive lighting, and compact electronic devices.
• Advantages: Excellent thermal management, compact design, improved reliability.
• Considerations: Requires specialized manufacturing and assembly processes.

Double Layer Metal Core PCB

Double layer metal core PCBs offer more design flexibility:

• Structure: Metal base, dielectric layer, two copper foil layers separated by another dielectric layer.
• Applications: More complex LED drivers, power converters, and motor controls.
• Advantages: Increased circuit density, better signal routing options.
• Challenges: Slightly more complex manufacturing process compared to single layer.

Multi-Layer Metal Core PCB

Multi-layer metal core PCBs provide the highest level of design flexibility:

• Structure: Metal base with multiple alternating layers of copper foil and dielectric material.
• Applications: High-complexity power electronics, advanced LED systems, and telecommunication equipment.
• Advantages: Maximum circuit density, sophisticated signal routing capabilities.
• Considerations: Higher cost, more complex manufacturing process, potential thermal management challenges in inner layers.

RF Metal Backed

RF metal backed PCBs are specialized for radio frequency applications:

• Structure: Metal base (often copper) with carefully designed RF circuit layers.
• Applications: High-frequency communication systems, radar equipment, and RF power amplifiers.
• Advantages: Excellent grounding, reduced signal interference, good heat dissipation for RF components.
• Challenges: Requires careful design to manage RF characteristics and thermal properties simultaneously.

Metal Core PCB Design Guidelines

Designing metal core PCBs requires careful consideration of several factors to ensure optimal performance:

1. Thermal Management:
   • Identify the primary heat sources on the board.
   • Design the layout to minimize thermal resistance between components and the metal core.
   • Consider using thermal vias to enhance heat transfer.
2. Component Placement:
   • Place high-power components directly over the metal core when possible.
   • Distribute heat-generating components evenly to avoid hot spots.
3. Layer Stack-up:
   • Choose appropriate dielectric materials and thicknesses for optimal thermal and electrical performance.
   • Consider the thermal conductivity of each layer in the stack-up.
4. Copper Weight:
   • Use heavier copper weights for high-current traces to improve heat spreading.
5. Thermal Simulations:
   • Conduct thermal simulations to identify potential issues before manufacturing.
6. Electrical Considerations:
   • Be aware of the potential for increased parasitic capacitance due to the metal base.
   • Design power and ground planes carefully to manage electromagnetic interference (EMI).
7. Mechanical Design:
   • Account for the coefficient of thermal expansion (CTE) mismatch between the metal core and other materials.
   • Consider the overall weight and mechanical stress in the final application.
8. Manufacturing Constraints:
   • Consult with your PCB manufacturer about their specific capabilities and limitations for metal core PCBs.

By following these guidelines, designers can create metal core PCBs that effectively balance thermal management, electrical performance, and manufacturability.

Metal Core PCB Manufacturing Process

The manufacturing process for metal core PCBs involves several specialized steps:

1. Material Preparation:
   • The metal core (aluminum, copper, or iron) is cleaned and prepared.
   • Dielectric material is applied to the metal core.
2. Lamination:
   • Copper foil is laminated onto the dielectric-coated metal core.
   • For multi-layer boards, additional dielectric and copper layers are added.
3. Imaging:
   • The circuit pattern is transferred to the copper layer(s) using photolithography.
4. Etching:
   • Unwanted copper is removed through chemical etching, leaving the desired circuit pattern.
5. Drilling:
   • Holes are drilled for vias and component mounting.
   • Special care is taken when drilling through the metal core.
6. Plating:
   • Holes are plated to create electrical connections between layers.
7. Solder Mask and Silkscreen:
   • Solder mask is applied to protect the copper traces.
   • Silkscreen is added for component identification and other markings.
8. Surface Finish:
   • An appropriate surface finish (e.g., HASL, ENIG) is applied to protect exposed copper and facilitate soldering.
9. Final Inspection and Testing:
   • The completed PCBs undergo electrical testing and visual inspection.

This process requires specialized equipment and expertise, particularly in handling the metal core and managing the thermal properties of the board throughout manufacturing.

Top 5 Advantages of Metal Core PCBs

Metal core PCBs offer several significant advantages over traditional FR4 boards:

1. Thermal Dissipation

The primary advantage of metal core PCBs is their superior thermal management:

• The metal base acts as an efficient heat spreader, quickly dissipating heat from components.
• This allows for higher power densities and improved reliability in high-heat applications.
• Thermal management is more uniform, reducing hot spots that can damage components.

2. Better Strength and Stability

Metal core PCBs provide enhanced mechanical properties:

• The metal base offers greater structural rigidity compared to fiberglass substrates.
• This increased strength allows for thinner overall board designs in some applications.
• The boards are more resistant to flexing and warping, which is crucial in high-vibration environments.

3. Dimensional Stability

Metal core PCBs maintain their shape and dimensions better than traditional PCBs:

• The metal base is less susceptible to expansion and contraction due to temperature changes.
• This stability is crucial for applications requiring precise component placement or optical alignment.
• It also contributes to the overall reliability and longevity of the board.

4. Lower Weight and Higher Recyclability

Despite the metal core, these PCBs can offer weight advantages:

• The superior heat dissipation often allows for smaller overall designs, potentially reducing weight.
• In some cases, the metal core can replace separate heat sinks, further reducing the total weight of the assembly.
• Metal core PCBs are often easier to recycle than traditional FR4 boards, aligning with environmental sustainability goals.

5. Longer Lifetime

The combination of better thermal management and mechanical stability contributes to a longer operational life:

• Improved heat dissipation reduces thermal stress on components, extending their lifespan.
• The stable operating temperatures lead to more consistent performance over time.
• Reduced thermal cycling and mechanical stress result in fewer failures due to solder joint fatigue or component degradation.

These advantages make metal core PCBs an attractive option for a wide range of high-performance and reliability-critical applications.

Metal Core PCB Vs. FR4

To fully appreciate the benefits of metal core PCBs, it’s helpful to compare them directly with traditional FR4 boards:

1. Thermal Conductivity:
   • Metal Core: 1-7 W/mK for the dielectric layer, plus the high conductivity of the metal base.
   • FR4: Typically 0.2-0.3 W/mK.
2. Heat Dissipation:
   • Metal Core: Excellent heat spreading and dissipation.
   • FR4: Limited heat dissipation, often requiring additional heat sinks.
3. Mechanical Strength:
   • Metal Core: High rigidity and resistance to flexing.
   • FR4: More prone to warping and flexing, especially in larger sizes.
4. Thermal Expansion:
   • Metal Core: Lower coefficient of thermal expansion (CTE) mismatch with components.
   • FR4: Higher CTE mismatch can lead to stress on solder joints.
5. Cost:
   • Metal Core: Generally more expensive due to materials and manufacturing process.
   • FR4: More cost-effective for standard applications.
6. Weight:
   • Metal Core: Can be heavier, but not always, depending on the design.
   • FR4: Typically lighter, but may require additional heat sinking.
7. Design Flexibility:
   • Metal Core: Some limitations due to the metal base layer.
   • FR4: More flexible in terms of layer count and via structures.
8. High-Frequency Performance:
   • Metal Core: Can be challenging due to the proximity of the metal base.
   • FR4: Better suited for high-frequency applications without special design considerations.
9. Environmental Impact:
   • Metal Core: Often easier to recycle.
   • FR4: More challenging to recycle due to the fiberglass content.

The choice between metal core and FR4 PCBs depends on the specific requirements of the application, with metal core PCBs excelling in high-power, thermally demanding scenarios.

Applications of Metal Core PCBs

Metal core PCBs find use in a wide range of applications where thermal management, reliability, and performance are critical:

1. LED Lighting:
   • High-power LED arrays for automotive headlights
   • LED street lighting and industrial lighting
   • Architectural and stage lighting systems
2. Automotive Electronics:
   • Engine control units (ECUs)
   • Power steering control modules
   • Electric vehicle battery management systems
3. Power Electronics:
   • DC-DC converters
   • Motor drives and controllers
   • Power supplies for telecommunications equipment
4. RF and Microwave Systems:
   • Power amplifiers for cellular base stations
   • Satellite communication equipment
   • Radar systems
5. Industrial Equipment:
   • CNC machine control boards
   • Industrial motor controls
   • High-power sensor systems
6. Consumer Electronics:
   • High-performance computing systems
   • Gaming consoles
   • Advanced audio amplifiers
7. Medical Devices:
   • MRI machine control systems
   • High-power laser systems for medical treatments
   • X-ray equipment
8. Aerospace and Defense:
   • Avionics systems
   • Missile guidance systems
   • Satellite electronics
9. Renewable Energy:
   • Solar inverters
   • Wind turbine control systems
   • Energy storage system management
10. Telecommunications:
    • 5G infrastructure equipment
    • High-speed network switches
    • Optical network terminals

In each of these applications, metal core PCBs provide the thermal management, reliability, and performance needed to meet demanding operational requirements.

Conclusion

Metal core PCBs represent a significant advancement in PCB technology, offering superior thermal management and mechanical properties compared to traditional FR4 boards. From their varied base materials to the diverse types of layered structures, metal core PCBs provide designers with powerful tools to address the challenges of modern electronics.

As devices continue to become more powerful and compact, the importance of effective thermal management in PCB design will only grow. Metal core PCBs, with their excellent heat dissipation capabilities, are well-positioned to play a crucial role in the future of electronics across a wide range of industries.

While they may not be the best choice for every application due to cost and design considerations, metal core PCBs shine in scenarios where high power, reliability, and thermal management are paramount. As technology continues to advance, we can expect to see further innovations in metal core PCB design and manufacturing, expanding their capabilities and applications even further.

For engineers and designers working on high-performance electronic systems, understanding the properties, design considerations, and manufacturing processes of metal core PCBs is becoming increasingly essential. By leveraging the unique advantages of these specialized boards, it’s possible to create more efficient, reliable, and powerful electronic devices that can meet the demanding requirements of modern technology.
