Solder mask is a protective polymer layer applied to a PCB’s copper traces to prevent oxidation, electrical shorts, and environmental damage. By covering exposed circuitry, it insulates the board from dust, moisture, and accidental solder bridges, ensuring reliable long-term performance. In this comprehensive guide, we’ll explore the various aspects of solder mask, from its types and applications to the manufacturing process and industry standards.

What is Solder Mask?

Solder mask, also known as solder resist, is a thin layer of polymer applied to the copper traces of a printed circuit board (PCB). Its primary purpose is to prevent solder from bridging between conductors and to protect the copper traces from oxidation and other environmental factors.

Key Functions of Solder Mask:

  1. Prevents solder bridges between closely spaced solder pads
  2. Protects copper traces from oxidation and corrosion
  3. Provides electrical insulation between conductive parts
  4. Improves the overall appearance of the PCB

Solder mask is typically applied to both sides of a PCB, covering all areas except where components need to be soldered. The most common color for solder mask is green, but it’s available in various colors to suit different applications and aesthetic preferences.

Types of Solder Mask

There are several types of solder mask used in PCB manufacturing, each with its own characteristics and applications. Let’s explore the main types:

1. Top and Bottom Side Masks

As the name suggests, these are applied to the top and bottom sides of the PCB. They can be the same or different types, depending on the specific requirements of the board.

2. Epoxy Liquid Solder Masks

Epoxy liquid solder masks are one of the oldest types still in use. They offer good chemical resistance and are relatively inexpensive.

Advantages:

  • Cost-effective
  • Good chemical resistance
  • Suitable for high-volume production

Disadvantages:

  • Less precise than photoimageable masks
  • Requires more processing steps

3. Dry Film Photoimageable Solder Masks

Dry film solder masks come in the form of a thin film that is applied to the PCB surface. They are photoimageable, meaning they can be exposed to light to create precise patterns.

Advantages:

  • High precision
  • Good uniformity
  • Suitable for fine-pitch components

Disadvantages:

  • More expensive than liquid masks
  • May not adhere as well to copper surfaces

4. Liquid Photoimageable Solder Masks

These are the most commonly used type of solder mask in modern PCB manufacturing. They combine the advantages of liquid application with the precision of photoimaging.

Advantages:

  • Excellent precision and resolution
  • Good adhesion to copper
  • Suitable for a wide range of applications

Disadvantages:

  • More expensive than non-photoimageable masks
  • Requires careful control of exposure and development processes

Read more bout:

What is a Solder Mask Layer, and Why Use It?

The solder mask layer is a crucial component of a PCB’s design and fabrication. It serves multiple important functions that contribute to the overall quality, reliability, and performance of the finished circuit board.

1. Provides Insulation During the Soldering Process

One of the primary functions of the solder mask layer is to provide insulation during the soldering process. It prevents solder from flowing to areas where it’s not needed, reducing the risk of short circuits and solder bridges between closely spaced components or traces.

2. Protects from Corrosion and Oxidation

The solder mask acts as a protective barrier against environmental factors that can cause corrosion or oxidation of the copper traces. This protection extends the lifespan of the PCB and ensures its long-term reliability.

3. Prevents the Growth of Whiskers

Tin whiskers are thin, hair-like structures that can grow from tin-based surface finishes. These whiskers can cause short circuits if they bridge between conductors. The solder mask helps prevent the growth and spread of these whiskers, further enhancing the reliability of the PCB.

4. Strengthens the Pads

By covering the areas around solder pads, the solder mask helps to anchor these pads more securely to the board. This increased strength can be particularly important in applications where the PCB may be subjected to mechanical stress or vibration.

5. Increases the Breakdown Voltage of the Dielectric Material

The solder mask layer adds to the overall thickness of the insulating material between conductive layers. This increased thickness helps to raise the breakdown voltage of the PCB, improving its ability to withstand high voltages without failure.

Colors & Thickness of PCB Solder Masks

While green is the most common color for solder masks, they are available in a variety of colors to suit different applications and preferences.

Common Solder Mask Colors:

  1. Green: The traditional and most widely used color
  2. Red: Often used for prototype boards
  3. Blue: Popular in consumer electronics
  4. Black: Used in high-end audio equipment and some military applications
  5. White: Offers good contrast for inspection and can help with thermal management
  6. Yellow: Sometimes used in automotive applications

The choice of color is often a matter of preference or branding, but it can also serve functional purposes. For example, white solder mask can help reflect heat, while dark colors like black can aid in heat absorption.

Solder Mask Thickness:

The thickness of the solder mask layer typically ranges from 0.5 to 1.5 mils (12.7 to 38.1 microns). The exact thickness depends on the type of solder mask used and the specific requirements of the PCB design.

Factors influencing solder mask thickness include:

  • The type of components being used
  • The required level of electrical insulation
  • The desired level of mechanical protection
  • Manufacturing process capabilities

It’s important to note that thicker solder mask layers can provide better protection but may also affect the board’s overall thickness and potentially impact fine-pitch component placement.

Solder Mask Printing Process

Soldermask and Silkscreen Process of Aluminum PCB Manufactturing
Soldermask and Silkscreen Process of Aluminum PCB Manufactturing

The application of solder mask is a multi-step process that requires precision and careful control. Here’s an overview of the typical steps involved:

Step 1: Board Cleaning

Before applying the solder mask, the PCB must be thoroughly cleaned to remove any contaminants that could affect adhesion or quality.

Key points:

  • Use appropriate cleaning solutions
  • Ensure complete removal of debris and oils
  • Dry the board thoroughly

Step 2: Solder Mask Ink Coating

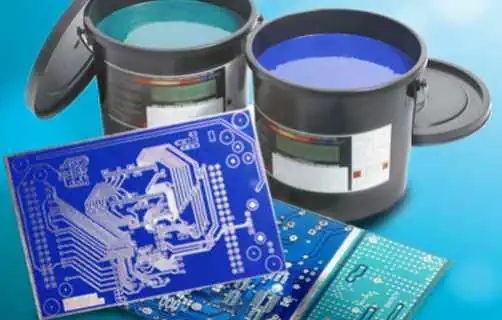

The solder mask material is applied to the clean PCB surface, typically using screen printing or curtain coating methods.

Key points:

  • Ensure even coverage across the entire board
  • Control the thickness of the applied layer
  • Avoid air bubbles or other imperfections

Step 3: Pre-hardening

The coated board is subjected to a pre-hardening process, usually involving exposure to UV light or heat.

Key points:

  • Partially cure the solder mask material
  • Prepare the surface for imaging
  • Avoid over-curing at this stage

Step 4: Imaging and Hardening

The pre-hardened solder mask is exposed to UV light through a photomask, hardening the exposed areas.

Key points:

  • Use high-resolution photomasks for precise patterning
  • Control exposure time and intensity
  • Ensure proper alignment of the photomask

Step 5: Developing

The unexposed areas of solder mask are removed using a developing solution, revealing the underlying copper where components will be soldered.

Key points:

  • Use appropriate developing solutions
  • Control developing time and temperature
  • Rinse thoroughly to remove all residues

Step 6: Final Hardening and Cleaning

The board undergoes a final curing process to fully harden the solder mask, followed by a final cleaning step.

Key points:

  • Ensure complete curing of the solder mask
  • Remove any remaining residues
  • Inspect the board for any defects or imperfections

Common Solder Mask Issues and Solutions

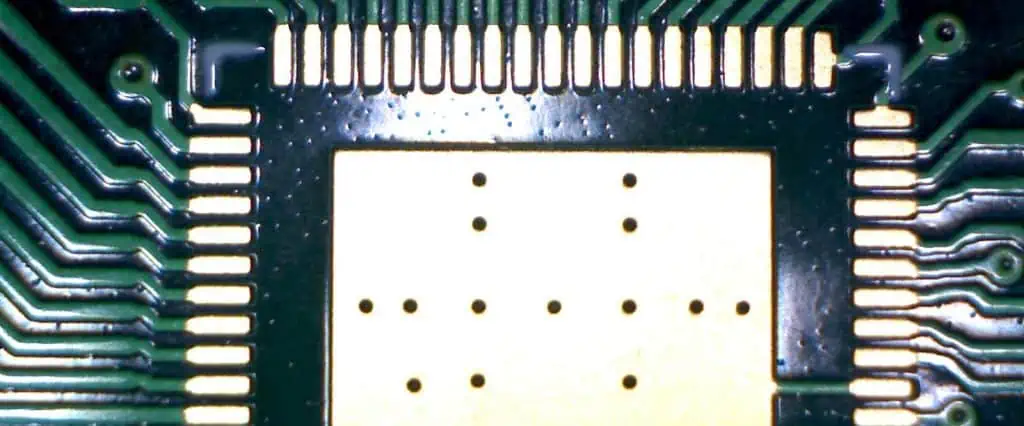

solder mask bridge
solder mask bridge

Despite careful processing, solder mask application can sometimes encounter issues. Here are some common problems and their potential solutions:

1. Pinholes

Issue: Small holes in the solder mask layer that can expose underlying copper. Solution: Improve cleanliness of the board before coating, adjust solder mask viscosity, or consider double coating.

2. Delamination/Peeling

Issue: Solder mask separating from the PCB surface. Solution: Ensure proper surface preparation, adjust curing parameters, or consider changing to a different type of solder mask material.

3. Overcuring

Issue: Solder mask becomes brittle and prone to cracking. Solution: Adjust curing time and temperature, ensure even exposure during UV curing.

4. Undercuring

Issue: Solder mask remains soft and prone to damage. Solution: Increase curing time or temperature, check UV lamp intensity.

5. Solder Mask Expansion

Issue: Solder mask expands beyond intended areas during curing. Solution: Adjust exposure and developing parameters, consider using a higher resolution photomask.

6. Solder Mask Dam

Issue: Insufficient solder mask between closely spaced pads. Solution: Adjust design rules, consider using a higher resolution solder mask process.

7. Solder Mask Bridge

Issue: Solder mask connecting between pads where it should be open. Solution: Improve alignment during imaging, adjust exposure parameters.

8. Solder Mask Opening

Issue: Solder mask openings are too large or small. Solution: Adjust design rules, fine-tune exposure and developing parameters.

9. Solder Mask Clearance

Issue: Insufficient clearance between solder mask and copper features. Solution: Review and adjust design rules, consider using a more precise solder mask process.

10. Missing Solder Mask

Issue: Areas of the board lack solder mask where it should be present. Solution: Check for defects in the photomask, ensure even coating during application.

IPC Standards for Solder Mask on PCB

The IPC (Institute for Printed Circuits) has established several standards related to solder mask application and performance. These standards help ensure consistency and quality across the industry.

1. IPC-SM-840

This is the primary standard for solder mask materials and processes. It covers:

  • Performance requirements
  • Qualification and quality conformance procedures
  • Handling and storage guidelines

Key aspects of IPC-SM-840 include:

  • Adhesion requirements
  • Resistance to solvents and fluxes
  • Thermal shock resistance
  • Electrical properties

2. IPC-SM-781

This standard focuses on user guidelines for solder mask application. It provides information on:

  • Solder mask selection
  • Application methods
  • Process control
  • Troubleshooting

3. IPC-SF-818

While not specifically a solder mask standard, IPC-SF-818 covers general requirements for electronic soldering fluxes, which can impact solder mask performance.

4. IPC-1791

This standard provides guidelines for the qualification of solder mask ink suppliers. It helps ensure that solder mask materials meet industry requirements for quality and reliability.

4 DFM Guidelines for Solder Mask Design

Design for Manufacturing (DFM) is crucial for ensuring that PCBs can be reliably produced. Here are four important DFM guidelines for solder mask design:

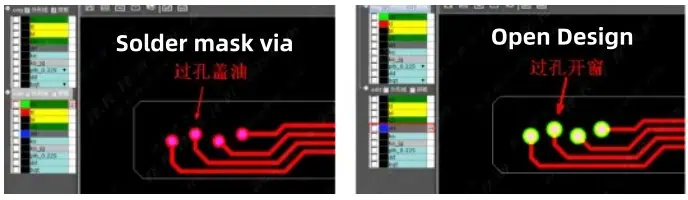

1. Employ Via Tenting to Reduce Exposed Annular Rings on the PCB Surface

Via tenting involves covering vias with solder mask to prevent solder from flowing into the holes during assembly.

Benefits:

  • Reduces the risk of solder shorts
  • Improves the overall appearance of the board
  • Conserves solder during the assembly process

Guidelines:

  • Use via tenting for vias smaller than 0.45mm (18 mils)
  • Ensure the solder mask can reliably cover the via opening

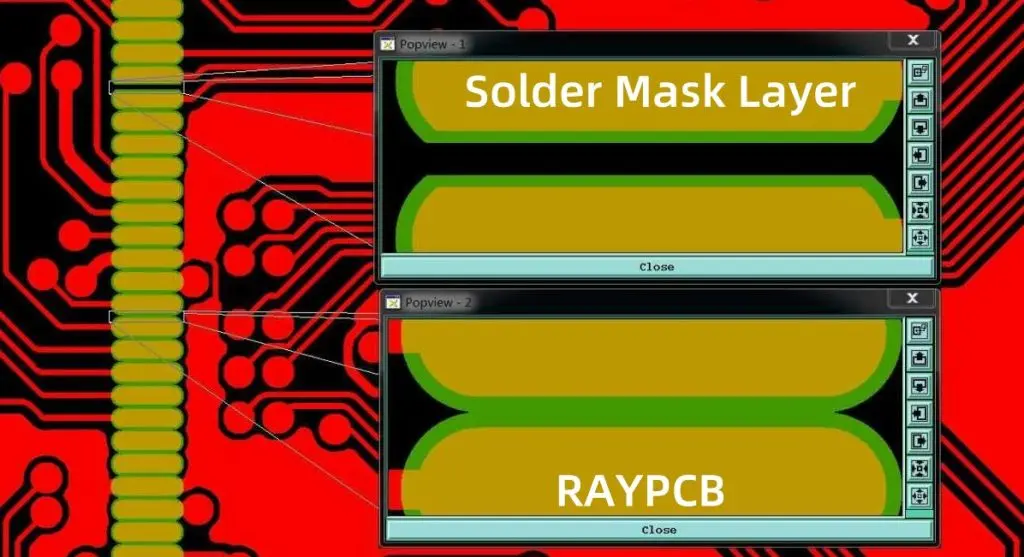

2. Implement a Minimum Solder Mask Web of 4 mil for Green and 5 mil for Other Colors

The solder mask web is the area of solder mask between exposed copper features.

Benefits:

  • Ensures sufficient insulation between conductive areas
  • Reduces the risk of solder bridging
  • Improves the overall reliability of the PCB

Guidelines:

  • Maintain a minimum of 4 mil (0.1mm) web for green solder mask
  • Use a minimum of 5 mil (0.127mm) web for other colors
  • Adjust web width based on copper thickness and voltage requirements

3. Maintain a 1:1 Ratio Between the Solder Mask Opening and the Underlying Pad

This guideline ensures proper solder mask clearance around pads.

Benefits:

  • Provides consistent solder paste deposition
  • Reduces the risk of solder bridges
  • Improves overall soldering quality

Guidelines:

  • Design solder mask openings to be the same size as the underlying pad
  • For fine-pitch components, consider slight reductions in opening size
  • Ensure consistent clearance around all pads of the same type

4. Carefully Calculate the Pad Sizes for SMD and NSMD Pads

SMD (Solder Mask Defined) and NSMD (Non-Solder Mask Defined) are two approaches to pad design that affect how the solder mask interacts with the pad.

Benefits:

  • Optimizes solder joint strength
  • Improves component placement accuracy
  • Enhances overall PCB reliability

Guidelines for SMD pads:

  • Solder mask opening should be smaller than the copper pad
  • Typical solder mask pullback is 0.5-1 mil (0.0127-0.0254mm) per side

Guidelines for NSMD pads:

  • Solder mask opening should be larger than the copper pad
  • Typical clearance is 1-3 mil (0.0254-0.0762mm) per side

How Do I Remove Solder Mask From PCB?

There may be instances where you need to remove solder mask from a PCB, such as for rework or modification. Here are some methods for removing solder mask:

1. Mechanical Removal

Method: Use a scraper, knife, or abrasive material to physically remove the solder mask. Pros: Quick and doesn’t require special equipment Cons: Risk of damaging underlying copper or board material

2. Chemical Removal

Method: Apply a solder mask remover solution, which chemically dissolves the solder mask. Pros: Can remove solder mask from larger areas more easily Cons: Requires careful handling of chemicals and proper disposal

3. Laser Removal

Method: Use a laser to ablate the solder mask. Pros: Very precise, can remove small areas of solder mask Cons: Requires specialized equipment, can be slow for large areas

4. Sandblasting

Method: Use fine abrasive particles under pressure to remove the solder mask. Pros: Effective for larger areas Cons: Can be messy, risk of damaging other parts of the board

5. Heat Gun Method

Method: Apply heat to soften the solder mask, then scrape it off. Pros: Can be effective for small areas Cons: Risk of overheating and damaging the board or components

When removing solder mask, always:

  • Protect surrounding areas that should not be affected
  • Work carefully to avoid damaging the underlying copper or board material
  • Clean the area thoroughly after removal to ensure good adhesion if reapplying solder mask

Conclusion

Solder mask plays a crucial role in PCB manufacturing, providing protection, insulation, and improving the overall reliability of electronic devices. Understanding the types of solder mask, the application process, common issues, and industry standards is essential for anyone involved in PCB design or manufacturing.

By following proper design for manufacturing guidelines and adhering to industry standards, you can ensure that your PCBs are not only functional but also reliable and manufacturable. Whether you’re designing a simple two-layer board or a complex multi-layer PCB, paying attention to solder mask details can make a significant difference in the quality and performance of your final product.

Remember, the world of PCB manufacturing is constantly evolving, with new materials and techniques being developed. Stay informed about the latest advancements in solder mask technology to ensure your designs remain at the cutting edge of electronic manufacturing.
