1. What is Wave Soldering?

Wave soldering is an automated bulk soldering process used extensively in the electronics manufacturing industry. This efficient method is primarily employed for soldering electronic components to printed circuit boards (PCBs) on a large scale. The process derives its name from the wave-like formation of molten solder that the PCBs pass through during the soldering operation.

In wave soldering, a PCB with components already placed on it is passed over a standing wave of molten solder. This wave makes contact with the underside of the board, soldering all the components in one swift, continuous motion. The process is particularly effective for through-hole components but can also be used for certain surface-mount devices (SMDs) when properly configured.

Key Components of a Wave Soldering System

1. Flux Application: A unit that applies flux to the bottom of the PCB
2. Preheating Zone: An area where the PCB is heated to prepare it for soldering
3. Solder Wave: The core of the system, where molten solder forms a wave
4. Cooling Zone: Where the soldered board cools down and solidifies

Wave soldering has become an indispensable part of modern electronics manufacturing due to its speed, consistency, and ability to handle high-volume production efficiently.

2. How Wave Soldering Began

The evolution of wave soldering is a fascinating journey that spans several decades, marked by continuous improvements in efficiency and quality. Let’s explore the three main stages that led to the development of modern wave soldering technology.

First Stage: Dip Soldering

The precursor to wave soldering was a method known as dip soldering, which emerged in the early days of electronics manufacturing.

• Process: PCBs were manually dipped into a bath of molten solder.
• Advantages: Simple and effective for small-scale production.
• Limitations:
  • Labor-intensive and time-consuming
  • Inconsistent results due to manual operation
  • Risk of thermal shock to components

While dip soldering was a step forward from individual hand soldering, it quickly became apparent that a more efficient method was needed as electronics production scaled up.

Second Stage: Drag Soldering

As the demand for electronic products grew, manufacturers sought ways to automate the soldering process, leading to the development of drag soldering.

• Process: PCBs were dragged across the surface of a solder bath.
• Improvements over dip soldering:
  • Increased automation
  • Higher throughput
  • More consistent results
• Limitations:
  • Uneven solder application
  • Potential for solder bridges
  • Still relatively slow for high-volume production

Drag soldering represented a significant improvement in efficiency, but it still had limitations that needed to be addressed for large-scale manufacturing.

Third Stage: Wave Soldering

The breakthrough came with the invention of wave soldering in the 1950s, credited to the British company Fry’s Metals Ltd.

• Key Innovation: Creation of a standing wave of molten solder
• Process Improvements:
  • Continuous, automated soldering
  • Consistent solder application across the entire PCB
  • Significantly higher throughput
  • Better control over solder temperature and wave characteristics

Wave soldering quickly became the industry standard for high-volume PCB assembly, particularly for through-hole components. Its efficiency and consistency made it possible to meet the growing demand for electronic products in the latter half of the 20th century.

Modern Developments

Since its inception, wave soldering has continued to evolve:

• Dual Wave Systems: Combining a turbulent and a laminar wave for better solder penetration and finish
• Lead-Free Solder Compatibility: Adaptations to work with higher-temperature, lead-free solders
• Integrated Flux and Preheat Systems: Improved process control and efficiency
• Computer-Controlled Systems: Enhanced precision and repeatability

Today, wave soldering remains a crucial process in electronics manufacturing, coexisting with newer technologies like reflow soldering for surface-mount components.

3. What are the Advantages of Wave Soldering?

Wave soldering offers numerous benefits that have contributed to its enduring popularity in the electronics manufacturing industry. Let’s explore these advantages in detail:

1. High-Volume Production Capability

• Throughput: Can process hundreds of PCBs per hour
• Consistency: Maintains quality across large production runs
• Cost-Effective: Lower per-unit cost for high-volume manufacturing

2. Excellent for Through-Hole Components

• Reliable Connections: Ensures complete filling of plated through-holes
• Versatility: Can handle a wide range of through-hole component types

3. Uniform Solder Application

• Even Coverage: Consistent solder thickness across the board
• Reduced Defects: Minimizes issues like insufficient solder or solder bridges

4. Efficient Use of Materials

• Precise Solder Application: Minimizes waste compared to manual methods
• Flux Control: Automated flux application ensures optimal usage

5. Process Control and Repeatability

• Temperature Management: Precise control over solder temperature
• Wave Characteristics: Adjustable wave height and speed for different PCB types
• Consistent Quality: Reproducible results across production runs

6. Compatibility with Mixed Technology

• Adaptability: Can be used for certain surface-mount components alongside through-hole
• Flexibility: Useful for boards that combine different component types

7. Reduced Labor Costs

• Automation: Minimizes the need for manual soldering
• Skill Requirements: Less reliance on highly skilled operators

8. Speed and Efficiency

• Quick Processing: Entire boards soldered in seconds
• Continuous Operation: Can run for extended periods with minimal downtime

9. Improved Thermal Management

• Controlled Heating: Preheating stages reduce thermal shock to components
• Even Heat Distribution: Uniform heating across the board

10. Quality and Reliability

• Strong Joints: Creates reliable solder connections
• Reduced Human Error: Minimizes defects associated with manual soldering

These advantages have made wave soldering an indispensable process in electronics manufacturing, particularly for high-volume production of PCBs with through-hole components.

Read more about:

• PCB Soldering
• BGA Reballing
• Prototype PCB Assembly
• Wave soldering Vs. reflow soldering

4. What is the Wave Soldering Process?

The wave soldering process is a sophisticated, multi-stage operation designed to efficiently and consistently solder components to printed circuit boards. Let’s break down each stage of this process in detail:

1. Flux Application

• Purpose: Prepare the board and component leads for soldering
• Process:
  • PCB passes over a foam fluxer or spray fluxer
  • Flux is applied to the bottom of the board
• Functions of Flux:
  • Removes oxides from metal surfaces
  • Improves wetting of solder
  • Prevents re-oxidation during soldering

2. Preheating

• Purpose: Gradually raise the temperature of the PCB and components
• Process:
  • Board passes through a series of heating elements (infrared or convection)
  • Temperature typically raised to about 100°C (212°F)
• Benefits:
  • Activates the flux
  • Reduces thermal shock
  • Evaporates flux solvents
  • Minimizes component stress

3. Solder Wave Contact

• Purpose: Apply molten solder to the PCB
• Process:
  • PCB passes over a wave of molten solder
  • Solder temperature typically 240-250°C (464-482°F) for lead-free solder
• Wave Characteristics:
  • Laminar Flow: Smooth, even wave for consistent coverage
  • Turbulent Flow: Used in dual-wave systems for better penetration
• Contact Time: Usually 2-4 seconds

4. Cooling

• Purpose: Allow solder joints to solidify
• Process:
  • Natural air cooling or forced air cooling
  • Temperature brought down to below solder solidification point
• Importance:
  • Prevents component movement during solidification
  • Ensures strong, reliable solder joints

5. Cleaning (Optional)

• Purpose: Remove flux residues and any contaminants
• Process:
  • May involve water wash, solvent cleaning, or no-clean flux
• Considerations:
  • Environmental regulations
  • Type of flux used (no-clean vs. water-soluble)

Key Parameters in Wave Soldering

1. Conveyor Speed: Affects exposure time to each process stage
2. Solder Temperature: Critical for proper wetting and joint formation
3. Wave Height: Determines contact area with PCB
4. Flux Density and Application: Affects soldering quality and cleanliness
5. Preheat Temperature Profile: Crucial for proper flux activation and minimal thermal stress

Advanced Techniques

• Dual Wave Soldering: Combines a turbulent and a laminar wave
  • Turbulent wave for better penetration of plated through-holes
  • Laminar wave for smooth finish and removing excess solder
• Selective Wave Soldering: Uses a focused, miniature wave for specific areas of the PCB

Understanding and controlling each stage of the wave soldering process is crucial for achieving high-quality results in PCB assembly.

5. Wave Soldering Defects

While wave soldering is generally a reliable process, various defects can occur if the parameters are not properly controlled. Recognizing these defects is crucial for maintaining quality in PCB production. Here are some common wave soldering defects and their causes:

1. Solder Bridges

• Description: Unwanted solder connections between adjacent pads or leads
• Causes:
  • Excessive solder wave height
  • Improper board design (insufficient spacing)
  • Contamination on the PCB surface

2. Insufficient Solder

• Description: Lack of solder on joints, resulting in poor connections
• Causes:
  • Inadequate flux application
  • Low solder wave height
  • Excessive conveyor speed

3. Solder Balls

• Description: Small spheres of solder scattered on the PCB
• Causes:
  • Excessive flux application
  • Contamination on the board
  • Turbulent solder wave

4. Icicles or Peaks

• Description: Pointed solder formations extending from joints
• Causes:
  • Improper cooling rate
  • Board exiting wave at wrong angle
  • Excessive solder temperature

5. Tombstoning

• Description: One end of a component lifts off the board
• Causes:
  • Uneven heating of component terminations
  • Poor component placement
  • Unbalanced pad design

6. Pinholes

• Description: Small holes in solder joints
• Causes:
  • Outgassing during soldering
  • Contamination on pads or leads
  • Insufficient preheat

7. Cold or Disturbed Joints

• Description: Dull, grainy appearance of solder joints
• Causes:
  • Insufficient solder temperature
  • Board movement during cooling
  • Contamination on surfaces

8. Solder Skips

• Description: Areas where solder has not wet the joint
• Causes:
  • Insufficient flux
  • Oxidized surfaces
  • Contamination

9. Excess Solder

• Description: Too much solder on joints, often forming a blob
• Causes:
  • Excessive wave height
  • Slow conveyor speed
  • Poor pad design

10. Component Damage

• Description: Physical or electrical damage to components
• Causes:
  • Excessive preheat or wave temperature
  • Thermal shock
  • Mechanical stress during process

Preventing Wave Soldering Defects

To minimize these defects, consider the following:

1. Process Control: Maintain consistent temperatures, conveyor speeds, and wave characteristics
2. Design for Manufacturability: Ensure PCB layout is optimized for wave soldering
3. Cleanliness: Keep boards and components free from contamination
4. Proper Flux Selection and Application: Use appropriate flux and apply it evenly
5. Regular Maintenance: Clean and maintain wave soldering equipment regularly
6. Quality Inspection: Implement thorough inspection procedures to catch defects early

By understanding these common defects and their causes, manufacturers can take proactive steps to improve the quality and reliability of their wave soldering process.

6. How Placement Can Affect the Effectiveness of Wave Soldering

The placement of components on a PCB plays a crucial role in the effectiveness of wave soldering. Proper placement not only ensures good solder joints but also minimizes defects and improves overall production efficiency. Here are key considerations for component placement in wave soldering:

1. Orientation of Components

• Parallel to Wave Direction:
  • Ideal for most components
  • Ensures even solder distribution
• Perpendicular to Wave:
  • Can cause shadowing and insufficient solder
  • Sometimes necessary for large components

2. Component Density

• Spacing Between Components:
  • Adequate spacing prevents solder bridges
  • Allows for proper heat distribution
• Clustering:
  • Avoid tightly clustered components
  • Can lead to heat buildup and soldering issues

3. Component Size and Shape

• Larger Components:
  • Place downstream in wave direction
  • Prevents shadowing of smaller components
• Tall Components:
  • Can create solder shadows
  • May require special consideration in placement

4. Thermal Considerations

• Heat-Sensitive Components:
  • Place away from preheating zones
  • Consider using thermal relief pads
• High Thermal Mass Components:
  • May require extended preheat
  • Consider placement for optimal heat absorption

5. Lead Length and Clinching

• Lead Length:
  • Consistent lead length improves soldering uniformity
  • Too long can cause solder bridges; too short may result in insufficient solder
• Clinching:
  • Can improve stability during soldering
  • Affects solder flow and joint formation

6. Pad Design and Component Footprint

• Pad Size and Shape:
  • Affects solder wicking and joint formation
  • Should match component leads for optimal results
• Solder Thieves:
  • Can be used to prevent solder bridges
  • Placement critical for effectiveness

7. Wave Direction Considerations

• Component Entry Angle:
  • Affects how solder flows around leads
  • Generally, components should enter the wave lead-first
• Exit Strategy:
  • Smooth exit from wave prevents icicles and peaks

8. Special Components

• Connectors and Sockets:
  • May require specific orientation
  • Consider potential for flux and solder entrapment
• Surface Mount Components:
  • When used in wave soldering, require special attention to prevent tombstoning

9. Clearance from Board Edges

• Edge Clearance:
  • Maintain adequate distance from board edges
  • Prevents excess solder accumulation and edge defects

10. Mask and Solder Resist Considerations

• Solder Mask Design:
  • Proper design prevents solder bridges and ensures good wetting
  • Consider mask clearances around pads

Best Practices for Effective Placement

1. Design for Manufacturing (DFM) Review: Conduct thorough DFM reviews to identify potential issues before production
2. Simulation and Modeling: Use thermal and fluid flow simulations to optimize component placement
3. Prototyping: Build and test prototypes to verify placement effectiveness
4. Continuous Improvement: Regularly review and update placement guidelines based on production results
5. Training: Ensure design and production teams are well-versed in wave soldering principles

By carefully considering component placement, manufacturers can significantly improve the effectiveness of their wave soldering process, leading to higher quality PCBs and more efficient production.

7. What is the Difference Between Hand Soldering and Wave Soldering?

Understanding the differences between hand soldering and wave soldering is crucial for choosing the right method for a given project or production scenario. Each technique has its own strengths and limitations

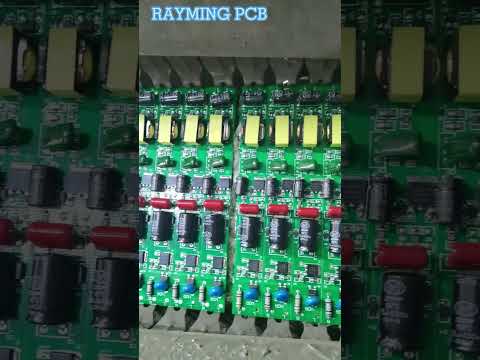

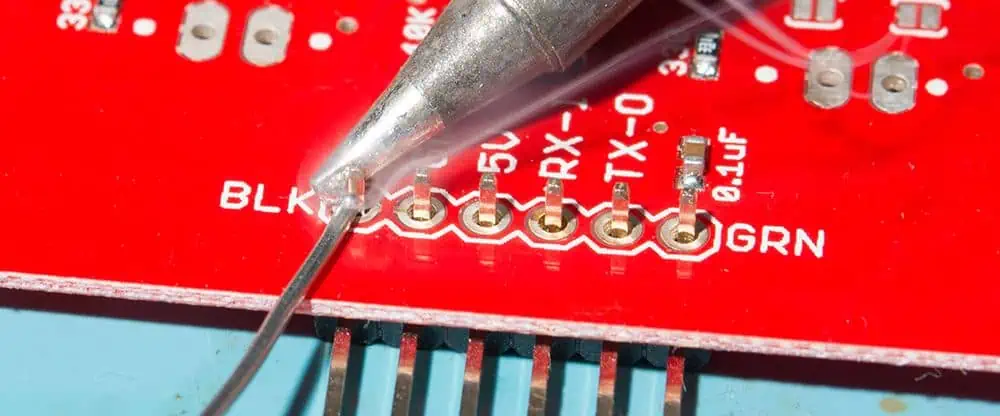

Hand Soldering

1. Process:
   • Manual application of solder to individual joints using a soldering iron
   • Operator controls solder amount, heat application, and timing
2. Advantages:
   • Flexibility for various component types and board layouts
   • Ideal for prototyping and small-scale production
   • Allows for easy rework and repairs
   • Low initial equipment cost
3. Limitations:
   • Time-consuming for large volumes
   • Consistency depends on operator skill
   • Potential for human error
   • Less suitable for high-density boards

Wave Soldering

1. Process:
   • Automated bulk soldering where boards pass over a wave of molten solder
   • Machine controls solder temperature, wave characteristics, and board speed
2. Advantages:
   • High-speed production for large volumes
   • Consistent results across multiple boards
   • Efficient for through-hole components
   • Cost-effective for high-volume manufacturing
3. Limitations:
   • High initial equipment cost
   • Less flexible for varied board designs
   • Primarily suited for through-hole components
   • Potential for defects in complex board layouts

Key Differences

1. Speed and Volume:
   • Hand soldering is slower but more flexible
   • Wave soldering is faster and more suitable for high-volume production
2. Consistency:
   • Wave soldering provides more consistent results across boards
   • Hand soldering quality varies with operator skill
3. Component Compatibility:
   • Hand soldering works with almost any component type
   • Wave soldering is primarily for through-hole components, with limited SMD capability
4. Cost Structure:
   • Hand soldering has lower upfront costs but higher labor costs
   • Wave soldering requires significant initial investment but lower per-unit costs at scale
5. Skill Requirements:
   • Hand soldering requires skilled technicians
   • Wave soldering requires machine operators and process engineers
6. Flexibility:
   • Hand soldering allows for easy adjustments and one-off changes
   • Wave soldering is less flexible but more efficient for standardized designs
7. Quality Control:
   • Hand soldering relies on operator skill and individual inspection
   • Wave soldering allows for more automated quality control measures

Choosing between hand soldering and wave soldering depends on factors such as production volume, board complexity, component types, and available resources. Many manufacturers use a combination of both methods to optimize their production processes.

8. Wave Soldering Design Considerations

Effective wave soldering requires careful consideration of various design elements. Here are key factors to consider when designing PCBs for wave soldering:

1. Solder Pad Mask Opening

• Purpose: Defines areas where solder should adhere
• Considerations:
  • Adequate clearance around pads to prevent solder bridges
  • Proper size to ensure sufficient solder coverage
  • Consistent openings for uniform solder distribution

2. Surface Finish

• Options: HASL, ENIG, OSP, Immersion Silver, Immersion Tin
• Considerations:
  • Compatibility with wave soldering process
  • Shelf life and oxidation resistance
  • Impact on solderability and joint reliability

3. Tips for Component Placement and Orientation for Wave Soldering

• Orientation:
  • Align components parallel to the wave direction when possible
  • Place larger components downstream to prevent shadowing
• Spacing:
  • Maintain adequate spacing between components to prevent solder bridging
  • Consider thermal relief for high-mass components

4. Component Clearances

• Vertical Clearance:
  • Ensure sufficient space between component bodies and the board
  • Typically 0.5mm to 1.5mm depending on component size
• Horizontal Clearance:
  • Space components to allow proper solder flow
  • Minimum 0.5mm between adjacent component leads

5. Pad Shapes

• Through-Hole Pads:
  • Tear-drop shape can improve solder filling
  • Elongated pads in wave direction can enhance solder wicking
• SMD Pads:
  • When used, ensure proper size and shape for component stability

6. Solder Flux

• Type Selection:
  • Choose between no-clean, water-soluble, or rosin-based flux
  • Consider cleaning requirements and environmental factors
• Application Method:
  • Ensure even application across the board
  • Consider flux density and viscosity for optimal performance

7. How to Take a Wave Soldering Profile

Taking a wave soldering profile is crucial for process optimization. Here’s a step-by-step guide:

1. Attach Thermocouples:
   • Place thermocouples on various points of the PCB
   • Include locations near sensitive components and high-mass areas
2. Run Test Board:
   • Pass the instrumented board through the wave soldering machine
3. Record Data:
   • Collect temperature data throughout the process
   • Note temperatures at key points: preheat, solder wave contact, and cooling
4. Analyze Profile:
   • Ensure proper preheat slope and peak temperatures
   • Verify solder wave temperature and contact time
   • Check cooling rate for proper joint formation
5. Adjust Parameters:
   • Modify conveyor speed, preheat settings, or wave characteristics as needed
   • Repeat process until optimal profile is achieved
6. Document Results:
   • Record the final profile for future reference and process control

By carefully considering these design elements and properly profiling the wave soldering process, manufacturers can significantly improve the quality and reliability of their PCB assemblies.

9. Wave Soldering Machine and Temperature Profile

Understanding the wave soldering machine and its temperature profile is crucial for achieving optimal results in PCB assembly. Let’s delve into the key aspects of wave soldering equipment and the importance of temperature management.

Wave Soldering Machine Components

1. Flux Application System:
   • Foam fluxer or spray fluxer
   • Applies flux evenly to the bottom of the PCB
2. Preheating Zone:
   • Infrared or convection heaters
   • Gradually raises board temperature to activate flux and prepare for soldering
3. Solder Wave System:
   • Solder pot with pump mechanism
   • Creates a standing wave of molten solder
4. Conveyor System:
   • Moves PCBs through the machine at a controlled speed
   • Often adjustable for different board types
5. Cooling Zone:
   • Forced air or natural cooling section
   • Allows solder joints to solidify properly
6. Control Panel:
   • Manages temperature, conveyor speed, and wave characteristics
   • Often includes data logging and profile storage capabilities

Temperature Profile in Wave Soldering

The temperature profile in wave soldering is critical for ensuring quality solder joints and preventing component damage. A typical profile consists of several stages:

1. Flux Activation:
   • Temperature: 80-100°C (176-212°F)
   • Purpose: Activates flux for oxide removal and improved wetting
2. Preheat Ramp:
   • Temperature: 100-150°C (212-302°F)
   • Purpose: Gradually increases board temperature to prevent thermal shock
3. Soak:
   • Temperature: 150-170°C (302-338°F)
   • Purpose: Equalizes temperature across the board, completes flux activation
4. Solder Wave Contact:
   • Temperature: 240-260°C (464-500°F) for lead-free solder
   • Purpose: Applies molten solder to form joints
5. Cooling:
   • Rapid initial cooling to below 180°C (356°F)
   • Gradual cooling to room temperature
   • Purpose: Ensures proper joint formation and prevents thermal stress

Optimizing the Temperature Profile

1. Board-Specific Profiling:
   • Adjust profile based on board thickness, component density, and thermal mass
   • Use profiling equipment to measure actual board temperatures
2. Preheat Optimization:
   • Ensure adequate preheat to activate flux and reduce thermal shock
   • Avoid excessive preheat that can damage components or evaporate flux
3. Wave Temperature Control:
   • Maintain consistent solder wave temperature
   • Adjust for different solder alloys (e.g., lead-free requires higher temperatures)
4. Cooling Rate Management:
   • Control cooling rate to prevent defects like icicles or disturbed joints
   • Consider forced cooling for high-mass boards
5. Process Window Development:
   • Establish a process window that allows for minor variations while maintaining quality
   • Document optimal settings for different board types

Advanced Features in Modern Wave Soldering Machines

1. Dual Wave Systems:
   • Combines turbulent and laminar waves for improved penetration and finish
2. Nitrogen Inerting:
   • Reduces oxidation and improves wetting, especially for lead-free solders
3. Automated Profiling Systems:
   • Real-time temperature monitoring and profile adjustment
4. Selective Soldering Capability:
   • Allows for targeted soldering of specific areas on complex boards
5. Integration with Industry 4.0:
   • Data collection and analysis for continuous process improvement

By understanding and optimizing the wave soldering machine and its temperature profile, manufacturers can achieve consistent, high-quality results in their PCB assembly processes. Regular maintenance, careful monitoring, and continuous improvement efforts are key to maximizing the effectiveness of wave soldering technology.

Conclusion

Wave soldering remains a cornerstone technology in electronics manufacturing, offering unparalleled efficiency for high-volume production of through-hole PCB assemblies. From its humble beginnings in dip soldering to the sophisticated, computer-controlled systems of today, wave soldering has evolved to meet the changing needs of the electronics industry.

Key takeaways from this comprehensive guide include:

1. The importance of understanding the wave soldering process and its various stages
2. The critical role of proper component placement and PCB design for successful wave soldering
3. The need for careful temperature profile management to ensure quality and reliability
4. The advantages of wave soldering in terms of speed, consistency, and cost-effectiveness for high-volume production
5. The ongoing relevance of wave soldering even in the age of surface-mount technology

As the electronics industry continues to advance, wave soldering will undoubtedly continue to evolve, incorporating new technologies and techniques to meet the challenges of increasingly complex and miniaturized electronic devices. By staying informed about best practices and emerging trends in wave soldering, electronics manufacturers can ensure they continue to produce high-quality, reliable products efficiently and cost-effectively.
