Introduction

In the ever-evolving landscape of wireless communication, antennas play a pivotal role in enabling seamless connectivity across a myriad of devices. From smartphones and laptops to IoT sensors and wearable technology, the demand for compact, efficient, and versatile antennas has never been greater. Enter the Inverted-F Antenna (IFA) and its planar cousin, the Planar Inverted-F Antenna (PIFA) – two designs that have revolutionized the world of compact wireless devices.

The Inverted-F Antenna, aptly named for its “F” shaped profile, has become a cornerstone in modern wireless design. Its low-profile structure, ease of integration, and impressive performance characteristics make it an ideal choice for engineers and designers working on space-constrained devices. The PIFA, an evolution of the IFA, takes these advantages further by offering even greater flexibility in terms of size and bandwidth potential.

As we dive into the world of Inverted-F Antenna designs, we’ll explore their fundamental principles, design strategies, and practical applications. This comprehensive guide is crafted to equip you with the knowledge and tools necessary to harness the full potential of IFA and PIFA designs in your projects. Whether you’re working on a 2.4 GHz Wi-Fi device, a dual-band mobile phone antenna, or an embedded IoT solution, this article will serve as your roadmap to success.

1. What Is an Inverted-F Antenna?

Definition and Origin of the Inverted-F Antenna

The Inverted-F Antenna (IFA) is a type of internal antenna commonly used in wireless communication devices. It derives its name from its shape, which resembles an inverted letter “F” when viewed from the side. The IFA evolved from the Inverted-L Antenna (ILA) design, with the addition of a short-circuit stub to improve impedance matching and bandwidth.

Originating in the early days of mobile phone technology, the IFA quickly gained popularity due to its compact size and ability to be easily integrated into handheld devices. As wireless technology progressed, so did the IFA design, leading to variations like the Planar Inverted-F Antenna (PIFA).

Basic Structure and Working Principle

The basic structure of an Inverted-F Antenna consists of three main parts:

1. Radiating element: A horizontal arm that is typically a quarter-wavelength long at the operating frequency.
2. Short-circuit stub: A vertical element connecting one end of the radiating element to the ground plane.
3. Feed point: The point where the antenna is excited, usually located between the short-circuit stub and the open end of the radiating element.

The working principle of the IFA is based on the quarter-wave resonator concept. The short-circuit stub creates a virtual ground point, allowing the horizontal arm to act as a quarter-wavelength resonator. This configuration enables the antenna to resonate at a lower frequency than its physical size would typically allow, making it ideal for compact devices.

Differences Between IFA and PIFA

While the IFA and PIFA share many similarities, there are key differences:

1. Structure:
   • IFA: Uses a wire or narrow strip for the radiating element.
   • PIFA: Employs a planar element, often a rectangular patch.
2. Bandwidth:
   • IFA: Generally has a narrower bandwidth.
   • PIFA: Offers wider bandwidth potential due to its planar structure.
3. Size:
   • IFA: Can be made very compact but may protrude from the device.
   • PIFA: Typically flatter and more easily integrated into slim devices.
4. Radiation pattern:
   • IFA: Often more directional.
   • PIFA: Generally provides more omnidirectional coverage.

Key Advantages: Low Profile, Ease of Integration, Wide Bandwidth Potential

Inverted-F Antennas, particularly PIFAs, offer several advantages that make them popular in modern wireless devices:

1. Low profile: The compact design allows for easy integration into slim devices without significant protrusion.
2. Ease of integration: IFAs and PIFAs can be directly etched onto PCBs or implemented as surface-mount components.
3. Wide bandwidth potential: Especially with PIFAs, achieving multi-band or wideband operation is possible through various design techniques.
4. Good performance: Despite their small size, these antennas can provide efficient radiation and good gain characteristics.
5. Versatility: The design can be easily modified to suit different frequency bands and applications.
6. Cost-effective: IFAs and PIFAs can be manufactured using standard PCB processes, making them economical for mass production.

These advantages have made Inverted-F Antennas the go-to choice for many mobile, IoT, and compact wireless applications, driving innovation in antenna design and integration techniques.

Read More about:

• PCB Trace Antenna
• GSM PCB Antenna
• 2.4 GHz Patch Antenna
• 2.4 GHz PCB Antenna
• BLE PCB Antenna
• Dipole Antenna

2. Fundamental Concepts Behind Inverted-F Antenna Design

Understanding the core principles that govern Inverted-F Antenna behavior is crucial for effective design. Let’s delve into the key concepts that form the foundation of IFA and PIFA design.

Resonance Principles and Quarter-Wavelength Operation

The Inverted-F Antenna operates on the principle of quarter-wavelength resonance. Here’s how it works:

1. Quarter-wave resonator: The main radiating element is approximately a quarter-wavelength long at the desired operating frequency.
2. Virtual ground: The short-circuit stub creates a virtual ground point, allowing the antenna to resonate at a lower frequency than its physical length would suggest.
3. Resonance frequency: The fundamental resonance frequency (f) is approximately given by:f = c / (4 * L)Where c is the speed of light, and L is the effective length of the radiating element.
4. Higher-order modes: IFAs and PIFAs can also operate at odd multiples of the fundamental frequency, enabling multi-band operation.

Impedance Matching and Tuning Methods

Proper impedance matching is critical for efficient power transfer between the antenna and the transceiver. Key aspects include:

1. Feed point location: The position of the feed point along the radiating element significantly affects the input impedance. Moving it closer to the short-circuit stub lowers the impedance.
2. Short-circuit stub width: Adjusting the width of the short-circuit stub can fine-tune the impedance.
3. Matching networks: External components like capacitors and inductors can be used to achieve better impedance matching across a wider bandwidth.
4. Slotting and meandering: Introducing slots or meandering in the radiating element can alter its electrical length and impedance characteristics.

Importance of Ground Plane Design

The ground plane plays a crucial role in the performance of Inverted-F Antennas:

1. Size effects: A larger ground plane generally improves antenna efficiency and bandwidth but may not always be practical in compact devices.
2. Edge effects: The edges of the ground plane contribute significantly to radiation. Optimizing the antenna’s position relative to the ground plane edges can enhance performance.
3. Current distribution: The ground plane carries induced currents that contribute to the overall radiation pattern. Understanding and managing these currents is key to optimizing antenna performance.
4. Clearance area: Maintaining a clear area around the antenna on the ground plane is essential for proper operation.

Radiation Patterns Typical for IFA and PIFA

The radiation patterns of Inverted-F Antennas are influenced by their structure and the ground plane:

1. IFA radiation pattern:
   • Generally more directional
   • Maximum radiation often perpendicular to the ground plane
   • Pattern can be shaped by adjusting the antenna’s position relative to the ground plane edges
2. PIFA radiation pattern:
   • More omnidirectional compared to IFA
   • Tends to provide better coverage in multiple directions
   • Can be optimized for specific applications by modifying the patch shape and feed position

Understanding these fundamental concepts provides the foundation for effective Inverted-F Antenna design. In the following sections, we’ll explore how to apply these principles to create antennas for specific applications and frequencies.

3. Designing an Inverted-F Antenna for 2.4 GHz Applications

The 2.4 GHz band is a cornerstone of modern wireless communication, hosting popular protocols like Wi-Fi, Bluetooth, and Zigbee. Designing an Inverted-F Antenna for this frequency requires careful consideration of various factors. Let’s walk through the process step-by-step.

Key 2.4 GHz Applications

Before diving into the design process, it’s important to understand the primary applications for 2.4 GHz antennas:

1. Wi-Fi (IEEE 802.11b/g/n): Requires good bandwidth coverage from 2.4 GHz to 2.4835 GHz.
2. Bluetooth: Operates in the 2.4 GHz to 2.4835 GHz range.
3. Zigbee: Uses channels within the 2.4 GHz to 2.4835 GHz band.
4. IoT devices: Many IoT protocols operate in this band due to its global availability.

Step-by-Step Design Guide

1. Determining Dimensions Based on the Target Frequency

To design an IFA for 2.4 GHz:

a) Calculate the quarter-wavelength at 2.4 GHz: λ/4 = c / (4 * f) = (3 * 10^8) / (4 * 2.4 * 10^9) ≈ 31.25 mm

b) Adjust for the effective dielectric constant of your PCB material. For FR-4 (εr ≈ 4.4), the length will be approximately: L ≈ 31.25 mm / √εr ≈ 14.9 mm

c) The width of the radiating element typically ranges from 1-3 mm for PCB implementations.

d) The height of the short-circuit stub affects bandwidth and can be optimized, but typically starts at about 3-5 mm.

2. Material and PCB Substrate Choices

Common materials for 2.4 GHz IFAs include:

• FR-4: Cost-effective and widely available, suitable for many applications.
• Rogers RO4350B: Offers better performance but at a higher cost.
• Taconic RF-35: Another high-performance option for demanding applications.

Consider factors like dielectric constant, loss tangent, and thermal stability when choosing your substrate.

3. Optimizing Feed Point Location for Impedance Matching

The feed point location is crucial for achieving good impedance matching:

a) Start with the feed point at about 30% of the total length from the short-circuit stub. b) Use simulation tools or a vector network analyzer to fine-tune the position for best VSWR or return loss at 2.4 GHz. c) Aim for an input impedance close to 50 ohms to match common RF systems.

4. Ground Plane Considerations

For optimal performance at 2.4 GHz:

a) Aim for a ground plane at least λ/4 in length and width (about 31.25 mm at 2.4 GHz). b) Keep a clearance area of at least 5-10 mm around the antenna on the ground plane. c) Consider the effects of nearby components and device housing on the effective ground plane size.

Common Pitfalls When Designing for 2.4 GHz

1. Ignoring environmental factors: The presence of a plastic case or nearby components can detune the antenna.
2. Insufficient bandwidth: Ensure your design covers the entire 2.4 GHz to 2.4835 GHz range for protocols like Wi-Fi and Bluetooth.
3. Poor impedance matching: Neglecting proper feed point optimization can result in high VSWR and poor efficiency.
4. Overlooking manufacturing tolerances: Small variations in PCB etching can significantly affect performance at 2.4 GHz.
5. Inadequate ground plane: A too-small ground plane can severely impact antenna performance.

By following this guide and being aware of common issues, you can design an effective Inverted-F Antenna for 2.4 GHz applications. Remember that simulation and real-world testing are crucial steps in the design process, which we’ll cover in later sections.

4. Dual-Band Inverted-F Antenna Design Strategies

As wireless devices increasingly support multiple frequency bands, the ability to design dual-band antennas becomes crucial. Inverted-F Antennas, particularly PIFAs, are well-suited for multi-band operation with proper design techniques. Let’s explore strategies for creating effective dual-band IFA and PIFA designs.

Why Dual-Band is Important

Dual-band antennas offer several advantages:

1. Multi-protocol support: e.g., Wi-Fi 2.4 GHz and 5 GHz in a single antenna.
2. Cellular coverage: Supporting multiple LTE bands with one antenna.
3. Space efficiency: Combining multiple frequency bands in a single antenna saves valuable space in compact devices.
4. Cost-effectiveness: One dual-band antenna can replace two single-band antennas, potentially reducing production costs.

Techniques for Achieving Dual-Band Performance

1. Multiple Feed Points

• Concept: Use two separate feed points, each optimized for a different frequency band.
• Implementation: a) Design two radiating elements of different lengths on the same structure. b) Feed each element separately, often requiring a diplexer or switch.
• Advantages: Good isolation between bands, easier to tune independently.
• Challenges: More complex feeding network, potentially larger size.

2. Slotted Designs

• Concept: Introduce slots in the radiating element to create additional resonant paths.
• Implementation: a) Add a U-shaped or L-shaped slot to a PIFA patch. b) Carefully tune the slot dimensions to achieve resonance at the desired higher frequency.
• Advantages: Compact design, single feed point.
• Challenges: Bandwidth at each frequency may be limited, careful tuning required.

3. Adding Parasitic Elements

• Concept: Use a parasitic element to introduce a second resonance.
• Implementation: a) Design the main radiating element for the lower frequency. b) Add a parasitic element near the main element, sized for the higher frequency. c) Adjust coupling between elements to fine-tune performance.
• Advantages: Can achieve good bandwidth at both frequencies.
• Challenges: Requires more space, coupling effects can be complex to manage.

4. Meandering and Branching Techniques

• Concept: Create multiple resonant paths within a single structure.
• Implementation: a) Design a meandering path for the lower frequency. b) Add branches or extensions tuned to the higher frequency.
• Advantages: Compact design, single feed point.
• Challenges: Can be sensitive to manufacturing tolerances.

Practical Examples of Dual-Band PIFA Structures

1. Wi-Fi Dual-Band PIFA (2.4 GHz and 5 GHz)
   • Main patch resonating at 2.4 GHz
   • U-shaped slot tuned for 5 GHz band
   • Single feed point for both bands
2. LTE Dual-Band PIFA (800 MHz and 1800 MHz)
   • Meandering main element for 800 MHz
   • Parasitic element or branch for 1800 MHz
   • Careful optimization of ground plane size for low-band efficiency
3. IoT Dual-Band PIFA (915 MHz and 2.4 GHz)

• Main radiating element designed for 915 MHz (ISM band)
• Slotted design or parasitic element for 2.4 GHz (Wi-Fi/Bluetooth)
• Compact design suitable for small IoT devices

When designing dual-band Inverted-F Antennas, it’s crucial to consider the interaction between the two frequency bands. Simulation tools are invaluable for optimizing these complex structures and ensuring good performance across both bands.

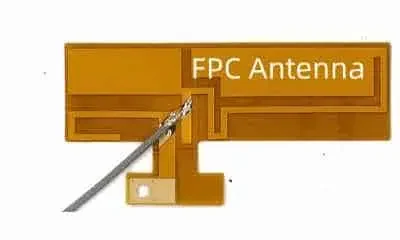

5. Inverted-F Antennas in Mobile and Embedded Applications

The compact nature and versatile performance of Inverted-F Antennas make them ideal for mobile phones, IoT devices, and wearable technology. Let’s explore why these antennas are so well-suited for these applications and the unique design considerations they entail.

Why Inverted-F Antennas are Ideal for Mobile Phones, IoT, and Wearable Devices

1. Low profile: IFAs and PIFAs can be made very thin, fitting easily into slim smartphones and wearables.
2. Multiband operation: Capable of covering multiple frequency bands required for modern mobile communications.
3. Good performance in proximity to human body: PIFAs tend to be less affected by the presence of the user’s hand or head compared to some other antenna types.
4. Flexibility in design: Can be shaped to conform to device contours, especially important for wearables.
5. PCB integration: Can be directly etched onto the main PCB, saving space and reducing cost.

Examples of Smartphone Antenna Integration

Modern smartphones often use multiple Inverted-F Antennas to cover various bands and improve performance:

1. Main cellular antenna: Typically a PIFA design covering multiple LTE bands.
2. Diversity/MIMO antenna: Secondary PIFA for improved reception and data rates.
3. Wi-Fi/Bluetooth antenna: Often a separate IFA or PIFA optimized for 2.4 GHz and 5 GHz.
4. GPS antenna: A specialized PIFA design for GNSS frequencies.

Smartphone manufacturers often use clever techniques to hide antennas, such as:

• Integrating antennas into the metal frame of the device
• Using the back cover as part of the antenna structure
• Implementing transparent antennas in the display area

Design Considerations for Embedded Antennas

Space Constraints

• Miniaturization techniques: Use of meandering, folding, and 3D structures to reduce antenna size.
• Co-design with device housing: Utilizing device chassis as part of the antenna system.
• Ground plane optimization: Careful design of ground plane shape and size to maximize performance in limited space.

Nearby Component Effects

• Detuning: Proximity of components can shift the antenna’s resonant frequency.
• Isolation: Ensuring sufficient separation or shielding from noise sources like processors.
• Coupling: Managing intentional and unintentional coupling with other antennas or components.

Human Body Interaction (Wearable Devices)

• Body effect modeling: Simulating antenna performance when worn on different body parts.
• SAR (Specific Absorption Rate) considerations: Designing to minimize RF energy absorption by the body.
• Impedance stability: Ensuring the antenna remains well-matched when in contact with the body.

6. Simulation and Testing of Inverted-F Antennas

Proper simulation and testing are crucial for developing effective Inverted-F Antennas. This process helps optimize designs before physical prototyping and ensures that manufactured antennas meet performance specifications.

Introduction to Antenna Simulation Tools

Popular electromagnetic simulation software for antenna design includes:

1. Ansys HFSS (High Frequency Structure Simulator):
   • Industry-standard for 3D electromagnetic field simulation
   • Excellent for complex antenna structures and environments
2. CST Microwave Studio:
   • Versatile tool with multiple solver technologies
   • Good for time-domain and frequency-domain analysis
3. FEKO (FEldberechnung für Körper mit beliebiger Oberfläche):
   • Specializes in Method of Moments (MoM) and hybrid techniques
   • Efficient for large structure simulations like antennas on vehicles
4. COMSOL Multiphysics:
   • Allows coupling of electromagnetic simulations with other physics (thermal, mechanical)
   • Useful for multiphysics problems in antenna design

Common Simulation Parameters to Analyze

When simulating Inverted-F Antennas, key parameters to focus on include:

1. S11 (Return Loss):
   • Indicates how well the antenna is matched to the feed line
   • Aim for S11 < -10 dB in the frequency band of interest
2. VSWR (Voltage Standing Wave Ratio):
   • Another measure of impedance matching
   • Target VSWR < 2:1 for good performance
3. Gain and Efficiency:
   • Analyze 3D radiation patterns and peak gain
   • Look at antenna efficiency across the operating band
4. Current Distribution:
   • Helps understand how the antenna is radiating
   • Useful for identifying potential improvements in the design
5. Near-field Distribution:
   • Important for assessing SAR and interaction with nearby components

Real-World Testing Methods

While simulation is valuable, real-world testing is essential to validate antenna performance:

Anechoic Chamber Measurements

• Purpose: Provides a controlled environment for accurate antenna measurements
• Measurements:
  • Far-field radiation patterns
  • Gain measurements
  • Efficiency testing

Return Loss and Impedance Testing

• Equipment: Vector Network Analyzer (VNA)
• Measurements:
  • S11 parameters
  • Input impedance across frequency
  • Bandwidth verification

Radiation Pattern Verification

• Methods:
  • Far-field range testing
  • Near-field to far-field transformation techniques
• Importance: Verifies the antenna’s directional characteristics and gain

Over-the-Air (OTA) Performance Testing

• Purpose: Evaluates antenna performance in realistic usage scenarios
• Measurements:
  • Total Radiated Power (TRP)
  • Total Isotropic Sensitivity (TIS)
  • Specific Absorption Rate (SAR) for body-worn devices

7. Common Challenges in Inverted-F Antenna Designs

Despite their many advantages, Inverted-F Antennas come with their own set of challenges. Understanding these issues is crucial for successful implementation.

Narrow Bandwidth Limitations

• Issue: Basic IFA designs often have limited bandwidth, which can be problematic for wideband applications.
• Solutions:
  1. Use of broadbanding techniques like capacitive loading
  2. Implementing slotted PIFA designs for increased bandwidth
  3. Careful optimization of feed point and short-circuit stub placement

Tuning Issues During PCB Integration

• Challenge: Antenna performance can change significantly when integrated into a complete PCB design.
• Approaches:
  1. Simulating the antenna with surrounding PCB components
  2. Designing with tuning elements (e.g., capacitors) for post-integration adjustment
  3. Maintaining proper clearance around the antenna area

Interference from Nearby Components

• Problem: Proximity to other electronic components can detune the antenna or create unwanted coupling.
• Mitigation strategies:
  1. Proper placement and orientation of the antenna on the PCB
  2. Use of ground planes or shielding to isolate the antenna
  3. Careful routing of high-speed digital signals away from the antenna

De-tuning Caused by Environmental Changes

• Issue: Factors like the user’s hand, device casing, or nearby objects can shift the antenna’s resonant frequency.
• Solutions:
  1. Designing for a slightly wider bandwidth to accommodate detuning
  2. Implementing adaptive matching networks for dynamic tuning
  3. Careful placement of the antenna within the device to minimize human body effects

8. Optimization Tips for High-Performance Inverted-F Antennas

To achieve the best possible performance from Inverted-F Antennas, consider these advanced optimization techniques:

Techniques for Maximizing Bandwidth

1. Parasitic elements: Adding nearby parasitic patches or strips can create additional resonances, widening the overall bandwidth.
2. Slotted designs: Carefully placed slots in PIFA structures can significantly increase bandwidth.
3. Thick substrates: Using a thicker PCB substrate can improve bandwidth, especially for PIFAs.
4. Tapered matching: Implementing a tapered feed section can provide better wideband matching.

Ground Plane Size and Shape Optimization

1. Edge tapering: Tapering the edges of the ground plane can smooth out resonances and improve bandwidth.
2. Slot cutting: Strategic slots in the ground plane can enhance radiation characteristics.
3. Size considerations: Optimizing the ground plane size relative to the operating wavelength can significantly impact performance.

Advanced Tuning Methods

1. Capacitive loading: Adding capacitance at the open end of the IFA can lower its resonant frequency without increasing size.
2. Inductive shorting: Replacing the shorting pin with an inductor can provide additional tuning flexibility.
3. Distributed matching networks: Implementing matching elements along the length of the antenna for improved wideband performance.

Balancing Size, Efficiency, and Frequency Stability

1. Miniaturization techniques: Use of meandering and 3D structures to reduce size while maintaining performance.
2. Material selection: Choosing high-quality, low-loss materials to maintain efficiency in compact designs.
3. Robust design practices: Implementing designs that are less sensitive to manufacturing tolerances and environmental changes.

9. Real-World Case Studies

Case Study 1: Designing a 2.4 GHz IFA for a Smart Sensor

Challenge: Create a compact, efficient antenna for a battery-powered IoT sensor operating at 2.4 GHz.

Solution:

1. Implemented a meandered IFA design to reduce overall size.
2. Optimized ground plane size to balance performance and compactness.
3. Used simulation to fine-tune feed point for best matching at 2.4 GHz.

Results:

• Achieved -15 dB return loss across the entire 2.4 GHz ISM band.
• Antenna efficiency of 75% in free space.
• Successful integration into a compact 30mm x 30mm PCB.

Case Study 2: Dual-band PIFA for a Mobile Phone Application

Challenge: Design a single antenna to cover LTE Band 5 (850 MHz) and Band 3 (1800 MHz) for a slim smartphone.

Solution:

1. Implemented a slotted PIFA design with main resonance at 850 MHz.
2. Added a carefully tuned slot to create a second resonance at 1800 MHz.
3. Utilized the phone’s metal frame as part of the ground plane.

Results:

• Achieved -10 dB bandwidth covering both required LTE bands.
• Maintained performance with minimal detuning from hand effect.
• Successfully integrated into a 7mm thick smartphone design.

Conclusion

Inverted-F Antennas, including their planar variants (PIFAs), represent a versatile and powerful solution for modern wireless communication challenges. Their ability to provide efficient, compact, and adaptable designs makes them indispensable in a world increasingly dominated by mobile and IoT devices.

Throughout this guide, we’ve explored the fundamental principles behind IFA and PIFA designs, delved into practical design strategies for single and dual-band applications, and addressed the unique challenges posed by mobile and embedded implementations. We’ve also covered essential aspects of simulation, testing, and optimization to ensure your antenna designs meet the demanding requirements of today’s wireless devices.
