Introduction

Connecting flexible printed circuits (FPCs) in electronic devices often requires using specialized connectors designed for soft and pliable conductors rather than rigid boards. The two main categories of flexible connectors are FFC (flat flexible cable) and FPC (flexible printed circuit) connectors.

While related, FFC and FPC connectors have distinct characteristics and applications. Understanding the key differences allows selecting the optimal solution for integrating flex circuits into designs.

This guide will examine all aspects of FFC and FPC connectors from materials, design, interfacing, pros and cons, and recommended use cases. By the end, the distinction between connector types and appropriate selection for flex circuit applications will be clear.

FFC Connector Overview

FFC or flat flexible cable connectors are designed to interface with flexible flat cabling. Typical FFC connectors consist of a plastic housing containing a clamping mechanism and set of conductive pads or pins.

Typical FFC Construction

• Flat flexible cable terminated with thin PCB ends
• Insulation carrier material with exposed copper conductors
• Laminated polyester, polyimide, or polyether ether ketone (PEEK)
• ZIF (zero insertion force) style connector mating
• Pitch options from 0.3mm to 1.27mm

FFC cables excel at interconnections over dynamic bending locations between PCBs where a standard wire harness would fail prematurely. The smooth flat shape avoids issues with tangled conductors.

Common applications include disk drive flex cable interconnects, printer carriages, LCD displays, and device hinge connections. The ability to accommodate continuous motion over thousands of cycles with high reliability makes FFCs ideal for these applications.

FFC Connector Styles

While designs vary between manufacturers, FFC connectors come in two primary styles:

Clasp/Latch Type

• Plastic connector housing with metal spring latch
• Latch presses FFC cable into contact pads
• Locking clasp prevents disconnects
• Unlatching enables FFC cable insertion/removal
• Low profile above PCB

Slide-Lock Type

• Housing with movable side locks
• Locks slide forward to press cable into connection
• Reverse sliding releases pressure on cable
• Locks prevent disconnect under vibration
• Provide audible click when engaged

Both styles offer reliable connection for FFC cables under dynamic bending. The latch type focuses on slim form factor while the slide-lock aims for robustness.

FPC Connector Overview

In contrast to FFC connectors, FPC connectors are designed specifically to interface with flexible printed circuit boards rather than raw cable.

Typical FPC Construction:

• Flexible PCB material with conductors on one or both sides
• Polyimide is the most common base material
• Adhesive layer bonds to additional stiffener layers
• Components often attached directly to flex PCB
• Connectors mounted to tail sections

FPCs allow complex flexible circuit boards to be designed with fine features, tight tolerances, and components while still supporting dynamic contours.

Applications such as folding device hinges, concealed / slide-out device interconnects, and wearable or skin-contact electronics benefit from FPC technology. The tailored flexible PCB provides reliability and robustness beyond basic flexible cabling.

FPC Connector Styles

Common connector styles used with FPCs include:

Pressure Actuated Contacts

• Gold plated copper alloy contacts
• Contacts wipe FPC conductive pads
• PCB pivot / lever actuation
• Spring or screw force enables reliable contact
• Wiping action penetrates oxidation

ZIF (Zero Insertion Force)

• Movable side pins align FPC tail
• Cam, hinge, or latch mechanism actuates pins
• Pins pressed into plated through holes
• Enables fingertip mating connection
• Lock prevents vibration disconnect

Well-designed FPC connectors tolerate millions of matings despite presence of vibrations, contaminants, and other challenges.

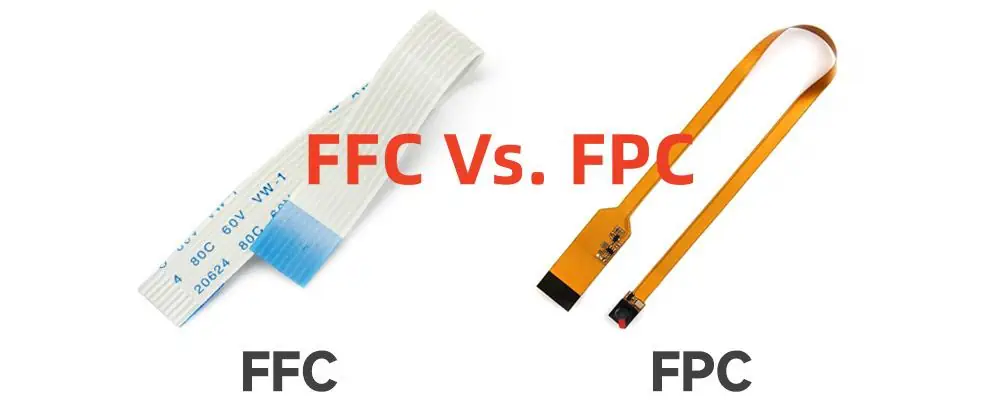

Key Differences Between FFC and FPC Connectors

While both connecting flexible circuits, FFC and FPC connectors have distinct characteristics making each suited for particular applications.

Parameter	FFC Connectors	FPC Connectors
Designed For	Flat flex cables	Flexible PCB tail sections
Termination	Exposed conductors	Plated pads and holes
Pitch (spacing)	0.3mm to 1.27mm typical	0.2mm to 1.5mm typical
Current	< 1A typical	Up to 5A depending on pins
Actuation Method	Latch, clasp, slide lock	ZIF, pressure contacts
Durability	10,000+ cycles	100,000+ cycles
Resistance	100+ milliohms	< 50 milliohms
Contact Type	Pads or pins	Pins, wiping contacts
Alignment	Self-aligning housing	Positive positioning guides

While overlaps exist, these characteristics help determine optimal selection for a given use case as explored in the next sections.

FFC Connector Applications

The capabilities of FFC cable and connectors make them ideal for:

Dynamic Cables

Continuously flexing interconnects for:

• Disk drive head actuators
• Printer carriages
• Robotics joints

Semi-Rigid Connections

Situations requiring a limited number of flex cycles:

• Hinge connections in laptops
• Concealed compact wiring
• Rapid prototyped connections

Cost-Sensitive Applications

FFCs minimize interconnect costs:

• High density parallel busses
• Consumer electronics
• LED lighting strings

Space Constrained Products

Low profile smooth cable routing where wires won’t fit:

• Foldable devices
• Multi-axis robotic arms
• Automotive wiring

FPC Connector Applications

In contrast, FPC connectors excel in these types of demanding applications:

Maximum Flexibility

FPC material withstands rolling and twisting:

• Medical snake catheters
• Flexible wearables
• Concealed wearable cabling

High Density Circuits

Built-in small components, fine features:

• Glasses / goggles display drivers
• Finger / arm health monitors
• Microfluidics interconnects

Complex Components Integration

Pre-assembled connectors, sensors, ICs:

• Micro-cameras
• Stacked battery contacts
• Multi-chip modules

Rugged Vibration Environments

Gold-plated pins and ZIF actuation withstand shaking:

• Aerospace systems
• Vehicle mounts
• Precision instruments

FFC vs FPC Connector Selection Guidelines

Use these guidelines for selecting the optimal flexible connector:

When to Use FFC Connectors

• Basic cable interconnections with minimal complexity
• Primarily parallel bus type signals or power transmission
• Cost sensitive consumer product applications
• Limited life cycles (under 10,000 flexes)
• Pitch requirements under 1 mm

When to Use FPC Connectors

• Flexible circuit will have integrated components
• Reflow soldering required to attach connectors
• More than 10,000 mating cycles needed
• Conductor spacing under 0.3 mm
• Tight positional accuracy required
• Vibration resistance critical
• Integration with densely packed components

Comparing FFC and FPC Specifications

Connector selection depends heavily on compatibility with physical cable and PCB design constraints.

Key FFC Connector Specifications

• Pitch: Distance between conductor centers
• Cable thickness: Determined by layers and materials
• Contact type: Alloy pads for wiping or soldered pins
• Current rating: Depends on trace size but less than 1 A typical
• Insertion life: 10,000+ cycles typical
• Actuation force: Spring clasp typical around 1 to 5 Newtons
• Alignment precision: +/- 0.5 to 1 mm typical

Key FPC Connector Specifications

• Number of positions: As low as 4 pins up to over 100
• Pitch: 0.2 mm to 2.0 mm options
• Contact type: Copper alloy, gold plated pins
• Current rating: Up to 5A per pin
• Insertion life: 30,000 to 100,000+ cycles
• Actuation force: Ranges from fractions of N to 10 N max
• Alignment precision: +/- 0.1mm achievable
• Withstand voltage: Up to 1500 VAC

Matching physical and performance needs to connector specifications ensures a robust interface between flex circuits.

Pros and Cons Comparison

FFC Connector Pros

• Very low cost
• Ultra slim vertical profile
• High density pin spacing
• Light actuation force
• Good for cost-driven designs

FFC Connector Cons

• Limited cycles vs. FPC connectors
• No integrated component support
• Larger pitch spacing than FPC
• Less ruggedized pin contacts
• Only supports basic flex cable

FPC Connector Pros

• Extreme cycle life rating
• Integrates with flex PCBs
• Supports components and high current
• Tight pitch options to 0.2mm
• Withstands vibration environments

FPC Connector Cons

• More expensive than FFC
• Larger and thicker profile
• Overkill for basic dynamic cabling
• Requires flex PCB for termination
• Longer lead times

New Innovations

Connector technologies continue advancing to meet demanding flexible circuit applications:

• Ultra-fine pitch to 0.1mm enables dense stacking
• Vertical FPC stacking connectors save z-height
• Micro-coax FPC cables for high frequency signals
• Combination rigid-flex compatibility
• Increased ruggedness for wearable deployment
• Chip-scale interconnects under development
• Low-force Nano-connector technology
• Increased cycle life beyond 1 million flexes

Conclusion

FFC and FPC connectors both serve vital roles in interconnecting flexible electronic circuits. While related in broad strokes, details from pitch, lifetimes, termination methods, and integration constraints dictate which approach works best. Engineers must weight tradeoffs between cost, reliability, complexity, and density when selecting connectors to interface with flex cabling and circuits.

Frequently Asked Questions

Q: What is the highest density in terms of pins/positions available for FFC and FPC connectors?

A: The highest density FFC connectors support over 100 positions at 0.3mm pitch. Cutting edge FPC connectors achieve over 200 positions at 0.1mm pitch, although 50-100 positions at 0.5mm pitch is more common.

Q: How are FFC cables and FPC boards fabricated and terminated?

A: FFC cables are typically laminated using adhesive bonding of layers, with conductor exposures laser cut. FPC boards utilize traditional lithographic etching processes allowing tighter tolerances.

Q: Which provides the most compact footprint, FFC or FPC connectors?

A: FFC connectors can achieve extremely thin profiles below 1mm when mated due to the flat flexible cable. FPC connectors inherently require some Z-axis height for the connector housing itself.

Q: What types of signals are supported by FFC and FPC interconnects?

A: FFC and FPC connections support transmission of digital signals, analog signals, power, high-speed differential pairs, RF up to 6 GHz, and more depending on conductor geometry.

Q: What factors determine the lifetime durability of FFC vs FPC connectors?

A: Contact wearing, material fatigue, retention force, and alignment precision are key factors. FPC connectors are engineered for maximum cycles by gold plating, ZIF actuation, and precise guide alignment.

What are FPC and FFC?

The first thing you need to know about the two different types of flexible circuits is what they are. FPC stands for Flexible printed circuit. The other type of flexible circuit is the flexible flat cable. These two types of flexible circuits have a similar structure but differ in cost and manufacturing process. In this article, we’ll discuss both types and how they work. After learning their differences, you can choose the best type for your project.

Flexible printed circuits

Flex circuits are flexible and can bend into the desired shape. They are ideal for small interior spaces, but the production quality is much less stable than for rigid circuits. Flexible circuits consist of thin, film-like materials, including copper foil. Different materials have different shrinkage, and warpage characteristics, so careful design is essential. The following tips will help ensure the highest quality flex circuits.

Flexibility is one of the essential advantages of flexible circuits. Unlike rigid circuit boards, we can manipulate flexible circuits often during assembly, installation, and service. These advantages allow for a high-density device population, lighter conductors, and improved airflow. Flexible circuits will work for you whether your application is small or complex. They are also extremely versatile and can connect various components. An innovative PCB manufacturer designed flexible printed circuits ideal for various applications.

Flexible flat cable

What is a flexible flat cable? A flexible flat cable is an electrical cable made with flat solid conductors. The flexible flat cable is essential for various applications in the electronics industry. Flexible electronics refer to the technology that enables a device to be more flexible. Its unique properties allow it to fit in different places and can be used to power various electronics. Read on to learn more. Here are some examples of a flexible flat cable.

A flat cable’s pitch refers to the spacing between the wire conductors. This distance indicates the pitch. Different cables have different pitches, but common values are 0.5 mm and 1 inch. The pitch of a cable will indicate its ability to accommodate a variety of applications. In addition, the pitch of a cable will affect its flexibility and strength. For example, high-speed ATA interface cables are made with 0.025-inch pitches and have a 0.1-mm pitch.

Pinouts

If you’re trying to connect two computers or other electronic devices, you may wonder which connector to use. FPCs are ideal for straight-through connections, while FFCs are often layered and impedance controlled.

FPC wiring is a flexible circuit board made from a flexible polymer base coated with a protective polymer coating. Because it’s flexible, you can customize the number and spacing of wires. FFC is especially useful for electronics that require a high degree of flexibility. Flexible solar cells, for example, can be made to fit within the spacecraft’s shell. This circuit board is also lightweight compared to the rigid PCB board.

Applications

The similarities between FPCs and FFCs extend to their various applications. For example, both types have copper wires and a thin film of chemically etched copper on one side. They are essential in LCD televisions, printers, cameras, and laptops. In addition, they are ideal in the aerospace industry. However, FPCs are more sophisticated than FFCs. They consist of polyethylene terephthalate (PET), copper wires, and other flexible materials.

Unlike other types of connectors, FPCs have a flat, flexible body with a barrier framework that we can organize after installation. This framework also provides a specific stabilization force. In addition, these connectors are strong and rigid enough to resist shock and vibration. Moreover, they have locking components to lock the connectors. For example, Amphenol makes a vibration-proof FFC and FPC with a 2.49mm pitch.

The Difference Between FPC and FFC?

You may have heard about the terms Flexible flat cable and Flexible circuit. But do you know the difference between these two? How do you know which is better? We’ll explain the differences between these two cables and help you make the right choice for your projects. So, what is the difference between FPC and FFC?

Flexible flat cable

If you’ve ever wondered whether the differences between a flexible flat cable and a traditional round electrical wire are worth the hassle, read on to learn more about the two. Unlike traditional round cables, flexible flat cables are thin and lightweight, making them a popular choice among designers. In addition to helping designers save space, they can add an innovative touch to their designs.

Pitch is the primary difference between a flexible flat and a standard flat cable. Pitch is a measurement of the distance between the centers of two adjacent wire conductors. These cables are often helpful in medical products, industrial automation, pulp and paper, festoon systems, packaging, and semiconductor products. They are also widely used in stereos and scanners, with many other applications. You can find them just about everywhere in modern electronics.

Flexible circuit

In contrast to rigid circuits, flexible circuits can be flexed and maintain their form. They consist of a thin insulating polymer film with a pattern of conductive traces. They have been in use since the Second World War, but their popularity is growing today. There are two main types of flexible circuits: single-sided and double-sided. Single-sided flex circuits have only one metal layer. They add Polyimide or FR4 overlays for added insulation and protection against environmental degradation.

Polymer thick film flex circuits are a subtype of the flexible circuit. We manufacture them by printing the circuit elements onto a thin polymer film. The result is a thin, flexible layer of electrical components. Polymer thick film flex circuits are typically single conductor layer structures, though two or more layers can be printed in a sequence separated by insulating layers. While they are generally less flexible, we can make polymer flex circuits with varying amounts of metal.

Flexible circuit cable

There are many advantages of FFC over FPC for electronic enthusiasts. These cables feature a wide range of capabilities and components. As a result, users often feel confused when choosing which type of cable to use. FFC cables are commonly helpful for high-density electronic applications.

The construction material is the main difference between an FPC and an affixed FFC cable. FPCs are thinner and have thinner conductor layers. FFCs are helpful in LCDs and motherboards. FPCs are made of copper, coverlay, and PI and are customizable in shape and pattern. We can bundle these types of cables together to fit a variety of applications.

Cost

In general, FFC and FCCL cables are similar to each other, but they differ in their cost and applications. We can make these cables with single or double-sided copper wires. They require a chemical etching process and have various layers of coating. The FCCL process produces thicker FFCs. However, some companies use both types of cables for specific projects. When choosing the type of cable to use, consider each material’s application and cost.

Molex offers a line of FFC/FPC connectors. The line of connectors offers a wide variety of profiles, including those with push-style and flip-style actuators. These connectors also come in higher-density versions. A common application for FFC/FPC connectors is in medical equipment. Its versatility allows it to work with different types of cable styles and different circuit sizes.

Connectors

Amphenol offers reliable, flexible, and high-performance connectors for connecting FFC/FPC circuits. The company’s micro flex connectors are available in various sizes and pitches, making them ideal for various industrial applications. Other FFC/FPC connectors available from Amphenol include ClincherTM and DuflexTM, which are excellent for industrial and modulation applications and shock and vibration-prone environments.

In general, FPC cables and connectors cost less than FFC connectors. Companies concerned with costs often choose FFC designs, but they are more practical. The differences between the two are not so noticeable, but they are essential to know. If you’re looking for a high-quality connector, look for one with an internal FPC connector with a 0.3mm pitch.

Summary

You may have heard of Flexible Printed Circuits (FFC), but you might wonder what the difference between them is. These circuits are made from copper and polyimide material and are flexible enough to handle harsh conditions. These circuits are often helpful in LCD televisions, laptops, printers, and other applications where space concerns. There are two types of FPCs: single-sided and double-sided.

One of the main differences between FFC and FPC is how they construct. FFCs have straight-through conductors, while FPCs have multiple traces that can be bent, angled, or tied to a shield. As a result, FPCs are more flexible and are ideal for data cables. FPCs can also have varying pinouts and impedance levels. Depending on the application, you may need to choose an FFC or FPC that works well for your application.

FFCs are thicker than FFCs. They consist of two layers of wire, one insulating foil, and one flat copper conductor. FPCs are helpful in tight spaces and for high-speed applications and are often essential in vehicles. However, they are also more difficult to bend, making them less flexible. So if you’re trying to figure out which connector to use for a particular application, consider FPCs.

Flat Flexible Cables can be helpful in several applications. For example, LCDs and other electronic devices may connect using FFCs. A standard FFC will have one contact on each end, while FFCs with opposite contacts require a connector.

What is AWS for IoT?

The AWS IoT service allows developers to connect IoT devices to the AWS cloud. The AWS IoT Console provides graphical user interfaces for configuring items, rules, tasks, and policies. The console also provides APIs to connect devices and communicate with the cloud.

AWS IoT offers a secure, reliable environment for devices to communicate with each other. The platform’s thing shadows allow devices to retrieve state information. AWS IoT lets developers create a digital representation of a metal processing plant by syncing data from sensors, real-time video of machines, and maintenance history.

AWS IoT also offers managed services for industrial customers. For example, the AWS IoT SiteWise solution simplifies industrial data collection, organization, and analysis. SiteWise automatically computes metrics for its industrial customers, and users can view them on the SiteWise console or a custom application.

MQTT is an open-source protocol for IoT. It allows developers to build IoT device software faster and more intelligently. It also allows users to store cloud-based data locally on the device. MQTT is a secure communication protocol for device-to-cloud communication.

AWS IoT provides services to connect devices to the cloud and the internet. Its benefits are flexible and help users gain access to new services. The service can help businesses connect billions of connected devices and send millions of messages.

Are the Internet of Things (IoT) and AWS Services?

AWS has a variety of services and applications for the Internet of Things (IoT). The AWS IoT platform allows one to connect billions of devices to your data center, and it has a powerful dashboard that makes data integration and analysis a breeze. The service is also user-friendly and secure.

AWS IoT Device Management

AWS IoT Device Management makes registering, organizing, and monitoring your IoT devices easy. It also provides tools to manage access policies, view operational metrics, and perform actions across groups. For example, you can use these tools to group your devices based on specific criteria, such as their functionality. You can also automate the organization of your devices with dynamic thing groups, which automatically add new devices to a group if they meet the required criteria.

AWS IoT Device Management can help build remote access solutions for connected devices, allowing users to adhere to corporate security policies. For example, its Secure Tunneling feature encrypts and authenticates connections using Transport Layer Security. Users can also configure a custom timeout for secure connections.

AWS IoT Device Management is available as an add-on service for AWS subscribers. The service can integrate with AWS Organizations and SSO. Microsoft also offers a similar IoT device management solution called Azure IoT Hub. It hosts connected Linux devices in the Azure cloud and includes additional services for building IoT applications. It is also available as an on-premise application, allowing customers to build and deploy applications with minimal effort.

AVS Integration in AWS IoT Core

The Alexa Voice Service (AVS) is a platform that enables the development of smart, voice-controlled devices. The platform offers multiple service libraries that work on Linux or Android platforms and can help developers create Alexa-enabled devices. The devices can also use a companion mobile app to interact with the cloud-based Alexa service.

Using AVS to build smart home products is easy and affordable. For example, the Alexa ecosystem enables smart home devices to respond to a trigger phrase by recognizing speech and activating compatible peripheral devices. However, many of these devices use inexpensive microcontrollers with limited memory to power them and cannot run real-time operating systems. Previously, to implement AVS solutions in IoT devices, developers had to purchase expensive application processors that ran Linux or Android. However, today’s AVS integration for AWS IoT reduces the hardware requirement to one MB of RAM and an Arm Cortex-M microcontroller.

The AVS kit from NXP enables developers to integrate the voice-assistant functionality of Alexa into their products easily. The AVS is an important component of the Amazon Alexa platform and essential to Echo smart speakers’ rapid growth. This kit also makes it easy to integrate Alexa-enabled devices into low-cost devices with limited resources.

With AVS Integration for AWS IoT Core, device makers can add voice-activated capabilities to any connected device. The integration allows developers to use AVS on low-power devices and offload compute-intensive tasks to the cloud. It also enables developers to build sophisticated IoT applications for connected devices.

AWS IoT 1-Click

AWS IoT 1-Click provides an easy way to deploy and configure simple devices that trigger Lambda functions in the AWS cloud. Supported devices perform various functions, including notification, tracking, and resupply of goods. These devices do not require custom firmware or secure connectivity configuration. Furthermore, pre-built reports let you monitor the health and activity of your devices.

AWS IoT Greengrass Review

AWS IoT Greengrass lets you to create and manage data flow between your connected devices and the cloud. Its local pub/sub messaging feature intelligently buffers messages in the event of connectivity loss and conserves them for sync to the cloud. In addition, its secure authentication and authorization ensure data safety and sync.

AWS IoT Things Graph

The AWS IoT Things Graph provides an easy-to-use, completely managed service for building IoT applications. It allows individuals to connect devices, coordinate web services, and collect metrics for each workflow step. In addition, you can define metrics of particular concern and receive alerts when they occur.

The AWS IoT Things Graph makes it easy to connect different devices, web services, and APIs in a unified way. It provides a drag-and-drop interface and a model editor. It also has a flexible model management system that makes it easy to customize your IoT solution.

As more IoT devices become available, engineers must evaluate the risks of incorporating them into their systems. One example is COVID-19, a disease that has disrupted human work. So instead of hiring people to perform manual tasks, they are turning to IoT devices, sensors, and software. But building automation applications for these devices is a difficult process.

What is the AWS IoT Button?

The AWS IoT button is a Wi-Fi-connected device that connects to the cloud. When the button clicks, it publishes a message based on a specified topic. For example, the device can send a notification to a specific AWS service, such as Amazon SNS, or to store events in an AWS DynamoDB table.

AWS IoT SiteWise

Amazon has announced plans to introduce AWS IoT SiteWise, a service allowing businesses to trace industrial equipment and identify failures.

The AWS IoT SiteWise service lets you build a virtual representation of your equipment. You can then associate attributes, measurements, transforms, and metrics to the model. You can ingest the data from different sources, including OPC-UA data servers and gateways. The data can then be processed and visualized locally.

You can use SiteWise Edge in all regions of AWS IoT SiteWise. The service lets you to collect data from modern industrial applications using MQ Telemetry Transport (MQTT) messages. In addition, the new edge software makes connecting your devices to SiteWise easy and can help you reduce network bandwidth costs.

You can use the AWS IoT SiteWise data source to create a Grafana dashboard. First, you must authenticate the data source to access the data. The documentation on Grafana Cloudwatch will walk you through this process. Once you have authenticated the service, you can test its functionality. You can also set the default configuration and query type.

AWS IoT SiteWise also supports integration with 3rd party systems such as ERPs and maintenance systems. With this integration, you can connect AWS IoT SiteWise to the systems you need to monitor industrial assets.

AWS IoT Device Defender

The AWS IoT Device Defender library lets you send security metrics from IoT devices to a service that monitors these metrics and alerts you when something looks out of place. The service uses a lightweight publish-subscribe protocol called MQTT to send alerts. The library provides an API that lets you to compose MQTT topic strings and send them to the service.

AWS Partner Device Catalog – Hivecell One Edge-as-a-Service System

Hivecell has released an Edge-as-a-Service system called the Hivecell One, which is in the AWS Partner Device Catalog. This system combines a modular hardware infrastructure with a secure software layer for remote SaaS and data management. Designed to support the AWS IoT Greengrass platform, the Hivecell One is ready for deployment in thousands of locations.

AWS IoT Analytics – Understanding IoT Device Data

The AWS IoT Analytics service helps you understand IoT device data and make decisions based on that data. First, it automates complex steps such as filtering, transforming, and enriching the data with device metadata. Then, it stores processed data and runs analytics with a built-in SQL query engine. The service also lets you to run more complex analytics.

AWS IoT Device Client

AWS IoT Device Client lets you to communicate with your connected devices over the AWS cloud. It emits data events formatted in MQTT protocol and publishes them to other AWS services. Once you subscribe to an IoT topic, you can write a rule to process the event. Once the rule is complete, it publishes the result to the S3 bucket. The AWS API Gateway can then subscribe to this bucket and process the message.

AWS IoT Device SDK

Integrating MQTT-based services into your connected device becomes easy with AWS IoT Device SDK. The underlying SDK lets you to build a device that connects to your AWS account and publishes information to Amazon Web Services. The SDK also simplifies access to the AWS IoT broker’s Pub/Sub functionality. You can also use the Device SDK to interact with Thing Shadows, an embedded service that lets you build a secure device.

Is AWS IoT Free?

AWS IoT provides advanced analytics for your data as a service that connects hardware devices. This data lets you to uncover business insights and reduce operational costs. With AWS IoT Analytics, you can process data from connected devices and then act on it to improve your business.

AWS IoT depends on a highly scalable infrastructure supporting billions of connected devices. It also includes security mechanisms such as encryption and authentication to ensure your data is secure. AWS also controls communication protocols, allowing you to enforce security policies.

AWS IoT’s managed services simplify the processes required to run sophisticated analytics on IoT data. They can automatically support petabytes of data, automating the process of collecting data and enriching it. The services then store the processed data in the cloud, which can be accessed using simple SQL queries.

The Importance of AWS IoT Core

The AWS IoT Core is a managed cloud platform for IoT applications. It connects devices securely and enables safe and reliable interaction with cloud applications. The core can support billions of connected devices and process trillions of messages. By learning AWS IoT Core, you can build and deploy IoT applications faster and easier.

Did you know that IOT sensors are crucial to human development? It is very important to note that you can find sensors everywhere. Also, it could be said that these sensors are as old as man. This is because for every technological advancement, sensors are part of it.

The IOT sensors are in schools, machines, homes, malls, cars, hospitals, airplanes, and other places or facilities you didn’t know they could be present.

In this article, we shall discuss elaborately on 17 different types of Internet of Things referred to as IOT sensors. Also, we shall consider their unique features and frequently asked questions about this subject matter.

What Do IOT Sensors Really Mean?

As earlier mentioned, Internet of Things makes our lives easier and these sensors are in use for our daily activities. Our smart phones are functional because of the sensors present in them.

Sensors are tools that easily identify changes around us. Thus, they don’t only identify these changes, they react to them. Across the globe, many industries use different types of sensors. To simply put, sensors are integral parts of all organizations in the human space.

With the availability of sensors, we can collect data. At the same time, we share this data with wide range of connected appliances. Therefore, it is safer to say that our world “runs” on sensors. Also, the IOT space is becoming broader everyday. Furthermore, there are more data that we process and transmit new facts, figures, information, and statistics to huge archive or data bank.

Additionally, the IOT sensors have wide range of devices which provide network via software that can collect and send data through the Internet.

Interestingly, every IOT tool can gather massive data from their surroundings. This data may include several things such as human behavior. Also, it can gather data about weather conditions, climate change, and detect human response to the environment.

Also, IOT tools can transfer data collected from our environment for processing through digital devices without interference from us. We don’t have to analyze data ourselves from time to time. Also, devices format data in ways that both humans and different tools can understand.

The Major Types of IOT Sensors in the IOT World

In this part of the article, we shall consider 17 types of Internet of Things sensors that have shaped the human existence. They are all applicable to various industries you can think of.

Temperature Sensors

The temperature sensors have become so useful in various industries. Thus, this type of IOT sensors has great influence in our ecosystem. Also, you can observe how refrigerators work. The temperature sensors can easily expose the temperature of such object. It can transmit the degrees at which there is hotness or coldness of an atmospheric condition.

Also, the temperature sensors can calculate volume of heat intensity from any source. Similarly, it can reveal the degrees of temperature modification in an object. Therefore, it alters such modification, converting it to data for future purpose. So, this type of sensor works for agriculture because one needs to control temperature around the farmland.

This type of sensor has at least four groupings. They include the following.

 RTD: This is simply the Resistance Temperature Detectors. Also, this tool can calculate temperature based on modification in resistance. Also, one can observe the film and coil of this device.

Semiconductor: This device reads temperature and is regarded as minute chip. It works as amplifier and oscillator. Interestingly, this tool saves computer memory.

Thermocouple: This tool calculates temperature thereby storing up alterations in voltage. One thing is, its output voltage is influenced by degrees of temperature at such particular time.

Thermistor: This device easily reacts to alterations in temperature. This implies that, it can modify its resistance physically as a result of detection of temperature modification.

Proximity Sensors

Sometimes, proximity sensors are taken as motion sensors. However, they serve varying purposes. So, one can’t conclude they are similar. Furthermore, proximity sensors can calculate and detect any distance from a device. Thus, it doesn’t necessarily have to physically come in contact with any object before proximity sensors can detect distance. They are available in IOT applications.

Proximity sensors can quickly sense mobility and that is why proximity sensor is widely common in any retail sector. Also, proximity sensors are great at detecting close contacts on connected devices. Again, you find proximity sensors common in places such as airports, shopping centers, mortar stores, convenience stores, and stadiums.

Furthermore, proximity sensor is grouped into ultrasonic sensor, capacitive sensors, and inductive sensors. Also, proximity sensors use some photoelectric technicalities to detect nearby contacts. The use of light is important in this case.

Pressure Sensors

As the name implies, pressure sensors deal with calculating the pressure applicable to any form of sensor. Thereby, pressure sensors can work on atmospheric force. Pressure sensors calculate the volume of pressure that a fluid needs so as not to dilate. Also,  pressure sensors work for industrial apps.

Interestingly, this sensor can calculate weight of an animal because it measures volume of pressure used per unit. Also, pressure sensor is a type of the IOT sensors can detect alterations in fluids which could be gaseous or liquid. As long as the force modifies, this sensor senses such changes. Therefore, it transmits the data to connected devices.

Optical Sensors

This class of sensor works with light conversion. This implies that optical sensors change light to electronic indicator. Today, we have countless use cases where optical sensors are functional. Commonly, optical sensors work for vehicles. This is because optical sensors respond to signals. So, a driver can detect alterations while driving because optical sensors can process any obstacles.

For every smart phone, optical sensors play a vital role in their construction. Battery life relies on light sensor for expansion. For smart cars, optical sensors are useful in them. This is because such cars use optical sensors for detecting factors that may alter motion in vehicles. It easily detects any unfavorable condition on the roadways. So, optical sensors help scan both vehicles and roads regularly.

Concurrently, optical sensors calculate various devices. Optical sensors can surveil electronic device, light, and electricity. So, this makes it functional in healthcare and biomedical.

Humidity Sensors

Humidity Sensors are instrumental in calculating humidity. Also, if any alterations occur in humidity, the humidity sensors easily indicate. As they are functional in residential area, the humidity sensors also work for industrial purpose.

Over the years, the humidity sensors have been useful in meteorology stations, hospitals, and other industries. Interestingly, it helps calculate volume in relation to water vapor and gases. Furthermore, it works for ventilating as well as heating. Since it measures water vapor, it helps in predicting weather conditions.

Chemical Sensors

There is no doubt that chemical sensors have saved lives. Also, this is because with the aid of chemical sensors, it traces chemical outflow from containers. When this happens, it alerts humans by processing data collected and analysis takes place.

The chemical sensors help manage harmful chemicals that may affect human existence. That is why they are useful in any plant environment. Also, it identifies any contaminations in chemical formation fluids. This sensor greatly impacts our lives because it helps prevent accidents.

Some chemical sensors include chemiresistor, chemical transistor, and electrochemical sensor. Also, this sensor identifies any explosive chemicals in our environment.

Infrared Sensors

These IOT sensors are available in two types. Infrared sensors can either be passive or active sensors.

The passive infrared sensors are common and are available in quantum or thermal types. However, the quantum types work quicker. For the active sensors, it uses photodiode to identify items.

The infrared sensors always have varying degrees of output. Also, this relies on the force of signal it gets. The infrared sensors quickly detect intensity of infrared radiation in the environment. Thus, the infrared sensors can emit this infrared radiation. Additionally, it calculates emission of heat from devices.

For instance, in healthcare, infrared sensors are vital. This is because they can scan blood pressure. Also, televisions can receive signals through infrared sensors. Also, infrared sensors are crucial for viewing concealed layers in works of art such as painting. Furthermore, it detects the authenticity of these paintings and reveals any modifications in them.

Gas Sensors

These types of IOT sensors work for air contamination. This implies that the gas sensors can sense any toxins in air. It helps to maintain a safe and serene environment by monitoring the quality of air around us. Therefore, if there is any alteration in air quality, it immediately receives signal.

For instance, for the mining industry, the gas sensors are important. It helps to detect harmful gasses. Also, an industry such as oil and gas can use gas sensors to detect carbon dioxide and combustible gases. There are common gas sensors and they include hydrogen sensor, hygrometer, oxygen sensor, air pollution sensor, gas detector, and breathalyzer. All these sensors simply help to surveil quality of air, sense changes in it, and identify different gasses.

Smoke Sensor

As its name implies, these types of IOT sensors are specifically made to detect smoke and possible hazard it causes. It identifies any airborne contaminants. No doubt, the smoke sensor is very efficient in this regard.

Smoke can cause toxins in the environment. That is why many manufacturing industries use smoke sensor to detect level of emission of smoke. Smoke sensor monitor fire, flame, and gasses. As a result of this, it reduces the exposure to danger in many hazardous environments. Optical smoke sensor is a common type of smoke sensor.

Level Sensors

These types of IOT sensors help to detect the level of any substance or particles that emanate from any source. Also, these sources may be closed and open sources. It detects level of any liquid that may emanate from different systems.

Importantly, the level sensors are gaining more popularity today. As such, many industries use them. This is to alert them of the level at which substances flow through different sources.

The level sensors can also monitor and gauge fuel levels. Industries producing alcohol use the level sensors to calculate amount of liquid substance they have. Water reservoirs, compressors, and machine devices use level sensors. Note that the purpose of using level sensors is to collect and process available data.

Gyroscope Sensors

Gyroscope sensors can calculate speed. It is a sensor that detects velocity of speed. It is a common type of sensor that automotive uses. For video games, the gyroscope sensors help to calculate the motion sensing. Anything in relation to speed, this sensor works for it.

Gyroscopes are referred to as angular velocity sensors. To trail the motion of a device, the gyroscope sensors apply gravity for this. The various kinds of gyroscope sensors you can find are vibrating structure and rotary.

Noise Sensors

The noise sensors are important sensors because they help to calculate the volume of noise from any device. Also, noise pollution can be controlled with the aid of this sensor.

Thus, this sensor can easily detect noise level. Noise levels can be known these days because of the use of noise sensors. Integrated microphone as part of the noise sensor makes it possible to scan climatic sound. This way, you can easily trace sound and noise levels. Also, you process data gather while generating reports.

Noise sensors are mostly used in environments that produces harmful noise. Construction industry uses noise sensors. Also, these sensors help to scan road traffic. Thus, it helps to research noise hazards on the roads.

Noise sensors are helpful at homes, too. It helps to detect the level of noise pollution around you. Furthermore, certain noise sensors manage noise levels for kids as well as pets.

There are two types of noise sensors. Also, they include geo phone and hydrophone. A geo phone can modify motion from the ground to voltage. It is what geophysicists use in calculating electromotive force from barometer. This is known as seismic activity.

Hydrophone detects and archives sounds, echoes, and noise from underwater. Also, it records every sound gathered from each direction of the underwater. It helps to note the varying degrees of noise from the underwater and process information. Less than a month, one can record deep underwater sounds using the hydrophone.

Magnetic Sensors

These types of IOT sensors are similar to proximity sensors. Also, they may have some slight differences. However, their similarity is in relation to how both sensors can identify the presence of devices. Whether the devices are nearby or distant, proximity sensors can detect it.

For magnetic sensors, electromagnetic radiation is important. This way, they can easily sense objects. Modification that takes place in any magnetic field can be identified by magnetic sensors.

It identifies modification in strength and flux of the field. It responds to modification in the field by giving signals. Also, they can give linear sensing. Furthermore, reed switches are one of the types of magnetic sensors.

Motion Sensors

As its name implies, motion sensors simply identify movements. However, these movements are measured within a specific orbit. Note that, they can give electrical signals when they detect anything including the appearance of somebody.

Motion sensors are mostly in accessible places like public environments. They are in toilet flushes, soap dispensers, doorways, and in many buildings. They are also present in many camera triggers. That is why they can give signals or alerts when there is detection of something. One can see them in apps meant for security purposes.

Water Sensors

We all need quality water that won’t harm us. That is why water sensors are important. The water sensors help to keep water clean and purified. In this way, our general well being is not exposed to water pollution.

Certain parameters are used for measuring water with these sensors. These are temperature, conductivity, salinity, and pH. This way, a lot of conservation takes place around us.

Some conditions of the water are also evaluated. These range from its physical to chemical composition as well as biological condition. Also, note that these sensors can also detect how pure some water bodies are. It includes the rivers as well as lakes. At the end, only quality water will be available for both industrial use and human absorption.

Water sensors can be used in both flowing water and stored ones in tanks or reservoirs. Also, some swimming pools have these sensors in them.

Accelerometers

Accelerometers are useful sensors because they help to detect the modification in gravity. Sometimes, there are certain modifications that affect gravity. In such occurrences, accelerometers are functional in identifying acceleration. This implies that, in relation to time, the rate at which modification affects the velocity of any item can be measured.

Also, accelerometers can scan through objects to know the change in its gravity. So, it raises alert if there is an alteration in any device. For instance, pedometers use accelerometers. One can also monitor a flight by checking gravity and motion through accelerometers. Therefore, it sends signals when there is a change in its performance. In addition, data processing helps to detect any faults in devices using accelerometers.

Capacitive Sensors

Capacitive sensors are types of IOT sensors that help to identify certain metallic devices. Also, they help in identifying devices that are non-metallic.

Also, some apps are intricate. Therefore, these types of IOT sensors can help track any device irrespective of how simple or complex they are.

What are the Advantages of IOT Sensors?

There are numerous advantages we derive from sensors. In today’s world, data is important. We can all have access to data because of the availability of sensors. Furthermore, different industries rely on sensors for business. Also, in our individual lives, Internet of Things makes things smoother for us. Our gadgets rely on sensors to be functional.

To gather data about our environment, weather conditions, biological composition, chemical substances, we depend on sensors. IOT devices rely on sensors, too.  From our physical world to digital devices, sensors are important.

Humans no longer have to do some activities themselves. Nowadays, with Artificial Intelligence, our world keeps progressing. The truth is, all benefits of sensors can’t be limited. Daily, huge archives of data are processed and humans can analyze information because of sensors. Even with little storage unit, IOT sensors are still operational.

We can now have access to Internet as a result of advancement in IOT. Mining data is possible for many industries. Also, we can now have availability of data for more than one reason.

Frequently Asked Questions

There are some commonly asked questions when it comes to the world of IOT sensors. In this part of the article, let us consider some of these questions. Also, there are possibilities that questions you need answers for will be answered.

Where Can IOT Sensors Be Used?

People get concerned about places IOT devices can be used. Also, it should be noted that IOT don’t need human response to them before they run. IOT can sense anything irrespective of distance.

Farmers use IOT for agricultural purpose. However, the way we all use IOT differ. This is because our needs are different. Also, the use of IOT in biomedical is a bit different from automotive and military. However, there is connection in data processing.

Are there IOT Data?

This is one of the common questions people ask. Devices use IOT data and collect it from various devices. Data can be sent across several devices for analyze because of the IOT sensors. Through wireless medium, data can be collected. It is not a necessity to have power source before IOT can connect to devices.

What do IoT Sensors measure?

IoT Sensors gather huge amount of data about their surroundings. Also, these sensors can measure light, measurement, and air quality. Furthermore, water quality, soil moisture, and motion.

Conclusion

There are different types of IOT sensors in today’s world. Also, it is great that humans can explore these sensors including rain sensors, image sensors, magnetic sensors, infrared sensors, among others. Also, IoT can measure motion, temperature, gravity, sounds, smoke, flame, water, and many other things.

 Furthermore, it sends alert when there is danger. With it, we can sense obstacles that may affect future innovations. So, we are able to proffer quick solutions to such challenge. We hope that you have learnt the importance of IOT to our world.

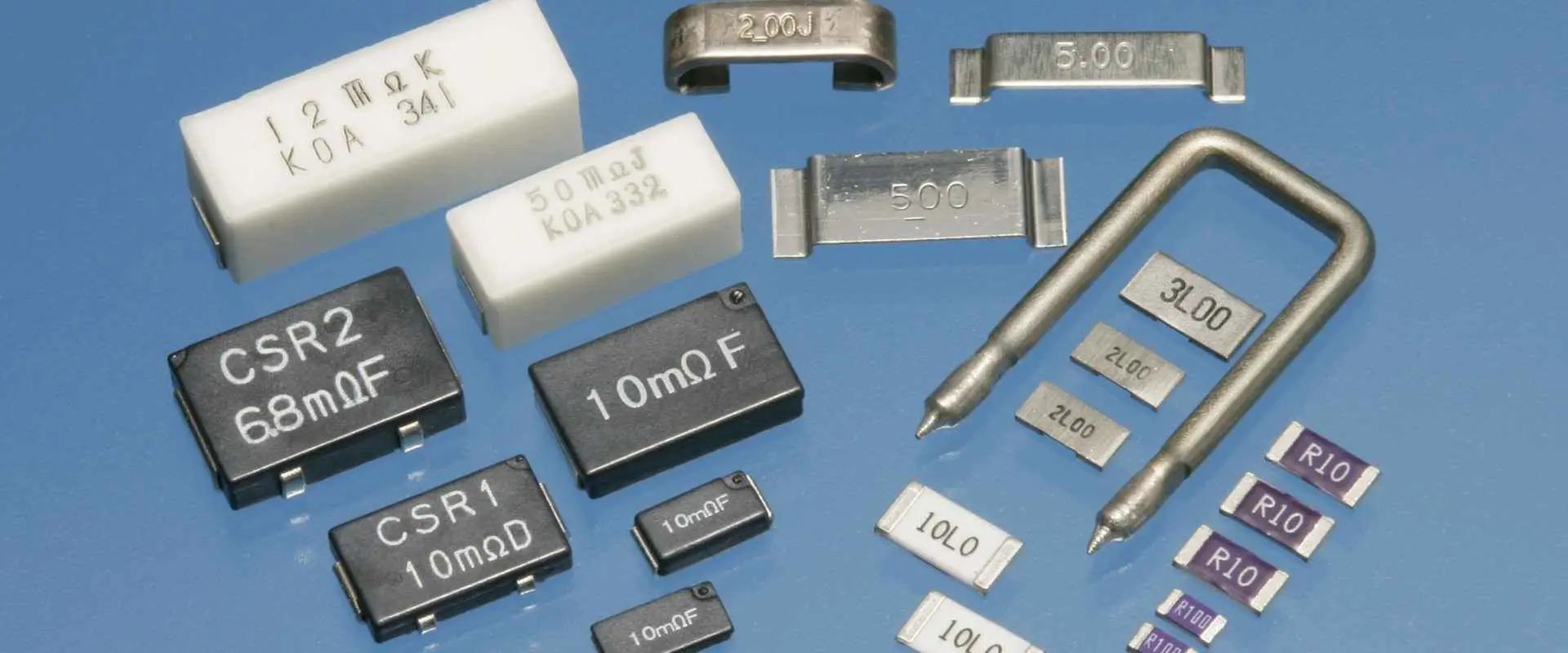

The evolution of electronics accessories and components is a continuous process resulting from the daily research in the field of technology. In this evolution, both active and passive electronic components are applied. Passive components are such circuit elements as resistors, inductors, capacitors, etc. we have different types of resistors depending on the method of fabrication involved in their manufacture. Some examples of resistors are the wire wound resistor, thin film resistor, thick film resistor, carbon composition resistor, shunt resistors, current sensing shunt resistors, precision shunt resistors, chip resistors, SMD shunt, sampling resistor, DIP shunt resistor, etc.

All resistors are passive elements that perform the same functions in an electrical circuit, no matter their type. Deciding on the type of resistor to use in a design rut depends on the best fit. SMD resistor, for example, is one of the best and most efficient resistors of all time. Different companies deal in the fabrication, development, and supply of these SMD resistors. The following are the top 10 SMD resistor manufacturers in the world.

Antonio Precise Product Manufactory Ltd.

Situated in Hong Kong, the Antonio company mass-produces SMD resistors. It is the leading SMD manufacturer company in the world, having above 1000 employees. The company was established in 2000 and mostly specialized in producing ICs and SMD resistors. Being the leading SMD resistor manufacturer, the company has a total revenue of between 2,000,000 and 5,000,000 US dollars. The company has received such awards as ISO 9001 Quality Management System, ISO 14001 Environmental Management System, Creditable Enterprise Award, and the Trade and Industry Department Quality Award, 2000. Moreover, the company can boast a Bluetooth Qualification Body Award (BBQ) for having fabricated the ATO Bluetooth Headset BT20.

Market

Being the leading SMD manufacturing company, it has a worldwide market. However, most of its strongest market holds are in the Middle East, South America, North America, and South East Asia.

Shanghai Keter Polymer Material Co. Ltd.

Founded in 1997, Shanghai Keter company mostly specializes in the research, improvement, and fabrication of various electric circuit components such as PPTC, PTC fuse, PTC Resettable fuse, SMD resistors, Resettable fuse, etc. With experience spanning 25 years, the company has improved its technology and applied it in the development and production of PPTC worldwide, an additional task over SMD resistor production. Consequently, the company has become one of the leading PPTC suppliers in China.

Qualifications

Shanghai Keter company holds the International Quality Management System ISO9001 certification, and its products have additional UL, TUV, and CCC certifications, having passed the SGS tests and met the ROHS demands.

Products applications

Keter SMD resistors and other components are applied in communication switches, computers, battery sets, distribution frames, micro-electrical machines, ADSL facilities, transformers, and other circuits in electrical appliances and gadgets.

Market size

Keter company has recorded around 1000 customers recently but is working towards increasing the client pyramid by providing high-quality products and availing them to its clients at reasonable prices.

Employees and Revenue

Keter company has between 100 and 500 employees, with revenue of 5,000,000 and 10,000,000 US dollars.

Shenzhen Cao Li Wei Industries Co. Ltd.

Founded in 2000 in China, Shenzhen Cao Li Wei industries Co. Ltd is an electronic company that mainly deals in the Taiwan Yageo electronic components, including SMD resistors, chip beads, SMD inductors, and chip capacitors, etc. Additionally, the company distributes Tantalum diodes, transistors, capacitors, etc. Due to the ability of the company to provide its clients with various choices and services to meet their demands, the company maintains a good reputation as the largest Yageo agent in Southern China. Consequently, the company achieved the authority of attorney of Uni-Ohm Viking and Chilisino. The company also enjoys maximum technological support from Taiwan Yageo and other aspects such as after-sales services, which aids in expanding the market scale of the company.

Administration and market

A mature administration is one of the company’s characteristics. Consequently, its employees, whose population is between 50 and 100, are highly qualified and work effectively towards producing products that are highly efficient, flexible, and of high quality. Moreover, it is possible to sell out the goods at lower but profitable prices and offer them the best sales service, courtesy of the highly trained marketing specialists in the company. An advanced detection system aids in testing the products to ensure they meet the best quality, in line with the high-tech expectations. Customers apply the company’s products in communication systems, home appliances, security systems, digital medical equipment, etc.

Oswell E-Group Limited

Oswell is a China-based SMD resistor-production company founded in the year 2003. It deals with such resistors as shunt resistors, current sensing shunt resistors, precision shunt resistors, chip resistors, SMD shunt, sampling resistors, DIP shunt resistors, etc. Additionally, the Oswell company has 19 years of experience in resistor production, with several qualifications such as the ISO 9001 international quality system certification in 2015 and the IATF 16949 British NQA International Certification body in 2016.

Application of the company’s products

Oswell’s products are applicable in many fields such as automobile designing, electrical appliances, fabrication of smart homes, power supply plants, industrial controllers, energy plants, etc. The company aims to create value with customers globally and win the market by providing reliable, high-quality products.

Market

Being a China-based company, Oswell has its main market as the domestic market, which contributes the better part of its market. However, its products are spreading worldwide, through the Middle East, South East Asia, North America, and South America.

Employees and Revenue

Oswell hosts between 50 and 100 employees, with a staff population of between 10 and 15 members. From the most recent statistics, Oswell has revenue of between 200,000 and 500,000 US dollars.

Filur Electric

Filur is a Ukrainian electronic company founded in 1993 that takes the lead in Ukraine’s Electro-technical production and Radio-electronic components provision. Filur’s headquarters are in Kiev city, with other branches in Dnepropetrovsk city in Ukraine and St. Petersburg district in Russia. The latter has aided in the development of the Russian market since the very first days of Filur’s existence. It focused on producing the best, high-quality products that laid the foundation of the company’s strong market structure. In addition, expanding the range of products assists in widening the product market pyramid.

Main products of the company

Filur electric mainly deals in producing SMD resistors, resistor arrays, precision resistors, trimming resistor capacitors, thermistors, leaded metal-film carbon resistors, etc. The employee population in the company is between 10 and 50 employees, who can raise a total revenue of between 500,000 and 1,000,000 US dollars.

Synthon-Tech Corporation

Founded in 1988, the company has 34 years of components fabrication experience, which helps in producing components of the right quality. Additionally, Synthon Tech company dedicates its productive time to producing passive circuit elements such as capacitors, resistors, and inductors. Synthon Tech is located in Taiwan, but its products are traded worldwide.

Factory and market size

In the domestic market, Synthon Tech contributes 35% of the electronic components produced, whereas, in North America, components produced by Synthon Tech comprise 19% of the total amount. The factory size of Synthon Tech is between 5,000 and 10,000 square meters, with an operations staff of between 5 and 10 people.

Golden King (HK) Tech Limited

GOLDEN KING (HK) tech limited, an electronic component manufacturing company, was founded in 1995. The company is located in Guangzhou, Shenzhen, China, but has its sales markets in several cities across China, such as Shanghai, Chengdu, Beijing, and Hong Kong. Having a 27-year of experience, the company has become one of the best capacitor-producing companies in the world. Golden King Tech mainly deals in such components as SMD resistors, ceramic capacitors, tantalum capacitors, chip resistors, SMD inductors, photocoupling, integrated circuits (IC), etc. Products from Golden King tech company are of high quality and are available at reasonably affordable prices all over the world.

Market

Golden King tech company mostly exports its products to Southeast Asia, North America, East Asia, the Middle East, South America, and many other countries worldwide. Additionally, the market size of the company’s products continues to expand daily, following the better range of products and services the company offers to its customers. However, the company is still making efforts toward expanding its customer base.

Employees and Revenue

The company hosts an employee population of between 50 and 100, recording a total revenue of between 100,000 and 500,000 US dollars.

Shenzhen E-Best Industrial Co. Limited

Founded in 1981, Shenzhen e-best company has been the leading fabricator and supplier of SMD resistors and some other various components such as vehicular laser, switching power supply, ICS, inductor, capacitor, Arduino zone, GPS module, burning machine, Infrared sensor/emitter, IC, thermistor, resistor, SMD resistor, M/A-COM, diodes, transistors, crystal, fuse, IGBT, fiber optic receiver, relay, DVD laser head, test needle/probe, dip tantalum capacitor, switches, etc. Shenzhen e-best company has its headquarters in FuTian District, Shenzhen, China, with its operational factory in Mainland China.

Market

Shenzhen e-best company sells its products worldwide, in overseas markets such as Korea, Singapore, the USA, Germany, etc. Additionally, the company deals in a wide range of products. It avails them to clients at affordable and reasonable prices within a short period since the placement of the order by the client. Consequently, it assured of a market advantage over similar companies dealing in producing SMD resistors and other components.

Employees and Revenue

Shenzhen e-best company hosts a relatively smaller employee population compared to other similar companies as it has between 5 and 10 employees. Still, it produces many products following the advanced technology present in the company. Moreover, the company has recorded a revenue of between 500,000 and 1,000,000 US dollars in recent statistics.

Shenzhen Heketai Technology Co. Ltd.

Founded in 1992, Heketai tech company is a competent electronic component production enterprise dealing in the fabrication, development, and distribution of such products as SMD resistors, SMD diodes, SMD ceramic capacitors, SMD transistors, etc. HKT is an independent brand owned by Heketai tech company. Additionally, Heketai tech company mainly focuses on producing Lead-free environmental products. Heketai tech company has its headquarters located in Guangdong, Shenzhen, China.

Certification

Heketai tech company has the International Quality Management System ISO9001, with all HKT products meeting the environmental protection standard RoHS. Heketai tech also holds other titles such as

• China’s best-selling brand
• Civilization corporation
• Chinese electronic enterprise most potential brand
• Chinese Famous brand

Market

Heketai tech distributes its products worldwide. And mostly in the Middle East, Eastern Asia, South East Asia, Northern America, and South America.

Employees and Revenue

Heketai tech company hosts an employee population of between 50 and 100 employees and has had a revenue of between 1,000,000 and 2,000,000 US dollars in the recent past.

Shenzhen Xin Bai Chang Technology Co. Ltd.

Established in 2005, Shenzhen Xin tech is an electronic component manufacturer and supplier located in Guangdong, Mainland China. Shenzhen Xin tech company mostly deals in such products like:

• connecting sockets
• power relays
• potentiometers
• SMT inductors
• SMD LEDs
• film capacitors
• SMD electrolytic capacitors
• SMT transistors
• ceramic capacitors
• SMD capacitor diodes
• SMD/chip resistors
• IGBT module
• transistor integrated circuit components and much more

With 17 years of experience, Shenzhen Xin tech company produces high-quality, reliable products.

Certification

The company bears authorization from three national authoritative departments, with the products certified by ISO9000, RoHS, and CE systems.

Market

Shenzhen Xin tech company has its main market as the domestic market in China. Central America constitutes 10% of the company’s market. The Middle East contributes 20% of the company’s market.

Employees and Revenue

Shenzhen Xin tech company has an average of 5 – 10 staff members, with an employee population between 10 and 50. From the most recent statistics, Shenzhen Xin tech company has a revenue of 200,000 and 500,000 US dollars.

Conclusion

The lack of SMD resistors should not stop you from performing research and design tasks. The above information makes it possible to understand the top 10 best SMD production companies worldwide. The companies deal in the fabrication, production, and distribution of SMD resistors.

Estimating the size of the company can be easier from the details above. However, the number of employees is not necessarily proportional to the company’s size. Most of these companies have greatly incorporated technology in the fabrication and production of these SMD resistors.

Electrical coils can be described as an electrical conductor. This is usually wound to form a coil, a spiral, or a helix shape. They have a major function, which is the transmission of electricity, heat, or sound.

Furthermore, the electrical coils are also called electromagnetic or magnetic coils. This terminology could cause some form of confusion. This is because the word electromagnet could specifically have to do with electric coils. These coils directly affect any external object via a magnetic field.

How Do Electrical Coils Work?

Although electrical coils serve in many different applications, the majority of electric coils usually share similar electromechanical principles and basic construction.

Furthermore, the electrical coils come to be whenever a specific conductive metal wire is wired around a specific insulator. The whole wire is called the winding, then each of the individual loops present in that winding is called a turn. Also, there is a hole in the coil’s center. We refer to this region as the magnetic axis or core area. Same way, both ends of this wrapped wire are usually changed into different terminals for electrical connection referred to as “taps.”

Furthermore, the creation of power happens whenever there is a link of the taps to a specific electric current that moves via coiled wires and then magnetizes the coil.

This can happen due to the fact that the electric currents flowing creates a form of circular magnetic field. This is present along the entire conductor’s length. Also, the coiled electric conductors help in creating a stronger magnetic force compared to the straight conductors.

This is because they manufacture similar or the same magnetic fields that merge at the loop’s center. Also, the electrical coils that are made up of many electric loops which are wound round that same axis, could yield magnetic fields that are very strong.

What are the Electrical Coil Materials?

Although lots of conductive metals exist, Copper and aluminum are most frequently used in making electrical coils. Also, these Electrical coils mainly for heating purposes are usually made up of an iron or nickel alloy. Regarding the insulator, you can manufacture it from some non-conductive and diverse materials, which includes air, cardboard, enamel, or plastic.

Furthermore, the insulation of coils are usually done specially; this is majorly to help in preventing the flow of current between the coil turns as well as shielding the coil from long exposure to any corrosion as well as damage-causing conditions such as vibration, oil, moisture, or salt. You can protect your coils in different ways:

First is encapsulation, and this applies just to the coils’ wire. The encapsulated coils are also made up of wire, which is already covered in a specific polymer epoxy. Also, the molded coils have plastic coverings, which seals both the wires and the whole winding.

Who are the Leading Electrical Coil Manufacturers?

Sag Harbor Industries, Inc.

Sag Harbor Industries, Inc. are known to have engineers with great craftsmanship. The products here are usually manufactured in the United States. Also they have made a promise to ensure that the items are usually created from high-quality resources. Furthermore, they have efficient and unique electrical coils.

Classic Coil Company

The Classic Coil Company was founded back in 1973 and they offer contract manufacturing of different electronic coils for different industries; winding the wire gauges from about 4-58 AWG

Also, the company is DFARS Compliant, ITAR registered, and ISO 9001-2015 certified. Furthermore, they are one of the best known electrical coil manufacturers and their engineering services makes it possible for them to offer assistance with cost reduction, designing, as well as increase the efficiency of production. You can learn more about the capabilities of the Classic Coil Company by calling or visiting their website.

Quality Coils, Inc.

The Quality Coils, Inc. is ISO 9001:2015 certified. They are one of the best known electrical coil manufacturers internationally for the manufacturing of high-quality electromagnetic coils. In addition, the company’s goal is offering high-quality products, commits to quick and speedy delivery, as well as competitive pricing. Also, the company understands that all applications are unique, this is why they encourage clients to contact them so as to discuss their specific requirements. Quality Coils, Inc. has over 50 years of professional experience in this field, so they have a lot to offer.

Torelco LLC

Torelco LLC has been existing since 1962, and has been supplying transformers and electric coils of great and superior quality. Furthermore, the company provides solenoid coils, custom coils, toroid wound coils, and ferrite core coils to serve different industries. In addition, Torelco LLC serves different markets including electronics, medical, industrial, and military. If you decide to work with Torelco LLC, you can be sure of them building the same specifications you requested for, as well as need customers’ custom needs.

Precision Econowind, Inc.

Precision Econowind, Inc. is known as one of the major electrical coil manufacturers that comes at very reasonable prices, as well as quick delivery. Also, Precision Econowind, Inc. has been serving the coil industry for more than three decades, and they have vast experience in the production of medical industry coils, loudspeaker, as well as coils that are wound on the tooling/bobbins of customers. They also deal in flat wire, freestanding, edge wound, rectangle, square, and shaped coils. All you need to do is to submit your preferred specs.

Triad Magnetics

Triad Magnetics is known in the electrical coils industry, having been involved for more than 75 years. Furthermore, they are one of the best known electrical coil manufacturers that delivers the best expertise and knowledge in the whole industry. Also present are different inductors and electric coils coupled with their ability to engineer as well as manufacture electrical coils in order to meet the needs of customers. They have met the needs of so many industries for over fifty years and the company has the strong belief that its experience will make the difference.

Johnson Electric Coil Company

This Company is one of the family-owned electrical coil manufacturers, which deals in custom inductors, coils, and transformers. They manufacture three phase isolation and single phase chokes and inductors. Also, they are involved in the careful designing of products so as to meet the right specifications of the customer.

Conclusion

These are our best electrical coil manufacturers. They are involved in manufacturing high quality electrical coils and ensure timely deliveries.

There are several PCB companies across the world. However, not all of these companies are incorporated. Some PCB users are very careful when selecting the type of companies they work with.

As a PCB manufacturer, you should register your business with a state to make it a separate legal entity. Here, we will be discussing PCB incorporations.

What Does Incorporation Mean?

Incorporation which is popularly referred to as inc. indicates that a company is registered with a state so as to become a separate legal entity. Incorporation involves the legal process required to create a corporate company or entity. Therefore, a corporation separates the assets and income of a company from its investors and owners.

Inc. is simply an abbreviation of incorporated. Any company that has this abbreviation is a legal corporation. Some PCB companies are a legal incorporation. One can simply say incorporation is the process in which a business is a corporation. Therefore, the business earns the right to have an inc after its name.

However, the rules of incorporation may vary by state and the particular corporation type you want your business to be. Also, you need to first choose the type of corporation you want and then select the state to incorporate in. The best option is your home state. However, some corporation owners select states having favorable corporation laws.

Also, incorporation makes it much easier for businesses to raise capital. An incorporated business becomes a separate entity from the owner of the business. This means the company is a legal entity in its right.

What are the Top PCB Incorporations?

Rush PCB Inc

Rush PCB Inc manufactures high quality circuit boards. This PCB incorporated company has its headquarters in California. Rush PCB Inc fabricates printed circuit boards with customer satisfaction and quality in mind. With Rush PCB Inc, PCB users can get the best PCB products and services. Also, this PCB Company offers product services like HDI PCB, flex and rigid flex PCB, PCB manufacturing, PCB assembly, and BGA.

Rush PCB Inc. works with a team of professional engineers and designers to deliver top quality circuit boards. Also, this company integrates state-of-the-art procedures and technologies for manufacturing printed circuit boards.

Journey Circuits Inc

Journey Circuits Inc is another popular PCB Inc in the United States. Also, it is one of the industry leaders in PCB manufacturing. Based in Illinois, this PCB company offers products and services like PCB assembly, PCB manufacturing, and stencils. Furthermore, Journey Circuits Inc prioritizes the demands and interests of their customers.

This PCB company ensures it integrates reliable PCB manufacturing procedures and testing. Its reliable and high quality PCBs and assemblies are widely used across industries like aerospace, automotive, communications, and power. Journey Circuits Inc has a state-of-the-art facility where it carries out its PCB manufacturing, assembly, and testing.

Celestica Inc

Celestica Inc provides different engineering solutions for a wide range of industries like aerospace and defense, cloud, renewable energy, and semiconductor. Also, this Canadian EMS company  is a leading manufacturer of high-performance boards. Celestica Inc offers products that are ideal for use in most advanced applications.

Furthermore, Celestica Inc offers services like design and engineering, hardware platform solutions, supply chain services, and more. This EMS Company aims to develop and deliver high quality products to better the future of electronics.  One of the benefits of this company is that it offers after-market services to customers. Also, this Canadian electronics manufacturing services (EMS) company has its headquarter in Toronto, Ontario.

Jabil Inc

Jabil Inc is a leading PCB company that offers logistic and supply chain services. These services include supply chain solutions, advanced planning, logistics, advanced planning, and more. Furthermore, Jabil Inc is a manufacturing services company that serves several industries across the world. Jabil products are widely used in applications like consumer health, aerospace, data centers, and more.

Also, Jabil Inc has its headquarter in St.Petersburg ,Florida, U.S.A. Asides PCB manufacturing, Jabil Inc delivers device integration, digital prototyping, and more. This American based manufacturing services company is one of the biggest companies in the Tampa Bay area. Jabil Inc has received several awards for its business practices and community engagement. Also, Jabil was the first company to receive the National Quality Award of the Mexican government.

TTM Technologies Inc

This is widely regarded as one of the leading PCB manufacturers in the world. This PCB manufacturer focuses on Quick-turn and volume manufacturing of advanced PCBs and electro mechanical solutions. Also, TTM Technologies Inc is a global manufacturer of RF and microwave components. TTM means time-to-market.

Furthermore, TTM Technologies offer one-stop manufacturing services that allow customers to reduce the required time to design new products. TTM Technologies goal includes integrity, clear communication, and honesty. TTM Technologies employs more than 25,000 personnel. With the best team of professionals and procedures, TTM Technologies delivers extraordinary customer experience.

Why Choose PCB Inc?

PCB Incorporated companies offer a lot of benefits to both owners and customers. The following are the benefits of choosing PCB incorporated companies.

Instant credibility

One of the greatest benefits of an incorporated company is that your business can get credibility from other entities. Potential suppliers, investors, and customers will instantly know that you are thinking about the longer term. Also, a PCB Inc company will have to maintain a different set of accounting records.

External advice

PCB incorporated companies can get advice from leaders. Furthermore, entrepreneurs can get a huge network of resources like development agencies that can help their business develop.

Reliability

One of the advantages of choosing a PCB Inc Company is the reliability it offers. Also, incorporated companies help customers and partners to enjoy more benefits. This is because the corporation can exist if the owner dies.

Transparency

PCB Inc companies must follow the requirements for annual record keeping. Also, this ensures transparency in these companies.

Conclusion

Incorporated companies offer much more companies than sole proprietorships and limited liability companies. One of the greatest benefits of incorporated companies is their reliability. Therefore, PCB users consider factors like reliability and transparency when choosing PCB companies. In this article we have discussed some of the top PCB Inc companies you can work with.

Printed circuit board manufacturing is a process that involves several procedures. Each procedure is crucial in achieving a functional board. The first step in a PCB manufacturing process is PCB design. Also, the PCB design process is a critical stage in PCB manufacturing.  For PCB design, there is a wide variety of software. These include PCBWeb Designer, EAGLE, and Proteus.

Professional PCB design software should comprise improved features for schematic design and PCB design. Proteus PCB design software is a good example of such software. Therefore, our major focus on this article is Proteus. We will provide more details on how to use Proteus to design printed circuit boards.

Types of PCB Based on PCB Design

In terms of PCB design, there are two types of PCBs. These are Layout PCBs and Dotted PCBs.

Dotted PCBs

 Dotted circuit boards feature dots on the surface. Also, you can insert components in these holes. After this, the PCB designer attaches the components with wires and solders them. Dotted PCBs can be very complex to design as they can have several errors.

Layout PCBs

Layout circuit boards are easier to design. The PCB designers make use software to design the layout of this circuit. After that, the designer etches the copper layer and then solders different components on the PCB. This type of PCB is very easy and simple to design as it has lesser chances of error. Also, it doesn’t take much time to fabricate.

What is Proteus?

Proteus PCB software is mainly designed for preparing schematics and designing circuit boards. This software integrates PCB layout modules and schematic capture to offer easy to use and powerful suite of tools for PCB design. This software makes PCB design very easy with the tools it features.  Proteus is software that features a powerful and integrated development environment. The tools in Proteus are ideal for professional PCB design and schematic capture. Also, these tools are very easy to use.

This professional PCB design software features space based auto router. Also, there are other great features like interactive SPICE circuit stimulator, fully featured schematic capture, and highly configurable design rules. Proteus PCB design software offers extensive support for power planes and integrated 3D viewer.

Furthermore, this PCB design software is a great option for modern PCB layout. Proteus has more than 25 years of consistent innovation and development. Therefore, this PCB design software has been able to integrate more advanced tools. Proteus focuses on improving its functionality while maintaining an easy-to-use interface. Also, this software focuses on tight integration with PCB schematic design.

Proteus comprises two PCB layout software offerings which are Proteus ARES and Proteus ISI. Proteus ARES is primarily created to guide the routing of PCBs and the positioning of components. On the other hand, Proteus ISI focuses on the generation of schematic diagram and electric-based simulation conduction.  Proteus is a professional solution for modern printed circuit board design.

Furthermore, Proteus design suite offers PCB design starter kit for beginners.  The design tools in Proteus offers users with great flexibility.

Advanced Features and Capabilities of Proteus

Proteus comes with a lot of features for designing your circuit board. These features make circuit board design much easier for PCB designers. Also, the design tools offered by Proteus make it an ideal choice for board design.

Footprint libraries

The libraries cover a wide variety of through hole components. This includes the most common transistor, IC, and diode. Also, Proteus offers SMT footprints and full IEC libraries. This software includes the IPC-7351 and IPC-782 standard surface mount libraries.

Also, you can create new packages on the drawing if required. Proteus supports 2D drafting features. This software features a direct import tool for PADS ASCII layout format. Therefore, this allows you to bring in footprints from popular tools like Ultra-Librarian.

Manual routing

With the manual routing feature, you don’t need to begin from the ratsnest lines. Also, tracking can easily be places in any way you want. Proteus will help you get rid of ratsnest lines as the connections become complete. When placing tracks, the route will follow the mouse anywhere possible and will move around obstacles.

You can delete any section of a track or reroute when you are editing routes. Also, there are commands that help you change the layer of a section of tracking. If there are thick tracks between obstacles like IC pads, there will be automatic necking in the route. Therefore, this will help you maintain the design rules.  Also, you can lay down curved tracks by simply pressing the CONTROL key and using your mouse to mark the route.

Templates and technology data

Proteus has a PCB layout module that comprises a detailed scheme for design re-use. Also, this scheme is in the form of technology data and board templates. As a user, you can design several templates that represent common projects. Also, you can start new layouts from the template. This will help you preload all the configured data.

A template file is a basic layout together with a technology data set. Also, this data features grids, design rules, and more. You can directly apply this data to other layouts.

Power planes

This software includes ultimate power plane support. Also, there is a user placeable polygonal region in which there is a creation of inner boundaries around existing pads and tracking. The boundaries will be recomputed to ensure design rule clearances once you change the tracking and pads. Also, Proteus includes support for thermal relief. So, you can decide whether to fill or hatch every polygon.

All computation on Proteus is according to grid-less shape geometry. Also, this computation occurs in the background. This will prevent any interference in the placement of manual board for computationally intensive layouts.  Placing several power planes for each layer is one of the advanced features set by Proteus. Also, you will need the Proteus PCB design Level 2 to achieve this.

Verification

Proteus ensures it checks every track and warns if there is any violation of design rules. Also, you can set rules by strategy or by layer to customize the board constraints. You can even design rules that control behavior between strategies. There is an indication of the board’s design rule and connectivity on the status bar at Proteus’ bottom.

3D visualization

Proteus has a 3D visualization tool that helps you extrude a PCB layout.  3D visualization is one of the more advanced features provided by Proteus. Also, this feature enables you to view what the board would look like in the real world. This feature is very useful during PCB layout. Navigation is very intuitive and is controlled by mouse.

Also, the user can define a “height pane” that matches the board chassis. This will display as a box around the board, enabling a visual check for any protrusions. Also, Proteus features 3D footprints and support for designing custom 3D footprints. You can export files in these formats from most commercial MCAD packages and a wide range of free internet resource.

Stitching and shielding

Via stitching helps to tie larger copper traces together on various layers. Therefore, this helps to maintain short return paths and minimize noise on the circuit board. Also, planes can be automatically stitched through a simple context menu command. Therefore, this gives you control over via style.

You can include a picket fence or via shield around the planes’ border in the same way. Therefore, this will form a single row of vias around the zones’ perimeter. Also, this can help to prevent EMI with other equipment. This technique is ideal for high-speed routes to isolate signals on the board operating at various frequencies.

Benefits of Using Proteus PCB Design Software

PCB designing can be a difficult task if you don’t use the right software. The right software comprises advanced simulation features that help to achieve more sophisticated designs.  Also, using the right PCB design software will help to reduce errors which can be costly. Proteus as a circuit board design software that offers a lot of benefits to users. These benefits include:

Dedicated support

Software is vulnerable to bugs and circuit board design software isn’t an exception to this. Proteus offers dedicated software support to users. Also, there are several support features for users. Also, this software allows you to contact the developers and as well as offers a help feature when you have problems.

Great price and performance

Proteus is an affordable software that offers exceptional performance. PCB designers often consider the cost of acquiring PCB software, particularly when there is a budget. Although there are free design softwares online, their performance varies.

Ease of use

This is one of the benefits you will enjoy from Proteus. Proteus features an easy to use interface. Different persons like hobbyist, professional designers, and students can use this software. Also, the developers of this software reduces technicality of different aspects by using simpler graphics.

Updates and add-ons

Good circuit board design software should keep improving their features and capabilities. Also, Proteus keeps including more advanced features to enhance its capabilities.

Great functionality

Also, Proteus offers exceptional functionality as regards design elements. Most PCB software developers often include the most sophisticated functions at a fee. However, Proteus doesn’t only offer these sophisticated functions in their premium software.

How to Design a Printed Circuit Board Using Proteus

Virtual PCB Layout Design

For the designing process, click on the icon to run the program. You will see a new screen. After this, you will discover a grid-like workspace. There are available buttons that help to design the circuit board. Also, the circuit design will take place in the blue rectangle outline displayed on the screen.

Choose the entire component you need and they will be included to the devices list. Also, you can use rotate buttons to rotate the selected device. After this, you can position your component in the workspace. Place the cursor at the end of the component pin to draw connections.

Right click on the component if you intend to modify a component. After right-clicking, you will see a dropdown. Save and debug the file after completing the task.

PCB layout designing

You will need to design the PCB layout using the virtual circuit. Proteus features an integrated ARES designing suit. The first step is to open Proteus and choose Tools and click on netlist to Ares.

A window featuring components list will open. You can now use the 2D Graphics Box Mode to create a board edge. Then, choose select layer and then choose board edge.  After this, create a box in the workspace. When you have done this, click again.

Click on the component and use the rotate buttons to rotate. After this, place it in your workspace. Ensure you arrange the components after including the entire components. Connect all the components. To change the track width you can click on C for Create or E for Edit. Once you select any of these buttons, a new window will open. Ensure you select your width based on the design of the PCB.

The next step is to connect components. If the design is a single layer PCB, place components on one side and then make connections present on the board’s other side. For double-layered boards, components and tracking should be on two sides. In multilayer boards, different colors represent different layers. For instance, the bottom layer can be blue while the inner layer can be in different colors.

Also, white arrows indicate the directions of component traces while green line show connections. The blue lines will show the tracks. Red circles indicate any errors in tracking.

Layout printing

Layout printing is the last step. To achieve this, click on the output option and choose print. You will see a print layout window. There are several options like rotation, mode, and more. There are 4 types of modes which are a drill plot, artwork, SMT mask, and a solder resist. Also, you can print the yellow colored module in the artwork mode.

The SMT mode is ideal for circuit that requires SMT module. Also, the drill plot layer helps to specify the drill hole size and the drill place. The solder resist layer helps to prevent short circuits.

Conclusion

The manufacturing of a functional printed circuit board begins with a good PCB design. Therefore, it is crucial to use efficient circuit board design software. This software helps with schematic capture and layout. Also, good PCB designing is one of the steps in producing a functional board. Proteus design suite has gained popularity in the PCB and electronics industry due to its features.

The constant development of electronic devices has increased miniaturization. Also, PCB size keeps shrinking. Therefore, there is a great need to improve the soldering process. Using soldering flux to solder the hole to the motherboard usually leads to cold solder. Therefore, there is an increasing demand for castellated pads.

What is a Castellated Pad?

A pad is crucial for PCB design. In a circuit board, a pad is the exposed area of metal in which the component lead is carefully soldered to. when we talk about castellated pads, we mean vias or PTH located in the PCB edge. Castellations create several half holes. These holes function as pads that create a connection between the PCB and the module board.

Castellated parts are usually applied to the edges of a PCB. Also, they help to solder a circuit board on top of another. Castellations are like indentations created on PCB edges. These castellations make it easy to mount a circuit board on top of another.

Attaching a circuit on top of another creates opportunities for various design options. Castellated pads make the PCB assembly process much easier. However, these castellations may be half holes or a part of a broken circle. Also, these castellations offer good alignment between two circuit boards. Therefore, castellated pads aid the soldering of boards.

Furthermore, castellated pads help the board-to-board soldering. Castellations serve several functions. You can use them in various PCB modules.  The process of creating castellated pads is quite straightforward. Also, this process involves drilling and plating the full holes in the castellated PCB. Furthermore, castellation involves cutting the top region into halves. Therefore, this creates partial or half holes on the circuit board’s edge.

Why is Castellated Pad Crucial in PCB Design?

Castellated pads can help to replicate some PCB parts. For instance, if a circuit features feedback loops, an inverter, or a filter, you can produce these sub-circuits and then solder them on the main circuit.

• Castellated pads can change the pin layout of the component based on user requirements.
• Castellation makes it easy to mount circuit boards to another PCB
• Also, a castellated PCB can serve as a breakout board for a certain part of your larger circuit board.
• They help in combining two circuit boards to validate the quality of solder joint.
• Castellated pads can help you design integrated modules on a PCB.
• Also, they are suitable for use in small modules like breakout boards and Wi-Fi modules.
• Castellated pads enable complicated components to be integrated with a breadboard.
• They enable electrical connection to another board via the edges of the board without the need for additional components.

Recommended Specifications for Castellated Holes

There are some recommended design specifications for castellated holes.

Size

Use the biggest size available, this will help you mount PCB correctly

Pad design

It is much better to use the biggest pad. Integrating the largest pad for every castellation enables the PCB to fit well

Distance and diameter

Half holes are ideal for use in both advanced and standard circuit boards. The minimum hole diameter for a standard circuit board should be 0.6mm. Also, the castellated holes diameter for advanced circuit boards should be smaller. Note that the minimum distance between two castellations should not be lower than 0.55mm.

Surface finish

The surface of a circuit board is crucial for mounting PCB correctly. Also, ENIG finish is one the best surface finishes for circuit boards. However, the intended application of the PCB will determine the type of surface finish you opt for.

How to Design a Castellated Board

You have to ensure high yield and quality when designing a castellated board. The process of designing a castellated circuit involves designing castellated pads. Also, this process is a complex one. However, any costly mistake will affect the performance of your circuit board. You need to understand some things when designing a castellated pad.

Half hole PCB

Half hole board features a part of a broken circle. When designing this castellation, the PCB designer must be aware of some crucial things. Below are factors to consider when designing half hole.

• Holes with smaller lead-in holes

These holes are ideal for use in any connector application. Also, they require a cutting tool which helps in creating other smaller castellations where needed.

• Use the bottom and top edge as the location of the hole

Avoid utilizing the vertical edges. This is because these edges usually function as bridges. Therefore, this ensures the circuit board bridges in place.

There are various designs for half holes. However, they vary based on their software.

How to Fabricate a Circuit Board Castellated Pads

When fabricating a circuit board with castellated pads, you need to ensure high yield and quality in the process. However, castellated circuit boards don’t appear to fit in the PCB fabrication process. Therefore, you can ensure the design passes through fabrication. You can achieve this by simply modifying the Gerbers to specify drill hits. This usually needs the following drill files (TXT/DRL) and copper layers (GBL and GTL).

Some fabricators believe that the best alternative to castellated boards is integrating solder pads to mount the module. However, the main challenge here is the possibility for contamination. Too much of solder paste along the pad array can lift the module.

The manufacturing process for castellation pads involves the following steps:

• Drilling of holes
• Ensuring plated hole
• Creating panel plating
• Performing image transfer
• Performing pattern plating
• Striping
• Etching
• Solder masking
• Surface coating
• Integrating plated half holes

Frequently Asked Questions

What are the applications of Castellated Pads?

The castellated pads on circuit boards serve good purposes in several industries like:

• Telecommunication
• Consumer electronics
• Power and industrial control
• Computer application
• Automobiles

What are the steps involved in castellated pads design?

The creation of castellated holes involves drilling and plating the full holes in the PCB. These holes are similar to half circles on the PCB edges since they are partially cut to create a half hole.

Conclusion

Castellations serve several functions. You can use them in various PCB modules. This article has explained the importance of castellated pads in PCBs. Also, castellations are useful in several industries.

The IT-180A is known as an advanced multifunctional high Tg (about 175) filled epoxy having a low coefficient of thermal expansion (CTE), a high thermal reliability, as well as CAF resistance. In addition, it is specially designed for the high layer printed circuit board (PCB). This could pass the 260 Lead-free assemblies as well as the sequential process of lamination.

If you wish to learn more regarding the IT-180A, welcome. Here, we will be discussing its properties, processing guidelines, main features, benefits and use cases of the IT180A. Please keep reading this article to understand what this topic is all about.

What are the Main Features of the IT180a?

CAF Resistance

This means that IT180A is resistant against a great failure mode that could be present in the multilayer printed circuit boards. This issue usually results from the electrochemical process that forms corrosion products.

Friendly Processing

The processing of the IT180A is very easy and it comes stress-free. This is one reason why the processing is friendly in nature. These include handling and storing the prepreg and laminate, processing the inner layer, lamination, drilling, etc.

Available in Different Constructions

Also, the IT180 is found in different constructions. This gives them better features, usability, and reliability.

Compatible with lead-free assembly

The IT180a is compatible with lead-free assembly. This practice is useful in PCB assembly. This is just to prevent the use of some hazardous materials. It doesn’t make use of lead due to its hazardous nature.

Advanced Resin Technology

The IT180A also has advanced resin technology. This means that it has high insulation and thermal conductivity. This is why the IT180A is useful in various applications.

What are the Benefits of IT180A?

It is multifunctional and you can apply it in different application forms. These include high layer and multilayer PCB backplanes, automobile, networking and server telecommunications, application of heavy copper and data storage.

Other great benefits of the IT180A include its low coefficient of thermal expansion and heat resistance of heat. Great through-hole reliability and a great CAF resistance are other adorable features.

What are the Processing Guidelines of the IT180a?

Handling and storing the Prepreg

During this stage, the shelf life is about three months whenever the Prepregs is stored inside a dry and cool environment. Here the humidity must be less than 50%, while the temperature must be less than 20 ℃.

Furthermore, any Prepreg that has exposure to humidity has to be resealed in order to reduce moisture absorption. In addition, the Prepreg must be stored in an environment that is controlled for about 12 hours before use. The Prepreg that is supplied in panels or rolls has to be stored in a horizontal manner. There is no need for stacking to prevent damage.

Handling and Storage of the Laminate

The storing of the laminate must be done in dry environments. Also, the laminates must be stored in a flat way at all times.

Process of the inner layer

The first thing here is to determine the suitable parameters like dimensional compensation before the start of mass production. Also, the inner layers have to be baked for about 40 minutes at a temperature of 120 ℃ after brown or black oxides treatment.

Note that during the lamination process, the temperature of the material cannot be higher than 195 ℃, if you make use of brown oxide treatment.

Lamination

For the lamination, you have to prepare the stacks in a lay-up room. This is to prevent moisture absorption. Also, the recommended ranges for pressure must be the following hydraulic/350 to 400psi, while the vacuum Hydraulic/300 to 400psi.

For the Lien Chieh press, the rate for heating is 1.3 to 1.8℃/min. This is from a temperature of 80℃ to 140℃. Furthermore, for the Burkle press, the rate of heating rate is 1.5 to 3.0℃/min. Also, this is from a temperature of 80℃to about 140℃. In addition, the recommended rate of cooling is below 3℃ per min.

In addition, whenever the temperature of the board gets to 180℃when the process of pressing is on, the process of lamination has to be kept for a minimum of 60 minutes.

Drilling

The parameters for drilling are majorly dependent on the layer thickness, hole size, stack height, copper thickness, and layer number. The following parameters for drilling are mainly for reference alone. The usual drilling parameters for the 0.4 to 1.0 mm drills are:

• Retract rate:500 to 1000 IPM Max; hit count is less than 1000 hits
• Spindle speed is 45 to 105 KRPM, while the feed rate is around 50 to 150 IPM
• The entry material is 0.2mm Aluminum
• Also, the back-up material is a Phenolic laminate of 1.5mm, while the drilling machine is the Hitachi ND-6L210E.
• For the baking condition, the temperature after drilling is 170 °C per two hours

Desmear

The usual parameters for the desmearing of FR-4 product might not create the best hole topography for the IT180A. Therefore, it is advisable to consult your chemical supplier so as to help optimize the desmear condition. For example, you can desmear twice and also adjust some other parameters.

What are the Use Cases for the IT180-A?

This base material with high Tg serves applications that are thermally demanding. It is manufactured via a phenolic-hardened, multi-functions, and filled resin system. In addition, it has a Tg value of 175 degrees centigrade.

Also, it has a high Td (Thermal decomposition of more than n345 degrees centigrade. This high value is that it is very suitable for applications that are thermally demanding.

Due to its resin matrix, it is CAF-resistant and is very suitable for producing multi-layer circuits. A UV blocker is generally used in manufacturing the IT180A.

Lastly, it fulfills the UL 94V-0 and RoHS requirements. Also, it is certified in line with railway standards.

Conclusion

Sure you have enjoyed and gained much information from this article. The IT180 has lots of great features, properties, and benefits. To process it, make sure you work with the guidelines.

Printed circuit boards are a vital part of most electronic devices. They offer interconnection for components installed on them. Also, they play a significant role in the performance and functionality of electronic devices. Industries such as aerospace, automotive, consumer electronics, and more depend on printed circuit boards.

Therefore, this makes it crucial that PCB companies deliver great efficient PCBA solutions and processes that ensure accuracy, quality, speed, and durability. There are many PCB manufacturers globally. Jabil Circuit produces PCBs and offers electronic manufacturing services for companies.

What is Jabil PCB?

Jabil PCB is a circuit board produced by a popular America manufacturing Services Company known as Jabil Inc. Furthermore, Jabil PCB is widely used across industries like defense, computer, aerospace, and more. Jabil circuit as a company offers services like PCB manufacturing and supply chain services for consumer and EMS industries.

Jabil PCB comes with great electrical and thermal properties that contribute to its excellent performance. These boards are available in different layers. Multilayer Jabil PCBs are ideal for high performance applications. Jabil incorporates the most recent advancements in its PCB. Also, this company integrates state-of-the-art technology and processes for its PCB manufacturing.

Jabil Circuit produces printed and flexible hybrid electronics that bring about the next generation of smart devices. Also, Jabil designs, manufactures, and integrates flexible circuits into products. Jabil has great experience of rigid and flexible PCB assembly. Therefore, it leverages technologies like adhesives curing and surface mount technology.

It is very easy to create innovative designs and deliver products using printed and flexible hybrid electronics.

Benefits of Using Jabil PCB

Jabil PCB offers great benefits which makes them widely used across industries.

Reliability

Several companies make use of Jabil PCBs because it is very reliable. This PCB works for a vast range of products and applications. Also, these PCBs are very durable. Therefore, companies have confidence in them. When these PCBs are used in electronic devices, they perform greatly.

Compactness

Jabil PCB comprises several elements and parts. Also, they use copper tracks instead of actual wires. Therefore, this offers the same results without the use of current-carrying wires. Also, Jabil PCB is smaller and yet powerful. Due to its compactness, it is widely used in advanced electronic devices. You will find them in modern devices like smartphones, wearable devices, and more.

Better quality control

One of the benefits if using Jabil PCB in electronic devices is that it offers better quality control. Jabil PCB manufacturer integrate good inspection and testing during board fabrication. Also, this manufacturer performs quality control throughout the manufacturing cycle.

Reduces electronic noise

Jabil PCB reduces electronic noise if components are properly laid. Electronic noise can degrade the performance of a circuit if arrangement is not properly done. Also, electronic components need to be properly arranged to ensure minimal space between them. Therefore, this arrangement will help to minimize noise.  Furthermore, Jabil PCB reduces electromagnetic pickup, minimizing crosstalk between parts on the circuit.

Ease of repair

Jabil PCB is easy to repair in just a short period. The respective polarities of electronic parts are usually labeled on the PCB. This helps to easily replace parts when there is failure.

Applications of Jabil PCB

Jabil PCBs are highly preferred among manufacturers. Also, this PCB is widely used in several applications. We will talk about the most common applications.

Medical devices

Jabil PCB features thermal and dielectric properties that make them suitable for use in medical devices. As technologies advance, the healthcare sector is integrating increasing numbers of circuit boards. Also, medical devices require special attention during production. This is because proper performance is crucial to the health of patients.

Furthermore, PCBs used for medical devices must meet stringent standards to ensure safety. Jabil PCB manufacturing adheres to safety standards in the PCB industry. Also, Jabil Circuit integrates safe procedures and latest technology for PCB manufacturing.

Consumer electronics

Jabil PCBs are ideal for use in consumer electronics like computers, smartphones, and more. Printed circuit boards have become a larger p[art of our every day lives. Most electronics we use daily comprise circuit boards. Jabil PCBs is commonly used in consumer electronics because of its low cost. Also, consumer electronics manufacturers want reliable PCBs.

Automotive components

Automotive parts consist of circuit boards. These days, manufacturers are integrating electronic components in their vehicles. Jabil PCBs are commonly found in headlight switches and windshield wipers. However, these days, Jabil PCBs are usually used in advanced features for ensuring safe and easy driving. Jabil PCBs are available in sensors, control systems, and navigation systems in vehicles.

Telecommunications

The telecommunications industry utilizes various types of PCBs due to the different type of equipment in the industry. As this industry keeps evolving, it integrates more advanced boards in its devices. Telecommunication equipment like office communication equipment and telecom towers comprise Jabil PCBs. Office communications equipment like phone switching systems, Voice over Internet Protocol (VoIP) devices require advanced circuit boards.

What does Jabil PCB Manufacturer Offer?

Creating innovative design and manufacturing reliable PCB products requires great technical skills. Jabil’s engineers have great expertise in handling flexible substrates. Also, these engineers are very skillful in integrating traditional and flexible components.

Furthermore, Jabil PCB manufacturers design rigorous electrical and mechanical ways of testing components. This includes IPC standards testing. Furthermore, Jabil engineers are vastly experienced in processes like molding, sewing, and lamination to design printed and flexible circuits.

Furthermore, Jabil can provide custom solutions in different printed and flexible hybrid electronics due to its expertise. Jabil works with industry-leading suppliers that help to create and integrate flexible components made from functional inks.

Jabil offers solutions that range from printed circuit traces to printed sensors. Also, Jabil integrates broad industry knowledge to help develop solutions for PCB manufacturing. Jabil integrates several interconnect methods.

Conclusion

Jabil PCB is very functional and reliable. Therefore, it is widely used across different industries. Also, Jabil PCB offers great electrical and thermal properties. PCBA miniaturization helps to reduce the size of PCBs without the need to sacrifice performance. Jabil PCB manufacturer has expertise in a wide array of PCB substrates and technologies like rigid-flex, ultra-thin, and high-current printed circuit boards.
