Introduction

In the world of printed circuit board (PCB) design and manufacturing, solder pads play a crucial role in ensuring proper component attachment and electrical connectivity. This comprehensive guide will delve into the intricacies of solder pads, covering everything from their basic definition to advanced repair techniques. Whether you’re a novice PCB designer or an experienced engineer, this article will provide valuable insights into the world of solder pads.

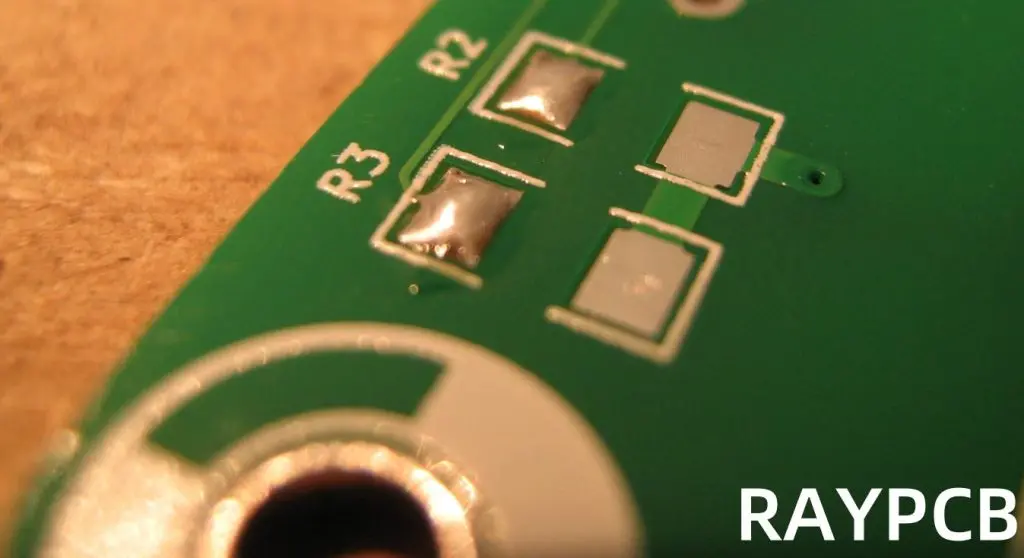

1. What Are Solder Pads?

Definition and Purpose

Solder pads are specially designed areas on a PCB where components are soldered to establish electrical and mechanical connections. These metallic surfaces serve as the interface between the circuit board and the electronic components, ensuring proper functionality and reliability of the entire assembly.

Anatomy of a Solder Pad

A typical solder pad consists of several layers:

1. Copper layer: The base conductive material
2. Nickel plating: Provides a barrier to prevent copper diffusion
3. Gold plating: Protects the pad from oxidation and enhances solderability

Importance in PCB Assembly

Solder pads are critical for:

1. Component placement accuracy
2. Electrical conductivity
3. Mechanical strength of connections
4. Heat dissipation during soldering

2. Types of Solder Pads

Through-Hole Pads

Through-hole pads are designed for components with leads that pass through the PCB. They feature:

1. Circular or oval shape
2. Plated through-holes
3. Larger size compared to surface mount pads

Surface Mount Device (SMD) Pads

SMD pads are used for surface-mounted components and come in various types:

1. SOIC (Small Outline Integrated Circuit) pads
2. QFP (Quad Flat Package) pads
3. TQFP (Thin Quad Flat Package) pads
4. SOT (Small Outline Transistor) pads

Ball Grid Array (BGA) Pads

BGA pads are designed for components with an array of solder balls on the bottom:

1. Typically circular in shape
2. Arranged in a grid pattern
3. Require precise placement and soldering techniques

Castellated Pads

Castellated pads are semi-circular pads located on the edge of a PCB:

1. Used for board-to-board connections
2. Allow for vertical stacking of PCBs

Custom and Specialty Pads

Some applications require custom pad designs:

1. RF and high-frequency pads
2. High-power pads with thermal relief
3. Fine-pitch pads for densely packed components

Read more about:

• Soldering flux paste
• PCB Soldering
• Removing flux from pcb
• Removing solder from pcb

3. What Factors Dictate the Size of Pads in PCB?

Component Requirements

1. Lead size and shape
2. Package dimensions
3. Pitch (distance between leads)

PCB Manufacturing Capabilities

1. Minimum trace width and spacing
2. Drilling and plating tolerances
3. Solder mask registration accuracy

Electrical Considerations

1. Current-carrying capacity
2. Impedance control requirements
3. Signal integrity concerns

Thermal Management

1. Heat dissipation needs
2. Thermal relief design
3. Power handling capabilities

Assembly Process

1. Soldering method (wave, reflow, hand soldering)
2. Pick-and-place machine accuracy
3. Rework considerations

4. Solder Pads Design Layout Guidelines

General Design Principles

1. Follow manufacturer’s recommended footprints
2. Consider thermal relief for large pads
3. Maintain consistent pad sizes for similar components

Pad-to-Trace Connections

1. Use teardrop connections for improved strength
2. Ensure proper trace width for current capacity
3. Avoid 90-degree angles in trace routing

Spacing and Clearance

1. Maintain adequate spacing between pads
2. Consider component body clearance
3. Allow for solder mask and silkscreen clearances

BGA Pad Design

1. Use non-solder mask defined (NSMD) pads for better reliability
2. Implement proper via-in-pad design when necessary
3. Consider dog-bone fanout for easier inspection and rework

High-Speed and RF Considerations

1. Minimize pad size to reduce parasitic capacitance
2. Use ground planes and controlled impedance techniques
3. Consider coplanar waveguide structures for RF circuits

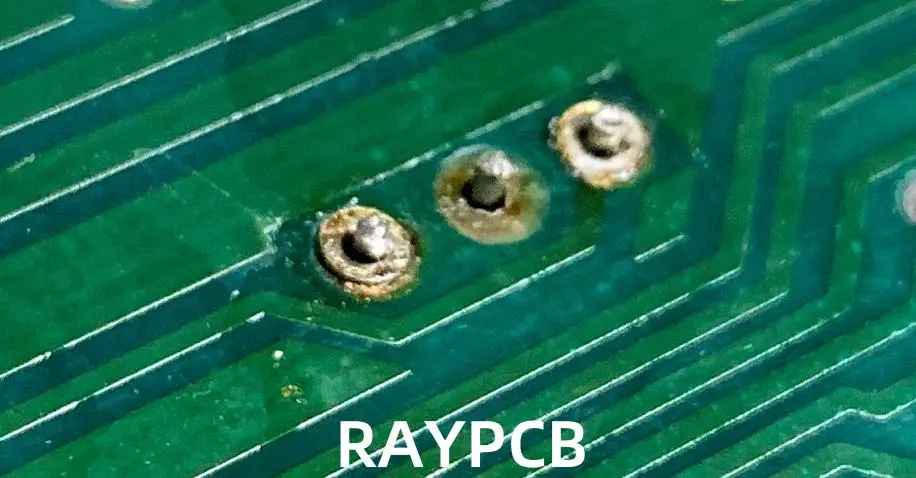

5. How to Fix Broken Solder Pads — Tools and Steps

Tools Required

1. Soldering iron with temperature control
2. Desoldering braid or solder sucker
3. Flux pen or liquid flux
4. Precision tweezers
5. Magnifying glass or microscope
6. Isopropyl alcohol for cleaning

Step-by-Step Repair Process

1. Assess the Damage
   • Determine the extent of pad damage
   • Identify any lifted traces or delamination
2. Clean the Area
   • Remove any residual solder using desoldering braid
   • Clean with isopropyl alcohol to remove flux and debris
3. Prepare the Surface
   • Gently scrape away any solder mask around the damaged area
   • Expose a small section of the trace leading to the pad
4. Apply Adhesive (if necessary)
   • For severely damaged pads, apply a small amount of epoxy to secure the area
   • Allow the adhesive to cure completely
5. Create a New Pad
   • Cut a small piece of copper foil to match the original pad size
   • Tin the exposed trace with a small amount of solder
   • Carefully solder the copper foil to the exposed trace
6. Secure and Shape the New Pad
   • Use the soldering iron to shape the new pad to match the original
   • Ensure a smooth, even surface for component attachment
7. Test Continuity
   • Use a multimeter to verify electrical continuity
   • Check for any shorts to adjacent pads or traces
8. Apply Conformal Coating (optional)
   • For added protection, apply a thin layer of conformal coating
   • Allow the coating to cure completely before use

6. How to Clean a Solder Pad

Importance of Clean Solder Pads

1. Ensures proper solder adhesion
2. Prevents contamination-related defects
3. Improves overall reliability of connections

Cleaning Methods

Mechanical Cleaning

1. Use a fiberglass brush for light oxidation
2. Apply gentle pressure to avoid damaging the pad
3. Suitable for small-scale cleaning tasks

Chemical Cleaning

1. Isopropyl alcohol (IPA) for general cleaning
2. Specialized PCB cleaners for stubborn residues
3. Always follow manufacturer’s recommendations

Ultrasonic Cleaning

1. Effective for batch cleaning of PCBs
2. Uses high-frequency sound waves in a cleaning solution
3. Ideal for removing flux residues and fine particles

Cleaning Process

1. Remove Excess Solder
   • Use desoldering braid or a solder sucker
   • Ensure all old solder is removed from the pad
2. Apply Cleaning Solution
   • Use IPA or a specialized PCB cleaner
   • Apply with a lint-free cloth or brush
3. Scrub Gently
   • Use a soft-bristled brush for stubborn residues
   • Be careful not to damage the pad or surrounding areas
4. Rinse and Dry
   • For chemical cleaners, rinse with deionized water
   • Dry thoroughly with compressed air or a lint-free cloth
5. Inspect
   • Use magnification to ensure all residues are removed
   • Verify pad surface is clean and free of oxidation

7. Common Causes of Solder Pad Damage

Overheating

1. Excessive soldering temperatures
2. Prolonged exposure to heat during rework
3. Improper use of hot air rework stations

Mechanical Stress

1. Rough handling during assembly or rework
2. Excessive force when removing components
3. PCB flexing or bending

Chemical Damage

1. Exposure to corrosive substances
2. Use of improper cleaning agents
3. Residual flux left on the board

Manufacturing Defects

1. Poor copper adhesion to the substrate
2. Inadequate plating thickness
3. Improper etching processes

Electrical Overstress

1. Excessive current flow
2. Electrostatic discharge (ESD) events
3. Voltage spikes or surges

8. Importance of Fixing Solder Pads

Electrical Reliability

1. Ensures proper component connectivity
2. Maintains signal integrity in high-speed circuits
3. Prevents intermittent connections and failures

Mechanical Stability

1. Provides secure attachment for components
2. Reduces risk of component detachment during use
3. Enhances overall product durability

Thermal Management

1. Proper pad repair ensures efficient heat dissipation
2. Prevents localized heating and potential damage
3. Maintains thermal performance of power components

Cost Savings

1. Extends the life of PCBs, reducing replacement costs
2. Minimizes production delays due to board failures
3. Reduces warranty claims and product returns

Quality Assurance

1. Maintains product reliability and performance
2. Ensures compliance with industry standards
3. Enhances customer satisfaction and brand reputation

Conclusion

Solder pads are the unsung heroes of PCB design and manufacturing, playing a crucial role in the functionality and reliability of electronic devices. From understanding the various types of solder pads to mastering repair techniques, this comprehensive guide has covered the essential aspects of working with solder pads.

By following proper design guidelines, implementing effective cleaning procedures, and addressing pad damage promptly, engineers and technicians can ensure the longevity and performance of their PCB assemblies. As technology continues to advance, with components becoming smaller and circuits more complex, the importance of proper solder pad design and maintenance will only grow.

Whether you’re designing a new PCB, troubleshooting an existing board, or looking to improve your assembly processes, a deep understanding of solder pads is invaluable. By applying the knowledge and techniques discussed in this guide, you can enhance the quality, reliability, and efficiency of your PCB projects, ultimately contributing to the success of your electronic products in an increasingly competitive market.
