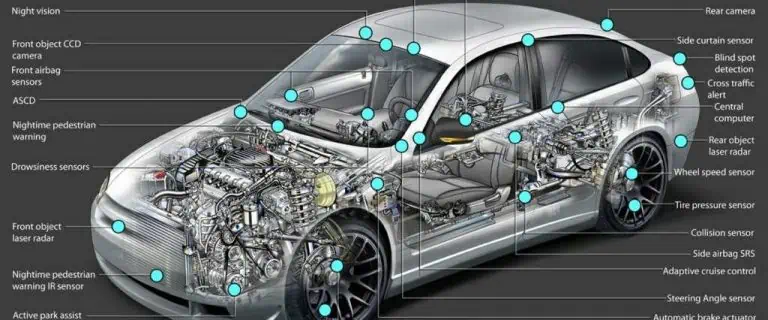

The automotive industry’s relentless pursuit of safety, reliability, and performance has driven the development of stringent qualification standards for electronic components. Among these, the AEC-Q100 standard stands as the cornerstone for qualifying integrated circuits (ICs) intended for automotive applications. This comprehensive qualification framework ensures that semiconductor devices can withstand the harsh operating conditions encountered in modern vehicles, from extreme temperatures and vibrations to electromagnetic interference and chemical exposure.

Origins and Development

The Automotive Electronics Council (AEC), established in 1994, developed the AEC-Q100 standard in collaboration with major automotive manufacturers and semiconductor suppliers. The council recognized the critical need for standardized qualification procedures as vehicles increasingly relied on electronic systems for essential functions including engine management, safety systems, and advanced driver assistance systems (ADAS). The standard emerged from the understanding that commercial-grade or even industrial-grade components were insufficient for the demanding automotive environment.

The development of AEC-Q100 was driven by several factors. First, the automotive industry’s zero-defect mentality required components with failure rates measured in parts per million rather than percentages. Second, vehicles operate in extreme environments that span temperature ranges from arctic cold to desert heat, often with rapid transitions between extremes. Third, the typical automotive product lifecycle of 15-20 years, with expected component lifespans exceeding 15 years, demanded unprecedented reliability standards. Finally, safety-critical applications meant that component failures could potentially result in accidents, injuries, or fatalities.

Core Philosophy and Approach

AEC-Q100 embodies a philosophy of qualification through stress testing that goes far beyond typical component validation. The standard operates on the principle that components must not only function correctly under normal operating conditions but must also survive extreme stress conditions that exceed normal operational parameters. This approach, known as “stress testing to failure,” provides confidence that components will perform reliably throughout their intended service life.

The qualification process is built around accelerated testing methodologies that compress years of real-world exposure into weeks or months of laboratory testing. By subjecting components to elevated stresses including temperature, humidity, voltage, and mechanical forces, engineers can identify potential failure mechanisms and predict long-term reliability. The standard employs statistical models, particularly the Arrhenius equation for temperature acceleration and other physics-based acceleration factors, to extrapolate laboratory results to real-world performance predictions.

Temperature Grade Classifications

One of the most fundamental aspects of AEC-Q100 is its temperature grade classification system, which defines four distinct operating temperature ranges based on typical automotive applications and mounting locations within vehicles.

Grade 0 components are qualified for operation from -40°C to +150°C, representing the most demanding thermal environment typically found in engine compartments and exhaust systems. These components must maintain functionality when exposed to direct engine heat, exhaust gas recirculation systems, and turbocharger applications. The extended upper temperature limit of 150°C pushes the boundaries of silicon technology and often requires specialized packaging and die attach materials.

Grade 1 components operate from -40°C to +125°C and are suitable for under-hood applications with moderate thermal exposure. This includes locations near the engine but not in direct contact with extreme heat sources, such as transmission control modules, anti-lock braking system controllers, and power steering electronics. Grade 1 represents the most common automotive qualification level for powertrain and chassis control applications.

Grade 2 components function from -40°C to +105°C and are typically used in passenger compartment applications with some thermal exposure. Examples include instrument cluster electronics, infotainment systems with moderate power dissipation, and climate control modules. While less thermally demanding than under-hood applications, these components still face temperature extremes from direct sunlight exposure and heating system proximity.

Grade 3 components operate from -40°C to +85°C and are intended for passenger compartment applications with minimal thermal stress. This category includes entertainment systems, comfort electronics, and low-power control modules. Although Grade 3 represents the least demanding thermal environment, components must still withstand the full automotive temperature range including cold-start conditions and solar loading effects.

Comprehensive Stress Testing Protocol

The AEC-Q100 qualification process encompasses an extensive battery of stress tests designed to evaluate component reliability under various failure mechanisms. Each test targets specific potential failure modes and provides quantitative data on component robustness.

High Temperature Operating Life (HTOL) testing subjects components to their maximum rated temperature while operating under electrical stress for 1000 hours. This test accelerates thermal-related failure mechanisms including electromigration, thermal cycling fatigue, and intermetallic growth. Components must continue to meet all electrical specifications throughout the test duration with minimal parameter drift.

Temperature Cycling testing exposes components to repeated thermal excursions between temperature extremes, typically with cycle times ranging from 15 minutes to several hours. This test evaluates the component’s ability to withstand thermal expansion and contraction stresses that can cause bond wire fatigue, die attach failures, and package cracking. The standard specifies multiple temperature cycling profiles depending on the intended application and mounting method.

Highly Accelerated Stress Testing (HAST) combines elevated temperature and humidity with electrical bias to accelerate corrosion and moisture-related failure mechanisms. Components are subjected to 130°C and 85% relative humidity for 96 hours while powered, simulating years of exposure to automotive environmental conditions. This test is particularly important for detecting metallization corrosion, die passivation defects, and moisture ingress issues.

Power Temperature Cycling extends traditional temperature cycling by including electrical power dissipation during temperature transitions. This more closely simulates real-world automotive conditions where components experience thermal cycling while operational, such as engine start-stop cycles and varying load conditions.

Autoclave testing exposes unpowered components to 121°C and 100% relative humidity for 96 hours to evaluate moisture sensitivity and package integrity. This test identifies potential seal failures, moisture absorption issues, and material compatibility problems that could lead to long-term reliability degradation.

Mechanical and Environmental Stress Testing

Beyond thermal and electrical stresses, AEC-Q100 recognizes that automotive components face significant mechanical and environmental challenges. The mechanical stress testing protocol includes multiple vibration and shock tests that simulate the automotive mounting environment.

Vibration testing subjects components to sinusoidal and random vibration profiles that represent various vehicle operating conditions. The tests cover frequency ranges from 20 Hz to 2000 Hz with acceleration levels up to 20G, simulating everything from engine vibration to road-induced chassis motion. Components must maintain electrical functionality throughout vibration exposure and show no physical damage upon inspection.

Mechanical shock testing applies high-acceleration impulses to evaluate component resistance to impact loading. This simulates conditions such as pothole impacts, door slamming, and assembly handling stresses. The standard specifies multiple shock profiles with peak accelerations ranging from 1500G to 3000G depending on the mounting method and application.

Constant acceleration testing subjects components to sustained centrifugal forces to evaluate structural integrity under steady-state mechanical loading. This test is particularly relevant for components mounted in rotating assemblies or subjected to vehicle acceleration forces.

Chemical Compatibility and Corrosion Resistance

The automotive environment exposes components to various chemical contaminants including fuel vapors, cleaning solvents, hydraulic fluids, and road salt. AEC-Q100 includes chemical compatibility testing to ensure that component materials and finishes can withstand exposure to these substances without degradation.

Salt spray testing evaluates corrosion resistance by exposing components to a controlled salt fog environment for extended periods. This test is crucial for components that may be exposed to road salt through splash or airborne contamination. The test identifies potential corrosion issues with lead finishes, package materials, and marking inks.

Fluid compatibility testing exposes components to automotive fluids including gasoline, diesel fuel, brake fluid, and coolant to verify material compatibility. Components must show no swelling, cracking, or performance degradation after specified exposure periods and concentrations.

Electrical Overstress and Latch-up Testing

Automotive electrical systems are prone to various transient conditions including load dump events, inductive switching spikes, and electromagnetic interference. AEC-Q100 includes comprehensive electrical stress testing to ensure components can survive these conditions without permanent damage.

Electrical Overstress (EOS) testing subjects components to voltage and current levels beyond normal operating conditions to verify protection circuit effectiveness and determine destruction thresholds. This testing helps define safe operating areas and establishes design margins for system-level protection.

Latch-up testing evaluates CMOS components’ susceptibility to parasitic thyristor activation that can cause destructive current flow. This test is critical for automotive applications where supply voltage variations and noise can trigger latch-up conditions in susceptible devices.

Statistical Validation and Reliability Modeling

AEC-Q100 requires statistically valid sample sizes and failure analysis procedures to ensure qualification results are meaningful and reproducible. The standard specifies minimum sample sizes based on confidence levels and acceptable failure rates, typically requiring zero failures across all test conditions for lot acceptance.

Reliability modeling using accelerated test data provides quantitative predictions of field failure rates and warranty costs. The standard employs established acceleration models including Arrhenius for temperature, Peck for temperature-humidity, and Eyring for multi-stress conditions. These models enable extrapolation of laboratory test results to predict 15-year field performance with appropriate confidence intervals.

Modern Challenges and Evolution

As automotive technology evolves toward electrification, autonomous driving, and connectivity, AEC-Q100 continues to adapt to address new challenges. Electric vehicles introduce high-voltage systems with unique stress conditions, while autonomous driving systems require unprecedented reliability levels for safety-critical functions.

Advanced packaging technologies including system-in-package (SiP) and 3D integration present new qualification challenges that push the boundaries of traditional stress testing methods. The standard continues to evolve through working group activities that address emerging technologies and failure mechanisms.

The integration of wide bandgap semiconductors like silicon carbide and gallium nitride for high-efficiency power conversion requires extensions to traditional qualification approaches. These materials operate at higher temperatures and voltages while exhibiting different failure mechanisms compared to silicon devices.

Industry Impact and Future Directions

AEC-Q100 has fundamentally transformed the automotive semiconductor industry by establishing a common qualification framework that enables supplier interchangeability and design confidence. The standard has facilitated the rapid adoption of electronic systems in vehicles while maintaining the industry’s exceptional reliability requirements.

Looking forward, the standard must address the convergence of automotive and consumer electronics as vehicles become increasingly connected and software-defined. This includes qualification approaches for complex system-on-chip devices, automotive Ethernet components, and over-the-air update capabilities.

The ongoing evolution of AEC-Q100 reflects the automotive industry’s commitment to reliability and safety while embracing technological innovation. As vehicles become more electronic and autonomous, the standard will continue to serve as the foundation for ensuring that semiconductor components meet the demanding requirements of automotive applications, ultimately contributing to safer, more reliable, and more capable vehicles for consumers worldwide.

The IPC-4204A standard represents a cornerstone specification in the flexible printed circuit board (PCB) industry, providing comprehensive guidelines for flexible metal-clad dielectrics used in the fabrication of flexible printed circuitry. As electronic devices continue to evolve toward more compact, lightweight, and versatile designs, the demand for flexible circuit boards has grown exponentially, making this standard increasingly critical for manufacturers, designers, and quality assurance professionals worldwide.

Introduction and Scope

IPC-4204A, officially titled “Flexible Metal-Clad Dielectrics for Fabrication of Flexible Printed Circuitry,” establishes the requirements for flexible metal-clad dielectric materials used as the foundation for flexible printed circuits. This standard covers the material properties, performance characteristics, test methods, and quality requirements that these substrate materials must meet to ensure reliable performance in various applications.

The standard applies to flexible dielectric materials that are clad with conductive metal layers, typically copper, which serve as the base material for creating flexible circuit patterns. These materials form the backbone of flexible PCBs used in applications ranging from consumer electronics and automotive systems to aerospace and medical devices, where flexibility, durability, and electrical performance are paramount.

Historical Context and Development

The development of IPC-4204A emerged from the growing need for standardized specifications in the flexible electronics industry. As flexible circuits became more prevalent in the 1980s and 1990s, manufacturers faced challenges in ensuring consistent quality and performance across different suppliers and applications. The Institute for Printed Circuits (IPC), now known as IPC – Association Connecting Electronics Industries, recognized this need and developed the standard to provide a unified framework for material specifications.

The standard has undergone several revisions since its initial publication, with each iteration incorporating advances in materials science, manufacturing processes, and application requirements. The “A” revision represents the most current version, reflecting updated test methods, expanded material classifications, and enhanced performance criteria that align with modern flexible circuit applications.

Material Classifications and Types

IPC-4204A categorizes flexible metal-clad dielectrics into several distinct types based on their construction, materials, and intended applications. The primary classifications include single-sided and double-sided constructions, with various dielectric materials serving as the substrate base.

Polyimide-based materials represent the most common category covered by the standard. These materials offer excellent thermal stability, chemical resistance, and mechanical flexibility, making them ideal for demanding applications. The standard specifies different grades of polyimide films, each with specific thickness tolerances, thermal properties, and electrical characteristics.

Polyester-based substrates constitute another significant category, typically used in cost-sensitive applications where extreme temperature performance is not required. These materials provide adequate flexibility and electrical properties for many consumer electronics applications while offering economic advantages over polyimide alternatives.

Adhesive systems used to bond the metal cladding to the dielectric substrate are also extensively covered in the standard. The specification addresses both adhesive and adhesiveless constructions, with detailed requirements for bond strength, thermal cycling performance, and chemical resistance.

Key Performance Requirements

The standard establishes comprehensive performance criteria that flexible metal-clad dielectrics must meet to ensure reliable operation in finished circuits. These requirements encompass electrical, mechanical, thermal, and environmental characteristics.

Electrical properties form a critical aspect of the specification, with detailed requirements for dielectric constant, dissipation factor, insulation resistance, and dielectric breakdown voltage. These parameters directly impact signal integrity, power consumption, and overall circuit performance, particularly in high-frequency applications where precise electrical characteristics are essential.

Mechanical properties receive extensive coverage, reflecting the unique demands placed on flexible circuits during installation and operation. The standard specifies requirements for tensile strength, elongation, tear resistance, and fold endurance. These properties ensure that the material can withstand the mechanical stresses encountered during circuit fabrication, assembly, and use, including repeated flexing, bending, and twisting.

Thermal characteristics are thoroughly addressed, given the importance of temperature stability in electronic applications. The standard establishes requirements for glass transition temperature, thermal expansion coefficients, and dimensional stability over specified temperature ranges. These parameters are crucial for maintaining circuit integrity during temperature cycling and ensuring reliable performance across operating temperature ranges.

Test Methods and Procedures

IPC-4204A incorporates a comprehensive suite of test methods designed to evaluate material performance against the established requirements. These test procedures ensure consistency and repeatability in material evaluation across different laboratories and manufacturers.

Electrical testing procedures include methods for measuring dielectric properties using standardized test fixtures and measurement frequencies. The standard specifies sample preparation techniques, environmental conditions, and measurement protocols to ensure accurate and reproducible results.

Mechanical testing encompasses various methods for evaluating material strength, flexibility, and durability. Tensile testing procedures evaluate material strength and elongation characteristics, while specialized flex testing methods assess the material’s ability to withstand repeated bending cycles without degradation.

Thermal analysis methods prescribed by the standard include differential scanning calorimetry (DSC) for glass transition temperature determination, thermomechanical analysis (TMA) for dimensional stability evaluation, and thermal cycling tests for assessing material behavior under temperature extremes.

Environmental testing procedures evaluate material performance under various environmental conditions, including humidity exposure, chemical resistance, and accelerated aging tests. These methods help predict long-term material performance and reliability in real-world applications.

Quality Assurance and Certification

The standard establishes comprehensive quality assurance requirements that manufacturers must implement to ensure consistent material quality. These requirements include incoming material inspection procedures, process control measures, and final product testing protocols.

Certification processes outlined in the standard provide a framework for material qualification and ongoing quality monitoring. Manufacturers must demonstrate compliance with all specified requirements through comprehensive testing and documentation, with periodic re-certification required to maintain approved status.

Statistical process control methods are emphasized throughout the standard, requiring manufacturers to implement systematic monitoring and control of critical material properties. This approach helps ensure consistent quality while enabling early detection of potential quality issues.

Applications and Industry Impact

The impact of IPC-4204A extends across numerous industries and applications where flexible circuits play critical roles. In the automotive industry, these materials enable the complex wiring harnesses and control systems required in modern vehicles, where space constraints and vibration resistance are paramount concerns.

Consumer electronics applications represent perhaps the largest market for materials meeting IPC-4204A requirements. Smartphones, tablets, laptops, and wearable devices all rely on flexible circuits fabricated from compliant materials to achieve their compact form factors and reliable operation.

Aerospace and defense applications demand the highest levels of performance and reliability, making compliance with IPC-4204A essential for materials used in these critical applications. The standard’s rigorous requirements help ensure that flexible circuits can withstand the extreme environmental conditions and reliability demands of these applications.

Medical device applications increasingly rely on flexible circuits for implantable devices, diagnostic equipment, and patient monitoring systems. The biocompatibility and long-term reliability requirements of these applications make adherence to established standards like IPC-4204A crucial for patient safety and device efficacy.

Future Developments and Trends

As technology continues to advance, IPC-4204A faces ongoing evolution to address emerging requirements and applications. The growing demand for higher frequency applications, increased miniaturization, and enhanced environmental performance drives continuous updates to the standard’s requirements and test methods.

Emerging applications in Internet of Things (IoT) devices, flexible displays, and wearable electronics present new challenges that may require future revisions to address novel performance requirements and test methodologies. The standard’s framework provides a solid foundation for incorporating these evolving needs while maintaining backward compatibility and industry consensus.

The IPC-4204A standard continues to serve as an essential specification for the flexible electronics industry, providing the technical foundation necessary for reliable, high-performance flexible circuit fabrication. Its comprehensive approach to material specification, testing, and quality assurance ensures that flexible metal-clad dielectrics meet the demanding requirements of modern electronic applications while enabling continued innovation in flexible circuit technology.

The IPC 4203B-2018 standard represents a critical specification in the flexible printed circuit board (flex PCB) industry, establishing comprehensive requirements for cover and bonding materials used in flexible electronic assemblies. As electronic devices continue to evolve toward more compact, lightweight, and flexible form factors, the importance of standardized materials and processes becomes paramount to ensuring reliability, manufacturability, and performance consistency across the industry.

Background and Development

The Institute for Printed Circuits (IPC), now known as the Association Connecting Electronics Industries, developed IPC 4203B-2018 as an evolution of previous standards addressing the growing complexity and demanding applications of flexible circuits. This standard emerged from the need to address technological advances in materials science, manufacturing processes, and application requirements that were not adequately covered by earlier specifications.

Flexible printed circuits have become increasingly prevalent in applications ranging from consumer electronics and automotive systems to aerospace and medical devices. The unique mechanical properties required for these applications—including the ability to bend, fold, and flex repeatedly without failure—necessitate specialized materials and rigorous testing protocols that differ significantly from those used in rigid PCB applications.

Scope and Application

IPC 4203B-2018 specifically addresses coverlay materials and adhesive systems used in the construction of flexible printed circuits. Coverlay serves as a protective layer that provides electrical insulation, environmental protection, and mechanical support to the underlying circuitry. The standard encompasses both adhesive-based coverlays and adhesiveless systems, recognizing the diverse manufacturing approaches employed across the industry.

The standard applies to single-sided and double-sided flexible circuits, as well as multi-layer flexible assemblies. It covers materials used in various application environments, from benign indoor conditions to harsh industrial and automotive environments where temperature extremes, chemical exposure, and mechanical stress are significant factors.

Material Classifications and Requirements

One of the fundamental aspects of IPC 4203B-2018 is its systematic classification of cover and bonding materials based on their thermal, mechanical, and electrical properties. The standard establishes multiple categories that allow designers and manufacturers to select appropriate materials based on specific application requirements.

Thermal performance classifications address the maximum operating temperatures that materials can withstand while maintaining their protective and mechanical properties. These classifications are particularly critical in applications such as automotive under-hood electronics or industrial control systems where elevated temperatures are routine operating conditions.

The mechanical property requirements encompass tensile strength, elongation characteristics, tear resistance, and dimensional stability. These properties are essential for applications involving repeated flexing, such as hinges in laptops, connections in automotive doors, or wearable electronic devices. The standard specifies test methods and acceptance criteria that ensure materials can withstand the mechanical stresses encountered in their intended applications.

Electrical property specifications include dielectric strength, surface resistivity, and dielectric constant values. These parameters are crucial for maintaining signal integrity and preventing electrical failures in high-frequency applications or densely packed circuit configurations.

Adhesive Systems and Bonding Requirements

The standard provides detailed specifications for adhesive systems used to bond coverlay materials to flexible circuit substrates. These specifications address both structural adhesives used for permanent bonds and removable systems designed for applications requiring access to underlying circuitry for repair or modification.

Adhesive performance requirements include shear strength, peel strength, and thermal cycling resistance. The standard recognizes that adhesive performance can be significantly affected by surface preparation, application conditions, and curing parameters, providing guidance on process control measures necessary to achieve consistent results.

Environmental resistance requirements for adhesive systems address exposure to humidity, temperature cycling, chemical exposure, and UV radiation. These specifications ensure that bonded assemblies maintain their integrity throughout their intended service life, even when exposed to challenging environmental conditions.

Testing Methodologies and Quality Assurance

IPC 4203B-2018 establishes comprehensive testing protocols that enable manufacturers to verify material compliance and end-users to qualify materials for specific applications. The standard references numerous ASTM, IEC, and other IPC test methods while also defining specific procedures tailored to flexible circuit applications.

Mechanical testing procedures include bend radius testing, which determines the minimum radius to which a flexible circuit can be bent without damaging the coverlay or underlying circuitry. This testing is particularly important for applications involving repeated flexing, as it helps predict service life and reliability.

Thermal testing encompasses both steady-state temperature exposure and thermal cycling tests. These procedures evaluate material stability, dimensional changes, and property retention under various thermal conditions. The standard specifies conditioning periods, temperature profiles, and measurement techniques that ensure reproducible and meaningful results.

Electrical testing procedures address insulation resistance, dielectric strength, and surface resistivity measurements. These tests are performed both on virgin materials and after various environmental exposures to verify that electrical properties remain within acceptable limits throughout the material’s service life.

Manufacturing Process Considerations

The standard acknowledges that material performance is intimately linked to manufacturing processes and provides guidance on process parameters that affect final product quality. Lamination temperature and pressure profiles, adhesive application methods, and surface preparation requirements are addressed to help manufacturers achieve consistent results.

Process control recommendations include statistical process control methods, inspection criteria, and documentation requirements. These elements are essential for maintaining quality in production environments and for troubleshooting when quality issues arise.

The standard also addresses handling and storage requirements for cover and bonding materials, recognizing that improper handling can significantly affect material performance. Shelf life specifications, storage environmental conditions, and handling procedures help ensure that materials maintain their specified properties from receipt through final application.

Industry Impact and Adoption

Since its publication, IPC 4203B-2018 has become widely adopted across the flexible circuit industry, providing a common framework for material specification, qualification, and procurement. The standard has facilitated improved communication between material suppliers, circuit manufacturers, and end-users by establishing common terminology and test methods.

The standardization has also contributed to improved product reliability by ensuring that materials used in flexible circuits meet minimum performance requirements appropriate for their intended applications. This has been particularly beneficial in high-reliability applications such as aerospace and medical devices, where material failures can have significant consequences.

Future Considerations and Evolution

As technology continues to advance, the requirements placed on flexible circuit materials continue to evolve. Emerging applications such as foldable displays, wearable sensors, and Internet of Things devices present new challenges that may require updates to existing standards or development of new specifications.

The increasing emphasis on environmental sustainability is also influencing material selection and specification requirements. Future revisions of the standard may need to address recycling considerations, bio-based materials, and reduced environmental impact manufacturing processes.

Additionally, the trend toward higher frequency electronic applications is placing new demands on the electrical performance of coverlay materials, particularly in terms of signal integrity and electromagnetic interference considerations. These evolving requirements will likely drive future updates to the standard.

Conclusion

IPC 4203B-2018 represents a comprehensive and mature standard that addresses the critical requirements for cover and bonding materials in flexible printed circuits. By providing detailed specifications, test methods, and process guidance, the standard enables the reliable manufacture of flexible circuits for a wide range of applications. Its adoption has contributed significantly to improved product quality, enhanced reliability, and more efficient communication throughout the supply chain. As the flexible electronics industry continues to evolve, this standard will undoubtedly continue to serve as a foundational reference while adapting to meet emerging technological challenges and requirements.

The electronics manufacturing industry relies heavily on standardized processes to ensure consistent quality, reliability, and performance across printed circuit boards (PCBs). Among the various surface finishes available for PCB manufacturing, immersion silver has emerged as a popular choice due to its excellent electrical properties, cost-effectiveness, and environmental compliance. The IPC-4553A standard serves as the definitive guide for implementing immersion silver plating processes, providing manufacturers with comprehensive requirements and guidelines for achieving optimal results.

Introduction to IPC-4553A

IPC-4553A, titled “Specification for Immersion Silver Plating for Printed Circuit Boards,” is a technical standard developed by the IPC (Association Connecting Electronics Industries) that establishes the requirements for immersion silver surface finishes on printed circuit boards. This standard replaced earlier versions and represents the current industry benchmark for immersion silver plating processes. The specification covers everything from chemical composition and process parameters to quality control measures and testing procedures.

The development of IPC-4553A arose from the need to standardize what had become an increasingly popular surface finish option in the electronics industry. As environmental regulations tightened and manufacturers sought alternatives to lead-containing finishes, immersion silver emerged as an attractive solution that offered excellent solderability while maintaining compliance with RoHS (Restriction of Hazardous Substances) directives.

The Science Behind Immersion Silver Plating

Immersion silver plating is an autocatalytic process that involves the deposition of a thin layer of silver onto copper surfaces through a displacement reaction. Unlike electroplating, which requires an external current source, immersion plating relies on the natural electrochemical potential difference between copper and silver. When a copper surface is immersed in a silver-containing solution, silver ions in the solution are reduced and deposited onto the copper surface, while copper atoms are simultaneously oxidized and dissolved into the solution.

This process continues until the copper surface is completely covered with silver, at which point the reaction naturally stops because the silver layer prevents further contact between the copper substrate and the plating solution. The typical thickness of an immersion silver layer ranges from 0.05 to 0.30 micrometers, which is sufficient to provide excellent solderability and wire bonding characteristics while maintaining cost-effectiveness.

The chemical composition of immersion silver baths typically includes silver salts, complexing agents, stabilizers, and pH buffers. The most common silver source is silver nitrate, though other silver compounds may be used depending on the specific formulation. Complexing agents help maintain silver ions in solution and control the deposition rate, while stabilizers prevent unwanted precipitation and extend bath life. pH control is critical, as variations can significantly affect plating quality and uniformity.

Key Requirements of IPC-4553A

IPC-4553A establishes comprehensive requirements that cover multiple aspects of the immersion silver plating process. The standard specifies acceptable silver thickness ranges, typically between 0.05 and 0.30 micrometers, with most applications targeting 0.10 to 0.20 micrometers for optimal performance. These thickness requirements ensure adequate protection of the underlying copper while maintaining good solderability and wire bonding characteristics.

Chemical composition requirements are detailed extensively in the standard, including specifications for silver content, pH levels, and concentrations of various additives. The standard also addresses bath maintenance procedures, including replenishment schedules, filtration requirements, and monitoring protocols to ensure consistent plating quality throughout the bath’s operational life.

Process parameters such as temperature, immersion time, and agitation requirements are clearly defined to ensure reproducible results. Typical process temperatures range from 60°C to 90°C, with immersion times varying based on the desired thickness and specific bath formulation. Proper agitation is essential for uniform plating and is typically achieved through mechanical stirring or air sparging.

The standard also establishes requirements for substrate preparation, including cleaning procedures, micro-etching protocols, and pre-treatment steps necessary to ensure good adhesion and uniform silver deposition. Surface preparation is critical for achieving high-quality results, as contamination or inadequate cleaning can lead to poor adhesion, non-uniform plating, or other defects.

Quality Control and Testing Procedures

IPC-4553A places significant emphasis on quality control and testing procedures to ensure that immersion silver finishes meet specified requirements. The standard outlines various test methods for evaluating plating quality, including thickness measurements, adhesion testing, solderability assessment, and visual inspection criteria.

Thickness measurement is typically performed using X-ray fluorescence (XRF) spectroscopy or other non-destructive testing methods. The standard specifies sampling procedures and acceptance criteria for thickness measurements, ensuring that the silver layer falls within the specified range across the entire PCB surface.

Solderability testing is particularly important for immersion silver finishes, as this is often the primary reason for selecting this surface finish. The standard references specific test methods for evaluating solderability, including wetting balance tests and spread tests that assess the ability of solder to wet and spread on the silver surface.

Visual inspection requirements are detailed in the standard, including criteria for acceptable appearance, color variation, and surface defects. Immersion silver surfaces should have a uniform, bright appearance free from stains, discoloration, or other visible defects that could indicate process problems or contamination.

Adhesion testing ensures that the silver layer is properly bonded to the copper substrate and will not delaminate during subsequent processing or use. Standard test methods include tape tests and thermal shock testing to evaluate adhesion under various conditions.

Environmental and Safety Considerations

IPC-4553A addresses environmental and safety considerations associated with immersion silver plating processes. The standard emphasizes the importance of proper waste treatment and disposal procedures for silver-containing solutions, as silver can be environmentally harmful if not managed correctly. Many facilities implement silver recovery systems to reclaim silver from spent solutions, both for environmental compliance and economic reasons.

Safety requirements for handling silver-containing chemicals are outlined in the standard, including personal protective equipment specifications and ventilation requirements. While silver is generally less toxic than many other plating metals, proper handling procedures are still essential to protect workers and ensure compliance with occupational safety regulations.

The standard also addresses the RoHS compliance of immersion silver finishes, confirming that properly applied immersion silver meets the requirements for lead-free manufacturing processes. This compliance has been a significant factor in the adoption of immersion silver as an alternative to traditional lead-containing finishes.

Applications and Industry Implementation

Immersion silver plating has found widespread application across various sectors of the electronics industry. Its excellent electrical conductivity makes it particularly suitable for high-frequency applications, where signal integrity is critical. The low contact resistance of silver surfaces makes them ideal for applications requiring reliable electrical connections, such as connector contacts and test points.

The automotive electronics industry has embraced immersion silver finishes for their reliability and performance characteristics. As vehicles incorporate increasingly sophisticated electronic systems, the demand for high-quality PCB finishes that can withstand harsh environmental conditions has grown significantly.

Consumer electronics manufacturers appreciate the cost-effectiveness of immersion silver compared to other precious metal finishes like gold. The ability to achieve excellent solderability and wire bonding characteristics at a lower cost makes immersion silver an attractive option for high-volume production.

Telecommunications equipment manufacturers rely on immersion silver finishes for their high-frequency performance characteristics. The low loss tangent and excellent conductivity of silver make it well-suited for RF and microwave applications where signal integrity is paramount.

Challenges and Best Practices

Despite its many advantages, immersion silver plating presents certain challenges that must be managed through proper implementation of IPC-4553A requirements. Tarnishing is perhaps the most significant concern, as silver surfaces can oxidize when exposed to sulfur-containing compounds in the environment. The standard addresses this issue through packaging requirements and storage recommendations that minimize exposure to tarnishing agents.

Migration of silver atoms can occur under certain conditions, particularly in the presence of electric fields and moisture. This phenomenon, known as silver migration, can potentially cause electrical shorts or other reliability issues. IPC-4553A provides guidance on design considerations and process controls to minimize the risk of silver migration.

Bath maintenance is critical for achieving consistent results with immersion silver plating. The standard provides detailed guidance on monitoring procedures, replenishment schedules, and troubleshooting common bath problems. Regular analysis of bath composition and performance is essential for maintaining quality and extending bath life.

Future Developments and Trends

The immersion silver plating industry continues to evolve as new applications and requirements emerge. Advances in bath chemistry have led to improved stability and longer bath life, reducing operating costs and improving process consistency. New additive systems have been developed to enhance plating uniformity and reduce the risk of defects.

Environmental regulations continue to drive innovation in immersion silver processes, with increased focus on reducing chemical consumption and improving waste treatment efficiency. Silver recovery technologies have become more sophisticated and cost-effective, making it economically viable to reclaim silver from spent solutions.

The growth of high-density interconnect (HDI) PCBs and advanced packaging technologies has created new requirements for immersion silver finishes. These applications demand extremely uniform plating and excellent fine-pitch solderability, driving continued development of process optimization techniques.

Conclusion

IPC-4553A represents a comprehensive standard that has enabled the widespread adoption of immersion silver plating in PCB manufacturing. By providing detailed requirements for process parameters, quality control, and testing procedures, the standard ensures that manufacturers can achieve consistent, high-quality results with immersion silver finishes.

The continued relevance of IPC-4553A reflects the ongoing importance of immersion silver as a surface finish option in the electronics industry. As environmental regulations become more stringent and performance requirements continue to increase, immersion silver offers an attractive combination of technical performance, cost-effectiveness, and environmental compliance.

Understanding and implementing IPC-4553A requirements is essential for manufacturers seeking to leverage the benefits of immersion silver plating while ensuring product quality and reliability. The standard serves as both a technical guide and a quality assurance framework, enabling manufacturers to meet customer requirements and industry expectations for PCB surface finishes.

The evolution of flexible printed circuit (FPC) technology has demanded increasingly sophisticated dielectric materials and testing standards. The Institute for Printed Circuits (IPC) recognized this need when it revised IPC 4202 in 2010, releasing IPC 4202A with significant updates that reflect advances in materials science, manufacturing processes, and application requirements. This comprehensive analysis examines the key differences between these two standards and their impact on the flexible electronics industry.

Background and Context

IPC 4202, originally published in 2002, established the foundation for flexible dielectric materials used in printed circuit applications. The standard addressed the growing need for standardized testing methods and performance criteria as flexible circuits became increasingly prevalent in consumer electronics, automotive applications, and aerospace systems. However, by the mid-2000s, technological advances and industry feedback revealed gaps in the original standard that necessitated a thorough revision.

The 2010 revision, designated IPC 4202A, emerged from extensive industry collaboration and represented a significant maturation of flexible circuit dielectric standards. This update addressed emerging material technologies, refined testing methodologies, and incorporated lessons learned from nearly a decade of real-world applications.

Material Classification and Categorization Updates

One of the most significant changes in IPC 4202A involves the expanded and refined material classification system. The 2002 version provided a basic framework for categorizing flexible dielectric materials, but the 2010 revision introduced a more nuanced approach that better reflects the diversity of available materials and their specific applications.

The updated standard introduced additional material categories, including specialized high-temperature polyimides, liquid crystal polymers (LCP), and advanced fluoropolymer compositions. These additions reflected the industry’s move toward more demanding applications requiring superior thermal stability, chemical resistance, and dimensional stability. The 2010 revision also provided clearer guidance on material selection criteria, helping designers match dielectric properties with specific application requirements.

Furthermore, IPC 4202A expanded the coverage of adhesive systems used in flexible circuits. While the 2002 version focused primarily on traditional acrylic and epoxy adhesives, the updated standard acknowledged the growing use of adhesiveless constructions and alternative bonding technologies. This expansion recognized the industry trend toward thinner, more reliable flexible circuits with improved electrical performance.

Enhanced Testing Methodologies

The testing procedures outlined in IPC 4202A represent a substantial improvement over the 2002 version. The updated standard incorporated more rigorous and comprehensive testing protocols that better simulate real-world operating conditions. These enhancements address several critical areas where the original standard proved insufficient.

Thermal cycling tests received significant attention in the 2010 revision. The updated procedures include more severe temperature excursions and extended cycle counts that better reflect the demanding environments encountered in automotive and aerospace applications. The standard also introduced improved sample preparation techniques and more precise measurement methods for assessing thermal-induced dimensional changes.

Electrical testing protocols underwent substantial refinement in IPC 4202A. The updated standard includes more comprehensive dielectric strength testing procedures, improved methods for measuring dielectric constant and dissipation factor across broader frequency ranges, and enhanced protocols for evaluating insulation resistance under various environmental conditions. These improvements enable more accurate prediction of electrical performance in service conditions.

Mechanical testing also received considerable enhancement. The 2010 revision includes improved tear strength testing methods, more comprehensive flexibility and bend testing protocols, and enhanced procedures for evaluating adhesion strength between layers. These updates address critical reliability concerns that emerged as flexible circuits found applications in increasingly demanding mechanical environments.

Environmental and Reliability Testing Improvements

Environmental testing represents one of the most significantly enhanced areas in IPC 4202A. The 2010 revision introduced more comprehensive humidity testing protocols that better simulate the challenging environments encountered in mobile electronics and outdoor applications. The updated standard includes extended exposure periods, more severe humidity levels, and improved methods for assessing moisture absorption and its effects on electrical and mechanical properties.

Chemical resistance testing also received substantial improvement. While the 2002 version provided basic chemical exposure testing, IPC 4202A expanded this to include a broader range of chemicals commonly encountered in manufacturing and service environments. The updated standard includes specific protocols for evaluating resistance to flux chemicals, cleaning solvents, and environmental contaminants that can affect long-term reliability.

Accelerated aging tests in the 2010 revision better reflect the increasing reliability requirements of modern applications. The updated standard includes more sophisticated aging protocols that combine multiple stressors simultaneously, providing more realistic assessments of long-term performance. These improvements enable more accurate lifetime predictions and better material selection for specific applications.

Specification Requirements and Performance Criteria

IPC 4202A introduced more stringent and comprehensive performance requirements compared to its 2002 predecessor. The updated standard established tighter tolerances for key properties such as dimensional stability, coefficient of thermal expansion, and dielectric properties. These enhanced requirements reflect the industry’s increasing demand for precision and reliability in flexible circuit applications.

The 2010 revision also introduced new performance categories that address specific application needs. High-reliability applications, such as those found in medical devices and aerospace systems, received dedicated specification requirements that ensure appropriate material selection and performance verification. Similarly, cost-sensitive consumer applications received guidance that balances performance requirements with economic considerations.

Electrical performance specifications underwent significant enhancement in IPC 4202A. The updated standard includes more comprehensive requirements for dielectric strength, insulation resistance, and dielectric properties across broader temperature and frequency ranges. These improvements ensure that materials meet the demanding electrical performance requirements of modern high-speed digital and RF applications.

Documentation and Traceability Enhancements

The 2010 revision placed greater emphasis on documentation and traceability requirements. IPC 4202A introduced more comprehensive record-keeping requirements for material qualification testing, manufacturing process controls, and quality assurance activities. These enhancements support the increasingly stringent traceability requirements found in automotive, aerospace, and medical device applications.

The updated standard also improved guidance on material data sheets and technical documentation. IPC 4202A established standardized formats for presenting material properties and test results, facilitating better communication between material suppliers, circuit manufacturers, and end users. This standardization reduces the potential for misunderstandings and ensures that critical performance information is properly communicated throughout the supply chain.

Industry Impact and Adoption Challenges

The transition from IPC 4202 to IPC 4202A presented both opportunities and challenges for the flexible circuit industry. Manufacturers needed to update their testing equipment and procedures to comply with the enhanced requirements, representing a significant investment in some cases. However, the improved testing methods and performance criteria enabled better material characterization and more reliable product development.

The updated standard also influenced material supplier development priorities. The enhanced requirements in IPC 4202A drove innovation in dielectric material formulations, leading to improved products with better thermal stability, lower moisture absorption, and enhanced reliability. This virtuous cycle of standard improvement driving material advancement has benefited the entire industry.

Future Implications and Ongoing Evolution

The successful implementation of IPC 4202A demonstrated the importance of regularly updating industry standards to keep pace with technological advancement. The improvements introduced in the 2010 revision have provided a solid foundation for continued innovation in flexible circuit dielectrics. As new applications emerge and performance requirements continue to increase, the lessons learned from the IPC 4202 to IPC 4202A transition will inform future standard development efforts.

The enhanced testing methodologies and performance requirements established in IPC 4202A have raised the overall quality and reliability of flexible circuit products. This improvement has enabled the expansion of flexible circuits into increasingly demanding applications, furthering the growth and technological advancement of the industry.

Conclusion

The evolution from IPC 4202 (2002) to IPC 4202A (2010) represents a significant advancement in flexible printed circuit dielectric standards. The updated standard addresses critical gaps in the original version while incorporating advances in materials science, testing technology, and application requirements. The enhanced testing methodologies, expanded material coverage, improved performance criteria, and better documentation requirements have strengthened the foundation for flexible circuit development and manufacturing.

These improvements have had lasting positive impacts on the industry, enabling the development of more reliable and capable flexible circuit products. As the demand for flexible electronics continues to grow across diverse applications, the robust foundation established by IPC 4202A will continue to support innovation and quality improvement in this dynamic field. The success of this standard revision demonstrates the importance of continuous improvement in industry standards to support technological advancement and market growth.

IPC-J-STD-001 stands as the most recognized and trusted standard for soldering in the electronics industry worldwide. This comprehensive standard defines material specifications, process requirements, and acceptability criteria for producing high-quality soldered electrical and electronic assemblies. Whether you’re a quality engineer, process technician, or electronics manufacturer, understanding IPC-J-STD-001 is essential for ensuring reliable, defect-free electronic products.

What is IPC-J-STD-001?

IPC-J-STD-001, officially titled “Requirements for Soldered Electrical and Electronic Assemblies,” was developed in 1992 and replaced the earlier document IPC-S-815. As of 2024, the latest version is IPC-J-STD-001J, published in March 2024, which incorporates input and expertise from participants in 27 countries.

This joint industry standard serves as the definitive guide for electronics manufacturers, establishing minimum requirements for materials, methods, and acceptance criteria for soldered connections. The standard describes materials, methods and verification criteria for producing high-quality soldered leaded and lead-free interconnections while emphasizing process control.

Key Features of IPC-J-STD-001J

The 2024 revision includes several important updates:

• Enhanced X-ray Inspection Guidance: Provides comprehensive guidance on using x-ray technology to inspect through-hole solder conditions that are not visible by other inspection methods
• Global Industry Input: Developed with contributions from 27 countries
• Lead-free and Leaded Solder Requirements: Covers both traditional and modern soldering materials
• Process Control Emphasis: Focuses on maintaining consistent quality through proper process management

Understanding the Three Product Classes

IPC-J-STD-001 categorizes electronic products into three distinct classes, each with specific quality requirements:

Class 1: General Electronic Products

• Consumer electronics and general commercial applications
• Basic functionality requirements
• Standard reliability expectations
• Cost-effective manufacturing processes

Class 2: Dedicated Service Electronic Products

• Industrial equipment and commercial systems
• Enhanced performance requirements
• Improved reliability standards
• Moderate environmental conditions

Class 3: High-Performance Electronic Products

• Aerospace, military, and medical applications
• Maximum reliability requirements
• Critical performance standards
• Harsh environmental conditions

Core Requirements and Materials

Solder Materials and Specifications

The standard outlines necessary materials for producing electronic assemblies, including solders, fluxes, and cleaning agents, with specific requirements for composition and properties of solders used in different applications. Key material requirements include:

Lead-Free Solder Alloys:

• SAC (Tin-Silver-Copper) alloys
• Bismuth-containing alloys for low-temperature applications
• Indium alloys for specialized applications

Traditional Lead-Based Solders:

• Tin-lead eutectic compositions
• Specific purity requirements
• Controlled impurity levels

Flux Requirements:

• No-clean flux specifications
• Water-soluble flux criteria
• Rosin-based flux standards

Process Control Requirements

Process control is fundamental to IPC-J-STD-001, with manufacturers required to employ adequate methods for controlling production processes, especially for Class 2 and 3 products where documentation in work instructions or control plans is mandatory.

Essential Process Elements:

Temperature Profiling:

• Preheating parameters
• Peak temperature control
• Time above liquidus specifications
• Cooling rate management

Equipment Calibration:

• Regular calibration schedules
• Measurement accuracy verification
• Equipment maintenance protocols
• Documentation requirements

Environmental Controls:

• Humidity management
• Clean room standards
• ESD protection protocols
• Component storage requirements

Soldering Technologies Covered

Surface Mount Technology (SMT)

IPC-J-STD-001 provides comprehensive guidance for SMT assembly processes:

Solder Paste Application:

• Stencil design requirements
• Print parameters
• Inspection criteria
• Storage and handling

Reflow Soldering:

• Profile development
• Peak temperature guidelines
• Atmosphere requirements
• Cooling specifications

Through-Hole Technology (THT)

The standard outlines instructions for production and inspection of Through-Hole Technology assemblies, encompassing hole preparation, component insertion, wave soldering, and inspection criteria.

Wave Soldering Process:

• Flux application methods
• Preheating requirements
• Wave parameters
• Dross management

Selective Soldering:

• Programming requirements
• Fixture design
• Process validation
• Quality control

Hand Soldering Requirements

Tool Requirements:

• Soldering iron specifications
• Temperature control systems
• Tip selection criteria
• Maintenance procedures

Technique Standards:

• Joint formation methods
• Heat application guidelines
• Solder feeding techniques
• Inspection requirements

Read more about:

• ipc 2581
• ipc 2223
• ipc a 630
• ipc 610 certification

Inspection and Acceptance Criteria

Visual Inspection Standards

Assembled electronic modules shall undergo 100% optical inspection according to the standard. Key inspection criteria include:

Solder Joint Evaluation:

• Fillet shape and size
• Surface finish quality
• Void content limits
• Wetting characteristics

Defect Classification:

• Critical defects
• Major defects
• Minor defects
• Cosmetic issues

Advanced Inspection Methods

X-ray Inspection:

• BGA and CSP inspection
• Hidden solder joint evaluation
• Void analysis procedures
• Documentation requirements

Automated Optical Inspection (AOI):

• Setup parameters
• Programming guidelines
• False call management
• Data analysis

Certification and Training Programs

IPC Certification Levels

IPC provides formal classroom training and certification programs with three levels of certification:

Certified IPC Specialist (CIS):

• Assembly operators
• Quality staff
• Inspection personnel
• Process engineers

Certified Standards Expert (CSE):

• Advanced knowledge requirements
• Conflict resolution capabilities
• Staff liaison responsibilities
• Technical leadership roles

Certified IPC Trainer (CIT):

• Internal training delivery
• Curriculum development
• Assessment capabilities
• Continuous improvement

Training Benefits

Electronic manufacturing organizations can save costs by training staff for specific requirements, while IPC-J-STD-001 certification enables companies to deliver better customer satisfaction by following industry-accepted quality control standards.

Implementation Best Practices

Getting Started with IPC-J-STD-001

Step 1: Assessment and Planning

• Current process evaluation
• Gap analysis
• Resource allocation
• Timeline development

Step 2: Personnel Training

• Identify training needs
• Schedule certification programs
• Implement hands-on training
• Establish competency verification

Step 3: Process Documentation

• Work instruction development
• Quality control procedures
• Inspection criteria establishment
• Record keeping systems

Step 4: Equipment and Materials

• Equipment calibration
• Material qualification
• Supplier verification
• Inventory management

Common Implementation Challenges

Personnel Resistance:

• Change management strategies
• Communication importance
• Training effectiveness
• Motivation techniques

Cost Considerations:

• Initial investment requirements
• Long-term cost benefits
• ROI calculations
• Budget planning

Technical Complexity:

• Process optimization
• Equipment integration
• Quality system alignment
• Continuous improvement

Relationship with Other IPC Standards

IPC-A-610: Electronic Assembly Acceptance

While both IPC-A-610 and J-STD-001 emphasize the soldering process, IPC-A-610 is used for electronic assembly acceptance and provides detailed information and images for board inspection procedures, whereas J-STD-001 defines materials and processes for soldering to ensure quality solder joints.

IPC-A-600: Printed Board Acceptability

IPC-A-600 has set the standard for PCB workmanship quality with comprehensive acceptance criteria for target, acceptable and nonconforming conditions on bare printed boards.

IPC/WHMA-A-620: Cable and Wire Harness Assemblies

This standard provides requirements and acceptance criteria for cable and wire harness assemblies, complementing J-STD-001’s coverage of electronic assemblies.

Industry Applications and Benefits

Aerospace and Defense

Critical Requirements:

• Military specifications compliance
• Reliability in extreme conditions
• Traceability requirements
• Quality documentation

Space Applications: IPC has issued the J-STD-001ES standard for space addendum application, which includes specific process requirements such as red plague corrosion control plans for silver-coated copper conductors.

Automotive Electronics

Modern Vehicle Systems:

• Electronic control units (ECUs)
• Advanced driver assistance systems (ADAS)
• Electric vehicle components
• Safety-critical systems

Quality Requirements:

• Automotive quality standards
• Environmental testing
• Long-term reliability
• Supply chain management

Medical Device Manufacturing

Regulatory Compliance:

• FDA requirements
• ISO 13485 integration
• Risk management
• Validation protocols

Critical Applications:

• Implantable devices
• Life support equipment
• Diagnostic systems
• Monitoring devices

Consumer Electronics

Market Demands:

• Cost optimization
• Manufacturing efficiency
• Quality consistency
• Time-to-market pressure

Product Categories:

• Smartphones and tablets
• Computing devices
• Home appliances
• Entertainment systems

Future Trends and Developments

Technology Evolution

Advanced Materials:

• New solder alloy development
• Nanoparticle integration
• Conductive adhesives
• Flexible substrates

Process Innovation:

• Automated inspection systems
• Artificial intelligence integration
• Predictive maintenance
• Real-time monitoring

Industry 4.0 Integration

Smart Manufacturing:

• IoT connectivity
• Data analytics
• Machine learning
• Process optimization

Quality 4.0:

• Digital quality systems
• Automated decision making
• Continuous improvement
• Predictive quality

Conclusion

IPC-J-STD-001 remains the definitive standard for soldering in electronics manufacturing, providing the foundation for producing reliable, high-quality electronic assemblies. The standard is valuable for ensuring reliability, consistency, and quality of soldered electronic assemblies, which are critical in industries such as aerospace, automotive, consumer electronics, and telecommunications.

As the electronics industry continues to evolve with new technologies and materials, IPC-J-STD-001 adapts to meet emerging challenges while maintaining its core mission of ensuring soldering excellence. The standard emphasizes process control and defines industry-level requirements for various electronic products, helping organizations achieve excellence in hand soldering, electronics assembly, and inspection.

For organizations committed to manufacturing excellence, implementing IPC-J-STD-001 is not just a quality requirement—it’s a competitive advantage that ensures customer satisfaction, reduces defects, and builds long-term reliability into every product. Whether you’re beginning your journey with IPC standards or looking to upgrade to the latest revision, IPC-J-STD-001J provides the roadmap for soldering success in today’s demanding electronics marketplace.

The investment in IPC-J-STD-001 compliance pays dividends through reduced rework, improved customer satisfaction, enhanced product reliability, and the confidence that comes from following globally recognized best practices. As electronics become increasingly complex and critical to our daily lives, the importance of proper soldering standards has never been greater.

In today’s competitive electronics manufacturing industry, IPC certifications have become essential credentials that validate technical expertise and adherence to global quality standards. Whether you’re an individual technician looking to enhance your career prospects or a company striving to improve product quality and compliance, understanding the IPC certification cost structure is crucial for making informed decisions.

This comprehensive guide breaks down the costs associated with various IPC certifications, factors that influence pricing, and the potential return on investment (ROI) these credentials can deliver. By the end of this article, you’ll have a clear picture of what to expect financially when pursuing IPC certification and how to maximize your investment.

What Is IPC Certification?

IPC (originally the Institute for Printed Circuits, now the Association Connecting Electronics Industries) is the global trade association that establishes standards for the electronics manufacturing industry. These standards ensure consistency, reliability, and quality across electronic assemblies and components worldwide.

IPC certifications validate that professionals have the necessary knowledge and skills to implement these standards correctly. They serve as industry-recognized credentials that demonstrate competence in specific areas of electronics manufacturing.

Major IPC Certification Types

IPC offers several certification programs that address different aspects of electronics manufacturing:

• IPC-A-610: Focuses on the acceptability criteria for electronic assemblies
• IPC J-STD-001: Covers requirements for soldered electrical and electronic assemblies
• IPC/WHMA-A-620: Addresses requirements and acceptance criteria for cable and wire harness assemblies
• IPC CID/CID+: Certified Interconnect Designer programs for PCB design professionals
• IPC-6012: Deals with qualification and performance specifications for rigid printed boards

Each certification targets specific skills and knowledge areas, with corresponding differences in training approaches, duration, and naturally, costs.

IPC Certification Cost Breakdown by Type

The cost of obtaining an IPC certification varies significantly depending on the specific program, training method, and certification level. Let’s explore the typical costs associated with the most popular IPC certifications.

IPC-A-610 Certification Cost

IPC-A-610 (Acceptability of Electronic Assemblies) is one of the most sought-after IPC certifications, providing guidelines for assessing the quality of electronic assemblies.

Cost Range:

• CIS (Certified IPC Specialist) Level: $700-$1,200
• CIT (Certified IPC Trainer) Level: $1,800-$2,500

These costs typically include:

• Training sessions (2-3 days for CIS, 4-5 days for CIT)
• Official IPC training materials
• Examination fees
• Certificate issuance

For recertification (required every 2 years), expect to pay approximately 60-70% of the initial certification cost.

Many companies now offer online or virtual IPC-A-610 training options, which can reduce costs by eliminating travel expenses. However, these formats may not provide the same hands-on experience as in-person training.

J-STD-001 Certification Cost

The J-STD-001 certification focuses on soldering processes and materials used in electronic assemblies. Due to its technical complexity and hands-on nature, this certification often comes with higher price tags.

Cost Range:

• CIS Level: $850-$1,500
• CIT Level: $2,200-$3,000

J-STD-001 training includes:

• Theoretical instruction
• Extensive hands-on soldering practice
• Materials and components for practical exercises
• Examination fees

The higher cost relative to IPC-A-610 reflects the additional materials and equipment needed for practical training. Many facilities offer combined IPC-A-610 and J-STD-001 training packages at a discount compared to taking each course separately, typically ranging from $1,400-$2,300 for CIS level.

IPC/WHMA-A-620 Certification Cost

IPC/WHMA-A-620 certification covers the requirements and acceptance criteria for cable and wire harness assemblies, which are critical components in many electronic systems.

Cost Range:

• CIS Level: $750-$1,300
• CIT Level: $1,900-$2,700

These costs reflect:

• 3-4 days of training for CIS
• 5-7 days of training for CIT
• Training materials and samples
• Examination fees

The specialized nature of wire harness assembly inspection techniques contributes to the certification’s cost. Companies that manufacture both electronic assemblies and cable/wire harnesses may benefit from combination training packages that include both IPC-A-620 and IPC-A-610 or J-STD-001.

IPC CID Certification Cost

The Certified Interconnect Designer (CID) program is geared toward PCB design professionals and has a different cost structure compared to the inspector/operator-focused certifications.

Cost Range:

• CID Basic Certification: $1,500-$2,200
• CID+ Advanced Certification: $1,800-$2,500

CID certification costs typically cover:

• Workshop registration (usually 3-5 days)
• Comprehensive design materials and resources
• Design software access during training
• Examination fees

The advanced CID+ certification builds upon the basic CID program and focuses on more complex design challenges. Many professionals pursue CID+ after gaining experience with their basic CID certification.

IPC Soldering Certification Cost

While IPC J-STD-001 covers soldering requirements, there are specialized IPC soldering certifications that focus specifically on hand soldering techniques and skills.

Cost Range:

• Basic Soldering Skills: $500-$900
• Advanced Soldering Techniques: $700-$1,200

These specialized courses typically include:

• Personal soldering equipment usage
• Consumable materials (solder, flux, cleaning supplies)
• Practice components and boards
• Certification examination

The hands-on nature of soldering certification means that material costs can significantly impact the total price. Online soldering certifications tend to be less expensive but may require participants to purchase their own equipment and materials.

Read more about:

• ipc 2152
• ipc 2223
• IPC 6018
• IPC Standards for PCB Design

Factors That Influence IPC Training Cost

Several key factors can cause IPC certification costs to vary significantly:

1. Training Location and Format

In-person Training: Traditional classroom settings typically cost more due to:

• Facility overhead
• Equipment access
• Hands-on instruction
• Travel expenses for participants

Online/Virtual Training: Generally 20-30% less expensive but may offer:

• Limited hands-on experience
• Reduced instructor interaction
• Self-paced learning options

2. Certification Level

CIS (Certified IPC Specialist):

• Entry-level certification for operators and inspectors
• Lower cost ($700-$1,500 depending on program)
• Shorter duration (2-4 days typically)

CIT (Certified IPC Trainer):

• Advanced certification enabling holders to train and certify others
• Higher cost ($1,800-$3,000+)
• Longer duration (4-7 days typically)
• Requires CIS certification first in many cases

3. Training Provider

Official IPC Training Centers:

• Often charge premium rates ($1,000-$3,000)
• Guaranteed compliance with IPC standards
• Direct access to latest materials and updates

Third-party Providers:

• May offer more competitive pricing ($700-$2,500)
• Quality and legitimacy can vary
• Potentially fewer available training dates or locations

4. Group Discounts

Many training providers offer significant discounts for:

• Multiple participants from the same company (10-25% discount)
• Multiple certifications for the same individual (15-20% discount)
• On-site training for company groups (can reduce per-person costs by 30-40%)

5. Recertification Requirements

All IPC certifications require periodic recertification:

• Most certifications valid for 2 years
• Recertification costs typically 60-70% of initial certification
• Maintaining multiple certifications increases ongoing costs

IPC Certification ROI: Is It Worth the Cost?

While the upfront investment in IPC certification may seem substantial, the potential return on investment can be significant for both individuals and companies.

Benefits for Individuals

Salary Premium: Certified professionals typically command higher salaries:

• Entry-level positions: 10-15% higher compensation
• Senior roles: 15-25% higher compensation
• Management positions: Can exceed 30% premium

Career Advancement: IPC certifications open doors to:

• More specialized roles
• Leadership positions
• Quality assurance opportunities
• Training and consulting careers

Job Security: In competitive markets, certified professionals are:

• Less likely to be laid off during downturns
• More quickly rehired if displaced
• Better positioned for emerging technologies

Case Example: A PCB assembly technician with IPC J-STD-001 certification may earn $5,000-$8,000 more annually than non-certified peers, resulting in an ROI within just a few months of certification.

Benefits for Employers

Quality Improvements:

• Reduced defect rates (typically 15-30% reduction)
• Lower rework costs (can save $10,000-$50,000+ annually)
• Fewer field failures and warranty claims

Compliance Advantages:

• Ability to bid on contracts requiring certified staff
• Reduced audit concerns and findings
• Demonstrable commitment to quality standards

Efficiency Gains:

• Standardized procedures across operations
• Clearer acceptance criteria
• Improved first-pass yields

Manufacturing Case Study: A mid-sized electronics manufacturer invested $12,000 in certifying six technicians in IPC-A-610 and J-STD-001. Within one year, they reported:

• 27% reduction in rework costs
• 18% improvement in first-pass yield
• Qualification for military contracts requiring certified inspectors
• Estimated first-year ROI of 300%

Calculating Your Potential ROI

To determine if IPC certification is worth the investment for your specific situation, consider this simple ROI calculation:

1. Total Certification Cost = Training fees + Travel expenses + Time away from work + Materials
2. Annual Benefits = Salary increase + New job opportunities + Quality improvements + New business opportunities
3. ROI (%) = ((Annual Benefits – Total Certification Cost) / Total Certification Cost) × 100

For most professionals and companies, IPC certification ROI ranges from 100% to 400% in the first year alone, with continued benefits throughout the certification’s validity period.

Tips to Reduce IPC Certification Cost

There are several strategies to minimize the financial impact of pursuing IPC certification:

Group Training Arrangements

• Organize on-site training for multiple employees
• Join with other small companies to create training groups
• Negotiate volume discounts with training providers

Certification Bundling

• Pursue complementary certifications simultaneously
• Look for training centers offering multi-certification packages
• Plan certification path to minimize redundant training

Timing Strategies

• Book during training provider promotions (often 10-15% discount)
• Register for early-bird pricing when available (typically 5-10% savings)
• Plan recertifications strategically to align multiple renewals

Employer Support Programs

• Request employer sponsorship or reimbursement
• Propose cost-sharing arrangements
• Demonstrate ROI to management using industry case studies

Online and Self-Study Options

• Utilize distance learning when appropriate
• Complete preparatory work before hands-on sessions
• Consider modular training approaches

Where to Get IPC Certified?

Finding the right training provider is crucial for both cost efficiency and certification quality.

Official IPC Training Centers

The IPC maintains a global network of authorized training centers that offer standardized, high-quality certification programs. These centers:

• Follow strict IPC curriculum guidelines
• Use official training materials
• Employ authorized instructors
• Issue recognized certificates

You can find authorized training centers through the official IPC website.

Verifying Training Provider Credentials

Before committing to any training program, verify:

• The center’s IPC authorization status
• Instructor certifications and experience
• Recent student reviews and testimonials
• Course content alignment with current IPC revisions

Online vs. Classroom Considerations

Online Benefits:

• Reduced or eliminated travel costs
• Flexible scheduling
• Often lower base prices
• Self-paced options

Classroom Benefits:

• Hands-on practice with expert feedback
• Direct instructor interaction
• Networking with industry peers
• Immediate clarification of complex concepts

For certifications with significant practical components (like J-STD-001), classroom training often provides better skill development despite higher costs.

Conclusion

IPC certification represents a significant but worthwhile investment for professionals and companies in the electronics manufacturing industry. While costs typically range from $700 to $3,000 depending on the specific certification and training approach, the return on investment can be substantial in terms of career advancement, salary increases, quality improvements, and new business opportunities.

When evaluating the IPC certification cost against potential benefits, consider not just the immediate expense but the long-term value. For individuals, certification can translate to tens of thousands of dollars in additional earnings over a career. For companies, certified staff can dramatically reduce defects, rework, and compliance issues while opening doors to premium contracts.

By carefully selecting the right certification path, training provider, and timing, you can maximize your ROI while minimizing upfront costs. Whether you’re a soldering technician, quality inspector, PCB designer, or manufacturing manager, IPC certification offers a proven path to professional growth and operational excellence.

Frequently Asked Questions

How much does IPC 610 certification cost?

IPC-A-610 certification typically costs between $700-$1,200 for the CIS level and $1,800-$2,500 for the CIT level. These prices may vary based on location, training provider, and whether the training is conducted online or in person.

Is IPC training worth it?

Yes, IPC training offers significant ROI for both individuals and companies. Certified professionals often earn 10-30% higher salaries, while companies benefit from reduced defect rates, lower rework costs, and access to contracts requiring certified staff. Most organizations report ROI of 100-400% within the first year.

How often do I need to renew IPC certification?

Most IPC certifications require renewal every 2 years. Recertification typically costs 60-70% of the initial certification price and involves shortened training and examination to verify continued competence and awareness of standard updates.

Can I get IPC certified online?

Yes, many IPC certifications now offer online or virtual training options. However, certifications with significant hands-on components (like soldering) may require in-person practical assessments. Online certification is generally 20-30% less expensive than in-person training but may offer limited practical experience.

What’s the difference between CIS and CIT certification?

CIS (Certified IPC Specialist) certification qualifies individuals to perform work according to IPC standards. CIT (Certified IPC Trainer) certification enables holders to train and certify others as CIS within their organization. CIT certification costs approximately 2-3 times more than CIS and typically requires prior CIS certification.

In the world of PCB design, proper trace and via sizing is critical for ensuring reliability and performance. The IPC-2152 standard provides essential guidelines for determining current-carrying capacity in printed circuit boards. This comprehensive guide explores everything you need to know about implementing IPC-2152 in your designs, including calculators, resources, and best practices.

Understanding PCB Current Capacity and the IPC-2152 Standard

When designing printed circuit boards, engineers must carefully consider the current-carrying capacity of traces and vias. Insufficient width or improper design can lead to overheating, voltage drops, and even catastrophic board failures. The IPC-2152 standard addresses these concerns by providing empirical data and methodologies for accurate current calculations.

IPC-2152, officially titled “Standard for Determining Current-Carrying Capacity in Printed Board Design,” represents the industry’s most advanced approach to PCB current management. This standard is essential knowledge for any electronics designer working with power applications, high-current circuits, or any design where thermal management is critical.

What Is IPC-2152?

IPC-2152 is the comprehensive industry standard for determining current-carrying capacity in printed circuit boards. Released by the Association Connecting Electronics Industries (IPC), this standard represents a significant advancement from previous guidelines. The full title, “Standard for Determining Current-Carrying Capacity in Printed Board Design,” indicates its focused purpose on establishing reliable methods for calculating appropriate trace widths and via sizes for specific current requirements.

Developed through extensive testing and thermal analysis, IPC-2152 was published in 2009 as the successor to the older IPC-2221 standard. The IPC committee responsible for this standard conducted numerous tests on various board configurations, measuring actual temperature rises across different copper weights, trace widths, and current loads.

What makes IPC-2152 particularly valuable is its foundation in real-world measurements rather than purely theoretical calculations. Engineers at IPC tested hundreds of board configurations to generate the curves and data that form the basis of the standard, making it significantly more reliable than previous methods.

Why the IPC-2152 Standard Is Important

The IPC-2152 standard has transformed PCB design practices by providing several critical advantages:

Enhanced Accuracy: The standard delivers much more precise current-carrying capacity calculations than its predecessors, resulting in more reliable designs with appropriate safety margins.

Comprehensive Testing Methodology: Unlike older standards, IPC-2152 is based on extensive empirical testing across various trace configurations, board materials, and environmental conditions.

Optimization Potential: By using more accurate calculations, designers can optimize trace widths to save board space without compromising safety or performance.

Reduced Design Margins: With more precise data, engineers can avoid excessive overdesign while maintaining appropriate safety factors.

Industry Standardization: As the recognized industry standard, IPC-2152 facilitates better communication between design teams, manufacturers, and clients regarding current capacity requirements.

For high-power applications particularly, the improved accuracy of IPC-2152 can be the difference between a reliable product and one prone to thermal issues or failures. The standard’s incorporation of factors like trace thickness, board material, and ambient conditions provides a much more nuanced approach to current capacity calculations.

IPC-2152 vs IPC-2221: Key Differences

Understanding the differences between IPC-2152 and its predecessor is crucial for engineers transitioning to the newer standard. Here’s a comparative analysis of the key differences:

Feature	IPC-2221	IPC-2152
Research Base	Limited testing, primarily theoretical	Extensive empirical testing on actual PCBs
Trace Location	Limited distinction between internal/external	Detailed analysis of internal vs. external traces
Temperature Rise	Basic calculations	Comprehensive temperature rise models
Via Current Capacity	Limited guidance	Detailed via current capacity guidelines
Copper Weight Consideration	Basic approach	Nuanced approach for different copper weights
Board Material Impact	Minimal consideration	Incorporates board material thermal properties
Ambient Conditions	Limited consideration	Accounts for various ambient conditions

The most significant advancement in IPC-2152 is its recognition that internal traces behave differently from external traces. Internal traces, surrounded by FR4 or other board materials, dissipate heat differently than external traces exposed to air. IPC-2152 provides separate charts and calculations for these different scenarios, resulting in more accurate sizing.

Additionally, IPC-2152 introduces more sophisticated models for temperature rise predictions. While IPC-2221 provided a simple equation, IPC-2152 offers detailed charts and curve-fitting equations that account for various factors affecting heat dissipation.

Engineers who transition from IPC-2221 to IPC-2152 often find they can reduce trace widths in certain applications while maintaining the same safety margins, leading to space savings and more efficient designs.

How to Use a PCB Trace Width Calculator IPC-2152

Implementing the IPC-2152 standard in your design workflow typically involves using specialized calculators. These tools apply the complex formulas and charts from the standard to determine appropriate trace widths based on your specific requirements.

To use an IPC-2152 trace width calculator effectively, you’ll need to provide several key parameters:

1. Current Requirements: The maximum current the trace will need to carry (in amperes)
2. Acceptable Temperature Rise: How much the trace can heat up above ambient temperature (typically in °C)
3. Copper Weight/Thickness: Usually expressed in ounces per square foot (e.g., 1oz, 2oz)
4. Trace Location: Whether the trace is on an internal or external layer
5. Ambient Temperature: The expected operating environment temperature
6. Board Material: The type of substrate material used

The calculator will process these inputs using the IPC-2152 algorithms to recommend a minimum trace width that safely handles your current requirements while staying within your specified temperature rise limits.

For example, a typical calculation might look like this:

• Current: 5A
• Temperature Rise: 10°C
• Copper Weight: 1oz
• Location: External layer

An IPC-2152 calculator would process these parameters and might recommend a trace width of approximately 40 mils (1.016mm), though the exact value would depend on other factors like ambient temperature and board material.

PCB Via Current Calculator per IPC-2152

Vias play a critical role in current transfer between PCB layers, yet they often become bottlenecks in high-current designs. The IPC-2152 standard addresses this by providing guidance for calculating via current capacity.

When using an IPC-2152 via current calculator, you’ll typically need to provide:

1. Via Diameter: The finished hole size of the via
2. Plating Thickness: The copper plating thickness inside the via
3. Number of Vias: For parallel via arrays used to increase current capacity
4. Via Length: The board thickness the via traverses
5. Acceptable Temperature Rise: Similar to trace calculations

The via current capacity is primarily determined by the cross-sectional area of the copper plating. For a cylindrical via, this area can be calculated as:

Area = π × (D_outer² – D_inner²) / 4

Where D_outer is the via hole diameter plus twice the plating thickness, and D_inner is the finished hole diameter.

For high-current applications, designers often employ multiple vias in parallel to increase current capacity. When doing so, it’s important to consider thermal interaction between closely spaced vias, as this can reduce the overall effective current capacity below the sum of individual capacities.

IPC-2152 provides data to help calculate these effects, ensuring reliable via current management even in demanding applications.

IPC-2152 Trace Width Calculator: Tools and Resources

Several high-quality tools implement the IPC-2152 standard for trace width and via current calculations. Here are some of the most popular and reliable options:

Saturn PCB Toolkit

The Saturn PCB Toolkit is a comprehensive design aid that includes an IPC-2152 calculator among many other useful tools. It provides detailed trace width calculations based on current, temperature rise, and copper weight, following the IPC-2152 guidelines.

DigiKey PCB Trace Width Calculator

DigiKey offers a free online calculator based on IPC-2152 that’s simple to use while providing accurate results. Their calculator includes options for both internal and external traces and various copper weights.

EEWeb Trace Width Calculator

The EEWeb calculator implements IPC-2152 standards and provides a user-friendly interface for quick calculations. It offers good visualization of how different parameters affect the required trace width.

PCB Design Software Integration

Modern PCB design suites like Altium Designer, Cadence Allegro, and KiCAD have begun integrating IPC-2152 calculations directly into their design environments. This integration allows designers to verify trace current capacity in real-time as they create their layouts.

When using these tools, it’s important to verify that they’re specifically using the IPC-2152 standard rather than older methods. Some older or simpler calculators may still rely on IPC-2221, which can lead to less accurate results.

Read more about:

• ipc 6012
• ipc a 630
• ipc 2223
• IPC a 600

IPC-2152 Design Guidelines

Beyond basic trace width calculations, the IPC-2152 standard provides comprehensive design guidelines that help engineers create reliable high-current PCBs. Here are key design considerations from the standard:

Copper Thickness Recommendations

The standard recognizes that increasing copper thickness can be more space-efficient than widening traces. For high-current applications, consider:

• Standard 1oz copper (35μm) for currents up to 3A with moderate temperature rise
• 2oz copper (70μm) for currents in the 3-5A range
• 3oz or greater for currents exceeding 5A or when space constraints prevent wider traces

Internal vs External Layer Differences

IPC-2152 provides distinct guidelines for traces on different layer types:

• External traces can dissipate heat more efficiently through convection and radiation
• Internal traces rely primarily on conduction through the board material
• Internal traces typically require 20-30% more width than external traces for the same current capacity
• Consider moving high-current traces to external layers when possible for better thermal performance

Temperature Rise Considerations

The standard helps designers balance temperature rise against board space:

• 10°C rise is conservative and suitable for sensitive components or dense boards
• 20-30°C rise is typical for general-purpose designs
• 40-50°C rise may be acceptable for high-power applications with appropriate thermal management
• Always consider the temperature ratings of nearby components and connectors

Thermal Relief and Heat Dissipation

IPC-2152 addresses heat management techniques:

• Connect high-current traces to copper planes when possible for enhanced heat dissipation
• Use thermal relief connections appropriately to balance heat dissipation and manufacturing requirements
• Consider the use of thermal vias to conduct heat to inner or opposite-side planes
• Evaluate the impact of conformal coatings on thermal performance

Following these guidelines helps ensure that your PCB designs not only meet minimum requirements for current handling but also achieve optimal thermal performance and long-term reliability.

Where to Get IPC-2152 PDF Download

As an official industry standard, the IPC-2152 document is protected by copyright and must be purchased through authorized channels. Here are the legitimate options for accessing the IPC-2152 standard:

Official IPC Website

The primary and most direct source for obtaining the IPC-2152 standard is through the official IPC website (www.ipc.org). The Association Connecting Electronics Industries maintains an online store where you can purchase electronic or physical copies of all their standards.

The current price for the full IPC-2152 standard is typically in the $100-200 range, depending on membership status and format. While this represents an investment, having access to the complete standard with all charts, tables, and methodologies is invaluable for serious PCB designers.

Corporate Subscriptions

Many engineering firms maintain subscriptions to standards libraries that include IPC documents. Check with your organization’s technical library or engineering department to see if you already have access to IPC-2152 through an existing subscription.

Educational Access

Academic institutions often provide access to industry standards for research and educational purposes. If you’re affiliated with a university or technical school, check their library resources or engineering department for potential access.

Important Note on Free Downloads

Be cautious about websites offering “free” downloads of the IPC-2152 PDF. Unauthorized distribution of the standard violates copyright law. While you may find summary information, calculators, and application notes based on IPC-2152 freely available, the complete standard document itself must be purchased through authorized channels.

Using legitimate access methods ensures you’re working with the most current and accurate version of the standard, which is crucial for design accuracy and compliance.

Sample Calculation Using IPC-2152

To illustrate how IPC-2152 works in practice, let’s walk through a sample calculation for a common design scenario:

Design Scenario:

• Required current: 4A
• Maximum acceptable temperature rise: 20°C
• Board type: FR4, standard thickness
• Trace location: Internal layer
• Copper weight: 1oz (35μm)
• Ambient temperature: 25°C

Step 1: Determine the base trace width Using an IPC-2152 calculator, we input our parameters. The calculator processes these using the IPC-2152 charts and equations for internal traces. For our example, this yields a required trace width of approximately 50 mils (1.27mm).

Step 2: Apply safety factors Good design practice suggests applying a safety factor, especially for critical applications. A typical safety factor might be 20%, which would increase our trace width to 60 mils (1.52mm).

Step 3: Consider practical constraints We need to check if this width is practical for our board density. If space is limited, we might consider alternatives:

• Switching to 2oz copper could reduce the width to approximately 30 mils (0.76mm)
• Moving the trace to an external layer might reduce the width to about 40 mils (1.02mm)
• Using multiple parallel traces could be another option

Step 4: Via sizing calculation If this trace needs to change layers, we also need to calculate appropriate via sizes:

• For a 4A current with a 20°C temperature rise, a single via with a 12 mil (0.3mm) drill and standard plating might be insufficient
• The calculation might suggest using two 12 mil vias in parallel, or a single larger via with a 20 mil (0.5mm) drill

Step 5: Verification Some designers verify critical calculations using thermal simulation or by comparing results from multiple calculation methods before finalizing the design.

This example demonstrates how IPC-2152 calculations involve more than simply looking up a trace width in a table. The standard provides a comprehensive methodology that considers multiple factors affecting current capacity and thermal performance.

Common Mistakes When Using IPC-2152

Even with the improved accuracy of the IPC-2152 standard, designers can still make errors that compromise reliability. Here are common mistakes to avoid:

Confusing Internal vs External Traces

One of the most frequent errors is applying external trace calculations to internal traces or vice versa. Internal traces have significantly reduced cooling capability and require greater width for the same current. Always verify which type of trace you’re designing and use the appropriate calculations.

Ignoring Ambient Temperature

The IPC-2152 calculations assume a specific ambient temperature. Designs intended for high-temperature environments (like automotive applications) need adjusted calculations to account for the reduced margin between ambient and maximum temperatures.

Underestimating Via Limitations

Vias often become thermal and electrical bottlenecks in high-current designs. Some common mistakes include:

• Calculating via current capacity based only on hole size without considering plating thickness
• Failing to account for the thermal resistance of the entire via structure
• Overlooking the need for multiple vias in parallel for high-current paths

Neglecting Board Thermal Properties

Different board materials have varying thermal conductivity values that affect heat dissipation. FR4 has relatively poor thermal conductivity, while metal-core PCBs have excellent heat dissipation. These differences significantly impact trace temperature rise and should be factored into calculations.

Overlooking Proximity Effects

Closely spaced high-current traces interact thermally, potentially causing higher temperature rises than calculated for isolated traces. The IPC-2152 standard provides guidance on this, but designers sometimes overlook these thermal interaction effects.

Misapplying Copper Weight Factors

Doubling the copper weight doesn’t simply double the current capacity. The relationship is non-linear due to the complex thermal behaviors involved. Always use proper IPC-2152 calculations rather than simplified rules of thumb when changing copper weights.

By avoiding these common mistakes, designers can fully leverage the accuracy and benefits of the IPC-2152 standard, resulting in more reliable and optimized PCB designs.

Thermal Management and Safety Considerations

Beyond basic current capacity calculations, IPC-2152 provides insights into comprehensive thermal management for PCBs. These considerations are especially important for high-power designs:

Using Copper Planes for Heat Dissipation

Connecting high-current traces to copper planes significantly improves heat dissipation. The IPC-2152 standard includes data on how this connection affects temperature rise. Key points include:

• Solid connections to planes can reduce trace temperature by 20-50% compared to isolated traces
• Thermal relief connections, while necessary for manufacturing, reduce heat dissipation effectiveness
• For critical high-current paths, consider direct plane connections with modified soldering processes

Forced Convection Impacts

The standard primarily assumes natural convection cooling, but many applications use forced air cooling. When designing with forced convection:

• Temperature rise can be reduced by 30-60% depending on airflow rate
• The benefit varies based on trace location (external traces benefit more)
• Consider the reliability of the cooling system when determining safety margins

Long-Term Reliability Factors

Temperature cycling affects long-term reliability. The IPC-2152 standard helps engineers balance current capacity against lifespan considerations:

• Operating traces near their maximum rated temperature reduces lifespan
• For high-reliability applications, consider derating current by 20-30%
• Thermal cycling accelerates failure mechanisms like cracking and delamination

Hot Spot Management

Even with proper trace sizing, component connections and transitions between trace widths can create hot spots:

• Use gradual transitions between different trace widths
• Ensure adequate copper at component connections, especially for high-power parts
• Consider thermal vias under hot components to conduct heat to other layers

By incorporating these thermal management principles alongside the basic current capacity calculations, engineers can create designs that not only handle the required current but also maintain appropriate temperatures for reliable long-term operation.

Frequently Asked Questions (FAQ)

Is IPC-2152 required by law?

No, IPC-2152 is not legally mandated. However, it represents industry best practices and may be required by certain customers or for specific applications. For products requiring UL certification or similar approvals, demonstrating compliance with recognized standards like IPC-2152 can facilitate the certification process.

Can I get the IPC-2152 PDF for free?

The official IPC-2152 standard document is protected by copyright and must be purchased through authorized channels like the IPC website. While you may find summaries, calculators, and guides based on IPC-2152 for free, the complete standard document itself requires purchase. Unauthorized free downloads would violate copyright protections.

What’s the main difference between IPC-2152 and IPC-2221?

The primary difference is that IPC-2152 is based on extensive empirical testing specifically focused on current-carrying capacity, while IPC-2221 used more theoretical approaches and limited testing. IPC-2152 provides more accurate calculations, especially for internal traces, and considers more factors affecting current capacity, such as board material and trace location.

Is IPC-2152 suitable for flexible PCBs?

While IPC-2152 was primarily developed using rigid PCB test data, many of its principles can be applied to flexible circuits with appropriate modifications. Flexible circuits typically have different thermal properties due to their thinner substrates and different materials. For critical flexible circuit applications, additional thermal analysis may be needed to supplement IPC-2152 calculations.

How often is the IPC-2152 standard updated?

IPC typically reviews and updates standards on a 5-7 year cycle, though the timing varies based on technological developments and industry needs. Always verify you’re using the most current version of the standard, as updates may incorporate new research or address emerging design challenges.

Do I need special software to implement IPC-2152?

While dedicated calculators make implementation easier, the standard itself includes charts and equations that can be used manually or implemented in spreadsheets. Many PCB design software packages now incorporate IPC-2152 calculations directly into their design rule checking functions.

How conservative are IPC-2152 calculations?

IPC-2152 calculations are generally considered appropriately conservative for most applications. They include reasonable safety margins while avoiding excessive overdesign. For ultra-critical applications or unusual operating environments, additional safety factors may be appropriate.

Conclusion

The IPC-2152 standard represents a significant advancement in PCB design methodology, providing engineers with much more accurate tools for determining appropriate trace widths and via configurations for current-carrying capacity. By replacing older, more conservative approaches with empirically-tested data, the standard enables more optimized designs that balance reliability with efficient use of board space.

As electronics continue to push the boundaries of power density and thermal management, implementing IPC-2152 becomes increasingly important. The standard’s comprehensive approach to considering factors like trace location, board material, and ambient conditions allows for designs that are both safe and space-efficient.

For PCB designers working on any project involving significant current flow, investing time in understanding and correctly applying IPC-2152 principles pays dividends in improved reliability, reduced overdesign, and better overall performance. Whether you’re designing power electronics, motor controllers, or high-current digital systems, the IPC-2152 standard provides the foundation for successful current management in modern PCB design.

In today’s increasingly compact electronic devices, flexible and rigid-flex printed circuit boards (PCBs) have become essential components driving innovation across industries. From foldable smartphones to medical implants and aerospace applications, these versatile circuit boards enable designs that traditional rigid PCBs simply cannot achieve. At the heart of reliable flex and rigid-flex PCB design lies the IPC 2223 standard – a comprehensive set of guidelines ensuring consistency, reliability, and manufacturability.

What is IPC 2223?

IPC 2223 is the dedicated industry standard that provides detailed design guidelines specifically for flexible and rigid-flex printed circuit boards. As part of the broader IPC-2220 series (which covers design standards for all PCB types), IPC 2223 addresses the unique challenges and requirements associated with flex and rigid-flex technologies.

Unlike rigid PCBs, flexible circuits must maintain electrical integrity while being bent, folded, or dynamically flexed during operation. This fundamental difference introduces complexities that demand specialized design approaches. The IPC 2223 standard offers comprehensive guidance on materials, construction methods, dimensional requirements, and performance specifications that ensure flex and rigid-flex PCBs perform reliably throughout their intended lifecycle.

Design engineers who follow IPC 2223 benefit from decades of industry experience distilled into practical recommendations. The standard helps prevent common design pitfalls that often lead to premature circuit failure, such as improper bend radii, inadequate material selection, or inappropriate copper treatment in flex areas.

Evolution of IPC 2223: Revisions and Versions

The IPC 2223 standard has evolved significantly since its initial release, reflecting technological advancements and addressing emerging challenges in flex and rigid-flex PCB design.

IPC 2223A

Released in the early 2000s, this version established the foundation for flex circuit design guidelines. It covered basic construction methods and material recommendations for single-sided, double-sided, and multilayer flex circuits.

IPC 2223B

This update expanded coverage of rigid-flex designs and introduced more detailed specifications for bend radii calculations. It also provided enhanced guidance on material selection considerations.

IPC 2223C

With this revision, the standard incorporated more comprehensive guidelines for controlled impedance in flex circuits – increasingly important as signal integrity requirements became more stringent in high-speed applications.

IPC 2223D

Released in 2016, IPC 2223D represented a significant overhaul. This version added substantial content addressing reliability enhancements, dynamic flex applications, and expanded design rules for emerging technologies like wearable electronics.

IPC 2223E

The latest revision as of 2025, IPC 2223E reflects cutting-edge developments in flex technology. This version includes enhanced guidelines for high-density interconnects (HDI) in flex applications, recommendations for flexible printed electronics, and updated material specifications reflecting new polyimide and adhesive technologies.

Staying current with the latest revision is crucial for several reasons. First, newer versions incorporate lessons learned from field failures and manufacturing challenges encountered after previous releases. Second, they address requirements for emerging applications and technologies not covered in earlier versions. Finally, the latest standards reflect current manufacturing capabilities and processes, ensuring designs are not only reliable but also producible at reasonable cost.

Key Design Guidelines from IPC 2223

The IPC 2223 standard provides extensive guidance across numerous design aspects. Here are some of the most critical areas covered:

Layer Structure Recommendations

IPC 2223 details optimal stackup configurations for different flex and rigid-flex applications. The standard outlines best practices for:

• Symmetrical layer arrangements that minimize board warping
• Proper placement of signal, power, and ground layers
• Staggered flex layer terminations to prevent stress concentrations
• Transition zone designs between rigid and flex sections

Material Selection Guidelines

Material choices significantly impact flex circuit performance. IPC 2223 provides specifications for:

• Polyimide base materials (types, thicknesses, temperature ratings)
• Adhesive systems (acrylic, epoxy, adhesiveless)
• Copper types (electrodeposited vs. rolled annealed)
• Coverlay and stiffener materials
• Surface finish considerations for flex applications

Circuit Pattern Layout Requirements

The standard details specific layout considerations unique to flex circuits:

• Conductor routing approaches for optimal flexibility
• Pad and land designs that resist delamination
• Via and plated through-hole structures for reliable flex areas
• Hatched ground plane designs that enhance flexibility

Conductor Width and Spacing Rules

IPC 2223 provides minimum requirements for:

• Trace widths based on current-carrying capacity in flex areas
• Spacing requirements accounting for mechanical stress
• Copper weight selection appropriate for flexing applications
• Trace orientation relative to bend directions

Read more about:

• IPC a 600
• IPC 6011
• IPC tm650
• IPC 6018

IPC 2223 Bend Radius Guidelines

Among the most critical aspects of the IPC 2223 standard are the bend radius specifications. Improper bend design is a leading cause of flex circuit failure, making these guidelines particularly valuable.

Importance of Proper Bend Radius

The bend radius directly impacts the mechanical stress experienced by copper conductors during flexing. When the radius is too tight, copper traces experience excessive strain that can lead to cracking, especially during repeated flexing cycles. IPC 2223 provides detailed calculations to determine minimum safe bend radii based on circuit construction.

Standard Formulas and Recommendations

IPC 2223 offers specific formulas for calculating minimum bend radii. The basic calculation typically follows:

For single-flex applications (occasional bending during installation):

• Minimum bend radius = 6 × total circuit thickness

For dynamic flex applications (repeated flexing during operation):

• Minimum bend radius = 12 × total circuit thickness

Factors Affecting Bend Radius Requirements

The standard details how various design elements impact bend radius requirements:

Thickness of Flex Material

Thicker materials require larger bend radii to maintain the same strain levels. IPC 2223 provides specific multipliers based on material thickness.

Number of Layers

Multilayer flex circuits generally require larger bend radii than single or double-sided designs. The standard provides adjustment factors based on layer count.

Copper Type and Treatment

Rolled annealed copper generally tolerates tighter bend radii than electrodeposited copper due to its grain structure. IPC 2223 provides different recommendations based on copper type.

The standard also includes illustrated examples of proper bend designs, including:

• Gradual bend implementations
• Strain relief features
• Recommended trace orientations relative to bend direction
• Methods to distribute stress across larger areas

How to Access IPC 2223

As a critical industry standard, IPC 2223 is a valuable intellectual property developed through extensive expert collaboration and research.

Official Sources for IPC 2223

The only legitimate way to obtain the current IPC 2223 standard is through official channels:

• Direct purchase from the IPC website (IPC.org)
• Through authorized IPC document distributors
• Via corporate IPC membership programs

Understanding PDF Download Limitations

It’s important to note that searching for “IPC 2223 PDF free download” or similar terms will likely lead to unauthorized copies or outdated versions. Using these carries several risks:

• Potential copyright violations
• Reliance on outdated or incomplete information
• Missing critical updates that could affect product reliability

Cost-Effective Access Options

While the standard does require purchase, several legitimate cost-effective options exist:

• IPC membership discounts (often 50% or more off standard prices)
• Educational institution access programs
• Standards subscription services for organizations needing multiple standards

The investment in obtaining the official standard is minimal compared to the potential cost of design failures resulting from following incorrect or outdated guidelines.

Practical Applications of IPC 2223

The IPC 2223 standard has enabled innovation across numerous industries by providing the foundation for reliable flex and rigid-flex implementations.

Medical Devices

The medical industry leverages IPC 2223 guidelines to create:

• Implantable devices with biocompatible flex circuits
• Wearable health monitors requiring comfortable, conformable electronics
• Surgical tools incorporating flex circuits in space-constrained designs

Aerospace and Defense

This sector relies heavily on IPC 2223 for:

• Satellite systems where weight reduction is critical
• Aircraft avionics requiring vibration-resistant interconnections
• Defense equipment needing reliable performance in extreme environments

Consumer Electronics

Modern consumer devices benefit from IPC 2223 in applications such as:

• Smartphone internal connections traversing hinges
• Wearable technology requiring body-conforming circuits
• Camera modules with space-optimized connections

Conclusion

The IPC 2223 standard represents the collective wisdom of the flex and rigid-flex PCB industry, offering invaluable guidance for designers aiming to create reliable, manufacturable products. From precise bend radius calculations to material selection recommendations, this comprehensive standard addresses the unique challenges posed by flexible circuit technology.

Engineers working with flex and rigid-flex circuits should:

• Always reference the latest IPC 2223 revision to benefit from the most current guidance
• Pay particular attention to bend radius guidelines, as these directly impact long-term reliability
• Consider the entire flex circuit ecosystem covered by the standard, from materials to manufacturing processes

By adhering to IPC 2223 guidelines, designers can avoid costly mistakes, accelerate development cycles, and produce flex and rigid-flex PCBs that deliver reliable performance throughout their intended lifecycle.

Frequently Asked Questions

What is the latest version of IPC 2223?

As of 2025, IPC 2223E is the most current revision of the standard. This version includes enhanced guidance for HDI in flex applications, flexible printed electronics, and updated material specifications reflecting new polyimide and adhesive technologies.

Where can I obtain an IPC 2223 PDF legally?

The only legitimate source for the IPC 2223 standard is through the official IPC website (IPC.org) or authorized distributors. While the standard must be purchased, IPC offers membership discounts that significantly reduce the cost.

How does IPC 2223 help reduce design failures?

IPC 2223 provides engineers with proven guidelines that address common failure modes in flex and rigid-flex circuits. By following the standard’s recommendations for bend radii, material selection, layer stackups, and other critical design elements, engineers can avoid mistakes that often lead to field failures and reliability issues.

Is IPC 2223 required for flex PCB manufacturing?

While not legally mandated, most reputable flex circuit manufacturers follow IPC 2223 guidelines as they represent industry-consensus best practices. Many customers specify compliance with IPC 2223 in their design requirements to ensure reliability and manufacturability.

How often is IPC 2223 updated?

The IPC typically reviews and updates standards like IPC 2223 every 5-7 years or when significant technological advancements warrant earlier revision. Design engineers should always verify they’re referencing the most current version available.

Introduction

In the ever-evolving world of electronics, ensuring the reliability and performance of Printed Circuit Boards (PCBs) is paramount. As the backbone of countless electronic devices, PCBs must meet stringent quality standards to function effectively in diverse applications and environments. This is where the IPC-TM-650 Test Methods Manual comes into play, serving as an invaluable resource for manufacturers, engineers, and quality assurance professionals in the electronics industry.

The IPC-TM-650 Test Methods Manual, developed by the Institute for Printed Circuits (IPC), is a comprehensive collection of standardized test procedures designed to evaluate various aspects of PCB quality, reliability, and performance. These test methods cover a wide range of properties, from electrical and mechanical characteristics to environmental durability and chemical resistance.

In this comprehensive guide, we will delve into the intricacies of the IPC-TM-650 Test Methods Manual, exploring its significance, key test methods, and their applications in ensuring PCB quality. Whether you’re a seasoned professional in the electronics industry or new to the field of PCB manufacturing, this article will provide valuable insights into the world of PCB testing and quality assurance.

Understanding IPC-TM-650

What is IPC-TM-650?

IPC-TM-650 is a standardized set of test methods developed and maintained by the IPC (Institute for Printed Circuits), a global trade association serving the printed board and electronics assembly industries. The “TM” in IPC-TM-650 stands for “Test Methods,” and “650” is the document number assigned by IPC.

This manual serves as a cornerstone in the electronics industry, providing a unified approach to testing and evaluating PCBs. By establishing standardized test procedures, IPC-TM-650 enables consistent quality assessment across different manufacturers and testing facilities, ensuring that PCBs meet the required performance and reliability standards.

The Importance of Standardized Testing

Standardized testing, as outlined in IPC-TM-650, plays a crucial role in the electronics industry for several reasons:

1. Consistency: It ensures that test results are comparable across different laboratories and manufacturing facilities.
2. Quality Assurance: Standardized tests help maintain consistent quality levels in PCB production.
3. Industry Communication: It provides a common language for specifying and discussing PCB quality requirements.
4. Reliability Prediction: These tests allow manufacturers to predict the long-term reliability of PCBs under various conditions.
5. Regulatory Compliance: Many industry standards and regulations reference IPC-TM-650 test methods.

Structure of the IPC-TM-650 Manual

The IPC-TM-650 Test Methods Manual is organized into several sections, each focusing on different aspects of PCB testing:

1. General: Includes basic test procedures and definitions.
2. Electrical: Covers tests related to electrical properties and performance.
3. Environmental: Focuses on tests that simulate various environmental conditions.
4. Chemical: Includes tests for chemical properties and resistance.
5. Mechanical: Covers tests related to physical and mechanical properties.
6. Cleanliness: Focuses on tests to evaluate PCB cleanliness and contamination levels.

Each test method in the manual is assigned a unique number and includes detailed information on the test procedure, required equipment, and interpretation of results.

Key Test Methods in IPC-TM-650

The IPC-TM-650 manual contains numerous test methods, each designed to evaluate specific aspects of PCB quality and performance. Let’s explore some of the most critical and frequently used test methods:

Electrical Tests

2.5.5.6 Dielectric Withstanding Voltage

This test evaluates the PCB’s ability to withstand high voltages without breakdown. It’s crucial for ensuring electrical safety and reliability.

Procedure:

1. Apply a high voltage between conductors or between conductors and ground.
2. Gradually increase the voltage to the specified level.
3. Maintain the voltage for a specified time.
4. Check for any breakdown or arcing.

Significance: This test helps prevent potential electrical failures in high-voltage applications.

2.5.1 Insulation Resistance

This test measures the resistance between isolated conductors on a PCB.

Procedure:

1. Apply a specified voltage between isolated conductors.
2. Measure the resulting current.
3. Calculate the insulation resistance using Ohm’s law.

Significance: High insulation resistance ensures minimal current leakage and helps maintain signal integrity.

Environmental Tests

2.6.3 Moisture and Insulation Resistance

This test evaluates how moisture affects the PCB’s insulation resistance.

Procedure:

1. Measure initial insulation resistance.
2. Expose the PCB to high humidity conditions.
3. Re-measure insulation resistance.
4. Compare pre- and post-exposure measurements.

Significance: This test is crucial for PCBs used in high-humidity environments or those exposed to condensation.

2.6.7 Thermal Stress

This test assesses the PCB’s ability to withstand thermal cycling without damage.

Procedure:

1. Subject the PCB to alternating high and low temperatures.
2. Repeat for a specified number of cycles.
3. Inspect for physical damage or changes in electrical properties.

Significance: Thermal stress testing helps predict PCB reliability in applications with significant temperature variations.

Mechanical Tests

2.4.18 Tensile Strength

This test measures the PCB material’s resistance to being pulled apart.

Procedure:

1. Prepare standardized test specimens from the PCB material.
2. Apply increasing tensile force until the specimen breaks.
3. Record the maximum force applied.

Significance: Tensile strength is important for understanding the PCB’s durability and resistance to mechanical stress.

2.4.8 Peel Strength

This test evaluates the adhesion between copper foil and the substrate.

Procedure:

1. Prepare a test specimen with a strip of copper partially separated from the substrate.
2. Peel the copper at a specified angle and rate.
3. Measure the force required to continue peeling.

Significance: Good peel strength ensures that copper traces won’t detach from the board during use or thermal stress.

Chemical Tests

2.3.38 Time to Delamination

This test assesses the PCB’s resistance to delamination under high-temperature and high-humidity conditions.

Procedure:

1. Expose PCB samples to high temperature and humidity.
2. Periodically check for signs of delamination.
3. Record the time it takes for delamination to occur.

Significance: This test is crucial for predicting PCB reliability in harsh environmental conditions.

2.3.39 Water Absorption

This test measures how much water the PCB material absorbs.

Procedure:

1. Weigh the PCB sample before testing.
2. Immerse the sample in water for a specified time.
3. Re-weigh the sample and calculate the percentage of water absorbed.

Significance: Water absorption can affect the PCB’s electrical properties and long-term reliability.

Read more about:

• IPC Standards for PCB Design
• IPC Standards for PCB Assembly
• ipc a 630
• High Frequency PCBs
• Rogers PCB

Applications of IPC-TM-650 in Industry

The IPC-TM-650 Test Methods Manual finds wide-ranging applications across various sectors of the electronics industry. Let’s explore how different industries leverage these standardized tests to ensure PCB quality and reliability.

Aerospace and Defense

In the aerospace and defense sectors, PCB reliability is paramount due to the critical nature of the applications and the harsh environments in which these boards often operate.

Key applications:

1. Thermal Cycling (Method 2.6.7): Used to simulate the extreme temperature variations experienced by avionics systems.
2. Vibration Testing (Method 2.6.9): Ensures PCBs can withstand the intense vibrations encountered during flight or launch.
3. Moisture Resistance (Method 2.6.3): Critical for PCBs used in maritime or high-altitude environments.

Automotive Electronics

The automotive industry relies heavily on IPC-TM-650 tests to ensure the reliability of electronic systems in vehicles, which are exposed to a wide range of environmental conditions.

Key applications:

1. Thermal Shock (Method 2.6.7.2): Simulates rapid temperature changes experienced by automotive electronics.
2. Salt Spray (Method 2.6.15): Tests corrosion resistance for PCBs used in exposed areas of vehicles.
3. Dielectric Withstanding Voltage (Method 2.5.5.6): Ensures electrical safety in high-voltage systems of electric vehicles.

Consumer Electronics

While consumer electronics may not face the same extreme conditions as aerospace or automotive applications, reliability is still crucial for customer satisfaction and product longevity.

Key applications:

1. Solderability (Method 2.4.14): Ensures components can be reliably soldered to the PCB during manufacturing.
2. Surface Insulation Resistance (Method 2.6.3.7): Helps predict the long-term reliability of consumer devices.
3. Peel Strength (Method 2.4.8): Important for flex PCBs used in mobile devices and wearables.

Medical Devices

In the medical field, PCB reliability can be a matter of life and death. IPC-TM-650 tests help ensure the safety and reliability of medical electronics.

Key applications:

1. Cleanliness Testing (Method 2.3.25): Crucial for maintaining sterility in medical devices.
2. Insulation Resistance (Method 2.5.1): Ensures patient safety in devices that come into contact with the human body.
3. Humidity Testing (Method 2.6.3): Important for devices that may be exposed to bodily fluids or used in humid environments.

Telecommunications

The telecommunications industry relies on IPC-TM-650 tests to ensure the reliability of infrastructure equipment that often operates continuously in varied environments.

Key applications:

1. High Frequency Circuit Material Properties (Method 2.5.5.5): Critical for maintaining signal integrity in high-speed communication systems.
2. Thermal Conductivity (Method 2.4.53): Important for managing heat in high-power communication equipment.
3. Flammability Testing (Method 2.3.10): Ensures safety in telecom infrastructure installations.

Challenges and Future Trends

While the IPC-TM-650 Test Methods Manual has been instrumental in standardizing PCB testing, the rapidly evolving electronics industry presents new challenges and opportunities for improvement.

Current Challenges

1. Keeping Pace with Technology: As PCB technology advances, new materials and manufacturing techniques emerge, necessitating the development of new test methods.
2. Miniaturization: The trend towards smaller, more densely packed PCBs makes some traditional testing methods challenging to apply.
3. High-Frequency Applications: The increasing use of high-frequency circuits in 5G and beyond requires more sophisticated testing methods for signal integrity and electromagnetic compatibility.
4. Environmental Concerns: Growing emphasis on sustainability is driving the need for test methods that assess the environmental impact of PCBs throughout their lifecycle.

Future Trends

1. AI and Machine Learning Integration: Artificial intelligence and machine learning are expected to play a larger role in PCB testing, potentially automating test result interpretation and predictive analysis.
2. Non-Destructive Testing: There’s a growing interest in developing more non-destructive test methods to reduce waste and enable testing of finished products.
3. In-Situ Monitoring: Future test methods may focus more on real-time, in-situ monitoring of PCBs during actual use, providing more accurate reliability data.
4. Additive Manufacturing: As 3D-printed electronics become more common, new test methods will be needed to address the unique characteristics of additively manufactured PCBs.
5. Flexibility and Wearables: The rise of flexible and wearable electronics is driving the development of new test methods for evaluating the durability and reliability of these unique form factors.

Conclusion

The IPC-TM-650 Test Methods Manual stands as a cornerstone in the world of PCB manufacturing and quality assurance. By providing a standardized set of test methods, it enables the electronics industry to maintain consistent quality standards, ensure reliability, and drive innovation.

From electrical and environmental tests to mechanical and chemical evaluations, the comprehensive nature of IPC-TM-650 allows manufacturers to thoroughly assess PCB performance under a wide range of conditions. This not only helps in meeting regulatory requirements but also in pushing the boundaries of what’s possible in electronic design.

As we look to the future, the IPC-TM-650 manual will undoubtedly continue to evolve, adapting to new technologies, materials, and industry needs. The ongoing collaboration between industry professionals, researchers, and standards organizations will be crucial in ensuring that the manual remains relevant and effective in the face of rapid technological advancements.

For professionals in the electronics industry, a thorough understanding of IPC-TM-650 test methods is invaluable. It provides the tools necessary to ensure PCB quality, predict reliability, and ultimately deliver products that meet the exacting standards of modern electronics. As we continue to rely more heavily on electronic systems in every aspect of our lives, the importance of rigorous, standardized testing methods cannot be overstated.

In conclusion, the IPC-TM-650 Test Methods Manual is more than just a collection of test procedures; it’s a testament to the industry’s commitment to quality, reliability, and continuous improvement. By adhering to these standards and staying abreast of their evolution, we can ensure that the PCBs at the heart of our electronic devices continue to meet the challenges of an increasingly connected and technology-driven world.
