The IPC-A-610 standard, titled “Acceptability of Electronic Assemblies,” is a crucial document in the electronics manufacturing industry. It provides visual acceptance criteria for electronic assemblies and is widely recognized as the most comprehensive guide for PCB assembly inspection. This article delves deep into the IPC-A-610 standard, exploring its certification process, the three classes of product quality, and the latest revisions that keep it relevant in an ever-evolving industry.

Understanding the IPC-A-610 Standard

What is IPC-A-610?

IPC-A-610 is a set of standardized requirements for the manufacture of electronic assemblies. It is published by IPC (Association Connecting Electronics Industries), a global trade association serving the printed board and electronics assembly industries.

The Importance of IPC-A-610 in Electronics Manufacturing

The IPC-A-610 standard plays a crucial role in ensuring the quality and reliability of electronic products. It provides:

1. Consistent quality criteria across the industry
2. A common language for manufacturers and customers
3. Guidelines for training and certification of assembly personnel
4. A framework for continuous improvement in manufacturing processes

Historical Context and Evolution

The IPC-A-610 standard has its roots in the military standard MIL-STD-454, which was first published in the 1960s. Over the years, it has evolved to meet the changing needs of the electronics industry:

• 1983: First edition of IPC-A-610 published
• 1990s: Adoption of the standard accelerates in the commercial sector
• 2000s: Regular updates to keep pace with miniaturization and new technologies
• Present: Continuous revisions to address emerging technologies and manufacturing processes

IPC-A-610 Certification Process

Certification in IPC-A-610 is a valuable credential for professionals in the electronics manufacturing industry. It demonstrates a thorough understanding of the standard and the ability to apply it in practical situations.

Types of Certification

There are two main types of IPC-A-610 certification:

1. Certified IPC Specialist (CIS): For operators and inspectors who need to understand and apply the standard in their daily work.
2. Certified IPC Trainer (CIT): For individuals who will train and certify others as CIS.

Certification Process

For CIS Certification:

1. Attend a training course led by a Certified IPC Trainer
2. Complete hands-on exercises and demonstrations
3. Pass a written examination
4. Receive certification valid for 2 years

For CIT Certification:

1. Have at least 2 years of industry experience
2. Attend a 4-5 day training course led by an IPC-authorized Master Trainer
3. Pass written and practical examinations
4. Demonstrate ability to teach the material
5. Receive certification valid for 2 years

Recertification

To maintain certification, individuals must recertify every 2 years. This involves:

1. Attending a recertification course
2. Passing a written examination
3. Demonstrating continued proficiency in applying the standard

Benefits of IPC-A-610 Certification

1. Enhanced career prospects
2. Improved quality control in manufacturing processes
3. Reduced rework and associated costs
4. Better communication with customers and suppliers
5. Compliance with industry standards and customer requirements

IPC-A-610 Classes: Understanding Product Classifications

The IPC-A-610 standard defines three classes of electronic products, each with its own set of acceptance criteria. These classes help manufacturers and customers agree on the appropriate level of quality for a given application.

Class 1: General Electronic Products

Definition:

Products where the major requirement is function of the completed assembly.

Characteristics:

• Lowest level of reliability requirements
• Cosmetic imperfections are generally acceptable
• Typical lifespan of 1-3 years

Examples:

• Consumer electronics (e.g., toys, remote controls)
• Non-critical industrial equipment
• Disposable or short-lived products

Class 2: Dedicated Service Electronic Products

Definition:

Products where continued performance and extended life are required, and for which uninterrupted service is desired but not critical.

Characteristics:

• Moderate reliability requirements
• Some cosmetic imperfections are acceptable
• Expected lifespan of 3-7 years

Examples:

• Home appliances
• Personal computers
• Audio/video equipment
• Industrial control systems

Class 3: High-Performance/Harsh Environment Electronic Products

Definition:

Products where continued high performance or performance-on-demand is critical, equipment downtime cannot be tolerated, and the product must function when required.

Characteristics:

• Highest reliability requirements
• Minimal cosmetic imperfections allowed
• Expected lifespan of 7+ years
• Often used in harsh or mission-critical environments

Examples:

• Aerospace and defense systems
• Medical devices
• Automotive safety systems
• Industrial safety equipment

Choosing the Appropriate Class

Selecting the right class for a product involves considering several factors:

1. Intended use and environment of the product
2. Consequences of product failure
3. Maintenance and serviceability requirements
4. Expected lifespan
5. Cost considerations

It’s important to note that while higher classes generally imply higher quality, they also typically involve increased production costs and more stringent inspection criteria.

Read more about:

• IPC 4761
• IPC-2221
• IPC Standards for PCB Design
• Prototype PCB Assembly

Key Aspects Covered in IPC-A-610

The IPC-A-610 standard covers a wide range of topics related to the acceptability of electronic assemblies. Some of the key areas include:

1. Component Mounting and Attachment

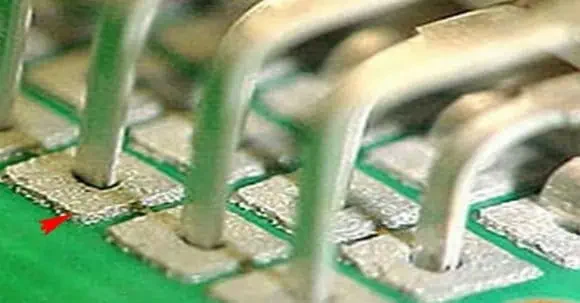

• Through-hole component mounting
• Surface mount solder connections
• Component placement and orientation
• Lead forming and trimming

2. Solder Joint Quality

• Solder amount and wetting
• Solder profile and contour
• Void content in solder joints
• Intermetallic compound formation

3. Printed Circuit Board (PCB) Condition

• PCB cleanliness
• Laminate condition
• Conductor spacing and width
• Via and plated-through hole quality

4. Conformal Coating and Encapsulation

• Coating thickness and coverage
• Bubbles, voids, and foreign material in coating
• Adhesion and cure of coating
• Encapsulant fill and adhesion

5. Wire and Cable Assemblies

• Wire stripping and preparation
• Crimp connections
• Wire bundle and harness construction
• Connector assembly and soldering

6. Terminal Connections

• Wrap connections
• Press-fit connections
• Clinched and staked terminals
• Insulation displacement connections (IDC)

7. Mechanical Assembly

• Hardware installation
• Fastener tightness and security
• Mechanical support for components
• Strain relief and cable clamping

8. Cleanliness and Contamination Control

• Flux residues
• Foreign material and debris
• Moisture and corrosion
• Cleanliness testing methods

Latest Revisions of IPC-A-610: H, G, and F

The IPC-A-610 standard is regularly updated to keep pace with technological advancements and industry needs. Understanding the differences between revisions is crucial for maintaining compliance and improving manufacturing processes.

IPC-A-610H (Current Revision)

Released in October 2020, IPC-A-610H is the latest version of the standard.

Key Changes and Additions:

1. Enhanced criteria for bottom terminated components (BTCs): Improved guidance on solder joint and void requirements for BTCs, including land grid arrays (LGAs) and quad flat no-leads (QFNs).
2. Updated requirements for flexible and rigid-flex circuits: New criteria for flex circuit inspection, including bend radius and material handling considerations.
3. Expanded coverage of conformal coating: More detailed requirements for coating thickness, coverage, and inspection techniques.
4. Revised criteria for press-fit connections: Updated acceptance criteria for press-fit pins and connectors, including plating thickness and insertion force considerations.
5. New section on additive manufacturing: Guidance on the inspection of 3D-printed electronic components and assemblies.
6. Updated photographic examples: New high-resolution images to illustrate acceptance criteria more clearly.
7. Harmonization with other IPC standards: Improved alignment with related standards such as IPC-6012 (Qualification and Performance Specification for Rigid Printed Boards) and J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies).

IPC-A-610G (Previous Revision)

Released in 2017, IPC-A-610G introduced several important updates:

Key Changes from F to G:

1. Expanded coverage of surface mount technology (SMT): More detailed criteria for inspecting fine-pitch and ultra-fine-pitch components.
2. Introduction of criteria for embedded components: New guidelines for inspecting and accepting assemblies with embedded passive and active components.
3. Updated requirements for lead-free solder joints: Refined criteria for assessing the quality of lead-free solder connections, including considerations for different alloy compositions.
4. Enhanced guidance on conformal coating: More detailed requirements for coating thickness measurement and acceptance.
5. Revised cleanliness requirements: Updated criteria for assessing PCB cleanliness, including new guidance on ionic contamination testing.
6. Improved alignment with other IPC standards: Better harmonization with IPC-7711/7721 (Rework, Modification and Repair of Electronic Assemblies) and IPC-WHMA-A-620 (Requirements and Acceptance for Cable and Wire Harness Assemblies).

IPC-A-610F

Released in 2014, IPC-A-610F marked significant updates in several areas:

Key Changes from E to F:

1. Introduction of criteria for board-in-board assemblies: New guidelines for inspecting and accepting PCBs that are mounted directly onto other PCBs.
2. Expanded coverage of area array packages: More detailed criteria for ball grid arrays (BGAs) and column grid arrays (CGAs), including X-ray inspection requirements.
3. Updated requirements for through-hole technology (THT): Refined criteria for assessing solder fill and wetting in plated-through holes.
4. Introduction of new component types: Criteria for accepting package-on-package (PoP) assemblies and other emerging component technologies.
5. Enhanced guidance on rework and repair: More detailed requirements for accepting reworked or repaired assemblies.
6. Revised criteria for wire and terminal connections: Updated requirements for wire wrap, crimp, and insulation displacement connections.

Implementing IPC-A-610 in Manufacturing Processes

Effectively implementing the IPC-A-610 standard in a manufacturing environment requires a systematic approach. Here are some key steps and considerations:

1. Training and Certification

• Ensure that key personnel are certified in IPC-A-610
• Provide regular refresher training to maintain skills and knowledge
• Consider developing internal training programs based on IPC-A-610 principles

2. Documentation and Procedures

• Develop clear, written procedures that incorporate IPC-A-610 requirements
• Create inspection checklists based on the relevant class and product requirements
• Establish a system for managing and updating documentation as the standard evolves

3. Equipment and Tools

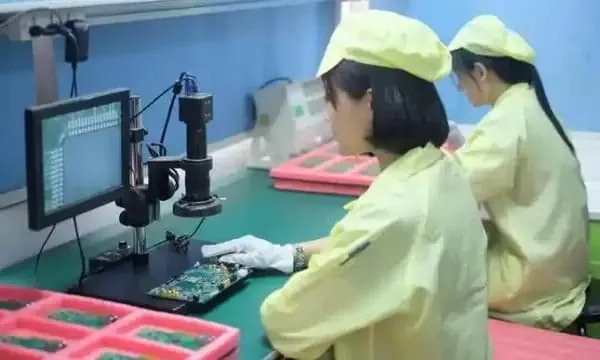

• Invest in appropriate inspection equipment (e.g., microscopes, X-ray systems)
• Ensure that measurement tools are calibrated and maintained according to IPC recommendations
• Consider automated inspection systems for high-volume production

4. Process Control

• Implement statistical process control (SPC) methods to monitor key quality indicators
• Use IPC-A-610 criteria to set process control limits
• Regularly review and adjust manufacturing processes based on inspection data

5. Supplier Management

• Communicate IPC-A-610 requirements clearly to suppliers
• Include IPC-A-610 compliance in supplier agreements and quality assurance processes
• Conduct regular audits of supplier compliance with the standard

6. Continuous Improvement

• Establish a system for collecting and analyzing defect data
• Use root cause analysis techniques to address recurring quality issues
• Regularly review the effectiveness of IPC-A-610 implementation and seek opportunities for improvement

7. Customer Communication

• Clearly define the applicable IPC-A-610 class in customer agreements
• Educate customers on the implications of different classes and acceptance criteria
• Use IPC-A-610 terminology and criteria in customer communications about quality issues

Challenges and Best Practices in IPC-A-610 Compliance

While the IPC-A-610 standard provides valuable guidance for electronics manufacturing, implementing and maintaining compliance can present challenges. Here are some common issues and best practices for addressing them:

Challenges:

1. Interpreting subjective criteria: Some IPC-A-610 requirements involve visual inspection and can be subject to interpretation.
2. Keeping up with revisions: The standard is updated regularly, requiring ongoing education and process adjustments.
3. Balancing quality and cost: Higher class requirements can increase production costs.
4. Applying the standard to new technologies: Emerging components and processes may not be fully covered in the current revision.
5. Maintaining consistency across inspectors: Different inspectors may interpret criteria differently.

Best Practices:

1. Develop a robust training program:
   • Provide hands-on training with real-world examples
   • Use visual aids and sample boards to illustrate acceptance criteria
   • Conduct regular proficiency testing for inspectors
2. Implement a change management system:
   • Assign responsibility for monitoring IPC standard updates
   • Develop a process for reviewing and implementing changes to the standard
   • Maintain a system for version control of internal procedures and training materials
3. Use technology to aid inspection:
   • Implement automated optical inspection (AOI) systems where appropriate
   • Use digital imaging systems to capture and share examples of defects
   • Consider artificial intelligence and machine learning tools for defect classification
4. Foster a culture of quality:
   • Educate all employees on the importance of IPC-A-610 compliance
   • Encourage open communication about quality issues
   • Recognize and reward contributions to quality improvement
5. Conduct regular internal audits:
   • Perform periodic checks of inspection processes and results
   • Cross-train inspectors to promote consistency
   • Use audit results to identify areas for improvement and additional training needs
6. Engage with the IPC community:
   • Participate in IPC standards development committees
   • Attend IPC conferences and workshops
   • Network with other professionals to share best practices and challenges
7. Maintain clear documentation:
   • Develop detailed work instructions that incorporate IPC-A-610 requirements
   • Create a library of annotated images illustrating acceptable and unacceptable conditions
   • Maintain records of inspection results and corrective actions

The Future of IPC-A-610 and Electronics Manufacturing

As the electronics industry continues to evolve, the IPC-A-610 standard will need to adapt to new technologies and manufacturing processes. Some trends and potential future developments include:

1. Integration of Artificial Intelligence and Machine Learning

• AI-assisted inspection systems that can learn and improve over time
• Machine learning algorithms for predicting potential quality issues based on historical data

2. Additive Manufacturing and 3D-Printed Electronics

• Expanded criteria for inspecting and accepting 3D-printed electronic components and assemblies
• Guidelines for hybrid manufacturing processes combining traditional and additive techniques

3. Flexible and Stretchable Electronics

• New acceptance criteria for flexible and stretchable circuit assemblies
• Guidelines for inspecting and testing electronics integrated into textiles and wearable devices

4. Miniaturization and Advanced Packaging

• Updated criteria for ultra-fine pitch components and advanced packaging technologies
• Guidelines for inspecting and accepting chiplets and other modular IC technologies

5. Sustainability and Environmental Considerations

• Criteria for assessing the environmental impact of manufacturing processes
• Guidelines for design for recycling and use of sustainable materials

6. Industry 4.0 and Smart Manufacturing

• Integration of IPC-A-610 requirements into smart manufacturing systems
• Real-time quality monitoring and adaptive process control based on IPC-A-610 criteria

7. Enhanced Training and Certification Programs

• Virtual reality and augmented reality tools for IPC-A-610 training
• Online platforms for continuous learning and skill assessment

Conclusion: The Enduring Importance of IPC-A-610

The IPC-A-610 standard has been a cornerstone of quality assurance in electronics manufacturing for decades, and its importance continues to grow. As we’ve explored throughout this comprehensive guide, the standard provides crucial guidance on acceptability criteria for electronic assemblies across various product classes and applications.

Key takeaways from our exploration of IPC-A-610 include:

1. Versatility: The standard’s three-class system allows for appropriate quality levels across a wide range of products, from consumer electronics to mission-critical aerospace systems.
2. Continuous Evolution: Regular revisions ensure that IPC-A-610 remains relevant in the face of rapid technological advancements.
3. Industry-Wide Impact: From certification programs to manufacturing processes, IPC-A-610 influences every aspect of the electronics manufacturing industry.
4. Global Recognition: As an internationally recognized standard, IPC-A-610 facilitates communication and consistency across global supply chains.
5. Driving Innovation: By setting clear quality benchmarks, the standard encourages manufacturers to innovate and improve their processes continually.

As we look to the future, it’s clear that IPC-A-610 will continue to play a vital role in shaping the electronics manufacturing landscape. The standard’s ability to adapt to new technologies, such as additive manufacturing and flexible electronics, while maintaining its core principles, ensures its ongoing relevance.

For professionals in the electronics manufacturing industry, maintaining a deep understanding of IPC-A-610 and staying current with its revisions is not just a matter of compliance—it’s a pathway to excellence. Whether you’re an engineer, a quality assurance specialist, or a manufacturing manager, the knowledge and application of IPC-A-610 principles can significantly enhance the quality, reliability, and competitiveness of your products.

As we navigate the challenges and opportunities of Industry 4.0, emerging technologies, and increasingly complex electronic systems, the IPC-A-610 standard will remain a guiding light, ensuring that the electronics we rely on daily meet the highest standards of quality and reliability.
