IPC-TM-650: choose the test that answers your question

One symptom may require more than one method. An intermittent connection after assembly could involve geometry, thermal history and electrical behavior. A single attractive micrograph may be informative without resolving the failure mechanism. Start with a hypothesis, identify the evidence that could distinguish competing explanations, and agree the test sequence before consuming limited samples.

The official Method 2.1.1F addresses manual and semi-automatic or automatic microsectioning. When requesting a section, identify the feature and desired examination plane. A sample that misses the critical junction cannot answer the intended question even if the image is sharp. Preparation artifacts and the chosen plane should be considered when interpreting what appears in the image.

Link the specimen to a part number, revision, lot and location. If a coupon is used, explain its relationship to the production features being represented. A coupon with different geometry or thermal history may answer a different question. When multiple images are compared, consistent scale, orientation and labels help prevent apparent differences caused by presentation rather than the physical feature.

Suppose a customer asks whether a specific plated interconnect meets the agreed construction. A useful request identifies the hole group, board or coupon location, condition before sectioning, feature to measure and acceptance document. “Please send a microsection” omits most of that information. The IPC-6012 requirements page explains where the rigid-board performance agreement belongs in this chain.

The official Method 2.4.24C addresses glass transition and Z-axis thermal expansion by TMA. A reported transition temperature should retain its measurement method. A value obtained using another technique should not be treated as interchangeable merely because both reports use the abbreviation Tg. Material identity and the test conditions are part of the meaning of the number.

For material selection, record the grade, supplied construction, specimen basis and relevant thermal exposure. Ask what the property is intended to predict in your application. A transition measurement does not by itself establish a continuous operating-temperature rating, soldering reliability or an entire board's service life. These are different questions that may require additional evidence.

The High Tg PCB guide provides a material-selection context. Keep a laboratory property report connected to the exact material and construction under discussion. If a substitute grade is proposed, compare the relevant methods and properties before concluding that a similar nominal Tg makes it equivalent. A purchasing shortcut can otherwise erase a meaningful engineering distinction.

The official Method 2.6.27B concerns thermal stress using convection-reflow assembly simulation. Before ordering a test, define why that exposure is relevant, what specimen represents the design and which applicable requirements govern the result. A test name alone does not establish the required profile, number of exposures, monitoring or acceptance limits for every project.

Separate the test procedure from the conclusion being sought. An investigation might characterize a construction, compare alternatives or evaluate conformance to an agreed requirement. Those purposes can need different sampling and reporting. Where a result will support release, identify the decision authority and the acceptance reference before testing, so the team does not invent a convenient pass criterion after seeing the data.

Preserve unexpected results. If a test is interrupted, the specimen is damaged or a setup problem is discovered, record what happened and decide how the result should be treated. Silently discarding an inconvenient trace can make a report look cleaner while making the engineering conclusion weaker. The official directory also includes general reporting and invalid-result guidance that can help frame the discussion with a laboratory.

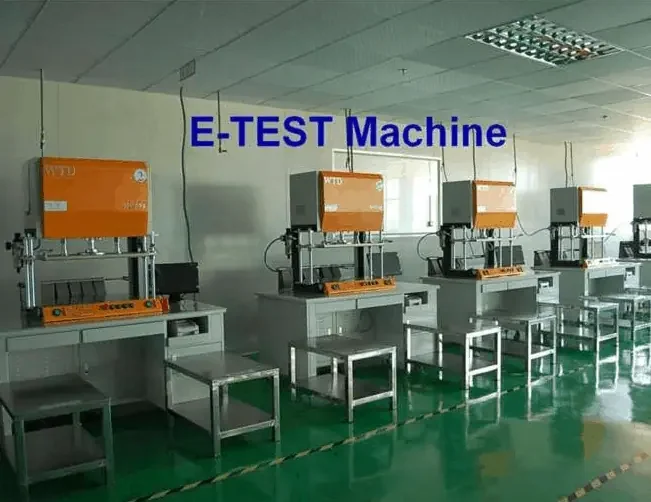

A useful report identifies the requested task, received specimen, method and revision, equipment or measurement basis, conditioning, observations and result. It also states deviations and limitations relevant to interpretation. Traceability matters because a technically correct test on the wrong board revision is still the wrong evidence for a shipment. Keep the report identifier connected to the actual order and sampled lot.

Review the units and result type. An average, an individual reading, a minimum and a distribution are different descriptions. A graph without labeled axes or an image without a meaningful scale can be difficult to use. If the acceptance requirement uses one type of result and the report supplies another, ask for clarification rather than treating them as equivalent.

Measurement uncertainty and sampling are separate issues. A highly repeatable measurement of one specimen does not establish every unit in a lot. A large sample does not repair a biased or unsuitable measurement method. State what the data can support and what remains unobserved. The quality-assurance page connects these records with broader manufacturing release and traceability.

Imagine a new rigid-board construction that shows an intermittent connection after thermal processing. First, preserve board identity, processing history and the electrical observation. Second, define the suspected region and inspect whether the available specimen still represents the original condition. Third, choose a method sequence that can investigate the hypothesis without destroying all useful evidence at the first step.

A structural examination and a controlled thermal experiment answer different questions. The first can show a particular section; the second can reveal behavior under a defined exposure. Their conclusions become stronger when they refer to a common construction and clear hypothesis. They become weaker when the engineer combines unrelated samples as if they were one continuous experiment.

Document alternatives as well as the favored explanation. If the evidence is inconclusive, report that limitation and identify the next test that could resolve it. This is an original planning example, not a RAYPCB customer case or proof of a particular failure mechanism. It illustrates why a thoughtful test request can be more valuable than an oversized checklist of method numbers.

Test cost can depend on sample preparation, specimen count, conditioning, equipment time, destructive work and reporting detail. Do not assume the same method number means the same commercial scope. A characterization program with engineering interpretation differs from a routine measurement against a defined criterion. Ask the laboratory or supplier to identify what the quoted work includes and what requires another approval.

For a fabrication enquiry, include the board drawing, revision, construction, quantity and required evidence. Identify tests that apply to qualification, first-build review or routine lots. Use PCB Manufacturing to discuss the overall order and Contact for a focused records request. Attach the worksheet manually; the tool does not transmit private project inputs or initiate a laboratory order.
