Polyimide PCB: Rigid vs Flex Materials & Selection

Compare rigid and flexible polyimide PCB constructions. Review thermal evidence, adhesives and electrical requirements, with material and documented-budget tools.

Original engineering guidance · References checked September 27, 2026

Polyimide chemistry can serve different constructions
Product categories, not interchangeable specifications or confirmed stock availability.

Polyimide PCB describes more than one construction

A polyimide PCB uses a polyimide-based material within its dielectric construction, but that label does not tell you whether the board is flexible or rigid. Thin polyimide films are used in flexible circuits. Glass-reinforced polyimide resin laminates are used in rigid multilayer constructions. Those routes have different material forms, processing requirements and mechanical behavior. Choose the construction first, then the exact laminate, bonding and protection system.

This page helps compare those material routes and prepare a reviewable requirement. It does not replace the flexible PCB manufacturing service or the grade-specific documentation of a material supplier. A request for “polyimide, high temperature” is incomplete without the assembly temperature history, continuous service conditions, mechanical requirements and acceptance evidence. The same family name cannot establish a finished board's thermal rating, flex endurance or electrical performance.

Separate film, flexible laminate and rigid laminate

Material formMain role in the constructionSelection question
Polyimide filmThin insulating or support constituentWhat exact grade, thickness and surface properties are required?
Copper-clad flexible laminateConductors bonded to a flexible dielectricWhat foil, dielectric and adhesive construction is specified?
Coverlay or bond materialProtection or bonding between constituentsWhich chemistry and finished bondline fit the process?
Glass-reinforced PI resin laminateRigid circuit core and multilayer constructionWhat laminate/prepreg system and thermal evidence apply?

Kapton is a branded film family, not a synonym for every polyimide PCB material. A film, a copper-clad laminate and a finished circuit are different products. The manufacturer's Kapton specifications describe multiple film types and their test conditions. A film's published property cannot simply be assigned to a complete PCB containing copper, adhesive, coverlay and components.

For a flexible laminate example, Pyralux AP uses an adhesiveless all-polyimide dielectric between copper. For a rigid material example, Isola P95/P25 identifies a polyimide-based core and prepreg system with glass reinforcement. These examples illustrate different product categories. They do not mean that any two grades are interchangeable or that RAYPCB stocks every construction listed by their manufacturers.

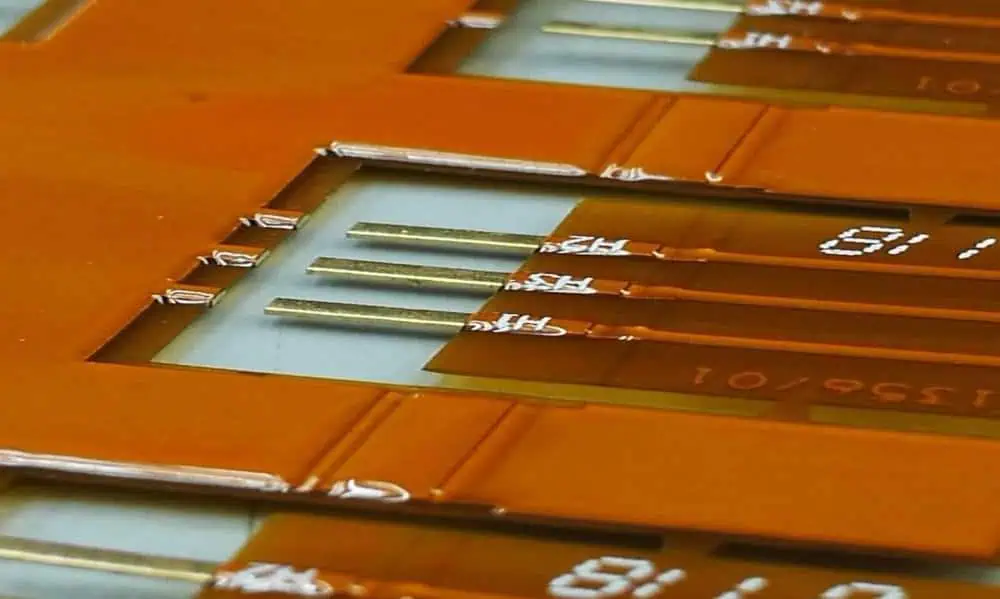

Flexible circuit with exposed contact fingers
Existing site photograph of a flexible circuit. The actual laminate, copper thickness and bend qualification are not established by appearance.

Translate temperature into a real material requirement

Separate short process exposure from continuous service. A soldering peak, a long dwell in an enclosure and repeated thermal cycling are different conditions. Record the duration and number of assembly exposures, expected local operating temperatures, storage conditions and any required qualification. Include adhesives, coatings, connectors and components in the system review. The base dielectric alone does not determine the weakest interface in the assembly.

Do not treat glass transition temperature as a universal maximum operating temperature. Likewise, decomposition data, a solder-float result and a relative thermal index describe different tests or recognition conditions. Compare like with like, including the sample construction and method. A high number beside “polyimide” can be irrelevant if it refers to a different property or material form. The High Tg PCB guide explains those distinctions in a broader laminate-selection context.

For a practical request, say that the board will see a defined assembly profile, a specified number of rework exposures and a measured service-temperature range. Identify where the temperature was measured and what part of the assembly it represents. If the operating condition is only a preliminary estimate, label it as such. The manufacturer and material supplier can then review the construction and identify evidence gaps rather than answering an ambiguous “Can this handle 250 degrees?” question.

Define requirements before choosing the exact grade
A requirements route; no automatic temperature-based material approval.

Build a polyimide material-route brief

The route worksheet asks whether the circuit must move, whether a rigid reinforced construction is acceptable, and which thermal and electrical requirements drive selection. It records the maximum process exposure, continuous-service requirement and evidence status separately. Its output names a material route to investigate and the documents still needed. It does not search live inventory, certify a grade or convert a temperature input into a material approval.

RAYPCB ENGINEERING

Polyimide Construction and Evidence

Flex Engineering
Loading Polyimide Construction and Evidence…
Using this tool & sharing results

Use the stated units, input limits and model assumptions. Results support an engineering discussion; they do not approve a design, process or production order.

After changing inputs, update the result before using it. Where a download or copy action is available, review that brief and attach or paste it into your enquiry. Opening Contact does not transfer these inputs or send a request.

How to use and share tool results

For example, a moving sensor tail with an assembly reflow exposure and controlled impedance calls for review of a flexible laminate, copper, coverlay and motion-specific construction. A stationary high-temperature control board may instead require a reinforced rigid laminate route. Both can use polyimide chemistry, but their mechanical and manufacturing requirements are not the same. The route distinction helps prevent a procurement substitution based only on the word “polyimide.”

The downloadable brief preserves unresolved items rather than scoring an incomplete project as unsuitable. Use the exact grade and data-sheet revision once identified. Where safety, sector or customer qualification is required, specify the applicable evidence separately. No web selector can infer those obligations from the material family or from the intended application's name.

Adhesives and regional build-ups can control the outcome

For a flexible circuit, the selected copper-clad laminate is only part of the stack. Coverlay and its adhesive protect the routed surface; bonding layers may join sub-constructions; supports may reinforce contacts or components. Even an adhesiveless core can be part of a finished board that contains several adhesive interfaces. Review their individual functions and compatibility. The flex stackup guide keeps each constituent visible in a layer-by-layer proposal.

For a rigid polyimide construction, follow the supplier's applicable core and prepreg processing information rather than importing a standard FR-4 recipe. Material handling, moisture control, bonding and dimensional behavior need the exact grade and process basis. The designer should specify the required finished electrical and mechanical conditions; the fabricator qualifies the route used to meet them. A generic material description is not a substitute for either responsibility.

Regional differences remain important. A connector tail can have a different total thickness from the bending span because protection and stiffeners start or stop locally. A rigid board may have controlled dielectric distances that differ from its overall board thickness. For both routes, identify which dimension matters for each requirement. A nominal total can hide an unsuitable signal-to-reference distance or a mating region outside its allowed envelope.

Read Dk and loss data with their conditions

Electrical properties depend on the exact formulation and test basis. Frequency, specimen construction, method and conditioning matter when comparing dielectric constant or dissipation factor. Do not assign a single Dk to all polyimides. Also distinguish supplier test values from the design values used for a particular field-solver model. Copper roughness, plating, geometry and covering layers contribute to the final circuit behavior alongside the dielectric.

If the design needs controlled impedance, provide the layer pair, target, tolerance, trace geometry and reference structure with the proposed material system. If insertion loss is important, describe the frequency range and the relevant transmission path. A material that tolerates the assembly process is not automatically the lowest-loss choice. The PCB impedance page helps frame geometry and verification questions before the material is locked into the drawing.

Insulation requirements also need their own basis. Spacing and dielectric withstand cannot be approved from a general statement that PI is an electrical insulator. Voltage, contamination, environment, geometry and applicable product requirements can change the design. Keep those conditions in the release brief and identify the required test or qualification. Avoid presenting the laminate's laboratory property as the completed assembly's safety rating.

Keep different thermal properties in their own context
Tg, decomposition, solder exposure and continuous-use evidence are different measurements.

Budget the selected construction, not the family name

Polyimide PCB cost is influenced by the exact material, dimensions, layer construction, panel use, processing and verification scope. Flexible and rigid reinforced builds should not share an unexplained FR-4 price multiplier. A material may reduce one assembly burden while adding another manufacturing requirement. Compare alternatives using the same accepted electrical, thermal and mechanical scope, and separate initial qualification from repeat manufacturing cost.

The optional budget worksheet below normalizes a supplier-backed recurring per-board allowance and a one-time setup allowance over the requested quantity. Enter the currency, dated source and construction scope. It does not invent a material price or predict what RAYPCB will quote. The low and high figures are your documented bounds, not automatically generated confidence limits. It is useful when comparing two already scoped alternatives, while detailed flexible-panel sensitivity belongs to the dedicated flex cost page.

RAYPCB ENGINEERING

Polyimide Documented Budget

Flex Engineering
Loading Polyimide Documented Budget…
Using this tool & sharing results

Budget outputs are planning scenarios. Check the included costs and rate assumptions; a confirmed quotation requires a review of your files and scope.

After changing inputs, update the result before using it. Where a download or copy action is available, review that brief and attach or paste it into your enquiry. Opening Contact does not transfer these inputs or send a request.

How to use and share tool results

An illustrative recurring range of 8–10 currency units per board and a setup range of 100–140 over 50 boards gives 500–640 for the lot, or 10–12.8 per delivered board under those assumptions. These are arithmetic examples only. They exclude any item not included in the entered allowances, such as freight, tax, assembly, qualification or special test fixtures. Changing the construction description or currency clears the old prices so they cannot silently carry over to another material route.

What to include in a polyimide PCB enquiry

Provide the board revision, rigid or flexible route, stackup, exact grade if selected, copper requirements, dimensional limits and quantities. State whether substitutions are allowed and who approves them. Include assembly exposure and service conditions as separate entries, with their sources. If a material claim is essential, identify the test method, document or recognition record required to support it rather than asking only for a family-name declaration.

Where repeated movement is involved, include the actual mechanism and reliability plan. Where the board is rigid, include any unusual thermal cycling, insulation or mechanical requirements. Both routes need a clear acceptance specification and a controlled change process. Continue to PCB manufacturing for the broader fabrication handoff, or contact RAYPCB directly with unresolved conditions for a scoped engineering discussion.

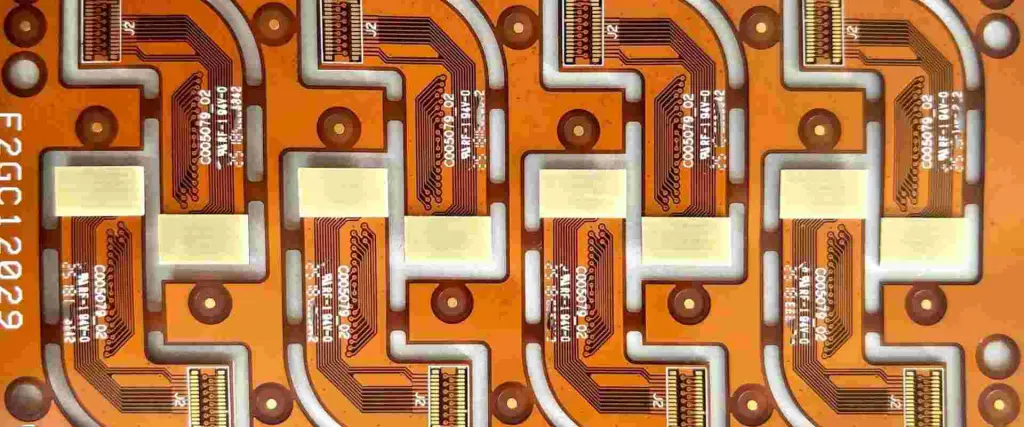

Flexible circuit inspection workstation
Existing site inspection reference. This image is not evidence of material certification or a specific acceptance result.

Polyimide material questions

Are all polyimide PCBs flexible?

No. Flexible film-based constructions and rigid glass-reinforced resin laminates are both relevant material routes. Specify the physical construction and exact grade rather than using the chemistry name as a mechanical description.

Does polyimide always mean Tg above 300°C?

No. Different products have different properties, and the reported property must be understood with its test method. Avoid a blanket temperature claim. A finished board or assembly also contains interfaces and components that need their own review.

Is an adhesiveless laminate an adhesive-free finished circuit?

Not necessarily. Coverlay, multilayer bonding and stiffener attachment can introduce adhesive even when the copper-clad core is adhesiveless. List all permanent constituents in the regional stackup to make the distinction clear.

Can I substitute another PI grade without redesign?

Treat substitution as a controlled engineering change. Compare the material form, processing, mechanical behavior, electrical data and required evidence. Identical nominal thickness or the same resin-family name is insufficient to establish equivalence.

Bring the requirement and the drawing together

Send the board revision, construction, quantity and the standard or engineering question you need reviewed. Identify unresolved requirements so the response can address them.

Send requirements for review

Optional: attach the downloaded worksheet manually. This guidance does not certify a design, approve a shipment or replace the applicable authorized standards.
