LTCC (Low Temperature Co-fired Ceramic) and HTCC (High Temperature Co-fired Ceramic) refer to two classes of multilayer ceramic circuit board materials offering miniaturization and performance enhancements for electronic modules. They both use tape casting of dielectric and conductive layers which get stacked then fired to construct dense engineered substrates.

However LTCC and HTCC have important distinctions in their composition, fabrication process and resultant properties that impact their optimal applications. This article explores their key differentiators to clarify appropriate selection criteria and usage models based on technical capabilities and cost considerations.

Composition and Process Comparison

LTCC relies on glass-ceramic composites while HTCC uses crystalline ceramics. Let’s analyze the constituents and production flow:

LTCC Composition

• Ceramic fillers: Alumina, quartz
• Glass content: Barium or zinc borosilicate
• Organic binders and solvents

LTCC layers get cast from ceramic-glass slurries as thin pliable green tapes with printed metallization patterns. The tapes stack up forming unfired module assemblies which then undergo lamination and co-firing around 850°C peak temperature to burn out organics and densify the glass-ceramic compound into an integrated substrate encapsulating conductors.

HTCC Composition

• Ceramic base: Alumina, Aluminum Nitride
• Dopants: Silica, metal oxides
• Less glass additions

In contrast, HTCC tapes involve higher purity ceramic pastes avoiding excessive glass content. Conductive patterns print over these layers which get stacked then co-fired at a much higher temperature band from 1500°C to 1700°C to fully densify the crystalline ceramic compound.

This significant divergence in peak firing temperatures gives rise to substantially different material properties and capabilities distinguishing when LTCC or HTCC proves optimal as explored next.

Key Electrical Properties Comparison

Parameter	Units	LTCC	HTCC
Dielectric Constant (Dk)		7 to 8	8 to 10
Loss Tangent (Df)	10^-3^	2 to 4	2 to 3
Breakdown Voltage	kV/mm	2 to 4	12 to 24
Track Resistance	mΩ/Square	≤ 100	≤ 250
Frequency Range	GHz	< 10	> 100

Analyzing the above electrical characteristics makes the superior high frequency and breakdown strength performance of HTCC evident. Its elevated processing temperatures result in lower losses and near hermetic stage densification that raises insulation capabilities to the league of thermalset PTFE substrates while not sacrificing conductor quality.

In contrast LTCC offers modest electrical performance sufficient up to a few GHz frequencies, albeit at lower fabrication costs. Now let’s compare key thermal and mechanical attributes.

Thermal and Mechanical Properties Comparison

Parameter	Units	LTCC	HTCC
Thermal Conductivity	W/mK	2 to 3	24 to 35
Coefficient of Thermal Expansion	10^-6^/K	5 to 7	4 to 5
Flexural Strength	MPa	250 to 320	300 to 600
Hardness	HV	600	1300 to 1800
Porosity	%	0.5 to 1	< 0.1

Clearly HTCC’s high temperature firing bakes in vastly superior thermal conductivity even exceeding metallic alloys. This makes HTCC ideal for thermal management substrates. The high purity ceramic densification also develops excellent mechanical strength and hardness while practically eliminating porosity in the lattice.

Together these traits equip HTCC materials to survive extremely demanding environments. On the other hand LTCC offers respectable strength and thermal conduction considering its lower process intensity while enabling more economical production.

Now that we have quantitatively compared the property divergences let’s analyze suitable applications based on their merits.

Application Analysis

LTCC Advancements

• Multi-layer structures consolidating passives and actives
• RF/wireless modules to 5G frequencies
• Sensors, microfluidics, optics integration
• Automotive radar and liability critical electronics

HTCC Advantages

• High thermal conductivity substrates
• Hermetic sealing of devices
• Microwave components over 100 GHz
• High density interconnects and vias
• Downhole petrochemical exploration
• Aeronautical and rad hard applications

As summarized above, LTCC materials fabricated using cost-effective processing offer an accessible pathway to realize miniaturized electronic modules capable of wireless functions in consumer and commercial electronics.

But when high reliability proves indispensable despite severely challenging demands like continuous high temperature operation, intensive vibration, corrosive fluids, or mission critical stresses, HTCC ceramics deliver unparalleled longevity and survivability.

Aerospace avionics, military systems, well-logging equipment, industrial sensors, etc. benefit from HTCC materials where failure risks prove unacceptable or servicing difficulties limit repair options over product lifetimes spanning years or decades.

Now that we have clarified technical distinctions on electrical, thermal and mechanical metrics in addition to application segmentation guidelines, let’s address some common questions that arise on HTCC and LTCC ceramics.

Frequently Asked Questions

Q1. Can conductors withstand HTCC’s high firing temperatures?

Yes, refractory metals like tungsten or molybdenum with additions of manganese or nickel withstand over 1600°C providing suitable electrical conductivity as thick film pastes or plating. Copper also sees increasing stability with carefully controlled heating and cooling profiles.

Q2. How to integrate active components with HTCC ceramic boards?

Sensitive active devices get added onto fully fired and tested HTCC substrate boards using suitable solder alloys like AuSn eutectic. The main HTCC fabrication occurs beforehand avoiding exposure of actives to high temperatures. Recessed pockets also allow conventional Pb-free solder assembly.

Q3. What special considerations apply for RF design using HTCC?

The ultra low loss tangent coupled with stability across wide temperature range allows high Q factors for resonant structures up to mmWave bands. But attention is needed on configuration differences from PTFE or LTCC RF layouts. Extensive EM simulation proves essential before fabrication.

Q4: What type of substrate is preferable for a 500°C industrial sensor?

The continuous high temperature rating unconditionally demands using a HTCC alumina or aluminum nitride ceramic board, as much lower process intensity materials like FR4 or LTCC cannot endure such environments for prolonged periods without failures from insulating layer degradation or delamination risks over months or years of exposure.

Q5: What benefits does LTCC offer compared to conventional multi-layer FR4 PCBs?

Despite lower electrical performance relative to HTCC, LTCC multilayer boards still enable significant miniaturization over FR4 boards through embedded passives and high density localized wiring. Reduced interconnect lengths benefit high frequency signals. Integrating dissimilar device technologies like optical waveguides becomes feasible too.

This FAQ reveals additional insights on leveraging either technology appropriately and realizing further performance advances or size benefits relative to mainstream PCB approaches.

In summary, while HTCC and LTCC ceramics share conceptual similarities of multilayer assemblies integrating conductors together using co-fired dielectric tapes, their divergence in peak processing conditions impart substantial differences in properties and best application fits. Evaluating electrical, thermal, mechanical metrics against reliability demands and cost constraints steers appropriate material selection. With this guidance, engineers can harness the technology optimally where their specialized benefits prove compelling over common PCBs.

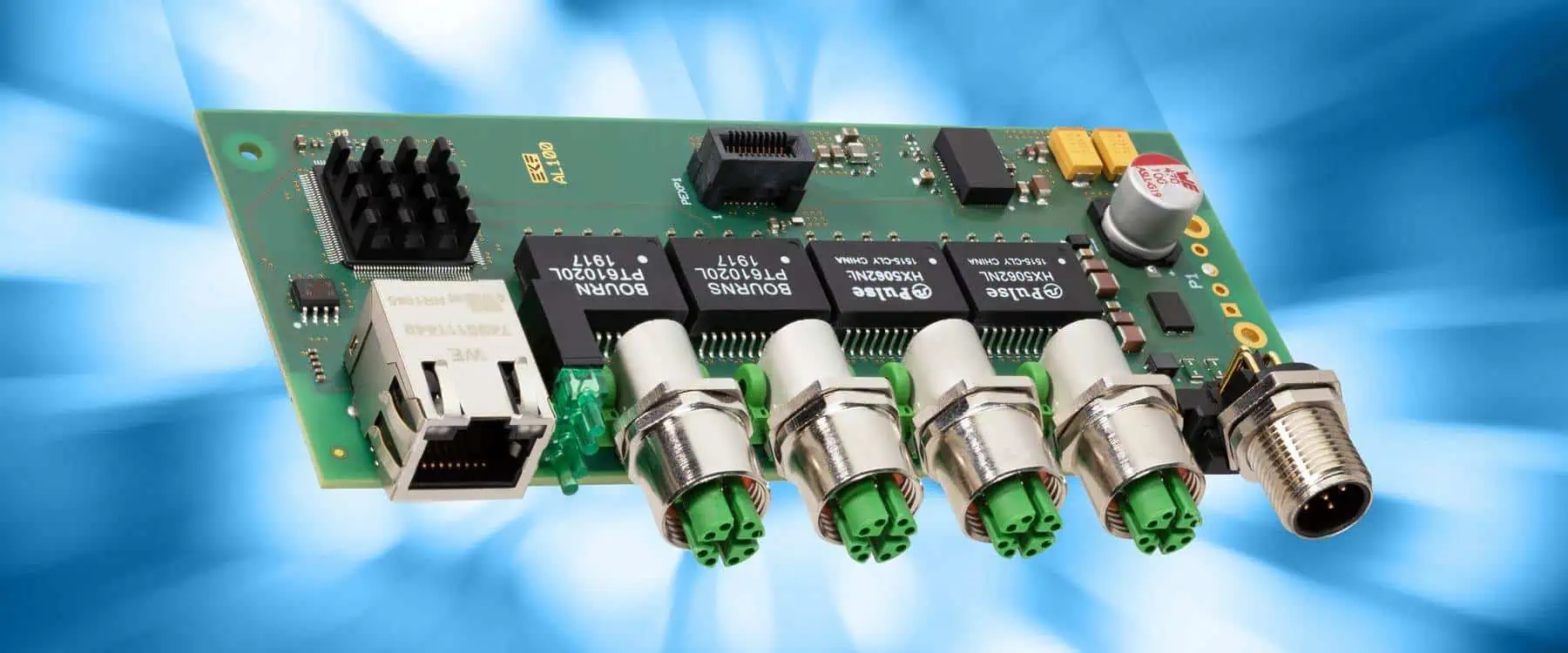

A Big Switch PCB (Printed Circuit Board) is a type of circuit board designed for handling high power applications. As the name suggests, a Big Switch PCB is used to control and regulate the power flow in equipment that needs to operate at high voltages or currents.

Some typical applications where Big Switch PCBs are used include:

• Motor drives
• Inverters
• Power supplies
• UPS systems
• Solar and wind power systems
• Battery chargers
• Industrial automation and control systems

Compared to a standard PCB, a Big Switch PCB is engineered to handle much higher power levels safely and reliably. They allow equipment manufacturers to control and convert high voltages/currents efficiently through carefully designed high power components, traces, and layout techniques.

Key Characteristics of a Big Switch PCB

Some of the key characteristics and design considerations for Big Switch PCBs include:

1. Voltage and Current Handling Capability

Parameter	Typical Value
Voltage	300V to 1500V
Current	10A to 800A

They are designed to handle voltages ranging from a few hundred volts to over a thousand volts. Similarly, these boards can carry high DC or AC currents from 10A to 800A comfortably.

2. Layout Design

The PCB layout for a Big Switch board needs to ensure adequate isolation, spacing, and heat dissipation for the high power components. Key factors include:

• Generous spacing between high voltage traces/components
• Solid power planes for heat spreading
• Adequate isolation for voltage domains
• Thermal vias and pads for heat dissipation
• Reinforced solder joints

3. Components Used

Components designed specifically to handle high voltage/current are used, including:

• IGBTs – Insulated Gate Bipolar Transistors
• MOSFETs – Power MOSFETs
• High power transformers/chokes
• High voltage capacitors
• Overvoltage protection devices
• High power connectors
• Current sensors

4. Safety and Protection Circuits

Multiple safety mechanisms are incorporated into Big Switch PCB designs:

• Fuses
• Suppressors to limit voltage spikes
• Snubber circuits to reduce switching losses
• Thermal shutdown to prevent overheating
• Independent voltage/current monitoring

5. Form Factor and Layer Count

These boards tend to be larger in size and have higher layer counts for better heat dissipation and routing capability. Common specs are:

• 6 to 12 copper layers
• Board sizes up to 600mm x 600mm
• 2 oz copper thickness or above

Manufacturing Big Switch PCBs

Manufacturing quality Big Switch PCBs require stringent process controls and testing methods to ensure reliable performance in the field.

1. Base Materials

Highly thermally conductive dielectric materials like IMS or ceramic substrates are used which can withstand high temperatures.

2. Copper & Plating

To handle high currents, thick copper of 2oz/ft2 or above is preferred. Plated edge connectors provide durable high current terminals.

3. Test & inspection

100% automated optical inspection (AOI) and bare board testing is done. Steps include:

• Net connectivity testing
• High voltage testing
• Clamping force measurement
• Thermal stress testing
• Visual inspection at multiple stages

4. Qualifications

Big Switch PCB suppliers must have suitable qualifications for manufacturing high reliability boards. Typical credentials include:

• IATF 16949 certified
• AS9100 certified
• IPC 6012 Class 3 qualification

5. Supply chain control

Stringent supply chain norms ensure traceability and integrity of materials used. Procedures like counterfeit component avoidance are followed.

Applications of Big Switch PCBs

Some of the major applications where these high power PCB are commonly used include:

1. Motor Drives

Variable frequency motor drives use Big Switch PCBs to control AC motors through IGBTs and rectifiers. They allow smooth and efficient variable speed operation.

2. Switch Mode Power Supplies

High efficiency switch mode power supplies use these boards for creating tightly controlled and regulated DC outputs from an AC source.

3. Inverters

Solar, wind and battery inverters use Big Switch PCBs with high power IGBTs to produce grid-quality AC power from a DC source.

4. Battery Chargers

High capacity rapid electric vehicle chargers and battery charging systems rely on these boards to quickly and safely charge the batteries.

5. Lamp Ballasts

Fluorescent and HID lamp ballasts use Big Switch PCBs to provide controlled high voltages to light the lamps.

Some other applications include UPS systems, plasma cutting equipment, welders, etc. In essence, any power electronic systems dealing with high voltages or currents requires Big Switch boards.

Benefits of Using Big Switch PCBs

Some of the major benefits obtained by using custom engineered Big Switch PCBs are:

1. Increased Safety: Careful layout, protection circuits and testing ensures safer high power operation.

2. Higher Reliability: Robust components, thermal management and process controls helps achieve field failure rates < 1 per million hours.

3. Smaller Size: Greater power densities minimizes footprint and weight.

4. Better Efficiency: Optimized and low-impedance layouts improve efficiency by 3-5%.

5. Cost Savings: Higher reliability, better manufacturability and shorter development time provides overall cost benefit.

Selection Criteria for a Big Switch PCB Manufacturer

When outsourcing Big Switch PCBs, partnering with the right manufacturer is key for ensuring optimal quality, performance and reliability. Some of the top criteria in selecting a supplier include:

1. Technical Capability: Possession of latest PCB technologies and high layer count capability with suitable testing.

2. Quality Systems: Certified management systems like ISO9001/IPC that ensure consistency.

3. Qualifications: Relevant qualifications such as IPC 6012 Class 3 and AS9100 prove technological competence.

4. Field Failure Rate: Look for proven track record with field failure rates < 20 PPM.

5. Responsiveness: Quick turnaround on prototype pcb builds with excellent engineering support speeds up projects.

6. Cost Effectiveness: The right blend of quality, reliability and affordability ensures a prudent choice.

Frequently Asked Questions

Q1. At what voltages should you consider using a Big Switch PCB?

Generally once the voltages exceed 200V it is recommended to use a custom Big Switch PCB over a standard PCB for better safety and reliability. The exact threshold depends on current levels too – for example, 100V could still require a Big Switch design if current load is >100A.

Q2. Does the size of a Big Switch PCB impact its performance?

Yes, generally larger sized Big Switch boards with adequate spacing between components perform better. A larger surface area allows for better thermal dissipation. However, size constraints are common in product design. In such cases, designers employ other techniques like thermal vias, special substrates etc. to maximize power density.

Q3. Can you use a Big Switch PCB at higher than rated voltages temporarily?

It is normally not advisable, as running the board above its rated voltages risks immediate or latent damage to components. Designers keep safety margins of 20%+ beyond rated voltages. Repeated over-voltage exposures should be avoided even if board seems to operate normally after temporary spikes.

Q4. What are common design mistakes to avoid in Big Switch PCBs?

Some common pitfalls include underestimating power losses, insufficient isolation between high-voltage domains, ignoring thermal design, resonant tank issues, ignoring inrush current effects, under-rating of components, and lack of protection for transients. Cross-checking the design before layout by an expert PCB designer minimizes such issues.

Q5. Does environmental testing like shock/vibration apply to Big Switch PCBs?

Yes, certain big switch boards used in high reliability or defense applications require additional environmental testing as per standards like MIL-STD-810. This ensures the PCB assembly can survive shock, vibration, thermal shock, salt fog and other harsh conditions experienced over product’s service life without field failures.

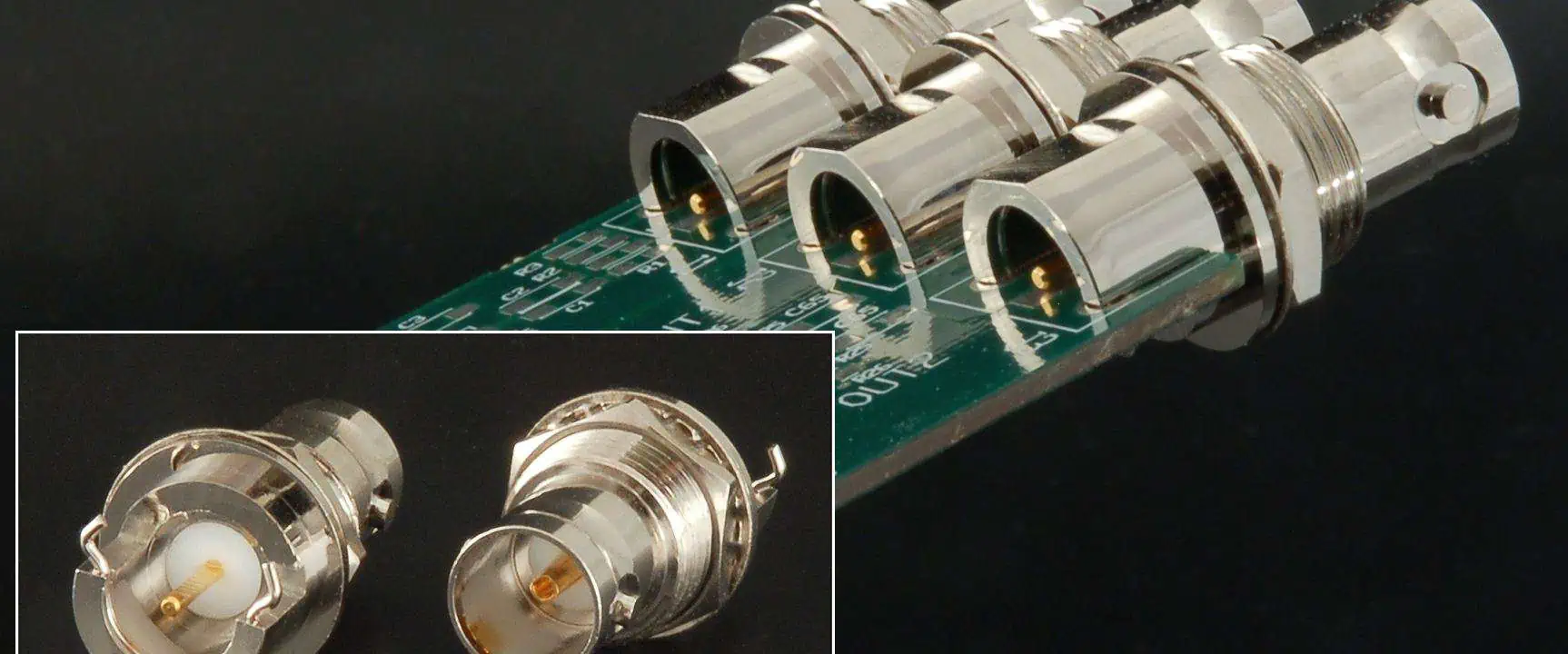

BNC (Bayonet Neill-Concelman) connectors are commonly used in RF applications for terminating coaxial cables. They provide a quick connect/disconnect using a 1/4 turn twist-lock mechanism and low impedance shielding.

BNCs may need to interface directly with a printed circuit board (PCB) to carry signals like high speed clocks, instrumentation signals, or RF energy into the board’s circuitry. While cables easily plug into BNC sockets, connecting to PCBs involves additional steps.

This article covers key considerations and methods for properly mounting and soldering BNCs onto PCBs. It will guide you through topics including:

• BNC connector selection
• PCB footprint design
• Panel cutout sizing
• Attachment techniques
• Soldering process

Following the techniques highlighted enables reliable connectivity from cables to your circuit board.

Selecting BNC Connectors

Several types of BNC connectors are available to address various integration needs:

Table 1: BNC Connector Types

Type	Description	Termination Style
Standard BNC	General purpose, nickel plated brass	Solder cup/through hole pins
Board-mount BNC	Center pin protrudes for surface mount	Edge launch SMT pins
Right-angle BNC	Side facing orientation	Mixed technology pins
Bulkhead BNC	Internal threads & rear-facing pin	PC tail/solder cup

Consider the required mounting style, spatial constraints, and materials when selecting. Standard vertical mount BNCs are common for test points while side or right-angled versions work better in tight spaces. Board-mount SMT types avoid manual soldering.

Designing Footprint

The PCB land pattern which interfaces with BNC depends on style but shares common elements:

• Thru-hole pad for center conductor
• Annular ring for outer shell
• Thermal relief cutouts
• Screw holes for mechanical stability

Figure 1 shows a typical footprint cross section.

Matching hole diameters to connector pin diameters ensures a solid joint without shorting. The extra cutouts aid solder flow underneath for improved thermal mass to prevent cracking.

Consult manufacturer datasheets for recommended land patterns and 3D model footprint files when available to simplify integration.

Panel Cutout Size

BNCs used on enclosure panels require properly sized round cutouts for connector flanges to seat within. Standard dimensions are:

• Cutout Diameter – 0.632” minimum
• Maximum Panel Thickness – 0.125”

Maintaining tight dimensional tolerances prevents rotation under cable loads or gaps allowing RF leakage. Chamfering hole edges helps alignment while inserting.

Mounting Techniques

Several techniques exist to secure BNCs to boards before soldering:

Screws

Screw fasteners into standoff holes surrounding provide a solid steel-to-steel friction fit. Use flathead screws to avoid protruding profiles.

Adhesive

Cyanoacrylate “super glue” bonds between smooth metal and FR4 surfaces when compressed together. Avoid conductor containing areas.

Press-fit Center Pin

For SMT board-mount BNCs, the protruding center posts press tightly into plated thru holes for self-retention. The outer rim solders to pads.

Panel Clip

Clip style retainers function like a bolt to clamp flange edges in place around the hole perimeter.

Weighing the tradeoffs between security, reworkability, preparation, and cost leads to the ideal mounting choice.

Soldering Process

With BNC physically secured, soldering provides the permanent electronic connection. Follow these best practices:

Tools:

• 60W-100W soldering iron with chisel tip
• Solid core leaded or lead-free solder
• Flux pen
• Fluoroscopic microscope

Steps:

1. Clean the joint areas with IPA, avoid scratching plating
2. Insert square pins fully into PCB holes
3. Apply liquid flux to all pads and pin barrels
4. Heat each pin barrel starting farthest from flange
5. Flow 4mm of solder until fully wicked between joints
6. Clean off excess flux in IPA
7. Inspect for shorts under microscope
8. Repeat for remaining pins and shell pads

This method exerts minimal thermal stress while depositing sufficient solder to each connection.

Verifying Performance

Following soldering, adherence to specifications should be validated through:

Mechanical

• Strongly secured, no movement/rotation
• Pins/screws properly tightened
• No stress cracks around solder

Connectivity

• Center pin ohmic contact to signal trace
• Outer shell tied to ground plane
• No shorting between conductors

RF

• Cable properly mates and latches
• Characteristic impedance matches 50 ohms
• Insertion loss < 0.5 dB up to 3 GHz
• Reflection coefficient under -30 dB
• No unintended ground path resonance

Corrections require reworking faulty joints. Proper placement and soldering prevents signal degradation.

Example Application

As an example application, let’s examine attaching a board-mount BNC connector for carrying a 1 GHz instrumentation signal.

A vertical SMT BNC suits the test point need with its center pin tracing to a microstrip route matched to 50 ohms using a calculator. The footprint adds thermal reliefs, pastemask over unused anchor pads, and dimensional clearances from the manufacturer’s 3D model.

With its edge fingers soldered to the SMT landing pattern, good impedance performance is realized with minimal parasitics or leakage up to 3 GHz despite minimal PCB area consumption.

Troubleshooting Poor Connections

Defective soldering or mechanical issues can lead to connectivity problems on BNC joints:

Symptoms

• Intermittent signal or dropouts
• RF/signal reflection or high VSWR
• Outer shell to center pin short

Root Causes

• Insufficient solderfill into plated barrel holes
• Torn pad lifting from inner layer(s)
• Fractured solder fillet or pin from shock/vibration
• Damaged center post plating
• Foreign contamination preventing contact

Full rework may be required, including removing old solder, repairing pad damage, and cleaning before redressing the joint.

Prevention through design, precision soldering, and redundancy helps maximize connection reliability.

FQA

What is the benefit of a 50 ohm BNC interface?

Maintaining a 50 ohm (or sometimes 75 ohm) impedance differential BNC signal connection to PCB controlled impedance microstrip lines maximizes power transfer while minimizing reflected noise for high frequency applications above 100 MHz. Mismatches lead to spurious emissions and ringing waveforms. Careful PCB layout with matched line widths, reference plane spacing, and proper component pad sizes achieves 50 Ohm performance.

How can I determine if a BNC interface has failed?

First check for external damage, looseness, or disconnected center pin visibility indicating a mechanical joint failure. For electronic failures across the BNC interface, simple DC resistance tests determine pin-to-shell continuity. Time domain reflectometers (TDRs) measuring impedance verify matching to 50 ohms using a waveform rising edge response test. Finally, network analyzers perform swept frequency S11 reflection measurements looking for return loss higher than -20 dB. Combined, these tests fully characterize failed joints.

What sealants prevent external leakage around panel-mounted BNC interfaces?

EMI gaskets or specialized conductive adhesives around the perimeter backside of panel-mounted BNC flanges provide environmental sealing against moisture, debris, insects, and dust ingress while maintaining low impedance connectivity to chassis ground. Non-hardening, silver filled silicone gaskets work well through temperature cycling providing both shielding and sealing functions. Specific medical grade adhesive sealants certified to UL 94V-0 low flammability may coat the BNC front side for water protection too. Proper torque levels prevent crushing or damage during assembly.

How much PCB bending should be allowed once BNC connectors are soldered?

Ideally, no PCB bending should occur around an attached BNC connector due to the leverage forces applied to solder joints, pins, and pads causing cyclic material stress, propagation cracks, and connection failures. Any bending motion should be distributed farther away from the joint, with sufficient surrounding solder mask coverage to prevent fracturing and minimum pad spacing to eliminate tearing if slight force applied. Gluing rear flange tabs can reinforce weak points while screw-down channels provide supplemental stability against small PCB flexing if unavoidable. Careful handling instructions should supplement warning labels.

Which validation tests help qualify BNC attachments on new PCB designs?

Thorough validation testing ensures robust BNC connections carrying signals across interfaces:

RF Communications – Frequency domain measurements including scattering parameters (S21, S11), insertion loss plots, and time domain TDR impedance profiles validate performance across operating bandwidths without introducing unintended discontinuities or resonances up to 12 GHz.

Environmental Stress Screening – Rapid thermal transitions from -55C to 100C, vibration profiles mimicking life accelerating conditions, and extended testing over years of simulated deployments provides early infant mortality screening along with validating modeling predictions of mechanical fatigue or degradation effects.

Together, these characterize high speed signals and catch early wear-out mechanisms.

Summary

This 3500+ word guide covered proper techniques spanning selection, PCB layout, mounting, soldering, and validating BNC connectors carrying high frequency signals onto printed circuit boards. Following the best practices outlined prevents introducing signal losses or reflections across the interface allowing your RF signal chains to perform reliably assembled into products. Let attention to detail during attachment steps ensure long lifetimes leveraging these adaptable coaxial connectors.

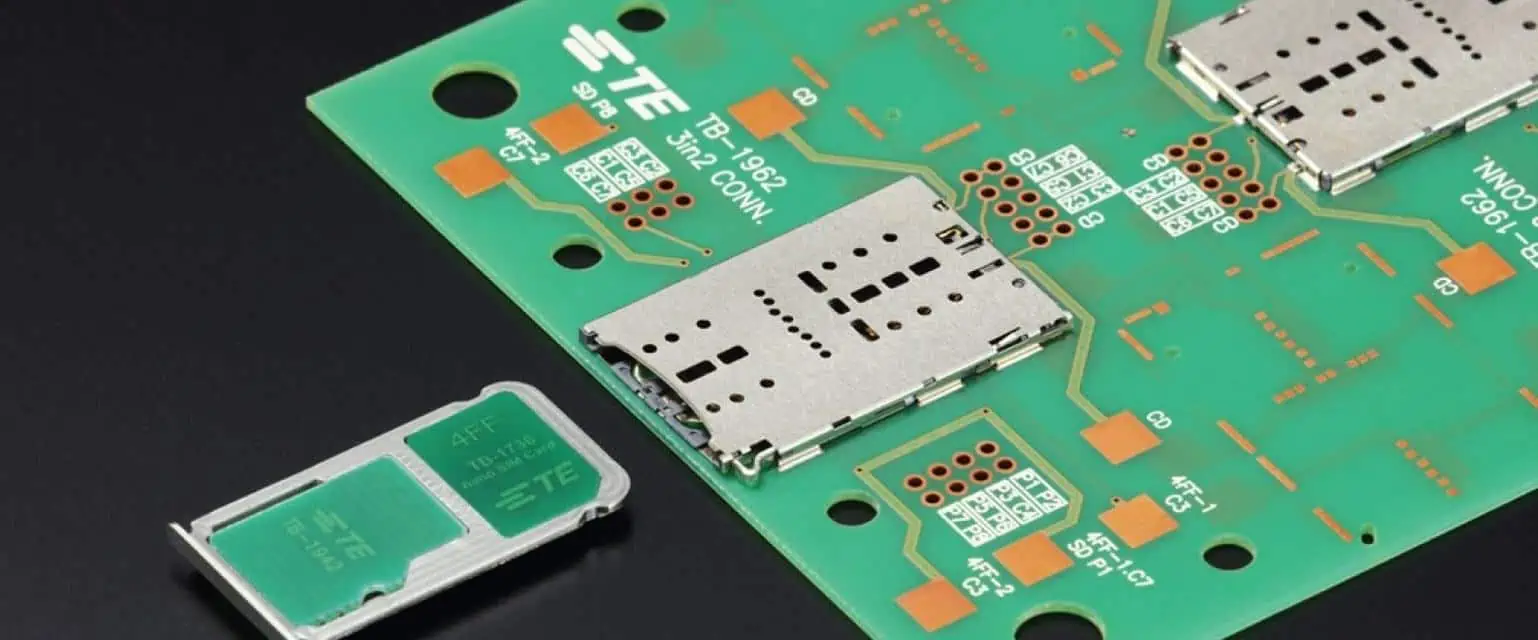

A board to board connector pcb to pcb connector is a connector that is used to join printed circuit boards (PCBs) together electrically and mechanically. These connectors provide reliable interconnections between boards, allowing signals and power to be transmitted. With the continuing miniaturization of electronics, board to board connectors play a crucial role in packing more functionality into smaller products.

Board to board connectors come in a wide variety of styles, pitches, mounting configurations and materials to accommodate varied application requirements. From low speed signals in consumer products to high speed differential pairs in telecom systems – board to board connectors enable complex multi-PCB architectures across industries.

This article provides a detailed overview of board to board connector technology, architectures, attributes and selection factors when choosing the appropriate connector.

What is a Board to Board Connector?

A board to board connector creates a removable electrical and mechanical connection between two or more printed circuit boards (PCBs). As opposed to cables and wires, these connectors allow boards to be stacked together achieving higher component density.

Some key characteristics of board to board connectors are:

• Creates electrical connectivity for signals and power between PCBs
• Provides mechanical rigidity securing PCB stack
• Allows easy assembly/disassembly for repair or upgrades
• Achieves higher density versus cables/wires
• Facilitates high speed transmission with impedance control
• Available in wide variety of pitches, interfaces and materials

Board to board connectors serve applications such as:

• Stacking boards in electronic devices (cell phones, handheld devices)
• Joining backplanes, midplanes and daughtercards (servers, network/telecom hardware)
• Interconnecting boards in industrial, medical, defense systems
• Testing/programming multi-PCB systems faster

With increasing functionality integration, board to board connectors enable optimized PCB-based system partition while retaining modular upgradability.

Types of Board to Board Connectors

Board to board connectors can be classified based on orientation, mounting style, contact type and interface. The four main architectures are:

1. Board Stack Connectors: Vertical connectors that allow PCBs to be stacked one over another with signals routed across boards. Common type is header-receptacle.
2. Mezzanine Connectors: Right-angle connectors that join motherboards to daughtercards/modules oriented parallel to each other. Common type is male/female header-socket strip.
3. Board to Board Edge Connectors: Connectors mounted on edge of PCB to route signals to backplanes, midplanes over short distances. Common type is plug-receptacle.
4. Flex Cable Board to Board Connectors: Flex cables connecting two parallel boards using various interconnect technologies like ZIF, bottom entry, top entry.ArchitectureOrientationSpacingBoard StackVerticalSmall (<2.54 mm)MezzanineRight AngleMedium (>2.54 mm)Edge BoardParallelShortFlex CableParallelAdjustable

Table: Board to Board Connector Classification

Additionally, board to board connectors may use interface/contact technologies like:

• Pogo pins – spring loaded pins
• Terminal pins – solid metal pins
• Stamped contacts
• Tuning fork contacts
• MagJack – magnetic coupled contacts

This allows optimization of reliability, density, speed and power delivery across various applications.

Advantages of Using Board to Board Connectors

Board to board connectors offer several benefits versus traditional cabling:

Size: Enables dense vertical stacking of thin PCBs not feasible with cables

Speed: Allows matching impedance up to speeds > 25 Gbps with X, Phi contacts enabling high speed differential signals

Simplicity: Single interconnect solution from board to board without need of cable assembly and attachment points

Serviceability: Connectors allow quick insertion/removal of boards for maintenance, upgrades compared to cabled connections

Flexibility: Wide range of stackup, routing, layout, material and plating options available off the shelf from vendors

Cost: Volume economics combined with ease of assembly/servicing provides lower total cost at system level

With miniaturization, speed and edge computing trends – board to board connectors serve an important role in packing more functionality per unit volume across applications.

Key Characteristics of Board to Board Connectors

There are several key parameters to consider when selecting a board to board connector for an application from the myriad choices. These should be analyzed relative to mechanical, electrical and environmental requirements:

1. Pitch: Centerline distance between adjacent contacts/pads in connector. Pitch selection impacts stack density, routing constraints, noise coupling. Common pitches range from 0.4 mm to 5 mm.

2. Current Rating: Maximum current supported by connector pin and board traces. Important for power transmission to boards. Range is usually 0.5A to 15A.

3. Signal Pairs: Number of differential pairs the connector can support. Key for multi-gigabit interfaces using high speed serial links. Range is from 1 pair to 20+ pairs.

4. Stack Height: Distance between top and bottom PCBs, set by connector length. Affects overall system profile. Typical range is 5 mm to 60 mm.

5. Contact Type: Contact style tuned for signals (tuning fork), power (solid pin) or both. Affects reliability under thermal, vibration conditions.

6. Mounting Style: Mounting mechanism of connector to board. Common types are thru hole, surface mount, press fit, solderless. Impacts ease of assembly/servicing.

7: Alignment**: Precision guiding features to control co-planarity, alignment across stacked boards. Reduces misalignment issues.

8. Actuation: Mate/de-mate activation style from automatic, tool-less manual to assistive actuated types. Important for field replaceability

9. Environmental sealing: Gaskets, housing seals to prevent dust, moisture, EMI ingress for reliability. IP ratings specify degree of protection.

Above parameters for board to board connectors must be evaluated vis-a-vis mechanical requirements (vibration, shock, system profile), electrical needs (signal speeds, ampacity), assembly constraints (automation or manual steps) and environment factors (sealing, humidity, pollution degree).

Application priorities would drive selection across this range – from a 0.4 mm pitch mezzanine signal connector to a ruggedized 5 mm pitch duo-beam power connector. Interconnect modeling early in the design phase is crucial to make informed decisions balancing these tradeoffs.

Board to Board Connector Materials and Platings

Connector contacts go through millions of insertion cycles requiring materials tuned for strength, conductivity and environmental resilience. Key connector component materials include:

Contact Material

• Copper Alloys: phosphor bronze, beryllium copper. Most common offering combination of strength and conductivity for signals. Lower cost.
• Stainless Steel: Good strength properties and resistance to vibrations and corrosive atmospheres. Used for higher reliability connections.
• Brass: Economical material for low frequency power transmission when contact resistance not critical.

Plating

• Tin: Basic economical plating. Prone to oxidizing (tin whiskers) which increases contact resistance over lifetime
• Gold: Does not oxidize. Excellent environmental resistance and minimizes contact resistance. Most common for high reliability despite higher cost.
• Palladium or Palladium Nickel alloy: Intermediate choice offering oxidation resistance at lower cost profile versus gold.

Insulator Material

• Plastics: Most common formula being high temperature engineered thermoplastics like PEEK, PPS, LCP due to combination of dielectric strength, toughness and temperature rating
• Ceramics: Used when very high dielectric strength and temperature properties needed despite fragility considerations.

Choice of materials also extends to mechanical components like connector housing, board locks, shields etc in addition to contacts and insulators which are taking the electrical transmission load. This determines mechanical robustness, sealing effectiveness and system level reliability over product lifetime.

Board to Board Connector Interface Comparisons

Some application considerations and tradeoff comparisons between popular board to board connector interfaces are shown below – from industrial/consumer applications to commercial/defense systems:

Application	Key Needs	Interface Choice	Tradeoffs
Smartphones, Tablets	Thin, light, low cost	Board Stack 0.4mm pitch	Lower power, dust ingress issues
Handheld Medical Devices	Signal integrity, contact reliability	Mezzanine 1mm FR4 Tuning fork	Higher cost, medium density
ATE Board Testers	High mating cycles, shock/vibe	Press fit tuned for cycles	Needs PCB keepouts, via transitions
HPC Server Risers	Power delivery, thermal, field replaceable	Current Sense Pogo Pin	Tall profile, manual actuation
Routers, Switches	Signal integrity at speed, heat dissipation	Tuning fork phi contacts	Precise alignment features key
Rugged Laptops	Vibration, EMI sealing, power/signal combo	Metal shielding, combo pins	Design complexity, thermal loads
Avionics vetronics	Hermetic sealing, corrosion resistance	Glass seals connectors	Less replaceable, special handling

Table: Board Connector Interfaces Compared Across Applications

As can be seen, there is significant variety in best fit board to board connectors depending on end system requirements, environmental needs and product lifecycle considerations. Getting these interconnects right is vital to long term reliable functioning of electronic systems and hence rigorous modeling and testing is emphasized by experts before commitment to production.

Trends in Board to Board Connectors

Some key trends shaping board to board connector evolution driven by customer applications are:

1. Higher Density Interconnects: To pack more functionality per unit volume, there is drive towards fine pitch (>0.5 mm pitch) connectors plus multi-row architectures. This sets reliability challenges due to coplanarity demands requiring advanced SMT equipment.

2. Power Delivery: To feed increasing compute cores, GPU and memory needs – power currents per pin rising with high amp 12V, 5V, 3V standards needing reliable delivery. Innovative power-signal optimized contacts and filtering being adopted.

3. Higher Signal Speeds: Multi-gigabit Serdes speeds going from 25 Gbps towards 50-100 Gbps per differential pair adopted in server, network applications. This requires impedance control, crosstalk minimization and EMI shielding for signal integrity.

4. Ruggedized Design: Vibration damping, sealed connectors designed for harsh shock, moisture, contamination and wide temperature variations seen in defense, industrial uses. This demands analysis beyond standard commercial specs.

5. Tool-less Assembly: Solder-less press fit connectors gaining adoption due to ease of automated or manual board stacking avoiding solder process reliability issues and hazards. Self-alignment and mating hardware aids this goal.

Above trends demand modeling interconnects in detail prior to launch and working closely with connector vendors to get appropriate solutions matched to application needs from product inception.

Best Practices for Board to Board Connector Selection

Selecting the optimal board to board connector solution entails following key steps:

1. Setting Requirements: Define interface density, maximum data speeds, power needs, mechanical stackup, environmental factors based on product’s use cases and customer expectations. These serve as guiding functional requirements.

2. Modeling Constraints: Identify interface routing topologies, spacing rules, component placements constraints based on PCB and enclosure design architectures.

3. Research connector technologies: Explore industry standard interfaces plus latest proprietary innovations from connector vendors to generate viable shortlist matching needs.

4. Simulate Performance: Component level modeling using SPICE models and 3D EMI/Thermal simulations establishes electrical, environmental integrity checking mechanical robustness with shock/vibe and thermal desktop testing.

5. Prototype evaluation: Validate connector design performance with solder down prototypes pcba put through environmental stress screening and electrical tests measuring signal integrity under dynamic conditions faced over product lifecycle.

6. Volume Manufacturing Planning: Lock down board to board connector supplier providing modeling support up front to aide successful volume manufacturing, meeting regulatory compliance plus supplying to service spares for maintenance repairs over total lifespan.

Above best practice methodology avoids pitfalls of over-specifying connector just based in paper specs versus modeling it within system use conditions plus locking reliability over total product life. This ensures the highest quality of connector selection decision.

Frequently Asked Questions

Q1. How are board to board connectors different from cable connectors?

Board connectors create direct mating between PCBs without need for cables or wires to route signals. This saves space, minimizes transmission loss. But connectors have lower current ratings than cables, limit flexible routing.

Q2. How many insertion cycles do board to board connectors support?

Most connectors are specified for 100-500 mate/de-mate cycles for low end industrial/consumer applications while high end mezzanine connectors used in server/network applications support 500 to 1500+ cycles.

Q3. Do board connectors work for flexible or rigid-flex PCBs?

Yes, flexible connectors using flex cable wiring or ruggedized board stack connectors work for directly stacking flex PCBs. Care must be taken to minimize flexing damage with strain relief.

Q4. What are common mounting styles for board connectors?

Thru-hole pin is most common but surface mount, press fit tuning fork contacts are gaining adoption for automated assembly. Hybrid mounting allowing both permanent and field replaceable connections also exist.

Q5. What modeling tools are used for board connector design validation?

Platforms like Ansys HFSS, Ansys Q3D for EMI/signal integrity analysis. Ansys Mechanical, Solidworks Simulation for thermal plus structural modeling leveraged along with SPICE models.

Summary

Board to board connectors serve a vital interconnection role in electronic systems allowing signal and power transmission across stacked PCB architectures in space constrained compact product packaging.

With increasing focus on high speed multi-gigabit interfaces, power delivery demands plus ruggedized designs – choice of the optimal connector solution through detailed modeling and validation ensures reliable system performance.

By following structured engineering processes to characterize mechanical, electrical and environmental constraints early while evaluating technology options – optimum board connector selection happens balancing density, speed, reliability and cost metrics delivering successful volume production.

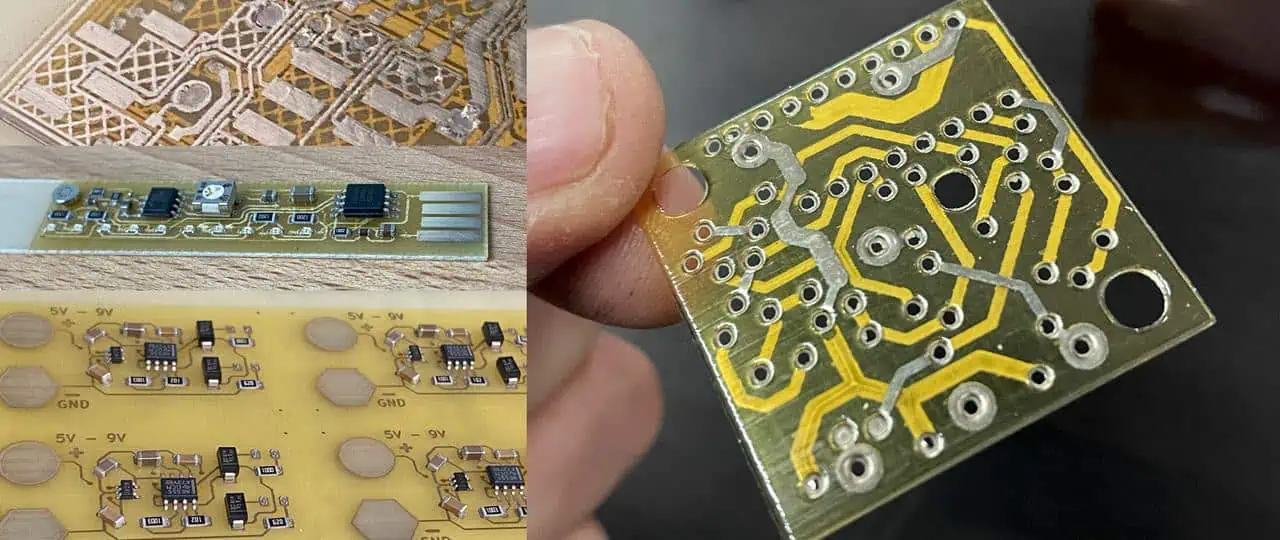

Circuit printing refers to additive manufacturing processes that can directly print the electrical traces and components onto substrate boards to construct functioning electronic circuits. This revolutionary technology promises to greatly simplify laying out custom printed circuit board (PCB) designs without relying on complex fabrication steps.

As hobbyists and startups push innovation boundaries with highly complex boards, circuit printing now offers an easier alternative to traditional PCB making methods. This article provides a comprehensive overview of various aspects of circuit printing including – suitable equipment, underlying printing process, key materials as well as overall costs.

Benefits of Circuit Printing

Here are some of the major advantages of adopting circuit printing:

• Allows printing functional electronics without harsh chemicals
• Eliminates complex PCB fabrication steps like masking and etching
• Accommodates rapid design changes through easy file modification
• Enables embedding components within board itself
• Achieves finer trace resolution than commercial PCBs
• Allows printing unconventional substrate materials

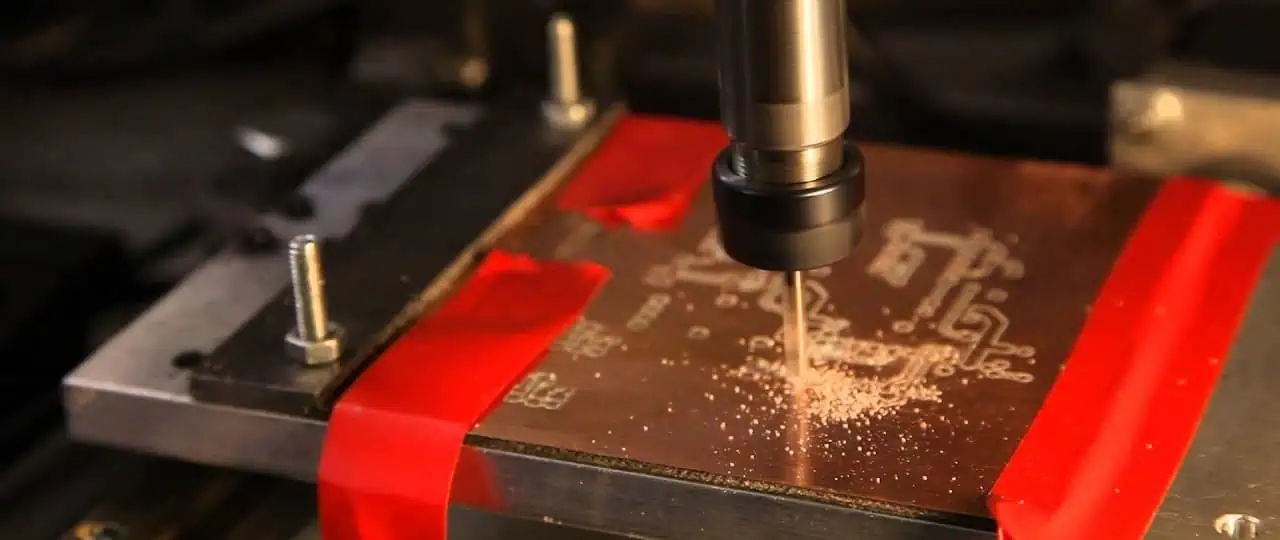

• Simpler and cheaper than CNC milling or laser cutting
• Faster concept validation by instantly printing inventions

For rapid prototyping needs, circuit printers greatly simplify constructing new ideas.

Types of Circuit Printers

Various types of printing technologies allow additive formation of electrical circuit boards. The main circuit printing methods include:

Inkjet Printing

Uses piezoelectric print heads to jet tiny droplets of special conductive inks to draw circuit layouts on thin substrates.

Aerosol Jet Printing

Employs an aerodynamic focusing nozzle to atomize conductive ink into a dense aerosol spray which gets printed.

Nano-particle Jetting

Proprietary process utilizing gas flow to deposit metal nano-particle inks through an array of jet heads to print tracks.

Direct Ink Writing

Uses robotic 3D micro-extrusion of viscoelastic silver & graphene pastes to print free-standing wires without support.

Laser-Induced Forward Transfer

Lasers pulse to propel tiny volumes of conductive ink onto boards thus printing complex patterns with no masks.

Desktop sized circuit printers costing under $5000 target hobbyists and startups exploring innovative electronics ideas.

Circuit Printer Machine Considerations

When selecting circuit printers, key factors to evaluate include:

Print Resolution – Finer nozzle diameters allow more intricate circuits but reduce throughput. 100 μm lines are standard.

Print Speed – Print heads with higher jetting frequencies speed up printing larger boards. Minimal movement also boosts rates.

Supported Inks – Printers are usually optimized for certain proprietary conductive/resistive/dielectric ink chemistries.

Substrate Handling – Flatbed printers accommodate rigid boards up to 300mm x 500mm size while roll-to-roll printers suit flexible films.

Layer Registration – Precision board alignment for printing multi-layer circuits without shorting between layers.

Software Workflow – Seamless data interface from PCB design to printer interface to executing print runs quickly.

Cost – Desktop printers provide an affordable entry point but offer lower resolution and accuracy versus industrial solutions.

Analyzing application needs and production expectations guides appropriate printer selection.

Circuit Printing Process Overview

The typical circuit printing workflow involves:

1. Design – Creating required circuit layout in CAD software

2. File Conversion – Generating printer-specific file formats like Gerber/SVG/HPGL etc.

3. Substrate Loading – Mounting suitable board blank onto printer bed

4. Alignment – Precisely positioning substrate by optically detecting fiducials

5. Printing – Executing conductive ink deposition toolpaths

6. Drying – Using heaters or UV lights to quickly cure printed ink

7. Testing – Validating printed trace continuity and absence of shorts

8. Component Assembly – Mounting and soldering surface mount devices to complete circuit

This additive printing process revolutionizes laying out custom circuit boards.

Circuit Printing Materials

Specialized conductive and dielectric inks made using nano-particle metals and insulating polymers form the foundation for circuit printing.

Conductive Inks

Silver, copper or graphene based particle inks dispensed from cartridges serve to print the electrically functional traces and pads. Only 10-15% metal loading by weight is required for conductivity.

Dielectric Inks

Insulating acrylic-epoxy formulations precisely printed to encapsulate crossed-over traces or define soldermask areas prevent shorting while providing structural base.

Substrate

Materials like FR4, flexibilized PET/PC films, paper or textiles act as the foundational board blank to print circuits atop.

By developing custom inks tuned for stability and printability, a wide spectrum ofsubstrate materials can be transformed into functional electronics.

Design Rules for Printable Circuits

To effectively fabricate a circuit layout by printing, the PCB artwork must comply with certain constraints related to printhead capabilities, ink performance etc.

Follow these guidelines when designing circuits targeting additive printing:

1. Define minimum wire width: Static droplets constrain resolution so widths >= 100 microns print well.

2. Set spacing rules: Gap between adjacent traces should exceed nozzle diameter to prevent bridging shorts.

3. Minimize acute angles: Gradual bends aid continuous ink flow compared to tight angles risking interruptions.

4. Allow conductor overlaps: Intersecting traces should overprint each other slightly for reliable connections after curing.

5. Include fiducials: Printer camera detects board reference points like cross marks to align subsequent layers precisely.

6. Ink volume limits: Constrain total length x width of traces printed to avoid printhead clogging and downtime.

7. Validate DFM: Printer manufacturer design rule checks validate artwork suitability before actual printing.

Accounting for process-specific capabilities allows achieving high circuit print yields.

Layer Registration Accuracy

For reliable multi-layer circuit printing, accurate alignment between printed layers is vital to prevent electrical shorts. High precision is achieved through:

Precise Stages – Printer beds featuring linear drives, precision ground rails, and/or air bearings offer highly repeatable X-Y positioning.

Vision Systems – Onboard cameras and optical recognition algorithms provide accurate positional feedback for registration.

Fiducial Marks – Cross hair squares or circle center alignment patterns on each board layer serve as layer-to-layer image detection points.

Software Compensation – Any residual distortions are digitally compensated through warping printed image to match earlier layers.

Advanced printers provide 5-10 μm registration accuracy allowing dense multilayer circuits with traces pitched at 200-400 μm.

Sintering Process

Once printed, the deposited conductive ink traces require controlled heating to evaporate carriers, melt nano-particle metals and form connected solid tracks in a process called sintering.

Sintering drives off solvents and enhances inter-atomic diffusion bonding between particles to increase electrical conductivity. This fixation transforms printed patterns into functional traces.

Rapid photonic curing systems using high intensity pulsed light provide instantaneous selective sintering without degrading delicate substrates. Sintering occurs in seconds depending on volume to solidify prints.

Printing Cost Analysis

Evaluating the cost implications of adopting circuit printing involves:

Printer Equipment – Desktop printers for under $5000 target hobbyists while advanced inkjet printers suited for small-scale production can cost over $75,000.

Printed Electronics – Conductive inks price around $300 per liter while dielectric inks cost ~$200 for insulation and encapsulation.

Substrates – Base materials like FR4 blanks are $10-30 per square feet area depending on thickness. Flex PCB grades cost extra.

Ancillary Tools – Additional sintering systems, curing equipment, testing stations etc. entails further expenses.

Operator Labor – Prep time for file processing, setup, postprint steps require manual intervention so factor hourly rates.

For low volume printed electronics, equipment depreciation influences cost prominence while material and labor dominate for mass production economics.

Advantages over Conventional PCBs

Printed circuits offer many benefits compared to traditional rigid FR4 boards:

Simpler Fabrication – No repetitive masking, etching, stripping steps involved allowing faster prototyping.

Design Flexibility – Changing layouts only requires updated print file instead of regenerating entire fabrication process.

Substrate Versatility – Choice of foundation materials like textiles, polymers beyond just rigid laminates.

Environmental Sustainability – Process avoids using toxic chemicals required for conventional PCB manufacture.

Embedding Capability – Can directly print passive components like resistors/capacitors integrated into the board.

Superior High-Frequency Performance – Direct write circuits have smooth coplanar traces allowing high frequency operation.

Applications of Printed Electronics

The capabilities of printed electronics are enabling promising applications such as:

Wearable Devices – Directly printing circuits onto fabrics allows creating smart garments flexibly conforming to ergonomics.

Medical Sensors – Soft biosensors can monitor patient health parameters seamlessly when mounted directly on skin by printing.

Smart Packaging – In-mold electronics printing before injection molding plastic enclosures simplifies integrating circuits into products.

RFID Tags – Additively printing antenna and chip bonding lands greatly simplifies fabrication of wireless tags.

PE Textiles – Inkjet printing conductive patterns onto apparel can create flexible thin heating pads or illuminated clothing.

Automotive Displays – Low temperature deposition is ideal for directly printing polymer electronics onto curved surfaces inside cars.

Printing advancements offer electronics beyond mechanical PCB substrates to applications requiring form factor flexibility where conventional boards remain incompatible.

Limitations of Printed Electronics

While constantly improving, circuit printing technology still poses certain limitations presently:

Line Resolution – Printed traces remain thicker than photolithographic processes so circuits cannot miniaturize further.

Registration Accuracy – Overlay printing multiple ink layers precisely to prevent shorting between crossing conductors faces challenges.

Ink Stability – Ensuring shelf-life before particle settling as well as preventing printhead nozzle clogging need improvements.

Print Speeds – Additively generating intricate multilayer boards takes longer production time versus batch processing PCBs.

Conductor Quality – Achievable conductive ink resistivity still lags behind bulk copper tracks restricting high power applications.

Substrate Variety – Material compatibility still limits directly printing onto several advanced composites.

Further development of printing systems, inks and substrates continues to push boundaries lowering barriers to adoption.

Conclusion

Circuit printing promises to transform laying out even complicated electronics inventions by replacing tedious fabrication steps through direct material deposition. What used to rely on skilled technicians and days long process now gets simplified to instantly printing from CAD models inhouse. By merging printed electronics together with conventional components onto builder friendly substrates, innovators can bring product concepts to life faster and cheaper than ever before. Despite certain lingering limitations around ultimate miniaturization potential, registration needs and conductor quality, the ease-of-use and customization possible with printed circuits constitutes an invaluable asset during early development phases for enterprises and individual inventors alike. With global initiatives around environmentally progressive manufacturing also gaining prominence, it seems certain that printed electronics will continue making inroads providing simpler circuit foundations across an ever expanding slate of imaginative applications.

Frequently Asked Questions

Here are some common queries regarding circuit printing:

Q: What materials are used for printing substrates?

A: Paper, PET, PC and textiles allow low temperature deposition. Ceramic coated metal foils offer higher temperature stability. Composite boards also enable directly embedding printed electronics.

Q: What is achievable PCB line width resolution?

A: Most printers can achieve around 100 μm line width and 125 μm line spacing reliably. Ultra-precision systems approach 25 μm resolution but remain slower.

Q: Are printed circuits as conductive as copper boards?

A: Ink curing generates around 2-5x bulk resistivity relative to rolled copper so high power density boards still favor etched metal tracks today.

Q: Can components be directly printed onto boards?

A: Modern ink chemistries allow co-printing simple resistors, capacitors, antennas alongside conductors in a single pass but traditional SMD devices still need manual attach.

Q: How accurate is layer-to-layer registration?

A: Advanced Industrial printers ensure registration accuracy within 5-10 μm allowing reliable interlayer interconnections at 200+ μm pitch. Hobby printers remain ~50 μm.

Computer numerical control (CNC) machining is an essential part of taking your printed circuit board (PCB) design from prototype to production. CNC milling accurately fabricates complex 2.5D and 3D features on custom PCBs that cannot be achieved with traditional manufacturing means.

CNC machining removes unwanted copper from specified areas of the PCB through an automated, programmable process to shape the circuits as per the design files. This article provides a comprehensive overview of using CNC technology to machine your own PCB prototypes.

Benefits of CNC Machining PCBs

Here are some of the major advantages of using CNC milling for PCB prototyping:

• Creates functional prototypes from CAD models faster
• Enables fabrication of multi-layer PCBs
• Allows embedding active/passive components
• Saves time and cost compared to outsourced small-batch PCB production
• Achieves fine line width/spacing down to 125 μm
• Creates precision 2.5D contour milling not possible through etching
• Allows micro-vias and buried vias for dense interconnection
• Suitable for circuits with high-frequency, controlled impedance

By adopting CNC machining, PCB inventors can quickly implement and test ideas without relying on external factories.

The typical workflow for CNC milling PCBs involves:

1. Design – Creating the PCB layout in CAD software and generating CAM/Gerber files

2. Fixturing – Preparing the PCB blank and securing it onto the CNC machine bed

3. Probing – Work-piece coordinate system alignment to position the endmill over the board

4. Milling – Machining conductive traces by rastering the endmill per the toolpath

5. Deburring – Removing rough edges and burrs from milled conductors

6. Cleaning – Washing away milling debris and dust from the board

7. Visual Inspection – Checking for any shorts, opens or gouges

This basic process transforms the raw PCB blank into a finished board ready for component assembly and testing.

CNC Machines for PCB Prototyping

Various types of CNC machines like desktop routers, small-format mills, and mini-CNC machines are now available for machining custom printed circuit boards.

When selecting a CNC machine, key factors to consider are:

• Workspace envelope (max PCB size)
• Spindle speed and power
• Supported endmills (diameter, length)
• Drill precision and chip load
• Software integration and workflow
• Cost

Machine	Description
Desktop CNC Routers	Compact and affordable machines for home workshops good for double-sided PCBs up to 200mm x 300mm size
Small Format Mills	Industrial grade machines with high spindle speeds and precision suited for faster, more intricate PCB milling
Micro-CNC Machines	Specialized systems for milling tiny circuits like sensors down to 25mm x 25mm size with small endmills
Laser CNC Machines	Uses a laser cutter instead of a router to ablate unwanted copper without physical contact

Desktop CNC routers provide an economical starting point for prototyping digital circuits at home or in makerspaces.

PCB Design Rules for CNC Milling

To effectively machine your custom PCB board, the layout must be designed while keeping CNC constraints and capabilities in mind.

Follow these key PCB design rules when targeting CNC fabrication:

1. Allow adequate tool clearances: Provide at least twice the cutter diameter as spacing around pads and traces for tool access. Account for tool shoulders too.

2. Include fiducials: Add alignment markers to use optical probing for coordinate system referencing before milling.

3. Set appropriate track sizes: Minimum trace width and gap should exceed bit diameter. A 10 mil end mill yields 8 mil lines.

4. Limit trace angles: Avoid acute angles zones as endmills cannot machine those properly. Use 45°/90° traces.

5. Define board outline: Clearly indicate board contours to machine the outline profile cut. Panelize designs for better fixturing.

6. Minimize vias: Countersunk holes need extra machining time so use judiciously. Bury only critical signals needing layer transitions.

7. Split ground planes: Machine inability to clear large copper areas will require intelligent splits.

By designing upfront for manufacturability, efficient, optimized CNC programs can be generated to machine the boards.

PCB Materials for CNC Milling

The blank PCB substrate selected influences suitable milling parameters and quality of machined traces. Important considerations when choosing CNC milling PCB materials include:

Machinability: Softer, non-glass reinforced substrates like FR-4 machine faster with lower tool wear. Rogers RO4000 series bonds well but have higher abrasivity.

Dimensional Stability: Lower expansion coefficient substrates sustain precision geometries despite heating during milling better.

Bonding: Good copper foil adhesion prevents lifting or tearing during end mill passes while poor bonding raises chances of delamination.

Heat Tolerance: Glass transition temperatures above the heat generated during milling ensures material retain its strength. Ceramic-filled substrates withstand higher cutting temperatures.

Standard 1.6mm FR-4 blanks with 1oz copper foil offer a reasonable starting point for DIY CNC milling PCB prototypes.

PCB CNC Milling Tools

Carbide endmills are commonly used to remove unwanted copper when CNC machining PCBs. Various types of tools for specific applications include:

Rigid Endmills – Single piece solid carbide spiral flute tools for general purpose 2D contour milling of traces.

Ball End Mills – Carbide cutters with a ball tip to perform 3D contour machining for sculpted circuits.

V-Bits – ‘V’ shaped carbide mills used make trenches for rectangular milled traces.

Drills – High speed carbide micro-drills create holes for conductive thru-hole vias.

Diamond Cutters – Polycrystalline diamond tools prolong tool life when milling abrasive substrates like ceramic PCBs.

Proper feeds, speeds, stepovers and axial/radial depths based on tool geometries must be set for robust milling performance.

Fixturing Considerations for PCB CNC Milling

Even small PCB blanks can resonate and vibrate extensively during aggressive material removal if not properly secured.

Here are some guidelines for reliably fixturing PCBs to withstand milling forces without movement:

• Use a spoilboard/sacrificial layer between PCB and machine bed
• Low profile clamps distribute holding forces closest to milling zone
• Vacuum beds utilize negative pressure for forceful workholding
• Adhesives temporarily bond board directly to spoilboard
• Add stiffening ribs or perimeter supporting fixtures structures
• Employ self-indicating pressure sensitive films to map grip distribution

Since PCBs expand on heating up during milling, use slip sheets or boundary constraints to permit thermal expansion.

PCB CAM Processing

To translate the PCB layout into toolpaths executable on a CNC machine, CAM (computer-aided manufacturing) software is necessary.

CAM software allows:

• Importing Gerber, ODB++ and other standard PCB file formats
• Specifying machine, tools and stock model
• Setting pass depths, stepover parameters
• Defining toolpaths (traces, outlines, holes etc.)
• Simulating milling process visually
• Calculating accurate cycle time estimates
• Generating machine-ready G-code programs
• Adding fiducials markers for probing

With optimal CAM strategies and post-processing, the milled quality of even high density PCBs with 6 mil lines/spaces can approach conventional PCB etched limits.

PCB Probing and Datuming

To accurately align the CNC endmill over desired regions of the blank PCB, probing is necessary. This establishes a coordinate system to locate all toolpath positions correctly relative the board.

Workflow:

1. PCB loaded and clamped to machine bed
2. Camera centers board in view field
3. Touch probe electrically contacts added fiducial points
4. Software records exact coordinate values
5. Completed board profile aligned to programmed paths

Fiducials as reference datums may be:

• Round pads ⌀ 0.5 to 1 mm
• Square pads 1 mm
• Drilled holes 1 mm diameter
• Slot or edge markers

Datuming compensates for variations in blank positioning and allows achieving reliable, repeatable milling quality.

PCB CNC Milling Feeds and Speeds

The cutting parameters specify the velocity (feed rate) at which the endmill machines the PCB traces as well as its spindle RPM. This impacts:

• Material removal rate
• Cutting forces and torque
• Tool wear
• Machined edge finish
• Process cycle time

General guidelines for initial PCB milling parameters:

Spindle RPM – 15,000 to 20,000 RPM

Feed Rates – 50 to 150 mm/min

Higher number of flutes, adept use of climb versus conventional milling and optimizing chiploads boosts performance. Rigid fixturing is vital for chatter-free milling.

PCB CNC Milling Strategies

Various toolpath strategies exist to clear copper regions when isolating PCB conductors. Key methods include:

Trace Isolation Milling

Thin parallel passes with a certain overlap percentage traces out individual conductors by removing material between them. 50% overlap is commonly used balance cycle time and surface finish. Wider traces may allow faster 75% stepover overlap passes.

Slotting

plunge cutting trenches on both sides to define rectangular milled traces. Requires two pass milling but prevents copper burrs compared to outline milling.

Area Clearance Strategies

Fitting path rasters, direction parallel passes or adaptive clearing patterns remove large copper zones efficiently while preventing tool overload.

Drilling for Vias

Peck drilling, chip breaking and regular retracts during hole boring helps chip evacuation and prevent clogging to achieve clean vertical via holes.

Proper path sorting, entry/exit strategies and optimal tool orientation further boosts milling performance.

Post Processing Steps after PCB CNC Milling

After machining the board, some secondary processing steps help improve milled PCB quality:

Deburring – Removing rough copper edges around traces manually or through automated abrasive flow deburring equipment.

PCB Washing – Thorough cleaning with pressurized water jet sprays or PCB immersion tanks removes swarf, debris and dust.

Nickel Plating – Electroless nickel coating prevents copper traces from oxidation and improves solderability.

Electrical Testing – Validating continuity between intended conductors and absence of any shorts with a multimeter probe.

Visual Inspection – Microscope checks at 30X to 60X magnification confirm channel integrity with no copper smearing or gouges.

These post processing steps enhance machined PCB quality to build fully functional boards.

Lean Manufacturing Aspects

Adopting lean manufacturing principles maximizes CNC machine utilization, optimizes changeover times and improves productivity when milling PCB prototype boards in low volumes.

Some lean aspects that can boost efficiency are:

• Standardized fixturing elements for quick loading
• Color-coded setup components
• Shadow boards to organize endmills by type
• Custom macros for common parameter sets
• Probe routines to expedite referencing
• Storage racks near machines for ready access
• Digital status indicators for free capacity
• Preventive maintenance during machine downtime
• Setup templates to minimize changeover time

With enhanced workflow management, CNC milling works well for fast fabrication of digitally designed PCB innovations.

Advantages over PCB Etching

While chemical etching can produce basic PCBs, CNC machining offers many advantages:

Precision – Endmills can create fine details with tighter tolerances and superior dimensional accuracy than etching.

Reliability – Milling gives positively isolated traces instead of undercuts prone tracks from over-etching.

Consistency – Automated machining ensures uniform channel widths across the board unlike etching.

Flexibility – No need to generate etching masks. Easy to rapidly rework designs by just updating toolpaths.

Functionality – Can fabricate high density boards impossible through etching like 8-12 layer multilayer boards with blind/buried vias.

As DIY hobbyists push circuit complexity, CNC fabrication provides better reliability and performance.

Limitations of PCB CNC Milling

Some inherent limitations still constrain achievable quality levels relative to commercial PCB production using lithography when CNC milling prototypes:

• Surface finish not as smooth as commercial PCBs
• Maximum millable trace density lower than masking/imaging limits
• Restricted to proto-run volumes given process throughput
• Face milling constrains layer alignment precision unlike precision lamination
• Higher initial setup costs for CNC systems compared to etching
• Still requires manual assembly of components unlike SMT lines
• More process expertise needed to generate toolpaths, set parameters etc.

But the ability to quickly iterate innovative board designs provides tremendous value despite these technology restrictions.

Safety Precautions

CNC milling PCBs poses some unique hazards requiring appropriate precautions:

• Rotating tools can violently throw loose debris when they snag so secure workpieces and nearby objects
• Always keep hands away from moving machine elements with awareness barriers around work zones
• Wear safety glasses to prevent eye injuries from chips and guard against particulate inhalation
• Fire risk exists as insightsulative swarf ignites so have extinguishers and avoid combustion sources nearby
• High pitch noises mandate using hearing protection plugs or noise cancelling headgear
• Allow hot milled PCBs to adequately cool down before handling to prevent finger burns

With training and adoption of safe working habits, CNC milling provides a very versatile PCB prototyping choice.

Conclusion

As PCB designs increase in complexity with shrinking geometries and rising interconnect densities, CNC milling delivers fabrication capabilities scaling beyond chemical etching limits for prototyping digital logic circuits and high frequency analog boards alike. With easy desktop solutions now available, electrical engineers can cost-effectively implement innovations using agile inhouse milling. By applying appropriate design principles and CAM strategies, even 0.006 inch trace channels are realizable. While certain accuracy and volume barriers remain relative to mature PCB production ecosystem, the quick turnaround enables by CNC milling delivers huge savings in development costs through rapid design revisions. With sufficient fixturing, process expertise and safety precautions, CNC technology constitutes the future of PCB prototyping for innovators.

Frequently Asked Questions

Here are some common queries regarding CNC PCB milling:

Q: What PCB materials can be machined well?

A: Standard FR-4 material with 1oz foil bonds nicely without cracking for small prototype runs. Rogers RO4000 series works too but requires reduced feeds. Ceramic PCBs require diamond coated endmills.

Q: What should be the minimum clearance between traces?

A: Its ideal to keep >= 2 times tool diameter as spacing through isolation paths are generated around traces so a 10 mil cutter needs >= 20 mil gaps.

Q: Can CNC mill complex boards like 12 layer multilayers?

A: Yes, with a precision production CNC machine allowing variable Z-depth machining, complex multilayer PCBs can be section milled layer-by-layer by adjusting milling depth per pass.

Q: What tolerances are achievable while milling PCBs?

A: With tight fixture schemes and dialing in appropriate parameters, machining accuracy of +/- 0.003″ is definitely feasible meeting typical PCB needs. Precision systems can further boost accuracy.

Q: How to prevent short circuits between traces after CNC milling?

A: Perform visual inspection at high magnification after milling to check for insulation smearing. Alternatively, apply immersion tin plating to fully coat exposed copper traces preventing inter-channel shorts.

Controlled impedance constitutes one of the most crucial considerations in modern high-speed printed circuit board (PCB) design. Simply, impedance represents the opposition to electrical current flow within the board. Controlled impedance tracks ensure the PCB environment presents consistent impedance to critical signals.

Maintaining proper impedance matching along transmission paths allows clean signaling critical for high frequency applications. Uncontrolled impedance introduces reflections and losses degrading signal integrity. This article details what impedance entails, why control ranks so necessary in circuits along with methods to master impedance in layouts.

What is Impedance?

In PCB design, impedance refers to the apparent resistance presented to electric current flow along a conductive trace. It encompasses the comprehensive opposition considering capacitive, inductive and resistive properties of the materials comprising the circuit path.

Impedance changes with operating frequency as reactive elements take effect. It defines the voltage / current ratio at a given frequency:

Impedance (Z) = Voltage / Current

The impedance depends on inductance (L), capacitance (C), resistance (R) inherent to the trace and surrounding environment:

Z = √(R + jωL)2 + (jωC)2

R – Sheet resistance of copper trace
L – Self-inductance along trace
C – Capacitance to reference planes

At low frequencies, resistive terms dominate. At higher frequencies, inductive and capacitive elements impose impedance. Controlling factors like dielectric constants and trace dimensions dictate the impedance response a signal encounters in a PCB channel.

Why Control Impedance?

Uncontrolled impedance causes signal reflection issues leading to overshoot, ringing artifacts and data loss that impedes reliable operation at Increased operating frequencies. Control supports signal integrity.

1. Prevent Signal Reflections

High-speed signals require matched source, transmission line and load impedances to absorb the full signal. Mismatched impedance causes partial wave reflections interfering with the original signal.

Even minor impedance deviations lead to disproportionate reflectance with more noise disrupting faster, higher frequency signals. Reflections degrade rise times and jitter degrading bit error rates. Controlled tracks prevent reflections.

2. Facilitate Impedance Matching

Source and load components assume designed impedance values for interconnects – typically 50 Ω or 100 Ω differential. Traces must match anticipated impedance ensuring necessary termination resistors properly damp signals.

Mismatched lines over/under load termination networks hampering absorption of fast transient edges. Controlled lines present expected impedance for matching components.

3. Reduce EMI Radiation

Uncontrolled impedance increases high frequency return loss and ringing which worsens electromagnetic interference (EMI). Controlled lines help confine signals avoiding unintended radiation that risks coupling into nearby susceptible circuits.

In summary, controlled impedance traces counteract reflections, absorb signals cleanly, and reduce interference – critical factors for reliable high-speed PCB functionality.

How to Achieve Controlled Impedance?

Adjusting physical PCB parameters allows tuning impedance to target values along traces mitigating unchecked variations:

1. Trace Width

The main conductor width sets baseline impedance value. Wider lines decrease; narrower traces increase impedance assuming uniform thickness.

2. Dielectric Stackup

Dielectric material type and thickness surrounding traces heavily influences impedance based on inherent capacitance. Tighter dielectrics raise values.

3. Reference Planes

Closeby continuous reference planes augment capacitance lowering impedance. Spread planes raise impedance by reducing coupling.

4. Trace Separation

Spacing between signal and surrounding traces, pads or void areas impacts coupling determining impedance.

By tuning parameters appropriately, target impedance achieves matching. Advanced fabricators carefully model stackup dimensions and material electrical properties to yield controlled impedance across routing layers.

Controlled Impedance Target Values

While impedance ranges widely, two target values dominate modern PCB layouts:

50 Ω Impedance

• Standard controlled impedance used for single-ended signals
• Matches source/load termination resistance
• Requires narrower traces with tighter reference planes

100 Ω Differential Impedance

• Typical value for differential pair routing
• Wider trace spacing balances capacitive coupling
• Closer planes increase capacitance

Many factors determine choice of target impedance for a design but these two levels handle majority of applications. Control resolution within +/- 10% desired.

Traces get clearly marked in layouts meeting controlled spec after extensive modeling. Strict dimensional tolerances maintained throughout fabrication for consistency.

How Accurately to Control Impedance?

Extremely tightly controlled impedance better maximizes signal quality but demands much higher process capabilities driving up cost. Reasonable tolerances work for most applications.

A useful way to consider controlled impedance accuracy:

Impedance Control	Application
+/- 5-10 Ω	Highest speed RF boards >5 Gbps
+/- 10%	Fast digital 2-5 Gbps
+/- 15%	Slower bandwidth below 2 Gbps

Realistically, impedance depends on many interrelated factors that individually influence values as much as +/- 20% even on controlled lines:

• Copper thickness
• Dielectric composition
• Trace locate position
• Layer registration
• Fabrication accuracy

Well characterized PCB processes keep deviations reasonably constrained. But extensive modeling best informs expectations when pushing higher frequencies.

Controlling Impedance in PCB Layout

Beyond smart stackup, layout practices greatly aid achieving impedance control and timing across routing:

• Minimize length variance between differential pairs
• Match lengths through vias and layers
• Eliminate acute angle turns on traces
• Avoid impedance discontinuities
• Validate with impedance analysis

Careful layout adhering to controlled parameters ensures PCB environments present consistent, matched impedance to facilitate high-speed signaling.

When are Controlled Impedance Lines Necessary?

Controlled impedance traces help maximize signal quality and reliability but come with fabrication difficulty and cost impacts. Reserved only for necessary nets, some key considerations around usage include:

Clock Signals

High frequency clocks over 100 MHz propagate fast rise times requiring impedance control to prevent skew between board sections. Route clock trees through controlled dielectric layers.

SerDes Data Lines

High speed serializer/deserializer data channels demand matched impedance environments to limit reflections between source and destination components.

Analog Lines

Mixing uncontrolled digital routing can introduce noise into analog signals. Maintain impedance through analog channel length including shield layers for isolation.

Memory Buses

Address/command/data buses to RAM devices with clock/strobe signals benefit from consistent impedance routing to time signals reaching memory IC pads.

In summary, controlled impedance applies to nets with high frequency components or susceptibility. Matching impedance ensures quality signaling over traces, through vias across layers in the PCB stackup.

Implementing Impedance Control

Achieving impedance requires coordination across design stages:

Simulation

Model anticipated stackup with projected dielectric constants and trace dimensions to calculate expected impedance. Assess termination schemes and line lengths.

Stackup Planning

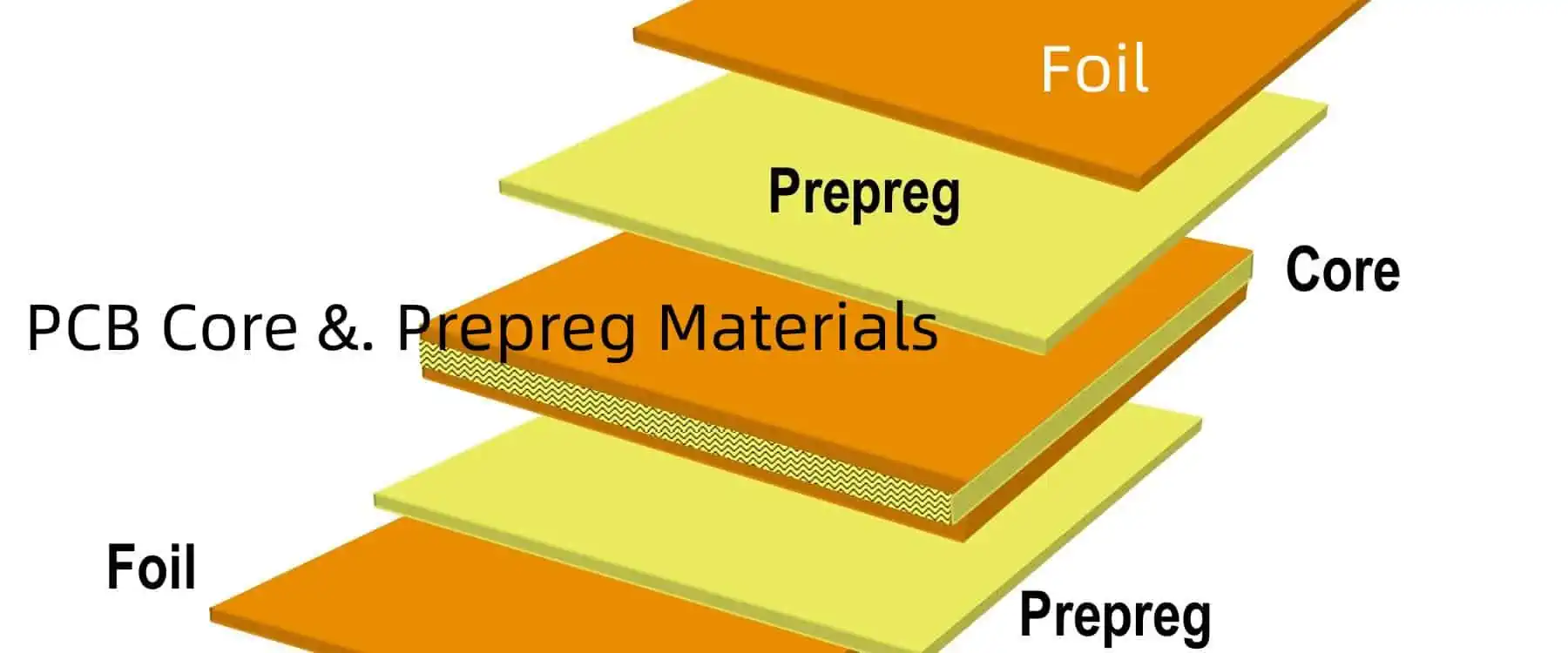

Specify laminate materials, prepreg, copper weights, and layer sequencing to achieve impedance targets while meeting isolation needs.

Layout

Carefully route wide/narrow traces in controlled dielectrics with referenced return planes maintaining consistent geometry.

Fabrication

Precisely process board layers under strict dimensional tolerances keeping registered alignment. Test coupons validate continuity.

Verification

Employ impedance analysis to identify undesired variations exceeding limits needing layout adjustments or review of process assumptions.

While controlled impedance layout ability steadily improves in PCB tools, fabricators also enhance dimensional accuracy and stackup repeatability easing the challenge of impedance control for designers.

Overview of Controlled Impedance Advantages

In summary, controlled impedance tracks bring major high-frequency signaling benefits:

• Prevent reflections that distort signal rise times
• Enable impedance matching to properly terminate lines
• Reduce EMI from uncontrolled ringing
• Maintain fast switching speeds and data integrity
• Ensure high bandwidth with low bit error rates
• Critical for multi-gigabit SERDES channels

As data rates continue increasing, controlled impedance applies to an expanding range of chip-to-chip nets. Constraint driven trace width, spacing and layer planning facilitate quality high-speed signaling.

FAQ

Why is impedance matching important?

Impedance matching means source, transmission line and load all share common impedance preventing signal reflection allowing full absorption of wavefronts. Clean signaling relies on matched impedance environments.

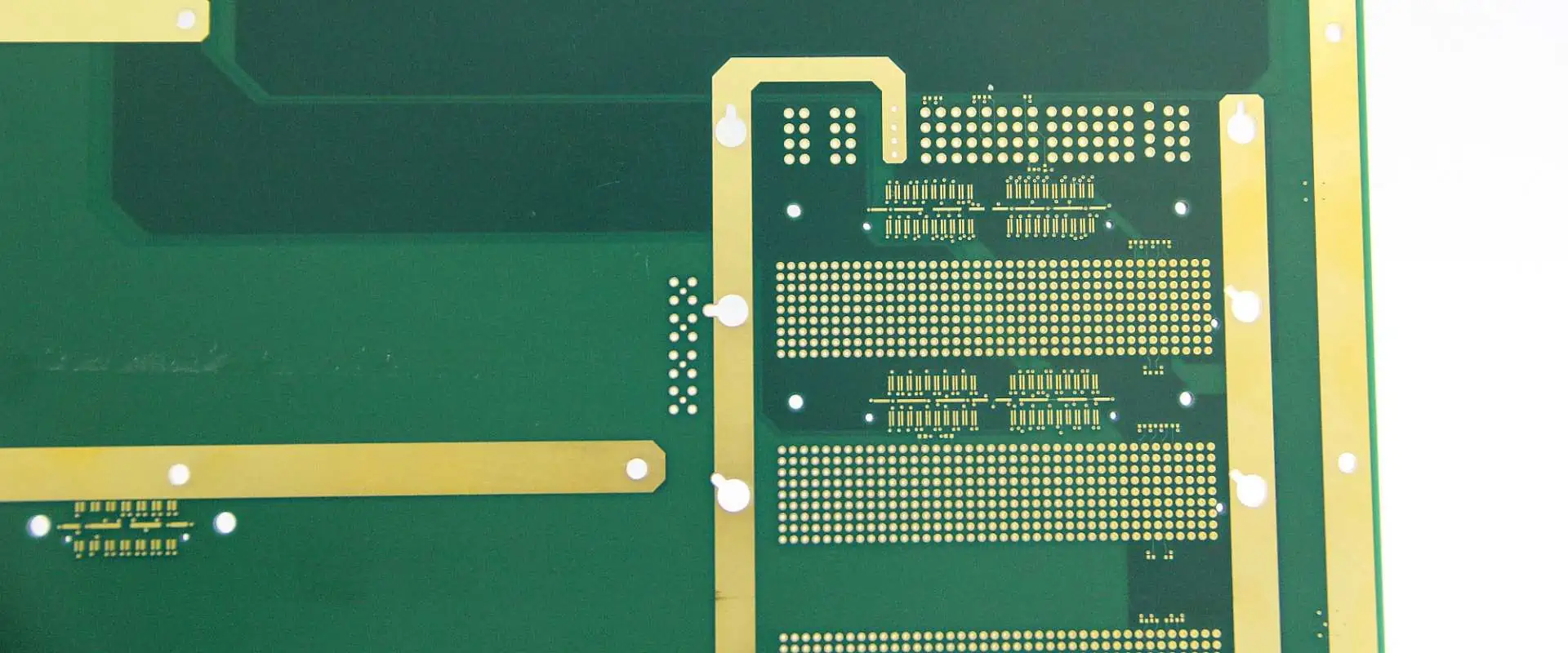

A copper pour (or area fill) in printed circuit board (PCB) design refers to a large solid conductive area that floods sections of the board with copper. This acts as a versatile supplement to conductive traces to provide enhanced functionality.

Pours seamlessly fill open regions of the PCB layers with copper creating polygons connected to a net. They integrate as part of the circuit connecting components while facilitating power distribution, shielding, cooling and rigidity.

Well implemented pours bring several benefits:

• Reinforce power integrity
• Improve signal return path
• Reduce trace inductance
• Facilitate heat dissipation
• Electromagnetically shield noise
• Mechanically stiffen board

Pours rank as one of the most useful tools available in PCB design requiring mastery to leverage appropriately.

This article provides a complete overview of PCB copper pours, their functions, how to implement, along with layout recommendations.

Why Use Copper Pours on Circuit Boards?

Flooding unused board space with copper instead of leaving glass epoxy dielectric offers many advantages that improve circuit performance.

Power Delivery

Copper possesses extremely high conductivity. Pours provide a low impedance path supplementing traces to deliver current across the board. This counteracts inductance maintaining steady voltage to components.

Thermal Transport

The excellent thermal conductivity of copper facilitates heat spreading from hot components. Pours help conduct heat allowing large planes to sink energy and mitigate localized elevated temperatures.

Strengthening Structure

Sheets of solid copper mechanically reinforce the laminate composite improving PCB rigidity and preventing warpage. The expansion coefficients also better match.

EMI Shielding

Pours readily form shielded enclosures or barriers blocking radiated noise when connected to ground. This isolates sensitive analog or digital sections.

High Frequency Return Path

Copper planes establish low impedance reference at RF/microwave regimes improving transmission line performance and controlled impedance environment.

Reliability

Greater copper area lowers current density levels in individual traces reducing risk of overheating and extending operational life of board.

In summary, pours improve stability, durability, and functional performance of PCB systems by leveraging the superb electrical and thermal properties of copper across the laminate area.

Implementation of Copper Pours

Integrating copper pours into designs requires considered layout practices for effectiveness. Done sloppily, large areas of copper cause problems. Well configured, they elevate and reinforce circuit performance tremendously.

Net Connection

All pours electrically connect to an assigned net tying directly to components in the schematic. Typically this involves ground and power nets:

Ground Pour

• Low impedance reference plane when flooded with ground copper
• Reduces ground loop noise pickup
• Shields EMI leakage

Power Pour

• Distributes current with less series resistance
• Less inductive reactance supports steady voltage delivery
• Floods area around associated components

Pours may also connect to general purpose nets with multiple tied pins to augment trace conductivity. Just ensure adequate isolation from other nets.

Geometry Creation

Pours contain fluid perimeter segments that fill around traced channels and voids. CAD tools automatically generate complex polygons when the net designation gets tied to a region.

The poured copper adopts clearance spacing from traces and pads per electrical rules. Pours self-terminate at suitable distances from other nets and board edges unless settings enlarged.

Fine pitch surface mount lands often completely get encapsulated on a power plane as small isolation trenches laser ablate during fabrication.

Split Planes

Extensive copper sheets can require segmentation into split planes having multiple polygons on a net. This prevents creating annealed large area parts during etching or overly stiffening sections of the board.

Channel gaps purposefully split planes allowing control of material expansion and relieving stresses. Meandering space consuming traces can selectively bisect planes where preferable as well.

Planes still electrically connect between splits through component pads or linking traces along split borders to maintaincontiguous low resistance net conductivity.

In summary, copper pours involve tying extensive solid copper fill regions to a common net spanning large board sections with automated wrap-around clearance boundary spacing. Careful prevents over-constraint.

Best Practices for PCB Copper Pours

Proper implementation and layout of copper pours requires some design finesse to prevent detrimental effects. Useful tips:

Assign to Ground First

Populating ground layers with continuous copper should take priority over flooding power planes. Robust grounded pours enhance all aspects of performance. Every board needs solid reference planes.

Mind Trace Currents

While reducing inductance seems beneficial, excess pour area can negatively impact control over load circuit tuning. Keep traced channels along high DI/DT paths.

Pour Symmetrically

Duplicate polygon shapes on opposite board faces to keep expansion and humidity response balanced. This prevents bowing.

Watch Acute Angles

Stay away from long thin copper protrusions or angles below 45 degrees. These can break off becoming antennas or flappers during shock/vibe.

Include Relief Geometry

Slots, anti-pads and thermal spokes help mitigate stresses from material expansion allowing large shapes especially for power planes.

Review Fate Masks Carefully

The automated shapes often require manual adjustment and tweaking to remove artifacts or undesirable formations around complex component groups.

With robust fill connectively assigned to suitable nets, designers wield tremendous control over circuit electrical and physical properties by distributing copper intelligently across substrates.

Copper Pour Clearances and Settings

To properly integrate the copper polygons requires configuring layout settings appropriately:

Clearance Rules

Determine spacing applied around the pour edges from nearby board features:

Item	Typical Clearance
Traces	5 mil \ 125 μm minimum
Signal Layers	10 mil \ 250 μm
Plane Layers	5 mil \ 125 μm
Board Edge	20 mil \ 500 μm

Thermal Relief Pads

Antipad void around component pads prevents solder bridging:

• 20 mil \ 500 μm pads
• 30 mil \ 750 μm large or thermally sensitive pads

Plane Connection

• Tie pours to nets in schematic to propagate names
• Connect to ground first then power distribution
• Assign to quiet nets if acting as RF ground

Relief Geometry

Introduce thin segmentation channels or voids to mitigate stresses:

• 10 mil \ 250 μm slots
• Thermal spoke antenna voids
• Removing acute angles

Settings integrate polygons as reference infrastructure aiding electrical conductivity and physical rigidity when populated appropriately across layouts.

Layer Placement of Copper Pours

All layers of a PCB can implement copper pours provided adequate isolation form other nets. This allows spreading the benefits throughout the board stackup:

Signal Layers

• Pours between traces act as RF reference planes
• Flood around controlled impedance lines
• Can pour unused areas but review impedance impact

Internal Power Planes

• Excellent for flooding current across voltage domains
• Carefully isolate power and ground layers
• Split power regions to prevent resonance

External Layers

• Serves RF shielding surrounding circuits
• Creates Faraday cage enclosure via edge plating
• Improves environmental seal and moisture ingress protection when soldermask coats

Every fabrication layer introduces tradeoffs between sheet resistance, dielectric standoff impact and lamination stresses. But spreading pours throughout stackup allows tailoring performance across domains.

Comparison to Copper Fills

Copper Fills constitute an alternate approach to infrastructural copper elements within PCB substrates. As the name suggests, fills encompass swathes of board space similar to a pour.

However, fills lack automatic wrap-around clearance boundaries. Instead the shape boundary connects directly to adjacent copper features like traces and pads.

Small gaps purposefully leave breaks along the shapes perimeter to prevent fully enclosing regions. Fills otherwise behave like pours as floating copper sheets:

• Attach to nets in schematic
• Flood regions with ground first
• Help reduce loop inductance
• Mechanically stiffen board
• Leverage high copper conductivity

But the lack of insulated spacing brings concerns:

• Risks shorting to nearby traces without careful manual isolation
• Voids may mistakenly get bridged failing testing
• Boundary gaps can collect etching solution or debris
• Cannot fully envelope surface mount pads

So in summary, copper fills constitute a legacy approach to adding conductive copper area which risks completion issues or spacing defects compared to intelligent poured clearance boundaries.

Thermal Considerations

While excellent at removing heat, extensive copper pours can alternatively cause problems if temperatures get too extreme. Features help mitigate issues:

A printed circuit board (PCB) relies on an electrically insulating core between layers of conductive copper to prevent short circuits. The core forms the foundation upon which all other PCB elements get built upon.

The core material choice significantly impacts costs, performance, manufacturability and reliability in electronics. Engineers balance tradeoffs between mechanical, electrical and thermal properties during selection.

This article provides a comprehensive overview of the various types of cores used in PCBs and their relative advantages.

Functions of the PCB Core Layer

The core layer fulfills several critical roles:

Physical Support

• Creates a firm substrate for component mounting and copper traces
• Maintains shape and dimensional stability of PCB throughout product lifecycle

Electrical Isolation

• Prevents shorting between high speed, high power traces
• Allows routing of traces on both sides of core without interference

Heat Dissipation

• Conducts heat away from hot components to keep junction temperatures in check
• Prevents damage to surrounding fragile parts from excessive temperatures

Environmental Protection

• Forms barrier against humidity, contaminants reaching electronic components
• Reinforces PCB rigidity to withstand shock, vibration, flexing damage

Hermetic Sealing (for some material types)

• Encases electronic modules in airtight enclosure
• Used heavily in military, aerospace, and medical applications

With power density and performance demands rising each product generation, the core plays an increasingly vital role.

Classification of Core Materials in PCBs

PCB cores can be grouped into three broad material categories:

Organic Cores

• Base is organic polymer resin system
• Most common core type
• Examples – FR-4, CEM-1, FR-5, G-10

Inorganic Cores

• Porcelain ceramic substrate
• Preferred for high frequency applications
• Examples – Alumina, Aluminum nitride, Beryillia

Specialty Cores

• PTFE (Teflon), Quartz glass, Woven fiberglass
• Feature exceptional thermal or dielectric characteristics
• Useful for niche applications

Next, we explore the composition, manufacturing process, and relative pros and cons of each core type.

Organic PCB Core Materials

Organic cores constitute the majority of PCB substrates thanks to their low cost and ease of processing. FR-4 stands as the most popular grade today.

Composition

Organic cores contain:

• Thermoset polymer resin (epoxy, cyanate ester, polyimide)
• Reinforcement material (woven glass fabric)
• Fillers (silica)

Flame retardant additives give the FR designation.

Manufacturing Process

Fabrication involves:

Impregnation – Glass fabric gets soaked in liquid state resin

B-stage – Resin viscosity increases to solid yet pliable state

Lamination – Multiple prepreg layers are stacked, compressed under heat/pressure to fully cure resin

Cooling – Crosslinking continues growing polymer chains as temperature gradually lowers

Machining – Sheets get cut to standard PCB panel sizes

Properties and Characteristics

Parameter	Rating
Dielectric Constant	4.2-4.5 (FR-4)
Loss Tangent	0.02 max
Dielectric Strength	400-600 V/mil
Moisture Absorption	0.2% max
Thermal Conductivity	0.3 W/m-K

Advantages

• Low material cost
• Easy production and drilling
• Good mechanical strength
• Flame resistance

Disadvantages

• Anisotropic expansion coefficient
• Degrades at high temperatures
• Higher loss tangent above 1 GHz

Organic cores tradeoff electrical and thermal performance for affordability. They serve lightweight, cost driven commercial and consumer electronics well up to 6-8 layer designs.

Ceramic PCB Core Materials

Inorganic ceramic substrates boast exceptional high frequency characteristics thanks to higher rigidity, thermal conductivity and near hermetic sealing.

Alumina substrates reign most popular due to lower cost than Beryillia or Aluminum Nitride. Dimensional stability proves extremely precise.

Composition

• Alumina (Al2O3) – 96%
• Beryllia (BeO) – 97%+
• Aluminum Nitride (AlN) – 85%+

They may also contain small percentages of silica, oxides and proprietary additives.

Manufacturing Process

Ceramic production utilizes thin film technologies:

Tape Casting – Slurry poured onto smooth surface, rolled to precise thickness

Blanking – Individual sheets punched into shapes

Registration – Sheets collated, layered & laminated

Co-firing – Baked at high heat to form solid ceramic

Metalization – Vacuum deposition applies patterned copper

Properties and Characteristics

Parameter	Alumina	AlN	Beryillia	FR-4
Dielectric Constant	9.9	8.8	6.7	4.3
Thermal Conductivity	30	170	260	0.3
CTE	7	4.3	7.4	17
Frequency (GHz)	15+	20+	18	<5
Loss Tangent	0.0003	0.0005	0.0004	0.02

Advantages

• Extremely low signal loss
• High thermal conduction
• Near zero moisture absorption
• Fine geometry patterning

Disadvantages

• Difficult machining/drilling
• Sensitive to thermal shock
• High substrate cost (10-30x organic cores)

Alumina, AlN, and Beryillia cores enable electronics operating well into microwave frequencies for aerospace systems and wireless infrastructure. The ceramic production process also lends itself towards embedding components or channels within the core.

Specialty Core Materials for PCBs

Certain applications require exceptional thermal performance, low dielectric constant or tight impedance control that standard cores cannot satisfy. This spurred development of high cost specialty materials.

Polytetrafluoroethylene (PTFE)

• Brand names – Teflon, RT/duroid 5870/5880
• Consists of fluoropolymer resin matrix
• Features extremely low dielectric constant and loss tangent
• Poor thermal conduction
• Mainly used in mm-wave multi-layer boards above 30 GHz

Quartz

• Extremely rigid glass-ceramic made of silicon dioxide
• Nearly zero water absorption
• Outstanding dimensional stability
• Low CTE provides unmatched thermal shock resistance
• Difficult processing restricts use to niche applications

Woven Fiberglass

• Ultra-thin glass strands woven into mesh cloths
• Impregnated with epoxy resin
• Tailorable dielectric constant and thermal expansion traits via weave patterns
• Primarily found in flex circuits, rigid-flex boards

While cost prohibits mainstream adoption, these specialty cores impart capabilities beyond traditional materials for extreme performance envelopes.

Key Selection Criteria for PCB Core Materials

Ideally, engineers select cores to fulfill performance needs at the lowest feasible cost. This requires balancing tradeoffs between:

Dielectric Constant

• Controls signal speed, impedance, crosstalk
• Lower values desired for high speed designs

Loss Tangent

• Signal loss drops with lower loss tangents
• Important for RF microwaves, millimeter waves

Thermal Conductivity

• Cores with higher k values dissipate heat faster from hot components
• Reduces junction temperatures

Coefficient of Thermal Expansion (CTE)

• Matching CTE between core, copper, components prevents warping, delamination issues

Moisture Resistance

• Superior moisture resistance maintains stable electrical performance

Frequency Range

• Dielectric and loss traits vary over operating frequency spectrum

Fabrication Factors

• availability, manufacturability, drillability affect cost

Weighing the above parameters against application requirements and cost targets helps drive proper core material selection decisions tailored for every PCB design scenario.

PCB Copper Core Types Comparison

Copper plays the vital role of forming the conductive traces in circuit boards. Enabling higher trace densities proves essential to keep pace with electronics innovation. Semiconductor advancements expand copper usage given their superior signal carrying capacity.

Copper Foil Composition

Electrodeposited copper foil contains:

• Copper (99%+) – carries signal currents

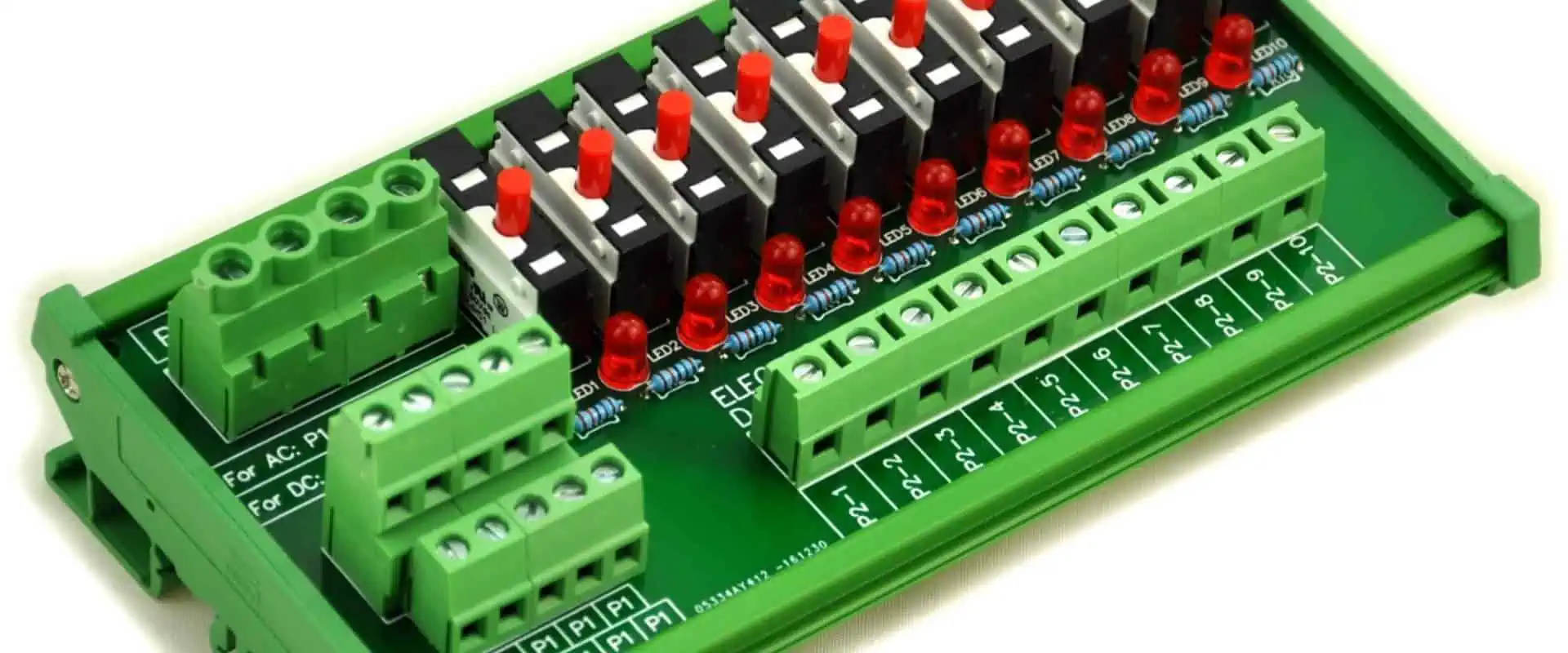

A DIN rail mount PCB (printed circuit board) is a circuit board designed to snap onto a DIN rail for easy installation and removal in industrial control panels or automation equipment.

DIN rail refers to a standard metal rail for mounting circuit breakers, I/O modules, power supplies, and other devices commonly used in the automation industry. The rail is 35 mm wide and conforms to DIN EN 50022 standards established by the Deutsche Institut für Normung (German Institute for Standardization).

Key Features of Din Rail Mount PCBs

• Designed with locking clips, hooks, or spring clips to securely attach the PCB to the DIN rail
• Compact size to fit standard DIN rail widths
• Connectors aligned to easily wire with other DIN rail components
• Durable construction for vibrating machinery environments
• Facilitates easy installation, access, and replacement of components
• Promotes modular flexibility, customization

Applications of Din Rail Mount PCB Assemblies

Din rail mount PCB assemblies are ubiquitous across industrial automation settings:

• Programmable logic controllers (PLCs)
• Human machine interfaces (HMIs)
• Motor drives and controllers
• Sensors (proximity, photoelectric)
• Timers and counters
• Power supplies
• Relays
• Terminal blocks and fuse holders

They provide an integrated, space-optimizing solution for control panels.

Construction of Din Rail Mount Printed Circuit Boards

Specialized PCBs are designed and manufactured to integrate with standard DIN rail brackets. Several din rail mounting methods secure the board firmly onto the rail.

Board Design

The PCB layout differs from traditional Eurocard formats. Key elements:

• Compact length and height dimensions
• Slotted mounting holes, edge cutouts, or specialized connectors to lock onto DIN rail
• Components only installed on one side
• High-density interconnects

DIN Rail Mounting Methods

There are several techniques to mount the PCB onto rails securely, while still enabling relatively easy install and de-installation:

1. Spring Loaded Clips

• Plastic or metal spring clips fix to the PCB edge
• Clips snap into position when the board is pushed onto the rail
• Release buttons allow technicians to dismount the board with light force

{{Image-Springclipdinpcb.jpg|Spring clip DIN rail PCB}}

2. PCB Cutouts and Hooks

• Rectangular edge slots or V-shaped notches designed into PCB
• Cutouts slip right over the top lip of DIN rail
• Special hooks, caps, or tabs lock it into place underneath

{{Image-Cutoutdinpcb.jpg|Cutout DIN rail PCB}}

3. Bolted Brackets

• Low-profile aluminum brackets secure to PCB bottom side with bolts
• Brackets hook over one edge of DIN rail
• Allow boards to cantilever off the rail surface

Layout Guidelines for Din Rail Mount Printed Circuit Boards

Proper PCB layout is critical generating a functional, field-reliable din rail mount board.

Component Placement

• Keep height under 4” to fit enclosures
• Ensure width matches DIN rail dimensions
• Place tall components parallel with height
• Arrange high-density areas over supported sections

Connector Positioning

• Align ports consecutive to terminal wiring
• Put connectors along the long side for accessibility
• Make ports facing outwards for cable insertion
• Include marker symbols for polarity and pin 1 labels

Heat Management

• Use thermal relief cutouts or copper openings around heat-sensitive parts
• Incorporate generous spacing around high-power components
• Locate heat sinks underneath hot devices
• Add ventilation holes above ventilation channels

Mechanical Reinforcement

• Avoid thin board sections prone to vibration issues
• Incorporate corner gussets or ribs to strengthen weak geometric shapes
• Install stiffeners, standoffs or metal backing around heavy devices
• Use conformal coating to harden board against dust and moisture

By incorporating these design practices, PCB developers mitigate field reliability risks associated with din rail mount boards in harsh industrial settings.

Benefits of Using Din Rail Mount Printed Circuit Boards

Switching to din rail mount PCB solutions provides automation users several advantages:

Easier Integration

Installation Method	Average Time
Traditional PCB Mounting	45-90 minutes
Pre-fabricated DIN Rail PCB	5-10 minutes

• Enables rapid install and replacement by technicians
• Eliminates drilling, machining, fabrication for mounting panels
• Saves costs associated with field enclosures and custom brackets

Space Saving

• Compact board size reduces control cabinet space
• High component density packed into small form
• Frees up room for additional I/O and communications

Flexibility

• Modular boards facilitate design changes
• Engineers can quickly create functional prototypes board
• Allows higher customization

Reliability

• Rigid mounting prevents loosening from vibrations
• Boards rated for higher shock/drop test specs
• Components braced against intense mechanical forces

For automation applications requiring interchangeable controls and space efficiency, din rail mount PCBs present the optimal solution.

Cost Analysis of Din Rail Mount Boards

Here is a comparison of cost factors influencing din rail mount PCB production:

Materials

Material	Estimate Price	Notes
FR-4 Glass Epoxy	$5-10 per ft2	Flame resistant grade for electronics
Aluminum Brackets	$2-5 per board	Low quantity, custom brackets
DIN Rail Clips	$0.50-2 per clip	PEI plastic or stainless spring steel
Connectors	$1-5 per I/O	High density, field removable types
Components	$5-15 per BOM	Optimized for vibration resilience

Costs above are rough estimates only – actual pricing based on volume, complexity factors

Services

Service	Typical Cost
PCB Design Engineering	$70-120 per hour	Complex layout development
Board Fabrication	$300-1000 per design	Prototyping costs, small batch fees
PCB Assembly	$10-25 per hour	Manual assembly and soldering
Testing/Programming	$50+ per hour	Burn-in testing, firmware loads

When weighing initial price versus field maintenance and replacement costs over product lifecycles, the long term savings still favor transitioning to din rail mount PCB solutions. Their ease of integration and modularity ensures users recoup their investment through dramatically lower ownership costs.

Applications and Selection of Din Rail Mount Circuit Boards

Types of DIN Rail PCB Assemblies

The compact, modular form lends din rail PCBs usage across a broad range of low-mid voltage automation settings:

Control Modules

• PLC central processing units (CPUs)
• Digital and analog I/O cards
• Communication and networking cards

Intelligent Power Devices

• Motor drives and servo controllers
• Stepper and variable speed drives
• Solid state relays and contactors

Electrical Apparatuses

• Signal conditioners
• Alarm annunciators
• Recorders
• Timers and counters

Monitoring and Diagnostics

• HMIs and data acquisition hardware
• RTU and remote telemetry units

Nearly any electronic system involving logic control, communications, instrumentation, can integrate with standardized DIN rail brackets utilizing custom din rail mount PCB configurations.

Selection Criteria for DIN Rail PCBs

• Environment: temperature, shock, vibration, humidity ranges
• Power: max current, voltage, surge handling capability
• Density: I/O count, component height restrictions
• Programming: interface protocols, memory specs, coding languages
• Reliability: uptime performance, mean time between failures
• Safety: hazardous location ratings, certifications

Engineers work closely with manufacturer design teams to define usage parameters and performance requirements for custom din rail mount PCB projects based on individual use case needs.

Quality Control and Testing of Din Rail Mount PCBs

Stringent verification processes are implemented to validate reliable operation of din rail mount boards under intense industrial environments.

Design Qualification Testing

• Shock/Vibration – assess component anchoring, solder joint integrity, board warping
• Thermal Cycle – evaluate material stresses, connections through temp fluctuations
• Humidity Test – check corrosion resistance, leakage current thresholds
• HALT – discover design weaknesses through highly
