The PCB manufacturing landscape is undergoing dramatic changes in 2026, with material costs fluctuating by up to 35% and new technologies reshaping pricing structures. Whether you’re an engineer working on prototypes or a manufacturer scaling production, understanding how to calculate and optimize PCB costs has never been more critical for project success.

In this comprehensive guide, we’ll explore how PCB cost calculators work, break down the key pricing factors driving costs in 2026, and reveal 10 proven strategies that can reduce your manufacturing expenses by up to 30%. By the end, you’ll have the tools and knowledge to make smarter decisions that balance quality with budget efficiency.

Understanding PCB Cost Calculators: Your Essential Budgeting Tool

A PCB cost calculator is an online tool that provides real-time cost estimates based on your design specifications. These calculators have evolved significantly in 2026, now incorporating AI-driven analysis and direct integration with design software to deliver more accurate projections.

How Modern PCB Calculators Work

Today’s PCB cost calculators analyze multiple parameters simultaneously:

Core Design Parameters:

• Board dimensions (length × width)
• Layer count (1-32+ layers)
• Material type (FR-4, Rogers, Aluminum, etc.)
• Copper thickness (0.5 oz to 4 oz)
• Surface finish options (HASL, ENIG, OSP)
• Drill hole specifications
• Production quantity

Advanced 2026 Features:

• AI-powered design file analysis (Gerber, ODB++)
• Real-time material pricing updates
• Supply chain risk assessment
• Environmental impact scoring
• Regional cost variations

Key Benefits of Using PCB Calculators

Instant Cost Comparison: Compare different design options in real-time. For example, switching from a 6-layer to 4-layer design can immediately show 20-30% cost savings.

Design Optimization: Identify cost-heavy elements before committing to manufacturing. A recent case study showed an engineer saving $15,000 on a 1,000-unit run by adjusting board dimensions from 12×10cm to 10×8cm.

Budget Planning: Get accurate quotes for business planning without waiting for manual estimates.

Material Selection Guidance: See how different substrate choices impact both cost and performance.

Complete PCB Pricing Breakdown for 2026

Understanding what drives PCB costs helps you make informed decisions. Here’s the comprehensive cost structure affecting pricing in 2026:

Material Costs: The Foundation of PCB Pricing

Materials typically account for 55-65% of total PCB manufacturing costs. Here’s how different options stack up:

Standard Materials:

• FR-4 Standard: $0.02-0.05 per square inch
• FR-4 High-TG: $0.04-0.08 per square inch
• Rogers 4350B: $0.15-0.25 per square inch
• Aluminum Core: $0.08-0.15 per square inch
• Polyimide (Flexible): $0.20-0.35 per square inch

2026 Material Trends:

• Bio-based FR-4 alternatives: Premium of 10-15% over standard FR-4
• Supply chain disruptions affecting Rogers materials: 20% price increase
• Recycled copper initiatives reducing costs by 5-8%

Layer Count Impact on Pricing

The number of layers dramatically affects manufacturing complexity and cost:

Cost Multipliers by Layer Count:

• 1-2 layers: Base cost
• 4 layers: 2.5x base cost
• 6 layers: 4x base cost
• 8 layers: 6x base cost
• 10+ layers: 8x+ base cost

Why Layer Count Matters: Each additional layer requires separate lamination cycles, increased material usage, and more complex drilling processes. The manufacturing time increases exponentially with layer count.

Board Size and Panelization Effects

PCB size directly impacts material usage and manufacturing efficiency:

Size Categories and Pricing:

• Small (≤5×5cm): $3-10 per board (low volume)
• Medium (5×10cm): $5-25 per board
• Large (≥10×15cm): $15-50+ per board

Panelization Benefits: Proper panelization can reduce costs by 15-25% by:

• Maximizing material utilization
• Reducing handling time
• Improving manufacturing efficiency

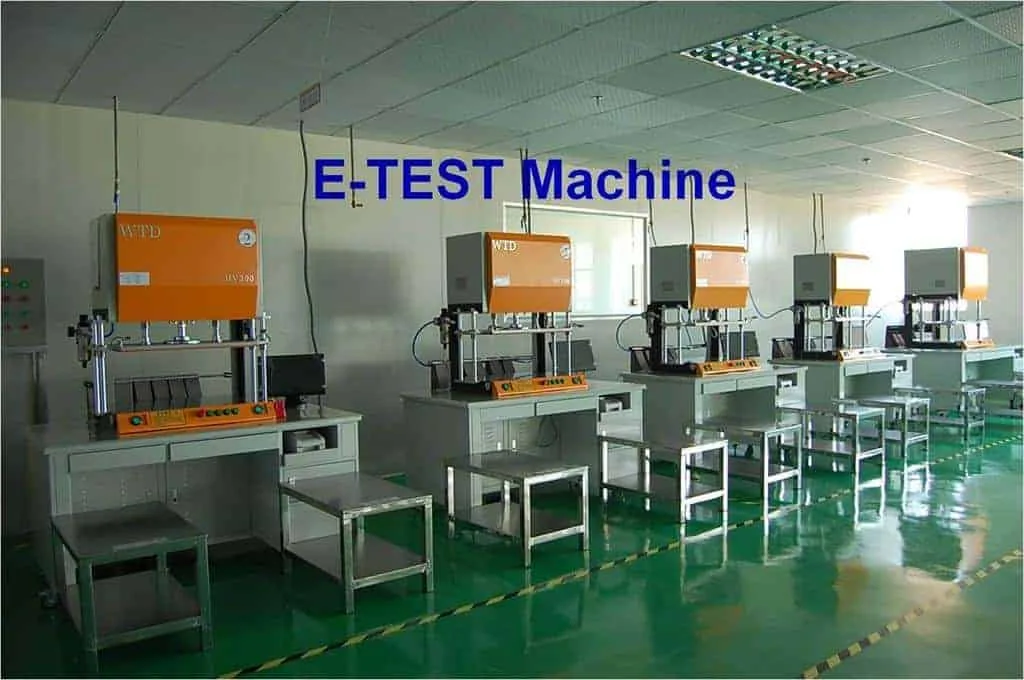

Manufacturing Process Costs

Standard Processes: Basic drilling, etching, soldermask application Advanced Processes: Controlled impedance (+15%), blind/buried vias (+25%), HDI construction (+40%)

Volume Pricing Structure

Understanding volume breaks is crucial for cost optimization:

Prototype Quantities (1-10 units):

• Setup costs distributed across few units
• $50-200 per board common
• Focus on design validation over cost

Small Batch (25-100 units):

• 40-60% cost reduction from prototype pricing
• Sweet spot for testing market demand

Medium Volume (500-1000 units):

• 60-70% cost reduction from prototype
• Manufacturing efficiencies start to matter

High Volume (10,000+ units):

• Maximum cost efficiency
• 80-90% cost reduction from prototype pricing
• Focus shifts to yield optimization

Assembly and Component Costs

PCB assembly (PCBA) represents a significant portion of total project costs, especially for complex designs.

Assembly Cost Components

Labor Costs:

• SMT placement: $0.02-0.05 per component
• Through-hole insertion: $0.05-0.15 per component
• Hand assembly: $0.20-0.50 per component

Setup and Programming:

• Stencil creation: $50-150
• Pick-and-place programming: $100-300
• AOI/testing setup: $100-500

Regional Cost Variations (2026):

• China: Lowest cost, 2-4 week lead times
• Eastern Europe: 30-50% higher than China
• North America: 200-300% higher than China
• Advantages of local assembly: Faster iteration, better communication, IP protection

Component Procurement Strategies

Cost-Effective Sourcing:

• Use manufacturer-preferred parts (MPP) for 10-15% savings
• Avoid obsolete or hard-to-find components
• Consider alternative components with similar specifications

2026 Component Market Conditions:

• Semiconductor shortage stabilizing but prices remain elevated
• Passive component availability improving
• Microcontroller lead times reduced to 8-16 weeks

10 Proven Strategies to Cut PCB Manufacturing Costs by 30%

Based on industry analysis and real-world case studies, these strategies can deliver significant cost savings:

1. Optimize Board Dimensions and Shape

Strategy: Design boards to fit standard panel sizes and avoid irregular shapes.

Implementation:

• Use rectangular shapes whenever possible
• Design to standard sizes: 50×50mm, 100×80mm, 160×100mm
• Minimize board area while maintaining functionality

Real-World Example: A smart home device manufacturer reduced costs by 22% by changing their board from a custom L-shape (127×89mm) to a rectangular design (100×80mm), improving panelization efficiency.

Potential Savings: 15-25%

2. Reduce Layer Count Through Smart Routing

Strategy: Minimize layers by optimizing trace routing and component placement.

Implementation:

• Use advanced routing techniques like differential pair routing
• Consider component placement to reduce via requirements
• Evaluate if high-speed signals really need dedicated layers

Tools and Techniques:

• Use auto-routers for initial routing, then optimize manually
• Implement length matching for high-speed signals
• Consider trace width optimization for current-carrying capacity

Potential Savings: 20-35%

3. Standardize on Cost-Effective Materials

Strategy: Use standard FR-4 material unless specialty materials are absolutely required.

Material Selection Guide:

• Standard applications: FR-4 TG130-140
• High-temperature applications: FR-4 High-TG (TG170+)
• High-frequency applications: Rogers only when necessary
• Power applications: Aluminum core for thermal management

When to Upgrade Materials:

• Operating temperatures >130°C: High-TG FR-4
• Frequencies >1GHz: Consider Rogers materials
• High power density: Aluminum core or copper core

Potential Savings: 10-40%

4. Leverage Volume Purchasing Power

Strategy: Plan production runs to hit volume break points.

Volume Planning:

• Analyze annual requirements to determine optimal order quantities
• Consider shared tooling costs across product variants
• Plan for inventory holding costs vs. unit cost savings

Joint Purchasing Opportunities:

• Coordinate with other teams for combined orders
• Consider component kitting services
• Evaluate manufacturer partnership programs

Potential Savings: 30-60%

5. Simplify Surface Finishes and Specifications

Strategy: Use basic surface finishes unless specific requirements dictate otherwise.

Surface Finish Comparison:

• HASL (Lead-free): Lowest cost, suitable for most applications
• OSP: Good for fine-pitch components, limited shelf life
• ENIG: Premium cost but excellent for HDI and fine-pitch
• Immersion Silver: Good middle ground for performance/cost

Specification Optimization:

• Use standard copper thickness (1 oz) unless higher current required
• Relax tolerance requirements where possible
• Avoid gold fingers unless required for card-edge connectors

Potential Savings: 10-25%

6. Optimize Via Strategy

Strategy: Minimize expensive via types and reduce overall via count.

Via Cost Comparison:

• Through-hole vias: Standard cost
• Blind vias: 25-40% cost premium
• Buried vias: 40-60% cost premium
• Microvias: 50-100% cost premium

Design Guidelines:

• Use through-hole vias whenever possible
• Minimize via-in-pad requirements
• Consider via stitching only where necessary for thermal/EMI

Potential Savings: 15-30%

7. Implement Design for Manufacturing (DFM) Principles

Strategy: Design with manufacturing constraints in mind from the start.

Key DFM Guidelines:

• Maintain minimum trace widths (4 mil for most manufacturers)
• Use standard drill sizes (0.2mm, 0.25mm, 0.3mm increments)
• Provide adequate copper-to-edge clearance (0.5mm minimum)
• Design for standard assembly processes

DFM Checklist:

• Component orientation for automated assembly
• Fiducial marker placement
• Test point accessibility
• Solder mask and silkscreen requirements

Potential Savings: 10-20%

8. Strategic Timing and Lead Time Management

Strategy: Plan orders to avoid rush charges and leverage standard lead times.

Lead Time Options:

• Standard (15-20 days): Base pricing
• Expedited (7-10 days): 25-50% premium
• Rush (3-5 days): 100-200% premium

Timing Strategies:

• Plan prototypes 6-8 weeks before needed
• Schedule production runs during manufacturer off-peak periods
• Consider partial shipments to manage cash flow

Potential Savings: 20-50%

9. Component Selection and Standardization

Strategy: Choose components based on availability, cost, and assembly efficiency.

Component Guidelines:

• Prefer 0603 and 0805 packages over smaller sizes when possible
• Use manufacturer preferred parts (MPP) lists
• Avoid single-source components
• Consider component lifecycle and availability

Cost-Effective Component Selection:

• Standard resistor/capacitor values cost less
• Popular IC packages have better pricing
• Through-hole components for prototypes, SMT for production

Potential Savings: 15-25%

10. Supplier Relationship and Contract Optimization

Strategy: Build strategic relationships with manufacturers for long-term cost benefits.

Relationship Building:

• Establish preferred vendor agreements
• Negotiate volume-based pricing tiers
• Consider partnership arrangements for design support

Contract Optimization:

• Annual purchase commitments for better pricing
• Flexible delivery schedules
• Shared NRE (Non-Recurring Engineering) costs

Value-Added Services:

• Design review and optimization
• Supply chain management
• Quality assurance programs

Potential Savings: 10-30%

Advanced Cost Optimization Techniques for 2026

AI-Driven Design Optimization

Modern PCB design tools now incorporate AI to suggest cost-optimal layouts:

AI Capabilities:

• Automatic trace routing for minimal layer count
• Component placement optimization for assembly efficiency
• Real-time cost feedback during design process

Implementation:

• Use AI-powered CAD tools like Altium Designer 24+
• Implement design rule checks for cost optimization
• Leverage machine learning for component selection

Supply Chain Diversification

The global supply chain disruptions of recent years have taught valuable lessons:

Risk Mitigation Strategies:

• Dual-source critical components
• Regional supplier qualification
• Inventory buffering for critical parts

Cost Implications:

• Higher inventory costs offset by reduced shortage risks
• Supplier diversity may increase unit costs but improve reliability
• Local sourcing provides better supply chain visibility

Sustainability and Cost Synergies

Environmental considerations increasingly align with cost optimization:

Green Manufacturing Benefits:

• Reduced material waste through better panelization
• Energy-efficient processes lower overhead costs
• Recycled materials often cost less than virgin materials

2026 Sustainability Trends:

• Bio-based substrates becoming cost-competitive
• Lead-free processes are now standard
• Halogen-free materials for electronics applications

Regional Cost Analysis and Manufacturing Trends

Asia-Pacific Manufacturing Hub

Advantages:

• Lowest labor costs
• Mature supply chains
• High manufacturing capacity

2026 Developments:

• Automation reducing labor cost advantages
• Quality improvements closing gap with Western manufacturers
• Lead time advantages due to proximity to component suppliers

North American Reshoring Trends

Driving Factors:

• Supply chain security concerns
• Reduced shipping costs and lead times
• Government incentives for domestic manufacturing

Cost Implications:

• 2-3x higher manufacturing costs
• Faster iteration cycles
• Better IP protection

European Manufacturing Focus

Strengths:

• High-quality manufacturing
• Strong automotive and industrial focus
• Advanced technology adoption

Market Position:

• Premium pricing for specialized applications
• Focus on high-reliability and aerospace markets
• Growing sustainability requirements

Technology Trends Impacting PCB Costs in 2026

Advanced Manufacturing Technologies

Additive Manufacturing:

• 3D-printed PCBs for rapid prototyping
• Reduced tooling costs for complex shapes
• Limited to simple applications currently

Embedded Components:

• Components integrated into PCB substrate
• Reduced assembly costs
• Higher initial PCB costs but lower overall system cost

Next-Generation Materials

Novel Substrates:

• Graphene-enhanced materials for thermal management
• Bio-based alternatives to traditional FR-4
• Ultra-low-loss materials for 5G/6G applications

Cost Impact:

• Premium pricing initially
• Volume adoption driving costs down
• Performance benefits may justify higher costs

Industry 4.0 Integration

Smart Manufacturing:

• Real-time cost tracking and optimization
• Predictive maintenance reducing downtime
• Quality improvements reducing rework costs

Digital Twin Technology:

• Virtual prototyping reducing physical prototype needs
• Process optimization through simulation
• Better yield prediction and cost forecasting

Future Outlook: PCB Cost Trends Through 2030

Market Projections

The global PCB market is projected to reach $106.85 billion by 2030, growing at a CAGR of 4.87%. Several factors will influence cost trends:

Growth Drivers:

• Electric vehicle adoption requiring high-performance PCBs
• 5G infrastructure buildout
• IoT device proliferation
• Medical device advancement

Cost Pressures:

• Raw material price volatility
• Environmental compliance costs
• Labor cost increases in traditional manufacturing regions

Technology Roadmap

Near-term (2026-2027):

• Increased automation in assembly processes
• Better material utilization through AI optimization
• Standardization of advanced processes

Medium-term (2028-2030):

• Widespread adoption of embedded component technology
• Significant cost reduction in HDI manufacturing
• New substrate materials becoming mainstream

Strategic Recommendations

For Engineers:

• Stay current with design tools incorporating cost optimization
• Build relationships with manufacturing partners
• Consider lifecycle costs, not just initial manufacturing costs

For Procurement Teams:

• Develop supplier partnerships for long-term cost stability
• Implement supplier diversification strategies
• Monitor technology trends for early adoption opportunities

For Business Leaders:

• Invest in design optimization tools and training
• Consider vertical integration for high-volume products
• Plan for supply chain resilience alongside cost optimization

Conclusion: Maximizing Value in PCB Manufacturing

Effective PCB cost management in 2026 requires a holistic approach combining smart design decisions, strategic supplier relationships, and awareness of market trends. The 10 strategies outlined in this guide can deliver substantial cost savings—often 30% or more—without compromising quality or performance.

Key Takeaways:

1. Use modern PCB calculators with AI-powered features for accurate cost estimation
2. Optimize design early to minimize layers, board size, and manufacturing complexity
3. Leverage volume purchasing to achieve significant unit cost reductions
4. Build strategic supplier relationships for long-term cost benefits
5. Stay informed about technology trends that may offer cost advantages

The PCB manufacturing landscape will continue evolving rapidly, with new technologies and market forces reshaping cost structures. By implementing these strategies and staying adaptable to change, you can maintain competitive advantage while controlling costs.

Whether you’re designing your first prototype or optimizing production runs, remember that small design decisions can have massive cost implications. Start with a comprehensive cost analysis using modern calculators, then apply these optimization strategies systematically to achieve the best balance of performance, quality, and cost for your specific application.

Take Action Today:

• Use a modern PCB cost calculator to baseline your current designs
• Identify the top 3 cost optimization opportunities for your projects
• Engage with manufacturing partners to discuss volume pricing and DFM guidelines
• Plan your 2026 PCB requirements to leverage volume purchasing opportunities

The combination of smart design decisions, strategic planning, and modern tools can transform your PCB costs from a budget constraint into a competitive advantage.
