PCB Raw Materials

Understanding PCB Raw Materials

PCB raw materials are the building blocks that form the foundation of every printed circuit board. These materials play a crucial role in determining the board’s electrical, mechanical, and thermal properties. The choice of raw materials can significantly impact the PCB’s performance, longevity, and suitability for specific applications.

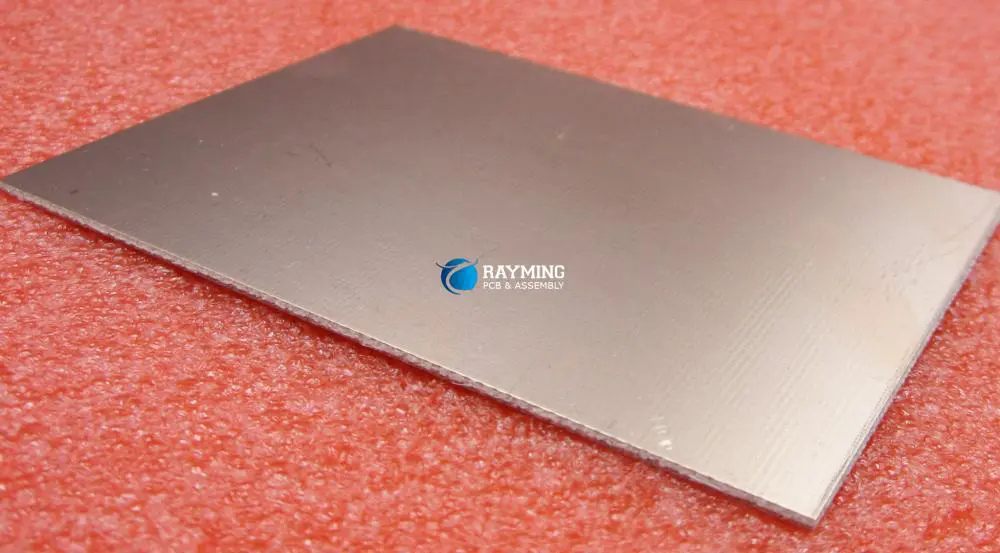

The Core of PCBs: Copper Clad Laminates (CCL)

At the heart of every PCB lies the Copper Clad Laminate (CCL). This essential component consists of a non-conductive substrate material, typically made of glass fiber reinforced epoxy resin, bonded with thin copper foil on one or both sides. The CCL serves as the base material upon which the intricate circuit patterns are etched and additional layers are built.

Types of CCL

1. FR-4 (Flame Retardant 4): The most common type of CCL, FR-4 is known for its excellent balance of electrical, mechanical, and thermal properties. It’s widely used in consumer electronics, automotive applications, and industrial equipment.

2. High-Tg FR-4: A variant of FR-4 with a higher glass transition temperature (Tg), suitable for applications that require better thermal stability.

3. Halogen-Free FR-4: An environmentally friendly alternative that doesn’t contain halogenated flame retardants.

4. CEM-1 and CEM-3: Composite Epoxy Materials that offer a cost-effective alternative to FR-4 for less demanding applications.

5. Polyimide: Known for its exceptional heat resistance and dimensional stability, polyimide is used in high-temperature and aerospace applications.

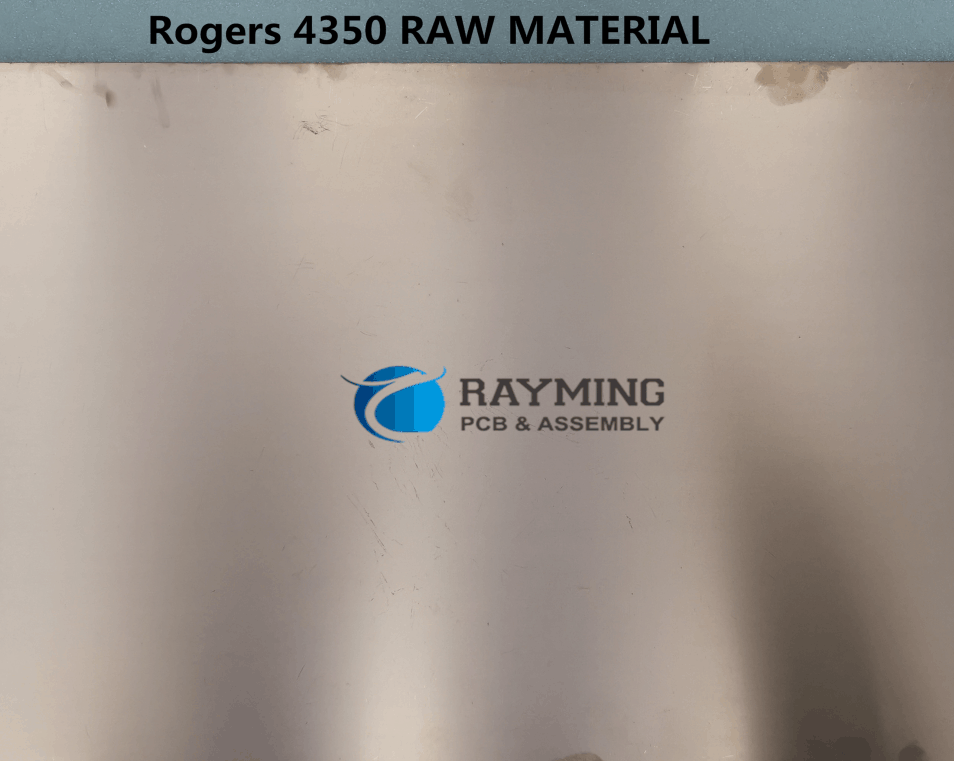

6. PTFE (Teflon): Offers excellent high-frequency performance, making it ideal for RF and microwave applications.

7. Alumina: A ceramic substrate used in applications requiring excellent thermal management.

Copper Foil: The Conductive Layer

Copper foil is the conductive material that forms the circuit traces on a PCB. Its quality and thickness are crucial factors in determining the board’s electrical performance.

Types of Copper Foil

1. Electrodeposited (ED) Copper: Created through an electroplating process, ED copper offers excellent uniformity and is suitable for most PCB applications.

2. Rolled Annealed (RA) Copper: Manufactured by rolling copper ingots, RA copper provides better ductility and fatigue resistance, making it ideal for flexible PCBs.

3. Reverse Treated Copper: Features a rough side for better adhesion to the substrate and a smooth side for fine line etching.

Prepreg: The Bonding Agent

Prepreg, short for pre-impregnated, is a partially cured epoxy resin-impregnated glass cloth. It serves as a bonding agent between different layers of a multilayer PCB and provides insulation between conductive layers.

Solder Mask: The Protective Layer

Solder mask is a thin lacquer-like layer applied to the copper traces of a PCB to prevent oxidation and short circuits. It also provides insulation and protection against environmental factors.

Types of Solder Mask

1. Liquid Photoimageable Solder Mask (LPSM): The most common type, applied as a liquid and cured using UV light.

2. Dry Film Solder Mask: Applied as a film and offers better uniformity than LPSM.

3. Epoxy Liquid Solder Mask: Used in some high-reliability applications.

Silkscreen: The Labeling Layer

Silkscreen, typically white or yellow in color, is used to print text, component designators, and other markings on the PCB surface.

Factors Influencing PCB Raw Material Selection

Choosing the right raw materials for a PCB is a critical decision that impacts the board’s performance, reliability, and cost. Here are some key factors to consider:

1. Electrical Requirements: The dielectric constant, loss tangent, and impedance control needs of the application.

2. Thermal Performance: The board’s ability to withstand high temperatures and dissipate heat.

3. Mechanical Properties: Strength, flexibility, and dimensional stability requirements.

4. Environmental Considerations: Resistance to moisture, chemicals, and UV radiation.

5. Regulatory Compliance: Meeting industry-specific standards and regulations.

6. Cost: Balancing performance requirements with budget constraints.

7. Manufacturability: Compatibility with PCB manufacturing processes.

Advanced PCB Raw Materials for Specialized Applications

As technology advances, new raw materials are being developed to meet the growing demands of specialized applications. Let’s explore some of these cutting-edge materials:

High-Speed and High-Frequency Materials

With the increasing demand for faster data transmission and higher operating frequencies, specialized materials have been developed to minimize signal loss and maintain signal integrity.

1. PTFE-based Materials: Offer extremely low dielectric constants and loss tangents, ideal for high-frequency applications up to 77 GHz.

2. Hybrid Materials: Combine the high-frequency performance of PTFE with the ease of processing associated with FR-4.

3. Low-Loss Materials: Designed to minimize signal attenuation in high-speed digital applications.

Thermal Management Materials

As electronic devices become more powerful and compact, efficient heat dissipation becomes crucial. Several raw materials have been developed to address this challenge:

1. Insulated Metal Substrates (IMS): Consist of a metal base (usually aluminum) with a thin dielectric layer and copper foil, offering excellent thermal conductivity.

2. Ceramic-filled Laminates: Incorporate ceramic particles into the resin system to enhance thermal conductivity.

3. Carbon-based Materials: Utilize carbon fibers or graphene to improve thermal management.

Flex and Rigid-Flex Materials

The demand for flexible and rigid-flex PCBs has led to the development of specialized materials that can withstand repeated bending and flexing:

1. Polyimide Films: Offer excellent flexibility and high-temperature resistance.

2. Liquid Crystal Polymer (LCP): Provides good electrical properties and moisture resistance for flex applications.

3. Adhesiveless Laminates: Eliminate the need for adhesive layers, reducing thickness and improving flexibility.

The Impact of Raw Materials on PCB Manufacturing

The choice of raw materials significantly influences the PCB manufacturing process. Here’s how different materials affect various stages of production:

Lamination

The lamination process, where multiple layers of a PCB are bonded together, is heavily dependent on the properties of the chosen materials. Factors such as the glass transition temperature (Tg) and the coefficient of thermal expansion (CTE) of the laminates and prepregs play crucial roles in determining the lamination parameters.

Drilling

The hardness and composition of the laminate material affect the drilling process. For instance, high-Tg materials and ceramic-filled laminates may require specialized drill bits and adjusted drilling parameters to achieve clean, precise holes.

Etching

The copper foil type and thickness influence the etching process. Thinner copper foils generally allow for finer line widths and spacing but may require more precise etching control.

Plating

The adhesion of plated copper to the base material is affected by the surface properties of the laminate and copper foil. Some advanced materials may require special surface treatments to ensure proper adhesion.

Solder Mask Application

The surface energy and texture of the laminate material can impact the adhesion and coverage of the solder mask. Some high-performance materials may require specialized solder mask formulations.

Environmental Considerations in PCB Raw Materials

As environmental awareness grows, the PCB industry is increasingly focusing on developing and using more sustainable raw materials:

Halogen-Free Materials

Traditional flame retardants used in PCB laminates often contain halogens, which can be harmful to the environment. Halogen-free alternatives are being developed and adopted to reduce environmental impact.

Lead-Free Solder Compatible Materials

With the shift towards lead-free soldering, PCB raw materials need to withstand higher soldering temperatures. High-Tg laminates and specialized solder masks have been developed to meet these requirements.

Recyclable and Biodegradable Materials

Research is ongoing to develop PCB materials that are easier to recycle or biodegrade at the end of their lifecycle. These include bio-based resins and easily separable composite materials.

Future Trends in PCB Raw Materials

The world of PCB raw materials is continuously evolving to meet the demands of emerging technologies. Here are some trends to watch:

1. 5G and Beyond: Development of ultra-low-loss materials for high-frequency applications.

2. Internet of Things (IoT): Materials that support miniaturization and improved power efficiency.

3. Electric Vehicles: High-performance materials capable of withstanding harsh automotive environments.

4. Artificial Intelligence and Machine Learning: Materials that support high-speed, high-density designs for AI accelerators and machine learning hardware.

5. Wearable Technology: Flexible and stretchable materials for seamless integration into clothing and accessories.

6. Quantum Computing: Exotic materials with unique properties to support quantum circuits and cryogenic environments.

Conclusion

The raw materials used in PCB manufacturing form the foundation upon which modern electronics are built. From the ubiquitous FR-4 to cutting-edge high-frequency laminates, each material plays a crucial role in determining the performance, reliability, and applicability of the final PCB.

As technology continues to advance, the demands placed on PCB raw materials will only increase. The industry must continue to innovate, developing new materials and improving existing ones to meet the challenges of tomorrow’s electronic devices.

Whether you’re a PCB designer, manufacturer, or simply an enthusiast, understanding PCB raw materials is key to appreciating the complexity and ingenuity behind the devices we use every day. As we look to the future, it’s clear that the evolution of PCB raw materials will continue to be a driving force in the advancement of electronic technology.
