The transistor forms the main electronic component in all transistor circuits. You can obtain the electronic components in discrete form. Also, they could be integrated within an IC.

The manufacturing of these transistors come in different formats and they could be obtained so as to achieve different roles including small and high power as well as switching, RF, and audio.

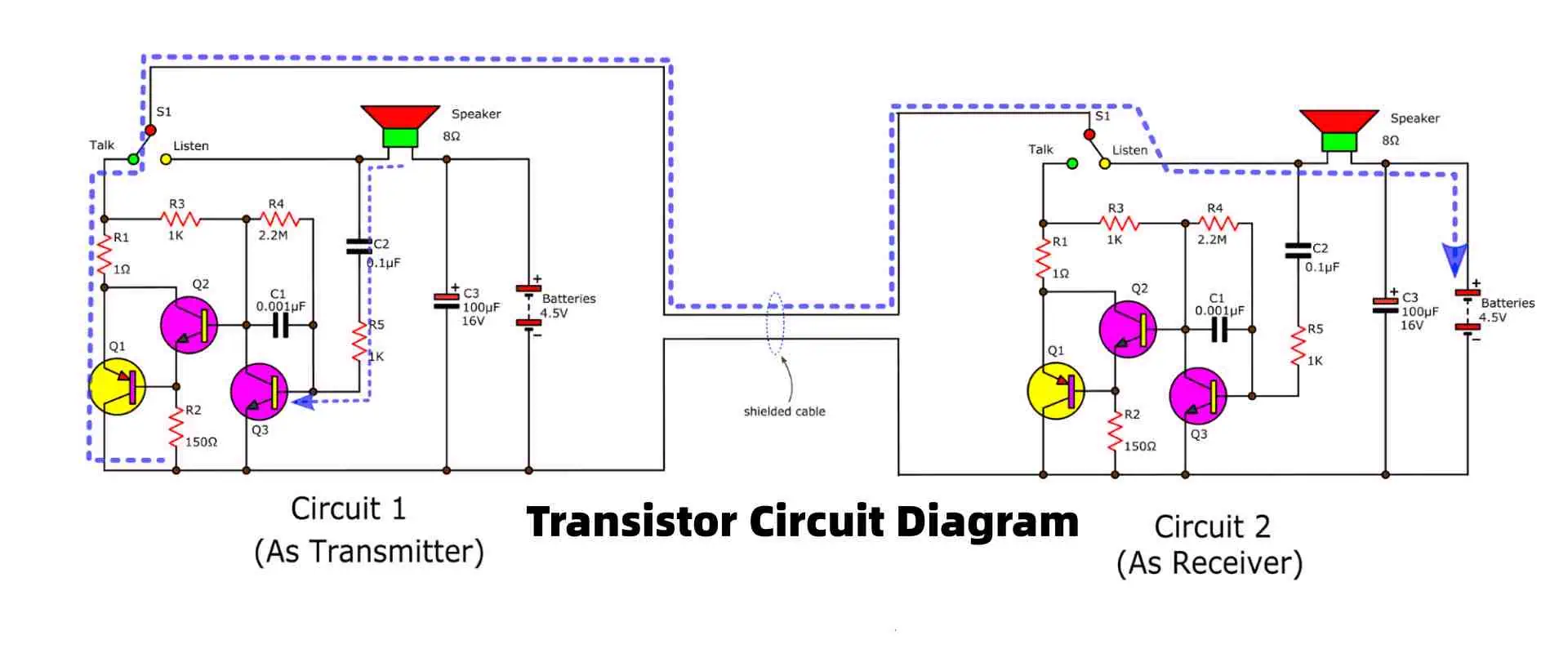

What Does a Transistor Circuit Diagram Mean?

Transistor circuits are usually found at the center of the electronic circuits’ designs of today. Though integrated circuits are useful for so many circuits, the usefulness of the transistor circuit diagram in different areas cannot be overemphasized.

Though making use of discrete electronic components having transistors makes use of more components, tailoring the circuit to offer the required functionality is possible. Accordingly, circuits that make use of discrete transistors as well as more electrical components still form the core of electronic circuit designs.

What this means is that, having a good understanding of the transistor circuit diagram is very important because it would both allow the design of the main transistor circuits, and provide better understanding when operating integrated circuits based on the bipolar transistor technologies.

What are Transistors?

Transistors can be described as a semiconductor device, which is useful for the conduction and insulation of voltage or electric current. Basically, the transistor serves as an amplifier and a switch. Explained in simple terms, the transistor serves as a miniature device, which is useful in controlling or regulating the electronic signal flow.

Furthermore, transistors form a major component in the majority of electronic devices present today. Developed by three Physicists from America, William Shockley, Walter Brattain, and John Bardeen in 1947, this transistor is viewed among the most significant inventions in science’s history.

Typical transistors are made of three main semiconductor material layers or terminals that aid in connecting to the external circuits as well as carry the current. The current or voltage that is applied to any of the pairs of a transistor’s terminals helps in controlling the current via other terminal pairs. A transistor comes with three terminals. These include:

• Emitter: which is the transistor’s negative lead
• Collector: Which is the transistor’s positive lead
• Base: This helps in activating the transistor

Transistor Types

Transistors come in two major types and these are based on the way they are utilized in circuits. Let’s consider them.

Bipolar Junction Transistors

Bipolar junction transistors feature three terminals. These include collector, emitter, and base. An extremely small quantity of current passing in-between the emitter and the base can control the larger current flow in-between the emitter terminal and collector.

Field Effect Transistors

For the field effect transistors, there are three terminals, which are Drain, Source, and Gate. The gate terminal’s voltage can control the current found between the drain and the source. Field effect transistors are unipolar transistors whereby P-channel FETs or N-channel FETs are utilized for conduction purposes. Their applications include analogue switches, buffer amplifiers, low noise amplifiers.

How Does a Transistor Work?

Transistors serve as a gate or switch for an electronic signal, opening as well as closing of an electronic gate as many times every second. It makes sure that the circuit stays on whenever there is a flow of current and then switches off whenever it isn’t.

In addition, transistors are utilized in different complex switching circuits which are made up of all the telecommunication systems of today. Also, circuits provide extremely high switching speeds like at least hundreds gigahertz than the 100 billion on and off cycles every second.

Furthermore, you can combine transistors to form logic gates, which helps in the comparison of many input currents so as to offer different outputs. Computers having logic gates have the ability to make easy decisions making use of Boolean algebra. The techniques form the basis of today’s computer and computing programs.

Also, transistors play a significant role in the amplification of electronic signals. Take for instance, in the radio applications, such as FM receiver, whereby the electric signal received might be weak as a result of disturbances, the amplification becomes necessary to deliver audible output. In addition, these transistors offer the amplification through increase of the strength of the signal.

Design Parameters of the Transistor Circuit Diagram

Before you handle the circuit design of transistor circuits, defining the circuit’s requirements is necessary. Some important parameters linked to the transistor circuit diagram include.

Voltage gain

This is usually a major requirement for electronic circuit designs. The circuit’s voltage gain is a voltage increase from the circuit’s input into its output. Explaining mathematically, the gain in voltage is the quotient between the output voltage and input voltage. Also, voltage gain can be viewed as one of the main purposes of many circuits. This is because it helps to enable the size.

Current Gain

A circuit’s current gain is also important, most especially whenever the circuit will be driving a load with low impedance. Usually circuits without any voltage gain and just current gain are required to enable relatively-high impedance output circuits to drive a second circuit, which has lower impedance.

So many examples are applicable here. RF oscillators usually require the buffer stage so as to make sure that oscillator circuits are not unduly loaded, however the output is required to help in deriving the remaining circuits. The gain in current is also utilized in the power supply circuit whereby the voltage regulator’s series pass elements have to provide high current levels, however making use of the low voltage current reference. Other examples whereby current gain is necessary and required.

Just like the voltage gain, a circuit’s current gain draws a comparison between both the output and input levels. However, this happens in terms of the current. Furthermore, current gain equals the output current and then divided by input current.

The Input Impedance

A transistor circuit’s input impedance always plays a significant role. It helps in the determination of the loading on the initial stage. Also, it is important for RF circuits whereby the impedance matching is a very important parameter.

For many designs of electric circuits, high input impedance is usually desirable because the initial stage won’t be unduly loaded. If the transistor circuit’s input impedance is extremely low, then the initial one would be loaded. This then reduces the level of signal and thereby causes some distortion in some scenarios. In addition, the configuration of the transistor stage in providing the appropriate input impedance forms a major element of the process of electronic circuit designs.

Design Process of the Transistor Circuit Diagram

There are different stages involved in the design process of the transistor circuit diagram. They are taken in the logical order, however there are some revisiting of these stages in order to optimize the electronic components’ values in order to offer the overall performance required.

Determine the requirements

A very important phase is to determine the real requirements, as well as getting it correctly would mean that the circuit’s concept will not change later on.

Determine the topology and function of the circuit

Immediately we have settled the requirements for the full electronics device, it becomes important to decide on the actual transistor circuits. For instance, many oscillator amplifiers, circuits are available for the transistors and it is possible to choose the best type for that specific requirement. Also, this defines the true circuit topology.

For example, the utilization of common base, common collector, common emitter, but if it isn’t, it could be a part of the general decision making during this period. This is because the loading on the output impedance, gain, oscillators, and others could be considered during this period.

Setting up the bias conditions

For all circuits, one important feature of an electronic circuit design involves ensuring the labels of bias for all active devices. For this reason, the bipolar transistors could be correctly set. If there’s an incorrect bias, this transistor circuit wouldn’t function.

The determination of the electronic components’ value (majorly the resistors), which sets the bias is one important stage of the transistor circuit diagram design.

Determining the values of the functional electronic components

Coupled with setting the conditions of the bias, other values of the electronic components to offer the appropriate circuit functionality has to be determined. This phase of transistor circuit diagram design will proceed with the setting of the bias conditions, as one value will have an effect on the other value.

Conclusion

 It is clear that the main electronic component in all transistor circuits is the transistor. You can obtain these components discretely or they might be within the integrated circuits.

The battery is an important part of a Circuit. It is one of the best and most common sources of power for many devices. From handheld devices to high performance industrial machines, batteries are commonly used. The battery circuit diagram explains a lot about the function of batteries in a circuit.

Here, we will shed more light on battery Circuit diagrams, their function, and what they are made of. Also, we will look at how battery circuit diagrams are created. At the end of this article, you would have a vivid understanding of the function of batteries in a circuit diagram.

What is a Battery?

A battery comprises electrochemical cell(s) that can easily convert chemical energy into electrical energy. It is a core part of a circuit. There are three main parts of batteries and these are the electrolyte, cathode, and an anode.

For all batteries, chemical reactions come into play which produces the anode’s electrons. This is what differentiates the anode from the cathode. These differences have to be taken away from the picture and this is why electrons rearrange.

Moreover, electrons will be able to achieve this using a specific way. These electrons get transported to another location having fewer electrons called the cathode.

Furthermore, electrolytes stop electrons from moving directly between the cathode and anode. A wire exists that links both the cathode and anode.

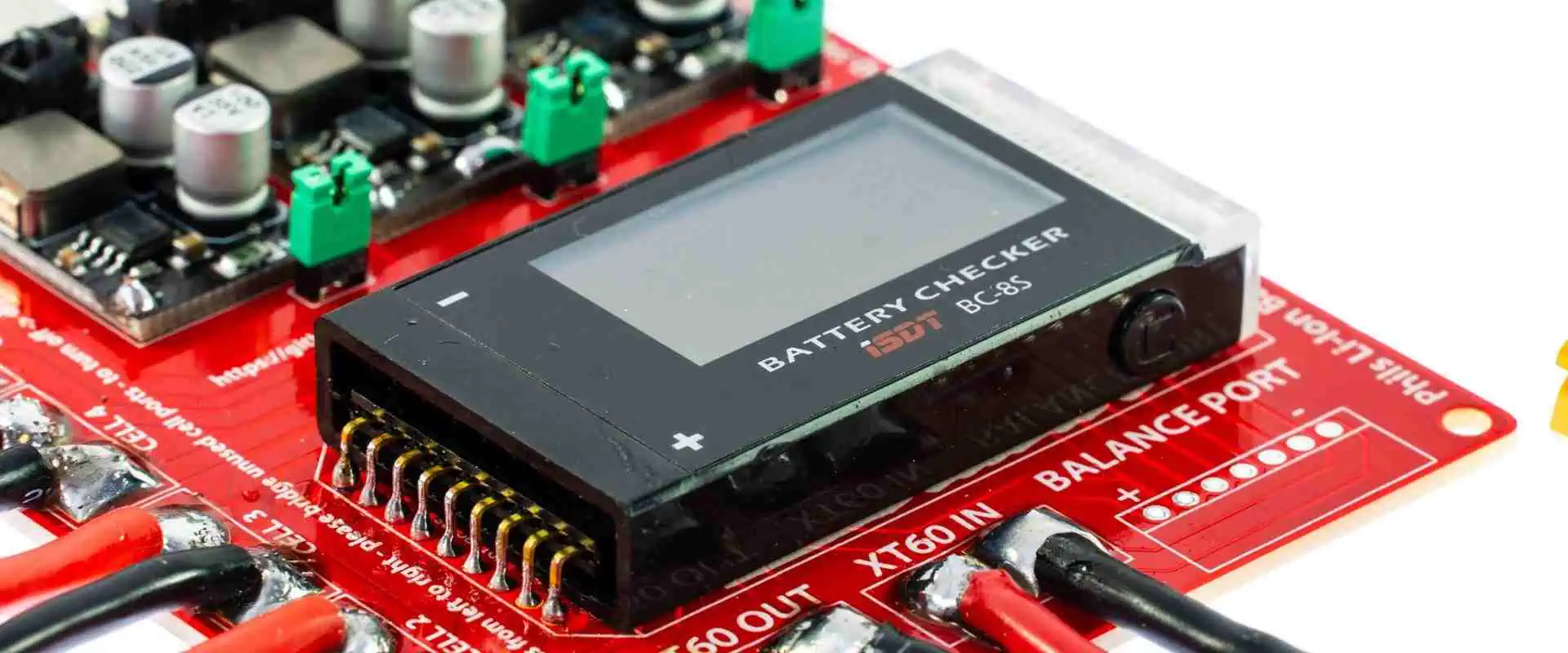

What is a Battery Circuit Diagram?

Battery circuit diagrams can be described as a visual representation, which aids in the simplification of the batteries’ functions inside the electrical circuits.

This is a very important tool that helps in the creation and maintenance of electronic equipment. A battery circuit diagram utilizes symbols, images for presenting a battery’s elements as well as the way they are linked and connected.

It helps in presenting a connection between the electrolyte and the electrodes (the cathode and the anode). Battery circuit diagrams are important for the design of electrical circuits. Also, it describes the way battery fits inside the electrical circuits. It aids engineers as well as technicians to comprehend the battery’s position better as well as how they function in the circuit.

For electrical circuits, battery gives energy by charge movement from the low to the high energy terminals. Whenever the charge gets moved to a higher energy, differences in electric ability across the external circuit’s ends will be created. Charge will end up passing through this external circuit.

So many people feel battery serves to create charges that flow through the circuit. Also, they have this belief that batteries cannot function anymore when it loses charge. This is false; because you can charge batteries and make them work again. Batteries re-energize themselves by reversing its chemical reactions which take place on the inside.

What Does a Circuit Diagram Consist?

Batteries form a very important component in electric circuits. Moreover, this isn’t the only part of a circuit; however there are some other components which make up the circuit. Now, let us consider some of these symbols to help us understand this section better.

Switch

A switch’s symbol is denoted by a line having a gap or break. This gap closes whenever you close or turn the switch on. When you switch off or open the switch, a gap exits, which indicates that there is a disruption in current flow

Electrical cell

This is a long and short parallel line that represents electric cells. The short and long line represents the positive and negative terminals respectively.

Battery

There are multiple electric cells in a battery and these cells are linked together. Electric cell symbols usually represent a battery.

How do Batteries Work?

The anode and the cathode are the two ends in a battery circuit. While the anode represents the negative terminal, the cathode is the positive terminal. A circuit forms when these two terminals are connected with wire. Furthermore, there is a current of electricity once the electrons pass through the wire. There is a lot of work going on inside the battery as chemicals react. However, chemicals can only react when electrons flow.

You can store a battery for a while and expect it to work since the chemical process can only occur when there is flow of electrons from negative terminals to positive terminals. A battery contains cells which go through some reactions, mostly chemical, to generate the flow of electrons in a circuit. The battery circuit became important due to the need to store the energy you generated.

There is a build up of electrons at the anode when you connect batteries. This causes a difference between two electrodes. As a result of this, the electrons redistribute themselves, but the electrolyte prevents this from happening. This offers a clear path for electron flow between the anode and cathode.

What does a Battery Contain?

You can easily understand the working principles of a battery when you know what it contains. There are several elements that make up a battery.

Container: A battery has an empty steel as its container. This container comprises all other elements of a battery.

Separator: This is a kind of paper that prevents the cathode from having any form of contact with the anode.

Cathode mix: This powder is a combination of manganese dioxide and conductors with the presence of electrical charge. The cathode mix is usually attached to the inner wall of an empty container.

Collector: The negative current collector contains a brass pin which you insert in the battery. This pin is always capped and sealed.

Anode: One of the most crucial parts of the battery circuit is the anode. The anode has a negative charge and potassium hydroxide electrolyte which pumps into the container.

What is the Role of a Battery in a Circuit?

A battery plays a significant role in how a circuit works. It converts the chemical energy it stores into electricity. The working principle of a battery in a circuit is based on an electrochemical cell. There are several electrochemical cells in a battery. Every electrochemical cell comprises two electrodes. An electrolyte separates these electrodes.

The question is how do electrochemical cells produce electricity? We can only know the answer to this question when we understand what electricity is all about. Electricity is said to be generated through the flow of electrons. A chemical reaction which occurs at an electrode produces electrons in an electrochemical cell. These electrons then flow to another electrode.

For a free flow of electrons, there is a place where electrons would come from and where the electrons will as well go. These are the electrodes of the cell. Also, there is the flow of electrons from the anode to cathode. There are several chemical reactions occurring in a battery. The electrode always responds with the electrolyte in such a way that electrons are produced. On the other hand, there is a chemical reaction which happens simultaneously. This reaction allows the electrode to receive electrons.

What are the Types of Batteries?

There are various categories of batteries. They can be classified based on their applications, form factor, size, and composition. However, the two major types of batteries are secondary and primary batteries.

Secondary batteries

The chemical reactions of these batteries’ electrochemical cells can be reversed. This can be achieved by using a particular voltage with the battery. Secondary batteries are also rechargeable batteries since it is possible to recharge secondary cells after you have used up the battery. Also, these batteries are ideal for use in high drain applications. You can as well use them when single charge batteries are too expensive to use.

Electronic devices such as phones can be powered by small capacity secondary batteries. Heavy-duty batteries can power electric vehicles. Also, these batteries are applicable when load leveling electricity generation.

Alongside inverters, secondary batteries can serve as standalone power sources to supply electricity. According to their chemistry, there are different types of secondary batteries.

Primary batteries

It is impossible to recharge primary batteries once they have been used. These batteries comprise electrochemical cells. In such batteries, you can reverse the electrochemical reaction of the cells. There are several types of primary batteries and they range from AA batteries and coin cells. For standalone applications where there is no need for charging, primary batteries are a great choice.

For instance, primary batteries are applicable in military grade devices because soldiers on the field can forget to charge batteries. Furthermore, primary batteries are designed to consume very low power which helps them last longer. Other applications where primary batteries are useful include remote controls, animal trackers, wrist watches, pace makers, and more. Alkaline batteries are one of the most common primary batteries.

Conclusion

The battery circuit diagram is created to know the function of a battery in a circuit. This diagram is useful for creating electronics.  It shows the relationship between the cathode, anode, and electrolyte.  These components are very important and as such you need to study their interconnectedness.

The progress in the field of technology has made it possible for us to use a vast range of transistors. Different consumer electronics that we use today comprise such transistors. From basic to highly advanced transistors, consumer electronics come with these exceptional components. Now each type of translator differs from the other. There are different factors that distinguish these types for our own ease.

So that choosing the right transistor for you will become a lot easier. But keep in mind, with perks come downsides of these transistors as well. In this post today, we are going to compare IGBT vs. MOSFET transistors. So that you can learn to use these special types as per your needs. Here we go!

Well, both these types are common in consumer switching devices and electronics. The reason is that there are certain features and specifications that set these transistors apart from the others. From solar inverters to motor driver systems, these transistors are simply exceptional in performance and provide you with desired results as well.

Now it’s time to learn about these transistors individually so that you can develop a better understanding of IGBT vs. MOSFET transistors through further sections.

What is MOSFET?

First, we have MOSFET, which is a low-voltage transistor and is a lot different from other types like BJT. BJTs are mostly currently controlled, and therefore, their specifications are also different. The features of MOSFET include low current and high voltage, and due to this reason, you can easily use it to your own needs and advantage. There are three important points present in MOSFET.

One is the drain, the other is the source, and the last one is the gate. You can use a MOSFET through its different modes called depletion and enhancement. The two main categories of MOSFETs include one with N-channel and the other with P-channel. The voltage present on the gate actually creates a fine line of difference between different types of MOSFETs.

When you are using the depletion mode, keep in mind that the conductance will be at its highest. While in the other case, there will be zero voltage at the gate. When you are using the enhancement mode, it is obvious that the conduction will only take place when the voltage is higher. There is another important thing to note that when you increase the positive voltage as compared to the default voltage, then the electrons present in the source and the gate will develop a conduction layer.

It means this is the condition for the conduction layer to be developed. In most cases, this layer takes place between the P-channel and the oxide layer. As the voltage increases, it will cause more flow of current towards the drain. So this is how you will turn on the conduction mode of a MOSFET by using voltage.

What is IGBT?

IGBT is nothing but a combination of a MOSFET and a BJT. The nature of an IGBT is monolithic. Therefore this is how you will get double the features and advantages of transistors in a single IGBT. IGBT is important to consider here because these take the exceptional current controlling ability of BJTs and easy usage of MOSFETs. Due to this reason, different users rely on IGBTs for the incorporation of different consumer electronics.

You can easily use an IGBT if you are aiming for a medium-power application. For a high-power application, you must consider some guidelines to derive desired results. Just like a MOSFET, you will have three important terminals in an IGBT too. These are a gate, a collector, and an emitter. The purpose of the gate is to control the transistor, while the conductor and emitter are for seamless conduction. The overall channel structure of an IGBT is P-N-P-N which sets it apart from the rest of the transistors. In the case of bias, the P-base will develop an N-channel.

When this happens, the resistance of the N-layer reduces dramatically, and the positive elements go toward the N-layer and leave the player. Due to this reason, it can easily tackle high levels of current. One another impressive factor about IGBTs is that their conduction faces fewer power losses.

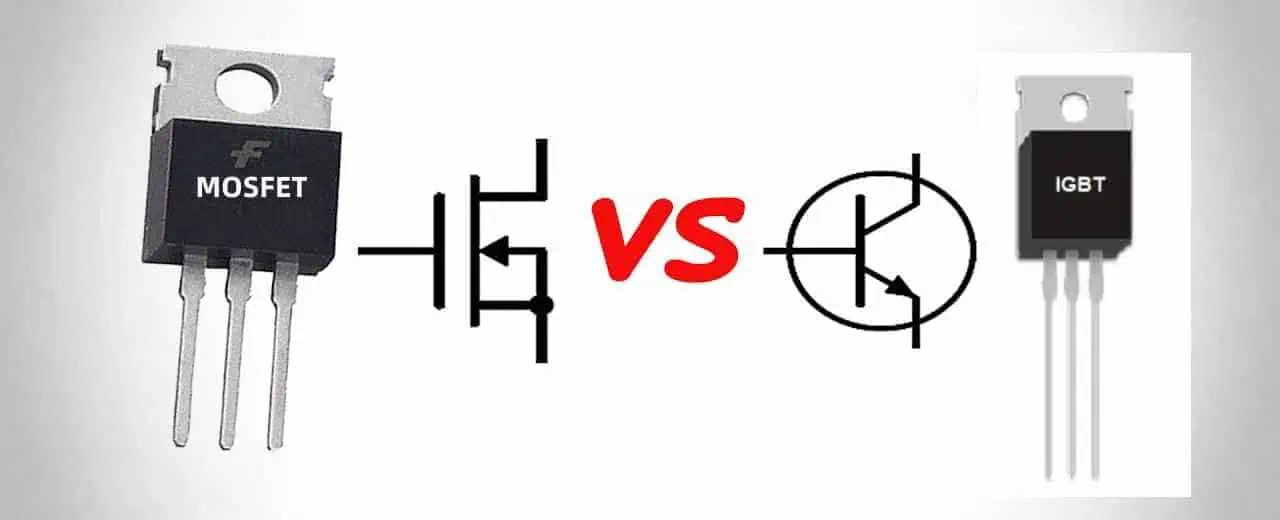

Differences: IGBT vs. MOSFET

1.    Basics: IGBT vs. MOSFET

One major difference between IGBT and MOSFET is their basics. There is no doubt that both these transistors are controlled by voltage and have similar applications in terms of switch mode power supply. However, we need to know that IGBTs are important when we are talking about higher current applications.

Whereas MOSFETs are for providing more feasibility in terms of control. IGBTs can render benefits of a BJT, and a MOSFET but MOSFETs alone cannot render benefits like IGBTs. You can use a MOSFET for voltage determination, but an IGBT will not be able to do this for you at all.

2.    Working Principle: IGBT Vs. MOSFET

One another thing that separates IGBT and MOSFET is their working phenomenon. When it comes to IGBT, you can easily make changes and control the bipolar side of the transistor.

However, a MOSFET works best for FET, and the element of silicone oxidation is also there to distinguish its working from an IGBT. MOSFETs are more likely to perform naturally because their gate’s voltage keeps changing, and a fine layer of silicone protects this change during the process. Moreover, a MOSFET has two modes of functions while IGBTs don’t.

3.    Input Impedance: IGBT vs. MOSFET

Sometimes you can also understand IGBT vs. MOSFET through input impedance. When we talk about IGBTs, you can expect more input impedance as compared to MOSFETs. IGBTs, therefore, are a better option to opt for when it comes to using them for high-current applications. The problem with MOSFETs is that they struggle with the voltage at the gate, and due to this reason, they are not reliable for current-oriented applications.

However, MOSFETs come in handy when you are considering protection in terms of current leakage and voltage blocks because the silicone layer will prevent this from happening on all counts.

4.    Damage Resistance: IGBT vs. MOSFET

Both the transistors are also different in terms of damage resistance. MOSFETs can easily tolerate changes in the charges and more input impedance. Due to this reason, you cannot use MOSFETs for damage resistance between extremely low capacitance makes them a bit difficult to prevent damage.

Other than this IGBTs can prove to be more beneficial because of the double benefits of a MOSFET and BJT. So no matter how much intense was the voltage change, an IGBT can impressively tackle it for you.

5.    Applications: IGBT vs. MOSFET

Another huge difference between IGBTs and MOSFETs is their applications. Now this is obvious that you cannot use an IGBT for a MOSFET application. MOSFETs are more reliable for the changing of signals and amplification of different electronics.

These mostly come in handy for the high noise devices. You can make use of a MOSFET in different types of analog and digital circuits since this cause no harm to their functioning at all.

IGBTs have different applications than MOSFETs because they are more likely to control the current. Therefore applications including induction, heating mechanisms, and motor control are all possible with IGBTs.

6.    Switching power: IGBT vs. MOSFET

The switching power of both is also different. This term means how much power a transistor is to switch between on and off situations. Sometimes you can even call switching power dissipation as well.

MOSFETs are incredible in terms of switching power as compared to IGBTs. Therefore if you want to use a transistor for higher switching power, then using a MOSFET will save you from disappointment.

7.    Voltage & Current: IGBT vs. MOSFET

In terms of voltage and current, both these transistors are different. However, IGBT is more reliable for the current and voltage capacity, and you can use it easily for similar applications. MOSFETs are not reliable for this purpose because they cannot deal with transient voltage as IGBTs do.

8.    Structure & design: IGBT Vs. MOSFET

To quickly differentiate between these two transistors then, take a look at their design and structure. But one problem that stands here is that they have the same design. It is difficult to identify them at a glance.

However, if you are an expert, it won’t be difficult for you whatsoever. There are more P layers in IGBTs present under the n substrate. MOSFETs don’t have a structure like this, and due to this reason, MOSFETs can easily handle quick switching when you are using them for higher frequencies.

IGBTs do have a PN junction, but it remains concealed in their structure. For MOSFETS, they don’t have a PN junctional at all. Now from this difference, you can easily learn how you can distinguish IGBT vs. MOSFETs so that using them according to your needs and future projects will become easier for you.

Key Benefits of IGBT

1. You can use IGBTs for medium to high-power applications. It is because these transistors can easily conduct high currents and voltages for specific applications.
2. IGBTs can easily perform under stressful and unfavorable conditions like high voltage spikes and unprecedented voltage changes.
3. The gate insulation of IGBT is much higher as compared to other transistors, and due to this reason, it becomes much easier for the users to rely on them for different projects.
4. The forward voltage drop produced by an IGBT is much less as compared to other transistors, and because of this, their performance remains unmatched by other transistors available.

Drawbacks of IGBT

1. The IGBT is not a good option when it comes to high-frequency devices because their natural performance can be altered due to their incorporation.
2. The switching speed of the IGBT is extremely slow, which can complicate the functioning of the devices; therefore, in this case, you can still look for different alternatives.

Benefits of MOSFET

1. Unlike IGBTs, a MOSFET can easily tackle complications and sustain its performance for high-frequency applications.
2. The switching speed of a MOSFET is also incredibly higher than other types available.
3. It is good for controlling and reducing noise signals, and due to this reason, using it for such applications renders desired and positive results.
4. It is compact in size, and therefore using it for complex applications is a lot easier.
5. MOSFETs are overall less expensive, and therefore, almost all producers can rely on them for their projects easily.

Drawbacks of MOSFET

1. It can collapse in case you are giving it more voltage, power, and current.
2. Unlike high voltage raise, its performance can be dramatically changed.
3. The forward voltage drop of a MOSFET is much higher as compared to IGBT, and therefore, this makes it not a good choice to use in different applications.

Can I use IGBT instead of MOSFET?

Yes, you can do this. However, there are some considerations that will help you in this regard. IGBTs are more reliable for high-power devices because the overall power loss given through IGBTs are much less. Therefore experts consider these more efficient instead of other types. MOSFETs are more reliable for low-power devices because their switching speed is higher than IGBTs.

Wrap Up on IGBT vs. MOSFET

Both IGBTs and MOSFETs have their own advantages. These are also different from each other in some areas, and due to this reason, it is important that you choose the right transistor for your projects.

We have described IGBT vs. MOSFET in detail in this post so that you can easily understand what factors make them different from each other. Plus, how you can make full use of them by implementing them according to their nature and features.



In a world of customization and productivity, having an appropriate tool by your side can bring out a big difference. And here comes Macro Pad PCB. It is also termed a Programmable Keypad or Keyboard PCB. It refers to a powerful and versatile tool that enables users to increase efficiency, unleash creativity, and streamline workflow.

However, it offers a wide range of possibilities to all types of programmers, designers, gamers, or anyone who wants increased control. This article will help you guide through its features, advantages, applications, and usage of Macro Pad PCBs. In addition to this, you’ll see a different world of programming and customization possibilities.

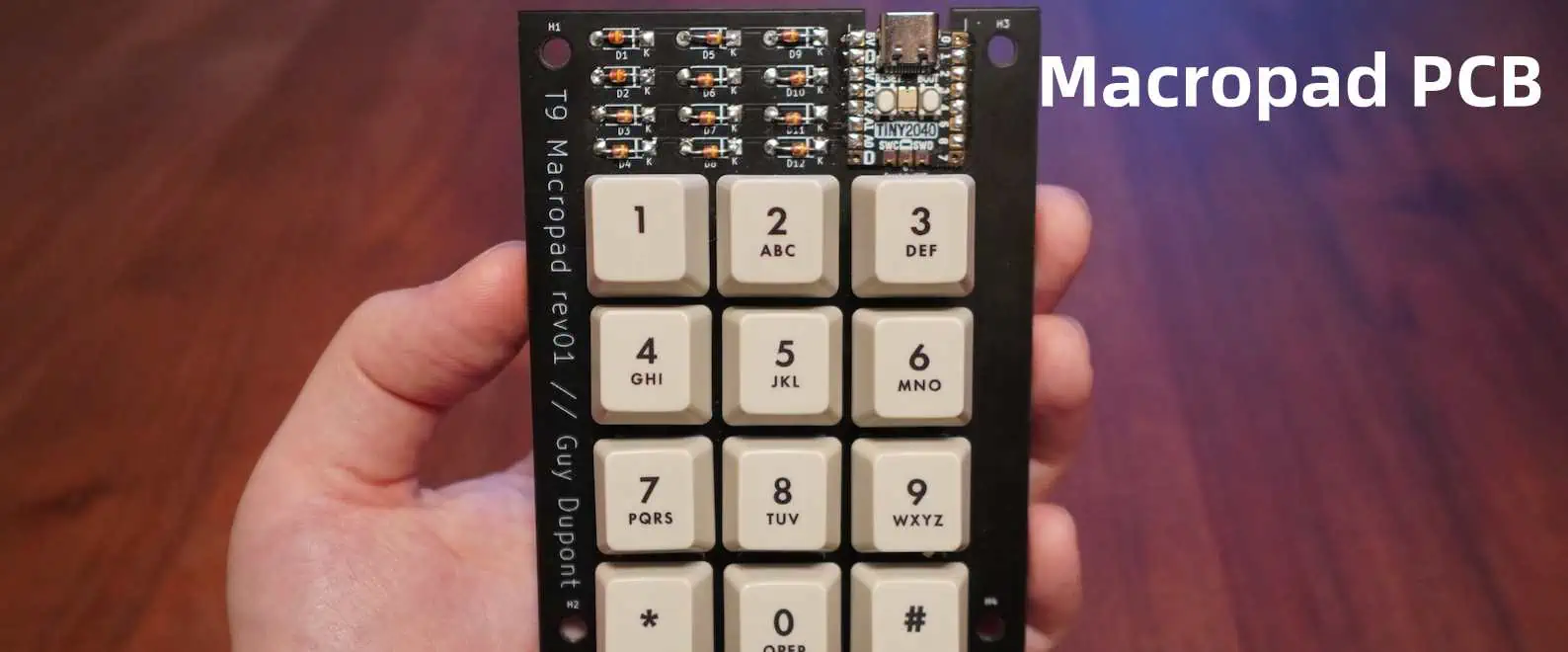

Improving Productivity with Macropad PCB

Streamlining workflow enhanced productivity and efficiency is the major benefit of Macro Pad PCB. Users can assign specific functions, shortcuts, or macros to any key and can operate complex activities with just one click without wasting effort and time. For instance, programmers can assign common commands or code snippets to each key which allows for efficient and fast code execution.

Furthermore, graphic designers can assign macros or shortcuts for the most commonly utilized actions or design tools which enables a better consistent creative process. As a result, Macropad PCBs serve as control customizable centers which provide fast access to the most frequently and commonly used commands and functions. Thus, ultimately improving efficiency and productivity.

Customization & Programming with Macropad PCB

The Macropad PCBs offer different levels of programming and customization, which makes it the most amazing factor. Users have full choice to command any action or function to any key, which tailors the device to their specific needs. However, to achieve this customization, different types of software like programming languages like Arduino or QMK or software with user-friendly interfaces. This software enables users to determine the key macros, mapping, and complex arrangements of actions. Furthermore, most Macropad PCBs facilitate dynamic effects of lighting, which enables the users to customize their devices with personal visuals.

It offers virtually limitless customization offers with which users can make profiles for distinct workflows or applications. They can easily switch to any profile without any effort. No matter if you are a gamer who wants to assign certain in-game commands, a video editor who seeks fast access to shortcuts of editing, or a streamer who looks to trigger overlays and sound effects l, Macropad PCBs can easily be customized to meet any type of unique requirements.

Types Of Macropad PCB

Macropad PCBs come in various types of shapes, sizes, and costs. However, some of them may possess only a few keys of programming while some may function like a full keyboard. Furthermore, Macropad PCBs also contain mechanical switches which allow users to have the best experience of typing.

Macropad PCBs are considered most helpful for gaming purposes. Users have the edge to optimize their keyboard while playing games. For example, besides traditional programmable keys, Macropad gaming keyboards also offer advanced features like Pressure-sensitive keys, incorporated analog sticks, and RGB LEDs.

·       Gaming Macropad PCB Keyboard

Though these give a traditional look to Macropad PCBs, they are specially optimized for gaming purposes. They provide users with the best functionality and performance because they contain 24 programmable keys and two scroll wheels.

Regardless of its simple look, the Macropad gaming keyboard is considered one of the most innovative technologies. Because each key contains two actuation points, furthermore, its Pressure-sensitive keys allow users to set half-press to one action while they can set to full-press for another action.

The Macropad gaming keyboards generally come with a rigid build quality. However, it has a common brushed aluminum border. At the same time, some may have a removable padded rest for the wrist. It identifies each key with markings over the keycaps of ABS. Each key gives RGB lighting. Moreover, choosers have full freedom to choose key switches while experiencing the best typing.

With various actions, Macropad gaming keyboards are considered suitable for both office and gaming environments. The keyboard PCB allows one key to do two actions which makes it best for gaming. Moreover, the keypad has a small size which allows it to fit in a workplace easily without giving extra functionality to keypad users due to its compact design.

·       Mechanical Macropad PCB Keyboard

These keyboards are basically traditional Macropad keyboards that have a grid design. Users can easily set 23 keys along with printed letters on them. This helps in identification. Though they have a simple layout, these Macropad mechanical keyboards allow for four layers. However, users can configure this keyboard to contain several key bindings sets. These Macropad mechanical keyboards also have extra function keys which allow switching between different layers.

Macropad mechanical keyboards have a compact size which limits their space. The keypad PCBs have 5×3.5×1.2 inches with removable USB-C cable and allow easy transportation.

The Macropad mechanical keyboard PCB considers fit as a one-stop solution. Because it supports the functionality of both office and gaming applications. Although the keyboard PCB does not contain any additional functional features, it still manages to do the job at an affordable price.

Selecting the Good Macropad PCB

When choosing a Macropad PCB, it is crucial to consider a few things before, like desired features, specific needs, and cost. There are several options available that offer their own set of characteristics and layout aesthetics. Moreover, some factors to consider include software compatibility, programming flexibility, connectivity options, build quality, and key number. At the same time, getting recommendations and reading reviews will also aid you in making the right decision.

Conclusion

Macropad PCBs provide a new realm of productivity, control, and customization. They give a highly advanced programmable and customizable interface that allows users to enhance productivity, efficiency, and workflow. Macropad PCBs are helping various types of fields like gaming, programming, office work, and creative design. It offers endless customization, portability, and compact size, which makes its uses create a productive world and leave their mark. Therefore, this makes them better than a traditional simple keyboard and mouse.

Battery management system (BMS) includes different concepts, and today, we cannot afford to not educate ourselves about them.

The BMS refers to a special mechanism that completely handles the battery cells present in an electrical arrangement so that they can tackle large amounts of voltage and current in a set period of time, especially under unfavorable and stressful conditions.

How does BMS board Battery Protection Board work?

Battery management systems BMS basically vary in each project or execution. The reason is that you cannot follow a particular set of guidelines for this purpose. There are some prominent factors that make them vary all the time! Let’s see them below!

• How complex the battery pack you are using makes the battery management system different.
• Is it affordable or expensive? The pricing is also an important factor here!
• Is the battery you are using easy for your projects and applications?
• Are there any safety concerns or application risks that you need to look for in this particular battery pack?
• Sometimes the authority guidelines and industry standards can also affect battery management systems. BMS varies in different applications.

We cannot ignore the two highly important features of the battery management system BMS at this point. There have been cases when PCB producers were unable to consider these two aspects for serving positive results from their projects.

So one of the crucial aspects is battery pack protection management, and the other is battery pack capacity management. To further study battery pack protection management, we need to understand that battery pack protection management includes two important areas to consider.

One is the electrical protection which is for securing the battery from risks and damages through SOA. The other is thermal protection for complete and flawless regulation of the temperature of the battery to protect it from overheating.

Contrasts between BMS & PCM

We are going to see how BMS and PCM differ from each other so that you dont have to struggle with their features and specific applications in the future. For the battery management system BMS, we need to divide them into two sub-groups. One group is the protection circuit module, aka PCM, while the other is a battery management system. Both these factors are important for the entire protection and well-being of a lithium battery.

Characteristics of the PCM

In this section, we are going to decipher PCM and its features in detail. Basically, the purpose of a PCM is to make the charging and discharging of batteries like lithium batteries flawless. PCM includes different components that come together to make its role feasible and impeccable.

The PCM is also responsible for balancing the voltage between the battery cells when we have sufficiently charged the battery. The battery voltage needs to be fixed, or else there are possible chances of electrical failures and short circuits. Sometimes abrupt battery voltage fluctuations can also cause overheating that leads a battery towards complete failure.

Characteristics of Battery Management Systems (BMS)

BMS is actually the entity that manages the function of a battery. Whether it’s charging or discharging, BMS handles it all. However, there is no doubt that in some areas, it functions similarly to PCM, but due to its efficient and advanced nature, it has been given more edge over PCM by the experts. BMS is undoubtedly more beneficial in terms of battery protection and handling than PCM.

 It can easily transmit data and regulate the battery’s functions, unlike PCM. There are some important parts present in a BMS that make this all happen. These are an MS communication module which is wireless, a control module, and collection and display modules are also associated with BMS. When we talk about minor batteries, we will see that, in most cases, PCM and PCB are present in them. Therefore their common applications are power tool batteries and mobile phone batteries. BMS, on the other hand, has much bigger applications than PCM. It is important for drones where battery monitoring and data transmission are expected.

Electric Vehicle BMS board Battery Protection Board

Not to forget that EVs cannot work without BMS on all counts. The credit goes to their features that make keeping the EVs intact in terms of their performance in the long run for the users. The BMS provides real-time data for the following factors:

• It monitors and regulates the voltage
• Besides, it controls the temperature and provides protection from thermal damage
• It monitors the Current and copes with real-time current fluctuations
• State-of-charge (SoC) is also a factor that BMS is supportive to

There is no doubt that system like BMS are inevitable for the well-being of small to big batteries. For monitoring and controlling the charging of the battery and protecting it from other risks and concerns. BMS is also helpful in terms of preventing voltage and power losses.

Following are the different ways that a BMS functions:

• It deeply regulates each cell so that it gets sufficient voltage and also saves it from overcharging.
• Besides, it regulates and monitors the individual cell temperature to protect it from overheating and thermal risks.
• It is also responsible for lowering the current fluctuations and current surges that can be fatal on all counts.
• BMS is also good for optimizing the parameters for charging per different devices.
• This system can even turn off the battery if it points out any anomaly and also when the battery behaves in a peculiar manner to ensure complete safety and protection.

After reading about the functions and benefits of a BMS, you will come to know that there is no better system than a BMS to ensure more durability and longevity of the battery.

Plus, this system can easily protect the battery from possible thermal damage and current spikes. Experts believe that with the passage of time, upgrades in the BMS will prove to be handier for the producers and the users.

Different techs like AI and ML can also instill some attributes to BMS to make it more of an efficient system that meets the futuristic quality standards on all counts.

Lithium BMS board Battery Protection Board

The battery protection board BMS is a special mechanism that ensures battery protection. There are different circuits that come into action to make its performance possible. The role of a BMS is to not only regulate the current and voltage of the battery but also monitor the charging and discharging to avoid mishaps.

It also makes charging and discharging possible under a certain fixed temperature to protect the battery from thermal fluctuations. Lithium battery BMS protection board is different in terms of its components. MOS switches, resistors, and ICs are present in such boards. These boards use MOS switches to automatically turn on and off the battery when something unusual happens during its function.

Functions of the lithium BMS board Battery Protection Board

As the name suggests, BMS is for complete protection of the lithium battery. Below we are going to see the four major functions of this system in detail.

1) Overcharge protection process:

The first role of this BMS is to prevent overcharging to completely protect the battery. It happens when we have sufficiently charged the battery, and there is no need to charge it further. A special MOS switch makes this happen and provides the battery with an overcharge protection function by turning the battery off on complete charging.

2) Over-discharge protection process:

Sometimes battery problems occur due to extreme discharging. Therefore there must be a system that prevents this from happening because it makes the battery weak. A special MOS tube is there in the BMS to make it stop. It is the reverse action of the BMS to the overcharge protection.

3) Overcurrent protection procedure:

A battery needs to work with a sufficient amount of current, and in case of extra current supply to the battery, it can be irreversibly damaged. Therefore BMS’s other important role is to stop it from happening and ensure battery protection. When BMS points out overcurrent, it will divert the battery towards normal functioning by isolating it from its load. In this case, we can easily continue charging the battery multiple times.

Role of a BMS Board Battery Protection Board

The BMS is important for the protection, current-voltage regulation, and monitoring of a battery. From preventing current and voltage surges to automatic switching ON/OFF the battery, a BMS is crucial for the sustenance of all types of batteries. With BMS, overcharging, over-discharging, and extra current supply can be prevented successfully.

Why do lithium-ion batteries require a BMS board Battery Protection Board?

The lithium-ion batteries are an important component of different electronics today. Therefore BMS has become more important for them than ever. For increasing the longevity and efficiency of these batteries, BMS will prove to be a great option. Since lithium-ion batteries are mostly used in vehicles, this special mechanism can protect the overall vehicle from damage as well as the single battery. For short circuit prevention, protection against current surges, and overcharging, lithium-ion batteries cannot survive without a BMS.

Why do automobiles require a BMS board Battery Protection Board?

Vehicles are sturdy, and therefore, they need to perform efficiently in the long run. A battery can make this possible for them. But due to frequent usage over the years, our vehicles and their batteries can undergo damage. Sometimes small problems that we ignore regarding batteries grow into huge blockades later. Due to this reason, a BMS is important for the health of a battery to detect problems in time so that you can solve them for the sake of your vehicle as well.

Efficient and reliable electronic component procurement is crucial for businesses across various industries. From consumer electronics to aerospace and defense, the demand for high-quality components continues to grow. This article delves into the intricacies of electronic components procurement, offering insights into best practices, challenges, and solutions to help your business thrive in this competitive market.

Introduction

Electronic components are the building blocks of modern technology. From resistors and capacitors to microprocessors and integrated circuits, these components form the foundation of countless devices and systems we rely on daily. As such, the procurement of these components is a critical process that can significantly impact a company’s success.

Effective electronic components procurement involves more than just finding the lowest price. It requires a deep understanding of market trends, supplier relationships, quality control, and supply chain management. In this comprehensive guide, we’ll explore the various aspects of electronic components procurement and how to optimize your sourcing strategy for success.

Read more about:

• Prototype PCB Assembly
• Turnkey PCB Assembly
• Multilayer PCB
• Flexible PCB
• Components Sourcing

Component Procurement Supplier Options

When it comes to sourcing electronic components, businesses have several options to choose from. Each option has its advantages and potential drawbacks, and the best choice often depends on your specific needs, budget, and project requirements.

Buying From Manufacturers

Purchasing directly from component manufacturers can offer several benefits:

• Direct access to the latest products and technologies
• Potential for better pricing on large volume orders
• Assurance of product authenticity and quality

However, buying from manufacturers may not always be feasible, especially for smaller companies or those requiring a diverse range of components. Manufacturers often have minimum order quantities (MOQs) that can be prohibitively high for some buyers.

Distributor-Based Purchasing

Authorized distributors play a crucial role in the electronic components supply chain:

• Wide range of components from multiple manufacturers
• Lower MOQs compared to buying directly from manufacturers
• Value-added services such as kitting and programming
• Technical support and product knowledge

Distributors can be an excellent option for businesses that need a variety of components or don’t meet manufacturers’ MOQ requirements. However, pricing may be slightly higher than buying directly from manufacturers.

Working With a Broker

Independent brokers can be valuable partners in electronic components procurement:

• Access to hard-to-find or obsolete components
• Ability to source components during shortages
• Potential for competitive pricing through market knowledge

While brokers can be helpful in certain situations, it’s essential to exercise caution and verify the authenticity and quality of components, as the risk of counterfeit parts can be higher when working with non-authorized sources.

Working With a Catalog Supplier

Catalog suppliers offer a convenient option for purchasing electronic components:

• Extensive inventory of components from various manufacturers
• Easy online ordering and fast shipping
• Often no minimum order requirements

Catalog suppliers can be ideal for prototyping, small production runs, or urgent needs. However, pricing may be higher than other options, especially for large quantities.

Stages of Electronic Component Procurement

Effective electronic components procurement involves several key stages. Understanding and optimizing each stage can lead to better outcomes and more efficient sourcing processes.

Requirements Gathering

The first step in any procurement process is clearly defining your requirements:

• Identify the specific components needed for your project
• Determine required quantities and delivery timelines
• Consider any special requirements (e.g., environmental specifications, certifications)

Accurate requirements gathering sets the foundation for successful procurement and helps avoid costly mistakes or delays later in the process.

Choosing Suppliers

Selecting the right suppliers is crucial for successful electronic components procurement:

• Evaluate potential suppliers based on reliability, quality, and pricing
• Consider factors such as financial stability and industry reputation
• Assess suppliers’ ability to meet your specific requirements and timelines

Developing strong relationships with reliable suppliers can lead to better pricing, improved service, and priority during component shortages.

Compare the Price and Quality

Once you’ve identified potential suppliers, it’s important to compare their offerings:

• Request quotes from multiple suppliers
• Consider total cost of ownership, not just unit price
• Evaluate quality certifications and testing processes
• Take into account lead times and delivery reliability

Remember that the lowest price isn’t always the best option if it compromises quality or reliability.

Online Sourcing Platforms

In today’s digital age, online sourcing platforms have become increasingly popular:

• Access to a wide range of suppliers and components
• Easy comparison of prices and availability
• Real-time inventory updates and market trends

While online platforms can be convenient, it’s essential to verify the credibility of suppliers and authenticate components, especially when dealing with new or unfamiliar sources.

Check for Alternatives

Sometimes, the exact component you need may not be available or may have long lead times. In such cases, consider alternatives:

• Look for pin-to-pin compatible replacements
• Explore newer versions or updated models
• Consider redesigning your product to use more readily available components

Being flexible and open to alternatives can help mitigate supply chain disruptions and reduce costs.

Lead Times

Understanding and managing lead times is crucial in electronic components procurement:

• Factor in lead times when planning your production schedule
• Consider stocking critical components to buffer against long lead times
• Work with suppliers to get accurate and up-to-date lead time information

Effective lead time management can help prevent production delays and improve overall supply chain efficiency.

Key Challenges in Electronic Component Procurement

While electronic components procurement offers numerous opportunities, it also comes with its fair share of challenges. Understanding these challenges is crucial for developing effective strategies to overcome them.

Supply Chain Disruptions

The electronic components industry is particularly vulnerable to supply chain disruptions:

• Natural disasters affecting manufacturing facilities
• Geopolitical events impacting trade and transportation
• Sudden spikes in demand leading to shortages

To mitigate these risks, companies should diversify their supplier base and develop contingency plans for critical components.

Counterfeit & Substandard Parts

The proliferation of counterfeit and substandard electronic components poses a significant threat:

• Risks to product quality and reliability
• Potential safety hazards in critical applications
• Legal and reputational risks for companies unknowingly using counterfeit parts

Implementing robust authentication and testing procedures is essential to combat this challenge.

Obsolescence Management

As technology advances rapidly, component obsolescence becomes a significant concern:

• Discontinued components can disrupt production
• Finding replacements for obsolete parts can be time-consuming and costly
• Redesigning products to use newer components may be necessary

Proactive obsolescence management, including regular monitoring of component lifecycles and strategic inventory planning, can help address this challenge.

Cost & Lead Time Pressures

Balancing cost considerations with lead time requirements is an ongoing challenge:

• Pressure to reduce costs while maintaining quality
• Fluctuating component prices due to market conditions
• Balancing inventory levels to minimize costs while ensuring availability

Effective demand forecasting and strategic sourcing can help manage these pressures.

Our Procurement Solutions

At RAYMING, we offer comprehensive electronic components procurement solutions designed to address the challenges faced by businesses in today’s complex market.

Global Supplier Network

Our extensive global network of suppliers enables us to:

• Source components from multiple regions, reducing supply chain risks
• Leverage relationships for competitive pricing and priority allocation
• Access hard-to-find components through specialized suppliers

Quality Assurance & Testing

We prioritize quality and authenticity in all our sourcing activities:

• Rigorous supplier vetting and ongoing performance monitoring
• State-of-the-art testing facilities to verify component specifications
• Compliance with industry standards and certifications

Obsolete & Hard-to-Find Components

Our expertise in sourcing obsolete and hard-to-find components helps customers:

• Maintain production of legacy products
• Reduce costs associated with redesigning products
• Minimize downtime due to component unavailability

Demand Forecasting & Inventory Management

We employ advanced analytics and industry expertise to:

• Accurately forecast component demand
• Optimize inventory levels to balance cost and availability
• Identify potential supply chain risks before they impact production

Cost Optimization

Our procurement solutions are designed to help customers reduce costs:

• Leveraging bulk purchasing power across our customer base
• Identifying cost-effective alternative components
• Optimizing logistics and supply chain processes

Should You Rely on Your Design Team or an EMS Provider?

When it comes to electronic components procurement, companies often face the decision of whether to handle sourcing in-house or partner with an Electronics Manufacturing Services (EMS) provider.

Relying on your internal design team offers:

• Direct control over component selection and sourcing
• Potential for faster decision-making and changes
• Retention of in-house expertise and knowledge

Partnering with an EMS provider can provide:

• Access to established supplier networks and purchasing power
• Expertise in supply chain management and logistics
• Reduced overhead and focus on core competencies

The best choice depends on your company’s size, resources, and specific needs. Many businesses find that a hybrid approach, combining in-house expertise with EMS support, offers the best of both worlds.

Why Choose RAYMING?

At RAYMING, we pride ourselves on being a trusted partner in electronic components procurement. Here’s why leading companies choose to work with us:

Trusted & Certified

• ISO 9001:2015 certified quality management system
• Member of authorized distributor programs for major component manufacturers
• Rigorous supplier vetting and ongoing performance monitoring

Transparent Sourcing

• Full traceability for all components
• Detailed documentation and certificates of conformance
• Open communication throughout the procurement process

Rapid Response

• 24/7 customer support
• Quick turnaround on quotes and inquiries
• Expedited shipping options for urgent needs

Risk Mitigation

• Comprehensive counterfeit prevention program
• Proactive obsolescence management
• Diversified supplier network to reduce supply chain risks

Industries We Serve

Our electronic components procurement solutions cater to a wide range of industries, including:

• Aerospace and Defense
• Automotive
• Consumer Electronics
• Industrial Automation
• Medical Devices
• Telecommunications

We understand the unique requirements and challenges of each industry and tailor our services to meet specific needs.

Conclusion

In today’s fast-paced and complex technological landscape, effective electronic components procurement is more critical than ever. By understanding the various sourcing options, addressing key challenges, and leveraging expert solutions, businesses can optimize their procurement processes to drive success.

At RAYMING, we’re committed to providing reliable, efficient, and cost-effective electronic components procurement solutions. Whether you’re dealing with supply chain disruptions, seeking hard-to-find components, or looking to optimize your sourcing strategy, our team of experts is here to help.

Contact us today to learn more about how our electronic components procurement solutions can benefit your business and help you stay ahead in a competitive market.

Prototypes are important for the technical fields so that the associates can proceed with the production process further without any complications. From impeccable designs to flawless final products, prototypes help with building new technical components on all counts.

Due to this reason, we consider hardware prototype development as a crucial aspect of the technical industries. So that it can help sustain domains like aerospace, military, and healthcare to a large extent.

Today, we are going to discuss hardware prototype development in detail so that you can clear your mind regarding this concept completely through our post.

What Is The Meaning Of Hardware prototype development?

Hardware can be anything from your keyboard to your mouse. It is something that you can touch in your everyday day usage. Since the development of technology has taken over different domains, hardware is undergoing different advancements at the same time.

Take IoTs, for example. Several smart homes and offices are relying on tech-based hardware on all counts. Therefore it is important to understand the meaning of modern-day hardware to fully understand how it influences our technical fields.

Advantages Of Hardware prototype development

In this section, we are going to take a look at hardware prototype pcb development to see how it is important and why you need to consider it from now on:

1. This concept is important for the protection of your personal ideas and designs.
2. Hardware prototype development is also crucial for the encrypted sharing of your designs with trusted parties. You also keep your copyrights on all counts.
3. When you aim for this, you can easily make your brand more accessible and prominent in terms of competition.
4. You can also aim for professional and successful business meetings and negotiations with your clients through prototyping.

Types of Hardware prototype development

It is important to know that when we are considering hardware prototype development, we need to get familiar with their requirements. So that successful prototype development can be possible. It is because there have been some cases where producers were unable to meet these requirements, and it resulted in flawed designs and final products later.

1.    Proof-of-Concept Hardware prototype development

The POC type of prototype is one of the most common types of hardware prototype development that different producers rely on these days. These prototypes are more important when you are aiming for something that needs to be tangible and easier to execute. You can use different off-the-shelf methods, but using Arduino and Raspberry Pi are some common techniques.

When it comes to Arduino for the POC prototypes, we get to know that it renders more features for making these prototypes a successful attempt. It can easily adjust to your requirements for hardware prototype development through its remarkable features and functions. Therefore, there is no doubt that such software is crucial for the development of intense and complex hardware prototypes.

Other than this, producers find it easier to work with 3D laser printing and laser cutting. Different types of industrial-grade enclosures come in handy for the fine completion of this procedure. However, experts believe that it is not a good idea to complicate procedural stages at this stage because it can mess up the designs and final products later.

2.    “Works-Like” or Functional Hardware prototype development

Another type that is common here is functional prototypes. These prototypes are different because they are flexible in nature as compared to others, and experts believe that they are more efficient as well. Different sensors and shields are there in these prototypes that give them different functional attributes on all counts.

Such prototypes allow you to have a higher degree of customization as well. It is amazing because other prototypes never or cannot allow this to the users. It also implies custom PCBs. In this process, you never rely on redundant components and always try to exclude irrelevant components during the hardware prototype development. Therefore it also comes in handy for the proper utilization of the internal space.

You can use these prototypes to bring your ideas of electronics into reality. Plus, these are somewhat more affordable than other prototypes as well. It is also important to know that when it comes to availing the benefits of functional prototypes, then, you need to seek professional help from product development agencies to ensure desired results.

3.    ‘Looks-Like’ Hardware prototype development

These prototypes are also crucial to learn about when you are aiming for prototype hardware development. Now, what makes them different is that they are totally not functional. However, these look like final products and are thus called “looks-like” prototypes.

Well, this name makes it easier for us to understand them and distinguish them from the rest. Such prototypes are mostly common in the areas of industrial design where products need to emphasize more on the end design for consumer electronics.

4.    Alpha Prototype

You can also call them engineering prototypes. Another important category to know about when you are studying hardware prototype development. Well, these prototypes are a combination of works-like and looks-like prototypes.

So now you know how you can avail advantages of two types of prototypes in a single one! Such prototypes are crucial when it comes to crowdfunding and Kickstarter. One important point about these prototypes is the customized PCBs. You need specific containers and enclosures to work on these PCBs so that you can make desired amendments regarding these. You must change the aesthetics, small details, and shape if needed during the process.

After all the changes made, it is important to combine the prototypes with the designs made and see if the designs fully match the prototypes or not. You will also find different producers that use the latest techs, like 3D printing and CNC machining, to give an edge to alpha prototypes under the concept of hardware prototype development. Now don’t think that after all this, you will be able to get the desired results because every alpha prototype needs to undergo injection molding, which is a process that takes place on a much larger scale.

Due to this reason, producers who rely on Kickstarter mostly face disappointment because the process is overall time-consuming and demands more investment. The molding itself is a hectic procedure, and you need to develop the molds as per DFM standards.

5.    Beta Hardware prototype development

After alpha prototypes, we have beta prototypes. Now there are some similarities between these two types. One is that both alpha and beta prototypes appear alike, and they are also common in their functions.

However, one big difference that sets these prototypes apart is the element of DFM optimization which always includes large-scale and high-end manufacturing processes. Take silicone molding, for example. You can consider it similar to injection molding, but it helps you with the production of almost 50 units in a single go. The enclosures used for this molding are specific and industrial grade.

The workers also pay close attention to the plastic components so that the simulations won’t create a negative influence on these fragile components during the process. You can also not forget about the technical analysis, thermal simulations, tolerance analysis, along with structural amendments.

Every producer relies on beta prototypes as per different certifications like FCC, RoHS, and CE. Critical and intense testing methods make these prototypes safe and reliable for fine performance under stressful conditions.

6.    Pre-Production Hardware prototype development

Pre-production is a crucial stage in the process of hardware prototype development. At this point in the process, you can easily make copies of the end designs and components that you desire. You can even escalate this copy manufacturing as per your queued orders.

You need to cut small pieces of steel molds, and this is where you cannot make any further changes. The designs remain intact, and everything that you have changed proceeds further with the process. At this stage, the workers make sure that the prototype and the designs are impeccable.

So that the final product can meet the client’s requirements. If everything is in place, you call it a “golden sample,” which showcases 100% quality of the product. The producers often separate some samples for PVT purposes as well. When you see that there is no need to make further changes, then it is important to work on the product packaging too.

Best Tools to Build Hardware prototype development

The field of hardware prototype development has undergone different upgrades, and the tools that we use for it are also changing. So the latest tools that we use for this purpose are important. A smart prototype product or provider will make sure to rely on these tools to enhance the results and meet the client’s expectations and requirements completely.

1) Arduino

One of the most common and appreciated prototyping tools is ARDUINO. It is an open-source platform to make your prototype development more fun and easier. You can use it for both hardware and software development both. You can make changes to its circuit board as per your needs. Besides, its IDE is also supportive of different computer species.

Coding with Arduino is a lot simpler, and different prompts make your coding faster as well. You can use Arduino for different purposes, and each time, you get desired results from it. Therefore for different users who are into hardware prototype development, there is nothing that can compete with Arduino on all counts. From basic AI tools to complex robots, Arduino can handle all your prototyping complications.

2) Raspberry Pi

The Raspberry Pi is, however, an affordable alternative to Arduino. It is portable hardware, and you can use it by connecting it to your personal laptop or PC. No matter what is your computing level, you can use this thing easily. Even beginners find using Raspberry Pi fun and a lot easier during their computing journeys.

You can just consider it a mini PC, and it can serve internet browsing, using spreadsheets, computational processing, and much more. Want to play games with Raspberry Pi? It is possible! Today different organizations are using this portable hardware for weather-detecting purposes and combing IR devices like IR cameras for different motives.

3) Off-the-shelf enclosures

Housing is important for the well-being of your electronics. When we are learning about hardware prototype development tools, we need to understand that off-the-shelf enclosures are crucial for this purpose.

You will find different enclosures available for this, but you have to identify your needs for choosing an enclosure. There are also different factors that you can consider while selecting the perfect enclosure for your electronics. There are some providers that will allow you this, and you can avail of this service from them as per their charges as well.

4) 3D CAD software

If you have never been familiar with 3D CAD software, then it’s high time that you do! Well, CAD proves to be handier when you are considering custom plastic parts and other technical components.

The degree of customization that CAD offers is unmatchable as compared to other prototyping tools. There is no doubt that CAD is a little bit on the expensive side for some producers, but it is all worth it. However, you can still use CAD’s free version to obtain different features for the development of impeccable prototypes.

Considerations for Hardware prototype development

There are some salient considerations regarding hardware prototype development that you must consider for procuring desired results. These considerations will help you understand your client’s expectations, and you will be able to meet their requirements successfully.

You need to know that hardware prototype development cannot be done in a jiffy. Instead, the duration of completion of these prototypes mainly depends on their nature. Simple and basic prototypes can be developed in a few weeks. At the same time, complex prototypes can even take months! However, you can still strike a perfect balance right from the beginning of the prototyping process to get the desired results.

Can you meet the deadlines? What requirements of your clients will take more time to complete? Are you prioritizing completely in terms of prototyping? What type of tools are you investing in, and are they really with it?

All these factors will help you develop a sense of evaluating your options to work your client’s requirements successfully. For the speed-to-market, you need to know that complex and intense prototypes will reduce it.

For simple and basic prototypes, the speed-to-market is more. Being a brand, you need to pay heed to marketing and new product launches to attract more people to your services. It will help you meet the market demand, and you will be able to secure a firm position in the market at the same time.

Conclusion

There is no doubt that you need to gather all the possible information for hardware prototype development before practically beginning with it. There have been cases when producers had to face severe loss of investment due to ignorance and lack of knowledge.

RayPcb hopes that from this discussion, you can now easily comprehend hardware prototype development and give your production an edge from this day forward.

Radio Frequency or RF Frequency refers to the type of electromagnetic radiation used mostly in the communications industry. In this blog post, you will learn more about the uses of radio waves, the radio frequency applications and the radio waves frequency range.

How Did Radio Frequency Waves Come About?

The concept of radio frequency can be dated back to the 1870s when a Scottish physicist, James Clerk Maxwell embarked on research called the unified theory of electromagnetism.

Among many things, it proved the following:

• It predicted the possibility of a coupled magnetic field and electric field to travel as an electromagnetic wave, through space.
• The theory, now known as Maxwell’s Equation, proposed the possibility of light to comprise short wavelengths of electromagnetic waves.

It is based on the premise of this theory that Heinrich Hertz, a German physicist, in 1887, put Maxwell’s theory to test. The demonstration involved the generation of radio waves in the lab, and the outcome showed that the waves possessed some similar properties as light. These properties include but are not limited to: polarization, standing waves, diffraction and refraction.

What is RF Frequency in the Modern World?

The experiments by both Maxwell and Heinrich helped lay the framework for what we have today. Now, Radio Frequency (RF), according to Wikipedia, is the “oscillation rate of an alternating electric current or voltage.”

It can also be used to describe the following:

• The oscillation rate of a mechanical system in a frequency.
• The oscillation rate of a magnetic.
• The oscillation rate of an electromagnetic field.

Going by these definitions, the radio waves wavelength, in addition to being the longest, typically range between 20 kHz and 300 GHz. The usage in Radio Frequency (RF) technologies and or applications is due to the frequencies from where the energy coming from an oscillating current are radiated off into the space, in the form of radio waves.

Contrasting between RF Frequency and Radio Waves

A slight difference exists between Radio Frequency (RF) and radio waves, even though they are sometimes regarded as one.

Here are some of the differences:

• The wavelength in radio waves is inversely proportion to the radio frequency.
• Charged particles, which have been accelerated, lead to the radiation of radio waves, while the electric currents that oscillate at Radio Frequencies (RF) do not have the properties shared by lower audio frequency alternating current or direct current.

Radio Waves’ Generation

The waves are generated in a wide range of ways, including via a time-varying electric currents, and radio noise produced by lighting and other forms of naturalized processes.

The simplest explanation is that radio waves are generated by a transmitter and a receiver detects it. The next processes include the passage of the radio transmitter through the antenna. This enables the transmitter to send energy into space and for the receiver to receive or pick up the sent energy from the space.

The Types of Radio Waves

Different kinds of radio waves exist and choosing the one to work with depends on the typical applications.

Here are some quick facts about the types of radio waves:

• They are labelled or categorized into bands or ranges, such as: Low Frequency (LF), Medium Frequency (MF) and High Frequency (HF).
• Each of the ranges or bands tend to have an increase of frequency that corresponds to the power of 10 (or the order of magnitude).

With that being said, here are some of the options:

a.    Low-to-Medium Frequencies

These are the lowest in the “waves chain.” Out of these, the Extremely Low Frequency (ELF) stands out. It refers to the radio wave with less than 3kHz of frequency and up to 100 km of radio waves wavelength.

The benefits of the ELF include:

• These waves are naturally-generated, usually through lightning.
• The waves can be used for a variety of purposes, including entering rocks and water for an onward communication with caves, submarines and mines.
• Extremely Low Frequencies (ELFs) are relied on due to the longer ranges.

On the flipside, you may want to distance yourself from using the ELF due to these reasons:

• The waves can “bounce back and forth” between the ionosphere and the earth.
• The disturbances created by the lightning tend to disrupt the transmission of radio signals.

The Low Frequency (LW) and Medium Frequency (MF) ranges tend to incorporate both aviation and marine radio. They also support the Amplitude Modulation (AM) radio, typically the one that falls between 535 kHz and 1.7 MHz

One of the selling points of the Amplitude Modulation (AM) is the long-range, especially at night. On the downside, the long-range is often susceptible to interferences that tend to negatively affect the sound quality.

b.    Higher Frequency Ranges

These are the radio waves with a higher frequency range. They often use a power of 10 or the order of magnitude.

Examples of the radiofrequency waves that fall into the higher frequency ranges are:

• Very High Frequency (VHF)
• Ultra High Frequency (UHF) and;
• High Frequency (HF)

These ranges or bands often use Frequency Modulation (FM) bands for the communications. The benefits of FM over AM include:

• The radio frequencies are anywhere between 88 MHz and 108 MHz.
• Frequency Modulation (FM) bands are not often constrained by the ecological components, which is the reason why they hardly experience lower signal quality.

c.    Highest Frequency Ranges

As the name suggests, these are the radio waves with the highest frequency ranges. Some of the attributes include:

• These ranges are often regarded as a feature of the microwave band and;
• They are the most-elevated frequencies in the radio band.

The Super High Frequency (SHF) and the Extremely High Frequency (EHF) are the most-prioritized here.

SHF vs. EHF

Despite being the most-elevated of frequencies in the radio band, the SHF and the EHF also differ. For example, the SHF is commonly used for applications requiring shorter ranges of connections. Examples are Universal Serial Bus (USB), Wi-Fi and Bluetooth.

The Super High Frequency (SHF) is preferred over the Extremely High Frequency (EHF), due to the less susceptibility to damage or interference by air.

Generally, the highest frequencies, such as EHF and SHF have shorter wavelengths that support the direction of signals to satellite dish antennas.

However, one challenge with these frequency ranges is the assimilation or absorption of the frequencies by the molecules in the air. This is one of the reasons why these frequency ranges don’t always go beyond certain applications and ranges.

d.    Short Radio Waves

These refer to the radio frequency (RF) waves that use the frequencies in the High Frequency (HF) band. These frequencies range anywhere from 1.7 MHz and 30 MHz.

Attributes of the short radio waves include:

• Bouncing off of the signals from the ionosphere and the rebounding of the same hundreds of miles from the origin.
• Short radio waves can also be isolated into different fragments and segments and used for dedicated telecommunication stations, such as Voice of Russia and the Voice of America.

Radio Frequency Applications

Several frequencies of radio waves are used for different purposes, but the common ones are mobile phones, transmitters, computers, televisions and receivers. These frequencies, depending on the ranges, can also be used in the following applications:

• Remote-controlled toys
• Control circuits
• Wireless computer networks
• Ham radios
• Military communication devices and;
• Telephones

The applications of radio frequency waves wouldn’t be completed, without highlighting some of the industries benefiting from it. Examples are:

• Wireless Devices: examples are Bluetooth, Cellphones, Wi-Fi, television broadcast stations and satellite communication systems.
• Medical Applications/Devices: radio frequency waves are also relevant in the medical industry. In this case, they are used either in the forms of electrical currents or radio waves (electromagnetic waves).

Today, the usages of radio frequency for medical applications have transcended the above and now include:

• The use of radio frequency fields in Magnetic Resonance Imaging (MRI). This aids in the generation of the images of the human body.
• Diathermy
• Electrosurgery scalpels, which are used for cutting and cauterizing, during laboratory operations.
• Cancer treatment and;
• Hyperthermy

Radio Waves Uses

Radio frequency waves are commonly used in the medical and communications industries. However, the use cases are much more than those.

Today, you can find these ranges of frequencies applied to different places. For example, they are now used standardizing the communications via radios and TVs, as well as enabling remote-controlled toys.

Worthy of mentioning is that the RF field usages in the several types of wireless communications is enhanced by the use of transmitters and antennas.

Beyond wireless communication applications, Radio Frequency (RF) fields have now been used in the following:

• Garage door openers
• Microwave ovens and;
• Wireless devices, such as computer mice, TV remote controls and computer keyboards.

Conclusion

The use of Radio Frequency (RF) waves aids in the electromagnetic radiation that has been useful in different key industries. From enabling wireless communications to boosting communications in the home and office, the use of RF waves goes a long way.

Of course, the capabilities tend to differ by the frequency ranges. For the best results, choose from the higher frequency ranges and the highest frequency ranges.

In Printed circuit Boards, traces are generally given two names depending on their placement in the stack of a PCB; Microstrip and Stripline. In a circuit board, both microstrip and stripline offer two distinct structures of line used in the layout of a PCB. Both strip lines and microstrips come in differential varieties and coplanar. Each of them gives off specific types of benefits while using high-frequency and high-speed signals. This article helps you understand the difference between strip lines and microstrips and guides you through the different benefits and routing styles each of them incorporates.

However, before getting into the details, it is crucial to understand the basic factor that makes both strip lines and microstrips differ from each other. For the strip lines located inside the stack of a PCB, the traces are fully disclosed to the material of the dielectric. At the same time, the properties of dielectric material will have a better impact on the propagating signal along the strip lines. Read along; you will get to know what factors cause differences between both types of traces.

What Is A Stripline?

A stripline lies inside the material substrate with around two planes (ground) sandwiching the substrate and stripline. This impregnation depicts that the transmission lines can only be available in the internal routing layers of a PCB. Thus, strip lines are mostly found in multilayered printed circuit boards. Also, the structure protects the stripline, reducing emissions.

What Is A Microstrip?

A microstrip refers to a planar communicating line that lies outside the material of the dielectric. The material of the PCB insulates and splits the tace signal from the ground plane. This means that the transmission line possesses air over it. Hence, the transmission line can only lie over the lower and upper PCB layers. Moreover, the air constant of the dielectric and the material of the board affect the impedance of the trace.

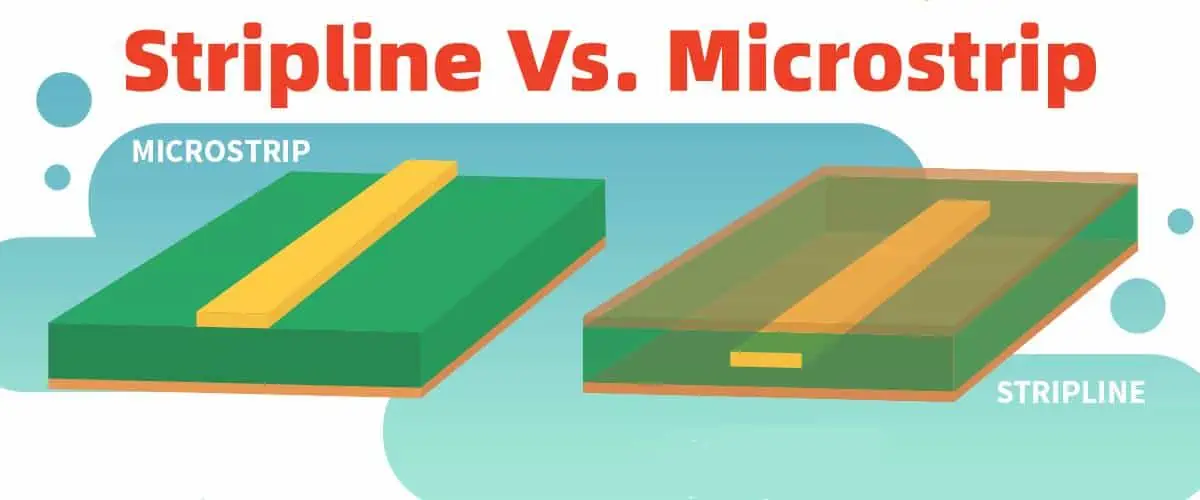

Differences: Stripline Vs. Microstrip

However, it’s hard to directly say which routing style suits you better or perfectly. Therefore, the difference helps you determine to choose the right one for your application. So, let’s discuss different areas that depict differences.

Location

As discussed above, the main difference between both strip lines and microstrips is their placement or location. Striplines lie inside the internal layers, particularly between two ground planes, whereas microstrips lie on the outer layers of a PCB.

Usage

Typically, you can select between whether to go with microstrips or stripline while routing the designs. Though, you need to consider some things before selecting between any routing styles.

1. Choose a stripline routing style if you are looking for high-density tolerance impedance for your application. A stripline possesses greater density for impedance-controlled routing as compared to a microstrip. Thus, a thin and small stripline will offer the same value of impedance as a wider and bigger microstrip gives.
2. Whereas you don’t have to choose any routing method if your circuit board contains short traces between close electronic components. However, you can still choose microstrips only if you need impedance control in your application.
3. Furthermore, strip lines do not go well with ultra-high frequencies. Unfortunately, the Via integrating with the internal layer will behave like a distinct transmission line. This allows the surrounding parasitic capacitance to develop impedance continuity and signal losses.
4. You can go for strip lines also if you want greater isolation between the layers of your design. This stripline routing style develops isolation in the internal layer, which seems impossible with microstrips. At the same time, this style of design doesn’t guarantee greater isolation between straplines of the same layer. Hence, you have to consider crosstalk before moving forward with the design.
5. Last but not least, you can use both routing methods with high pin-count electrical components.

Characteristics Impedance

The characteristic impedance of the strip lines relies on the dielectric constant, the center conductor of the strip, and the cross-sectional geometry of ground planes. Furthermore, the characteristic impedance of the stripline decreases when the width of the strip increases. Whereas on the contrary, the characteristic impedance of the microstrip changes with increasing frequency.

Stripline Vs. Microstrip: Transmission Line

The calculation of routing requires parameters like the dielectric constant used in the dielectric layer of the PCB.

Microstrip

The microstrip routing on the upper and lower level of the circuit board reduces dielectric losses greater than stripline routing. This occurs because of negligible losses of air. Moreover, in microstrip routing, the conductor strip lies at the outside layer, which makes the fabrication process simple.

Whereas microstrip radiates greater energy because of air exposure. However, the constant of dielectric inside the layers of PCB is generally 1.4, whereas 1 for air. These variations determine the difference in impedance value between microstrips and strip lines.

Striplines

On the contrary, the stripline routing method has the benefit of sandwiching the traces of signals between planes (reference). This structure allows the manufacturing of narrower transmission lines over the same values of impedance needed for microstrip routing. Furthermore, the sandwich structure makes better insulation with the material of dielectric. Thus, allowing you to compress the trace routing.

Advantages and Drawbacks of Stripline Vs. Microstrip

Both microstrip and stripline offer their own types of benefits. Let’s see a glimpse of the pros of each routing style.

Stripline Benefits

1. Striplines can protect and shield traces of signals from unknown invasive frequencies.
2. The performance of this routing method will enhance up to 50MHz.
3. Moreover, strip lines also offer low impedance, which leads to minimum crosstalk and emissions.
4. Furthermore, this certain routing method also offers greater EMI characteristics.

Microstrip Benefits

1. Microstrips contain open transmission line structures which make connections between the electrical components and the surface of the PCB easily.
2. Moreover, you can also stack up microstrips on HD channels with lesser crosstalk. This makes it the perfect design for microwave IC and RF.
3. Microstrips contain planar topology, which gives them a little immunity to circuit board fabrication tolerances.
4. Furthermore, they also offer faster times of propagation.
5. Last but not least, this routing method offers mechanical support and heat sinking simultaneously.

Cons

Similarly, each method of PCB routing does have disadvantages too. Let’s dive into the details to know more about them.

Stripline Drawbacks

Tough microstrips come in compact sizes and less price, but they seem loosier as compared to strip lines, waveguides, CPW, and coaxial lines.

Microstrip Drawbacks

1. Striplines have implanted signal traces which makes them complex to debug. Generally speaking, it makes the prototyping and troubleshooting of the PCB more difficult.
2. Striplines can not decouple easily.
3. Moreover, proper matching leads to low impedance.

Which One Should You Select? Stripline Vs. Microstrip

Each transmission line of a PCB comes with its own advantages and disadvantages. Most PCBs with high frequency and high-speed needs high-density circuits. Therefore, you may end up using both of them in your application.

Modern printed circuit board tools aid in simplifying the routing configuration of stripline and microstrip. Moreover, the impedance calculators for PCBs also greatly help in determining the perfect layer configuration and width of the trace. Whereas the stack-up editors also facilitate using the right material and width of the board.

The combination of these tools aids you in choosing the best microstrip and stripline routing approach and configuration of layers with the routing layers.

Conclusion

Both microstrips and strip lines possess a slight structural distinction that changes their nature and properties greatly. However, every transmission line has certain properties that may tend you to use both in your high-speed and high-frequency circuit board to reduce losses. RayPcb hopes this clears all your doubts, yet if you still have any queries, then reach out to us.

Trace PCB mainly refers to a network of wiring and insulation made with copper. Typically, if the electronic device starts acting up or damaging, then there is a high chance that the PCB trace is not compatible with the device. Moreover, trace resistance is considered one of the most common terms that electronic engineers often use in the industry. However, this trace resistance specifically refers to those parts of the PCB that oppose the current flow.

What Is Trace PCB?

PCB trace plays as important a role as a current plays in a PCB. Moreover, it requires much time and effort to evaluate or detect the errors in the traces. And if you ignore this error, this may lead to damage to electronic devices. A Circuit board consists of various types of electrical components. Therefore, you should know which type of material and part you will require for assembly or repairing the PCB. Not only this, you also need to know the advanced methods and applications that help in the fabrication process of a PCB.

Width of Trace PCB

PCB trace width is considered one of the most crucial aspects in the layout and design of a PCB. It is very important to carry out the current through the board while maintaining the temperature of the trace below a certain limit to avoid overheating.

Traces operate to transfer signals from and to the soldered component pins on the PCB. They carry different amounts of current based on the network. The trace signals have specific current requirements which affect their size. However, trace width needs to be regulated carefully for efficient and accurate manufacturing of a PCB.

Traces typically consist of a metal connection made up of copper while the etching process of a PCB. The process of etching is considered complex. Therefore, it demands extra care from the fabricators to ensure that traces are not over-etched. This results in thinner and required trace-width manufacturing.

Moreover, when traces remain isolated over the board surface, then they become more etched than the clustered and grouped traces. This happens due to the etching concentration on a specific area. However, to avoid this, make sure to widen the isolated traces a little. This prevents them from exceeding the required etching. Moreover, excessively etched traces enhance the chances of impairing the PCB’s signal integrity. Therefore, it is necessary to make sure that the PCB trace must meet the required widths.

The current of Trace PCB

The capacity of PCB trace current is the max current limit that flows through the PCB trace without damaging any electrical parts of the board. Moreover, the PCB trace current depends on the thickness and width of the trace.

Tips For Better Designing of Trace PCB

Creating a perfect PCB trace layout is complex, which impacts the overall functionality, performance, and durability of a PCB. However, we list some tips that help you design better PCB traces.

1.    Routing

Routing of a PCB consists of two types, automatic wiring and manual wiring. The automatic wiring operates on design software which plays a vital role in PCB design. PCB trace designers cannot rely solely on this feature. On the other hand, manual wiring plays a vital role in the creativity and flexibility of the fabrication process. Moreover, automatic wiring consider is one of the time-saving options.

2.    Width Of Trace PCB

The trace width of a PCB plays an essential role in the overall functionality of a PCB. However, it is very crucial to determine that the trace width of a PCB must have the ability to bear capacitance. Not only this, it must ensure that the width of the PCB must allow a smooth current flow. Moreover, try to determine a precise and accurate size of the minimum width of the trace, as it aids the PCB from overheating. Since overheating directly affects the performance of the board.

3.    Connecting To The Ground Plane

It is crucial to connect traces with the ground instead of separate ground joints to ensure the consistent measurement of voltage across each trace of a PCB. However, the ground plane acts as a shared reference point serving all traces. This prevents variations in resistance and voltage. Therefore develop a rigid ground plane under the path of signal-carrying because it reduces the impedance and increases resistance to sound. Moreover, placing ground and power planes in the internal layer of a PCB can prevent electronic component separation or distortion.

4.    Minimizing Capacitive Coupling

The ground planes and the adjacent tracks of the PCB creates capacitive coupling. However, make sure to separate the traces of PCB that are devoted to the analog signals and power supply. It helps in reducing the effect of capacitive coupling between the upper part of traces and the lower parts of ground planes. Moreover, decoupling capacitors acts as one of the most affordable and efficient ways to copy the capacitive coupling within the layout of a PCB.

5.    Separating High-Speed and Low-Speed Signals

Try to keep low-speed and high-speed trace signals separate from each other, as it helps in reducing interference and crosstalk. However, you can easily achieve this. Just try to use ground planes as a means of isolation hurdles and route traces over each layer. This way, you can easily separate both high and low-speed trace signals from each other.

How To Fix Trace PCB?

The knowledge of manufacturing PCB trace and its basic principles is not enough; you must know how to repair them too. However, whenever the unit power supply starts malfunctioning, like unusual noise or display failure, at that time, traces of the PCB surely need repairing. Therefore, we have some steps here which give you a detailed insight into the repairing process of a PCB trace.

1. Firstly, look for damaged traces over the PCB surface.
2. Once you find the damaged trace, then use a cutter to take it out from the board. Ensure that the cutter does not touch or damage the nearby electrical components.
3. After that, clean the surface of the board firmly until the board shows its real color of copper. Then apply solder over the exposed area.
4. After applying the solder, clean the area again with the help of a solvent pen cleaner or paper towel. Put the flux over the damaged area. Then solder the tracks back using a soldering iron.
5. Then select a substitute wire that fits perfectly with its size.
6. Tin both tips of substitute wire.
7. However, if the substitute wire fits perfectly with the board, then it does not need any insulation on any side. Remove it from both sides. Then solder the wire to its required location firmly.
8. First of all, solder one side while ensuring that the substitute wire overlaps the available trace by a minimum of two times the PCB trace width.
9. After that, you shape and mold the wire depending on certain requirements and needs.
10. Use adhesive or tape to firmly attach the substitute wire to the PCB’s surface.
11. Then solder another end of the substitute wire.
12. In the end, make sure all the connections work perfectly and there is no error behind them. Clean the area one last time to remove any remnants of stains or residue.

Conclusion

The best trace routing of PCB determines the durability, functionality, performance, and cost of the PCB and electronic device. Trace routing not only enhances the productivity of PCB but also makes the manufacturing process easier. Therefore, it is very crucial to learn and understand the mechanism of PCB traces and trace routing. Therefore, if your queries are still unanswered, you can contact us anytime. We will surely help you clarify your queries in the meantime.
