What is a Voltage Sensor Circuit?

The voltage sensor is not a simple circuit to describe. However, we are going to make its definition a lot more perceivable for you so that even if you don’t belong to a physics background, you can understand a voltage circuit quite well. Here we go:

We define a voltage sensor as a setup that is responsible for monitoring the voltage surge and voltage drops. These circuits show accurate readings and voltage traces. Since electronics need precise amounts of voltage to work efficiently, now you know a voltage sensor is a huge deal for such machines.

Some voltage sensors produce pulse waveforms and sine waveforms as well. Now if your project needs a different output, you need some standard voltage dividers to find this output accurately.

Working Principle of Voltage Sensor Circuit

For AC voltage:

When you are working with AC voltage, there are some considerations that you should keep in mind. Don’t worry if you do not know them yet; we are going to discuss these with you for the sake of the quality of your upcoming projects:

• If your voltage sensor uses an AC voltage, then a transformer is important that should consist of sensing elements to make your setup work.
• Other than a transformer, when you want, you should reduce the voltage level to low, which will cause the AC voltage to change into DC voltage. It means you can switch the nature of voltage from AC to DC and vice versa.

For DC voltage:

As you know the considerations of the AC voltage, its time to learn about what you are going to do when you are working with DC voltage in a voltage sensor:

• In this case, a transformer is useless; instead, you need an A/D converter which is an important part of a complex voltage sensor.
• Apart from an A/D converter, you need a resistor that consists of a sensing element that will pair up with the DC voltage.
• However, remember to use more voltage than the sensing elements; otherwise, this setup won’t perform as per your expectations.
• Also, power regulation and control are necessary when you are observing DC voltage.

Characteristics of Voltage Sensor Circuit

It will be just redundant to say that voltage sensors have crucial applications for the well-being of giant industries around us. Isn’t it so obvious to you?? Due to this reason, consumer electronics is no exception. Every type of voltage sensor has a different set of features that make it different from the others. Nevermind, we are going to take a quick look at the general characteristics of voltage sensors for you:

• Excellent wireless nature so that you can connect it with as many external equipment and devices as you want.
• These are able to proactively monitor voltage drops and voltage spikes for the real-time detection of technical problems.
• Microcontrollers also work well with voltage sensors so that the devices can efficiently perform in their natural state.
• Voltage sensors are always accessible from the market, and producers can fully rely on them.
• These are affordable to use for private projects, which helps students with their assignments as well.

Different Types of Voltage Sensor Circuits

The following are two major and common types of voltage sensors:

Resistive Type Voltage Sensor Circuits

• The resistive sensors include two circuits normally. One of them is a voltage divider circuit, and the other is a bridge circuit.
• This circuit also contains a resistor, and it has the simple job of functioning as a sensing element for this circuit.
• The voltage gets divided into both circuit units of this sensor equally.
• When the circuit receives the voltage supply, it allows you to find out the output voltage, and resistance helps you with this purpose.
• Unlike the voltage divider circuit, the bridge circuit has a group of four resistors.

Capacitor Type Voltage Sensor Circuits

• There is a single insulator and two conductors present in this sensor.
• These three components are present in the core of the circuit.
• You need an appropriate supply for this sensor to get the desired results.
• The applied voltage will repel the electrons, which will create a detectable difference.
• If you use a series circuit, you can combine the voltage and capacitance for this type of voltage sensor.

Benefits of Voltage Sensor Circuit

The following benefits will convince you to replace typical measuring techniques with voltage sensors to make your projects stand out from your competitors:

• Small size
• Featherweight
• More safety guaranteed
• Hight accurate results
• Non-saturable nature
• Eco-friendly
• Multipurpose circuit for voltage and current

Applications of Voltage Sensor Circuit

• It is reliable for the purpose of Load sensing in various devices.
• Fault identification with a voltage sensor becomes easy, and you can even save your devices from undergoing irreversible damage.
• Power loss detection makes electronics power-efficient, and all this happens due to a voltage sensor.
• Temperature control and regulation with a voltage sensor seem unusual, but it has a great impact on a device’s overall health.
• Power demand monitoring is also a fantastic use case for a voltage sensor.
• A voltage sensor never compromises on safety which becomes more important than ever for the well-being of devices so that they can perform naturally in the long run.

Frequently Asked Questions (FAQs):

What is the meaning of a Voltage Sensor Circuit?

Voltage sensors are important for monitoring and determining the voltage supply of the electronics. You can find out the AC/DC voltage levels as well. It uses voltage as input and switches as its output.

What are the various kinds of Voltage Sensor circuits?

Following are the different types of sensors available in the market:

• Temperature sensors
• Vision/imaging sensors
• Proximity sensors
• Radiation sensors
• Pressure sensors
• Position sensors
• Particle sensors
• Photoelectric sensors

What is the working of the Voltage Sensor Circuit in Arduino?

It acts as a voltage divider in Arduino. Moreover, it works on the ratio of resistance 5:1. It has two resistors of 30kilo-ohms and 7.5kilo-ohms. Besides, It reduces the output voltage to factor 5, no matter the input voltage.

What are the two elements of a Voltage Sensor Circuit?

There are two major parts within a voltage sensor. One is the voltage divider circuit, and the other is the bridge circuit. These two parts play their individual roles in making the sensor perform its role efficiently for the devices, even under unfavorable conditions.

The counter is widely used in digital devices to count the number of signals or any other event. It stores information and creates flip-flop groups using clock signals. Counters help in measuring the time and frequency as well as commence the counting operation. This enhances the memory location based on the application and device.

Counters have two basic types. Asynchronous counter and synchronous counters. Moreover, the ‘Mod’ refers to the modulus counter, which determines the number of states that needs to apply before calculating the signals. Frequency counters are widely used in digital clocks, timer circuits, frequency dividers, and ana-to-digital converters.

This article gives you a detailed insight into how a frequency counter works, its types, advantages, features, and applications. So let’s dive into it.

What Is a Frequency Counter Circuit?

Frequency counters refer to a type of device that integrates various types of radio frequency devices to measure the time and frequency of digital input signals.

They have the ability to measure the time and frequency of repeated input digital signals precisely and accurately. Moreover, the frequency counter also refers to a frequency meter as it calculates the time and frequency of input pulses and square wave signals.

RF range devices also use this. They simply use Prescaler, which minimizes the frequency of the signal and helps a digital circuit to operate. Moreover, it shows the frequency of analog or digital signals over the display screen in Hz.

The counter starts counting the pulses when the number of pulses occurs in a given interval of time. It transfers them to a frequency counter device. This, however, shows the frequency pulse range and sets the counter to zero. It has a digital display which makes it easy to use and operate. Moreover, it gives accurate results at affordable prices.

Block Diagram Explanation of Frequency Counter Circuit

The block diagram of frequency contains threshold, input conditioning, input signal, AND gate, display, flip-flop, decade dividers, latch or counter, and accurate clock or time base.

1. Input

When a counter receives input signals with high-impedance input and low-impedance output, it sends it to an amplifier which converts the input signals into a rectangular wave or square wave for operating in a digital circuit. Thresholds and input conditions are utilized in amplifying and buffering input signals. Moreover, it uses Schmitt triggers to manage the additional counting pulses that occur because of the noise and disruption at the sides. Therefore, controlling the counter sensitivity and trigger level can minimize the counting of extra pulses.

2. Clock

An accurate timebase or clock helps in creating various timing pulses at specified time intervals. Moreover, it uses high-quality crystal oscillators for accurate and controlled timing signals. This cloak is then applied over the decade divider.

3. Decade Dividers & Flip Flop

The input and clock signals produce pulses that go through a decade divider. It divides the timing signals. The received output then goes through a flip-flop. It creates a precise enabling pulse to go to the AND gate.

4. Gate

The accurate enabling pulse from the flip-flop and input signal series then goes through the AND gate. Here it creates a pulse series at an accurate time interval. If the input signal has a 1 Mhz frequency and passes through the open gate just for 1 second, it creates 1 million output signal pulses.

5. Counter & Latch

The output from the gate then goes to the counter. It computes the number of pulses obtained from input signals. However, the latch holds the signals of output while the counter calculates the pulses and displays the figures over the display. The latch goes through 10 stages of counting and holding the pulses.

6. Display

The display shows the output signals received from the latch and the counter and displays them in an understandable format. It shows the signal frequency. It uses display screens like LED or LCD. As every decade counter has one digit, it displays the rest of the information over the display.

Circuit Diagram Explanation of Frequency Counter Circuit

The diagram of the frequency counter includes a counter, two timers, a potential resistor, an 8051 microcontroller, a generator of square waves, and a display (LCD).

It uses an integrated circuit 1555 timer. It produces clock signals in one second of the specified time interval. Arduino UNO acts as a generator of square waves. Both the IC 555 counter and generator of a square wave refer to an astable multivibrator. Other than that, it uses an LCD of 16×2 inches which shows output signal frequency in Hz.

It uses an 8051 microcontroller counter and IC 555 timer. The integrated circuit 555 timer produces oscillating signals using a 99% duty cycle and gives output signals with the highest interval period. The discharge resistor and threshold adjust in a way to get the required duty cycle value. It uses the duty cycle formula of

D = (R1+R2)/(R1+2R2)

The 8051 microcontroller counter generates the pulse frequency in Hz. As 8051 contains two timers, of which one acts as 0 timers and one-timer. At the same time, they operate in 0 modes and one mode. Timer 0 helps in producing a delay in time while timer 1 counts the number of pulses coming from the generator of the square wave.

 Operating Principle of Frequency Counter Circuit

The generator of square waves produces a pulse that goes through the 8051 counter. It uses two modes of operation, delay the time and pulse counting. The 8051 counter calculates the input signal number of pulses at a given time interval. The output received from the counter then displays to an LCD of 16×2 which shows signal frequency in Hz. This is how a frequency counter works.

Major Types Of Frequency Counter Circuit

Frequency counters have two types that help in measuring the signal frequency. These types include Direct counting and Reciprocal.

· Direct Counting

This approach serves as the simplest and most common method to measure input signal frequency. First, it counts the input signal cycle every second. Then a common counter circuit is used to measure the frequency. This, however, does not give appropriate results and has limitations in measuring low-frequency resolution. It expands the time of the gate to measure the high resolution. For instance, to measure a high resolution of 1 MHz, then it needs a 1000 seconds interval to measure a one-time signal.

· Reciprocal Counter

This approach overcomes the drawback of the first direct counting approach. It calculates the input signal period rather than measuring the input signal cycles every second. It uses the formula F = 1/T to calculate the pulse frequency. However, the final resolution of frequency depends on input frequency independence and temporal resolution.

It has the ability to measure low frequencies at high resolution quickly. Moreover, it adjusts the trigger phrases and minimizes the noise. It measures input signal time and manages to maintain enough time resolution. Additionally, it does not cost much.

Other than these two frequency counters also have other types. This includes a panel meter, a frequency counter with a digital multimeter, and a handheld frequency counter. Additionally, a bench frequency counter which is used in electronic test devices, and a PXI frequency counter. It is used in control and test systems and shows frequency in the formality of PXI.

Advantages of Frequency Counter Circuit

Frequency counters offer various benefits and features. The measurement of square wave generating signal frequency happens in accurate time intervals. Moreover, frequency counters are vastly used in frequency measurement in the radio-frequency range.

It does not only give accurate results but also gives easy and quick. However, based on the usage and application, it costs less. Also, it makes sure that all frequencies must transmit within a band.

Applications of Frequency Counter Circuit

A frequency counter is used in a variety of applications and devices. Firstly it is used to measure the square wave generating signal frequency. It also measures the signal frequency from an oscillator.

It does not only measure the frequency but gives an accurate measurement. Moreover, it measures input signal frequency over the receiver and transmission line. Due to clock signals, it uses data transmission. Moreover, it only works in the range of RF. In addition, it can also measure high power transmission data frequency.

Frequently Asked Questions

What is the unit or symbol of word frequency?

Hertz or Hz is used as the unit of signal frequency.

What is the major benefit of a Frequency Counter Circuit?

A frequency counter is used to analyze accurate signal frequency produced from an oscillator or a square wave producer.

Which type of Frequency Counter Circuit is best to measure frequency with high values?

The high-frequency measurement uses an asynchronous and synchronous counter.

What is the meaning of Mod Counter?

Modulus counter refers to a Mod counter that uses clock signals to count a number of times a counter counts pulses sequence.

What Are The Two Main Techniques Of Frequency Counter Circuit?

Frequency counters use Reciprocal and Direct counting methods.

Conclusion

Frequency counters refer to a very sensitive device whose accuracy depends on the timebase precision. However, the timebase may vary according to age, instability, poor design, and movement. Therefore, make sure to give extra care to the timebase while working with frequency counter projects.

Soldering can be described as a reliable way for joining copper pipes during plumbing works as well as for assembling electrical components inside a printed circuit board. This creates reliable and strong joints.

However, what will happen when you solder a wrong pipe or component? What if the soldered pipe or component has no use and you want it to serve a different purpose? This is simple; all you need to do is to take out the component by desoldering this solder joint or melting the solder. Whenever you are Desoldering, you must choose the appropriate tool and method for removing these components. By this, re-using the components will be possible.

Otherwise, these components will become damaged during the whole process and using them again will be impossible.

What are Desoldering Wires?

A desoldering wire, which is also called desolder wick, is made up of copper threads which are braided together. Normally, flux is added to aid the flowing of the solder from the jumper, where it isn’t meant to be, into the wick. Therefore solder wick is at times referred to as desolder braid. You can solder virtually everything, and the desoldering wire forms a huge part of the entire process.

This method of soldering wick is useful for taking out any unwanted solder after the soldering process. The making of the soldering wick is made through the intertwining and braiding together of the copper coils. Therefore, it is termed desoldering braid.

Furthermore, soldering wick is manufactured using copper wires because they are great heat conductors. As this solder gets attracted to heat, these copper coils suck the solder up from the surface of the metal.

There are soldering wicks that come with flux. This allows solder to be removed from its surface. Also, when the solder wick doesn’t have a flux, you may dip the wick’s end part into some of the flux so as to enhance the solder removal speed. Three types of desoldering wires are possible to serve different uses. These include:

• No-clean: These are low-residue halogen-free flux coated braids that are spooled on the ESD safe ribbons.
• Unfluxed: The copper braid left untreated and spooled on the ESD safe ribbons
• Regular: This is the rosin flux having treated copper braids

Things to Do To Desolder

Below are some of the things you must do to desolder

• Intertwine few inches of the copper wire and then create a braid
• Then apply some of the flux on this copper braid through the dipping of the end in flux
• Place some of this solder wick on those joints you wish to desolder
• Keep the hot soldering iron at the solder wick’s tick as well as the desired pin
• Wait for some seconds till this solder melts and the melted solder is sucked by the solder wick
• Take this solder wick and then take that part of the wick, which has been covered using solder
• Then, repeat this process until this unwanted solder has been removed.

When handling this solder wick, make sure that it isn’t touched with your bands because of its extreme hotness. Just use some pliers to hold as well as position it.

What are the Safety Tips to Take Note of During Desoldering?

Similar to soldering, there are some safety precautions that you must adhere to strictly during desoldering. If you fail to do this, you could have serious injuries.

Work with these safety tips in order to have a safe a great desoldering experience

• User well-ventilated areas during desoldering
• Avoid touching the element or tip of the soldering iron
• After use, ensure the soldering iron is placed on its stand
• When handling the components, use pliers during desoldering
• The solder must not be touched with your hands
• Make use of gloves, masks, and safety glasses
• Don’t put on loose-fitting clothes
• Have a fire extinguisher and first aid kit ready

When Should a Desoldering Wire be Used?

While the desoldering pump or solder sucker functions like the vacuum cleaner, the desoldering wick functions more like mops. The ability of the latter for absorbing solder ensures it is very useful in applications whereby solder splatter cannot be accepted.

This makes this desoldering wick better when cleaning off solder from the SMT pads as well as removing the solder bridge found on the BGA pads and fine-pitch SMT which are usually seen on modern PCBs that have been populated with the SMD components. Though the best way to desolder the SMD components are by making use of the hot air rework stations as well as special desoldering tweezers the desoldering wire or wick is also utilized for this task.

Also, the desoldering pump is clearly useless for all SMD reworks. This is due to the fact that the PCB’s conductive pads are just too flat to allow the sucking out of the solder effectively. It is similar to drinking of soup from your dinner plate using a straw.

Removing Solder Using Desoldering Wire

Using the desoldering wire wrongly might tear patters from the PCB as well as damage some discrete components. To prevent problems like these, ensure these [preventive measures highlighted below are taken.

• Apply flux to whatever joints you want to desolder
• Place your desoldering wire on the joints and place this soldering wire on a wire
• This soldering iron will melt the solder. This is pulled in the desoldering wire. Immediately this solder has been taken out, lift this wire and then iron the board off.

Tips for Proper Removal

Though using it seems easy, utilizing wrong techniques might lead to thermal damages to the printed circuit board and its components. Extending the soldering iron contact to the component or board might lead to thermal damage. Also, if this desoldering wick doesn’t remove the solder, try the steps highlighted below.

• Apply a little solder onto the joint
• Also, apply some solder to the soldering iron tip
• Apply little quantity of solder at the desoldering wire tip. This aids easy removal
• Cut the wire’s soldered tip at a 45 degree angle. This ensures that solder present at its tip isn’t cut off

When you apply some solder to the joint, the tip of the desoldering wire, this helps to cut surface tension as well as permit the easy absorption of the joint’s solder by the wires.

During the process of desoldering, if you need to cut the desoldering wire, cut it at an angle of 45 degrees with the solder still present, this also helps in trimming the wire whenever it is saturated with the solder and will not be able to absorb again.

Choosing the Right Desoldering Wire and Tip

Below are some things to consider when choosing the right desoldering wire and tip

Braid Width

You can find desoldering wick in different widths starting from 0.8 mm and can go above 5 mm. A general rule says that the width of the braid must be slightly larger or equal to the size of the pad. Braids that are smaller won’t wick off solder from the whole pad, whereas the oversized ones would affect the nearby pads that you didn’t plan to solder

Size of Soldering Tip

This same logic is applicable to the tip of the soldering iron. It has to match the width of the braid. When it is too small, the heating becomes slower. This causes the dwell time as well as the risk of damages to the components. Also, the oversized tips may knock the neighboring components off.

Flux Composition

Finally, the composition of the flux utilized for the desoldering wick is important as well. If the workflow is relying on no-clean solder due to the fact that you want to do skip cleaning, then you have to make use of a desoldering wick which has no-clean flux infused with it. Also, if you want to clean the post rework of your PCB assembly, desoldering wick that has been imbued with a rosin flux ill have the fastest wicking action.

Advantages and Disadvantages of Desoldering Wire

Advantages

• Simple, cheap, and easy method
• Great method for taking out solder from the flat surfaces
• Desoldered components can be reused
• Supplied on pre-cut or spool strands
• Soldering wick comes in different sizes; this depends on the quantity of solder that you wish to remove
• The soldering wick’s size can be modified. This depends on the quantity of solder that you wish to remove

Disadvantages

• The soldering wick cannot be reused. The portion that is covered in solder must be cut
• As this soldering wick become very hot, positioning it against its joint could be difficult
• With this method, removing solder out of pinholes could be difficult

Conclusion

In summary, the process of desoldering is utilized in melting the solder as well as removing the materials that have been soldered. By making use of the right methods and tools, you can take out the components without causing any damage and then reuse them.

Electromechanical methods of assembling PCBs refer to the combined efforts of using electronic and mechanical processes for the circuit boards’ operations. This article highlights the basics of electromechanical assembly, the different variants you can choose from and some of the benefits.

What is Electromechanical Parts Assembly?

It refers to the process of using mechanical and electronic components, as well as subassemblies to manufacture an electronic device. The need for this process is buoyed by the need to make electronic devices fully electronic.

At the core of electromechanical assembly process is the creation of a definitive unit and the creation of a seamless integration of the product’s mechanical and electronic aspects.

Here are some quick facts about the electromechanical assembly manufacturing process:

• It allows for the creation of a fully-functional system – one that connects the electronic components to the mechanical elements.
• The assembly process also leads to the creation of a system that utilizes electronic current for performing mechanical operations.

Electromechanical Components List

The list of components used for the electromechanical assembly often alternate between the mechanical and electronic elements. However, it is also possible to use other components, such as subassemblies.

Mechanical Components

The following are some of the mechanical elements used in electromechanical assembly:

• Casings
• Motors and;
• Gears

Electronic Components

The following is a list of some of the electronic components used for electromechanical assembly:

• Sensors
• Printed Circuit Boards (PCBs)

The list of electromechanical components also includes the following:

• Programmable Logic Controllers (PLCs)
• DIN Rails
• Power switches
• Power supplies
• Cable and wire assemblies
• Enclosures
• Electric motors and;
• Varieties of circuitries.

Categories of Components Used in Electromechanical Assemblies

You may have thought that the assembly process uses just the combined components from both electronics and mechanics. However, there are three (3) broad categories of these parts, as discussed below:

Mechanical Components

The function of these parts is to account for the visible (physical) attributes of the electronic device. Parts like fasteners, motors, enclosures and gears are used for this purpose.

Electronic Parts

These components are used to build the electrical functionality of the electronic devices. The likes of capacitors, Integrated Circuits (ICs), Printed Circuit Boards (PCBs) and resistors are used here.

Electromechanical Parts

These are the combined components functioning both as electronics and mechanics. Connectors, switches, and solenoids are examples of the parts that have properties of both mechanical and electrical devices.

Types of Electromechanical Assembly Services

The complexity of the device and the targeted applications are some important considerations for the electromechanical assembly types.

These are some of the common ways to assemble electronic devices:

1. Cable and Harness Assemblies

This process refers to the use of wires or cables meant for transmitting electrical signals within the device.

Some of the cable and harness parts are:

• Ties: these are used to affix the wire harness to the device.
• Wires and Cables: these are designed to convey the signals and electrical current within the device.
• Insulators: these components protect the electronic devices’ components from touching the environment and from touching each other.
• Fuses: these are in place to regulate electrical current, and in extension, reduces the risks of power-induced damages to the device.
• Connectors: these are used to connect the wires and cables in the electronic device.
• Relays: the function of the relays is to turn on and off the power in the high-amperage circuits.

2. Mounting Rails

Also called the DIN Rails, these are used to mount several other components within the electromechanical assembly.

3. Motor Assemblies

These are the types of electromechanical assembly used for ensuring movement within the electronic device.

4. Switch and Sensor Assemblies

Also called the control panels, they help in bolstering the interactions and controls of the electronic device.

They are broadly categorized into:

Sensor Assemblies

These refer to the parts used for converting light, sound, motion and heat into the corresponding electrical signals.

Examples of the components used for the sensor assemblies are:

• Connection Heads: these parts enable the sensor wires’ connection to the transmitter.
• Sensing Elements: these components are used for detecting proximity and the physical properties, such as radiation and temperature.
• Transmitters: these are used to transfer the data (pieces of information) obtained about the targeted property.
• Housings: these are used to protect the sensor-related components.

Switch Assemblies

These components are primarily used for connecting or disconnecting the power supply to the electrical components.

Examples of the switch assembly components are:

• The Switching Mechanism: this is a pushbutton used for controlling the electronic device’s operations.
• Contacts: these parts allow for the flow of electric current to the device’s switch.
• Wiring Harness: the harness provides the pathway for the entry and exit of electric current from the switch. It is also used for holding the electric switch in position.

5. Power Supply Assemblies

These are the components used for the conversion and distribution of electrical current within the electronic device. These parts include:

• Regulators: these are used for reducing the filter’s ripple voltages.
• Transformers: these components are used for modifying the voltage coming into the system.
• Filters: are used for smoothing out the waves in the Direct Current (DC) output. This happens after the rectification process.
• Rectifiers: used to convert the incoming voltage from Alternating Current (AC) to Direct Current (DC).

6. Box Builds and Integrations

This infers to the process of building full systems of electromechanical assembly called box builds. We can also handle the integrations for you, such as integrating a circuit board into full harnesses, enclosures and a front panel assembly equipped with switches and connectors.

7. Panel Assemblies

This type of electromechanical contract manufacturing requires the integration of the components into panels. The aim of the integration is to streamline the process of distributing power into the connected circuits.

The panel assembly process includes wiring the panel, positioning the components in the back panel and drilling the holes for mounting the hardware.

8. Transformer Assemblies

The process of transformer assemblies involves aiding the transfer of electrical current between multiple circuits.

The process includes the insulation of materials, lamination of the core, making primary and secondary windings.

The Benefits of Electromechanical Assemblies

Despite the complexities, using the electromechanical process of assembling electronic devices comes with some perks, such as:

Device Modernization

Electromechanical assemblies support the reevaluation and upgrade of the existing electronic devices.

Specialized Services

You can get specialized electromechanical assembly services from the Contract Manufacturer (CM). With the longstanding years of experience and the use of specialized equipment, the electromechanical assembly technician has the know-how to optimize the complexity of the electronic devices.

Prototyping

The support for prototyping and testing allows for the early-stage validation of the electromechanical assembly products.

Affordable Electronic Product Manufacturing

You also get to save up on extra costs when using the electromechanical assembly. Thanks to the box build and integration process, you can reduce the overall production costs.

The electromechanical contract manufacturing company will be handling most aspects of the product, such as:

• Component sourcing
• Handling the facility, labor and equipment costs.
• The manufacturer’s access to a set of established supply chain networks also helps you to save costs on logistics.

How to Choose Electromechanical Contract Manufacturing Companies

Want to work with a Contract Manufacturer (CM) for your electronic device production? Here are some of the tips on choosing the best company:

Quality Assurance

The products or electrical devices should meet the minimum quality standards. Therefore, the company should have the relevant facilities and certifications to offer electromechanical assembly services.

Check the Technical Capabilities

This refers to the Contract Manufacturer (CM)’s ability to handle your electronic device project, as per your requirements.

The manufacturer needs the know-how and pieces of equipment to make this work.

Volume of Orders

Does the electromechanical assembly CM have what it takes to produce the volumes (numbers) of electronic devices you want?

First, find out if the company supports micro electromechanical assembly, which means that it allows for the production of a few products.

The manufacturer should also be able to handle large-volume orders.

Track Record

This refers to the Contract Manufacturer (CM)’s many years of experience. It also refers to the different projects it has been able to process, thanks to the extensive years of experience.

The reason for this consideration is that an experienced CM is the one that can easily detect and fix issues, as well as produce your devices, as per the requirements.

Box Build Electromechanical Assemblies

Does the company offer box build solutions? If it does, it makes sense, as it saves you time and money. The specifications of the box build solutions include sourcing the components and managing the entire electromechanical assembly in-house.

How to Get Started with Electromechanical Assembly

Haven satisfied yourself that using electromechanical assembly can improve your electronic projects, start by contacting a professional manufacturer. We will help you make custom-built solutions that match your projects’ preferences, serve the needs of the target market and save you costs.

You can be sure of getting your electronic devices’ electromechanical assembly solutions handled in-house by our experienced engineers and all these will be completed in the shortest lead time possible.

The component placement list (CPL) file is crucial when utilizing the pick and place machine. This file is usually requested to help place SMT components and through hole parts accurately on a PCB. The CPL file also known as pick and place file comprises information such as rotation, the bottom or top side of the PCB, and X/Y locations.

What does a CPL File Mean?

A CPL file is a system file integrated by Windows operating system. The full meaning of CPL is component placement list. This file defines the particular location, rotation, and position you need to populate each component reference designator. The CPL file is also referred to as an XY file or centroid file.

The component placement file describes the location map of the components. This file comprises all necessary details about the orientation and position of every SMT component on the printed circuit board.

The CPL file is usually in the text format (ASCII) and it is composed of two main locations (x and Y). Furthermore, the list file of a component placement is very important for circuit board assembly. This is because it offers some data set which permits users to prepare ahead for the production of their boards. Also, this CPL file is made up of just SMT components.

You can generate this file by making use of several CAD packages. Moreover, there are some of the packages that fail to create or generate the file. There are cases where this file needs to be changed by some assemblers of printed circuit boards. CPL file has some file formats which includes csv, xlsx, as well as xls.

Assemblers of circuit boards can use the CPL file for the easy importation of data without the manual imputation of the important details. To achieve this, you can work with several packages, which includes Altium, KiCad, as well as Autodesk Eagle.

What are CPL Files Made of?

The assembly sample CPL files are made of the following below

The reference designator: This must work with the bill of materials and PCB demarcation

Location: Both values of the X and Y location explains the component of that PCB origin. This is why these locations’ values need its part origin centered in the component.

Rotation: When handling rotation, it must be done counterclockwise for the top area and then clockwisely for the bottom parts. Take note that rotation is usually measured in degrees.

The layer: It helps in describing either the top or bottom side where the component needs to be placed.  You will also find the details below in an assembly sample CPL file.

• X as well as Y position of the component
• The top or bottom side
• The reference designator of the component
• Orientation

How to Export the Component Placement List (CPL) File using Different Software

You can easily export the CPL file from different PCB design software. These guidelines will help you export CPL files from different design packages.

Kicad

When exporting a CPL file from KiCad, the first thing you should do is to open the Kicad file and click on File. After this select Fabrication Outputs and then click on Footprint Position File. A new window will appear, choose the output directory for the file and select Generate File. Doing this will help you generate the pick and place files.

Altium

For Altium, you need to open the .PcbDoc file and click on file, choose Assembly Outputs and click on Generates pick and place files. The Altium version you are using will determine the columns you want to include in the file. The rotation, X-y coordinates, and the Designator columns are needed. You can decide to leave out other information. However, Altium will produce the file in a similar location just like the PcbDoc file.

Autodesk Eagle

Open the .brd file and go to File and choose Export, click on Mount SMD. You will be asked where you want to save the bottom and top pick and place files. While the .mnb file represents the bottom side and the .mnt file represents the top side.

Importance of the CPL File in PCB Assembly

The component placement file saves time and enhances accuracy when programming the pick and place equipment. CPL file comprises the list of all components on the PCB design while stating their X-Y coordinates. The majority of PCB design software packages can generate the component orientation and location from the PCB layout in order to design a CPL file.

The CPL file is crucial for the PCB assembly process as it offers efficiency and quality.

Quality

A CPL file enables a PCB manufacturer to easily import data without the need to input the information manually. Also, the import data can hide any problems as regards the orientation of devices. Silkscreens in the Gerber data are not usually clear or not available in some cases. Also, silkscreens might not be correct in some cases since references are included in the wrong place. The CPL file offers more accuracy.

Efficiency

It takes time to enter the data manually. Therefore, you will have to include engineering processing time before commencing production. This could cause another delay on the delivery dates. Also, the manufacturer will need some clarity if there is any problem with an assembly. The outcome is a possible delay since responses are not timely.

Accuracy

Another important benefit of using the CPL file is that it helps pick and place machines to accurately place components and parts on a circuit board. The details provided by the CPL file are usually accurate. This information will tell the machine the appropriate location for the placement of all the surface mount components.

Conclusion

Two out of the countless benefits of using CPL files is their efficiency as well as quality. Throughout the process of PCB assembly, assemblers of printed circuit boards usually ask for users’ CPL file. It provides the data set needed for the commencement of the process of PCB assembly. For exporting this file, there are different softwares available.

Remote control cars have always been an attraction for kids. Even as adults, you can’t outgrow them. These remote control cars operate on special type remote control circuits. However, these remote control toys are available in the market in wide ranges. However, designing these circuits and manufacturing them on your own gives another type of experience. But it’s quite a difficult and complex process to assemble various types of electronic components. Or you may get confused in the middle of the process, and you may stop it.

Therefore, to make this process easy and communicable. We provide you with detailed information about how you can make a remote control circuit for your remote control cars with just one printed circuit board and some essential components.

What are Remote Control Circuits?

A remote control PCB as the name suggests, can operate the device remotely, even from a distance. It has wireless connections. But some may also contain wired connections. These remote-control PCBs can be used in LEDs, LCDs, TVs, DVD players, and various types of toys. Devices that contain RC circuits imply that you can use and operate the device freely.

However, these devices can only operate just from a very short specified distance. Otherwise, it won’t work. Some advanced devices with advanced circuits can operate from far, like drones, but some devices use only short circuits that only operate within the specified range.

Additionally, some devices with old generated RC circuits, like televisions of early ages, use ultrasonic tones. However, devices with the latest RC circuits can use IR remote control, which uses IR digitally coded signals to control the devices.

IR technology helps in controlling various types of circuit functions along with speed and power. Moreover, some remote controls are specially designed with special types of circuits and can act as universal remote controllers that can work in almost all types of circuits.

Working on Remote Control Circuits

Playing with RC cars looks fun. But how it works and operate amaze you the most. These types of RC cars and devices use radio signals. The transmitter creates these signals and sends the signal to the receiver present in the remote car. These signals, however, operate the car perfectly.

When a signal reaches the circuit receiver, it identifies and translates the code into desired mechanical action of the car. This is the surface phenomenon a person sees or understands. However, RC cars have more functions inside of them that make them operable.

In RC cars, the transmitter sends radio signals to a receiver. It uses a specific range of frequencies using a controller. The signal operates through the battery power of the car and controls features like forward, reverse, left, and right. Moreover, touching the controls creates an electrical connection that transmits and connects some specific pulses. The specific pulse quantity is based on some specified actions.

When a car receives these electrical pulses, it eventually turns that specific part of the car. Furthermore, to enable all these functions, a remote control car needs a motor and an RC circuit board. In addition to this, always remember that the receiver always waits for the signals to receive. Therefore, it fulfills your command instantly at once.

Making of A Remote Control Car Circuit

The manufacturing process of remote control cars needs various types of electronic components and devices that play an essential role in the functionality of RC cars.

· Transmitter

The transmitter acts like the brain or central processing unit of RC cars. It refers to a manual controller that helps in transferring signals to the receiver by pressing manual buttons. Moreover, they work similarly to the remotes of televisions.

· Receiver

Remote control cars need receivers. This receiver catches the signals from the transmitter. Firstly the receiver receives the signals and then decodes them into mechanical form. You can also say that receivers here act like antennas.

· Motor

Remote control cars need a special type of device that is responsible for all their movements. Motor serves as that very crucial part. It manages all movements of a remote control car. Moreover, you can also install various motors in one car based on your needs and preferences. However, if you really decide to utilize two motors, then make sure to grant different duties to both motors. Make sure one motor moves the back wheels while the other one front wheels. Furthermore, some older remote control cars also use four motors in which each controls one wheel.

Another important factor in installing the motor is to choose the right one. Basically, the type of motor depends on the type of remote car you are going to make. Large remote cars use a 12V DC motor as it carries heavy loads all at once. However, small remote cars use 6V Bo motors.

Considering the RPM is also a very important factor when choosing the right motor. RPM refers to how many times a shaft of a DC motor completely spin in one minute.

The spin cycle contains a 360-degree turn. However, make sure to choose the motor that has low RPM, as it will be easy for you to manage them. Moreover, you must remember that both the torque and speed of a motor are inversely proportional to each other.

· Power Source

Remote control cars operate on power sources just like any other fuel cars. The majority of remote control cars use batteries as a power source. These batteries provide electrical power to receivers, electrical motors, and electrical components. Moreover, other than batteries, some remote control vehicles use a nitro engine to operate. This nitro engine uses fuel rather than batteries.

· Circuit Board

Circuit boards serve as the core component of a remote control car. It identifies different electrical charges and signals among different components of the remote control car.

· Servo

Servo plays a crucial part in the layout of remote control cars. It helps in converting the power source electric current into movement. Additionally, it is generally responsible for operating remote control vehicles’ steering systems. Also, the servo enables the remote control vehicles to move in the desired direction.

· Speed Controller

This electrical component keeps the remote control vehicle’s RPM and speed in control. Remote control cars that operate on batteries use an electrical speed controller component in them. At the same time, remote control cars that operate on nitrogen engines utilize throttle servos in them.

Conclusion

After reading the whole article, you have clear ideas about why remote control cars are still famous. Besides this, how these cars work and some important parts that make this cars.

Moreover, this article also explains the detailed steps that help you make your own perfect functional remote car circuit. You can also get in touch with us if you have any queries regarding the steps.

As we all know, mosquitos are quite annoying as they always revolve around us for their food. They suck our blood, make us feel itchy, and they fly away for their next target. We all want to get rid of these mosquitos, insecticides are better, but some mosquitos become resistant to them. Now we have to choose some other ways to deal with these idiot mosquitos.

There is another way to kill these mosquitos by using electrocution. It is believed that this method is better as compared to using insecticides. It contains a circuit called bug zapper which helps in killing mosquitos.

A bug zapper circuit attracts different mosquitos and insects, such as flies, by emitting an attractive Uv light. These lights are emitting due to high voltage, which helps in killing insects.

As we all know that the zapper bug is quite convenient for us; similarly, building a bug zapper bag is easy. The information is given below.

What Is A Bug Zapper?

It is a mosquito, bug, and insects killing machine consisting of a circuit in it. It contains two slim grids, which are electrically charged; due to the high voltage, it emits a Uv light that attracts bugs, mosquitos, and insects towards itself.

On the other hand, this bug zapper circuit is an electrical circuit whose main parts are grids and wires that are wrapped around these grids, which emit light. It controls the mosquitos and bugs around itself by killing them after attracting them.

Bugs are killed by the high voltage current given to them by these grids. We called this circuit bug zapper because it kills bugs, and when it kills, it produces a sound of “zap.” That’s why we call it bug zapper. I know it sounds cruel, but it is better for the humans.

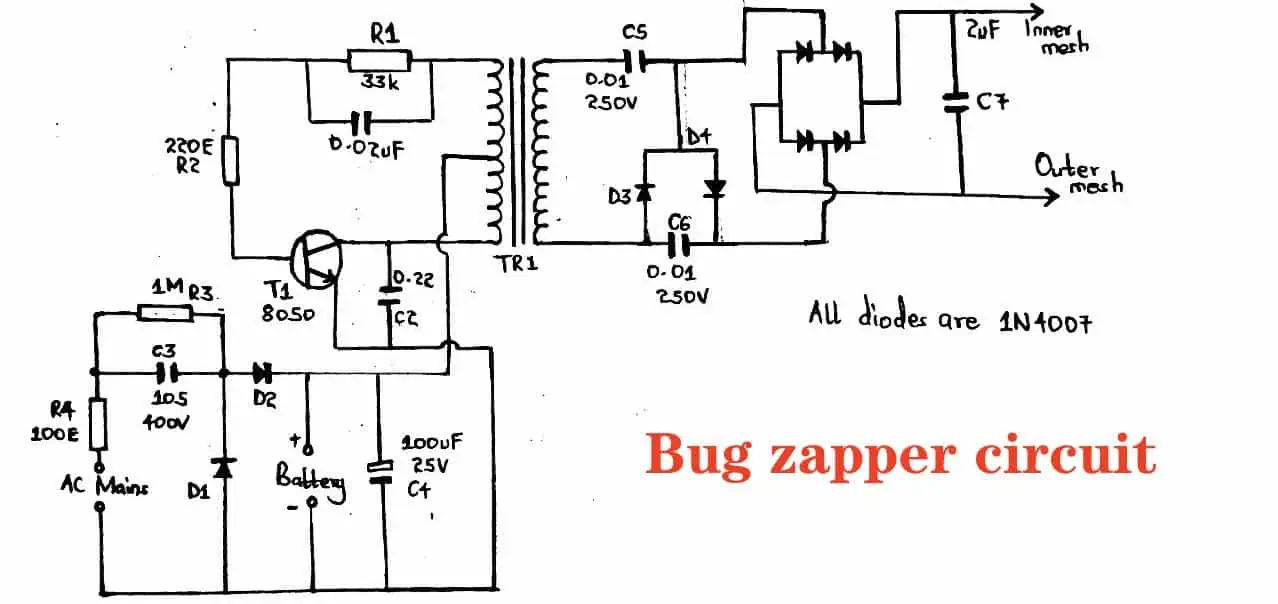

How the Circuit Functions?

Here we have circuit C1 and a resistor R1; they both have different agave frequencies, which help them in vibration.

After it completes the system, we have a transformer with a small core having triple A batteries in it.

When we apply current to these transformers and transistors, they will start working, and at a high frequency, they will start vibrating.

After some time, the current will start migrating towards other secondary TR1 winding, creating a push-pull manner emitting a high voltage of 200 volts at winding.

To raise the voltage up to 600 volts, we can use a ladder network called Crockcroft-waited at TR1.

By bringing the 2uF capacitors output terminal less distance, it will make the power connection weaker between the capacitors, and that’s what we do not want to happen.

Some moment later, the capacitor will stop working and charge itself for another spark.

We can use this circuit in bug zapper to kill mosquitos and bugs or other insects, but we have to take some points in mind.

• Attach capacitors of 2uF end with the internal and external mesh bet layers.
• To prevent this circuit from sparking, we will place capacitors at some distance and attach the mesh bet layers with the frames made up of solid frames.
• So If a poor mosquito or bug flies near these layers, which are made up of metals and have a very high voltage of current running through them, it will kill poor mosquitos instantly by creating a spark.

Making the Ferrite Core Transformer

During the insufficient power generation, we can modify our bug zapper circuit by making some small changes in its circuits. By connecting it with the 3 Volts battery, we can recharge it and reuse it easily with less energy consumption.

How the Circuit Functions?

It is quite normal that we will use this circuit by pressing the ON button.

After switching it on the high frequencies, vibrations will start with the help of a transformer and transistors. When we use 3 volts battery to charge it, the current will boost to 500V.

Then due to vibration, diodes are setup to 500 Volts to 1500 volts.

When the 1500 volts reach the grids, it will start attracting mosquitos towards itself.

It causes the LED light to light up so that it will attract bugs. Eventually, due to this attractive light, the mosquitos flew towards it and died due to the high voltage running in the wire, which is wrapped around the grids.

How to Build a Portable Bug Zapper

Every bug zapper is of different sizes and designs and also depends on the type of insects it wants to kill.

Materials required:

1.       UV LED light and Handsaw,
2.       Glue gun,
3.       Drill and Stapler wire,
4.       Soldering gun,
5.       Screws,
6.       Plywood,
7.       A 1-yard squared one by 4 mesh grid,
8.       Six wooden dowels
9.       Two garden plant vase dishes,
10.       A 6V lead-acid cell that we can recharge and
11.      The circuitry of an old lantern is rechargeable.

Steps

First, we will build the base of the bug zapper:

We will use two wooden plates of equal sizes as the vase cover of the plant. After that, with the help of the vase plant cover, we will tighten up the wooden plates.

Now we will drill six same holes in base plates. We will do this to strengthen the frame made up of plastic to secure it.

Use hot glue to fix the UV LED bulb around the grind to secure it.

Add some other components, such as black and red wires around the grid, and please make sure that we will avoid any overlapping in it as it will cause any disturbance in the circuit and not work properly.

When we place all the stuff together now, fix them all with some hot shiny glue so that they will not misplace.

How To Troubleshoot A Bug Zapper?

If the LED of the zapper bag is not working, unplug the wire carefully from the switch and re-plug it into another switch; maybe there is an issue with the switch. Just make sure that it is not an issue related to the power supply.

If you see an issue that the bulb is off, but it is still killing the bugs, then unplug the wire, open the bulb, make sure that it is not broken, and then reuse it. Sometimes bulb takes some time to lighten up, just like some people.

To solve the issue of sparking, open the grid, and clean it carefully. It occurs because of some dirt. Use some bristles for its cleaning.

If the bulb is still not working, then there will be an issue with the wires around the grid. Make sure that the wires are fine.

Conclusion:

Zapper bag is the best insect-killing tool so far. As we all know that the zapper bug is quite convenient for us; similarly, building a bug zapper bag is easy. It is also easy to use and affordable. It kills almost all annoying insects in the room.

But on the other hand, there is a disadvantage that it will use electricity which may result in high electricity bills, which is an alarming fact for us. Also, it is harmful to kids as it emits light which may attract children and harm them.

Fabric circuit board refers to the Printed Circuit Board (PCB) manufactured out of fiberglass. As one of the common materials, it allows for the flexibility and improved thermal conductivity of the circuit board.

In this article, we explain the concept of making fabric PCB, compare it to the other PCB materials and highlight some of the advantages.

What is a Glass PCB Board?

It refers to the circuit board manufactured using the fiberglass material. The use of this material is for a wide range of purposes, such as satisfying the industry standards, fitting the pricing requirements for PCBs and providing improved properties.

The Fabric Fabrication Process in Circuit Board

The fiberglass goes through some processes before it is readied for use in a PCB. Here are some of the things that go into the production:

Glass Interlacing

The first process is to weave (interlace) fibers of glass yarn, which are available in different thicknesses and densities. Note also that the weaving is done until the glass yarn takes the form of a “fabric-like (fiberglass) sheet.”

Impregnation

The next step is to impregnate the fiberglass with epoxy resin. This is done for two purposes. The first is to form the cured resin (core) and the uncured resin (material) for the PCB.

Top Considerations for the Glass Fabric PCB

Certain measures need to be in place, if you are to get value from your fabric circuit board. The following are some of the top considerations when weaving or interlacing the fibers of glass yarn together:

1. The Tight Considerations

How tight the fabric is should make the list. Ideally, there are two options here: loosely-weaved and tightly-weaved. The rule of thumb is that the tighter the fabric is, the more uniform the dielectric constant becomes.

Here are some of the details:

Loosely-Weaved Epoxy Fill

If the epoxy resin is loosely-weaved, it tends to trigger a lot of issues in the circuit board’s laminate. These issues range from inconsistencies in the dielectric constant, fluctuations in the impedance and signal propagation skew.

Tightly-Weaved Epoxy Fill

On the other hand, the tighter the weave’s netting, the higher the chances of obtaining a uniform dielectric constant.

2. Zig-Zag Trace Routing

There is a risk of deriving an adverse impact of the weave glass style, when the trace’s direction is routed across a weave of sparse weave glass style.

A better way to modify this is to use a “zig-zag trace routing” format. This provides for the angular routing of the trace relative to the strands of the fiberglass.

However, this is not entirely a remedy as it causes another issue – taking up more spaces on the PCB. When more board areas are taken up, the outcome would be triggering feasibility issues.

In light of this, it is best to use a medium-woven glass style, such as the 2116 glass style. This is a tightly-woven fiberglass material that helps to address the impedance issues for the high-speed trace layers.

3. Cost-Effective Compromises

While the tightly-woven material helps to reduce impedance issues; it also causes another issue. This type of fiberglass material is quite expensive.

To this end, it makes sense to go for a cost-effective variant, such as the 1080 and 106 glass styles. They provide for the optimization of the high-speed trace layers and lower-speed signal layers.

4. Use Spread-Glass Materials

You may also want to use the spread-glass materials, which aid the avoidance of inconsistencies in dielectric constants, especially for the ultra-high-speed transceiver signal board designs.

The Circuit Board Pattern Fabric Manufacturing Process

Your fabric PCB can be produced in real-time, if you follow the steps below:

1. Design the PCB

The first step is to use a Computer-Aided-Design (CAD) software to make the board’s design. Once this is completed, you have to convert it from a design to a PCB layout.

2. Prepare the Substrate

The substrate is prepared via the cutting and drilling of the board’s panel to the desired size and shape.

3. Layer the PCB

The layering process entails using a lamination procedure to add a layer of copper both to the top and bottom of the board’s substrate.

4. Drilling and Plating

The drilling of the board paves the way for the plating process. The drilling procedure requires the creation of holes for the PCB components. These holes will also be used as a medium of interconnecting the layers.

Once that process is complete, the plating process takes over. Copper is used to plait or cover the holes. This is a medium for creating the space for integrating the Thru-Hole (THT) components. The plaiting of the holes also helps to create the needed electrical connections between the PCB layers.

5. Solder Mask Application

A layer of solder mask is applied to the circuit board’s surface. The application serves two purposes:

• It creates openings for the components to be placed.
• Solder mask also helps to protect important PCB components, including the copper traces.

6. Silkscreen Printing

This is a method of highlighting, revealing or pinpointing the location of the parts on the PCB. Applying a silkscreen reveals the positions of the testing points, reference indicators, the PCB components and other relevant markings.

7. Testing the Board

The fabric PCB can now be subjected to a series of tests to validate the performance of the components.

What Forms of Fiberglass Exist?

Fiberglass, being the central material used for making fabric PCBs, has different forms. These forms include:

Fiberglass Cloth

This is the most relevant form of fiberglass. It includes glass fiber yarns. Despite the wide range of options, you can rely on the fiberglass cloth’s insulation capabilities.

Fiberglass Tape

This form of fiberglass comprises of glass fiber strands and is reputed for the excellent thermal insulation properties.

Fiberglass Rope

This form of fiberglass is best suited for the applications used for packing purposes. The fiberglass rope form is made of a braided yarn that is also composed of glass fibers.

The Different Types of Fiberglass

You can find the fiberglass grouped into different classes. Of course, these classes refer to the different properties of the fiberglass, as well as the typical applications or use cases.

Haven said that, here are some of the common types of fiberglass you can find out there:

A Glass

The components are 25% alkali and 72% silica. Commonly used for the window glass applications, the A Glass type is not entirely heat-resistant.

C Glass

The main components are sodium borosilicate and boron oxide. The properties include corrosion resistance and durability.

D Glass

Here is one of the most popular choices for Printed Circuit Board (PCB) designs. Featuring borosilicate-based fiberglass, the D Glass features improved electrical properties, low density and an impressive dielectric strength.

E Glass

This is the best option for the high-electrical-resistant applications. The E Glass is popular for the higher resistance to electrical current.

The major component is alumina-calcium borosilicate. Due to this, the E Glass is designated “Glass-Reinforced Plastic (GRP)” due to the ability to perform multiple tasks.

ECR Glass

Calcium alumino silicate is the major component here. The outstanding property is the excellent corrosion resistance. This comes in handy for the prevention of the material from corrosion agents.

Fabric Circuit Board Applications

Printed Circuit Boards (PCBs) made out of fiberglass tend to be used in a wide range of industries. The following are some of the supported use cases:

Automotive

The automobile industry benefits the most from fiberglass PCBs. These boards play a central role in the production of different components, which are, in turn, used with a wide range of automotive-related applications.

Consumer Electronics

Electronic devices used in the mainstream also benefit from the use of fiberglass for the design. The excellent electrical properties and outstanding mechanical capabilities make it ideal for use with specific consumer electronics, such as radios, computers and telephones.

Medical Devices

Medical devices and wearables are also configured with the fiberglass circuit boards. The dimensional stability and low-heat conductive capabilities are some of the reasons for the usage in this industry.

Aerospace and Defense

The aviation industry, military and paramilitary parastatals also benefit from the awesomeness of fabric PCBs. Of particular mention is the circuit’s Glass Reinforced Plastic (GRP), which makes it a great fit for specific aircraft applications, such as instrument boxes and storage bins.

Fabric Circuit Board vs. FR-4

The fiberglass material is a popular substrate for manufacturing different kinds of circuit boards, such as multilayer PCBs, rigid circuit boards, single-sided boards, high-frequency PCBs and double-sided circuit boards.

On the other hand, FR-4 is a glass-reinforced epoxy laminate sheet, based on the fiberglass material. Although it is often interchanged for fiberglass, it is quite different from it.

Here are some of the clear differences between the two:

1. Cost-Effectiveness

If you are working on a budget, using the FR-4 material is not an ideal option. Rather, go for the fiberglass substrate, which is more affordable than the former.

2. The Components

Although both fiberglass and FR-4 circuits are made from a resin binder and fiberglass fabric, the FR-4 has more properties. One of its outstanding properties is the use of a woven glass fabric, as compared to the fiberglass’ use of non-woven fiberglass fabric.

3. The Mainstream Usage

When it comes to the most-used fabric, the FR-4 material carries the show. Due to the reduced need for specialized manufacturing, the flame resistance and mainstream availability, the FR-4 substrate is now used across different consumer electronic products.

4. The Electrical Properties

Despite the fact that both the fiberglass and FR-4 materials have excellent electrical properties; the former has more to offer. In this regard, we consider its low dielectric constant – a property that makes it ideal for use with the high-frequency applications.

The Thermal Properties

This refers to the materials’ capability to withstand overt exposure to heat. It is better to go with the FR-4 materials, due to the fiberglass’ slightly higher thermal expansion coefficient. This is the reason why the material is susceptible to warping.

The Benefits of Working with a Circuit Board Design Fabric

Using a fabric-based material, such as fiberglass, for your PCB design, comes with a lot of benefits.

Here are some of the motivating factors for this decision:

Chemical Resistance

Fiberglass possesses top-notch chemical resistance, thanks to the capability of wading off the negative effects of chemicals.

However, you want to note that the material might be exposed to powerful alkaline compounds.

Impressive Strength

The impressive strength-to-weight ratio is also another upside. In this case, the substrate is best for the applications that require improved strength levels.

Dimensional Stability

Get you a PCB material that doesn’t contour inappropriately. That is one of the outstanding features of fiberglass. Irrespective of the type of temperature it is exposed to, it doesn’t contract, expand or change form in response to such temperatures and environments.

Electrical Properties

Applications requiring higher electrical insulation often use the fiberglass PCB material due to the exceptional strength and low dielectric constant.

Moisture Resistance

What happens when a PCB is exposed to (excessive) moisture environments? Often times, the moisture gets into the board and causes internal damages.

The exceptional moisture-resistance makes the fiberglass material a good fit for the applications that don’t need overt exposure to moisture. This is also the reason why you can use the material across different environments, such as damp environments.

Fire Resistance

How susceptible is the substrate to catching fire? Despite the fact that the FR-4 material has been designated for such applications; the fiberglass substrate also stands a chance. Here are some of the things to know about the fire resistance capabilities:

• The material has a higher degree of strength retention. This is put at the retention of up to 25% of the strength, irrespective of the exposure to up to 540-degree Celsius of temperatures.
• Fiberglass materials neither propagate fires nor burn when exposed to one of such.
• There is a higher chance that the material doesn’t bring forth smoke. This is largely attributed to the inorganic material content that doesn’t make a spontaneous ignition of flames, especially when subjected to heat.

Conclusion

Fabric circuit boards do not catch fire, ignite the same and they have excellent electrical and thermal properties. Contact us today to start discussions on how to optimize your circuit board design and fabrication.

CSP means you are using just one chip for this purpose. The size of the chip you are using in this process matters a lot. It is easier to determine it with the surface-mounted ICP standard to avoid any complications.

Bear in mind when we are talking about CP, we mean quality and efficient performance. All the chip-size BGAs are crucial for minimizing the area. Now if you are thinking CSP relates to production and construction, then you need to rethink. There are fewer but highly important applications in different domains in terms of using CSP.

It is because these packages need precision, and only a few manufacturers can meet your expectations in this regard. On that note, there are different versions of CSP packages that are common today. So what exactly chip size packages are important for? You mainly use them in portable and small electronics.

It’s time to learn about the structure and the working of a standard CSP bundle. For this, we have discussed it in the following pointers for you!

Structure & working of a Chip Scale Packaging bundle:

• The interposer of the chip size bundle is not open; instead, you use it in a covered form
• Epoxy resins are reliable to use for CSP before the method starts
• Since epoxy is nonconductive, its main role is to join the wires with the circuitry when you place the epoxy under your setup
• The shapes of the epoxy are important as they help in minimizing the size of your CSP bundle when they are near the die
• Once you have completed the procedure, its time to size the solder balls present beneath the interposer as well

Features Of Chip Scale Packaging

Every great thing has salient features that make it stand out from the crowd. Owing to these features, you are now able to use your favorite portable devices on the move. So in this section, we are going to have a look at the unbelievable benefits of CSP that make this technology the way it is as well.

Benefits of Chip Scale Packaging:

• One major benefit is that CSP supports small package sizes, which you always need to produce portable devices
• CSP is also useful in solidifying the interconnections
• It greatly minimizes the size of the setup
• Once you are successful in reducing the size, it will eventually lower the weight and cost production of your setups as well
• CSP is a viable tech for assisting you with the easy and quick assembly of packages
• It also does not need self-alignment, which helps producers with controlling their production budget
• There is an impressive margin of teaming up CSP with SMT that will enhance the ease of production of packages in bulk
• The SMT combined with CSP will enable producers to rely on multiple types of dies in case of emergency
• The interposer will also contribute to minimizing the size by not compromising the CSP at all due to using SMT for this purpose

Common Forms of Chip Scale Package

Today, different versions of CSP are common in the market. These are:

• BGA
• Leaded
• Non-flip chip
• Wire bonded
• Flip chip

We are briefly taking a look at all these types in this last section; let’s get started with it!

1. Flip Chip

Flip-chip is useful when you need to play with the CSP from different directions. Also, flip chips come in handy when there is a need to join the CSP with the workpiece substrates. Standard CSP uses copper pillars and solder for forming the connections. The pads entirely cover the surface, which helps in reducing the size of the package on the whole. There is no need to use any sort of adhesives, and due to this reason, you can lower the signal inductance to a large extent.

2. Non-Flip Chip

Non-FC is an old type of CSP that still has important use cases for us to study. There are electrodes that you need to rely on when using non-flip chips. These are mostly present on the upper surface of the SMC covering. You can also find these non-flip chips on the light radiation layer and P-type SMC layer as well. Wait, what exactly does this P layer do in this whole process? The role of the P layer is to make the thermal sink happen around the sapphire material. If the sapphire fails to produce adequate heat conductivity, it will hamper the system for the same purpose as well. It means totally disrupting the efficiency of the chips. The electrodes that we just talked about are positive, and sometimes these can be the culprit for weakening the non-flip chips in the worst-case scenario. Also, using these electrodes needs precautions. If they are too close to each other, this can even cause short circuits as well.

3. Wire Bonded

Wire bonding means you are using wires to connect the chips and semiconductors for efficient performance. So how exactly wire bonding relates to this efficiency on the whole? So the wires you are using for wire bonding are extremely thin and made of conductive metals like gold and aluminum. Wire bonding is not only helpful in connecting chips with semiconductors. But also aids in merging PCBs with their dedicated electronic devices. It is an affordable method and also easy to perform.

4. Ball Grid Array

BGA is useful for SMT packaging of complex and compound circuits. For instance, microprocessors use BGA for efficient performance in the long run. BGA is more reliable than dual packs since it offers more features. The bottom portion of the setup only supports the perimeter and is inactive for the rest of the components. You can also use the imprint for regulating the perimeter for the sake of improved performance.

5. Leaded

COL involves mounting the crystals and dies on the frames instead of regular pads. If you are mounting crystals on the frames, it will surely offer more benefits as well. So what it should be? Leaded CSP does not need wire bonding at all, unlike others. Impressive, isn’t it?
