Purple PCB-Outstanding and Attractive Circuit board

What is Purple PCB?

The solder mask of the circuit species the color of the circuit. So the purple solder mask will offer the purple PCB. Usually, the general workability increases with purple color but different people have different preferences. And your preference will depend on the purpose you want to achieve from your PCB. As this color is not standard so you may have to place a separate order to your manufacturer to have purple PCB supplied. Manufacturers will charge differently according to your order. So in this sense, you may be asked to pay a premium for purple color PCB.

Best PCB Material for Purple PCB Assembly

Following materials are used for purple PCB assembly:

Paper Board:

FR-1, FR-2, FR-3 are examples of paper boards used for purple PCB assembly.

Composite Boards:

CEM-1, CEM-2 are used as composite boards for the assembly of purple PCB.

Special Boards:

Some special boards such as ceramic boards and metals boards are also used for purple PCB.

FR4:

FR4 is the most commonly used material for purple PCB assembly. FR4 makes the boards strong, water-resistant, and offer good insulation that improves signals integrity.

HDI Boards:

HDI boards are the ones having a higher density for wiring per unit area as oppose to conventional boards. These boards are used in purple PCBs for improving electrical performance and reducing the size and weight of the PCB.

Polyester resins:

Polyester resins which are also known as polyethylene terephthalate (PET) are most commonly used in PCBs for flexibility. Polyester helps in flexibility, amazing electrical properties, and high moisture resistance.

Polyimide resins:

Polyimide is highly resistant to heat and chemicals so it is used in purple PCBs for resistance to the physical state.

Epoxy Resins:

Epoxy resins are used in purple PCBs for mechanical protection because they are good insulators against aggressive environments.

Difference between Standard Purple PCB and Heavy Copper Purple PCB

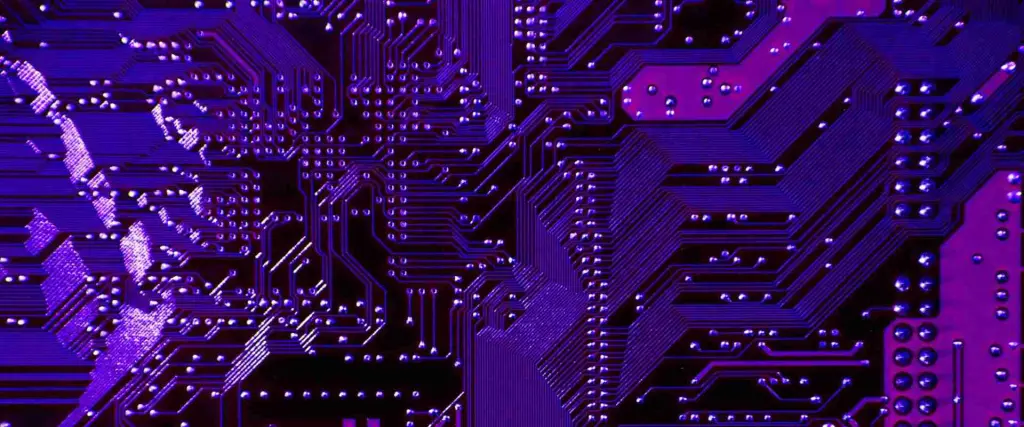

purple circuit board

Some of the differences between a standard purple PCB and a heavy copper PCB are given below:

  • There is a lesser amount of copper used in standard purple PCBs which is approximately 1 oz having a very thin size. On the other hand, heavy copper PCBs are thick in diameter because there is a large amount of copper in them.
  • By standard, we mean the thickness of the PCB. So the standard thickness offered by manufacturers is 0.063 in or 1.57 mm which is true so far. However, nowadays, there is a range of sizes available depending on your choice for PCB fabrication which is 0.093 in and 0.031 in. while a heavy copper PCB is made with copper ranging from 4 oz per ft2 to 20 oz per ft2.
  • Heavy copper PCBs are designed to deal with heavy activities. On the contrary, standard PCBs can only offer lighter activities.
  • Mechanical strength in heavy copper PCBs is high because of the high use of copper in them; on the other hand, standard PCBs have lesser mechanical strength.
  • Standard PCBs do not offer good conduction for the current. But heavy copper PCBs offer good conduction for the current because of the copper used in them.
  • Thermal distribution is efficient in heavy copper PCBs which improves their performance as compared to standard PCBs.

Plating Methods for Purple PCB

There are four main types of plating for purple PCB that is explained below:

Finger Plated Plating

In this method, rare metals for example gold are plated on the board edge of the connector and board edge joints to provide higher abrasive resistance and lower contact resistance. This process is also known as partial planting for protruding.

Through-Hole plating:

Many ways have been introduced for the substrate borehole process. This is known as wall activation in industries. Through-hole plating is a significant process for the drilling purpose.

Plating based on Real Linkage Selective Method:

This method is used for pinning purposes such as connectors, transistors, and integrated circuits. The real linkage method can either be used as a manual or automatic. Pinning individually is an expensive approach so batch welding is used for this purpose.

Brushing Plating:

This is technique is used for positioning electrodes and electrodes minimum parts are immersed in the plating electrolyte process. This technique can be used for plating a limited area. This technique is a good approach for repairing waste boards in electronic assembly shops.

Drill Size Determination in Purple PCB for the Components

Holes are the first step you have to take when you are making an electronic device from scratch. A few decades ago, people were using the simple drill for making holes in their PCBs. They were using simple drills which were available to them by hand. But now, there is a standard drill size for PCBs.  PCB manufactures have offered a general table for drill sizes and hole sizes. To know if the drill size is appropriate for the design components, you need to follow the general idea which says:

Your hole should be 0.3 mm wider than your components. Let’s say your component is 0.3 mm wider than your drill should 0.6 mm larger in diameter.

Standard Drilling Tolerance for Purple PCB

FULL PCB MANUFACTURING Quote

As drill bits are machines so they have standard tolerance on the size.  Usually quoted standard drill tolerance for purple PCB varies from 0.003 mm to 0.010 mm depending on the size of the drill bit. However, another permutation like -0 to +0.15 mm and -0.05 to +0.1 mm is also accepted.

Can you give overlapping holes in your purple PCB?

Overlapping holes can be useful in your purple PCB design for having slot information. You won’t have to make an extra layer for informational purposes. However, this practice is not good because this may confuse the manufacturer.

Overlapping drill holes can be a cause of breaking drill bits and as a result, a small piece of material may remain in hole barrels. This will result in Voids in the plated holes. So overlapping holes should be removed before sending your purple PCB into production.

Is there any other color than white for purple PCB silkscreen print?

Silkscreen is usually white human-readable characters that help in identifying components, warning symbols, PCB letters, company logos, date codes, and manufacturer marks.  Specially formulated inks are used for silk screening. Although the standard color is white you can still use other colors in purple PCB for silkscreen purposes. You can use:

At once, PCB CAD software only allows few standard fonts in silkscreen layers.

Panel Sizing during Penalizing Purple PCB Design

In purple PCB manufacturing, you cut many small sheets from a large material sheet which is known as a panel. The output of surface mount technology can be increased by panel size. In purple PCB penalization, mass production of many small boards is involved.  So in designing a purple PCB panel, you have to take care of many things, you should get the correct thickness of the board. Your board design should also meet standard panel design. Some general panel sizes are mentioned below:

  • 9 by 32 inches
  • 9 by 24 inches
  • 18 by 12 inches
  • 18 by 24 inches

A4 size is also preferred for a panel of purple PCB. You can choose your sizes but you have to make sure that material utilization and manufacturing optimization are meeting properly.

Comparison of NC Drill File and Gerber File of Purple PCB

A Gerber file is the first step of fabricating a purple PCB board. A purple PCB manufacturing company uses Gerber files for fabricating a PCB for the required specification. This Gerber file shows the pictorial 2-dimensional representation of the PCB board. In this board, tracks, vias, and pads are represented by different lines and shapes. Gerber file is the way of explaining copper in each layer of your purple PCB. A computer manufacturing system can easily understand the information provided by this format. Laser plotting is managed by Gerber files by creating an image of all the holes and vias on your purple PCB layout.

PCB drilling and routing information is conveyed by NC (Numeric Control) drill file. NC files include all the information about hole and drilling requirements, tooling size, hole size, and location also.

Which type of purple PCB can you design and manufacture?

Following are the types of purple PCBs we can design and manufacture:

Can you fabricate both through-hole and surface mount purple PCB design?

Yes, through-hole and surface mount can be fabricated in purple PCB design. For placing components on purple PCB design, these two methods are used. Components are placed into drilled holes by a through-hole method. This technology is older than surface mount technology. For creating a strong bond between circuits and their components, though hole process is used.

In the surface-mount process, components are directly mounted on the surface of purple PCB.  Surface mounts technology more electrical connections because of the higher connection densities. You can choose the process on the basis of the following points;

  • Size
  • Cost
  • Purpose of using purple PCB
  • Type of product
  • Reliability
  • Density of connections

Standard Specifications of Rigid Purple PCB

Following are the standard specifications for the rigid purple PCB:

  • The material should be RoHS compliant FR4 (135 TG)
  • Final plating finishing should be lead-free solder
  • The size of the inner and outer copper plate should be 1 oz
  • 12 mils should be the minimum size for the holes
  • The thickness should 1.6 mm
  • Having two side soldier masks
