How Do You Use a PCB Hot Plate for SMD soldering?

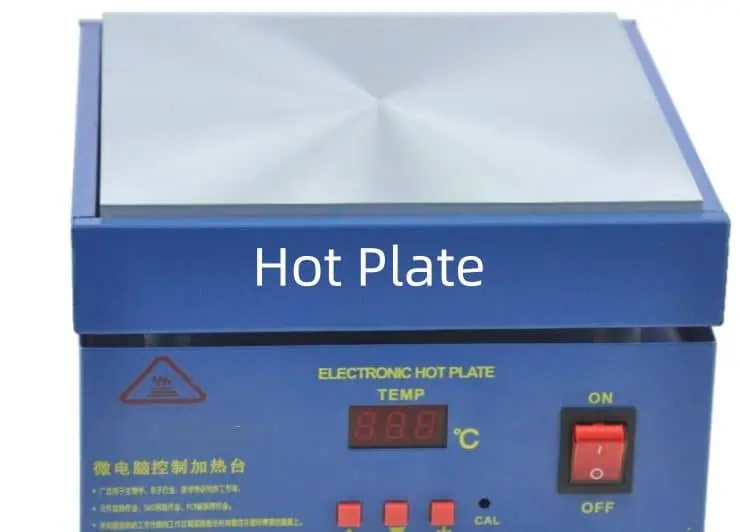

A hot plate comprises an electronically heated platform allowing precision temperature control up to 300°C necessary for print circuit board (PCB) surface mount device (SMD) soldering processes including baking, reflow or rework station preheating. Hot plates assist solder paste curing before component placement as well as post-assembly lead-free solder reflow.

This article details hot plate usage methodologies during PCB SMD population focusing on appropriate SMD sizing, ideal placement locations, optimal heating techniques, process tuning considerations and maintenance best practices when employing programmable hot plate systems to fully leverage their capabilities improving solder joint integrity necessary for reliable electronics functionality across myriad end-use conditions.

Working Principle of PCB Hot Plates

Hot plate systems consist of:

  • Ceramic Heating Platform – Flat thermally conductive top supporting PCBs
  • Temperature Controller – Closed loop precision heating element energizer
  • Insulated Housing – Bottom covers minimizing heat losses
  • Adjustable Stand – Raises hot plate to comfortable height

A sensor feedback loop allows the controller to regulate heating elements embedded underneath the ceramic top achieving exceptionally uniform and stable temperature setpoints within +/- 2°C. Some models even incorporate vacuum holders firmly securing boards during reflow/rework.

Key Hot Plate Specifications

  • Temperature Range – At least 150°C covers most hand soldering applications
  • Plate Size – Dimensions suiting largest PCBs needing heating
  • Control Stability – +/- 2°C for repeatable process consistency
  • Heating Rate – Up to 10°C/sec facilitates rapid reflow when hand soldering
  • Vacuum Strength – Prevents thin/warped boards lifting during reflow
  • Programmability – Microcontroller regulation allows tuning thermal profiles
  • Independent Zones – Separate areas preventing localized hotspots

Why PCB Hot Plates Aid Soldering

During hand soldering, applying localized heat only to soldering iron contact points risks temperature gradients across large boards preventing simultaneous reflow when attaching multiple components.

Hot plates provide whole area bottom side heating enabling even preheating facilitating concurrent top side iron solder melting together minimizing deltas preventing cracked joints from board warping arising due to non-uniform thermal expansion.

Precision closed loop thermal regulation also aids solder paste curing, moisture baking or component rework needing consistent heating unattainable using hand-held heat guns. Thereby hot plates simplify achieving process repeatability necessary for quality soldering.

PCB Component Sizing Considerations

Judicious component selection and placement proves vital when hot plate soldering:

  • Avoid Large Metal-Cased Parts – Significant thermal mass demands more heat input slowing process
  • Select Small Surface-Mount Packages – Chips, 0402/0603 passives minimize reflow duration
  • Use Low Temperature Solders – Sn42/Bi58 melts faster than lead-free alloys
  • Place Devices Centrally – Eliminates positioning beyond heated boundaries

Grouping similarly sized SMD parts together also aids batch soldering instead individually processing each element. However balancing these layout considerations against electrical performance needs and routing congestion challenges persists key for complex boards.

Solder Paste Selection

When stenciling paste for hot plate reflow, consider:

  • Smaller Pitch Devices – Type 3 powder sizes limit solder balling risks
  • Thermal Demands – High conductance paste assists heat transfer
  • Alloy Compatibility – Matching paste melting points with solder types
  • Flux Requirements – Appropriate activity levels for difficult metals
  • Curing Needs – Snap cure pastes speed up heating stages

Thereby understanding solder material interfacial combinations proves vital when vetting options.

PCB Hot Plate Usage Methodology

Follow these steps when employing hot plates during soldering:

Phase 1 – Temperature Profiling

  • Adjust controller to span 60-250°C for profiling
  • Affix thermocouples onto dummy PCB surface
  • Gradually ramp temperature while logging sensor readings
  • Determine settings achieving target degree/second rate

This provides the thermal response signature of boards for tuning reflow profiles.

Phase 2 – Flux Application

  • Lightly wet a swab with rosin flux
  • Gently apply flux onto PCB pads avoiding migration
  • Keep flux amount minimal preventing char residue

Flux removes surface oxidation enabling solder wetting.

Phase 3 – Solder Paste Dispensing

  • Load stencil onto PCB and align aperture openings
  • Spread paste over stencil using a squeegee
  • Carefully detach stencil checking all pads
  • Touch-up missing spots using a syringe

Stenciling enables rapid precise paste deposition.

Phase 4 – Component Placement

  • Pick each part by the casing using tweezers
  • Locate component contacts evenly inside pads
  • Gently lower element allowing self-centering
  • Check alignments meet specifications

Precision positioning prevents tombstoning issues.

Phase 5 – Profiled Reflow

  • Keep board flat on heated surface
  • Set 30-70°C above liquidus temperature
  • Gradually ramp up temperature
  • Hold peak once paste reflows then cool

This liquefies paste contacting leads forming reliable intermetallic solder joints post-solidification.

Phase 6 – Residual Flux Cleaning

  • Spray electronics-grade cleaner onto boards
  • Gently brush using ESD-safe swabs
  • Avoid forceful rubbing damaging bonded leads
  • Dry boards using low pressure ionized air

Removing activators/residues prevents electrical leakages across insulators.

Phase 7 – Inspection

  • Visually check solder fill within joint fillets
  • Verify no extraneous solder balls/spikes
  • Inspect for missing or misaligned connectors
  • Reheat/adjust elements failing criteria

Detailed examination validates robust attachments.

Reflow Profile Adjustments

Tune profile parameters only in small increments during initial runs while reviewing impacts to avoid overshoot:

Profile Duration – Lengthening overall duration increases time above liquidus enhancing joint wetting

Ramp Rate – Faster ramps achieve quicker reflow; but risks paste slumping

Peak Temperature – Higher settings reduce solder surface tension improving fill; but hurts components

Cooling Ramp – Slower cooling hardens joint microstructure; but risks grainy/dull finishes

Maintaining meticulous soldering logs while methodically varying single parameters during profiling provides the empirical process window necessary for optimizing programmable oven/hot plate routines needed achieving repeatable high-yield results.

Thermal Profile Data Logging

Use thermocouples for logging PCB heating during initial profiling:

  • Non-Contact InfraRed Thermometers – Rapidly scans board without soldering probes
  • Type-K Glass-Braid Thermocouples – Rated for over 200°C measurements
  • Miniature Integrated Probes – Compact formats occupying less space
  • Flexible Wide Temperature Sensors – Conforms across uneven/warped boards
  • Multi-Channel Data Loggers – Logs entire oven thermal maps simultaneously

Profiling runs should cover several repeated cycles logging heating/cooling trends for identifying tuning opportunities to meet acceptable process windows.

Such empirical data then supplements oven vendor recommendations for computing optimized thermal routines matching board materials, components, form factors and throughput needs.

Hand Soldering Techniques

When hand soldering complexes boards under hot plates:

Apply Fluxes Judiciously – Use minimal amounts; remixed frequently

Keep Tips Clean – Replace/rewet dirty iron parts hindering heat transfers

Vigorously Stir Solder – Aggressively blend preventing precipitation

** Anchor Components Initially** – Fix parts using minimaliste solder avoiding movement

Shield Adjacent Parts – Attach heat sinks onto nearby temperature-sensitive devices

Use Low Power for Finesse – Reduce iron temperatures when dealing with delicate trims

Such seemingly trivial aids significantly improve reliability when hand working dense boards.

Reworking Defective Joints

Follow these steps when reworking faulty solder joints using hot plates:

Raise Board Temperature – Heat surrounding zone to reflow temperatures softening joint

Vacuum Hold Board – Prevent warping or lifting during manipulations

Remove Existing Solder – Use desoldering braid to absorb defective solder

Clean Terminations – Swab flux removing oxidation from revealed surfaces

Apply Fresh Solder – Use suitable gauge for reattaching freed component pins

Examine New Joint – Visually check realignments, confirm adequate fill

Strictly controlling temperatures allows safely detaching elements for adjustments or repairs avoiding collateral thermal damage.

Advanced Reflow Techniques

Certain applications utilize advanced hot plate assisted attachment options:

Vapor Phase Reflow – Boiling fluorinert films transfer latent heat for uniform heating

Photonic Reflow – Directed infrared beams selectively cure designated zones

Thermo-Compression Bonding – Forcefully pressing interconnects under heat fuses contacts

Transient Liquid Phase Bonding – Intermediate melting point metals aid joint formations

Electro-Magnetic Soldering – Alternating magnetic fields directly heat susceptors minimizing thermal transfers

Thereby hot plates simplify exploring such techniques across niche applications needing precise temperatures unattainable using handheld units.

Hot Plate Calibrations

Routine maintenance activities sustain long-term performance:

Thermocouple Recalibrations – Yearly sensor accuracy validation against certified references

Heating Element Replacements – Swapping aging heaters restores power delivery

Controller Firmware Updates – Latest software improves regulation capabilities

Gasket Inspections – Examine seals preventing external air leaks

Ceramic Tile Scrubbing – Eliminate carbon/flux buildup using solvents

Platform Flatness Checks – Assess warping needing mechanical adjustments

While requiring Planning schedule downtime, such actions ensure continuous optimum functionality.

Safety Precautions

Exercise abundant precautions when operating hot plates:

  • Mandate hand gloves avoiding accidental skin contacts
  • Confirm boards remain entirely on heated platform
  • Follow maximum temperature ratings for flammable boards
  • Cease operations upon seeing smoke possibly indicating scorched flux residues
  • Allow sufficient cooldown before handling recently energized unit

Such prudence minimizes workplace mishaps or equipment damage risks from operational excursions exceeding safety envelopes across inherently hazardous high-temperature processes.


This guide examined appropriate SMD selection factors, precise paste printing, controlled thermal profiling, data logging aids and safety protocols when employing benchtop hot plates for assisting hands-free bottom preheating delivering rapid yet gentle reflow necessary for reliable lead/lead-free PCB soldering – especially vital producing complex multilayer boards containing moisture sensitive components or high pin count fine pitch devices extremely vulnerable to thermomechanical fractures resulting from uncontrolled heating. Properly incorporating such feedback-controlled programmable platforms significantly enhances assembly repeatability even during low-volume prototype runs using hand soldering. The future potential of additive lateral heat sources for further optimizing board level heating distributions heralds even better soldering yield improvements necessary sustaining further PCB miniaturization trends.

Frequently Asked Questions

What is the advantage of a PCB hot plate over a reflow oven?

Key advantages hot plates offer over large convection ovens include tighter temperature uniformity across small boards via direct contact conduction, closed loop precision hardly achievable using blown heat, smaller form factors suitable for hand assembly stations, lower power saving energy plus faster thermal response attaining quick reflow ideal soldering heat-sensitive components.

What PCB surface finish works best for hot plate soldering?

Exposed PCB surface pad finishes using immersion silver or electrolytic hard gold demonstrate the best solderability for hot plate manual soldering applications given their oxidation resistance at elevated pre-heat temperatures compared to bare copper prone to surface dulling or HASL tin-lead layers tending to melt prematurely ahead of solder pastes preventing intermetallic alloying necessary for sound joints.

Are leaded or lead-free solders preferred for PCB hot plates?

Although leaded solders melt ~30°C lower than lead-free alternatives thereby needing lower peak pre-heat temperatures, given tightening environmental legislation banning lead material usage plus lead-free alloys better resisting tin whiskering risks under temperature cycling necessary for automotive grade boards, lead-free SAC305 or SN100C formulations prove most widely adopted even for hand soldering using benchtop hot plate stations.

How flat must PCB boards be for hot plate soldering?

Ideally, boards should remain completely flat within under 2mm deflection across each linear dimension at peak preheat temperatures to prevent localized solder reflow simultaneously across pads caused by height differentials or air gaps exceeding thermal conduction capabilities of most hot plates having typical 150mm throat depths although advanced versions allow programmatically creating several independent heating zones targeting slightly warped multilayer boards.

How are temperature uniformity verified across PCB hot plates?

Checking hot plate pre-heat platform uniformity involves logging temperature readings using an orthogonal matrix of thermocouples spanning the heated top and then calculating deviation extremes across mapped area for determining necessary modifications either through controller tuning or by physically shimming the heated ceramic element improving flatness thereby attaining under 5°C variance consider acceptable for SMD hot plate soldering applications without causing solder balling issues.
