What is LED Driver PCB?

A LED driver PCB houses the electronics necessary to operate LED lighting arrays safely and efficiently.

Key responsibilities include:

  • Regulate and transform supply voltage
  • Limit current through LEDs
  • Allow dimming control
  • Protect against faults

Understanding the special considerations for LED driving allows optimizing PCB design to achieve flicker-free long life lighting with reduced energy use.

Why LEDs Need Driver Circuits

LEDs characteristics necessitate additional circuitry:

Poor Voltage Regulation

LED forward voltage varies widely with temperature requiring compensation.

Low Reverse Breakdown

Small reverse voltages easily damage LEDs so polarity control and protection are vital.

Current/Luminosity Relationship

Precise current control directly impacts LED brightness so adjustable regulated current sources enable dimming.

Without drivers, LEDs are vulnerable while providing little analog control interface. So external driving electronics provide intelligent connection to the power supply.

Power Source Considerations

Common scenarios are constant or pulse-width modulated voltage sources, each with implications for driving needs:

AC Mains Power

Triac / relay based dimmers vary RMS voltage. Electronic converters generate regulated LED current from fluctuating supply.

DC Power

Wide voltage range DC requires buck, boost or buck-boost regulators for consistent LED drive voltage/current from fluctuating DC source like automotive or low voltage secondary supplies.

PWM Dimming Signal

Pulse-width modulated signals directly control LED brightness by gating current flow proportionally to duty cycle.

Accommodating various supplies and control interfaces adds complexity to driver PCB design.

Driver Architectures

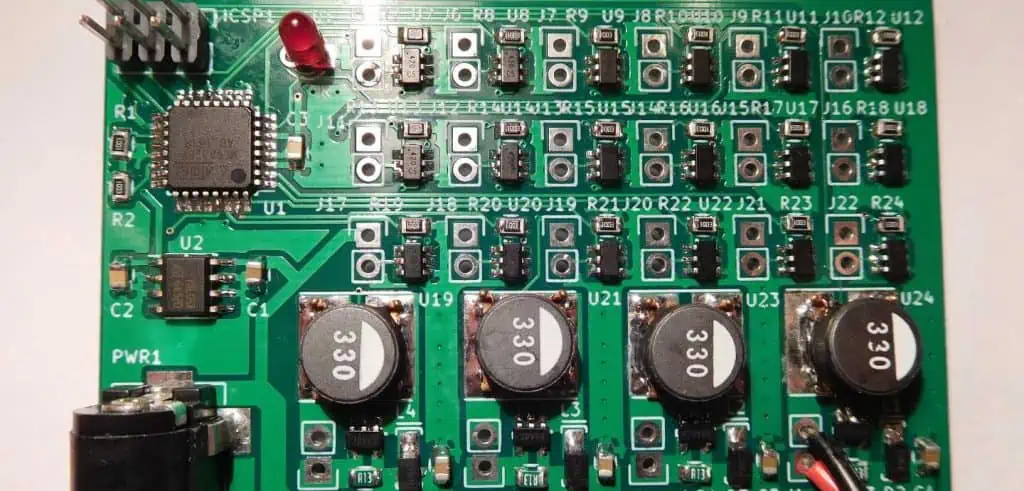

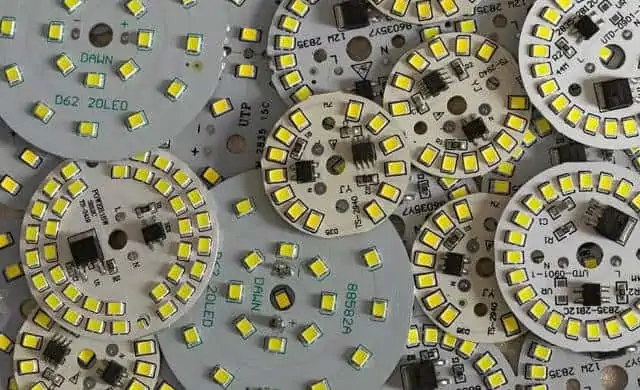

led PCB Solution

Different configurations of power and control converter components achieve the LED current regulation. Here are some common driver architectures:

Linear vs Switch Mode Drivers

Linear uses an analog programmable resistor like a transistor between supply and LEDs.

  • Simple, low component count.
  • Wastes power as regulation element.
  • Large heat sinking.

Switch Mode chops fixed supply into adjustable high frequency pulses using inductors, capacitors and control ICs.

  • More efficient conversion.
  • Faster response for PWM dimming.
  • Generates EMI requiring suppression.

Dimming Approach

Resistor Control
Varies reference resistor setting output current magnitude.

PWM Control
Switches driver using external PWM signal ratio controlling mean LED current.

Analog Control Uses voltages or potentiometers to adjust output current.

AC vs DC Input Drivers

Steps down and rectifies AC mains voltage then regulates current for LEDs.

Buck, boost or inverting converters regulate fixed DC voltage to LED arrays directly. Simpler but less universal input range.

Series vs Parallel Output

Series strings multiple LEDs with single current ensuring uniformity.

Parallel drives multiple strings independently allowing zone control but needs current balancing.

Combinations or hybrid designs give optimized tradeoffs across cost, performance range and complexity depending on application needs for specialty matching LED arrays.

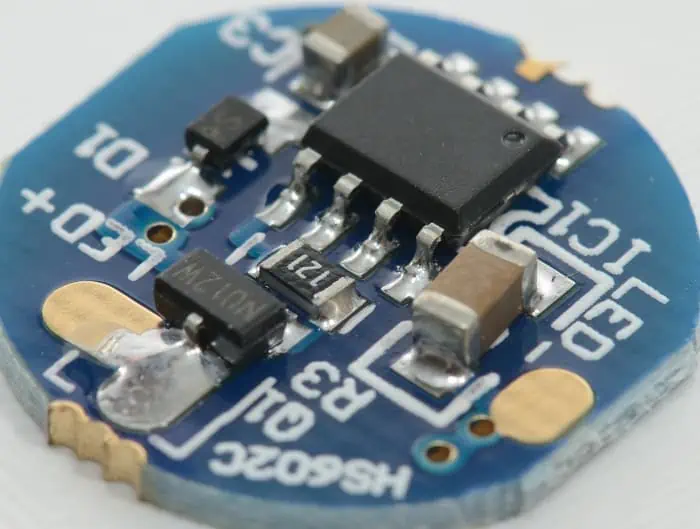

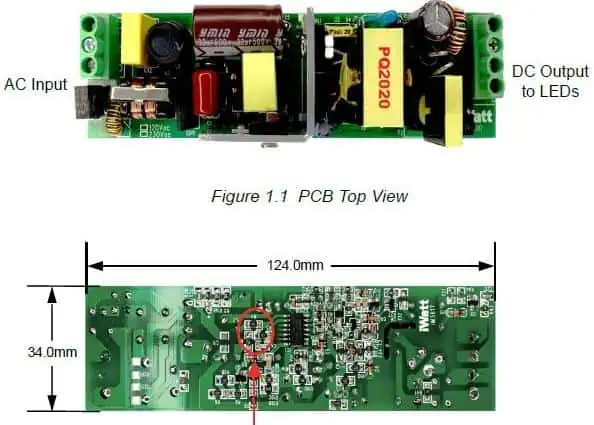

Typical Driver Circuitry

A typical LED driver PCB for 12V DC IN to 60V LED string OUT would contain:

AC/DC Input Stage

  • Fuse / Transient protection
  • Rectifier / smoothing capacitor
  • Power good detection

Intermediate Power Stage

  • Buck controller
  • MOSFET/Inductor step down
  • Freewheeling diode

Output Stage

  • Current sense resistor
  • Feedback amplifier
  • PWM reference generator
  • Open load detection


  • Voltage reference
  • Compensation components
  • Diagnostic indicators

This handles wide DC input range down to controlled current output suitable for LED arrays. Multiple channels extend capacity driving more LED strings in parallel.

Cost Savings

Design choices balance performance versus unit costs through:

  • Choice of discrete power devices vs integrated controllers
  • Heat sinking approach – PCB copper relief versus external aluminum extrusion
  • Input surge protection level – simple clamping diode or multi-stage industrial grade
  • Conformal coating for environment protection or rely on enclosure sealing
  • Component adjustments to tune operating temperature range

Generally industrial grade components improve operating life but cost extra. The fixed development overhead is amortized across production volume allowing cost savings through simplified commercial grade designs where reliability risk is acceptable.

Improving Efficiency

Several techniques help maximize energy transfer to the LED load:

Low Loss Components

MOSFETS, inductors, sense resistors tailored for driver frequencies minimize switching and conduction losses.


Timing switch transitions to minimize shoot-through current when both NMOS/PMOS conduction overlaps.

Dead Time Control

Inserts brief delays between complementary switch transitions preventing any shoot-through risk.

Dimming Architectures

Stepping down both voltage and current during PWM dimming prevents wasted power across fixed resistors giving superior efficiency at lower brightness levels.

MethodTypical Efficiency Gain
Loss optimized components selection5%
Switch timing synchronization5%
Dimming architecture with variable resistor/supply15%

Gains through synchronization require fast accurate control loops to avoid glitches.

Reliability Enhancements

led pcb

Additional measures improve product reliability:

Thermal Derating

Run components below rated limits for operating lifetime improvement factors of 2-3X allowing extended warranty offerings.

Conformal Coating

Protects against humidity and contamination related leakage/corrosion especially in industrial or marine usage with risks of gases and fluids.

Over Temperature & Over Current Detection

Shutdown driver electronics rapidly on fault events before permanent LED damage. Assume LED itself lacks protection.

False Detection Immunity

Reasonable delays filtering noise induced fault triggers prevent unnecessary shutdown from transient spikes. Hysteresis on thresholds helps here too.

Component Screening

Pre-production qualification testing and burn-in eliminates early life failures.

Quality Assurance

Sample based final automated optical inspection and test coverage above 95% during volume ramp prevents factory escaped defects.

Careful design hardening prevents immediate returns or long term reliability degradation. But it increases validation overhead.

Design Tool Chain

Modern PCB solutions enhance development productivity:

Schematic Capture

Intelligent part selection, real time design rule checks and netlist generation with component data validation speeds error free translation from concept to layout.


Time domain analysis captures switch mode power supply sequencing behaviors difficult to probe in hardware. Thermal modeling ensures sufficient heat spreading capacity.


Multi-layer autorouters with zone priority support rapid prototyping of complex multilayer stacks housing modern drivers and discrete thermal planes. Integrated 3D previews verify mechanical fit.

DFM Analysis

Quantitative process analysis highlights production risk areas like insufficient metal overlap on via farms prior to release. Suggests specific adjustments for high yield such as trace neckdowns.

Revision Control

Vaulting with managed release states dramatically eases change integration supporting ongoing maintenance improvements.

Investment in PCB design tools gives an amplifying effect on productivity over manual flows.


LED lighting greatly benefits from advanced electronic driver PCBs converting fluctuating supply into robustly regulated current ensuring consistent brightness over product lifetime at the best efficiency.

Voltage transformation, dimming interfaces and fault protection allow unlocking LED efficiencies. Furthermore programmable drivers support application tailored operation.

Cost sensitive commercial products make design choices trading off energy savings and diagnostics against tightly managed BoM costs and validation testing using an integrated tool chain accelerating time to market. The result is capable LED luminaires with previously impossible cost structures and 10X operational lifetime gains.


Why are dedicated LED driver circuits needed?

LED efficiency and lifespan depends critically on precise current control. But LED voltage varies significantly with temperature while reverse polarity rapidly destroys them. So supplemental drive electronics provide robust voltage transformation, output regulation and protection enabling reliable lighting deployment.

What are the key subsystems within a LED driver?

Major building blocks are the front end AC or DC input power stage converting to regulated intermediate DC bus voltage,then an LED current regulation stage handles constant current or PWM controlled dimming power sent to LED arrays,finally protection subsystems avoid damage due to open loads or overheating through shutdown.

What are the tradeoffs between linear vs switch mode LED drivers?

Linear drivers offer simplicity with just an adjustable linear transistor element but waste significant power dropping excess voltage as heat. Switching methods use inductive energy storage for efficient conversion but require fast PWM controllers and generate EMI needing suppression filters adding costs.

How does driving topology differ for AC mains versus DC input power?

AC mains needs initial rectification and filtering to generate a DC bus followed by output regulation stages. For intermediate DC voltage sources, power factor correction is unnecessary simplifying driver stages to just voltage transformation and output regulation. But DC input range may be narrower.

What tools help accelerate LED driver PCB development?

Modern EDA packages with integrated schematic capture linked into simulation, autorouting layout editors with DFM analysis and version control streamline LED driver development lowering risks and time to market. Reusing verified circuit blocks also
