USB Type-C PCB Design: Define the Port Before Routing the Connector

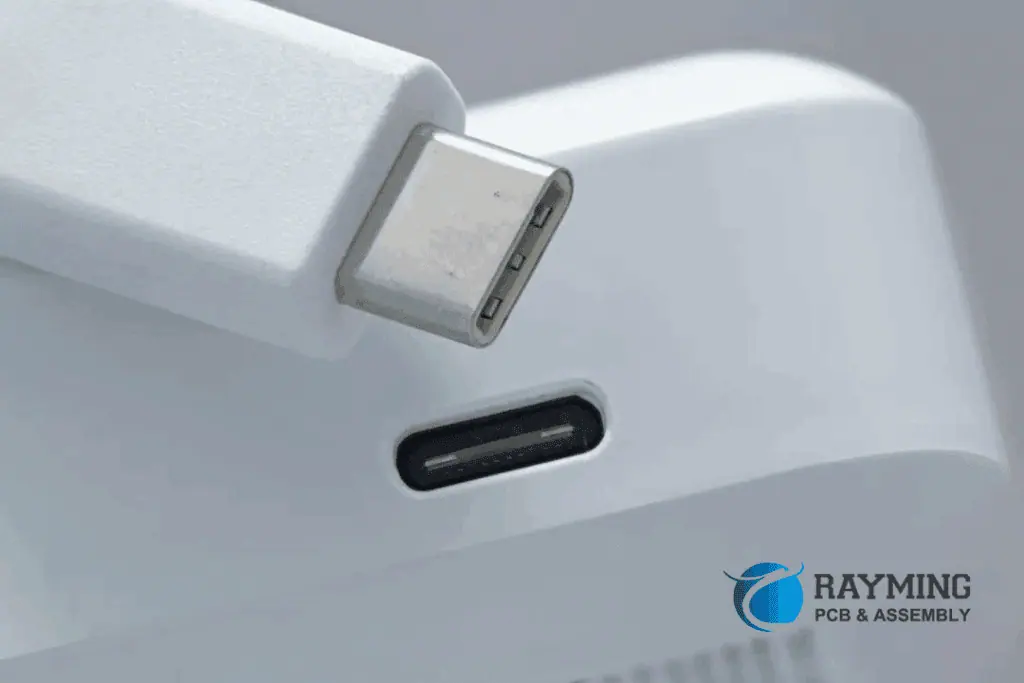

A USB Type-C PCB design starts by defining the port's data and power behavior. The reversible connector shape does not by itself establish data speed, USB Power Delivery support or which direction power flows. Those functions come from the selected controller, circuitry, firmware, cable and operating mode.
Use this page when integrating a Type-C receptacle or reviewing an existing port. The implementation worksheet records evidence for role selection, configuration-channel connections, power paths and reversible routing. It is a self-review checklist, not an automatic schematic checker. For trace and return-path questions, continue to USB PCB layout.
Describe data role and power role separately
Write down whether the product sources power, sinks power or supports a defined role-changing behavior. Separately state the required data role and signaling capability. A product that receives power can still have a distinct data-role requirement; a connector's appearance does not resolve either question.
Identify the operating cases: first connection, cable reversal, an absent host, an external supply, sleep and any supported role change. Include the permitted combinations of connected equipment. A design reviewed only while attached to one development laptop may leave other intended uses unexplained.
Select the appropriate port-control approach against those requirements. A simple fixed-role implementation and a product that negotiates more complex behavior need different circuitry and verification. Keep the exact controller reference design and configuration with the schematic. Do not combine fragments from source and sink examples without resolving their different roles.
Separate the port decisions
| Decision | Evidence to retain | Common wrong inference |
|---|---|---|
| Data role | Intended host/device behavior and supported controller mode. | A reversible connector chooses the role automatically for every design. |
| Power role | Source, sink or supported role-changing implementation. | Receiving power determines every data function. |
| Capability | Implemented data mode and applicable power negotiation. | Type-C means the highest advertised USB speed or power. |
| Reversal | Both orientations checked against the exact pin mapping. | One working orientation proves the whole receptacle is correct. |
Keep CC1 and CC2 tied to their actual functions
The configuration channel participates in attachment, orientation and the applicable role or power behavior. Review CC1 and CC2 against the selected port design, including the relevant termination and controller connections. Reversible operation is a reason to inspect both paths, not a reason to short distinct functions together casually.

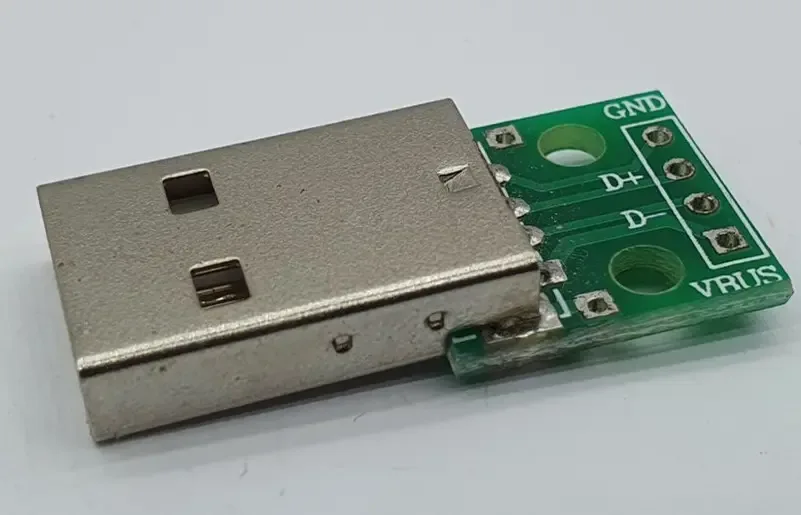

An implementation using a controller may integrate functions that another reference design implements externally. Read the exact device requirements before adding duplicate terminations or assuming missing discrete parts indicate a fault. Conversely, fitting a receptacle with only VBUS and ground wired does not establish a correct Type-C port.
Document the boundary of any simplified design. A fixed low-power sink, a source, a dual-role product and a negotiated-power implementation are not one universal schematic with different labels. The worksheet keeps the state open until evidence is recorded; selecting a status does not verify a resistor, a controller setting or a voltage waveform.
| Review item | What to establish |
|---|---|
| Port identity | Power role, data role and intended signaling capability are separately stated. |
| CC implementation | Both configuration-channel paths match the exact controller or fixed-role design. |
| Power path | Permitted sources, back-power prevention and fault requirements are defined. |
| Reversal | Pin map, connector footprint and orientation-dependent paths are reviewed. |
| Verification | Relevant cables, orientations, modes and evidence are identified. |
USB port implementation review
USB port implementation review
Use the current inputs and keep the assumptions
Load the example to learn the worksheet, then clear it before entering your project values. Blank fields are not silently converted to zero. Units and selected conventions belong to the result, so review them together with the numbers. Editing any input invalidates the previous result and disables its download until you calculate again. Edited example data remain labeled as an illustrative example.
This tool runs locally on the values you enter. It does not open a schematic, select approved components, measure signals or inspect a physical board. Keep the exact component documents and a record of measurements with the design. Downloading the text report does not send an enquiry or populate the Contact form. Attach it manually if it helps explain a specific engineering question; completing the worksheet is optional.
| Input | What to establish before using it |
|---|---|
| Review reference | Use a nonconfidential revision reference. |
| Power role, data role and actual USB signaling mode | Self-reported status; record evidence outside this worksheet. |
| CC1 and CC2 implementation matches the port role | Self-reported status; record evidence outside this worksheet. |
| VBUS switching, discharge, faults and back-power paths | Self-reported status; record evidence outside this worksheet. |
| Reversible pin routing and exact connector footprint | Self-reported status; record evidence outside this worksheet. |
| Required cable/orientation and compliance tests | Self-reported status; record evidence outside this worksheet. |
Design the VBUS path for every allowed power source
Map the path from the connector to the load or source, including switching, sensing, protection and discharge functions required by the chosen design. Record the allowed current and voltage conditions using applicable specifications and component limits. The maximum advertised capability of USB as a family is not the power available to every port.
Consider back-power paths when the board can also receive a battery, barrel-jack or other external supply. A product can work normally while still driving an unintended source through a body diode or another component. Check both steady states and connection order, and keep the supporting circuit evidence with the release.
Choose components for the applicable operating and fault conditions. Connector contacts, protection devices, switches and board copper all belong to the power path. A calculation of I²R loss can support one part of the review, but it does not establish a complete current rating or protection response. For the wider component-interface question, use PCB connector selection.
Map reversible routing before drawing differential pairs

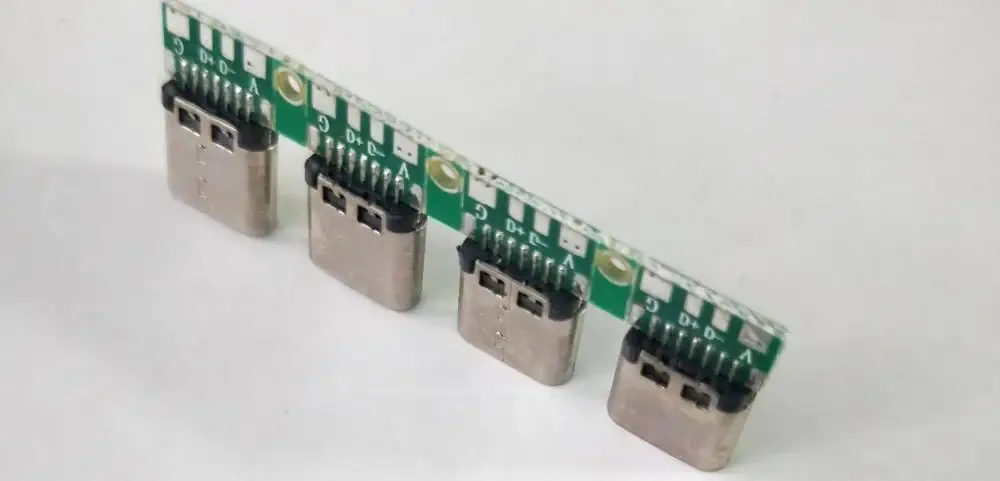

Read the exact receptacle drawing and signal assignments. Confirm the footprint's physical pin numbering, orientation and mechanical features. Similar Type-C connectors can differ in mounting style, supported contacts, retention features and recommended land patterns.
Map the required signals for the product's actual data capability and port architecture. A design supporting only a particular data mode does not automatically need every function present in a more capable reference board. At the same time, leaving required pins or orientation-dependent paths unimplemented can make the product work only with one cable orientation.
Review any mux, redriver, retimer or protection device as part of the channel, with its own placement and routing requirements. Do not introduce such devices solely because a generic diagram contains them. The channel should follow the exact controller and interface guidance, with the supported capability documented for the finished product.
Test the behavior matrix rather than one connection
Build a small test matrix from the intended use cases. Include both orientations, relevant cable capabilities, supported power sources and the required data mode. Record what must happen at attachment and what counts as a valid data or power result. A charging indicator and a successful file transfer prove different things.
Separate functional bring-up from formal compliance work. A bench demonstration can reveal a wiring or configuration error without establishing that the product meets every applicable USB requirement. Keep the standard revision, test scope and actual evidence identifiable. Do not use certification marks or claims simply because the connector or controller supplier has qualified another product.
If only one orientation works, inspect the mapped signal path, configuration-channel behavior and footprint before assuming a host-driver problem. If power works but data does not, confirm cable capability and the implemented data path. The USB port types guide helps distinguish connector identity from the capability being tested.
Give manufacturing and purchasing a complete port definition
The BOM should identify the exact connector and controller options. The assembly drawing should preserve connector orientation, retention and any special mechanical requirement. Include a mechanical section when board thickness, enclosure cutout or connector position controls fit.
For an assembly enquiry, provide the schematic context, board revision, intended port behavior and agreed functional-test expectation. State whether cable or host equipment is part of the supplied test setup. A request to test USB is incomplete unless it identifies the capability and observable result required.
Use the worksheet to collect unresolved decisions and the evidence already recorded. It can help keep a design discussion focused, but it does not replace the original circuit, component documentation or measured behavior. RAYPCB's manufacturing review can then address the actual board and assembly scope while the design owner retains a clear record of the electrical and product requirements.
Describe the tested connection precisely
Retain the exact host, device, cable, adapters and operating mode with a result. Record the power arrangement separately from the data behavior, including connection order when it matters. A useful observation says what the product did in that setup and which requirement it was intended to check.
For a discrepancy, preserve the simplest configuration that reproduces it. Compare connector identity, port role, supported capability and physical implementation as separate questions. Changing a driver does not repair a missing electrical connection, while rerouting a pair does not add an unsupported device function. Give the next reviewer the circuit revision, expected behavior and actual evidence so the investigation can target the relevant boundary. Functional bring-up and formal compliance remain separate activities with their own documented scope.
Standards, source context and limits
The referenced manufacturer documentation supports specific devices, interfaces or design methods. Apply the version and operating conditions appropriate to the actual part. A similar product name is not evidence that pin functions, voltage tolerance, startup behavior or package dimensions match. Worked examples illustrate reasoning and arithmetic; they are not released schematics or independent hardware test results.
