What is the Significance of Mobile Communications PCB?

In our highly developed information technology era, PCBs play a crucial role, and the mobile communications PCB have almost come to be synonymous with them.

Since the days of phone operators, when workers would sit in rows at workstations to connect calls, the globe has advanced significantly. Only 5,000 people in the U.S are currently classed as phone operators, according to Statistics, and a large number of professions are anticipated to disappear within the following decades.

Massive switchboard functionality has kept up with the current trend of almost all forms of consumer electronics: which is miniaturization. Thanks to mobile towers, servers, and satellites, strewn around the planet, communications and calls may now be made and received with very little delay.

The speed through which we are able to communicate, however, requires significant processing power; as a result, the PCBs which drive mobile communications has to be dependable, long-lasting, and, above everything, functional in nature.

What is Mobile Communication?

mobile communications pcb

Mobile communication refers to the application of technology which enables remote communication without the need for a physical connection (cables or wires). Our lives are made simpler by mobile communication, which also saves effort and time.

Mobile phones, often known as a cell phone, hand phone, or mobile cellular networks, can be described as a mobile communication (which is wireless in nature). This device is electric and it transmits data over the base stations’ cellular network known as a cell site using two-way full duplex radio.

What is Mobile Communications PCB?

In the telecommunication sector, PCBs are quite helpful. High-end printed circuit boards (PCBs) are employed to mechanically support and electrically connect a wide variety of different electronic components utilized in different devices for mobile communication.

It may appear impossible to condense the similarities which mobile communications circuit boards have given their wide range of applications. But some generalizations are possible.

First, a lot of circuit boards for mobile communications must be able to function in very high temperatures. Circuit boards that serve cell tower as well as satellite applications must take into account the high temperature variations that these devices are frequently exposed to in order to avoid operational failure.

These boards must also have the ability of transmitting signals without causing distortion.

Circuit boards for mobile communications are more susceptible to noise influences as well as competing signals. Also, as boards get smaller, signals are more likely to be distorted.

Last but not least, these circuit boards frequently need to fit in unusual locations. The geometries that these circuit boards must fit within, spanning satellites to the wearable electronics, could differ from the standard square you would typically encounter. They can’t rely on the rigid shapes because they could also be vulnerable to strong vibrations.

Features of Mobile Communication PCB

FULL PCB MANUFACTURING Quote

Balanced high capacity loads: High capacity balancing of loads must be incorporated into any wireless or wired infrastructure.

Load balancing signifies that this system actively switches users from an access point onto another in the event that one is overloaded.

Network Management Systems

These days, wireless networks can have hundreds or thousands of the access points, as well as switches, firewalls, controlled power, and other components. Also, t he management of the whole network from one location is more intelligent with wireless networks.

Scalability

New wireless device is becoming more and more popular on a daily basis. Without having to redesign or create a totally new network, wireless networks possess the flexibility to begin small if necessary and grow with respect to capacity and coverage as needed.

Mobile device management

Consider a scenario where a large number of mobile devices are connecting to a wireless network. Then consider the many applications that are active on those devices. How will you control all these gadgets as well as their applications, most especially as these devices go and come from your company?

You can have control over how you’ll regulate access to applications and programs with management of mobile devices. The gadget can be remotely erased by you if stolen or lost.

Factors to Consider When Manufacturing Mobile Communications PCB Hardware

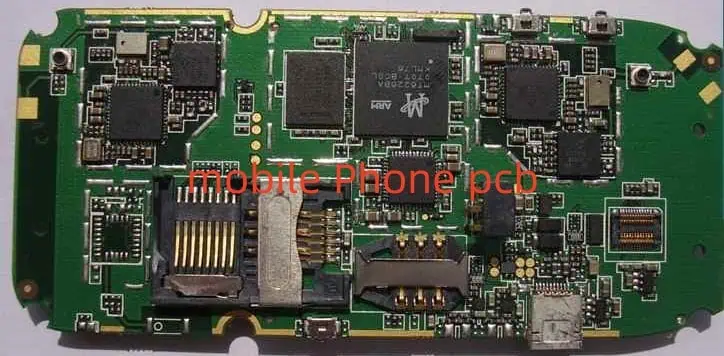

mobile Phone pcb
mobile Phone pcb

The hardware you would like to incorporate in the design is one of the first things to think about when creating circuit boards that serve mobile communications. Due to the dominance of miniaturization inside the PCB manufacturing industry, weight is crucial.

Networks may become more vulnerable to security issues if they rely too heavily on software for completing tasks that can be completed by hardware. Hardware components work with the analog signals, are simpler to troubleshoot, and, most importantly, are more reliable.

Hardware, however, cannot be updated, can be more difficult to repair when it malfunctions, can be more expensive materially, and can also take more space.

We’ll see that the conditions these circuit boards must endure can frequently be harsh, and that many mobile communications PCB must be installed in confined spaces with unusual shapes. Thus, the circuit board design is limited not just by its operational capability but also by the environment in which it operates.

Material Selection

The majority of boards are made from a common FR-4 material called glass fiber as well as epoxy that is bonded with a copper foil. These boards aren’t intended for high-temperature Circuit board applications which some mobile com circuit boards are, despite their excellent heat resistance as well as very little water absorption.

In the PCB industry, polyimide Circuit boards are common because they can withstand a range of circumstances that regular PCBs cannot. Because of their excellent thermal stability and resistance to any corrosive chemical which can corrode or harm a circuit board, they can withstand temperatures of about 260°C without melting or breaking.

Another common material for the mobile communications PCB is aluminum, which offers advantages over FR-4 PCB in terms of weight and heat resistance.

Shape

The shape which mobile communications PCB must fit into is another factor to be taken into account. The polyimide circuit board stated above is an example of a flexible circuit board that is perfect for irregularly shaped cases that can’t accommodate a rigid PCB normally.

Flexible circuit boards may be bent and twisted into the desired shape. This isn’t just a fantastic technique to increase the surface area of the circuit boards, but it’s better at absorbing vibrations which might occur in some aerospace applications such as satellites.

Signal Reliability

Normal operation of a simple printed circuit boards can be achieved with little to no external device interference. However, the design of high-speed circuit boards has to deal with a signal noise which impairs the performance of the devices for mobile communications since boards are now pushed to run quicker than ever when handling smaller packaging.

When circuit boards function at speeds more than 50MHz, a signal’s structure starts to change and degrade its signal to noise ratio.

When external signals interfere with a circuit board, signal integrity problems might also develop.

This could be a significant issue for telecommunications. Signal integrity concerns must always be addressed throughout the design process by switching the power, signal, as well as ground layers in order to produce a return of low-impedance. To ensure a high-quality signal, each trace on the circuit board must use differential pairs with uniform length and spacing.

Role of Printed Circuit Boards in the Evolution of Cell Phones

mobile pcb

The globe has seen major advancements in communication thanks to technology over time. Engineers and researchers are continually coming up with fresh ways to make phones more efficient, faster, and smaller, beginning with the initial mobile phone during the 1970s and to the most recent smartphones accessible out there.

Printed circuit boards have become smaller and more powerful as a result of the expansion of their capabilities. In order to give all the features expected, including touchscreens, Wi-Fi connectivity, and cameras, manufacturers can fit more components inside a smaller space. PCBs are transforming how our smartphones, tablets, and cars connect with the outside world as we head towards the future.

Applications of Mobile Communications PCB

Mobile Communications PCBs are used frequently in PBX systems, VoIP devices, video collaboration platforms, phone switching system, and other office communication systems. In addition to commercial phone technologies, mobile communications PCBs are utilized in different telecommunications systems like satellites, servers, cell towers as well as high-speed routers. Indicators and LED displays are also controlled by them.

Below are some of the main applications of mobile communications PCB

  • Consumer and broadband equipment
  • Tower electronics and cell transmission
  • Mobile and fixed networks
  • Optic fiber multiplexers
  • High speed servers and routers
  • Systems of military communication
  • PBX systems
  • Satellite technology
  • Switching applications (heating, controller, and sensing)
  • Devices for video conference
  • Space communications
  • Signal boost systems
  • Devices for signal amplification
  • Airbag deployment
  • Wireless industrial
  • Waveguide grating

Conclusion

Circuit boards are essential for the telecommunication sector since this sector necessitates the fabrication of small circuit boards. Also, they frequently need to form the ability of accepting small gadgets, like AV equipment, phones, and other things.
