What is a Test Point PCB?

In a PCB with surface-mount components, a test point pcb is a short wire loop utilized for test probes. They allow the user to monitor the circuitry of the board or introduce test signals during manufacturing. Test points are available in a range of sizes, colors, and materials.

You may make access areas for the test probes using test points. For earlier PCB types with leads, many probes feature J-hooks. The J-hook can be attached to test points in PCB, and the test point’s sharp and pointed end can be used to contact a conductor present on your board. Phosphor bronze is the material used in the majority of SMT test points; however, the silver plate coating is also an option.

What are the Different Types of Test Point PCB?

In a circuit board, the test points are often utilized in one of two ways. The initial is an accessible location that can be easily reached by a professional using portable testing equipment. These places frequently include a soldered post for attaching the test lead to aid with this. For quick reference, the test points in PCB would be marked using the reference designator as well as typically the net’s name in silkscreen, like “GND.”

Furthermore, the other kind of test points in PCB is mainly utilized by automated test apparatus. Through-hole vias, pins, or small metal landing pads that are intended to hold the probes of the automation testing systems serve as the automation testing points on the circuit board. Three primary test platforms using the test point PCB are available. These include:

Whenever the pcb has been constructed, a test known as a “bare board” is carried out to ensure every one of the board’s nets are electrically connected.

In-circuit test

Here ICT is performed after the boards have been put together. The board gets set up on an ICT fixture that has probes for every individual net. Such fixtures typically test the board’s bottom, but they may also test a board’s top or even both sides simultaneously if necessary.

Flying probe

Similar to ICT, the test is performed using test points present on every board net after construction. This flying probe apparatus, on the other hand, employs between two and six roving probes for each test location rather than make use of stationary probes inside fixtures such as the way ICT does.

These are the many test points which will be present in a Circuit board and the purposes for which they are utilized. We’ll learn why such a testing is crucial for the production of circuit boards next.

Benefits of Including Test Points On Your PCB


The following advantages will arise from include test locations in the PCB design while it is being developed:

Low profile: Test points in PCB give a substantially lower profile as compared to certain other testing probe connection options. Options like pillars and turrets might not fit inside a compact enclosure. These test points are a more flexible option because of their profile, which is comparable to those of the surface-mounted components.

Time and money savings: When identifying connection problems through test point PCB in the initial stages of design, you may save money and time later. With no early testing, the PCB may exhibit problems at the later design stages that entail more expensive assembly. Testing these sophisticated models repeatedly wastes both money and time.

Error detection made simpler: Test points streamline the entire probe testing procedure, making it simpler to find any problems. You may obtain the measurements that you want using test points in PCB without endangering your circuit board design.

How You Can Design Your PCB Having Test Points In Mind

The following considerations must be taken into account while placing test points correctly:

Board side: Most of the time, having the entire circuit board test points present on one side of your PCB speeds up testing and reduces costs.

Minimum distance of the test points: To improve the effectiveness of testing, test point PCB should be separated by at least 0.100 inches.

Test point PCB distribution: You may more easily check with several probes by dispersing test points evenly around the PCB.

Zone for the tall components: The testing procedure can be made simpler by designating a section of the PCB for the tall components. Keeping these components in a single zone will prevent them from obstructing access to test locations.

Manufacturing tolerances:  While designing the basic layout of your PCB, don’t forget to take manufacturing tolerances into account. During your testing process, the Circuit board will require space to accommodate the test points in PCB as well as probes.

7 Test Point PCB Guidelines to Enhance the Production Process


In a Circuit board with surface-mount components, PCB test points can be described as a short wire loop utilized for the test probes. During manufacturing, they allow the user to introduce test signals as well as monitor the circuitry of the board. The test point PCB comes in different colors, sizes, and materials.

We shall discuss the test point regulations in this post in order to enhance PCB manufacturing. You are invited to check out and study the information below if you are curious to learn more about the PCB point regulations.

7 Rules of Test Point PCB to Remember

The objective of the PCB test point

Setting the test points can be done to determine whether the circuit board’s components adhere to standards and may be soldered. For instance, using a multimeter to measure a circuit board’s resistance is the easiest way to do it. You may know the two ends.

These solder pins of components were in fact employed as the test points inside the initial periods when conventional plug-in was used on a circuit board. The residual coating of the solder paste flux is typically generated on the surface of the solder after the general electronic components are exposed to a wave soldering and SMT tin eating, as well as this film’s resistance is quite high, which frequently results in the poor contact of these probes.

What are the Types of Test Points in PCB?

These test locations on the circuit board will be utilized by three primary test systems:

  • Bare board tests: When the PCB has been created, this test is performed to ensure the board’s nets feature electrical connectivity.
  • ICT is performed after the pcb has been put together. The board would be set up on an ICT fixture that has probes for every individual nets.
  • Flying probe:  Similar to ICT, each test is performed by accessing individual test points on every net of a board after construction.

Limitations of the Test Point in PCB

Utilizing needle beds in circuit testing has various inherent restrictions, such as:

A needle that has a small diameter can be easily fractured and damaged, and the probe’s minimal diameter has a limit.

Near some high areas, needles can’t be implanted. The high section may be damaged when the probe becomes too near to it. Also, due to the part’s height, a hole must typically be made in the test fixture’s needle bed seat in order to prevent the needle from implanting.

Since every needle must emerge from a hole and have its back end fused with a cable, the space between these needles is likewise constrained. Test points in PCB for all components that are getting harder to fit on the pcb board.

Positive aspects of the PCB test points

Low profile: Test points give a substantially lower profile as contrasted with other connection options of the test probe. Options like pillars and turrets might not fit inside a compact enclosure. The test point in PCB has a profile comparable with those of the surface-mounted components, giving them a very versatile option. Saving time and money: You may avoid wasting time and money later on by identifying connection problems via test point PCB in the initial stages of design. Without initial trials, a PCB may exhibit problems at later design stages that entail more expensive assembly.   Easy error detection

Error detection is made simpler by test points, which streamline a probe testing procedure and make it simpler to see any problems. You may obtain the measurements which you want using test points without endangering the PCB design.

Many applications of the Test Points in PCB

All test points inside the ATP and TP series lines were intended to fulfill a variety of applications, such as:

Hidden test point PCB Issues

More worse are covert issues that compromise the items’ long-term performance. Power consumption and sensor accuracy are two potential problems which could be discovered at populated Circuit board stage but might end up in the hand of the customer untested.

Utilizing test points to identify flaws early reduces costs and improves quality. Also, it provides you with something intangible; which is rest of mind. It might be easy to believe that testing procedures are reliable throughout the production phase, but adding a test fixture increases the level of assurance.

Procedure for creating circuit board test points

This test point has to be an exposed metal area on a board’s outer layer that is wired to a net in order to serve as the test point in PCB. This would make it possible for the probes to interact with it and perform the test. The CAD system’s next step would be to mark the desired places as circuit board test points.

If these test point choices meet the spacing as well as other particular criteria specified in the specifications, the design program will normally proceed and select them automatically. The Circuit board design software would be prepared to convert this data into the test point files once each contender has been marked as test points.

The Importance of Test Points in Circuit Board Manufacturing

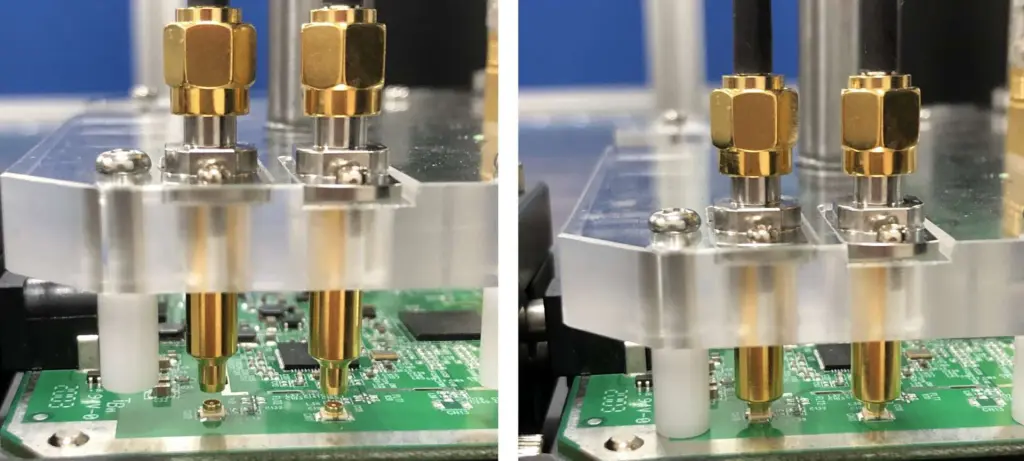

FCT Functional Circuit Test

Automatic testing is important for validating PCB manufacturing. ICT and flying probe tests as well as bare board testing ensure that the manufactured board has good connectivity and then verifies the solder connections and the assembly of the board.

ICT as well as flying probe tests achieve that in the following ways:

In-Circuit Test

ICT can be described as a system which makes use of the test fixture created specifically for a particular PCB board design in addition to supplementary software to be employed on this test system. A probe would be utilized for every net upon that design, as well as the software and fixture were made utilizing the test point positions as well as other design data produced by CAD database.

Although evaluating every net to ensure a solid connection to its corresponding part pin is ICT’s primary role, it may additionally be utilized to evaluate the board’s functioning. Developing the hardware and software used for ICT testing are pricey and time-consuming.

These test fixtures were intricate, containing probes in thousands, and altering a fixture to ensure a revised board can indeed be highly expensive. But, once established, this in-circuit test would quickly test a huge number of circuit boards.

The advantages of speed as well as functional testing for mass manufacturing quickly outweigh the expenses and duration of ICT development.

Flying Probe Test

Although this method is similarly intended to check the accuracy of a completed circuit board, it does it very differently from ICT. Between two and six probes fly around the board to access each circuit board test point in place of the test fixture.

This flying probe system may be fitted up extremely rapidly and inexpensively without the requirement to construct an elaborate test apparatus.

The flying probe’s drawback is that it moves very slowly. While the flying probe system must move its probes to every individual test position, ICT could test every spot on the board practically immediately


Setting the test point PCB can be done to determine whether the circuit board’s components adhere to standards and may be soldered. Automatic testing is important for validating PCB manufacturing. ICT and flying probe tests as well as bare board testing ensure that the manufactured board has good connectivity.
