Reduce Solder Defects Right Now or Catch Them Later? SPI Tells.

In the world of electronics manufacturing, quality control is paramount. One of the most critical aspects of ensuring high-quality electronic products is the proper application of solder during the assembly process. Solder joints are the lifeblood of electronic circuits, providing both electrical connections and mechanical strength. However, solder defects can lead to a host of problems, from immediate product failure to long-term reliability issues. This is where Solder Paste Inspection (SPI) comes into play, offering manufacturers a powerful tool to detect and prevent solder defects early in the production process.

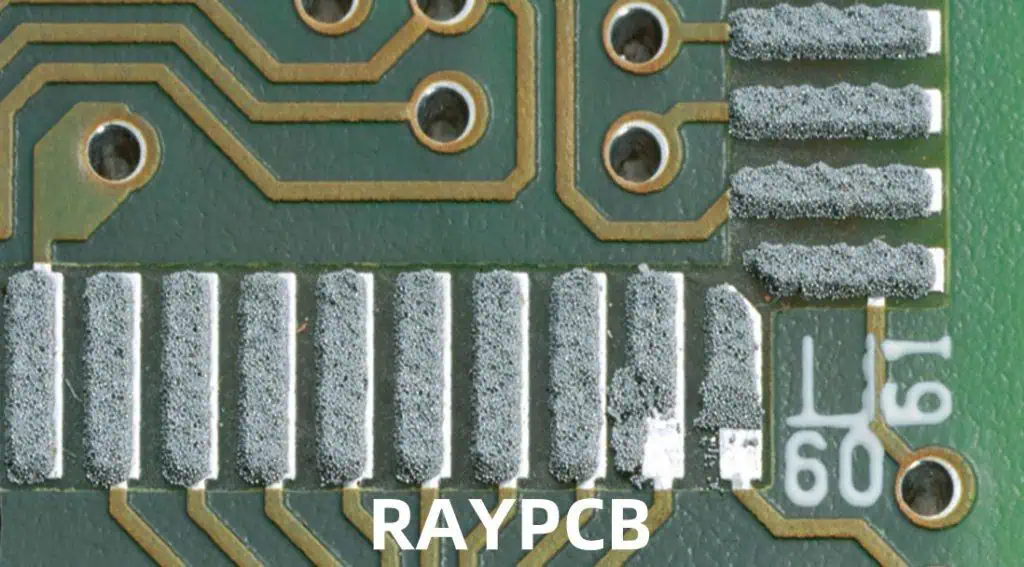

Understanding Solder Paste Inspection (SPI)

What is SPI?

Solder Paste Inspection is an automated optical inspection technique used in the electronics manufacturing industry to assess the quality of solder paste deposits on printed circuit boards (PCBs) before component placement. SPI systems use advanced imaging technology and sophisticated algorithms to measure and analyze various characteristics of solder paste deposits, including volume, area, height, and position.

The Importance of SPI in Electronics Manufacturing

SPI plays a crucial role in ensuring the quality and reliability of electronic products. By detecting solder paste defects early in the production process, manufacturers can:

1. Reduce rework and scrap rates
2. Improve first-pass yield
3. Enhance overall product quality
4. Minimize production costs
5. Increase customer satisfaction

Key Parameters Measured by SPI

Modern SPI systems are capable of measuring a wide range of parameters to ensure the quality of solder paste deposits. Some of the key measurements include:

Parameter	Description
Volume	The total amount of solder paste deposited
Area	The surface coverage of the solder paste deposit
Height	The thickness of the solder paste deposit
Position	The alignment of the deposit relative to the pad
Shape	The overall form and contour of the deposit
Bridging	Detection of unintended connections between adjacent pads
Insufficient	Identification of areas with too little solder paste

The SPI Process

Pre-Inspection Setup

Before the SPI process begins, several crucial steps must be taken:

1. Programming: The SPI system must be programmed with the specific requirements for the PCB being inspected, including pad locations, sizes, and acceptable tolerance ranges.
2. Calibration: The system needs to be calibrated to ensure accurate measurements across the entire inspection area.
3. Lighting Adjustment: Proper lighting is critical for accurate imaging and measurement. The lighting conditions must be optimized for the specific board and solder paste being used.

Inspection Workflow

The typical SPI workflow consists of the following steps:

1. Board Loading: The PCB is loaded into the SPI machine, either manually or through an automated conveyor system.
2. Image Acquisition: High-resolution cameras capture detailed images of the solder paste deposits on the PCB.
3. Image Processing: Advanced algorithms process the captured images to extract relevant data about the solder paste deposits.
4. Measurement and Analysis: The system measures various parameters of each solder paste deposit and compares them against predefined specifications.
5. Defect Detection: Any deposits that fall outside the acceptable ranges are flagged as potential defects.
6. Reporting: The system generates a detailed report of the inspection results, highlighting any detected defects and providing statistical data on the overall solder paste quality.

Types of Defects Detected by SPI

SPI systems are capable of identifying a wide range of solder paste defects, including:

1. Insufficient Solder: Not enough solder paste deposited on a pad
2. Excess Solder: Too much solder paste deposited on a pad
3. Bridging: Unintended connections between adjacent pads due to excess solder
4. Misalignment: Solder paste deposits that are not properly centered on the pad
5. Shape Defects: Irregularly shaped deposits that may lead to poor connections
6. Smearing: Solder paste that has been smeared across the board during the printing process
7. Voids: Air pockets or gaps within the solder paste deposit

Benefits of Early Defect Detection

Reducing Rework and Scrap

By identifying solder paste defects before component placement, manufacturers can significantly reduce the need for rework and minimize scrap rates. This leads to:

• Lower production costs
• Increased throughput
• Improved resource utilization

Improving First-Pass Yield

Early detection of solder paste defects contributes to higher first-pass yield rates, which means:

• Fewer defective products
• Reduced testing and inspection time
• Improved overall efficiency

Enhancing Product Quality and Reliability

Addressing solder paste issues at the earliest stage of production helps ensure better overall product quality and long-term reliability by:

• Minimizing the risk of latent defects
• Ensuring consistent solder joint quality
• Reducing the likelihood of field failures

Cost Savings

Implementing effective SPI processes can lead to significant cost savings through:

• Reduced material waste
• Lower labor costs associated with rework
• Decreased warranty claims and returns

SPI vs. Post-Reflow Inspection

Comparison of Inspection Methods

While SPI focuses on detecting defects before component placement and reflow, other inspection methods are used later in the production process. Here’s a comparison of SPI with post-reflow inspection techniques:

Aspect	SPI	Post-Reflow Inspection
Timing	Before component placement	After reflow soldering
Primary Focus	Solder paste deposits	Solder joints and component placement
Defect Prevention	Proactive	Reactive
Rework Complexity	Simple (repaste or clean)	Complex (component removal and replacement)
Cost of Defect Correction	Lower	Higher
Detection of Hidden Defects	Limited	Better for some types of defects

Advantages of Early Detection

Detecting solder defects through SPI offers several advantages over relying solely on post-reflow inspection:

1. Earlier Intervention: Problems can be addressed before components are placed, simplifying the correction process.
2. Lower Correction Costs: Fixing issues at the solder paste stage is generally less expensive than correcting defects after reflow.
3. Reduced Risk of Component Damage: Eliminating the need to remove and replace components minimizes the risk of damage to expensive parts.
4. Process Optimization: Early detection allows for real-time adjustments to the solder paste printing process, improving overall quality.

Limitations of SPI

Despite its many benefits, SPI does have some limitations:

1. Hidden Defects: Some defects may only become apparent after reflow and cannot be detected by SPI alone.
2. Component Interaction: SPI cannot predict how components will interact with the solder paste during reflow.
3. False Positives: Overly stringent SPI criteria may lead to false defect detections, potentially slowing down production.

Implementing an Effective SPI Strategy

Choosing the Right SPI System

Selecting an appropriate SPI system is crucial for achieving optimal results. Factors to consider include:

1. Resolution and Accuracy: The system should have sufficient resolution to detect defects on the smallest pads used in your production.
2. Speed: The inspection speed should match your production line requirements.
3. Flexibility: The system should be able to handle various board sizes and types.
4. Software Capabilities: Look for systems with user-friendly interfaces and powerful analysis tools.
5. Integration: Consider how well the SPI system can integrate with your existing production line and Manufacturing Execution System (MES).

Setting Appropriate Inspection Criteria

Establishing the right inspection criteria is essential for balancing quality control with production efficiency:

1. Volume Tolerances: Set acceptable ranges for solder paste volume based on pad size and component requirements.
2. Area Coverage: Define minimum area coverage percentages to ensure sufficient solder for reliable connections.
3. Height Limits: Specify minimum and maximum height thresholds to prevent insufficient or excess solder issues.
4. Position Tolerances: Set allowable offsets for solder paste deposits relative to pad centers.
5. Shape Parameters: Define acceptable shape characteristics to catch potential bridging or separation issues.

Continuous Process Improvement

Implementing SPI is not a one-time effort but an ongoing process of improvement:

1. Data Analysis: Regularly analyze SPI data to identify trends and recurring issues.
2. Root Cause Investigation: Use SPI results to pinpoint the root causes of solder paste defects.
3. Process Adjustments: Make data-driven adjustments to your solder paste printing process based on SPI findings.
4. Feedback Loop: Establish a feedback loop between SPI results and upstream processes to continuously refine your manufacturing techniques.
5. Operator Training: Invest in ongoing training for operators to ensure they can effectively use SPI systems and interpret results.

Future Trends in SPI Technology

AI and Machine Learning Integration

The integration of artificial intelligence (AI) and machine learning (ML) technologies is set to revolutionize SPI systems:

1. Improved Defect Classification: AI algorithms can enhance the accuracy of defect classification, reducing false positives and negatives.
2. Predictive Maintenance: ML models can predict when SPI equipment may need maintenance, minimizing downtime.
3. Adaptive Inspection: AI-powered systems can dynamically adjust inspection criteria based on historical data and current production conditions.
4. Automated Root Cause Analysis: Advanced AI systems may be able to automatically identify the root causes of recurring defects.

3D Inspection Capabilities

As PCB designs become more complex, 3D inspection capabilities are becoming increasingly important:

1. Volumetric Analysis: Advanced 3D imaging allows for more accurate measurement of solder paste volume.
2. Surface Topology Mapping: 3D inspection can provide detailed information about the surface characteristics of solder paste deposits.
3. Enhanced Defect Detection: 3D imaging can reveal defects that may be missed by traditional 2D inspection methods.

Integration with Industry 4.0

The future of SPI lies in its integration with broader Industry 4.0 initiatives:

1. Real-time Data Sharing: SPI systems will increasingly share data in real-time with other production equipment and management systems.
2. Closed-loop Manufacturing: Integration of SPI with paste printing equipment will enable automatic adjustments based on inspection results.
3. Digital Twin Technology: SPI data will contribute to the creation of digital twins of the production process, enabling advanced simulation and optimization.

Conclusion

The question of whether to reduce solder defects right now or catch them later is clearly answered by the capabilities of modern Solder Paste Inspection systems. SPI offers a powerful tool for detecting and preventing solder defects at the earliest possible stage, leading to improved product quality, reduced costs, and enhanced manufacturing efficiency.

By implementing an effective SPI strategy, electronics manufacturers can proactively address solder paste issues before they become costly problems. While post-reflow inspection remains an important part of the quality control process, the advantages of early defect detection through SPI are undeniable.

As SPI technology continues to evolve, incorporating AI, machine learning, and advanced 3D imaging capabilities, its role in ensuring the quality and reliability of electronic products will only grow in importance. For manufacturers looking to stay competitive in an increasingly demanding market, embracing and optimizing SPI processes is not just an option—it’s a necessity.

Frequently Asked Questions (FAQ)

1. How does SPI differ from AOI (Automated Optical Inspection)?

SPI and AOI are both optical inspection techniques used in electronics manufacturing, but they serve different purposes and occur at different stages of the production process:

• SPI focuses specifically on inspecting solder paste deposits before component placement.
• AOI is typically performed after component placement and reflow, inspecting for proper component placement, orientation, and solder joint quality.

While SPI is preventive, catching issues before components are placed, AOI is more of a detective measure, identifying defects after the soldering process is complete.

2. What are the key factors affecting SPI accuracy?

Several factors can impact the accuracy of SPI measurements:

1. Lighting conditions
2. Camera resolution and quality
3. System calibration
4. PCB warpage or unevenness
5. Solder paste characteristics (e.g., reflectivity)
6. Environmental factors (temperature, humidity)
7. Inspection speed

Maintaining optimal conditions and regular system calibration are crucial for ensuring accurate SPI results.

3. How often should SPI systems be calibrated?

The frequency of SPI system calibration depends on several factors, including:

• Manufacturer recommendations
• Production volume
• Environmental conditions
• Accuracy requirements

As a general guideline, many manufacturers perform a quick calibration check at the start of each shift and a more comprehensive calibration weekly or monthly. However, it’s essential to establish a calibration schedule that meets your specific production needs and quality standards.

4. Can SPI completely eliminate the need for post-reflow inspection?

While SPI significantly reduces solder-related defects, it cannot completely eliminate the need for post-reflow inspection. Some reasons for this include:

• SPI cannot detect defects that occur during the reflow process itself.
• Component-related issues (e.g., misalignment, tombstoning) are not detectable by SPI.
• Some solder joint defects only become apparent after reflow.

Therefore, a combination of SPI and post-reflow inspection methods (such as AOI or X-ray inspection) provides the most comprehensive quality control approach.

5. What are the cost considerations when implementing an SPI system?

When considering the implementation of an SPI system, several cost factors should be taken into account:

1. Initial equipment investment
2. Installation and integration costs
3. Operator training
4. Ongoing maintenance and calibration expenses
5. Potential line speed impacts
6. Software licenses and updates

While the upfront costs can be significant, the long-term benefits in terms of improved quality, reduced rework, and decreased scrap rates often result in a positive return on investment for manufacturers implementing SPI systems.
