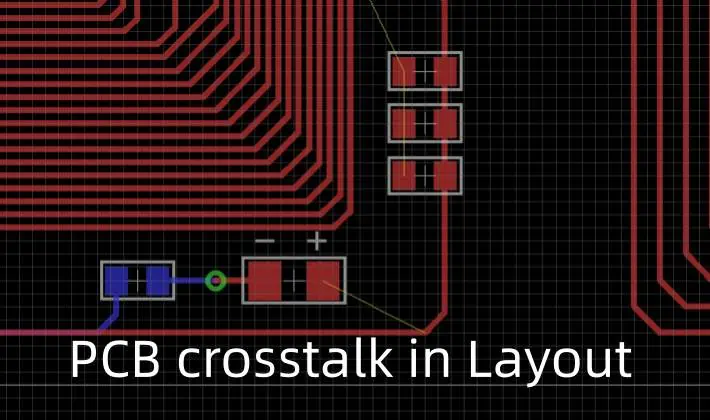

How to Reduce PCB Crosstalk in Your Layout (Tips)

Electromagnetic coupling or crosstalk is a critical signal integrity issue in printed circuit boards (PCB) where aggressor traces inadvertently couple noise into victim traces located in close proximity. This disrupts signal quality leading to functional errors or performance degradation.

This article provides a detailed discussion on the crosstalk phenomenon, its modeling, various PCB layout techniques and routing guidelines to effectively minimize coupling between traces to acceptable levels.

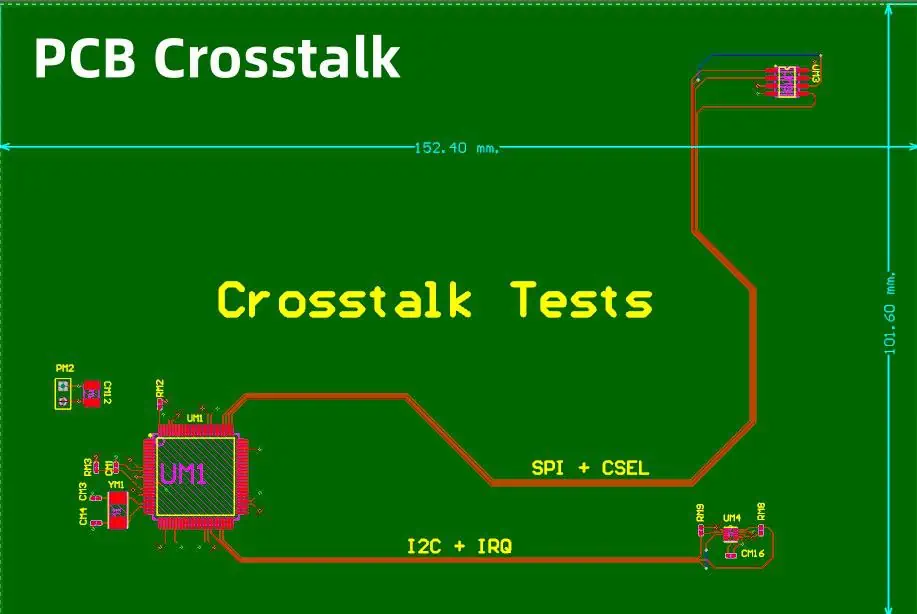

What is Crosstalk?

Crosstalk is defined as undesired capacitive and inductive coupling between nearby conductors carrying high frequency signals.

It allows errant currents and noise to be transferred from an active aggressor line into an adjacent quiet victim trace sharing a common return path.

Key Effects

  • Victim signal gets distorted – ringing, spikes etc.
  • Timing issues with false triggering
  • Reduced noise margins

If unchecked, coupling effects can override the immunity thresholds of a system leading to functional failures. With shrinking electronics and faster rise times, mitigating crosstalk has become pivotal.

Modeling PCB Crosstalk

For systematic analysis, crosstalk is quantified through two prime transmission line parameters:

Near-End Crosstalk (NEXT)

NEXT represents the noise coupled on the end of the victim line closer to the interference source. Indicates receiver effects.

Far-End Crosstalk (FEXT)

FEXT refers to coupled noise observed at the remote end from aggressor. Provides transmission error estimate.

By modeling interconnect geometries as transmission line structures, their NEXT/FEXT levels can be computed to assess impact. Crosstalk minimization revolves around keeping this coupling below certain allowable thresholds.

PCB Stackup Considerations

Choice of PCB layer stack has significant impact on resultant crosstalk across signal layers. Key factors are:

Dielectric Materials The resin system’s dielectric constant and loss tangent determine propagation speeds through substrate and signal loss characteristics. Materials like FR-4 with higher Er increases capacitive coupling to other traces.

Layer Separation
Thickness of dielectric core or prepreg between adjacent layers provides isolation with thicker media resulting in lower coupling noise. However, it also increases trace lengths for routing signals between layers.

Plane Configuration Continuous power or ground planes separating two signal layers act as electrostatic shields reflecting field lines. But thinner dielectrics may lead to plane resonance. Discrete shielding also helps for sensitive paths.

Trace Impedance Use controlled impedance lines equal to sink/source terminations. Mismatches create signal return echoes increasing self-coupling noise pickup.

Root Causes of Crosstalk

While stackup governs baseline coupling, design and layout factors can further aggravate the problem:

Inadequate Spacing
Tracing signals too close especially with narrow spacing significantly elevates mutual inductive and capacitive crosstalk as more flux gets coupled.

Length Matters Longer parallel signal runs provide greater area over which magnetic flux and electric field interactions can occur between traces.

No Ground Plane Barriers Lack of continuous ground planes allows coupling between different layer signals through the dielectric medium opening additional crosstalk paths.

Unequal Trace Heights
Variation in conductor heights changes their coupling capacitance gradients across the vertical profile enabling added noise transfer modes.

High dv/dt
Faster trace rise times (dv/dt) and duty cycles boost amplitude of coupled interference as per Maxwell’s equations.

** improper Terminations** Unterminated traces act as stubs causing reflections that further corrupt signal fidelity.

Crosstalk Reduction – Planning Stage

Upfront planning and architectural decisions during design conception play a pivotal role in preventing unmanageable crosstalk issues from cropping up later which cause extensive redesigns:

Board Layering
Define stackup (layer count/sequence) appropriately with adequate dielectric spacing for target bandwidths. Incorporate shielding planes between critical signals. Consider shuffled arrangements over simple 1-to-1 pairings.

Strategically group signals types over different layers based on coupling susceptibility. Keep analog chain separate from digital/high frequency signals.

Line Assignment
Identify crosstalk-critical nets based on vulnerabilities. Allocate robust trace dimensions to priority signals beforehand through connection width rules.

Preferred Directions
Route buses consistently maintaining same orientation to control crosstalk variability. Avoid splintered traces forming obtuse angles.

Plan series source/load connections for signals from beginning to reduce resonances that enhance coupling noise.

Guard Traces
Provision wider low impedance traces flanking multi-bit buses on either sides to dampen coupling ingress. Adds spacing too.

PCB Routing – Crosstalk Reduction

While planning provides bases, actual layout implementation determines how effectively coupling is contained. Various crosstalk-focused routing practices help:

1. Spacing

Maintain adequate clearance between traces based on coupling noise targets. Wider spaces exponentially reduce capacitive crosstalk but consume additional area.

Typical Conductor Spacings

TechnologyTrace Gap
MPU/FPGA (high freq)>= 5 x dielectric thickness
Communication ICs>= 4 x dielectric
Memory DIMMs>= 3 x dielectric
Default minimum2 x dielectric

2. Short Coupling Regions
Limiting parallel run lengths between victim-aggressor traces to less than λ/4 reduces coupling area exposure. Break out signals orthogonally after minimum essential overlap zone.

3. No Parallel Traces
Avoid paralleling wide high-speed buses for extended periods. Use minimum essential same-direction segments only at transitions. Otherwise change orientations.

4. Shielding Traces Insert grounded traces between sensitive nets to electrostatically contain coupled noise through field cancellation and sinking stray currents.

5. Inductive Compensation
For differential pairs, overlapping opposite traces causes flux linkage inducing noise that counterbalances intra-pair coupling.

6. Break Routings
Periodically disconnect trace lengths forcing return path discontinuities through gaps. Prevents coupled noise build up.

7. Limit Branching Constraining the quantity of branches from a main backbone line prevents multiple new couplings across a dense tree-like topology.

8. Symmetric Patterns Maintain uniform defend-aggressor configurations for differential pairs throughout layout to ensure balanced coupling.

Advanced Crosstalk Mitigation Methods

With continually rising bandwidths, sequential PCB layout practices alone are often inadequate to address extreme frequency coupling scenarios:

Electromagnetic Bandgap Structures

EBGs incorporate periodic defects into ground/power planes that inhibit propagation of certain noise band signals. This suppresses plane resonance and reduces plane-to-signal coupling.

Integrated Shielding

Embedded metal enclosure structures are fabricated along with PCB substrate encompassing sensitive areas. Forms robust Faraday cage preventing ingress/egress leakage.

Active Cancellation Circuits

Dedicated IC correction blocks monitor coupled noise on victims dynamically and generate opposing phase signal to negate the interference through destructive superposition.

Lossy Guard Traces

Insert specially formulated high-loss dielectric stripes between critical traces using add-on methods to dampen lateral coupling. Provides excellent isolation.

Verification of Crosstalk Performance

To validate crosstalk containment effectiveness, analysis and measurements are necessary during design verification:

Electromagnetic Simulation

Model interconnect geometries and material properties to compute coupling parameters like NEXT, FEXT and transfer impedance for assessing margins versus limits.

Physical Testing

Use fixture boards with coupled microstrip lines or actual device samples to measure noise Waveforms (time domain reflectometry) and signal spectra (network/spectrum analyzers).

Combination of both analysis and measurements establishes the crosstalk profile within design constraints for safe, reliable operation.


How are crosstalk and EMI interference different?

While crosstalk refers to localized coupling between traces, EMI constitutes external interference generated by a source influencing components placed further away not sharing same current return paths.

Which are better – wider or thicker traces?

For reducing crosstalk, wider traces provide better noise immunity through increased spacing from adjacent traces. Thicker traces help in lowering DC resistance but do not influence coupling significantly.

Can ground plane slots help mitigate crosstalk?

Yes, strategic slots in ground planes under coupled traces modify field distributions to reduce coupling. But they also interrupt return current paths degrading signal quality. So trade-offs exist.

How does transmission line theory apply to crosstalk?

Distributed models of traces as transmission line (TL) structures allow systematically quantifying coupling. The relationships between impedance, capacities, inductances etc. dictate noise pickup and propagation guiding mitigation.

Why is crosstalk not an issue with lower frequency signals?

At lower frequencies(<10 MHz), trace lengths are electrically smaller than wavelength. The uniform trace voltage and tight field patterns limit interference magnitude and extent enabling easier routing control.

The outlined guidelines and methodologies focused on minimizing crosstalk provide PCB designers valuable insights and tools to effectively address this critical signal integrity challenge.
