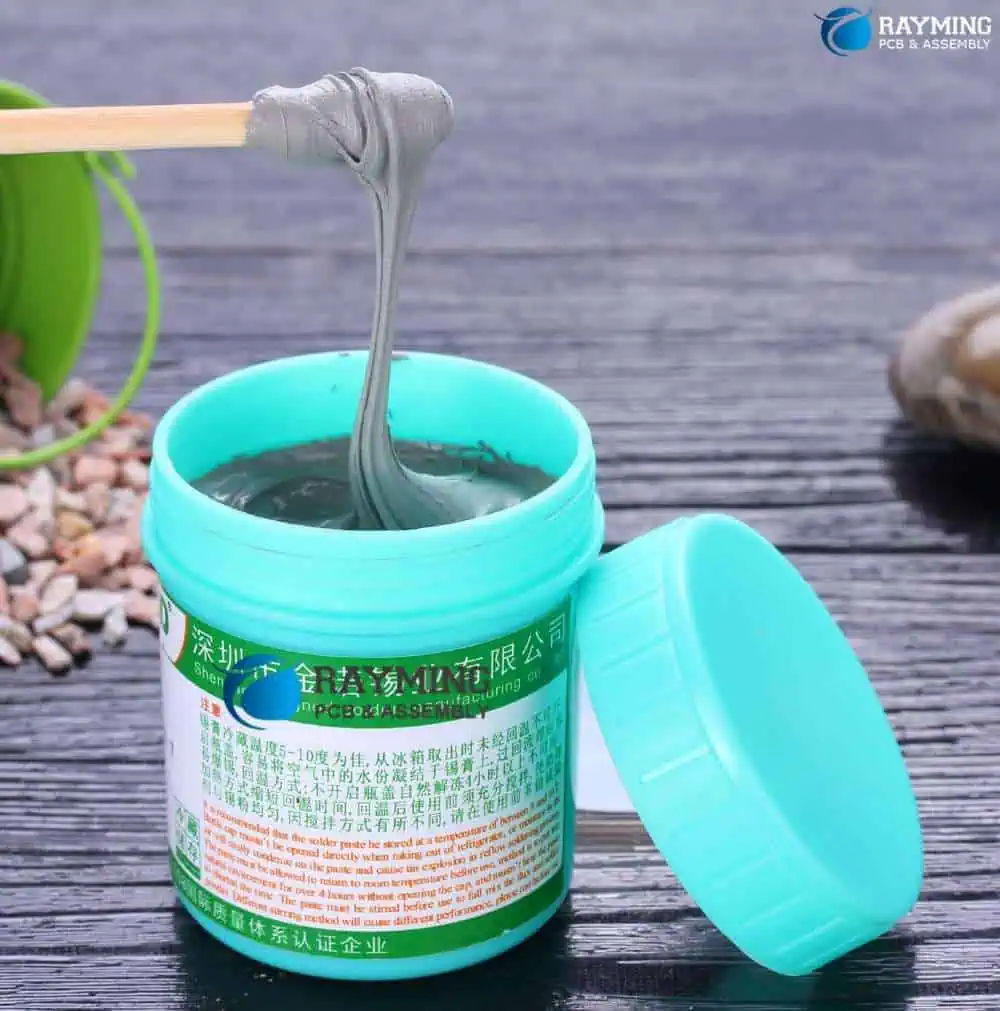

Solder paste is a homogeneous mixture of finely powdered metal solder particles and flux, essential for printed circuit board (PCB) assembly and manufacturing. Its primary function is to form a reliable electrical and mechanical bond between the PCB’s plated connection pads and the mounted components, ensuring a functional circuit. The particle size, alloy composition, and flux activity critically influence the paste’s performance, directly affecting the quality and efficiency of the soldering process.
Low-temperature solder pastes also enable multi-stage assembly processes. In applications where components must be attached sequentially, a higher-temperature paste (e.g., 250°C) can secure the first set of parts, while a low-temperature paste (e.g., 138–180°C) is used in subsequent stages. This ensures the initially placed components remain unaffected during later reflow cycles, preserving their integrity and alignment.
What is Low Temperature Solder Paste?
Low temperature solder paste is a specialized type of solder that melts and solidifies at lower temperatures compared to conventional lead-free or leaded solders. This unique property makes it ideal for use in applications where heat-sensitive components or substrates are involved.
Composition
The composition of low temperature solder paste typically includes a mixture of metals with low melting points. Common alloys used in these pastes include:
- Tin-Bismuth (Sn-Bi)
- Tin-Bismuth-Indium (Sn-Bi-In)
- Tin-Bismuth-Silver (Sn-Bi-Ag)
These alloys are carefully formulated to achieve the desired low melting point while maintaining adequate strength and reliability for electronic connections.
Key Properties
Low temperature solder pastes possess several key properties that set them apart:
- Low melting point: Typically ranging from 138°C to 180°C (280°F to 356°F)
- Good wettability: Ensures proper adhesion to component leads and PCB pads
- Fine particle size: Allows for precise dispensing and printing
- Flux compatibility: Often includes no-clean or water-soluble flux for easy post-soldering cleaning
Common Forms
Low temperature solder paste is available in various forms to suit different application methods:
- Jars or syringes: For manual dispensing or use with automated dispensing equipment
- Stencil printing: Pre-packaged in cartridges for use with stencil printers
- Solder wire: For manual soldering applications
- Solder preforms: Pre-shaped pieces for specific component types or sizes
Benefits of Low Temperature Solder Paste
The use of low temperature solder paste offers numerous advantages in electronics manufacturing and repair processes.
Prevents Thermal Damage to Heat-Sensitive Components
One of the primary benefits of low temperature solder paste is its ability to protect heat-sensitive components from thermal damage. Many modern electronic components, such as plastic connectors, LEDs, and certain semiconductors, can be easily damaged by excessive heat exposure. By using a solder paste with a lower melting point, manufacturers can reduce the risk of component warping, delamination, or complete failure during the soldering process.
Energy-Efficient
The lower melting point of these solder pastes translates to reduced energy consumption during the soldering process. Reflow ovens and other soldering equipment can operate at lower temperatures, resulting in significant energy savings over time. This not only reduces operational costs but also contributes to a more environmentally friendly manufacturing process.
Easier Rework
When it comes to rework and repair, low temperature solder paste shines. The lower melting point allows technicians to remove and replace components with less risk of damaging surrounding parts or the PCB itself. This is particularly beneficial in densely packed boards where precision is crucial.
Compatibility with Mixed Assemblies
In assemblies that combine traditional and heat-sensitive components, low temperature solder paste offers a solution for uniform soldering. It allows for the simultaneous soldering of various component types without subjecting heat-sensitive parts to potentially damaging temperatures.
Safer for Prototyping
For engineers and hobbyists engaged in prototyping, low temperature solder paste provides a safer alternative. The reduced heat requirements make it easier to work with, especially when using hand-soldering techniques. This can lead to more successful prototypes and a reduced learning curve for those new to soldering.
Read more about:
Melting Points of Low Temp Solder Pastes
Understanding the melting points of different low temperature solder pastes is crucial for selecting the right product for your specific application.
Comparison Table
| Alloy Composition | Melting Point Range | Common Applications |
|---|---|---|
| SN42Bi58 | 138°C – 140°C (280°F – 284°F) | General-purpose, heat-sensitive components |
| SN58Bi42 | 138°C – 140°C (280°F – 284°F) | Improved strength, slightly higher working temperature |
| SN48Bi32In20 | 118°C – 135°C (244°F – 275°F) | Ultra-low temperature applications |
| Lead-Free (e.g., SAC305) | 217°C – 220°C (423°F – 428°F) | Standard lead-free soldering (for comparison) |
Why Melting Point Matters
The melting point of solder paste is a critical factor in electronics manufacturing and repair for several reasons:
- Process compatibility: The melting point determines the required reflow profile and equipment settings.
- Component protection: Lower melting points reduce the risk of thermal damage to sensitive parts.
- Energy efficiency: Lower melting points generally require less energy during the soldering process.
- Rework considerations: Lower melting points facilitate easier component removal and replacement.
Choosing the right melting point for your application involves balancing these factors with the specific requirements of your project.
Best Uses for Low Temperature Solder Paste
Low temperature solder paste finds applications across various industries and projects. Here are some of the best uses for this versatile material:
Electronics Rework & Repair
In the field of electronics repair, low temperature solder paste is invaluable. It allows technicians to remove and replace components on densely packed PCBs with minimal risk of damaging adjacent parts. This is particularly useful in repairing high-value electronics like smartphones, tablets, and laptops.
LED Assembly
LED manufacturing benefits greatly from low temperature solder paste. LEDs are notoriously sensitive to heat, and excessive temperatures can affect their color output and lifespan. By using low temperature solder, manufacturers can ensure consistent quality and longevity in LED products.
Flexible PCBs
Flexible printed circuit boards (PCBs) are increasingly common in modern electronics, from wearable devices to automotive applications. These boards are often made from heat-sensitive materials that can warp or delaminate under high temperatures. Low temperature solder paste allows for reliable connections without compromising the integrity of the flexible substrate.
Medical & Aerospace Electronics
In critical applications like medical devices and aerospace electronics, reliability is paramount. Low temperature solder paste offers a way to create robust connections while minimizing the risk of thermal stress on sensitive components. This can lead to improved long-term reliability in these demanding environments.
Prototyping & Hobbyist Projects
For electronics enthusiasts and makers, low temperature solder paste opens up new possibilities. It allows for easier hand-soldering of surface mount components, which can be challenging with traditional solders. This makes it an excellent choice for prototyping and small-scale production runs.
How to Choose the Right Low Temp Solder Paste
Selecting the appropriate low temperature solder paste for your project involves considering several factors:
Alloy Type
The choice of alloy affects the paste’s melting point, strength, and compatibility with different metals. Consider the specific temperature requirements of your project and the materials you’ll be working with when selecting an alloy.
Flux Core vs. No-Clean Pastes
Flux is essential for proper wetting and oxide removal during soldering. Some low temperature solder pastes come with a flux core, while others are formulated as no-clean pastes. No-clean pastes are convenient for applications where post-soldering cleaning is difficult, but may leave slight residues. Flux core pastes may require cleaning but can offer better wetting in some cases.
Viscosity & Application Method
The viscosity of the solder paste should match your application method. For stencil printing, a slightly lower viscosity is often preferred for smooth deposition. For dispensing applications, a higher viscosity may be necessary to maintain precise control.
Brand Comparisons
While there are many brands of low temperature solder paste available, some popular options include:
- Chip Quik: Known for their low-temperature removal alloys and repair kits
- AIM: Offers a range of low-temperature alloys for various applications
- Indium Corporation: Provides specialized low-temperature solders for demanding applications
Research and compare different brands based on your specific needs, budget, and availability.
Common Challenges & Solutions
While low temperature solder paste offers many advantages, it’s important to be aware of potential challenges and how to address them:
Brittleness
Some low temperature alloys, particularly those with high bismuth content, can be more brittle than traditional solders. This can lead to joint cracking under stress.
Solution: Choose alloys with added strengthening elements like silver, or design joints to minimize mechanical stress.
Oxidation
Low temperature solders can be more prone to oxidation, which can affect joint quality and appearance.
Solution: Use pastes with effective flux formulations and store unused paste properly to prevent oxidation.
Compatibility Issues
Not all component finishes and PCB surface treatments are fully compatible with low temperature solders.
Solution: Verify compatibility with your specific materials and consider surface treatments or alternative finishes if necessary.
Conclusion
Low temperature solder paste has revolutionized many aspects of electronics manufacturing and repair. Its ability to protect heat-sensitive components, improve energy efficiency, and facilitate easier rework makes it an invaluable tool in the modern electronics industry. By understanding its benefits, melting points, and best uses, you can make informed decisions about incorporating low temperature solder paste into your projects.
Whether you’re working on cutting-edge flexible electronics, repairing delicate devices, or prototyping your next big idea, low temperature solder paste offers a versatile solution. As with any technical material, success lies in choosing the right product for your specific application and following best practices for its use.
As technology continues to advance, we can expect to see further innovations in low temperature solder paste formulations, expanding its capabilities and applications. By staying informed about these developments, you’ll be well-equipped to tackle the soldering challenges of today and tomorrow.
