Introduction

Soldering is an essential skill in electronics, and one of the key components in this process is soldering flux. Whether you’re a hobbyist working on DIY projects or a professional in the electronics industry, understanding the different types of soldering flux can significantly impact the quality and longevity of your work. In this comprehensive guide, we’ll explore the three main types of soldering flux: rosin, no-clean, and water-soluble. We’ll compare their pros and cons, discuss their best uses, and provide you with the knowledge to choose the right flux for your specific needs.

What Is Soldering Flux?

Before diving into the specific types, let’s first understand what soldering flux is and why it’s crucial in the soldering process.

Definition and Purpose

Soldering flux is a chemical cleaning agent used in the soldering process to remove oxides from the metal surfaces being joined. It helps to prevent new oxides from forming during the soldering process, which could weaken the joint.

How Soldering Flux Works

1. Removes oxidation: Flux chemically cleans the metal surfaces.
2. Improves wetting: It helps the solder flow more easily across the joint.
3. Protects from re-oxidation: Flux shields the heated metal from the air, preventing new oxide formation.

Importance in Soldering

Without flux, soldering would be significantly more difficult and less reliable. Flux ensures that the solder can properly adhere to the metals being joined, creating a strong and durable connection.

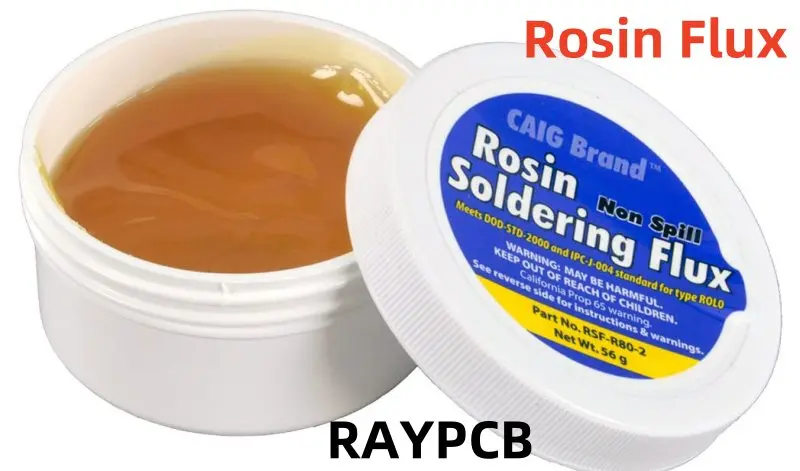

Rosin Flux: Pros, Cons & Best Uses

Rosin flux is one of the oldest and most widely used types of soldering flux. It’s derived from pine tree sap and has been a staple in the electronics industry for decades.

Pros of Rosin Flux

1. Excellent cleaning ability: Effectively removes oxides from metal surfaces.
2. Low conductivity: Minimal risk of causing electrical shorts.
3. Stable at room temperature: Easy to store and handle.
4. Variety of forms: Available in liquid, paste, or core solder form.

Cons of Rosin Flux

1. Leaves residue: Requires cleaning after soldering.
2. Can be corrosive: If not cleaned properly, may cause long-term damage.
3. Fumes during soldering: Can be irritating to some users.

Best Uses for Rosin Flux

• General electronics repair and assembly
• Hobby projects
• Situations where post-soldering cleaning is possible

Read more about:

• PCB Soldering
• Removing flux from pcb
• Turnkey PCB Assembly
• Rigid Flex PCB

No-Clean Flux: Pros, Cons & Best Uses

No-clean flux has gained popularity in recent years, especially in commercial electronics manufacturing. As the name suggests, it’s designed to not require cleaning after the soldering process.

Pros of No-Clean Flux

1. No cleaning required: Saves time and reduces the risk of damage during cleaning.
2. Low residue: Leaves minimal residue after soldering.
3. Non-corrosive: Safe for long-term use without cleaning.
4. Suitable for sensitive components: Less risk of damage to delicate parts.

Cons of No-Clean Flux

1. Less effective cleaning: May not work as well on heavily oxidized surfaces.
2. Visible residue: Can leave a slight residue that may be visible.
3. Potential for long-term issues: If used improperly, residue can accumulate over time.

Best Uses for No-Clean Flux

• High-volume production environments
• Assemblies with sensitive components
• Situations where post-soldering cleaning is difficult or impossible

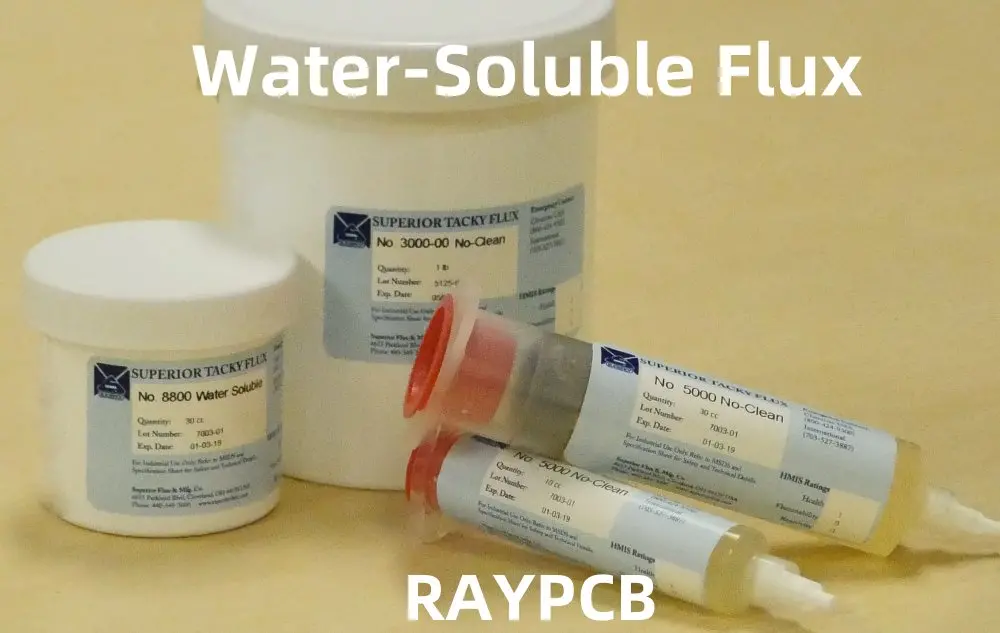

Water-Soluble Flux: Pros, Cons & Best Uses

Water-soluble flux offers a balance between the cleaning power of rosin flux and the convenience of no-clean flux. As the name implies, its residues can be cleaned with water.

Pros of Water-Soluble Flux

1. Powerful cleaning action: Excellent for heavily oxidized surfaces.
2. Easy to clean: Residues can be removed with water or mild detergent.
3. Available in various forms: Liquid, paste, or core solder options.
4. Environmentally friendly: Water-based cleaning reduces solvent use.

Cons of Water-Soluble Flux

1. Requires prompt cleaning: Can be corrosive if left on the board.
2. Potential for water damage: If not dried properly, can lead to corrosion.
3. More complex cleaning process: Requires thorough rinsing and drying.

Best Uses for Water-Soluble Flux

• Industrial and military applications
• Situations requiring thorough cleaning
• When working with heavily oxidized metals

Side-by-Side Comparison Table

To help you quickly compare the three types of soldering flux, here’s a side-by-side comparison table:

How to Choose the Right Flux

Selecting the appropriate soldering flux is crucial for achieving the best results in your soldering projects. Here are some factors to consider:

1. Type of Project

• Hobby projects: Rosin flux is often sufficient.
• Professional electronics: No-clean or water-soluble may be better.
• High-reliability applications: Water-soluble with thorough cleaning.

2. Cleaning Capabilities

• Limited cleaning ability: No-clean flux is ideal.
• Thorough cleaning possible: Rosin or water-soluble can be used.

3. Component Sensitivity

• Delicate components: No-clean flux is safest.
• Robust components: Any flux type can be used.

4. Environmental Concerns

• Eco-friendly option: Water-soluble flux with water cleaning.
• Minimal waste: No-clean flux.

5. Skill Level

• Beginners: Rosin flux is forgiving and easy to use.
• Experienced users: Can take advantage of no-clean or water-soluble benefits.

Safety Tips for Using Flux

While soldering flux is essential for good solder joints, it’s important to use it safely:

1. Ventilation: Always work in a well-ventilated area to avoid inhaling fumes.
2. Personal Protective Equipment (PPE): Wear safety glasses and consider using a mask.
3. Skin Protection: Use gloves when handling flux directly.
4. Fire Safety: Some flux types are flammable; keep away from open flames.
5. Storage: Store flux in a cool, dry place away from food and drinks.
6. Disposal: Follow local regulations for proper disposal of flux and cleaning materials.

Top Recommended Flux Products

Here are some highly-rated soldering flux products for each type:

Rosin Flux

1. Kester 186 Soldering Flux Pen
2. MG Chemicals 835-100ML Liquid Rosin Flux

No-Clean Flux

1. ChipQuik NC191 No-Clean Flux Paste
2. MG Chemicals 8341 No Clean Flux Pen

Water-Soluble Flux

1. Kester 2331-ZX Water Soluble Liquid Flux
2. MG Chemicals 8341-10ML Water Soluble Flux Pen

FAQs About Soldering Flux

Q1: Can I use the same flux for all my soldering projects?

A: While it’s possible, it’s not always ideal. Different projects may benefit from different flux types. For general hobby use, a good rosin flux can cover most needs.

Q2: How do I clean rosin flux residue?

A: Isopropyl alcohol (IPA) is effective for cleaning rosin flux. Use a brush or lint-free cloth dampened with IPA to gently scrub the residue away.

Q3: Is it necessary to remove no-clean flux?

A: No-clean flux is designed to be left on the board. However, in some high-reliability applications, it may still be cleaned for aesthetic or functional reasons.

Q4: Can water-soluble flux damage my electronics if not cleaned properly?

A: Yes, water-soluble flux can be corrosive if left on the board. It’s crucial to clean it thoroughly with water and ensure the board is completely dry afterward.

Q5: How long can I store soldering flux?

A: Most flux has a shelf life of 1-2 years when stored properly in a cool, dry place. Always check the manufacturer’s recommendations.

Conclusion

Choosing the right soldering flux is a crucial step in ensuring successful and reliable solder joints. Each type of flux – rosin, no-clean, and water-soluble – has its own strengths and ideal use cases. By understanding these differences, you can make an informed decision based on your specific needs, whether you’re working on a hobby project or professional electronics assembly.

Remember to always prioritize safety when working with flux, and don’t hesitate to experiment with different types to find what works best for your soldering style and projects. With the right flux and proper technique, you’ll be well on your way to creating strong, reliable solder connections in all your electronic endeavors.
