In the world of electronics manufacturing, printed circuit boards (PCBs) are the backbone of nearly every device we use. During the assembly process, a substance called flux plays a crucial role. However, once its job is done, removing flux becomes essential for the longevity and performance of the PCB. This comprehensive guide will walk you through the process of how to clean flux off PCB effectively and safely.

Introduction

What is flux, and why is it used in PCB assembly?

Flux is a chemical cleaning agent used in the soldering process. Its primary purpose is to remove oxides from the metal surfaces being soldered, ensuring a strong and reliable connection. Flux also helps to prevent new oxides from forming during the soldering process, which could weaken the joint.

Why removing flux residue matters for PCB performance and longevity

While flux is essential during assembly, leaving it on the PCB can lead to various issues. Flux residue can attract moisture, dust, and other contaminants, potentially causing short circuits, corrosion, or other damage over time. That’s why learning how to clean flux off PCB is a critical skill for anyone involved in electronics manufacturing or repair.

The Importance of Removing Flux

Understanding why we need to clean flux is crucial before diving into the methods. Let’s explore the main reasons:

Ensures long-term reliability of circuits

Flux residue can degrade over time, potentially causing electrical leakage between traces or components. By removing flux, you ensure that the circuit maintains its intended electrical characteristics, leading to more reliable and longer-lasting electronics.

Improves PCB appearance and professionalism

A clean PCB not only functions better but also looks more professional. This is particularly important for products that may be inspected by customers or during quality control processes.

Prevents corrosion and component damage

Some types of flux, especially if left on the board for extended periods, can become corrosive. This can lead to damage of both the PCB itself and the components soldered to it. Regular and thorough flux cleaning can prevent this type of damage.

Reduces risk of conductive dendritic growth

Dendritic growth occurs when metal ions migrate between conductors, forming small, tree-like structures. This can eventually lead to short circuits. Flux residue can exacerbate this problem, making proper cleaning essential for preventing such issues.

Flux Removal Methods

Now that we understand the importance of cleaning flux, let’s dive into the various methods you can use to effectively clean flux off PCB.

Isopropyl Alcohol (IPA) Cleaning

Isopropyl alcohol, often abbreviated as IPA, is one of the most common and effective solvents for cleaning flux. It’s relatively safe to use and evaporates quickly, leaving no residue.

Step-by-step instructions

  1. Pour a small amount of IPA into a clean container.
  2. Dip a soft-bristled brush (like an old toothbrush) into the IPA.
  3. Gently scrub the areas of the PCB where flux residue is present.
  4. Pay extra attention to areas around solder joints and components.
  5. Use a lint-free cloth or paper towel dampened with IPA to wipe away the loosened flux.
  6. Allow the PCB to air dry completely before powering it on.

Advantages and limitations

Advantages:

  • Readily available and affordable
  • Effective for most types of flux
  • Evaporates quickly, leaving no residue

Limitations:

  • May not be effective for all types of flux, especially no-clean varieties
  • Can potentially damage certain types of plastics or labels on components
  • Not suitable for large-scale cleaning operations

Ultrasonic Cleaning

PCB Cleaning
PCB Cleaning

Ultrasonic cleaning is a more advanced method that uses high-frequency sound waves to create tiny bubbles in a cleaning solution, which then implode, creating a scrubbing effect at a microscopic level.

How ultrasonic cleaners work for flux removal

  1. The PCB is placed in a tank filled with a specialized cleaning solution.
  2. Ultrasonic waves create cavitation bubbles in the liquid.
  3. These bubbles implode, creating microscopic “scrubbing” actions.
  4. The implosions dislodge and remove flux residue from even hard-to-reach areas.

Best practices for effective cleaning

  1. Use a cleaning solution specifically designed for electronics and flux removal.
  2. Ensure the PCB is fully submerged in the solution.
  3. Set the ultrasonic cleaner to the appropriate frequency and time (usually 3-5 minutes).
  4. After cleaning, rinse the PCB with deionized water.
  5. Dry the PCB thoroughly using compressed air or a low-temperature oven.

Water-Soluble Flux Removal

Water-soluble flux is designed to be easily removed with water, making the cleaning process simpler in some ways. However, it requires its own specific approach.

Step-by-step process

  1. Prepare a container with warm (not hot) deionized water.
  2. Submerge the PCB in the water.
  3. Gently agitate the board to help dissolve the flux.
  4. For stubborn residue, use a soft brush to scrub lightly.
  5. Rinse the PCB thoroughly with clean, deionized water.
  6. Dry the PCB completely using compressed air or a low-temperature oven.

Key precautions to avoid damage

  • Use only deionized water to prevent mineral deposits.
  • Ensure thorough drying to prevent water-related damage or corrosion.
  • Be cautious with water-sensitive components; consider protecting them before cleaning.

Alternative Cleaning Methods

While IPA, ultrasonic, and water cleaning are the most common methods, there are several other techniques you can use to clean flux off PCB:

Brush cleaning (manual scrubbing)

For small areas or spot cleaning, manual scrubbing with a brush can be effective:

  1. Use a soft-bristled brush (like an old toothbrush).
  2. Apply a small amount of appropriate cleaning solution.
  3. Gently scrub the area with flux residue.
  4. Wipe clean with a lint-free cloth.

Soaking in specialized solvents

Some fluxes may require specialized solvents for effective removal:

  1. Choose a solvent appropriate for your flux type.
  2. Submerge the PCB in the solvent for the recommended time.
  3. Agitate gently to help loosen residue.
  4. Remove and rinse with IPA or deionized water.
  5. Dry thoroughly before use.

Ion cleaning for sensitive components

Ion cleaning uses ionized gas to remove contaminants:

  1. Place the PCB in an ion cleaning chamber.
  2. The chamber creates a plasma field that breaks down and removes flux residue.
  3. This method is particularly gentle and effective for sensitive components.

Oxidation and dry ice cleaning (advanced techniques)

These methods are typically used in industrial settings:

  • Oxidation cleaning uses chemical reactions to break down flux residue.

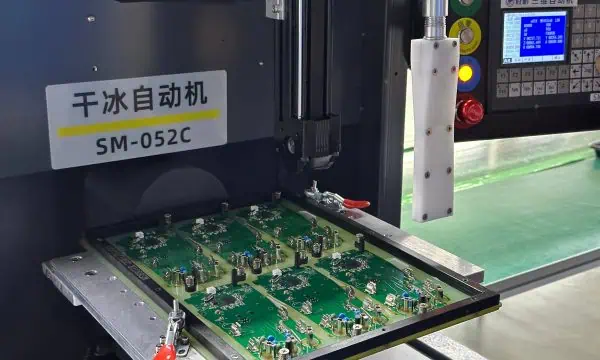

  • Dry ice cleaning blasts small pellets of CO2 to remove contaminants without leaving any additional residue.

Read more about:

Special Cases & Considerations

How to handle excessive flux buildup

When dealing with excessive flux:

  1. Start with a more aggressive cleaning method, like ultrasonic cleaning.
  2. Follow up with manual scrubbing for stubborn areas.
  3. Use a combination of methods if necessary.
  4. Consider a longer soak time in appropriate solvents.

Can You Use Acetone for Flux Removal?

Acetone is a powerful solvent that can be effective for flux removal, but it comes with significant risks.

Pros and cons of acetone

Pros:

  • Highly effective at dissolving many types of flux
  • Evaporates quickly, leaving no residue

Cons:

  • Can damage many types of plastics and coatings
  • Highly flammable and has strong fumes
  • May be too aggressive for some PCB materials

Safety measures when using harsh chemicals

If you decide to use acetone or other harsh chemicals:

  1. Work in a well-ventilated area.
  2. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
  3. Use only in small quantities and for spot cleaning.
  4. Test on a small, non-critical area first.
  5. Dispose of used acetone properly according to local regulations.

Best Practices for Effective Flux Removal

To ensure you’re cleaning flux off PCB effectively and safely, follow these best practices:

Selecting the right method based on flux type (rosin, no-clean, water-soluble)

  • Rosin flux: Often responds well to IPA or specialized solvents.
  • No-clean flux: May require stronger solvents or ultrasonic cleaning.
  • Water-soluble flux: Can be removed with water-based methods.

Always check the flux manufacturer’s recommendations for the best cleaning method.

Essential safety precautions (ventilation, PPE, handling solvents)

  1. Work in a well-ventilated area or use a fume extractor.
  2. Wear appropriate PPE, including gloves and eye protection.
  3. Handle solvents carefully and keep them away from heat sources.
  4. Follow proper disposal procedures for used cleaning materials.

Recommended tools and materials for cleaning

  • Soft-bristled brushes
  • Lint-free cloths
  • Isopropyl alcohol (99% purity)
  • Specialized flux removal solvents
  • Ultrasonic cleaner (for larger operations)
  • Compressed air for drying
  • Deionized water

Common Mistakes to Avoid

When learning how to clean flux off PCB, be aware of these common pitfalls:

Using abrasive or incompatible cleaning agents

Avoid using abrasive materials or cleaning agents not designed for electronics. These can damage the PCB or components.

Over-cleaning (damaging components) or under-cleaning (residue left behind)

Find the right balance:

  • Over-cleaning can lead to component damage or PCB degradation.
  • Under-cleaning can leave harmful residue behind.

Inspect your work carefully and clean only as much as necessary.

Disregarding PCB manufacturer guidelines

Always check and follow the PCB manufacturer’s cleaning recommendations. They may have specific guidelines based on the materials and components used.

Conclusion

Recap of why proper flux removal is critical

Cleaning flux off PCB is a crucial step in ensuring the longevity, reliability, and performance of electronic devices. By removing flux residue, you prevent potential issues like corrosion, short circuits, and dendritic growth.

Final tips for efficient and safe PCB cleaning

  1. Always identify the type of flux before cleaning.
  2. Choose the appropriate cleaning method for your specific situation.
  3. Prioritize safety by using proper PPE and working in a well-ventilated area.
  4. Inspect your work thoroughly after cleaning.
  5. Allow PCBs to dry completely before powering them on.

Additional Resources

Recommended flux cleaning products (brands, solvents, tools)

  • MG Chemicals 4140 Flux Remover for Electronics
  • Chemtronics Flux-Off No Clean Plus
  • TechSpray G3 Flux Remover
  • AIM Solder’s No-Clean Flux Remover

Further reading on PCB maintenance and troubleshooting

  • IPC-CH-65B Guidelines for Cleaning of Printed Boards and Assemblies
  • “Troubleshooting Electronic Circuits: A Guide to Learning Analog Electronics” by Ronald Quan
  • Online forums like EEVblog for community support and advice

By following this comprehensive guide on how to clean flux off PCB, you’ll be well-equipped to maintain and repair electronic devices effectively. Remember, proper flux removal is not just about cleanliness—it’s about ensuring the long-term reliability and performance of your electronic projects.
