Role and Future of Graphite Circuit Board in Electronic Industry

Can a graphite pen be used to complete an LED board? Discover the conductive qualities of graphite as well as create your own illuminated pattern! Both children and adults will find this quick and simple scientific experiment to be enjoyable.

While it is not a strong conductor, graphite seems to be semi-conductive and must conduct electricity. Nothing would probably happen if the circuit board is already complete, filled with soldered electronic components, and then dusted with graphite. The route of least resistance, rather than the organized arrangement of the circuit traces and the precise order and polarity of the electronic components with which they link, would be taken by many components if the voltage source were also turned on, causing many of them to short out right away. The board would probably “die” if one critical component, such as a divider or voltage regulator, had its pins shorted.

Why Synthetic Graphite Circuit Board?

For Boards with microwave devices and medium-power RF installed on them, synthetic graphite provides considerable weight reductions and advantages in terms of heat control. It can effectively disperse heat in the X-Y axis out to the board’s edge, where it can be retrieved using clamps and directed against the cool wall. As a result, semiconductor devices may run at far lower stable temperatures, which can lengthen the duration between failures for such devices.

With densities of 2.0 g/cm3 – 2.1 g/cm3, or one-quarter that of copper, synthetic graphite possesses good in-plane heat conductivity that ranges from 1500 W/mK – 1600 W/mK, or nearly four times that of copper. In conclusion, it is four times lightweight and more effective at transferring heat than copper.

It is delivered normally on a carriage and in thin layers with a self-adhesive covering that range in thickness from 10 m to 40 m. It does a great job of spreading heat over its spans like X and Y. The Z, third dimension, whereby z-plane conductance is around 5 W/mK bottom along through thickness of a Printed Circuit Board, is substantially worse for heat transmission.

Step-By-Step Tutorial for Graphite Circuit Board

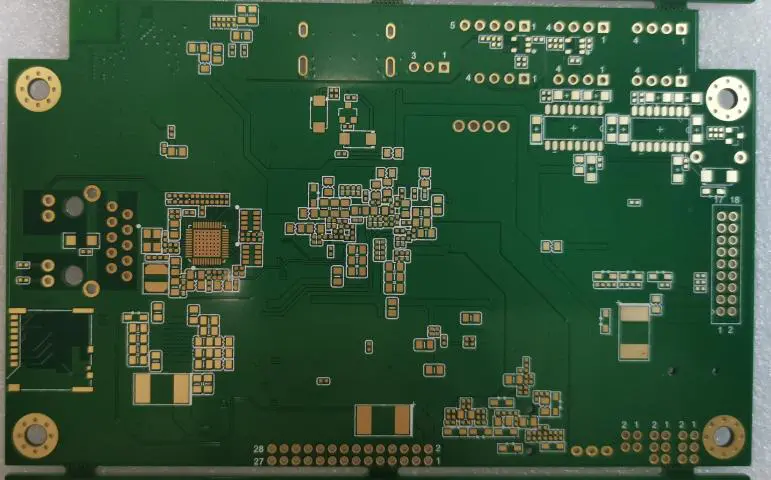

prototype-circuit-board
  1. Draw a design you choose on your paper using the graphite pencil. Tip: Use a broad, bold line with the pencil to draw a basic picture in which all the elements are connected.
  2. Leave a minimum of 1 cm between the opposing ends of the drawing. Draw both negative and positive lines on the paper.
  3. After you’re finished, put the battery in any of the spaces in your design. Align the graphite marks with the negative and positive ends.
  4. Grab one LED, and bend both wires’ bottom ends.
  5. Aligning both negative and positive wires, wrap the cable at the tip of the lines over the other opening. Ensure that your LED is standing straight. The wires and graphite lines ought to be in touch.

Graphite Embedding Circuit Board

Heat is effectively conducted away from working components using RayPCB technique of inserting small sheets of synthesized graphite inside the microwave and RF Boards. The manufacturer claims that synthetic graphite transmits heat in the X-Y plane four times more effectively and is four times thinner than copper.

In many aeronautical, military, and space devices where power, weight, and size are crucial factors, heat control is a major challenge. In addition to reducing weight and size, inserting graphite into a PCB’s structure also enables performance at a cooler stable state, extending the lifespan of semiconductor components.

RayPCB discovered that devices operated at approximately 20°C temperature when graphite ground plane layers were used in place of PCB copper layers of the ground plane. It showed that, for 100-mm route lengths in both microstrips and straplines, graphite-plane panels had a negligible effect on the transmission of signals over ground layers, with an influence compared with fewer than 2 dB.

Thin sheets of synthetic graphite, normally provided, including a self-adhesive covering as well as a carrier, are offered in thicknesses that range from ten m to 40 m.

What Is The Future Of Graphite Circuit Board?

FULL PCB MANUFACTURING Quote

Researchers hoped to employ graphene as a novel transistor material, a concept that has long puzzled the scientific community. Since graphene seems to have a 0% bandgap, which corresponds to the energy transfer between the conduction and valence bands in conductors and semiconductors, it was unable to function as a successful transistor material. This changed graphene from a semiconductor to a more fundamental conductor. Yet as recent advancements have shown, scientists have surmounted this obstacle.

Although graphene is regarded as a miracle material, the substance quality varies, as seen by costs. Consequently, a variety of parameters might influence the ultimate application-level outcomes. This comprises circumstances, composition method, and graphene morphology. Although graphene remains in its adolescence, it is beginning to resemble the next wave of electronics.

Conclusion

RayPCB believes that because graphite plane Printed Circuit Boards can operate components at a temperature of 20°C cooler than copper-based boards, they are a viable substitute for copper. When additional layers of the ground plane are used, they generally weigh much less than their copper counterparts. For 100mm route lengths both in microstrip and stripline, they have little effect on the transit of signals in their capacity as of ground planes.

The PCBs are structurally durable, sustain typical manufacturing pressures that arise during production and usage, and sustain the hardships of IPC-650-TM-2.6.8 thermomechanical testing also after five cycles from ambient temperature over 288°C within 10 seconds with really no broken vias or layer deformation.

With just a slight increase in labor and expenditure, they utilize traditional manufacturing methods and function in comparable temperature limitations as conventional PC boards.

There are some limitations brought on by the requirement to preserve integrity. Thus we advise having early conversations with RayPCB to make sure all PCB layouts for manufacturing issues are taken into account.
