What are Voltage Regulator PCB Designs?

Voltage control is a crucial component of power engineering and electronics. For our gadgets to continue working as intended, it is imperative that such voltage magnitude in-between the transmitting and receiving ends of the component stay consistent. Voltage regulation involves the idea of delivering a nearly constant voltage under various load circumstances.

This can relate to active interventions made by the voltage regulating circuit or passive characteristics like the drop in voltage along a distribution and transmission line. We’ll examine voltage control across transmission lines in more detail and go through several active voltage control techniques.

What Does a Voltage Regulator Circuit Mean?

The voltage regulator PCB design work to keep the output voltage constant. This happens despite changes in the load conditions or input voltage. The voltage regulator is often attached to power supply with variable output voltage. Connected to a regulator’s output, more delicate components like digital components, microprocessors, as well as other loads can rely on it to deliver a set voltage.

Also, voltage regulators have been most frequently utilized for the DC to DC conversion. While some also include AC to AC and AC to DC conversion capabilities. Switching and linear voltage regulators are really the two most common types.

Voltage Regulator PCB Design Types

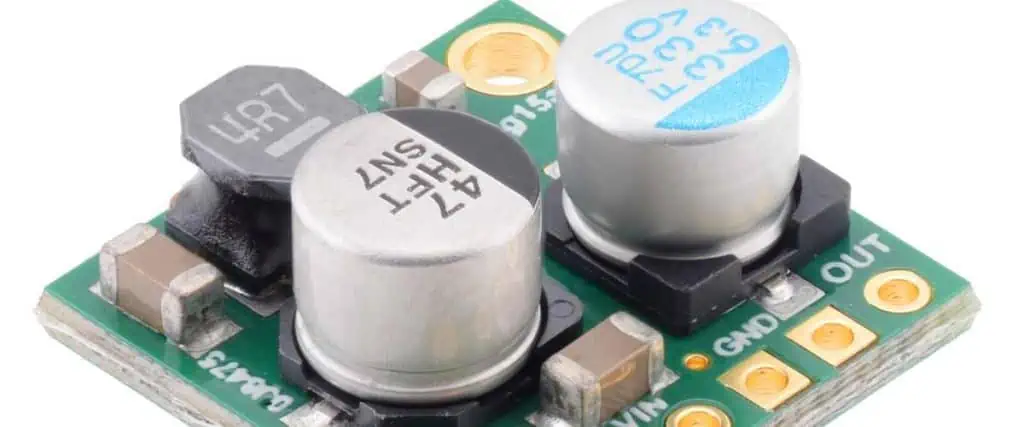

Voltage Regulator PCB
Voltage Regulator PCB

Linear Regulators

An amplifier is used to regulate linear regulators, which employ a FET or BJT to maintain their supply voltage. Also, the amplifier modifies the transistor so as to maintain its consistent output voltage. This is achieved by comparing the regulator’s output voltage to a precise reference.

Output voltage of linear regulators is always reduced. The low dropout regulator can be described as a linear regulator having low drop-out voltages.

Since there isn’t any switching involved, the regulators produce less noise and work best for powering delicate circuits. Switching regulators, on the other hand, are intrinsically noisy since they switch often to maintain their output voltage.

The linear regulators could function with relatively low quiescent currents whenever they are appropriately constructed. Switching regulators employ intricate feedback mechanisms and ultimately consume more quiescent power. Such regulators may exhibit exceptionally high efficiency (90%) when acting as LDOs. Linear regulators have become less expensive and simple to incorporate to any layout. They don’t need a lot of parts or filters.

To assist in controlling its output voltage, the capacitor is typically installed throughout the output volt.

Switching Regulators

Using the power BJT or MOSFET switch, the switching regulator transforms an input Voltage level to a very more steady Dc output. Throughout order to lower switching noise upon that output voltage, every output out of the switching regulator often is filtered. Switch regulators come in three different flavors: These include boost or step-up, buck or step-down, as well as buck-boost (could provide step-down or step-up.

These switching regulators are often more effective since they may operate in either an on or off mode. Also, they can offer 90% or more efficiency, that is very challenging for most linear regulator to achieve unless they have been specifically made to function as LDOs.

This is very helpful when a high voltage is needed for the short time frame (for example, a camera’s backlight).

Because linear regulators become less effective, they typically generate more heat and require a heat sink. Heat sinks are often not required for switching regulators.

How to Select Voltage Regulators for PCB Design


Your PCB would require constant DC voltage for functioning effectively unless you are dealing with an entirely AC system. Regardless of whether the input voltages (line) and output currents (load) fluctuates, the voltage regulator PCB design delivers the required DC voltage having a constant magnitude. Certain power lines were louder than others, and some circuits seem to be more susceptible to electrical changes than others.

Each designer need to be able to select the appropriate voltage regulator of their board. Let us just examine the various DC regulator types and discuss a few things to bear in mind while choosing a voltage regulator PCB Design.

Key Factors to Consider while Selecting Voltage Regulators

How to select the voltage regulators for various applications is a topic I frequently encounter on forums. There isn’t one answer to the query. While searching for the voltage regulator, users should think about the following qualities; be aware that both linear as well as switching regulators fall under these categories:

Output voltage

You must utilize the switching regulators in boost mode if you require a step-up regulator. One regulator is generally employed for every supply when utilizing systems with several suppliers.

Regulators typically provide a constant output voltage, yet there are certain regulators on the marketplace that you can are using some customizable parameters.

Noise versus efficiency

While switching regulators produce more noise compared to linear regulators, they are more efficient. Whenever the regulator delivers a large current, unnecessary electrical noise might disrupt other circuits. It might be more challenging to obtain EMC certification if you wish your products to go on sale. It is preferable to use a linear regulator if other printed circuits on the board require a lot of power, such as components that are solely analog.

Choosing a regulator having excessive power losses might make achieving efficiency targets nearly difficult. Linear regulators are much less loud, but they are highly inefficient (apart from LDO), which means some power gets converted into heat.

Install heat sinks mostly on board whenever your regulator would operate at high currents. The switching regulators could be a preferable choice if there isn’t space on the circuit board for the heat sinks or when power dissipation becomes an issue.

Transient Response

There is a brief spike inside the output whenever the output current fluctuates fast. Before returning to the same voltage, this voltage regulator requires a while. This is referred to as a transitory reaction. Typically, its output capacitance as well as loads current determines its transient response. Its quick transient reaction guarantees that a regulator can supply the necessary power. Search for the required bypass capacitor on the output of the regulator in the component data sheet.

Layout Out Every Circuit Block

Since we can view the complete system architecture, humans can better understand how to arrange every circuit block inside the switching supply of power coupled with the system generally to guarantee safety and low EMI. While designing a circuit board layout, keep in mind the whole block diagram:

Sectional organization: Try to set out the board’s power supply in portions, just like you would other boards having several functional blocks. This is acceptable to carry out this process linearly, moving from either the input into the output throughout their block diagram.

Layout considering feedback: There will occasionally be feedback across sections, like in a precise high current regulator. To fill this ground gap present between each component, use optocouplers.

Follow ground paths for return: “Follow the ground return paths” is arguably the only rule in Circuit board which applies to all designs. Regarding power supplies, it’s crucial for locating potential hot spots for common-mode currents and maintaining low-loop inductance for every supply segment.

Pay close attention to the high voltage and current rails: High voltage as well as high current design are sometimes combined. The minimum distance between both conductors is determined by the greatest potential difference in-between them (see IPC-2221), and the minimum width necessary to maintain low temperature is determined by the current that the conductor carries (check IPC-2152 for the external or internal layers).

What are the Limitations of the Voltage Regulator Circuits?

Voltage regulators have the following drawbacks. Among the primary drawbacks of a voltage regulator PCB design deals with the fact that it is inefficient in certain applications since it dissipates a significant amount of current.

This IC’s voltage drop resembles the voltage drop of resistors. That voltage drop between both terminals, for instance, is 2V whenever the input of the voltage regulator is 5V and its output is 3V. As the regulator’s efficiency may be limited to 3V as well as 5V, such regulators can be used with lesser Vin/Vout differentials.

The projected power dissipation meant for the regulator must be taken into account in every application since high input voltages may result in high power dissipation, which can cause harm to different components due to overheating.

Another drawback is that, in comparison to switching kinds, they can only do buck conversion since these regulators offer both conversion and buck.

Although switching type regulators are very efficient, they have certain disadvantages, including being less cost-effective than linear type regulators, being more complicated, being larger in size, and being more noisy if its outside components are not carefully chosen.

Parameters of Voltage regulator PCB

Output Voltage and Input Voltage

Preferably, you are aware of a range of input voltages as well as the necessary output voltage for the task at hand. Each chip in a voltage regulator is intended to be utilized with a certain output voltage

Dropout Voltage

A dropout can be described as the smallest buffer in-between the input and output voltages. The least 2V dropout would be required, for instance, if you’ve got a 7V input as well as need 5V output. You require a smaller dropout when you think your 7V input would go below 7V.

Every voltage regulator chip’s output voltage and dropout are given. For instance, a variety of dropouts are accessible in the 5V voltage regulator. The  low dropout voltage regulators and even the ultra low voltage regulators would be necessary for circuits having a slight difference in between input voltage and the output voltage.

Device Sensitivity

A particular regulator may be needed to limit noise in very sensitive electronics like cellphones, wireless gadgets, and medical equipment that are battery-powered.

Response Time

The specialty voltage regulator with quick reaction times are accessible for applications like graphics cards, TVs, computers, printers, as well as embedded devices.

Power Draw

By utilizing linear voltage regulators, the differences between the output and input voltages is wasted by being converted to heat. Heat generation is probably not a problem when power use is modest.

Related Questions

What functions do voltage regulators offer?

Any electronic or electrical device that keeps a power source’s voltage within reasonable bounds is known as a voltage regulator. This voltage regulator is required to maintain voltages inside the permitted range that electrical equipment employing that voltage can tolerate.

What signs might point to a malfunctioning voltage regulator?

Signs of a Malfunctioning or Defective Instrument Voltage Regulators include flickering or dim gauges. Flickering or dim gauges are among the initial signs of a voltage regulator problem. Another is irregular or inaccurate readings. Inaccurate or irregular voltage regulator readings and an inoperative instrument cluster are further signs of a voltage regulator problem.

What occurs if a voltage regulator malfunctions?

Even the engine of your automobile might be impacted by a poor voltage regulator. For instance, if this auto component stops functioning correctly, you could notice that the car’s engine occasionally stalls or sputters. While you drive, it can also have problems accelerating.

Do you require voltage regulator PCB designs?

Among the most widely used electrical components, the voltage regulators are probably required in over 90% of devices. The voltage regulator is necessary unless you can power everything directly from battery power or from an external DC/AC adaptor.


If voltage has to be adjusted, voltage regulator boards are often present. For instance, an AC converter in wireless phones might reduce 120 VAC power to 8 VAC. The voltage regulator is then located inside the phone’s base, supplying the necessary DC voltage into the base’s electronics. There may be a DC to DC adapter built inside the phone. This makes use of the voltage regulator in supplying the right voltage for electronics. In summary, we can say that voltage control is a crucial component of power engineering and electronics. For our gadgets to continue working as intended, it is imperative that such voltage magnitude in-between the transmitting and receiving ends of the component stay consistent
